◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11199 - CYZ NEW ZEALAND EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#16129) — 14 parça

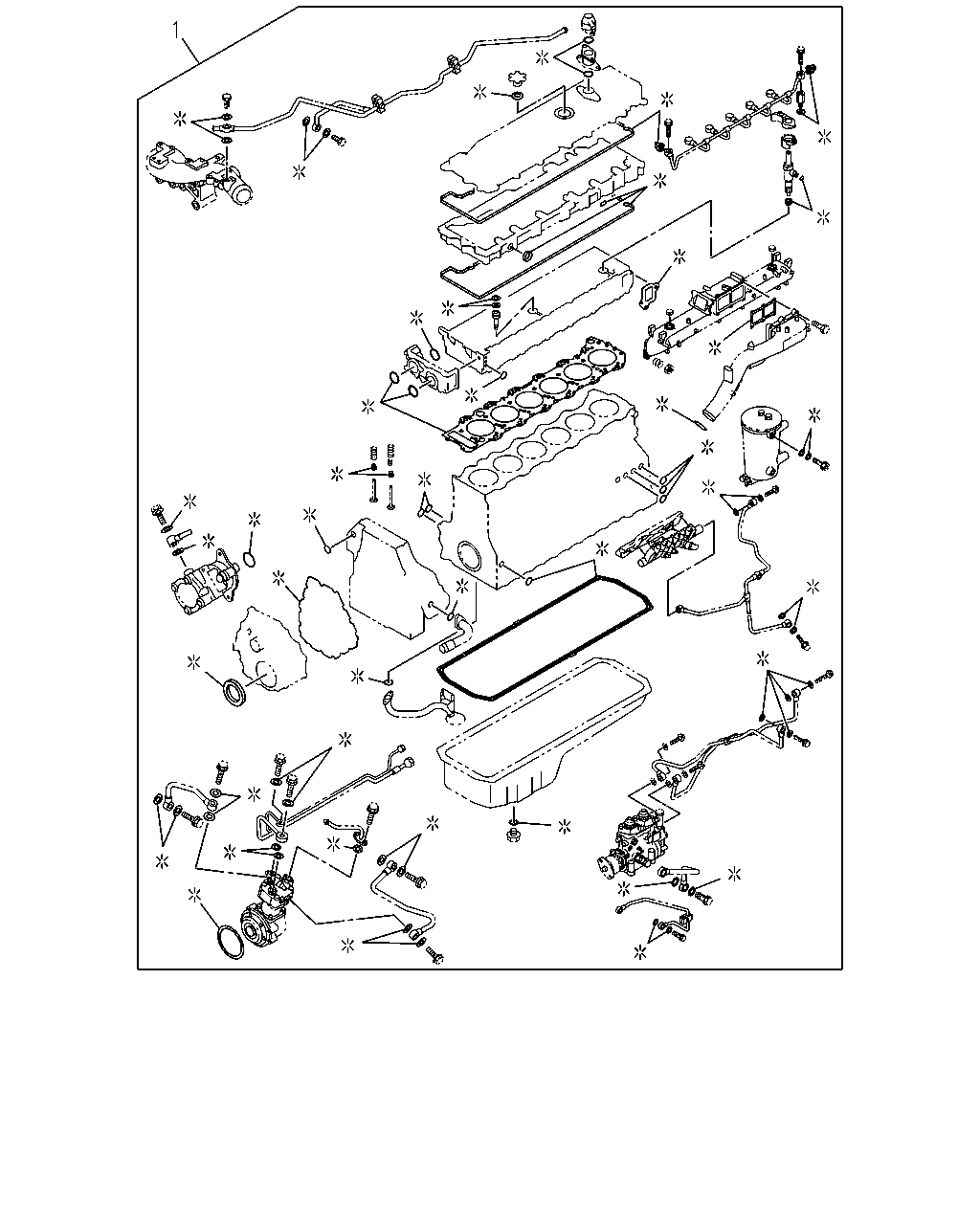

çizim 101995
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0904-1001
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1002-1111
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503-

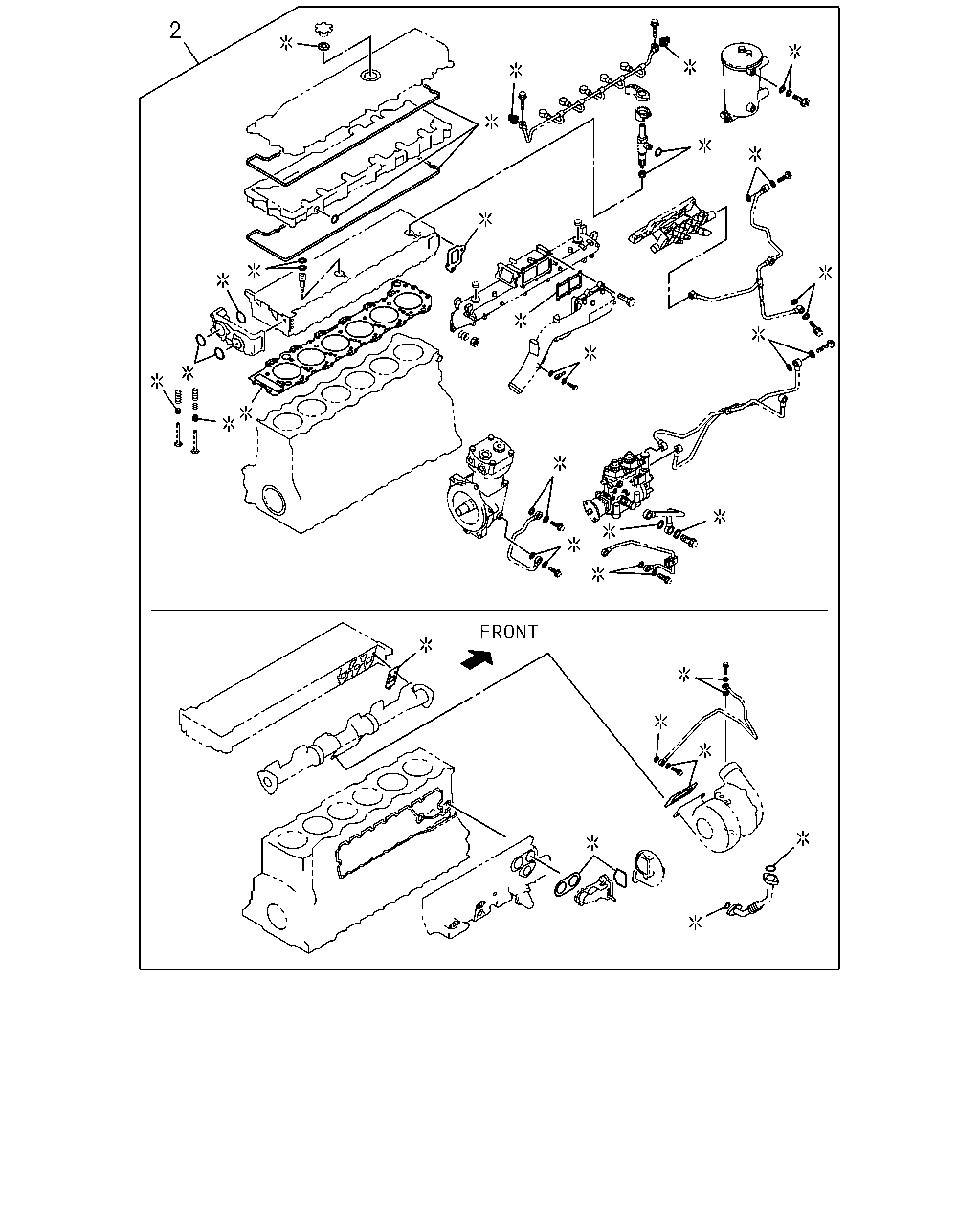

çizim 102025
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL 1-87813-368-3 01 1 0904-1001
2 GASKET SET; ENG HD OVERHAUL 1-87813-566-1 01 1 1002-1111
2 GASKET SET; ENG HD OVERHAUL 1-87813-817-0 01 1 1112-1312
2 GASKET SET; ENG HD OVERHAUL 1-87814-662-0 01 1 1401-

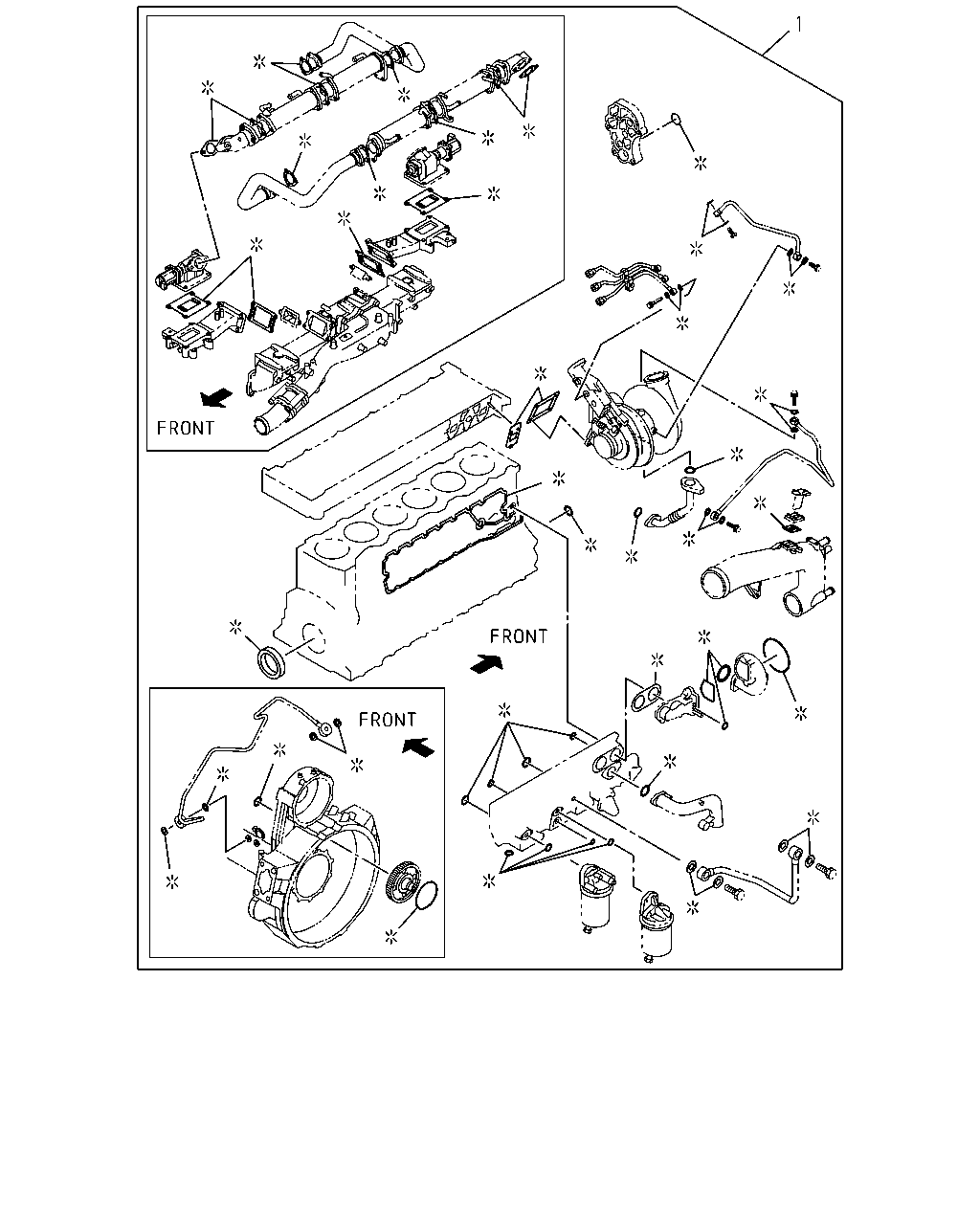

çizim 102027
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0904-1001
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1002-1111
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
