Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#161265) — 282 parça

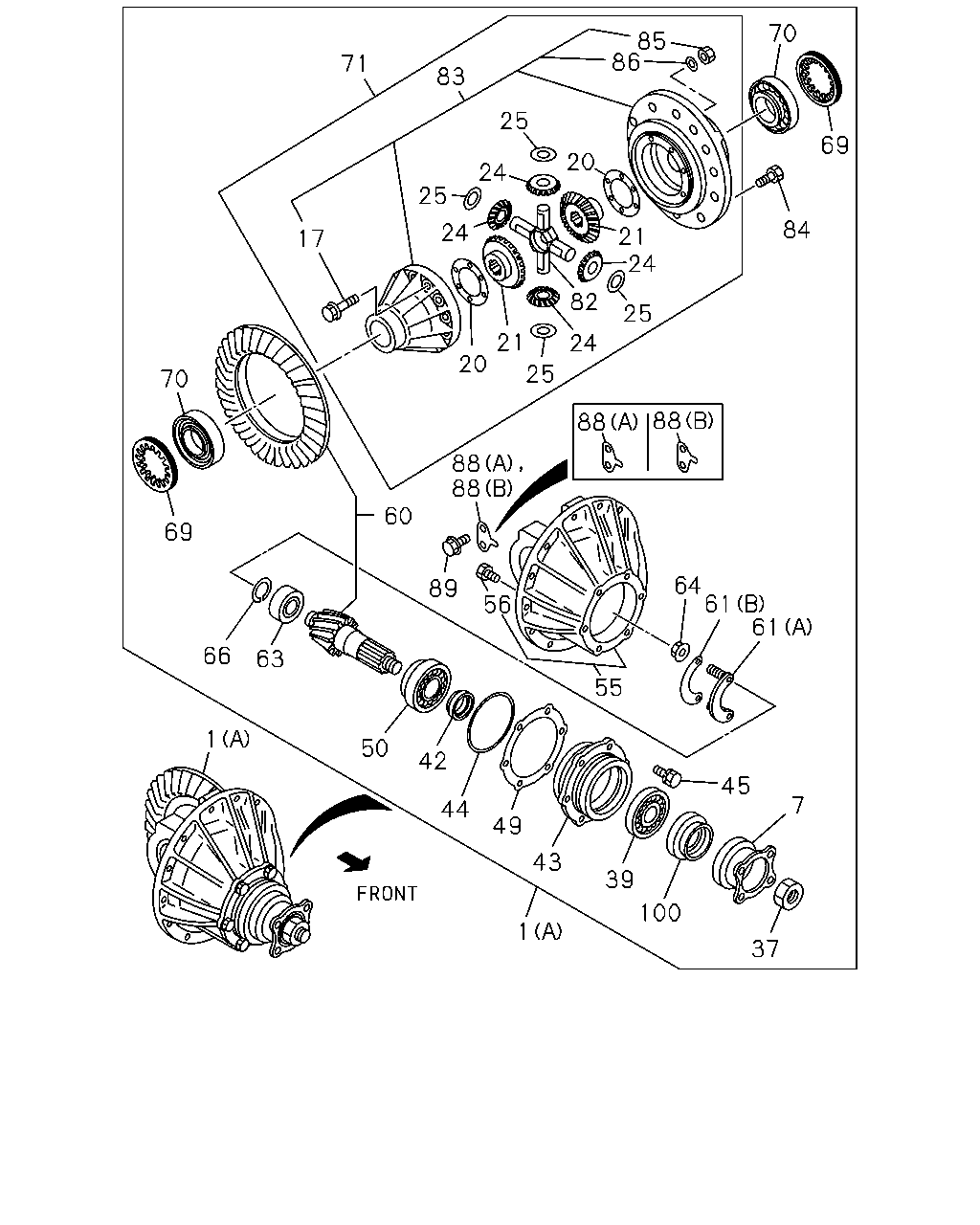

37 7 50 46 43 49 44 42 50 63 66 1 1 100 45 55 61 61 64 88 89 60 88 56 89 70 69 84 70 69 85 83 71 17 20 21 24 24 20 21 82 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR (B) 43/11	8-98015-134-0	01	1	1505-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) (B) 41/9	8-98015-124-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.5-6.0TON(RPU) (B) 41/9	8-98015-137-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1505-			●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) (A) 39/7	8-97388-710-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 39/7	8-97388-710-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-97388-700-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 39/7	8-97388-705-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-97388-705-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-97388-701-0	01	1	1505-			●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1505-	●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ)	8-97073-802-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97073-802-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97047-095-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1)	8-97047-095-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97047-095-2	01	1	1505-			●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1505-	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	1505-			●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12X90	8-98219-448-0	12	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1505-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1505-			●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1505-	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 05.515 Z=20	8-97362-599-1	02	1	1505-			●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) Z=20	8-97362-598-1	02	1	1505-			●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1505-			●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1505-	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1505-			●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1505-			●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1505-	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1505-			●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1505-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1505-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1505-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1505-			●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1505-	●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1505-			●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1505-			●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1505-	●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	1505-			●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1505-			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-			●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1505-			●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1505-	●	●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1505-			●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1505-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	1505-			●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1505-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	1505-			●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	1505-			●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1505-			●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1505-	●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1505-			●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1505-			●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1505-	●	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	1505-			●	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/11	8-97263-251-1	01	1	1505-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1505-			●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1505-			●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1505-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1505-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1505-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1505-			●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1505-			●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT NSK	8-97309-525-0	01	1	1505-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97309-526-0	01	1	1505-	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1505-			●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1505-	●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1505-			●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1505-			●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1505-	●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1505-			●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1505-			●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1505-	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1505-			●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1505-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-180-1	01	1	1505-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW)	8-98015-178-1	01	1	1505-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU)	8-98015-181-1	01	1	1505-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1)	8-97047-100-4	01	1	1505-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97047-099-4	01	1	1505-			●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1505-	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	1505-			●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1505-			●	●
83	05.510 CAGE ASM; DIFF	8-97262-082-2	01	1	1505-	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-398-1	01	1	1505-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1)	8-98219-707-0	01	1	1505-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-98219-705-0	01	1	1505-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1505-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1505-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1505-			●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-	●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-			●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1505-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (C)	8-97027-281-0	AR	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1505-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (D)	8-97027-282-0	AR	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (B) T=2.3	8-97087-821-0	AR	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (A) T=2.3	9-41124-015-0	AR	1	1505-			●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-			●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1505-			●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1505-	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1505-			●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1505-			●	●

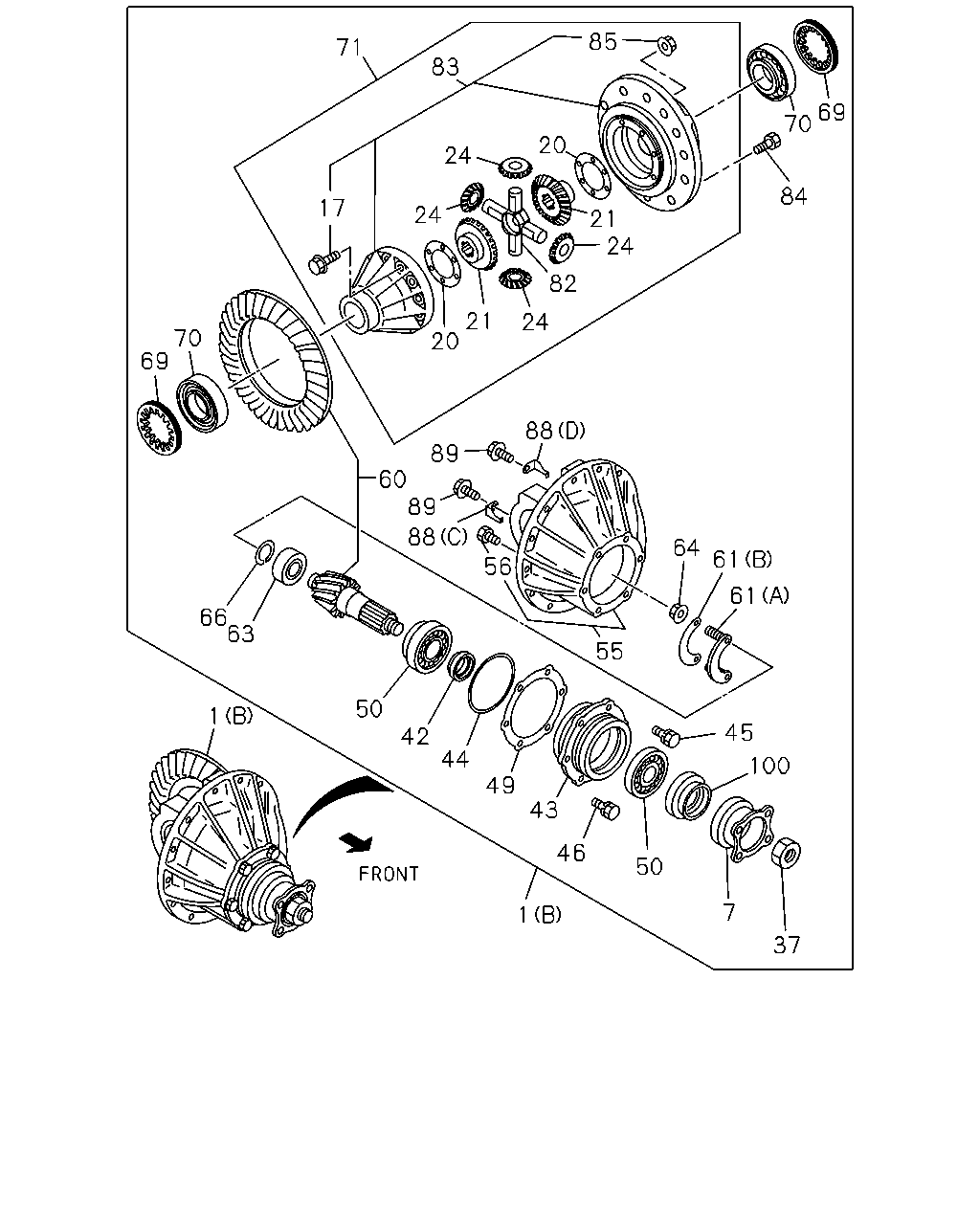

37 7 45 100 39 43 49 1 44 42 50 63 66 69 70 61 61 64 55 56 89 60 88 88 1 84 69 70 85 86 83 71 17 25 24 25 82 24 21 20 25 24 25 20 24 21 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR (B) 43/11	8-98015-134-0	01	1	1505-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) (B) 41/9	8-98015-124-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.5-6.0TON(RPU) (B) 41/9	8-98015-137-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1505-			●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) (A) 39/7	8-97388-710-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 39/7	8-97388-710-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-97388-700-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 39/7	8-97388-705-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-97388-705-0	01	1	1505-			●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-97388-701-0	01	1	1505-			●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1505-	●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ)	8-97073-802-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97073-802-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97047-095-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1)	8-97047-095-2	01	1	1505-			●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97047-095-2	01	1	1505-			●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1505-	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	1505-			●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12X90	8-98219-448-0	12	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1505-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1505-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1505-			●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1505-	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 05.515 Z=20	8-97362-599-1	02	1	1505-			●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) Z=20	8-97362-598-1	02	1	1505-			●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1505-			●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1505-	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1505-			●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1505-			●	●
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	1505-			●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1505-	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1505-			●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1505-			●	●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	1505-			●	●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	1505-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1505-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1505-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1505-			●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1505-	●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1505-			●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1505-			●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1505-	●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	1505-			●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1505-			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-			●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1505-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1505-			●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1505-			●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1505-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	1505-			●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1505-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	1505-			●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	1505-			●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1505-			●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1505-	●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1505-			●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1505-			●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1505-	●	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	1505-			●	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/11	8-97263-251-1	01	1	1505-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1505-			●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1505-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1505-			●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1505-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1505-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1505-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1505-			●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1505-			●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT NSK	8-97309-525-0	01	1	1505-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97309-526-0	01	1	1505-	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1505-			●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1505-			●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1505-	●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1505-			●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1505-			●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1505-	●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1505-			●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1505-			●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1505-	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1505-			●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1505-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-180-1	01	1	1505-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW)	8-98015-178-1	01	1	1505-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU)	8-98015-181-1	01	1	1505-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1)	8-97047-100-4	01	1	1505-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97047-099-4	01	1	1505-			●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1505-	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	1505-			●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1505-			●	●
83	05.510 CAGE ASM; DIFF	8-97262-082-2	01	1	1505-	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-398-1	01	1	1505-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1)	8-98219-707-0	01	1	1505-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-98219-705-0	01	1	1505-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1505-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1505-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1505-			●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-	●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-			●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1505-			●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1505-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (C)	8-97027-281-0	AR	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1505-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (D)	8-97027-282-0	AR	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (B) T=2.3	8-97087-821-0	AR	1	1505-			●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (A) T=2.3	9-41124-015-0	AR	1	1505-			●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-			●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1505-			●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1505-	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1505-			●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1505-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
