4-10 — FRONT AXLE (#161262) — 63 parça

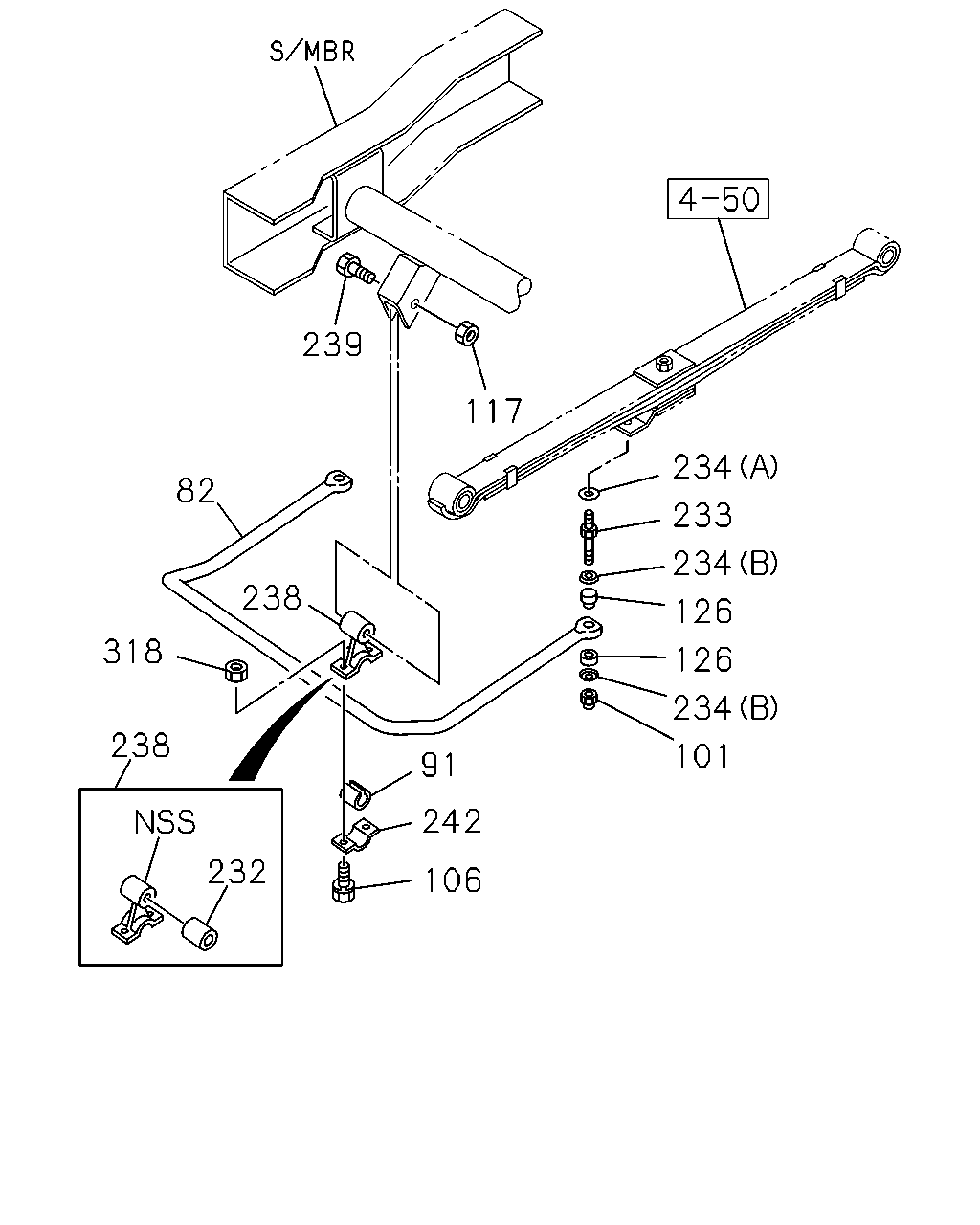

239 117 234 234 233 126 126 234 101 91 242 106 232 238 318 82 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98006-957-0	01	1	1505-	●	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	1505-	●	●	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> M12 LOCK NUT	0-91370-012-0	02	1	1505-	●	●	●	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1505-	●	●	●	●
117	06.174 NUT; STAB BAR BUSHING FRONT STABILIZER SHAFT<F59> M14 FLANGE	8-97360-124-0	02	1	1505-	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-083-0	04	1	1505-	●	●	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	1505-	●	●	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97360-120-0	02	1	1505-	●	●	●	●
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2	0-91510-514-0	02	1	1505-	●	●	●	●
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> (B) ID=12.5	8-97360-055-0	04	1	1505-	●	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	1505-	●	●	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28851-470-0	02	1	1505-	●	●	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	1505-	●	●	●	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-	●	●	●	●

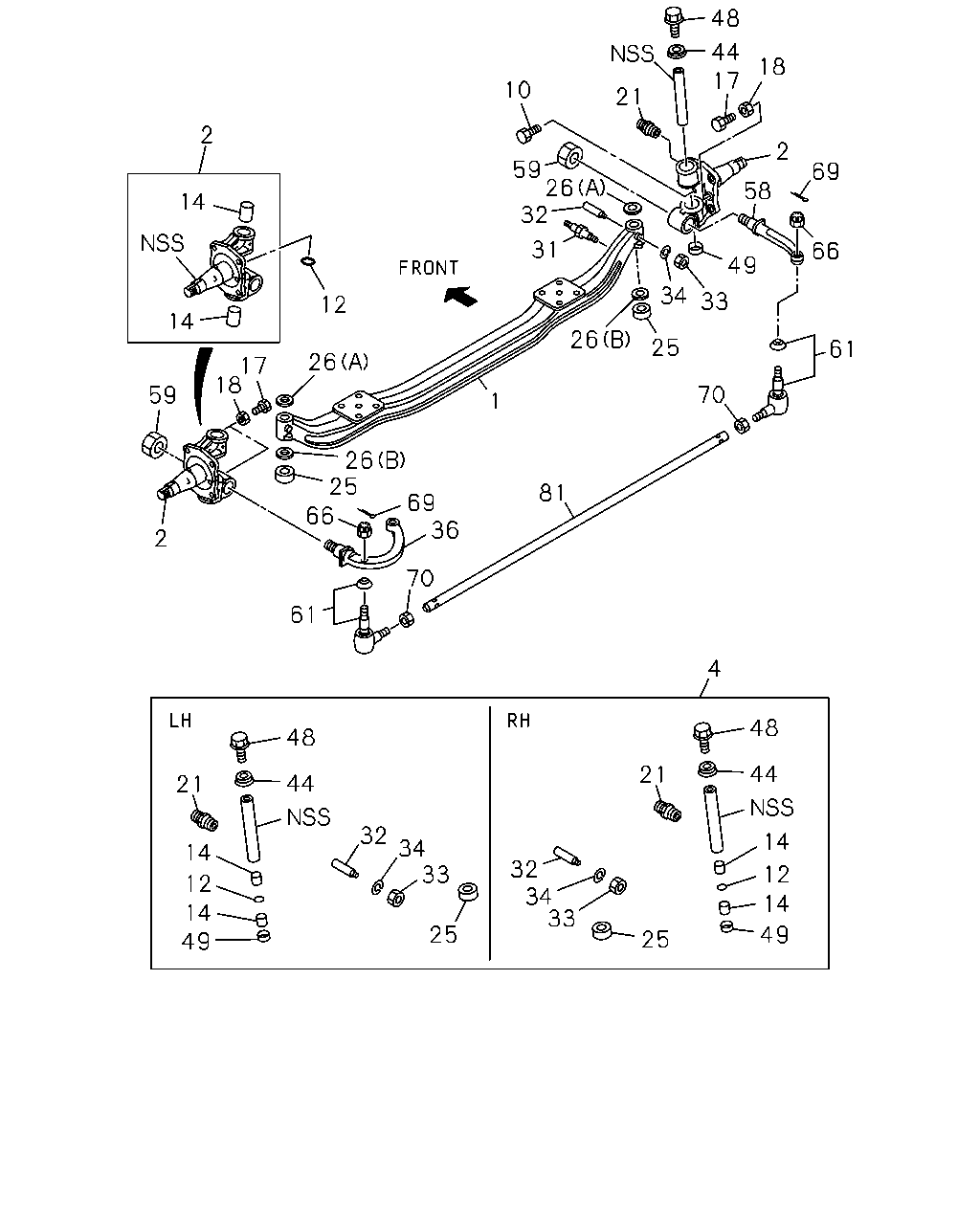

2 14 14 12 26 17 18 59 2 66 26 25 36 69 70 61 81 26 31 32 26 59 10 21 48 17 44 2 18 69 58 66 61 49 33 34 25 70 4 48 44 14 12 14 49 25 34 32 33 25 33 34 32 44 48 21 14 12 14 49 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.008 AXLE; FRT	8-98038-384-3	01	1	1505-	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE	8-98120-606-1	01	1	1505-	●		●
2	06.020 KNUCKLE; FRT AXLE	8-98120-607-1	01	1	1505-	●		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-2	01	1	1505-		●		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-2	01	1	1505-		●		●
4	06.203 KING PIN KIT W/NOTCH	5-87832-252-1	01	1	1505-	●		●
4	06.203 KING PIN KIT FRAME STRAIGHT TYPE<7KJ>	5-87832-220-2	01	1	1505-		●		●
4	06.203 KING PIN KIT EXC. FRAME STRAIGHT TYPE<7KJ>	5-87832-219-2	01	1	1505-		●		●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	1505-	●	●	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	1505-	●	●	●	●
14	06.021 BUSHING; KING PIN W/NOTCH	8-98113-104-0	04	1	1505-	●		●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	1505-		●		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	1505-	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	1505-	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1505-	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN FRAME STRAIGHT TYPE<7KJ> OD=51.6 ID=30.5 T=15.6	8-97141-943-1	01	1	1505-		●		●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	1505-	●		●
25	06.210 BEARING; THRUST,KING PIN EXC. FRAME STRAIGHT TYPE<7KJ> 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	1505-		●		●
25	06.210 BEARING; THRUST,KING PIN FRAME STRAIGHT TYPE<7KJ> 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	01	1	1505-		●		●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1505-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1505-	●		●
26	06.022 SHIM; KING PIN,BRG EXC. FRAME STRAIGHT TYPE<7KJ> 05.460 (B) T=1.95	8-94168-490-0	01	1	1505-		●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	1505-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	1505-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	1505-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	1505-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	1505-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	1505-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	1505-	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	1505-	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-2	02	1	1505-	●	●	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	1505-	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	1505-	●	●	●	●
36	06.103 ARM; KNUCKLE	8-97210-770-5	01	1	1505-	●		●
36	06.103 ARM; KNUCKLE F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97210-770-5	01	1	1505-		●
36	06.103 ARM; KNUCKLE FRAME STRAIGHT TYPE<7KJ>	8-97210-771-5	01	1	1505-		●		●
36	06.103 ARM; KNUCKLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97210-771-5	01	1	1505-		●		●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	1505-	●	●	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	1505-	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	1505-	●	●	●	●
58	06.103 ARM; TIE ROD	8-97147-636-2	01	1	1505-	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	1505-	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	1505-	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	1505-	●	●	●	●
66	06.234 NUT; TIE ROD END 06.216 M16 SLOTTED	8-98049-689-0	02	1	1505-	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	1505-	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	1505-	●	●	●	●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	1505-	●	●	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	1505-	●	●	●	●
