◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#161260) — 577 parça
çizim 475593
136 78 136 44 131 136 237 136 136 136 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (F) 		8-98260-530-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-112-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-114-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98207-022-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-021-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1505- ● ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1505- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1505- ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) 		8-97389-721-1 01 1 1505- ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 04 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1505-1507 ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1505-1507 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1508- ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1505- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-131-0 01 1 1505- ●

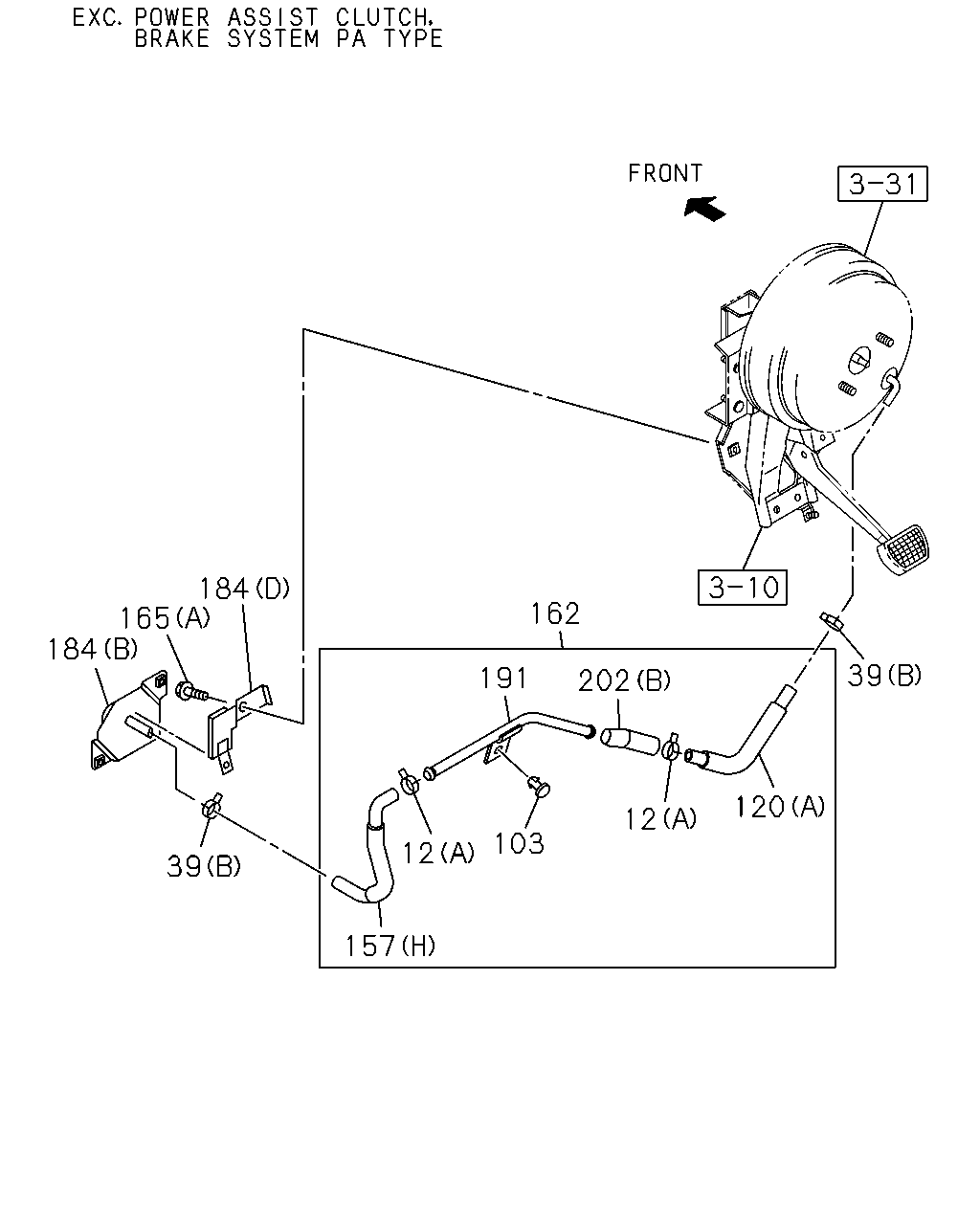

çizim 475723
39 120 12 202 162 191 103 12 157 39 184 165 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1505- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 11 1 1505- ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1505- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98194-488-0 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1505- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (C) 		8-98286-391-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98191-453-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98194-489-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98286-388-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (J) 		8-98286-389-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (K) 		8-98286-390-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98286-392-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 		8-98254-598-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98254-599-0 01 1 1505- ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98156-526-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98183-469-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98255-537-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-541-0 01 1 1505- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1505- ● ● ● ●
çizim 475724
106 106 106 237 136 44 136 136 78 136 136 136 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (F) 		8-98260-530-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-112-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-114-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98207-022-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-021-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1505- ● ● ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 03 1 1505-1507 ●
106 04.930 CLIP; PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 03 1 1505-1507 ●
106 04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 03 1 1508- ●
106 04.930 CLIP; PIPE
4HK1-TCS ENG(RJS) ID=10 H=40 		8-94462-219-0 03 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1505- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1505- ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) 		8-97389-721-1 01 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 04 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1505-1507 ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1505-1507 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1508- ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1505- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-131-0 01 1 1505- ●

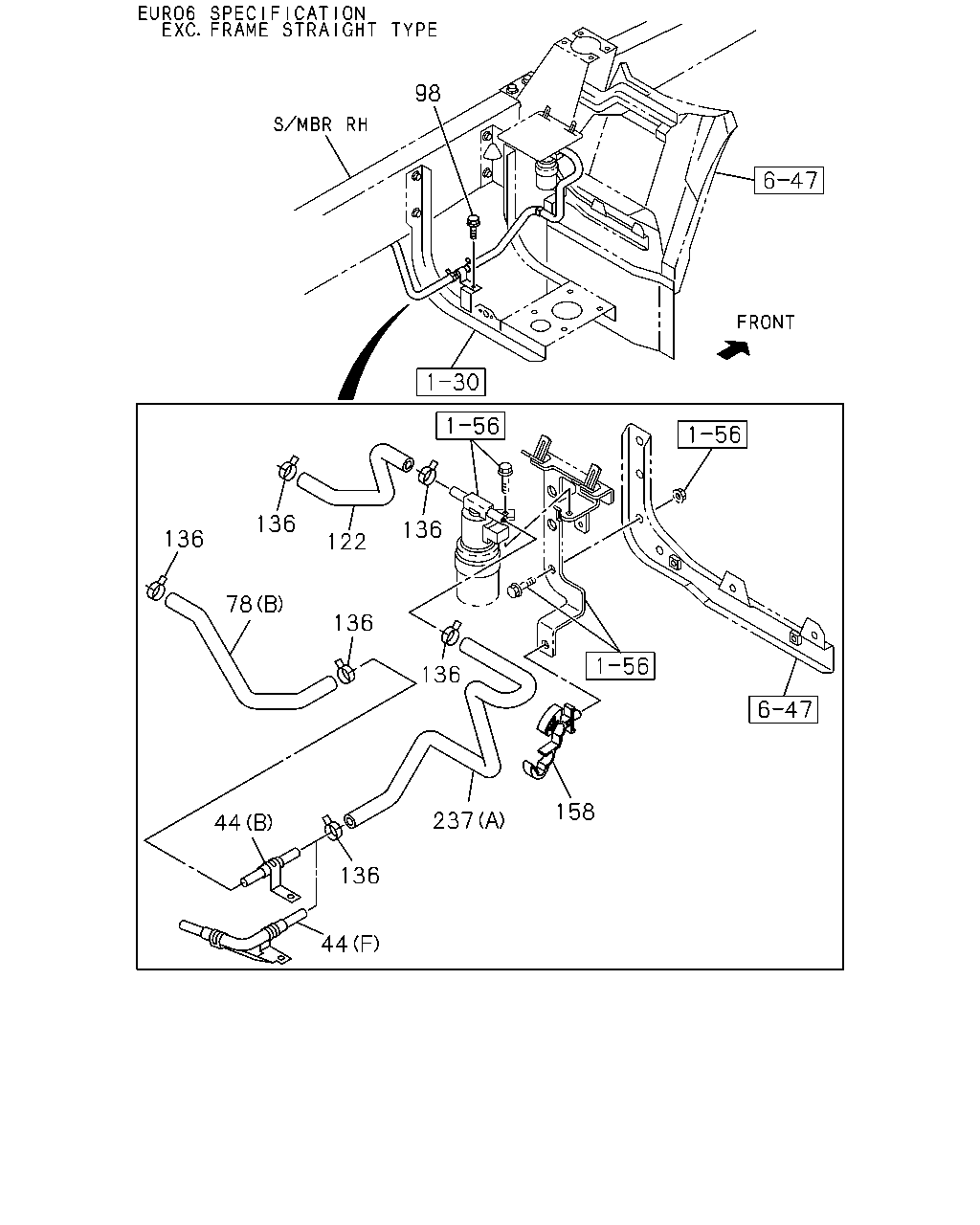

çizim 475726
98 136 122 136 136 78 136 136 158 237 136 44 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (F) 		8-98260-530-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-112-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-114-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98207-022-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-021-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1505- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1505- ● ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1505- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1505- ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) 		8-97389-721-1 01 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 04 1 1508- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1505- ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 ID=14-20 		8-97061-603-0 01 1 1505- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1505-1507 ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1505-1507 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1508- ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1505- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-131-0 01 1 1505- ●
çizim 475746
98 136 136 136 78 136 98 131 122 44 136 136 237 136 44 237 158 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1505- ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (F) 		8-98260-530-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-112-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-114-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98207-022-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-021-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1505- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1505- ● ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1505- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1505- ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) 		8-97389-721-1 01 1 1505- ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1508- ● ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 04 1 1508- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1505- ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 ID=14-20 		8-97061-603-0 01 1 1505- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1505-1507 ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1505-1507 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1508- ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1505- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (C) 		8-98227-131-0 01 1 1505- ●

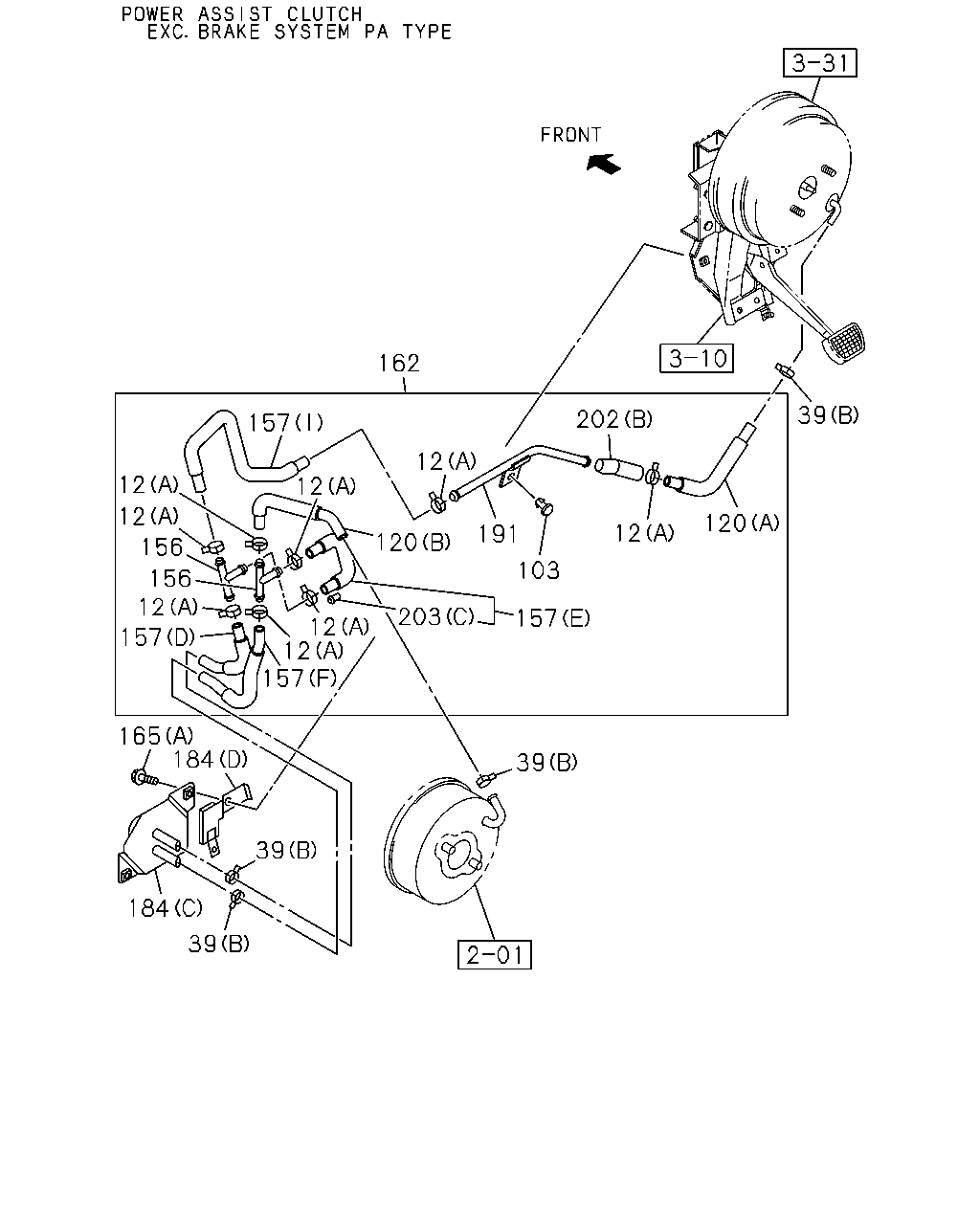

çizim 475789
39 184 39 184 165 39 157 12 12 203 157 103 191 120 12 162 157 12 156 12 12 156 12 157 12 120 39 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1505- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 11 1 1505- ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1505- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98194-488-0 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1505- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (C) 		8-98286-391-0 01 1 1505- ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.681 		8-98035-106-0 02 1 1505- ● ● ●
156 04.931 JOINT; 3 WAY
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 03 1 1505- ● ●
156 04.931 JOINT; 3 WAY
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98191-453-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98194-489-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98286-388-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (J) 		8-98286-389-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (K) 		8-98286-390-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98286-392-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 		8-98254-598-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98254-599-0 01 1 1505- ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98156-526-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98183-469-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98255-537-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-541-0 01 1 1505- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (C) 		8-94386-540-0 01 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-94386-540-0 01 1 1505- ● ● ● ●

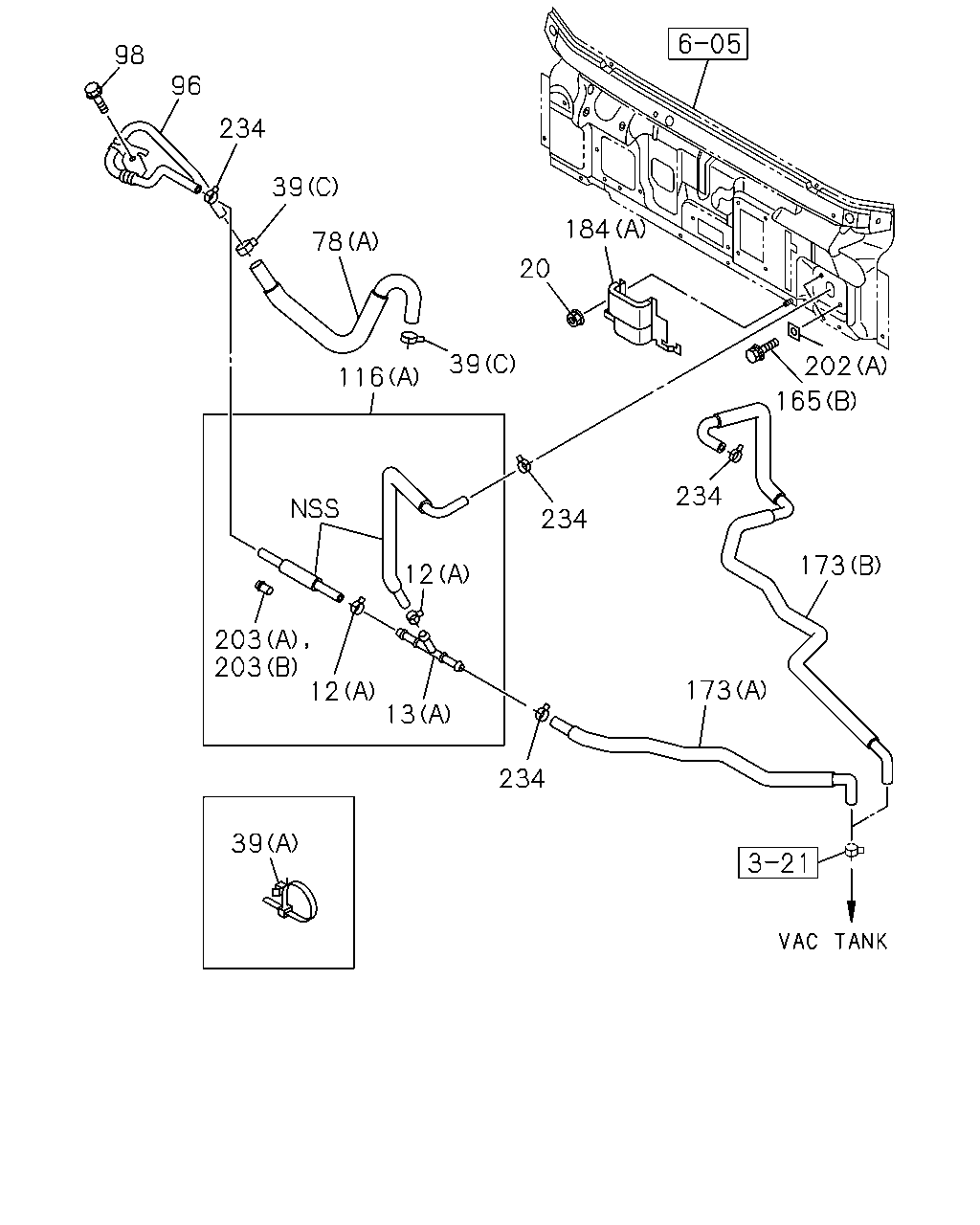

çizim 475855
173 173 234 234 234 13 12 203 203 12 39 116 39 20 184 165 202 78 39 234 96 98
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1505- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 11 1 1505- ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ● ●
13 04.681 JOINT; HOSE,VAC
(A) 		8-98035-106-0 02 1 1505- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98260-486-0 01 1 1505- ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1505- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98207-022-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-021-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1505- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98082-322-0 01 1 1505- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1508- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) (C) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98047-184-2 01 1 1505- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98031-774-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98156-526-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98183-469-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98255-537-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-541-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (C) 		8-94386-540-0 01 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-94386-540-0 01 1 1505- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1505- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1505- ● ● ● ●
çizim 475886
108 235 169 66 66 116 169 116 66 66 33 169 236 66 66 116
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1505- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1505-1507 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1505-1507 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1508- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505- ● ●
108 04.931 GROMMET; PIPE
02.343 ID=17 		8-94128-319-2 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1508- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) (C) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98212-871-0 01 1 1505- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98048-903-0 01 1 1505- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98210-358-0 01 1 1505- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98222-220-0 01 1 1505-1507 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98222-220-0 01 1 1508- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98222-219-0 01 1 1505- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1505- ● ● ● ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
çizim 475941
66 85 66 80 33 33 66 116 66 80 235 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1505- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1505-1507 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1505-1507 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1508- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98056-499-0 01 1 1505-1507 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98056-499-0 01 1 1505-1507 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98056-499-0 01 1 1508- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98103-509-0 01 1 1505-1507 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98103-509-0 01 1 1505-1507 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98103-509-0 01 1 1508- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 1505-1507 ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1505-1507 ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1508- ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 ID=17 		8-94128-319-2 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1508- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) (C) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1505- ● ● ● ●

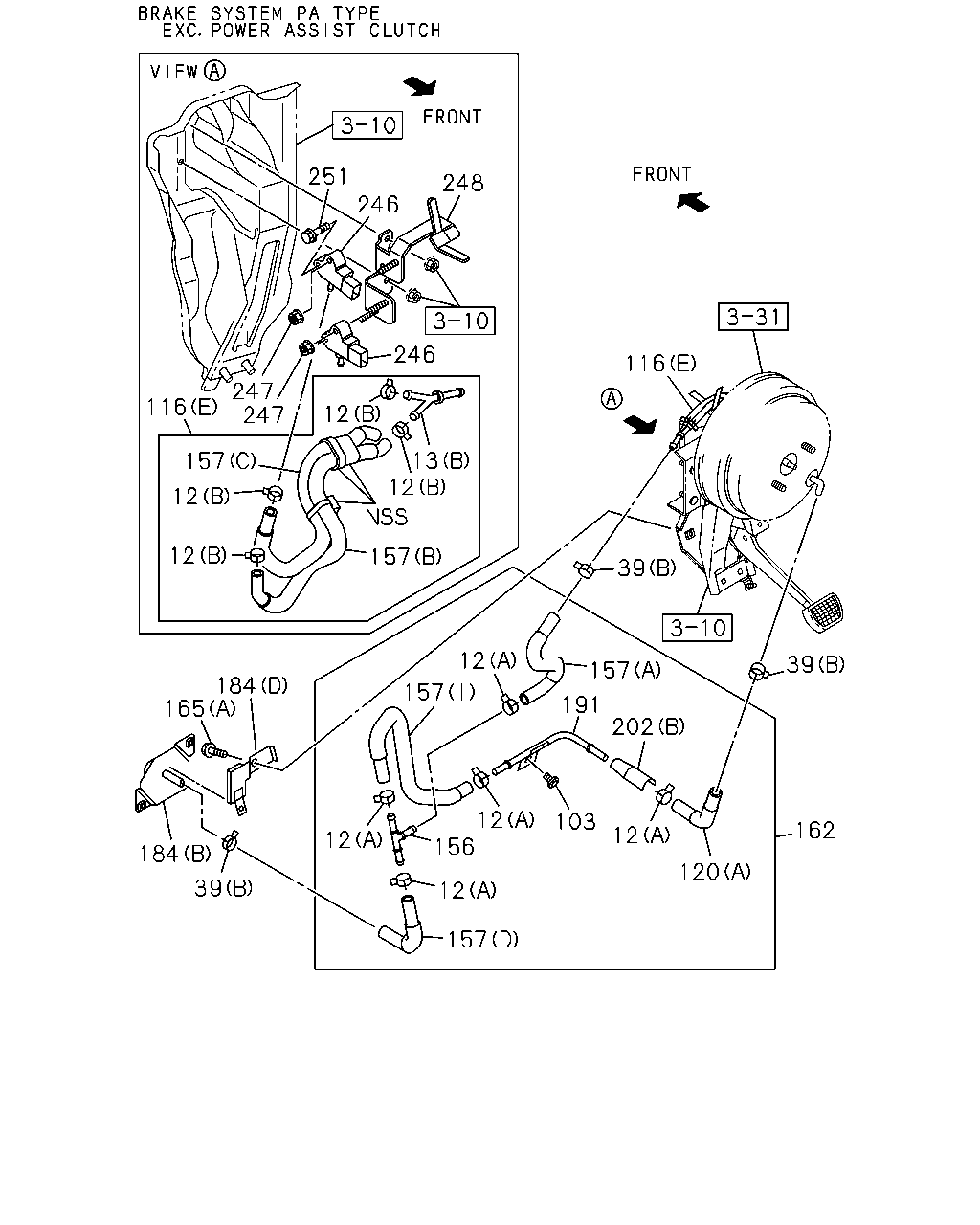

çizim 476560
120 162 12 103 12 156 12 157 12 202 191 157 12 157 39 39 116 39 184 165 184 157 12 13 12 246 12 12 157 116 247 247 248 246 251
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1505- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 11 1 1505- ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ● ●
13 04.681 JOINT; HOSE,VAC
(A) 		8-98035-106-0 02 1 1505- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98260-486-0 01 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1508- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) (C) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98194-488-0 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1505- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (C) 		8-98286-391-0 01 1 1505- ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.681 		8-98035-106-0 02 1 1505- ● ● ●
156 04.931 JOINT; 3 WAY
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 03 1 1505- ● ●
156 04.931 JOINT; 3 WAY
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98191-453-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98194-489-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98286-388-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (J) 		8-98286-389-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (K) 		8-98286-390-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98286-392-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 		8-98254-598-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98254-599-0 01 1 1505- ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98156-526-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98183-469-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98255-537-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-541-0 01 1 1505- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1505- ● ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-415-1 02 1 1505- ●
246 01.150 SENSOR; VAC 8-98241-415-1 02 1 1505- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-416-1 01 1 1505- ●
248 06.672 BRACKET; SENSOR VAC 8-98241-416-1 01 1 1505- ●
251 04.930 BOLT; SENSOR
BRAKE SYSTEM PA TYPE(8BX) 00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
251 04.930 BOLT; SENSOR
00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
çizim 476565
39 120 12 202 191 103 12 12 156 157 157 12 156 157 12 12 12 156 12 203 157 157 12 157 120 12 12 184 165 184 39 39 157 12 12 157 247 247 116 12 13 12 246 162 39 39 116 246 251 248
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1505- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 11 1 1505- ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ● ●
13 04.681 JOINT; HOSE,VAC
(A) 		8-98035-106-0 02 1 1505- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98260-486-0 01 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1505-1507 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1508- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1505- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) (C) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98194-488-0 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1505- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (C) 		8-98286-391-0 01 1 1505- ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.681 		8-98035-106-0 02 1 1505- ● ● ●
156 04.931 JOINT; 3 WAY
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 03 1 1505- ● ●
156 04.931 JOINT; 3 WAY
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(D) 		8-98191-452-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98191-453-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98194-489-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(C) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(B) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(A) 		8-98286-387-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98286-388-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (J) 		8-98286-389-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (K) 		8-98286-390-0 01 1 1505- ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98286-392-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1505- ● ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 		8-98254-598-0 01 1 1505- ● ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98254-599-0 01 1 1505- ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98156-526-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98183-469-1 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98255-537-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1505- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-541-0 01 1 1505- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1505- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (C) 		8-94386-540-0 01 1 1505- ● ● ● ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-94386-540-0 01 1 1505- ● ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-415-1 02 1 1505- ●
246 01.150 SENSOR; VAC 8-98241-415-1 02 1 1505- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-416-1 01 1 1505- ●
248 06.672 BRACKET; SENSOR VAC 8-98241-416-1 01 1 1505- ●
251 04.930 BOLT; SENSOR
BRAKE SYSTEM PA TYPE(8BX) 00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
251 04.930 BOLT; SENSOR
00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
