3-55 — BRAKE PIPING; OIL,REAR (#161258) — 66 parça

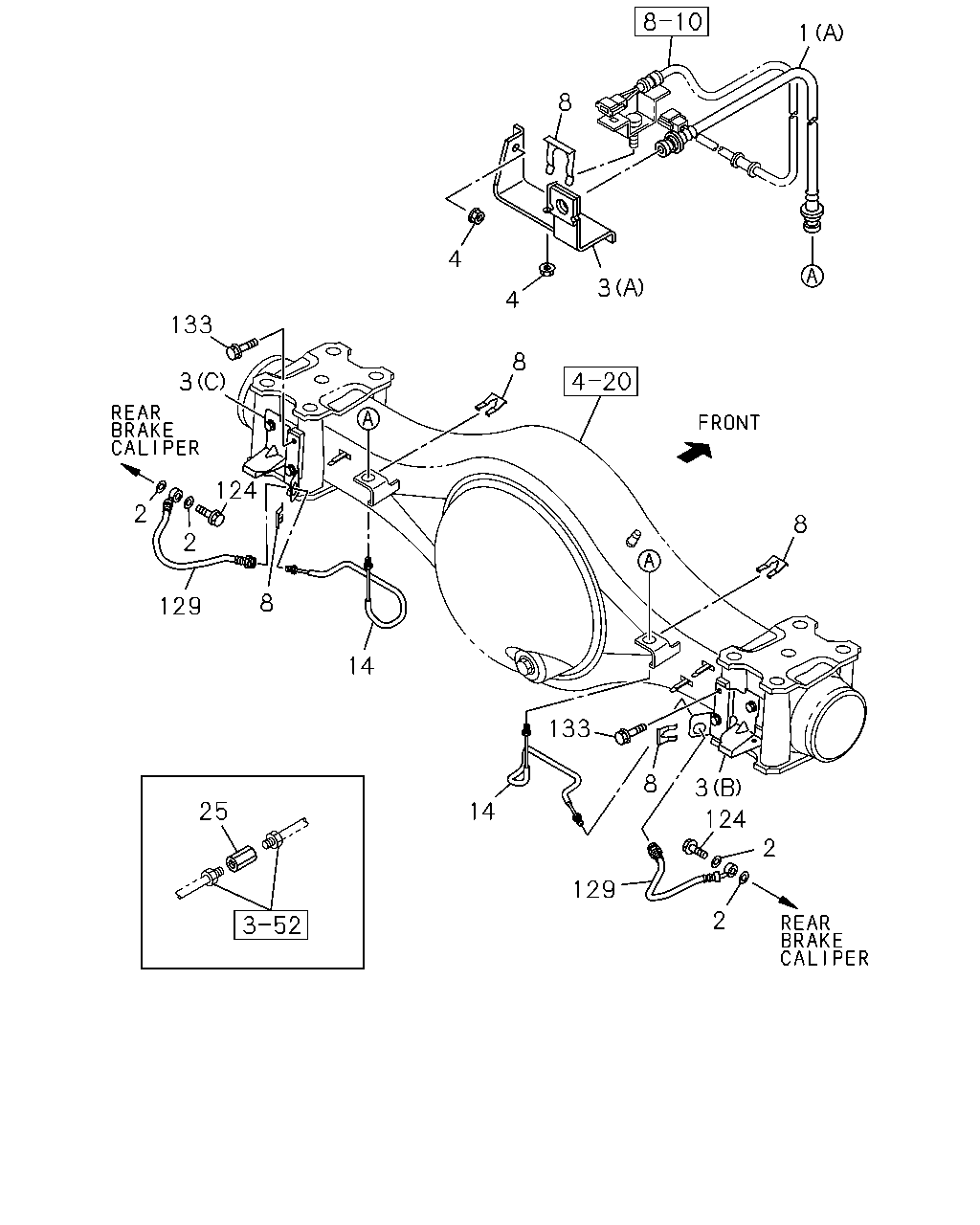

çizim 475902
2 2 124 8 3 129 14 133 14 8 129 25 124 2 2 3 133 8 4 4 3 1 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=310 		8-97035-063-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=345 		8-97230-284-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1505- ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1505- ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1505- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (D) 		8-97205-199-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (D) 		8-97205-199-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98117-514-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98117-514-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1505- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1505- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1505- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1505- ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1505- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-040-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 		8-98026-040-0 01 1 1505- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-462-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 		8-98027-462-0 01 1 1505- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) 		8-98026-045-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) 		8-98026-046-1 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98193-493-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98193-494-0 01 1 1505- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1505- ● ● ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1505- ● ● ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1505- ● ● ● ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1505- ● ● ● ●

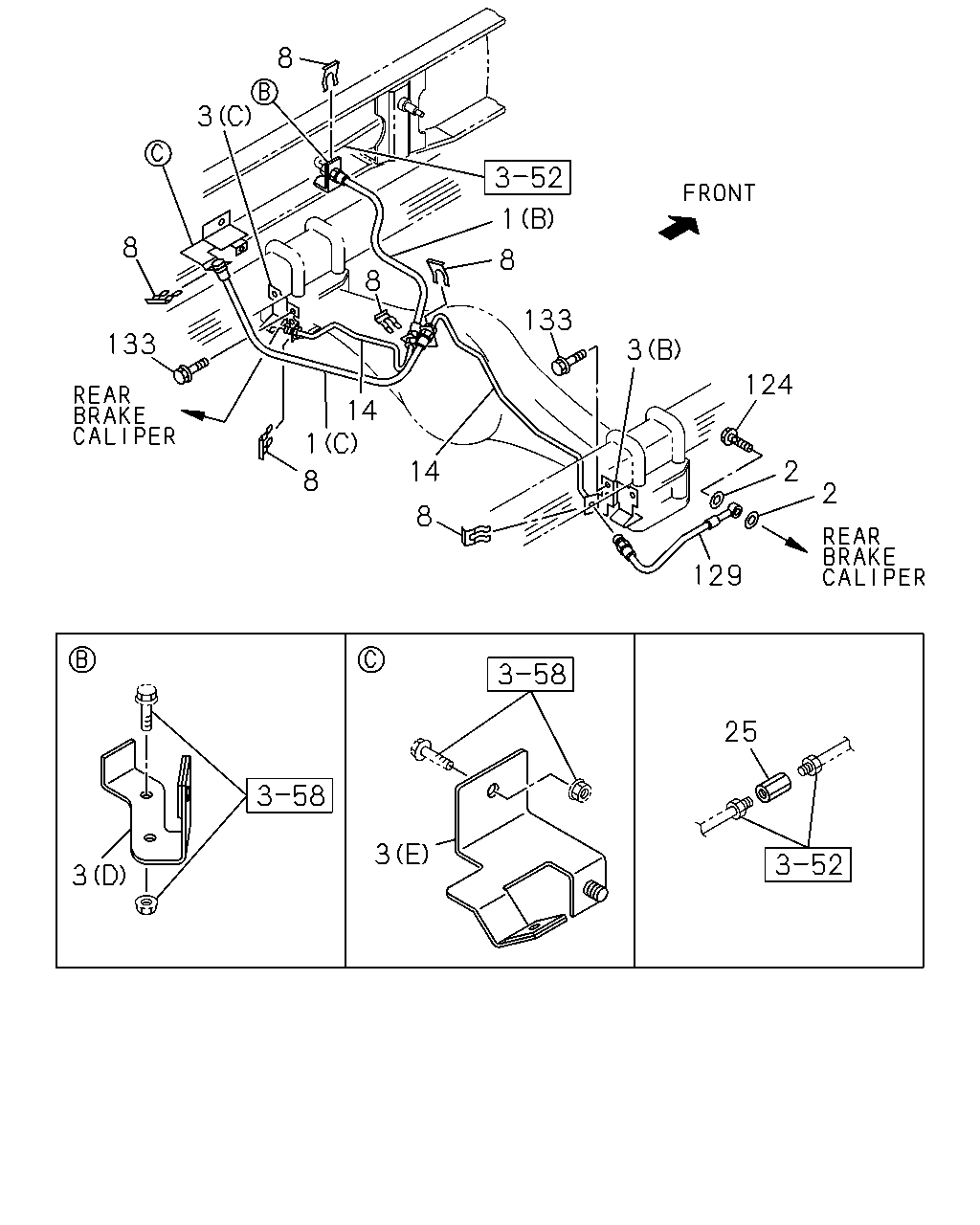

çizim 475922
25 3 3 129 2 124 2 3 133 14 8 8 1 14 133 8 3 8 1 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=310 		8-97035-063-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=345 		8-97230-284-1 01 1 1505-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1505- ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1505- ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1505- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (D) 		8-97205-199-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (D) 		8-97205-199-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98117-514-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98117-514-1 01 1 1505- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1505- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1505- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1505- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1505- ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1505- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-040-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 		8-98026-040-0 01 1 1505- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-462-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 		8-98027-462-0 01 1 1505- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) 		8-98026-045-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) 		8-98026-046-1 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98193-493-0 01 1 1505- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98193-494-0 01 1 1505- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1505- ● ● ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1505- ● ● ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1505- ● ● ● ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1505- ● ● ● ●
