◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#161251) — 312 parça
çizim 475598
236 74 53 74 235 237 237 235
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1505-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 		8-98211-643-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1508- ● ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) 02.334 (A) M8 		0-91110-508-0 01 1 1505- ● ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) (B) M8 FLANGE 		9-46259-016-0 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98235-016-0 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1505- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1505- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98074-995-0 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98241-559-2 01 1 1505- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1505- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●

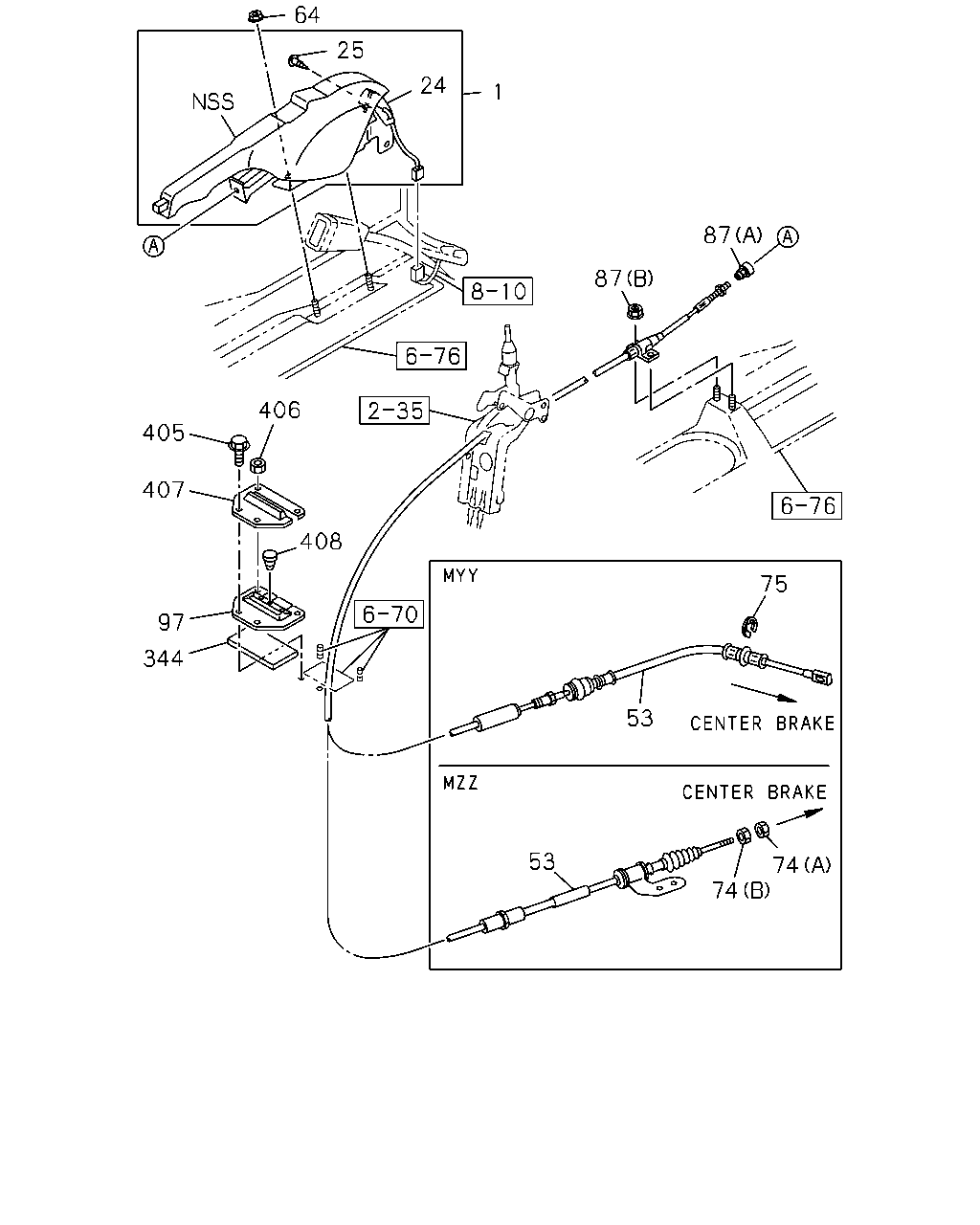

çizim 475802
64 24 25 1 87 87 75 408 406 405 407 97 344 53 53 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1505- ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1505- ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1505- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1505-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 		8-98211-643-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1508- ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1505- ● ● ● ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) 02.334 (A) M8 		0-91110-508-0 01 1 1505- ● ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) (B) M8 FLANGE 		9-46259-016-0 01 1 1505- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) ID=12 		0-91805-512-0 01 1 1505-1507 ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1508- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> ID=12 		0-91805-512-0 01 1 1508- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> ID=12 		0-91805-512-0 01 1 1508- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1505- ● ● ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ● ● ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ>, SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1505- ● ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1505- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1505- ● ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ● ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1505- ● ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 		8-97371-108-0 02 1 1505-1507 ● ● ● ●
408 04.785 CAP; GROMMET
EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 04.010 		8-97371-108-0 02 1 1508- ● ● ● ●

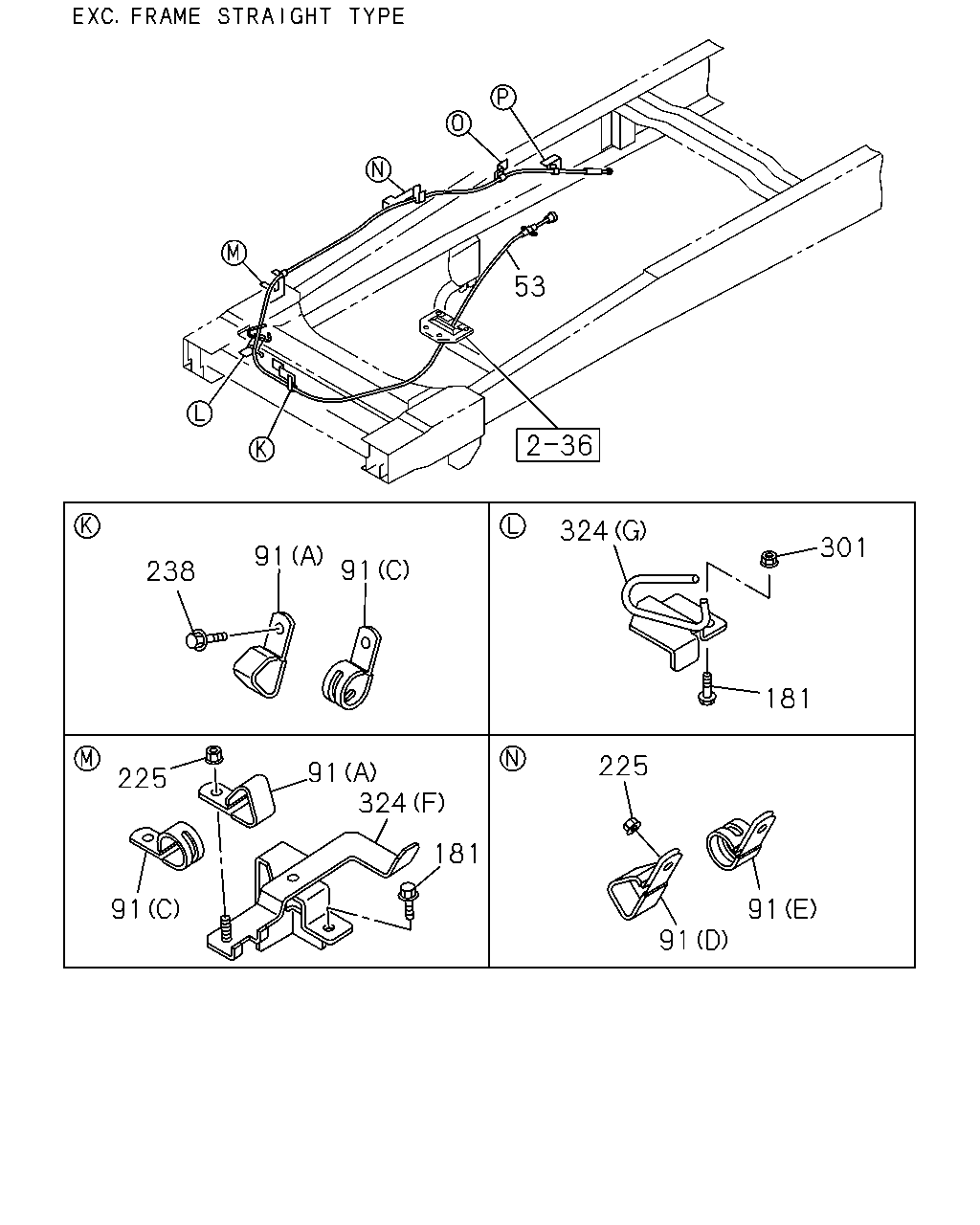

çizim 475882
53 324 301 181 225 91 91 91 324 181 225 91 91 91 238
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1505-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 		8-98211-643-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1508- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (D) 		8-97036-332-1 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.047 (D) 		8-97036-332-1 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) (E) ID=24 L=40 		1-09701-139-0 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, SMOOTHER-EX(TYPE2)(8NS) (E) ID=24 L=40 		1-09701-139-0 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1505-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1508- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1505-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1508- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
181 04.785 BOLT; BRKT
EXC. EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ● ● ● ●
181 04.785 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1505- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1508- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1508- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (H) 		8-98207-274-1 01 1 1508- ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1508- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1505- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1505- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1505- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1505- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98285-817-0 01 1 1505-1507 ●
324 04.785 BRACKET
EXC. EURO6 SPECIFICATION(NT6) (I) 		8-98285-817-0 01 1 1508- ●
çizim 475897
324 237 85 225 235 237 237 235 85 225 87 223 368 241 237 324 238 238
BalonParca AdiParca NoAdetTipApplied Date A B C D
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=14.5 L=20 		1-09701-012-0 01 1 1505-1507 ● ● ● ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20 		1-09701-012-0 01 1 1508- ● ● ● ●
85 04.785 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1505- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1505- ● ● ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ● ● ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ>, SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1505-1507 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, SMOOTHER-EX(TYPE2)(8NS) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1508- ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98235-016-0 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1505- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1505- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98074-995-0 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98241-559-2 01 1 1505- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ●
241 04.785 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1508- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1508- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (H) 		8-98207-274-1 01 1 1508- ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1508- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1505- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1505- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1505- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1505- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98285-817-0 01 1 1505-1507 ●
324 04.785 BRACKET
EXC. EURO6 SPECIFICATION(NT6) (I) 		8-98285-817-0 01 1 1508- ●
368 04.785 BRACKET; T/M SIDE
SMOOTHER-EX(TYPE2)(8NS) 		8-97372-863-1 01 1 1505-1507 ● ● ● ●
368 04.785 BRACKET; T/M SIDE
EXC. FRAME STRAIGHT TYPE<7KJ>, SMOOTHER-EX(TYPE2)(8NS) 		8-97372-863-1 01 1 1508- ● ● ● ●

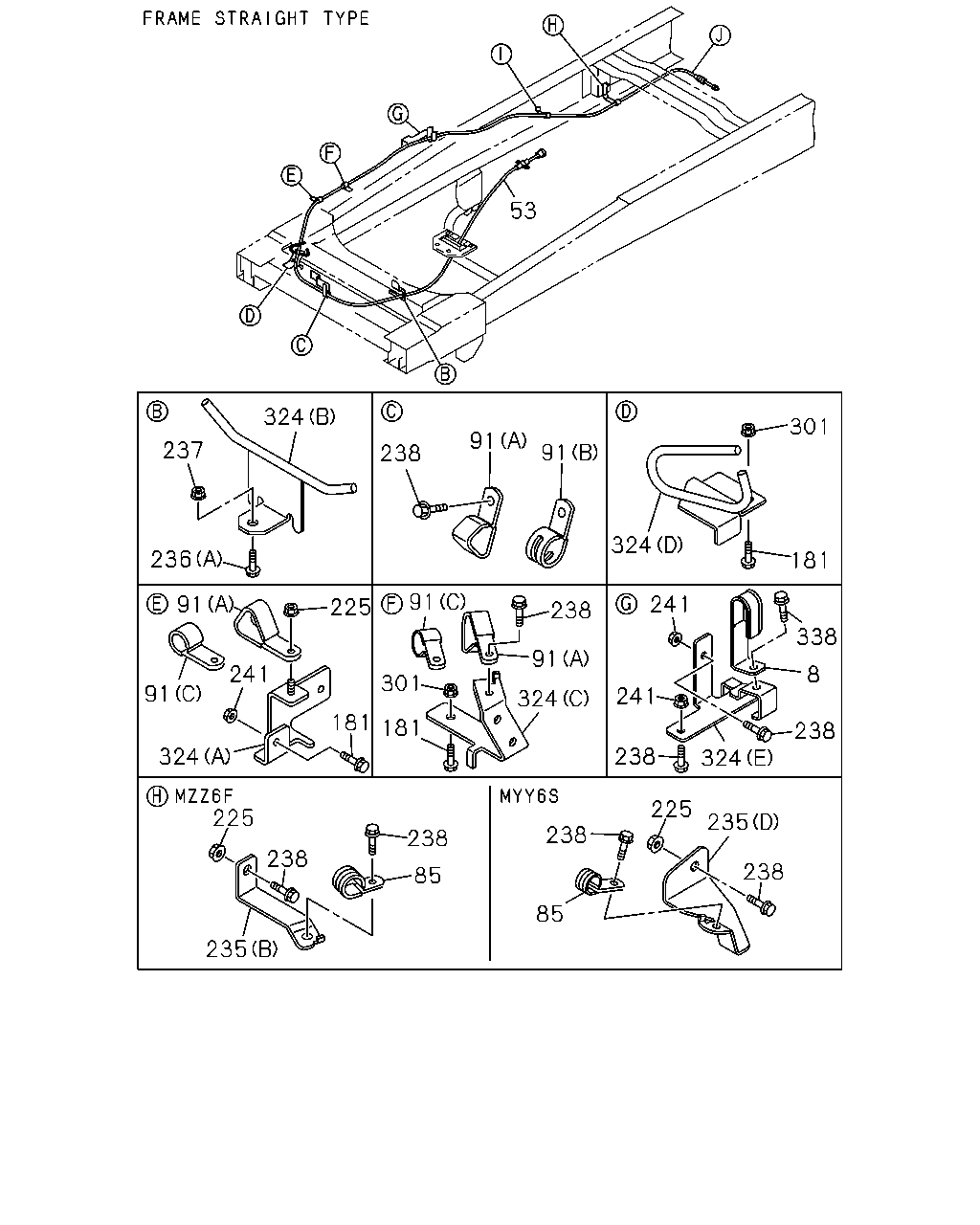

çizim 476674
53 238 91 324 237 236 91 241 91 324 181 225 238 91 324 91 301 181 238 85 238 235 225 238 85 235 225 238 324 238 241 241 324 301 181 338 8 238 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 04.592 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98222-357-0 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1505-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 		8-98211-643-1 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1505- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1508- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1505-1507 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1508- ● ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=14.5 L=20 		1-09701-012-0 01 1 1505-1507 ● ● ● ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20 		1-09701-012-0 01 1 1508- ● ● ● ●
85 04.785 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1505- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (D) 		8-97036-332-1 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.047 (D) 		8-97036-332-1 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) (E) ID=24 L=40 		1-09701-139-0 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, SMOOTHER-EX(TYPE2)(8NS) (E) ID=24 L=40 		1-09701-139-0 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1505-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1508- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1505-1507 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1505-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1508- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1508- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
181 04.785 BOLT; BRKT
EXC. EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ● ● ● ●
181 04.785 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1505- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98235-016-0 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1505- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1505- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98074-995-0 01 1 1505- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98241-559-2 01 1 1505- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1505- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ●
241 04.785 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1508- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1508- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1505-1507 ● ● ● ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (H) 		8-98207-274-1 01 1 1508- ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1508- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1505- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1505- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1505- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1505- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1505- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98285-817-0 01 1 1505-1507 ●
324 04.785 BRACKET
EXC. EURO6 SPECIFICATION(NT6) (I) 		8-98285-817-0 01 1 1508- ●
338 04.785 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> 06.216 BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
