◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#161247) — 29 parça

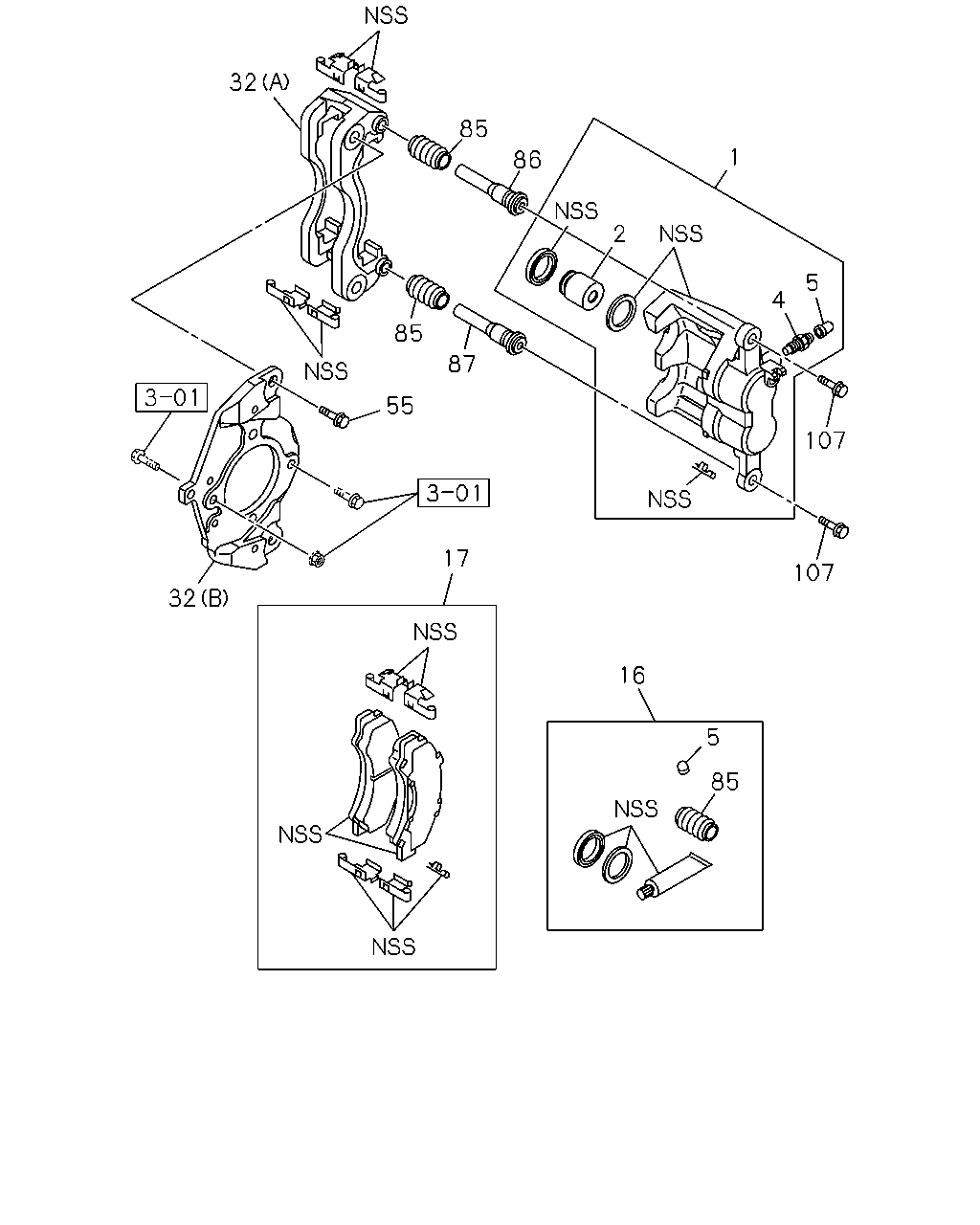

çizim 475618
1 5 4 107 107 16 5 85 17 32 55 85 87 86 85 2 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1505- ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98303-461-0 01 1 1505- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1505- ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98303-462-0 01 1 1505- ● ●
1 04.665 CALIPER; FRT DISC BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98303-465-0 01 1 1505- ● ●
1 04.665 CALIPER; FRT DISC BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98303-466-0 01 1 1505- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1505- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97365-269-0 04 1 1505- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97365-279-0 04 1 1505- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1505- ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1505- ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1505- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> W/GREASE 		8-98302-531-0 01 1 1505- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRAME STRAIGHT TYPE<7KJ> W/GREASE 		8-98302-532-0 01 1 1505- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1505- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98216-922-0 01 1 1505- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-98244-794-0 01 1 1505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 1505- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 1505- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 1505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-271-0 02 1 1505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-281-0 02 1 1505- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 1505- ● ● ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1505- ● ● ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1505- ● ● ● ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1505- ● ●
87 04.665 PIN; LOCK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98248-005-0 02 1 1505- ● ●
87 04.665 PIN; LOCK
FRAME STRAIGHT TYPE<7KJ> 		8-98047-531-0 02 1 1505- ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1505- ● ● ● ●
