◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#16123) — 28 parça

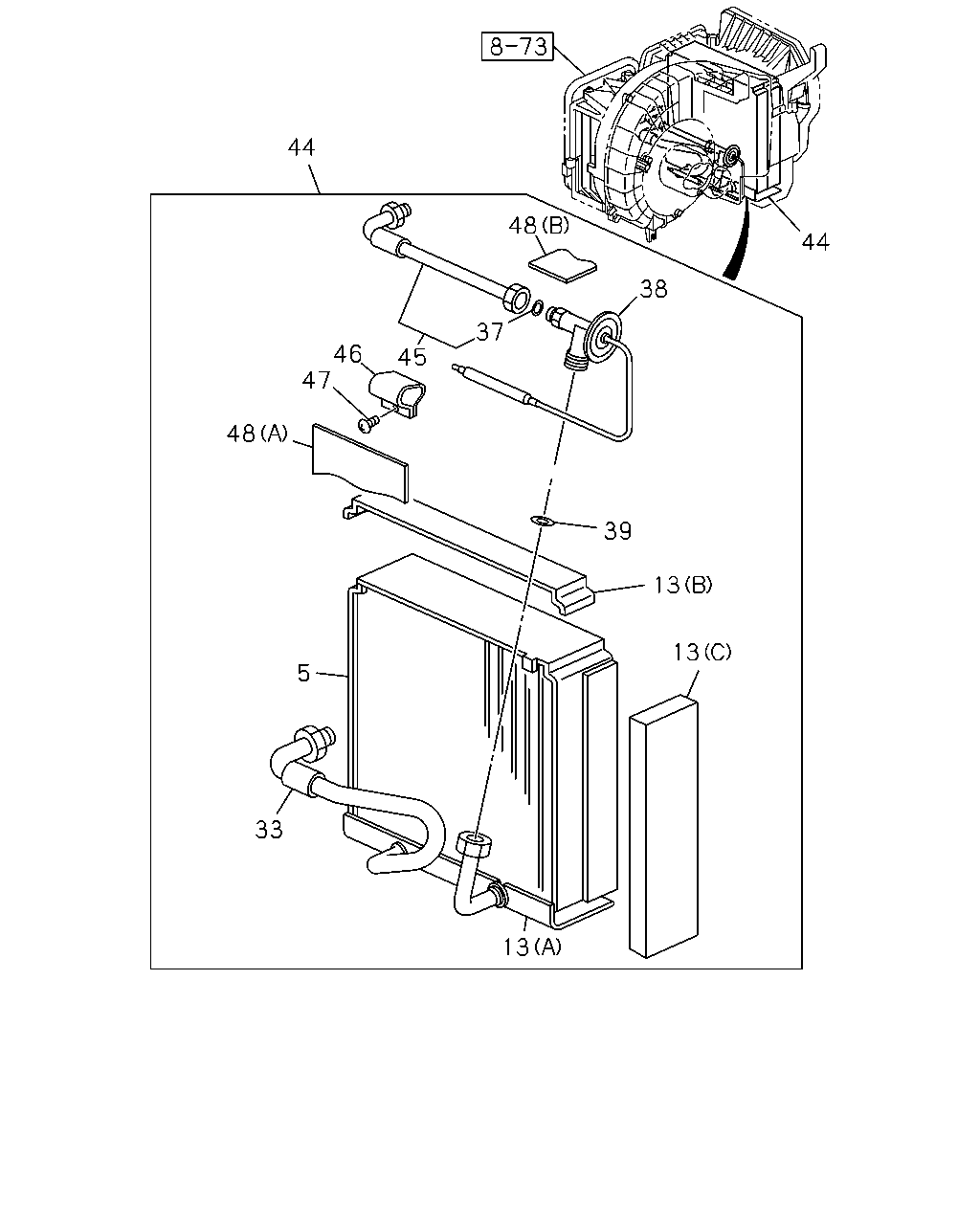

çizim 62066
44 48 44 38 37 46 47 45 48 39 13 13 5 33 13
BalonParca AdiParca NoAdetTipApplied Date
5 EVAPORATOR 1-83562-097-0 01 1 0904-1005
5 EVAPORATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83562-097-0 01 1 1006-
13 SEAL; EVAP
(C) 		1-83579-938-0 01 1 0904-1005
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-938-0 01 1 1006-
13 SEAL; EVAP
(A) 		1-83579-959-0 01 1 0904-1005
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-959-0 01 1 1006-
13 SEAL; EVAP
(B) 		1-83579-960-0 01 1 0904-1005
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-960-0 01 1 1006-
33 LINING; EVAP 1-83579-653-0 01 1 0904-1005
33 LINING; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-653-0 01 1 1006-
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 0904-1005
37 GASKET; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=6.07 		8-94461-902-0 01 1 1006-
38 VALVE; EXPANSION 1-83569-189-0 01 1 0904-1005
38 VALVE; EXPANSION
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83569-189-0 01 1 1006-
39 GASKET; EVAP 8-94481-717-0 01 1 0904-1005
39 GASKET; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-94481-717-0 01 1 1006-
44 EVAPORATOR ASM; A/C 1-83562-099-0 01 1 0904-1005
44 EVAPORATOR ASM; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83562-099-0 01 1 1006-
45 PIPE; EXPANSION VLV 1-83567-682-0 01 1 0904-1005
45 PIPE; EXPANSION VLV
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83567-682-0 01 1 1006-
46 CLIP; EXPANSION VLV 1-83574-214-0 01 1 0904-1005
46 CLIP; EXPANSION VLV
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83574-214-0 01 1 1006-
47 SCREW; EVAP 8-97130-601-0 01 1 0904-1005
47 SCREW; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97130-601-0 01 1 1006-
48 INSULATOR; EVAP
(A) 		1-83579-784-0 01 1 0904-1005
48 INSULATOR; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-784-0 01 1 1006-
48 INSULATOR; EVAP
(B) 		1-83579-969-0 01 1 0904-1005
48 INSULATOR; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-969-0 01 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
