Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#161227) — 189 parça

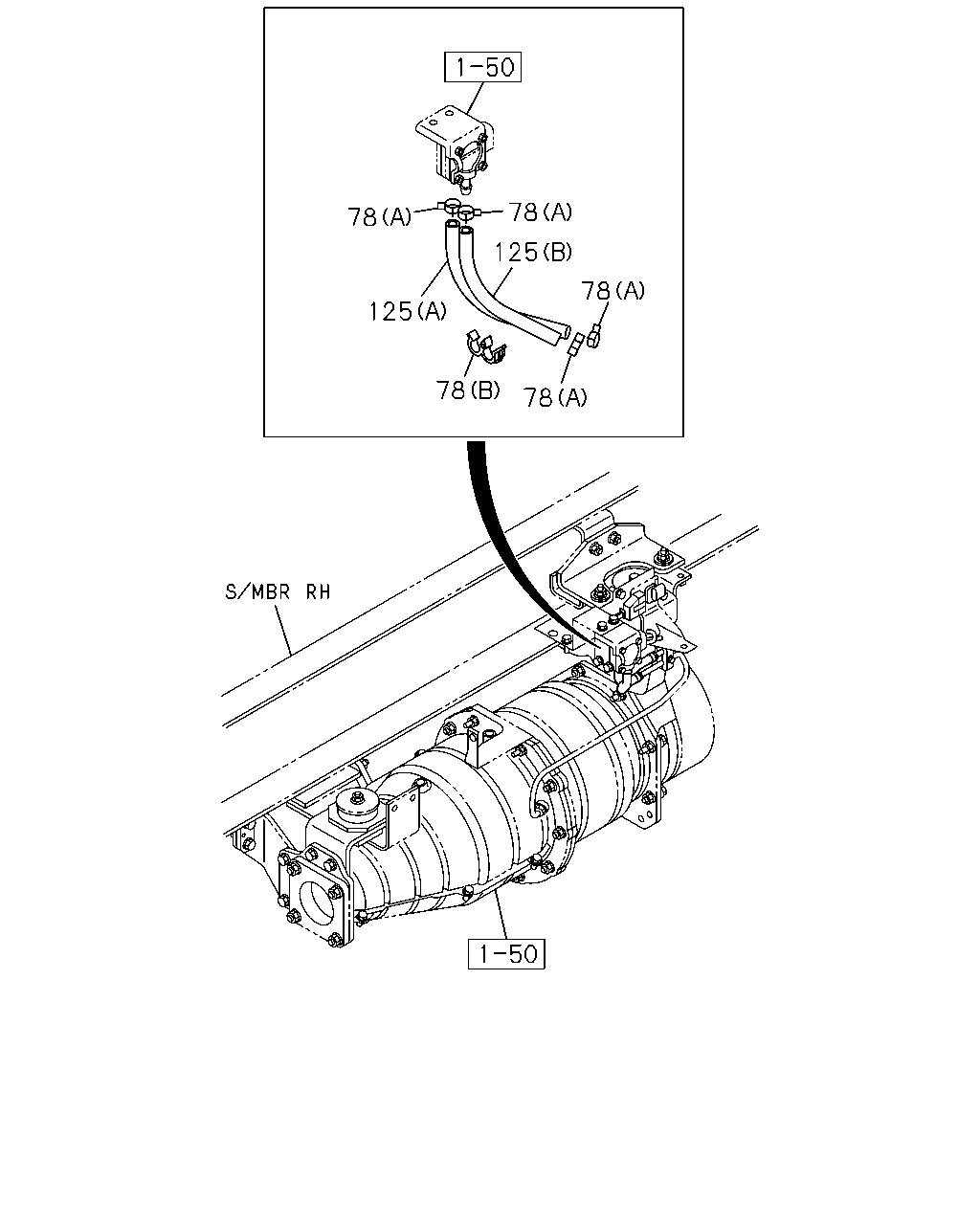

78 125 78 78 78 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1505-	●	●	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-430-1	01	1	1505-1507	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98236-430-1	01	1	1508-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-432-1	01	1	1505-1507	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98236-432-1	01	1	1508-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1505-		●		●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1505-		●		●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-434-1	01	1	1505-1507			●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98236-434-1	01	1	1508-			●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-435-0	01	1	1505-1507			●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98236-435-0	01	1	1508-			●

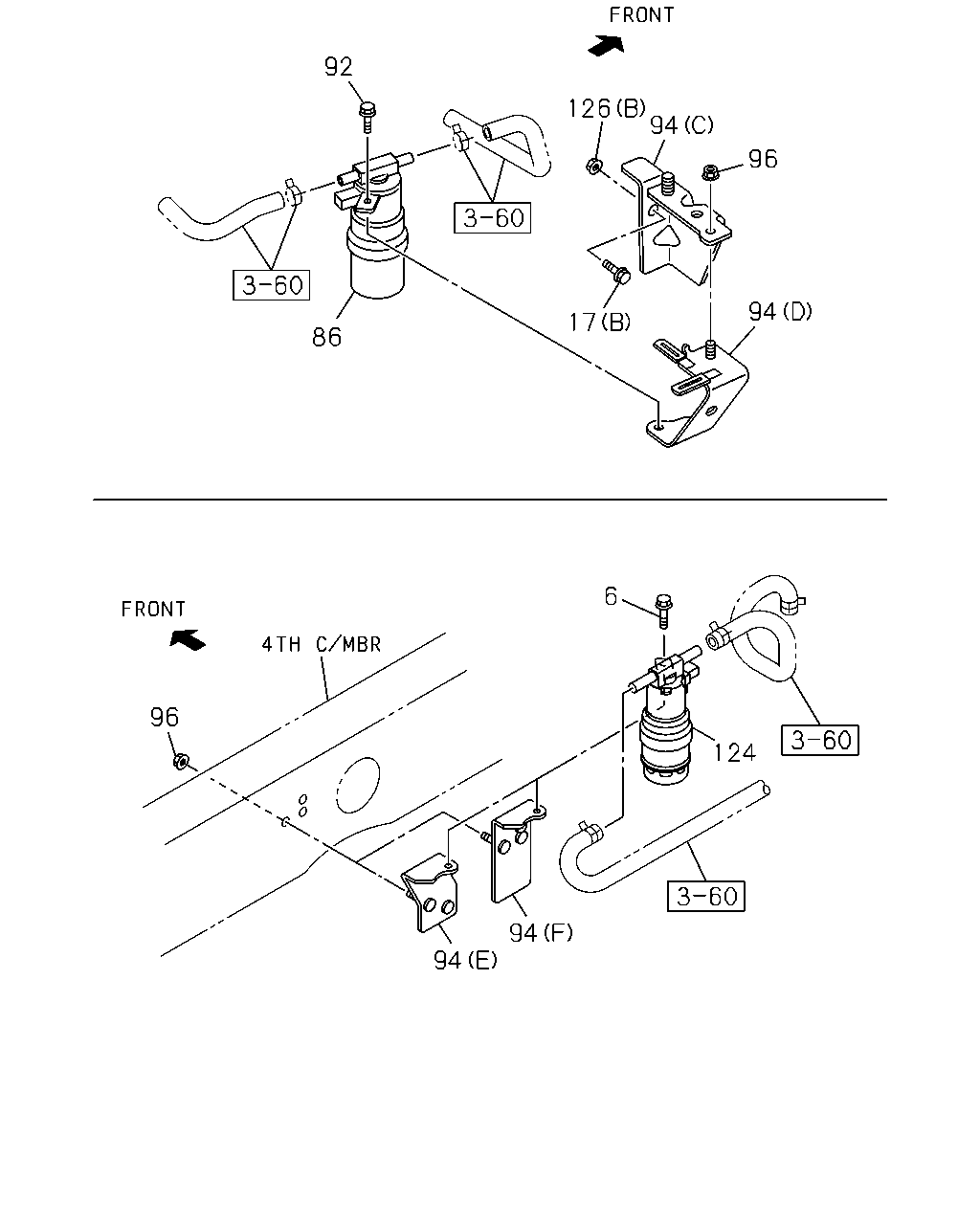

92 126 96 94 17 94 86 96 94 6 124 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	03.632 BOLT; EXH BRAKE UNIT FIX EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507				●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●		●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●
17	03.634 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-				●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●
17	03.634 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98043-344-0	01	1	1505-	●		●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1505-		●		●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97370-883-2	01	1	1505-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1505-1507	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1505-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1508-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1508-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO6 SPECIFICATION(NT6) (A)	8-98092-656-0	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1505-	●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1505-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1508-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (C)	8-97387-681-1	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) (C)	8-97387-681-1	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (D)	8-98089-211-0	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) (D)	8-98089-211-0	01	1	1508-			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●		●
124	03.636 VALVE; MAG,DPD EXH THROTTLE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1505-	●		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507		●
126	03.634 NUT; BRKT 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●		●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●
126	03.634 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-				●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●
126	03.634 NUT; BRKT EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●

1 8 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1505-1510	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98321-773-0	01	1	1511-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98228-983-0	01	1	1505-	●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98227-165-0	01	1	1505-1510		●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98321-772-0	01	1	1511-		●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1505-1507	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1508-	●		●
8	03.632 NUT; EXH BRAKE UNIT FIX EXC. EURO5B+ SPECIFICATION(NT5) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1508-	●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1508-		●		●

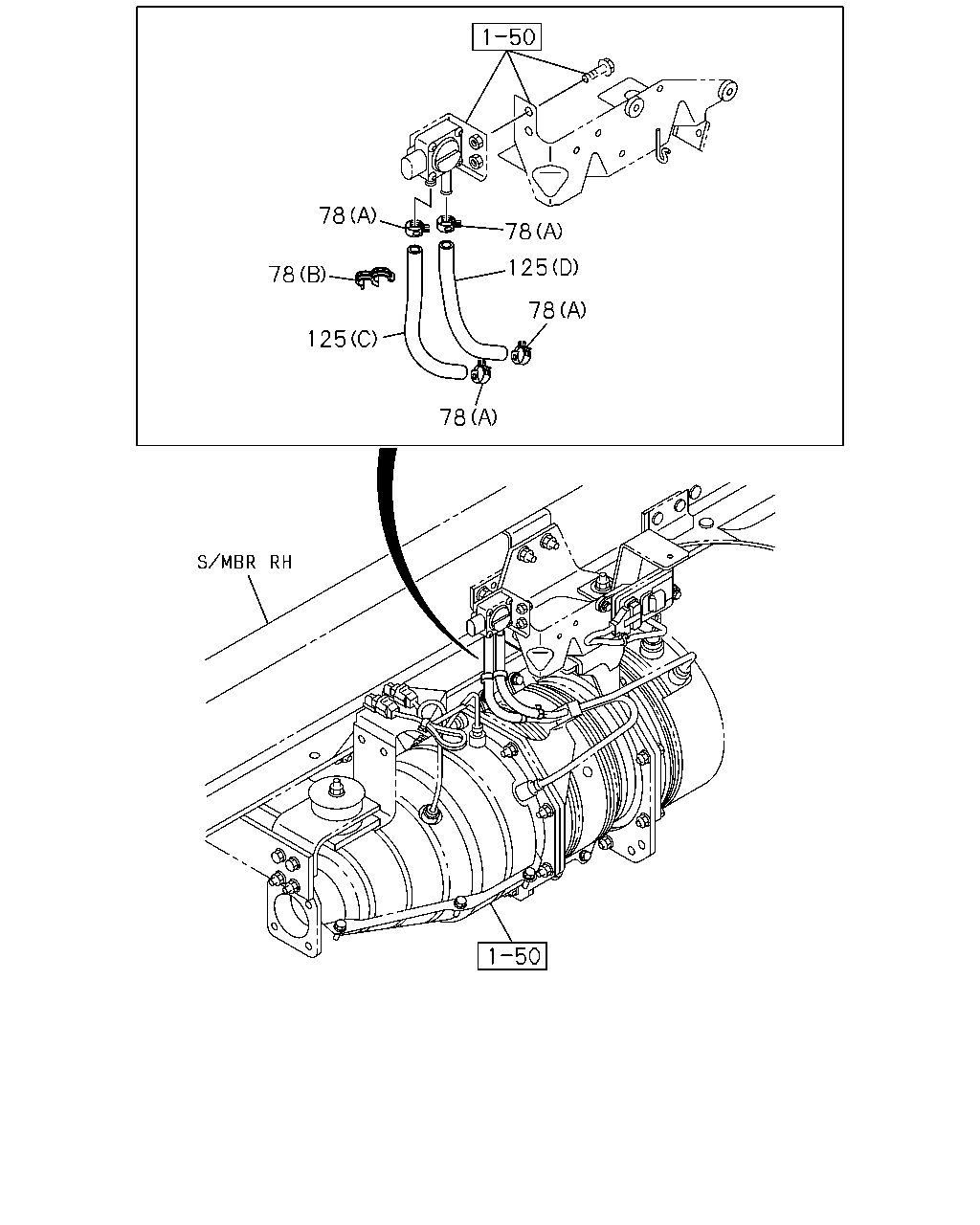

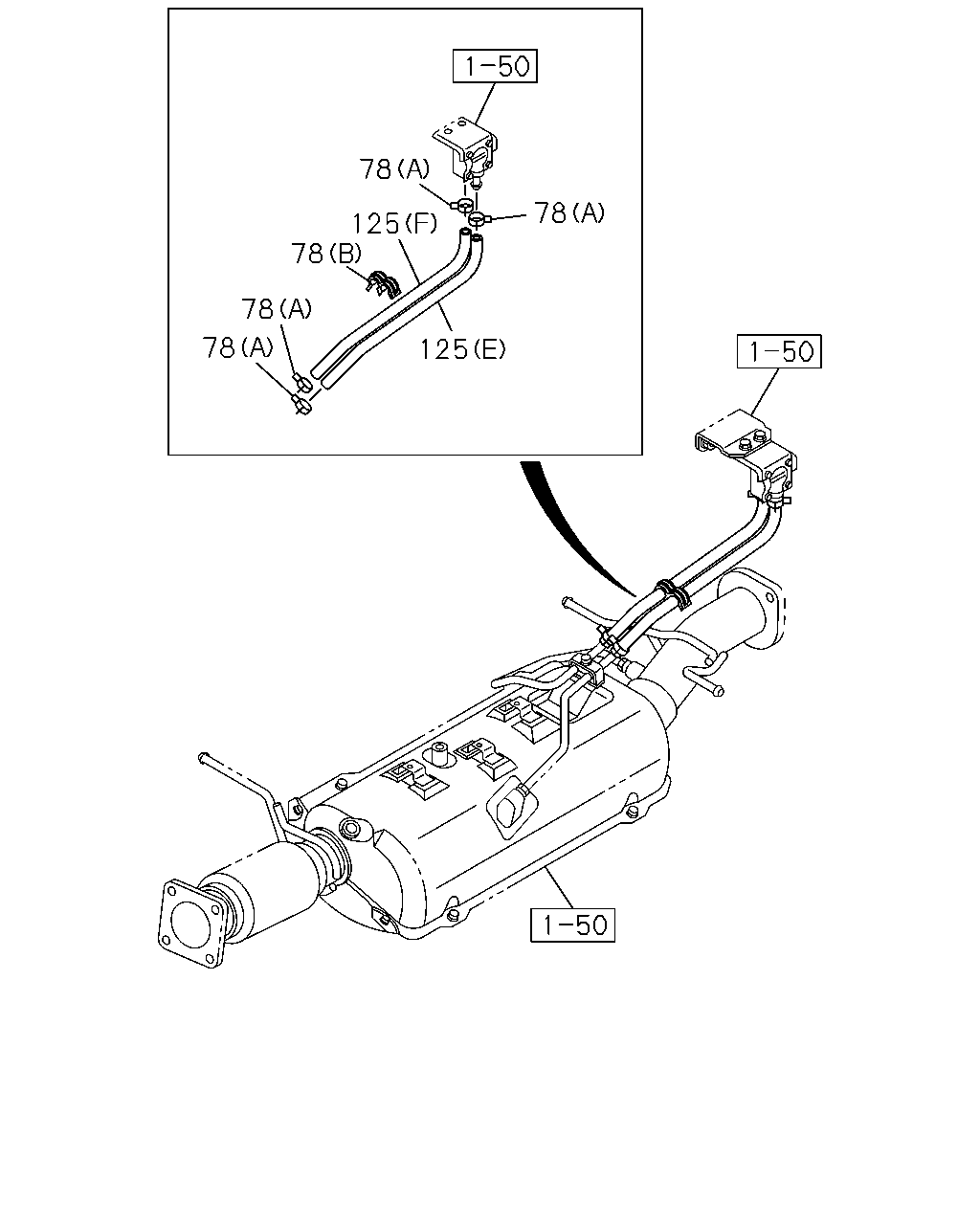

78 78 78 78 78 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1505-	●	●	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-430-1	01	1	1505-1507	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98236-430-1	01	1	1508-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-432-1	01	1	1505-1507	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98236-432-1	01	1	1508-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1505-		●		●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1505-		●		●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-434-1	01	1	1505-1507			●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98236-434-1	01	1	1508-			●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-435-0	01	1	1505-1507			●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98236-435-0	01	1	1508-			●

5 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1505-1510	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98321-773-0	01	1	1511-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98228-983-0	01	1	1505-	●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98227-165-0	01	1	1505-1510		●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98321-772-0	01	1	1511-		●		●
5	03.634 GASKET; EXH BRAKE UNIT EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98228-984-1	01	1	1505-	●		●
10	03.634 NUT; BRKT,EXH BRAKE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.613 M10 FLANGE	8-97096-192-1	04	1	1505-	●		●

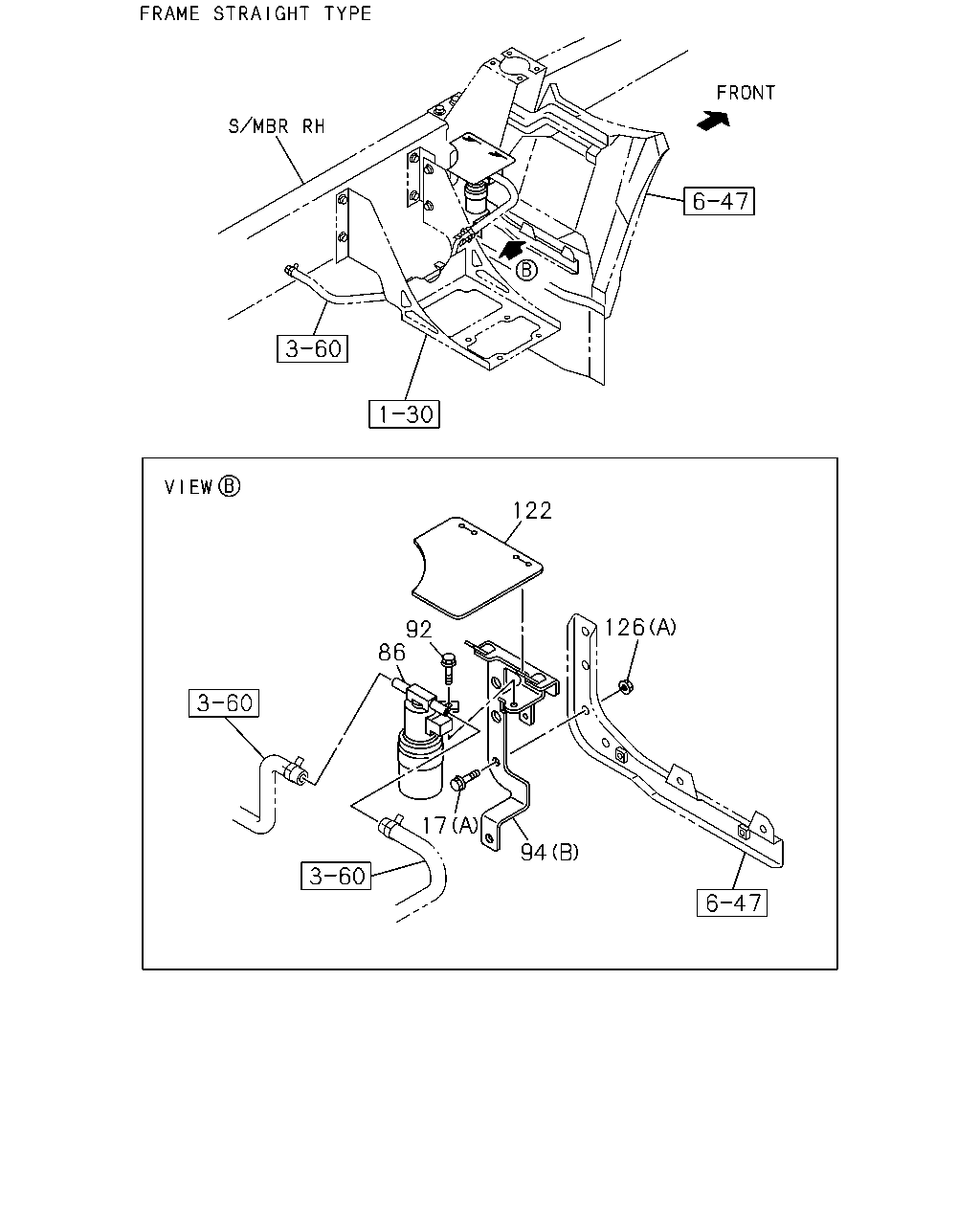

92 86 122 126 94 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507				●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●		●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●
17	03.634 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-				●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●
17	03.634 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98043-344-0	01	1	1505-	●		●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1505-		●		●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97370-883-2	01	1	1505-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1505-1507	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1505-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1508-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1508-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO6 SPECIFICATION(NT6) (A)	8-98092-656-0	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1505-	●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1505-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1508-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (C)	8-97387-681-1	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) (C)	8-97387-681-1	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (D)	8-98089-211-0	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) (D)	8-98089-211-0	01	1	1508-			●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1505-1507	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB)	8-98087-988-0	01	1	1505-1507		●
122	03.640 PROTECTOR; MAG VLV 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1505-1507		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1508-	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-		●
122	03.640 PROTECTOR; MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507		●
126	03.634 NUT; BRKT 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●		●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●
126	03.634 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-				●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●
126	03.634 NUT; BRKT EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●

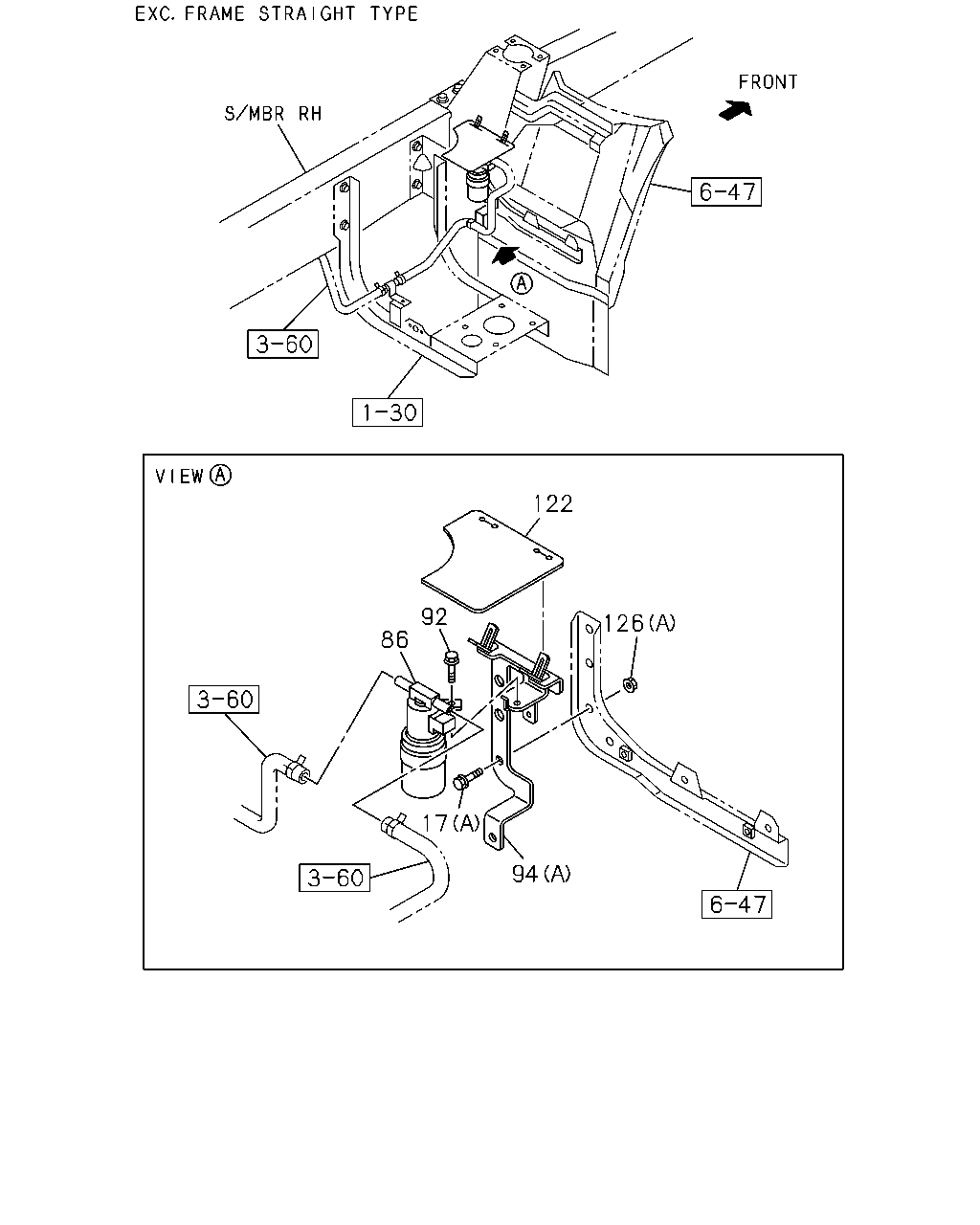

122 126 17 86 92 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507				●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●		●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●
17	03.634 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-				●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●
17	03.634 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98043-344-0	01	1	1505-	●		●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1505-		●		●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97370-883-2	01	1	1505-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1505-1507	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1505-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1508-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1508-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO6 SPECIFICATION(NT6) (A)	8-98092-656-0	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1505-	●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1505-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1508-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (C)	8-97387-681-1	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) (C)	8-97387-681-1	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (D)	8-98089-211-0	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) (D)	8-98089-211-0	01	1	1508-			●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1505-1507	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB)	8-98087-988-0	01	1	1505-1507		●
122	03.640 PROTECTOR; MAG VLV 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1505-1507		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1508-	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-		●
122	03.640 PROTECTOR; MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507		●
126	03.634 NUT; BRKT 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●		●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●
126	03.634 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-				●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●
126	03.634 NUT; BRKT EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●

78 78 78 78 78 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1505-	●	●	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1505-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-430-1	01	1	1505-1507	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98236-430-1	01	1	1508-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-432-1	01	1	1505-1507	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98236-432-1	01	1	1508-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1505-		●		●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1505-		●		●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-434-1	01	1	1505-1507			●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98236-434-1	01	1	1508-			●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-435-0	01	1	1505-1507			●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98236-435-0	01	1	1508-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
