Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#161222) — 193 parça

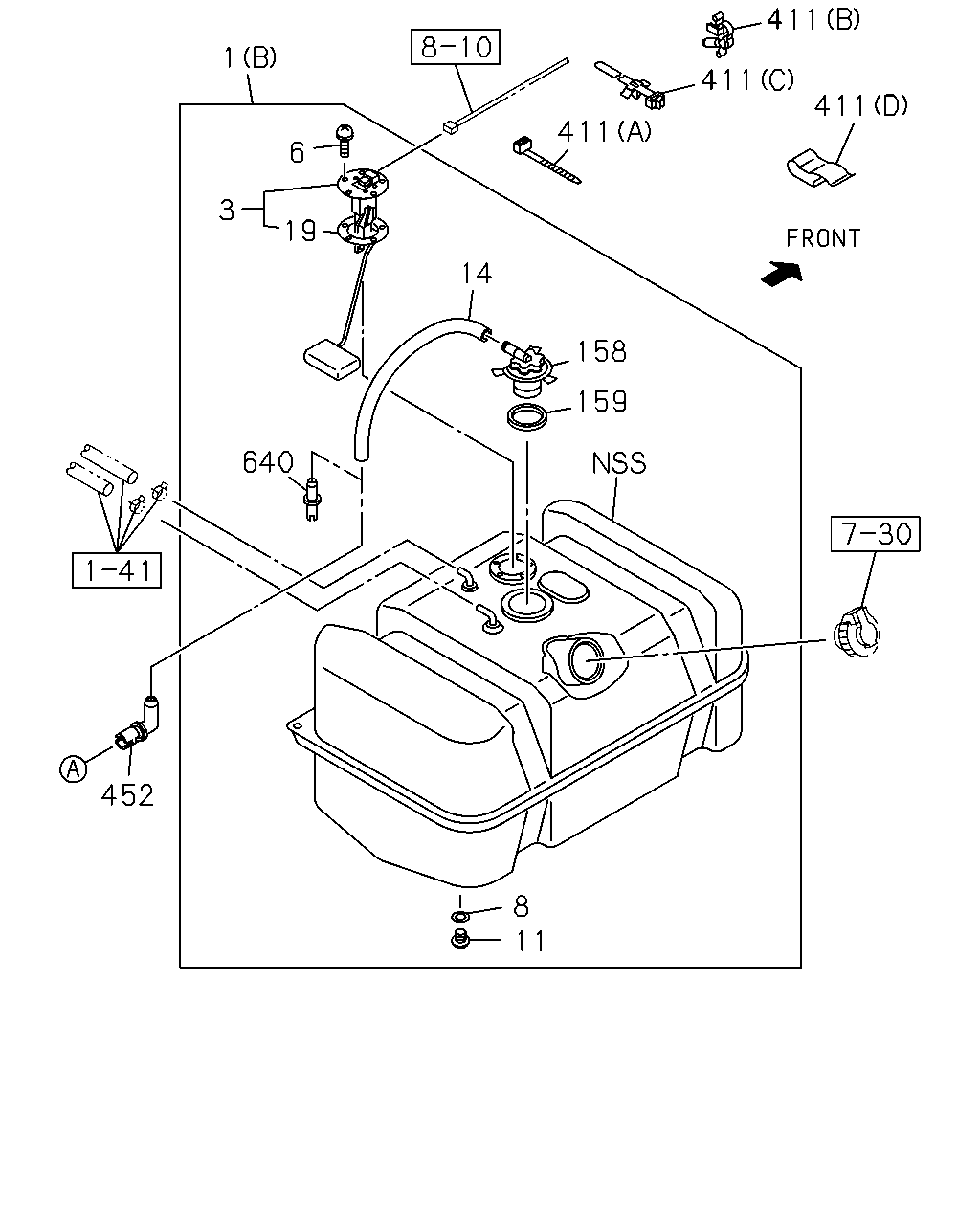

411 411 411 411 158 159 14 19 6 1 3 640 452 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L	8-98248-266-1	01	1	1505-	●	●
1	03.001 TANK; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> (B) 756X482X376 90L	8-98248-266-1	01	1	1505-			●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> (A) 756X375X323 57L	8-98227-018-3	01	1	1505-	●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L	8-98153-046-2	01	1	1505-	●	●
1	03.001 TANK; FUEL FRAME STRAIGHT TYPE<7KJ> (B) 756X482X376 90L	8-98153-046-2	01	1	1505-			●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 63 LITTER<6EF> (A) 756X375X323 57L	8-98147-352-4	01	1	1505-	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98113-179-0	01	1	1505-	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98113-179-0	01	1	1505-			●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63 LITTER<6EF>	8-98147-557-0	01	1	1505-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1505-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1505-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1505-			●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 63 LITTER<6EF> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1505-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1505-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1505-			●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 63 LITTER<6EF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1505-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1505-			●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 63 LITTER<6EF> L=320	8-98157-805-0	01	1	1505-	●	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1505-	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1505-	●	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1505-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 06.525 (B) ID=5-12 L=18	1-09709-287-0	02	1	1505-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507		●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507		●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1508-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=170.3	1-09987-182-0	01	1	1505-1507	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO5B+ SPECIFICATION(NT5) (C) L=170.3	1-09987-182-0	01	1	1508-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	03	1	1505-1507	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO5B+ SPECIFICATION(NT5) (D) T=5.5	8-97371-951-0	03	1	1508-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (B) ID=5-12 L=18	1-09709-287-0	01	1	1505-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 06.525 (B) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO5B+ SPECIFICATION(NT5) 06.525 (B) ID=5-12 L=18	1-09709-287-0	01	1	1508-		●
452	03.028 BREATHER; FUEL TANK EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 63 LITTER<6EF>	8-97357-261-0	01	1	1505-	●	●
452	03.028 BREATHER; FUEL TANK EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	1505-	●	●
452	03.028 BREATHER; FUEL TANK FRAME STRAIGHT TYPE<7KJ>	8-97357-261-0	01	1	1505-			●	●
640	03.164 VENTILATOR; HOSE,BREATHER 4JJ1-TCS ENG(LFB) FUEL TANK 100 LITTER<N02> 03.028	8-97062-954-1	01	1	1505-	●	●
640	03.164 VENTILATOR; HOSE,BREATHER EXC. FRAME STRAIGHT TYPE<7KJ> 03.028	8-97062-954-1	01	1	1505-			●	●

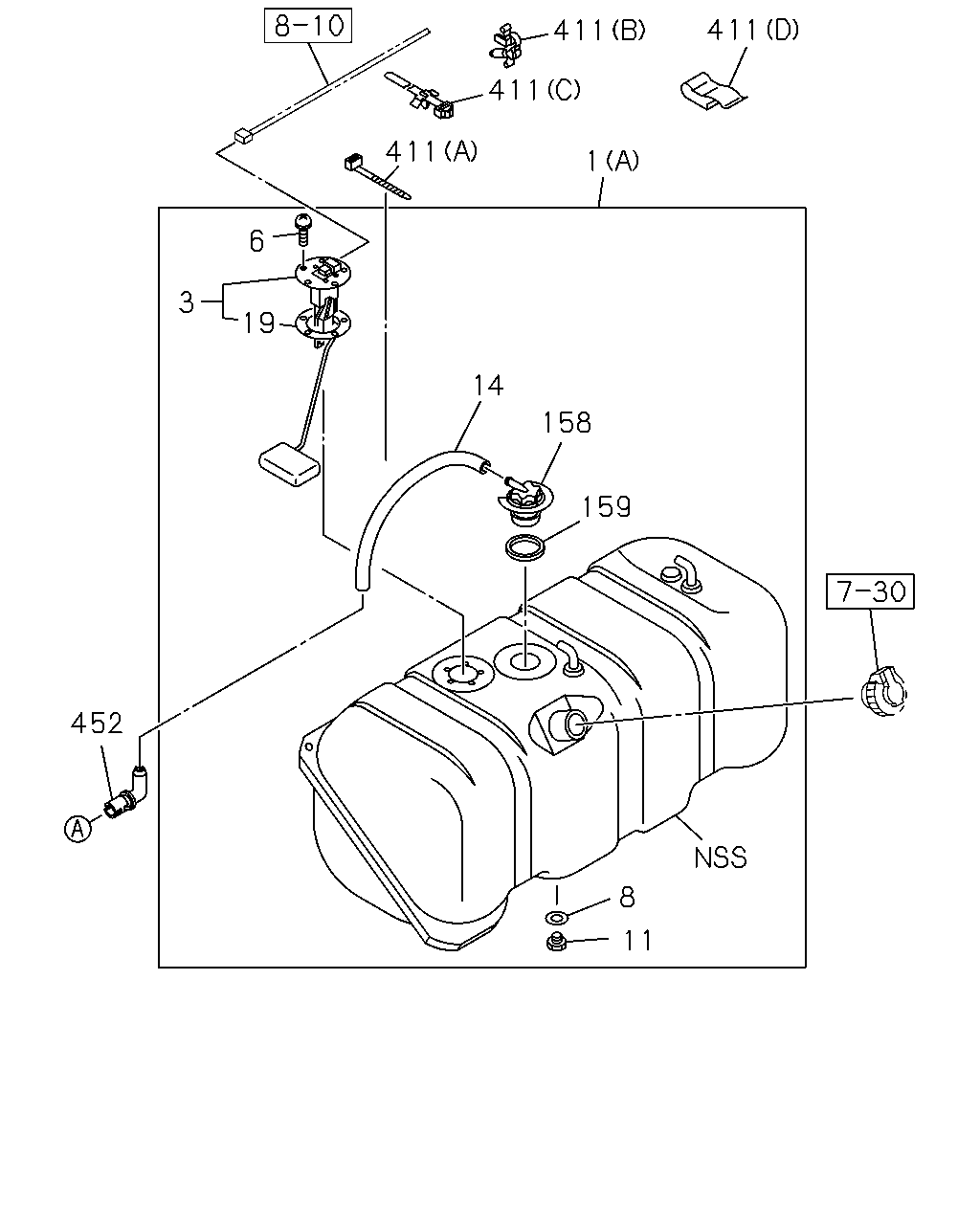

8 11 1 14 158 159 411 411 411 411 6 3 19 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L	8-98248-266-1	01	1	1505-	●	●
1	03.001 TANK; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> (B) 756X482X376 90L	8-98248-266-1	01	1	1505-			●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> (A) 756X375X323 57L	8-98227-018-3	01	1	1505-	●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L	8-98153-046-2	01	1	1505-	●	●
1	03.001 TANK; FUEL FRAME STRAIGHT TYPE<7KJ> (B) 756X482X376 90L	8-98153-046-2	01	1	1505-			●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 63 LITTER<6EF> (A) 756X375X323 57L	8-98147-352-4	01	1	1505-	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98113-179-0	01	1	1505-	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98113-179-0	01	1	1505-			●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63 LITTER<6EF>	8-98147-557-0	01	1	1505-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1505-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1505-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1505-			●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 63 LITTER<6EF> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1505-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1505-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1505-			●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 63 LITTER<6EF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1505-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1505-			●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 63 LITTER<6EF> L=320	8-98157-805-0	01	1	1505-	●	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1505-	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1505-	●	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1505-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 06.525 (B) ID=5-12 L=18	1-09709-287-0	02	1	1505-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507		●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	1505-1507		●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1508-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=170.3	1-09987-182-0	01	1	1505-1507	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO5B+ SPECIFICATION(NT5) (C) L=170.3	1-09987-182-0	01	1	1508-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	03	1	1505-1507	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO5B+ SPECIFICATION(NT5) (D) T=5.5	8-97371-951-0	03	1	1508-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (B) ID=5-12 L=18	1-09709-287-0	01	1	1505-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 06.525 (B) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO5B+ SPECIFICATION(NT5) 06.525 (B) ID=5-12 L=18	1-09709-287-0	01	1	1508-		●
452	03.028 BREATHER; FUEL TANK EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 63 LITTER<6EF>	8-97357-261-0	01	1	1505-	●	●
452	03.028 BREATHER; FUEL TANK EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	1505-	●	●
452	03.028 BREATHER; FUEL TANK FRAME STRAIGHT TYPE<7KJ>	8-97357-261-0	01	1	1505-			●	●

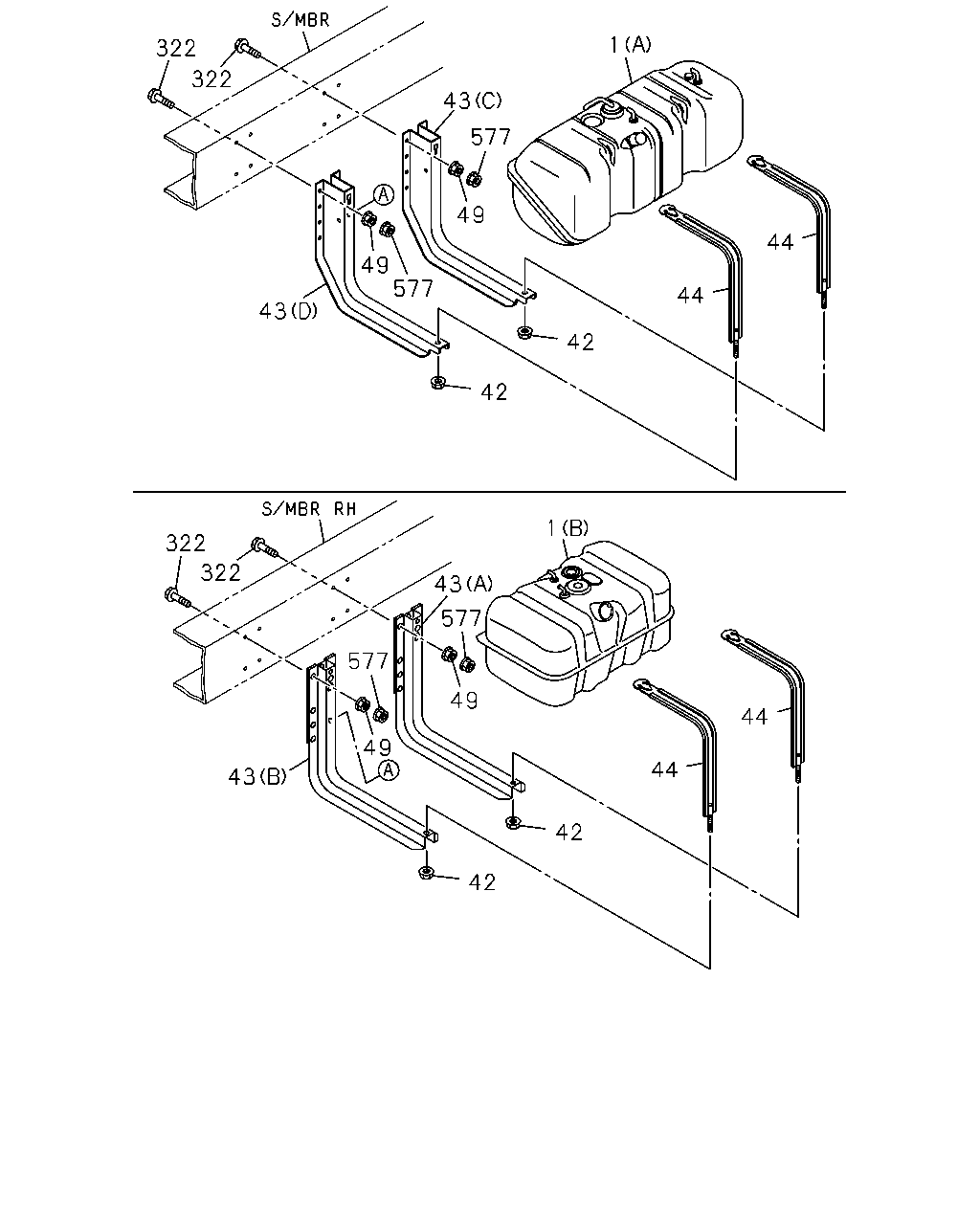

322 322 43 49 577 42 42 44 44 1 577 43 49 1 43 577 49 44 44 42 42 49 577 43 322 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L	8-98248-266-1	01	1	1505-	●	●
1	03.001 TANK; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> (B) 756X482X376 90L	8-98248-266-1	01	1	1505-			●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> (A) 756X375X323 57L	8-98227-018-3	01	1	1505-	●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L	8-98153-046-2	01	1	1505-	●	●
1	03.001 TANK; FUEL FRAME STRAIGHT TYPE<7KJ> (B) 756X482X376 90L	8-98153-046-2	01	1	1505-			●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 63 LITTER<6EF> (A) 756X375X323 57L	8-98147-352-4	01	1	1505-	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1505-	●	●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	1505-	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1505-			●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	1505-	●	●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1505-			●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63 LITTER<6EF> (D)	8-98148-223-0	01	1	1505-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63 LITTER<6EF> (C)	8-98150-467-0	01	1	1505-	●	●
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	1505-	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1505-			●	●
44	03.023 BAND; FUEL TANK FUEL TANK 63 LITTER<6EF> L=613	8-98245-202-0	02	1	1505-	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 04.085 M10 FLANGE	0-91180-210-0	09	1	1505-	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	07	1	1505-	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 04.085 M10 FLANGE	0-91180-210-0	05	1	1505-	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1505-	●	●	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1505-	●		●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1505-	●		●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1505-			●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 04.085 M10 FLANGE	0-91180-210-0	08	1	1505-		●		●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1505-				●
49	03.023 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1505-				●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FUEL TANK 100 LITTER<N02> M10X40 FLANGE	8-98124-451-2	08	1	1505-	●		●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X40 FLANGE	8-98124-451-2	08	1	1505-	●		●
322	03.895 BOLT; BRKT FIX FUEL TANK 100 LITTER<N02> M10X40 FLANGE	8-98124-451-2	08	1	1505-		●		●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1505-	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) FUEL TANK 63 LITTER<6EF> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1505-		●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) FUEL TANK 100 LITTER<N02> M10X40 FLANGE	8-98124-451-2	07	1	1505-	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) FUEL TANK 63 LITTER<6EF> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	06	1	1505-	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) FUEL TANK 63 LITTER<6EF> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 M10X40 FLANGE	0-28661-040-0	06	1	1505-	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) FUEL TANK 63 LITTER<6EF> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1505-		●
577	03.023 NUT; COVER 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) 16.069 M10 CAP NUT	1-09984-134-0	06	1	1505-	●

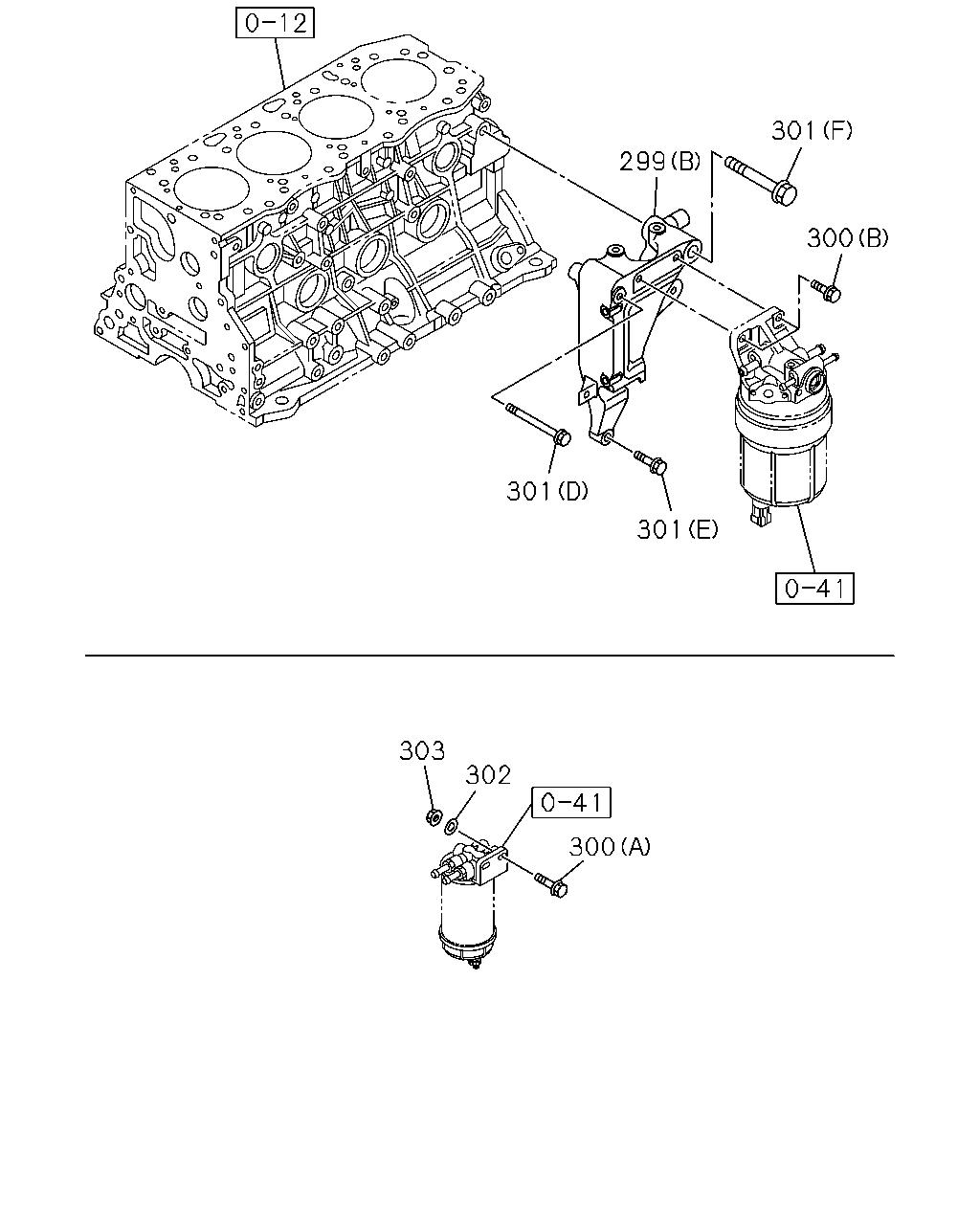

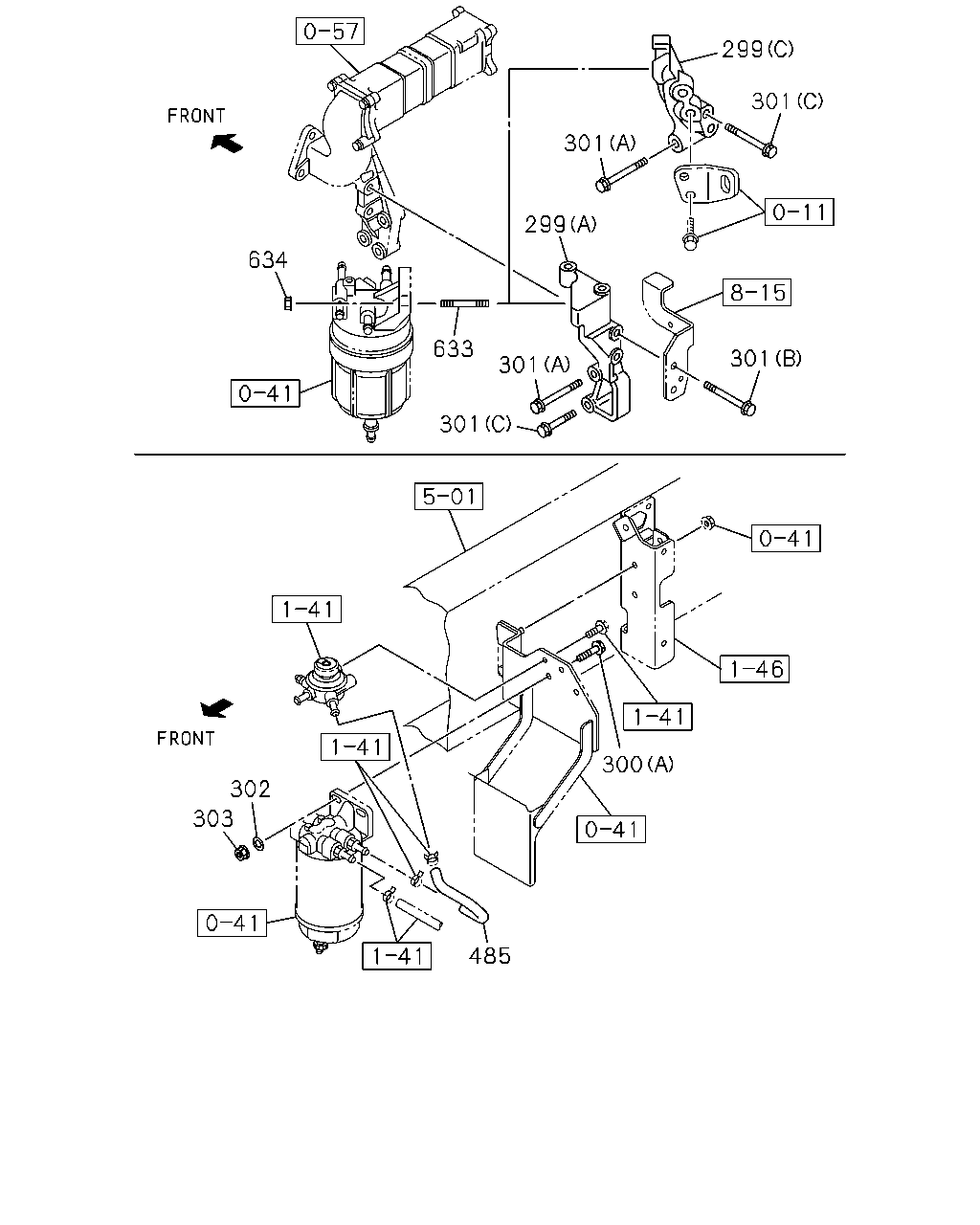

301 299 633 301 301 634 301 299 301 302 303 485 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
299	03.162 BRACKET; FUEL FILTER (B)	8-98089-227-1	01	1	1505-	●	●
299	03.162 BRACKET; FUEL FILTER 4JJ1-TCS ENG(LFB) (B)	8-98089-227-1	01	1	1505-			●	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98186-569-0	01	1	1505-			●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98023-175-3	01	1	1505-			●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCS ENG(RJS) (A)	8-98023-175-3	01	1	1505-				●
300	03.162 BOLT; BRKT TO BODY 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-			●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1505-1507	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1505-1507			●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-	●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.100 (D) M8X90 FLANGE	0-28050-890-0	01	1	1505-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) 02.100 (D) M8X90 FLANGE	0-28050-890-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 04.510 (E) M10X35 FLANGE	0-28051-035-0	01	1	1505-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) 04.510 (E) M10X35 FLANGE	0-28051-035-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (F) M14X90 FLANGE	0-28851-490-0	01	1	1505-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (F) M14X90 FLANGE	0-28851-490-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 09.181 (C) M12X80	0-28151-280-0	02	1	1505-			●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 09.181 (C) M12X80	0-28151-280-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1505-			●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1505-				●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1505-1507	●	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1505-1507			●	●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-	●	●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-	●	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-			●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	02	1	1505-1507			●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1508-			●	●
485	03.163 HOSE; FUEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98209-642-0	01	1	1505-1507	●		●
485	03.163 HOSE; FUEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 63 LITTER<6EF> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98209-642-0	01	1	1505-1507	●		●
485	03.163 HOSE; FUEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98209-642-0	01	1	1505-1507		●		●
485	03.163 HOSE; FUEL EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98209-642-0	01	1	1508-	●	●
485	03.163 HOSE; FUEL EXC. FRAME STRAIGHT TYPE<7KJ>	8-98209-642-0	01	1	1508-			●	●
485	03.163 HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-98138-300-0	01	1	1505-1507			●
485	03.163 HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-98138-300-0	01	1	1505-1507				●
485	03.163 HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ>	8-98138-300-0	01	1	1508-			●
485	03.163 HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ>	8-98138-300-0	01	1	1508-				●
633	03.162 STUD; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 03.275 M8X25 L=37	0-41010-825-0	02	1	1505-			●	●
634	03.162 NUT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-			●	●

299 301 300 301 301 302 303 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
299	03.162 BRACKET; FUEL FILTER (B)	8-98089-227-1	01	1	1505-	●	●
299	03.162 BRACKET; FUEL FILTER 4JJ1-TCS ENG(LFB) (B)	8-98089-227-1	01	1	1505-			●	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98186-569-0	01	1	1505-			●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98023-175-3	01	1	1505-			●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCS ENG(RJS) (A)	8-98023-175-3	01	1	1505-				●
300	03.162 BOLT; BRKT TO BODY 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-			●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1505-1507	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1505-1507			●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-	●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.100 (D) M8X90 FLANGE	0-28050-890-0	01	1	1505-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) 02.100 (D) M8X90 FLANGE	0-28050-890-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 04.510 (E) M10X35 FLANGE	0-28051-035-0	01	1	1505-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) 04.510 (E) M10X35 FLANGE	0-28051-035-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (F) M14X90 FLANGE	0-28851-490-0	01	1	1505-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (F) M14X90 FLANGE	0-28851-490-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 09.181 (C) M12X80	0-28151-280-0	02	1	1505-			●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 09.181 (C) M12X80	0-28151-280-0	01	1	1505-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1505-			●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1505-				●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1505-1507	●	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1505-1507			●	●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-	●	●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-	●	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-			●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	02	1	1505-1507			●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1508-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
