8-73 — BLOWER UNIT (#16122) — 96 parça

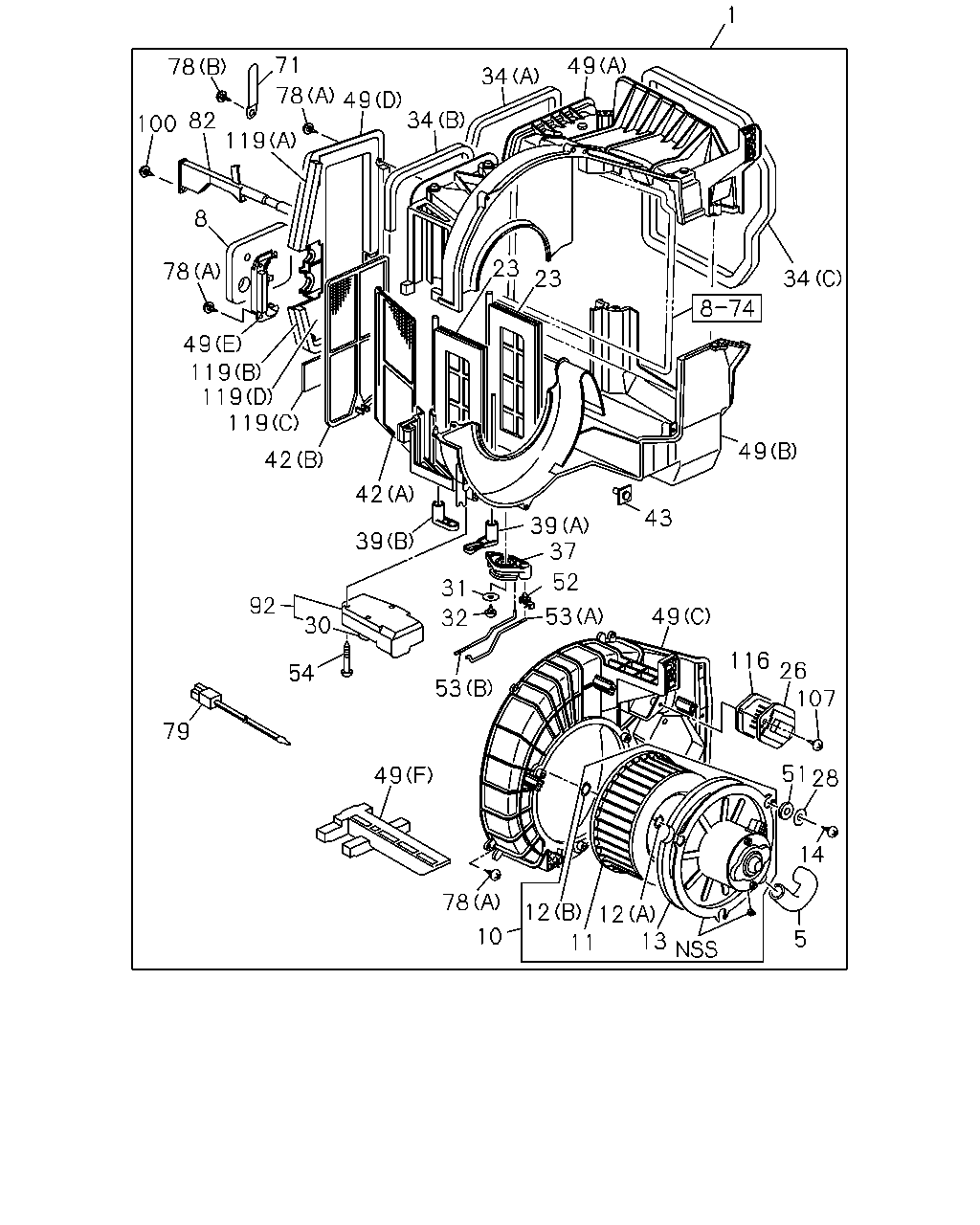

çizim 101936
1 71 49 78 34 78 49 34 82 100 119 8 23 78 23 34 49 119 119 119 49 42 42 43 39 37 39 52 31 92 49 53 32 30 116 26 107 54 53 79 51 28 49 14 78 12 12 13 10 5 11
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 1-83561-154-5 01 1 0904-1005
1 BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83561-154-5 01 1 1006-
5 HOSE; AIR 1-83563-140-0 01 1 0904-1005
5 HOSE; AIR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83563-140-0 01 1 1006-
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 0904-1005
8 SEAL; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83539-261-1 01 1 1006-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0904-1005
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83561-161-0 01 1 1006-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0904-1005
11 IMPELLER; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-635-0 01 1 1006-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0904-1005
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		5-83569-088-0 01 1 1006-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0904-1005
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		8-94243-962-0 01 1 1006-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0904-1005
13 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-636-0 01 1 1006-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0904-1005
14 SCREW; COVER TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20 		9-09829-324-1 03 1 1006-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0904-1005
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-637-0 02 1 1006-
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 0904-1005
26 TRANSISTOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-654-0 01 1 1006-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0904-1005
28 WASHER; PL,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-170-0 03 1 1006-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0904-1005
30 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83564-345-1 01 1 1006-
31 WASHER; LEVER 1-83579-095-0 01 1 0904-1005
31 WASHER; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-095-0 01 1 1006-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0904-1005
32 SCREW; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20 		9-09829-324-1 01 1 1006-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0904-1005
34 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-633-2 01 1 1006-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0904-1005
34 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-634-2 01 1 1006-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0904-1005
34 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-644-0 01 1 1006-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0904-1005
37 LEVER; MODE LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83564-344-0 01 1 1006-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0904-1005
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-342-0 01 1 1006-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0904-1005
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-343-0 01 1 1006-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0904-1005
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-643-3 01 1 1006-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0904-1005
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-993-0 02 1 1006-
43 BOLT; CASE 1-83579-657-2 04 1 0904-1005
43 BOLT; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-657-2 04 1 1006-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0904-1005
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83564-337-4 01 1 1006-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0904-1005
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83564-339-1 01 1 1006-
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 0904-1005
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F) 		1-83564-340-1 01 1 1006-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0904-1005
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-351-1 01 1 1006-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0904-1005
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83564-353-1 01 1 1006-
49 CASE; BLOWER UNIT
(B) 		1-83564-406-1 01 1 0904-1005
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-406-1 01 1 1006-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0904-1005
51 ISOLATOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-496-0 03 1 1006-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0904-1005
52 CLIP; LEVER TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-94248-794-0 02 1 1006-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0904-1005
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-638-0 01 1 1006-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0904-1005
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-639-0 01 1 1006-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0904-1005
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-94348-809-0 02 1 1006-
71 CLIP; HARNESS 1-83574-080-0 01 1 0904-1005
71 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83574-080-0 01 1 1006-
78 SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 0904-1005
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 1006-
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 0904-1005
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16 		8-94324-850-0 17 1 1006-
79 SENSOR; BLOWER UNIT 1-83544-037-0 01 1 0904-1005
79 SENSOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83544-037-0 01 1 1006-
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 0904-1005
82 BRACKET; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83571-871-1 01 1 1006-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0904-1005
92 ACTUATOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-640-1 01 1 1006-
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0904-1005
100 SCREW; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16 		8-94324-850-0 01 1 1006-
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 0904-1005
107 SCREW; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16 		8-94324-850-0 02 1 1006-
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 0904-1005
116 SEAL; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-656-0 01 1 1006-
119 LINING; CASE
(D) 		1-83578-032-0 01 1 0904-1005
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83578-032-0 01 1 1006-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0904-1005
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-670-1 01 1 1006-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0904-1005
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-671-1 01 1 1006-
119 LINING; CASE
(C) 		1-83579-961-0 01 1 0904-1005
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-961-0 01 1 1006-
