◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#161211) — 247 parça

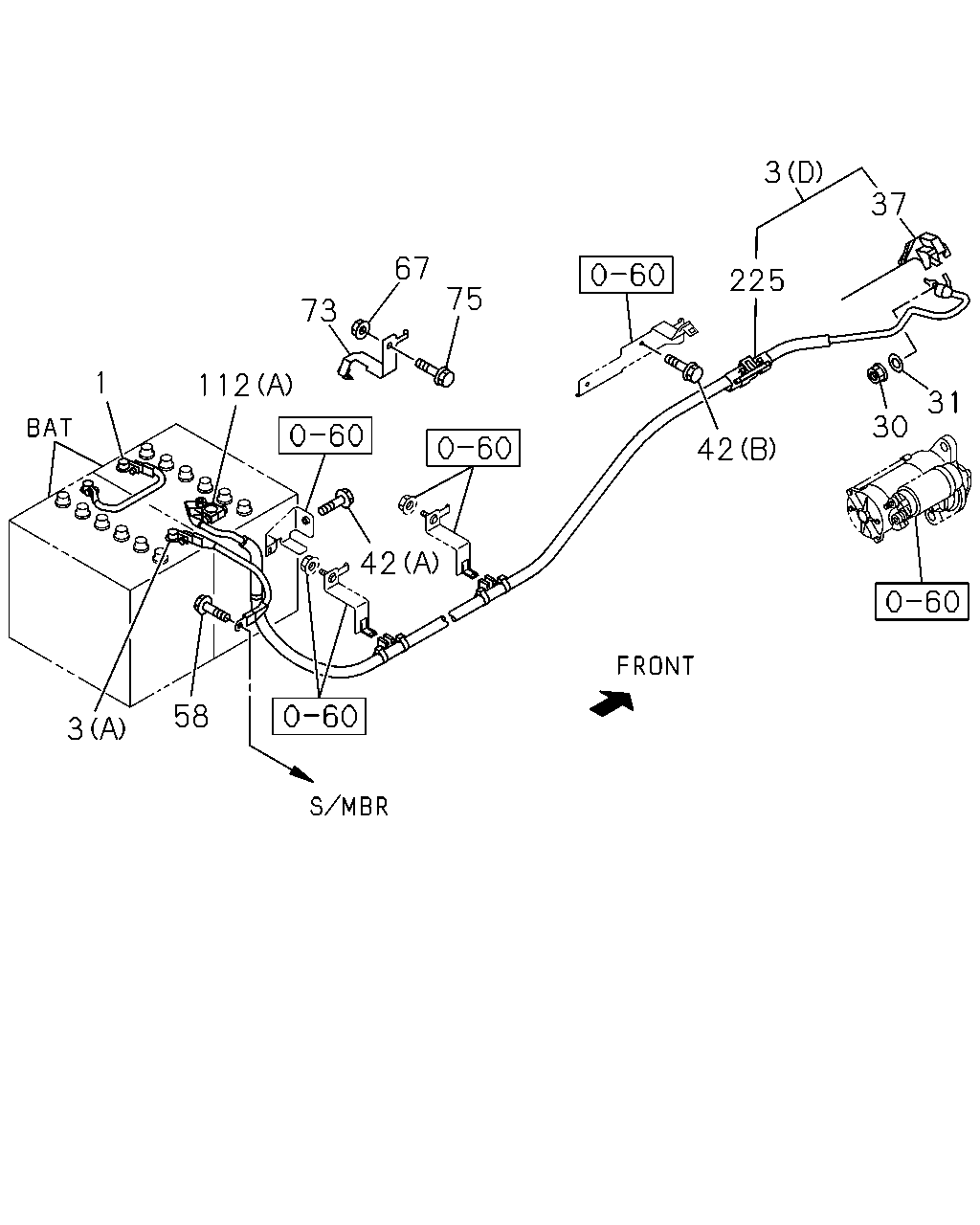

çizim 475280
30 31 42 75 73 112 1 3 58 42 225 37 3 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98294-791-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) (F) 		8-98260-428-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98294-792-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-787-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-787-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) L=230 		8-98220-520-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=230 		8-98220-520-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-788-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-788-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98293-917-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-729-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) L=200 		8-98056-337-1 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) (A) L=200 		8-98056-337-1 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-719-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-741-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98169-761-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98169-761-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-786-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-785-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-774-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-773-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (B) L=450 		8-98072-275-1 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98315-795-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98315-794-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-778-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-777-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1505-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1505-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98294-780-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98294-779-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-789-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98227-629-1 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-790-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98287-762-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98287-763-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-782-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-781-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98315-797-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98315-796-0 01 1 1505- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1505- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1505- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1505- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1508- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1505- ● ● ●
67 02.183 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ●
73 02.333 BRACKET; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-98228-698-3 01 1 1505- ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (B) 		8-97365-770-0 01 1 1505- ●
112 02.343 TERMINAL; BATTERY
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97365-770-0 01 1 1505- ●
112 02.343 TERMINAL; BATTERY
FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1505-1507 ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1505-1507 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97365-771-0 01 1 1505-1507 ●
112 02.343 TERMINAL; BATTERY
FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ● ● ●
112 02.343 TERMINAL; BATTERY
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ● ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1505- ● ● ●

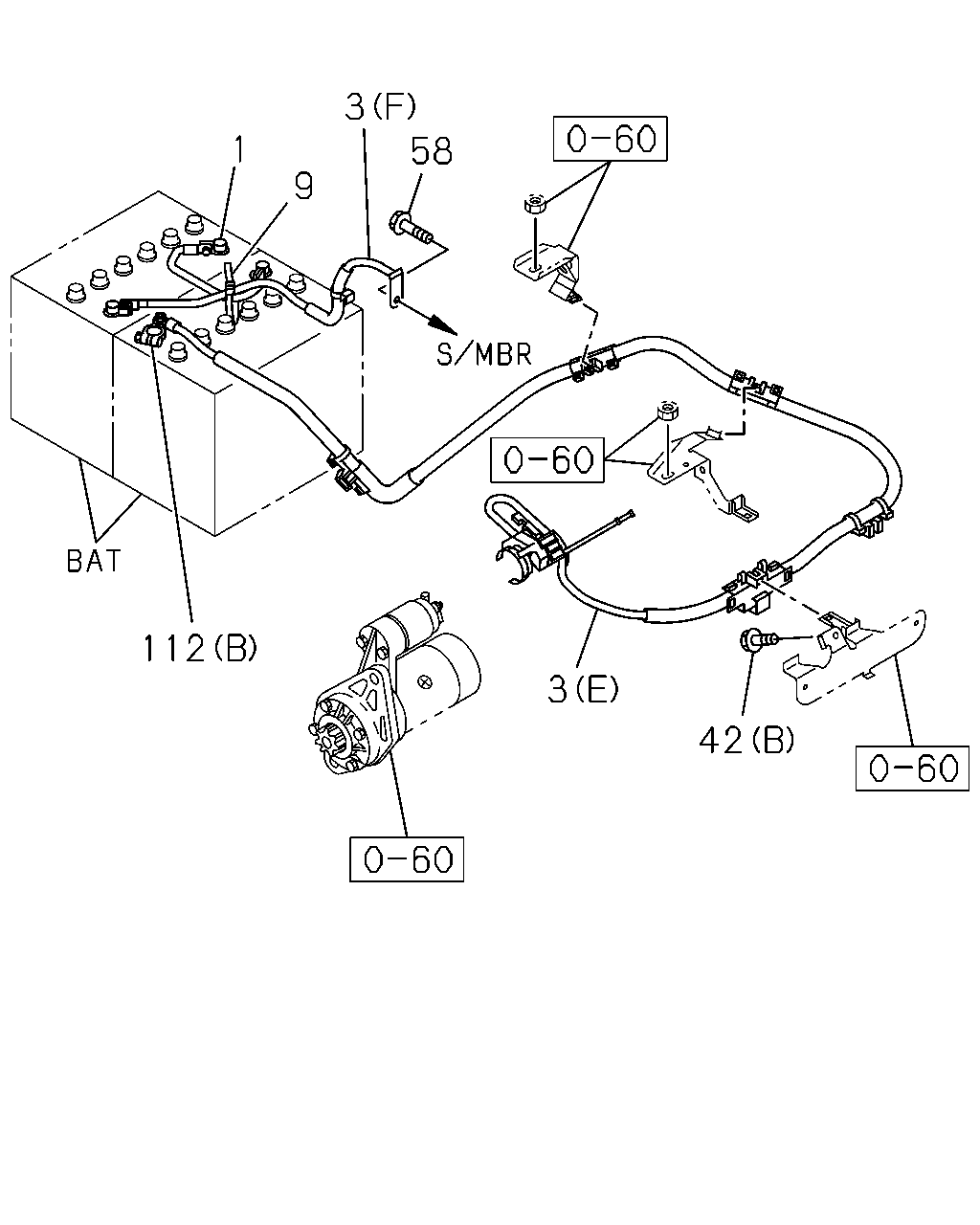

çizim 475284
42 3 112 9 1 3 58
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98294-791-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) (F) 		8-98260-428-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98294-792-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-787-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-787-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) L=230 		8-98220-520-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=230 		8-98220-520-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-788-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-788-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98293-917-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-729-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) L=200 		8-98056-337-1 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) (A) L=200 		8-98056-337-1 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-719-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-741-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98169-761-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98169-761-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-786-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-785-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-774-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-773-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (B) L=450 		8-98072-275-1 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98315-795-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98315-794-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-778-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-777-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1505-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1505-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98294-780-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98294-779-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-789-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98227-629-1 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-790-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98287-762-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98287-763-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-782-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-781-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98315-797-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98315-796-0 01 1 1505- ●
9 02.343 CLIP; BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 03.162 L=140 		5-09707-031-1 01 1 1505- ●
9 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 L=140 		5-09707-031-1 01 1 1505- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1508- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1505- ● ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (B) 		8-97365-770-0 01 1 1505- ●
112 02.343 TERMINAL; BATTERY
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97365-770-0 01 1 1505- ●
112 02.343 TERMINAL; BATTERY
FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1505-1507 ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1505-1507 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97365-771-0 01 1 1505-1507 ●
112 02.343 TERMINAL; BATTERY
FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ● ● ●
112 02.343 TERMINAL; BATTERY
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ● ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ●

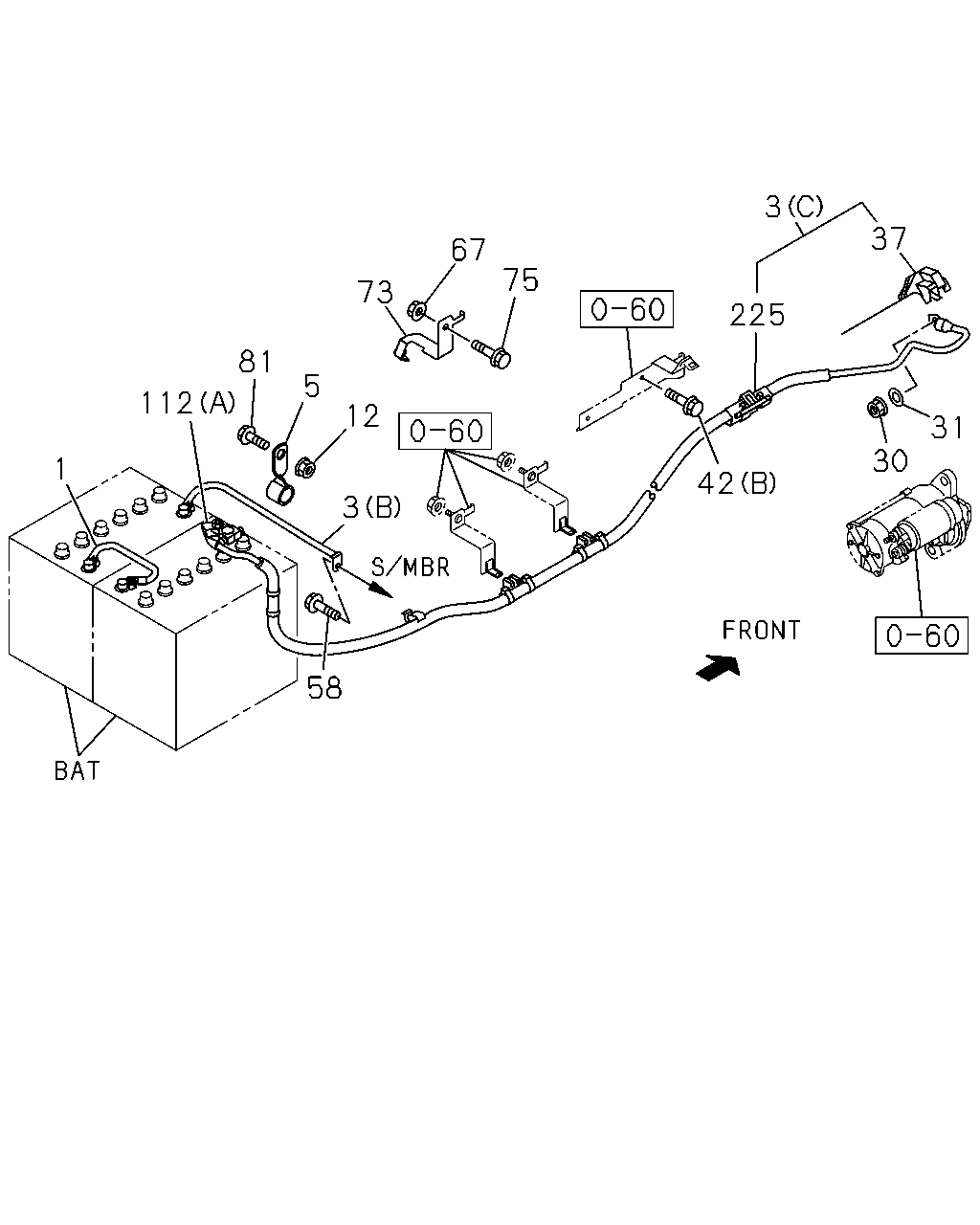

çizim 475288
42 225 3 31 30 75 67 73 81 112 3 12 5 58 37 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1505- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98294-791-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) (F) 		8-98260-428-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98294-792-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-787-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-787-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) L=230 		8-98220-520-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=230 		8-98220-520-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-788-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-788-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98293-917-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-729-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) L=200 		8-98056-337-1 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) (A) L=200 		8-98056-337-1 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-719-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-741-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1505-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98169-761-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98169-761-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98169-761-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-786-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-785-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-774-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-773-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (B) L=450 		8-98072-275-1 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98315-795-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98315-794-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-778-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-777-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1505-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1505-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (B) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98294-780-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98294-779-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-789-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98227-629-1 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98294-790-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98287-762-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98287-763-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98294-782-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98294-781-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98315-797-0 01 1 1505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98315-796-0 01 1 1505- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1505-1507 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1505-1507 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=19 L=58 		1-09700-733-1 01 1 1505-1507 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1508-1508 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=19 L=58 		1-09700-733-1 01 1 1508-1508 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> ID=19 L=58 		1-09700-733-1 01 1 1508-1511 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1508-1511 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> ID=19 L=58 		1-09700-733-1 01 1 1512- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1512- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
12 02.343 NUT; BATTERY CABLE CLIP
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1508 ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1508 ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ● ● ●
12 02.343 NUT; BATTERY CABLE CLIP
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
12 02.343 NUT; BATTERY CABLE CLIP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1505- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1505- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1505- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1508- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1508- ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1505- ● ● ●
67 02.183 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ●
73 02.333 BRACKET; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-98228-698-3 01 1 1505- ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ●
81 02.559 BOLT; BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ●
81 02.559 BOLT; BATTERY CABLE
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ● ● ●
81 02.559 BOLT; BATTERY CABLE
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ● ●
81 02.559 BOLT; BATTERY CABLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (B) 		8-97365-770-0 01 1 1505- ●
112 02.343 TERMINAL; BATTERY
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97365-770-0 01 1 1505- ●
112 02.343 TERMINAL; BATTERY
FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1505-1507 ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1505-1507 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97365-771-0 01 1 1505-1507 ●
112 02.343 TERMINAL; BATTERY
FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ● ● ●
112 02.343 TERMINAL; BATTERY
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ● ● ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) <+> 		8-97365-771-0 01 1 1508- ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
