◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#161210) — 225 parça

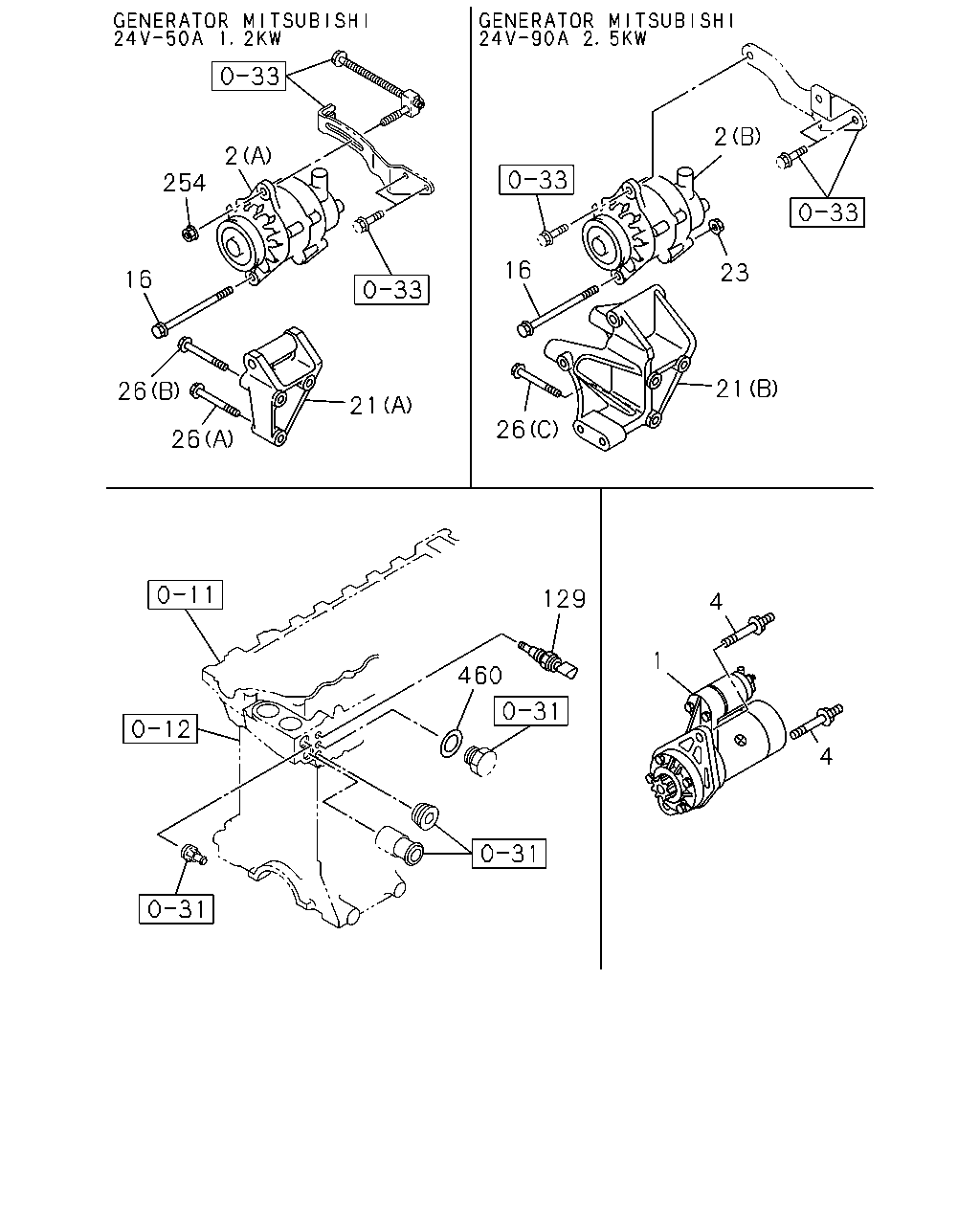

çizim 475256
254 2 16 26 26 21 26 21 23 16 2 129 4 1 460 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (C) 24V 90A 		8-98251-635-1 01 1 1505- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C) 24V 50A 		8-98268-791-0 01 1 1505- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 24V 90A 		8-98268-793-0 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 24V 50A 		8-98268-792-1 01 1 1505- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1505- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1505- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1505- ●
21 02.277 BRACKET; GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 		8-98036-551-0 01 1 1505- ●
21 02.277 BRACKET; GEN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-97075-884-2 01 1 1505- ●
23 02.277 NUT; GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EGR COOLER LH POSITION<KCC> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1505- ●
26 02.277 BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1505- ●
26 02.277 BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1505- ●
26 02.277 BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1505- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1505- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1505- ●
254 02.277 NUT; GEN BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1505- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1505- ●

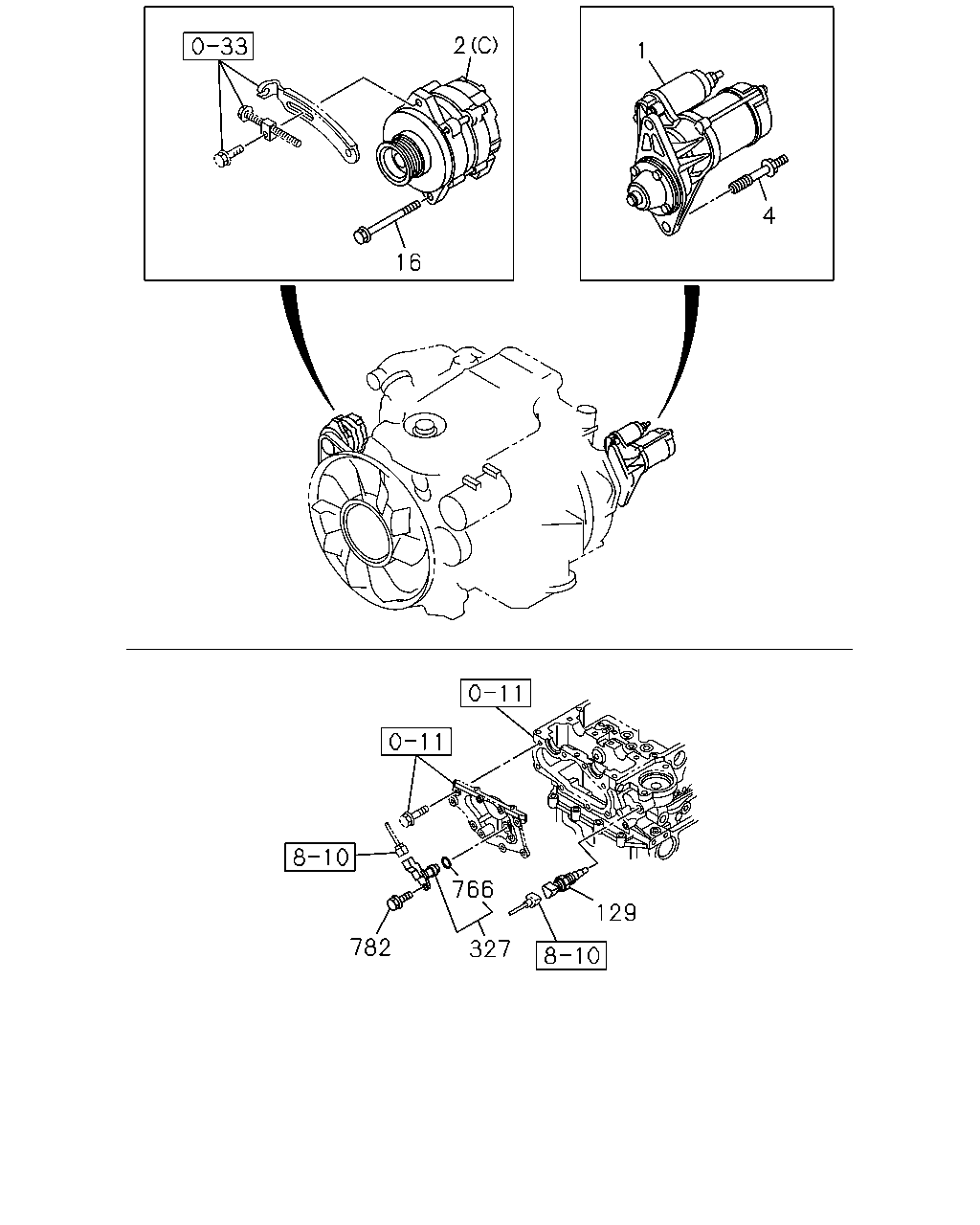

çizim 475258
16 1 2 4 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (C) 24V 90A 		8-98251-635-1 01 1 1505- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C) 24V 50A 		8-98268-791-0 01 1 1505- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 24V 90A 		8-98268-793-0 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 24V 50A 		8-98268-792-1 01 1 1505- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1505- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1505- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1505- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1505- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1505- ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1505- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1505- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1505- ● ●

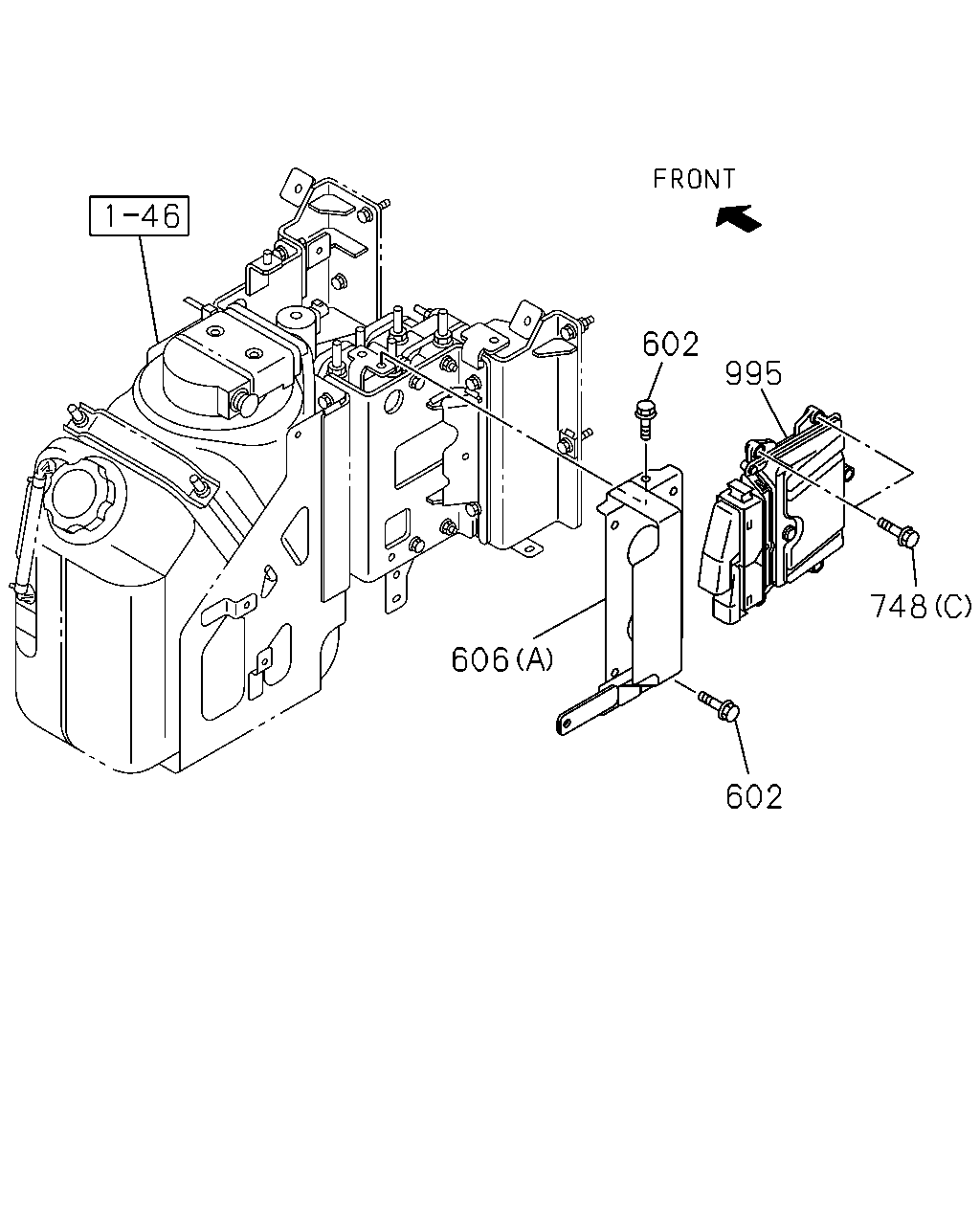

çizim 475265
602 995 748 602 606
BalonParca AdiParca NoAdetTipApplied Date A B C
602 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
606 03.680 BRACKET; CONT UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98114-583-2 01 1 1508- ●
606 03.680 BRACKET; CONT UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98278-066-0 01 1 1508- ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-085-1 01 1 1505- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98207-086-2 01 1 1505-1507 ●
606 03.680 BRACKET; CONT UNIT
NNR(NP***E) EURO6 SPECIFICATION(NT6) (C) 		8-98207-086-2 01 1 1508- ●
606 03.680 BRACKET; CONT UNIT
NPR(NP***N) (C) 		8-98207-086-2 01 1 1508- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98206-334-0 01 1 1505- ●
748 02.500 BOLT; CONT UNIT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (E) M6X12 FLANGE 		0-28050-612-0 03 1 1508- ●
748 02.500 BOLT; CONT UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 (E) M6X12 FLANGE 		0-28050-612-0 04 1 1508- ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1505- ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1505-1507 ● ● ●
748 02.500 BOLT; CONT UNIT
NNR(NP***E) EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
748 02.500 BOLT; CONT UNIT
NPR(NP***N) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1508- ●
748 02.500 BOLT; CONT UNIT
03.680 (C) M6X30 FLANGE 		0-28650-630-0 08 1 1505-1507 ●
748 02.500 BOLT; CONT UNIT
NNR(NP***E) EURO6 SPECIFICATION(NT6) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 08 1 1508- ●
748 02.500 BOLT; CONT UNIT
NPR(NP***N) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 08 1 1508- ●
748 02.500 BOLT; CONT UNIT
03.403 (D) M8X30 FLANGE 		0-28650-830-0 04 1 1505- ●
995 03.682 CONTROL UNIT; DEF DCM
EGR COOLER LH POSITION<KCC> 		8-98289-128-0 01 1 1505- ●
995 03.682 CONTROL UNIT; DEF DCM
EXC. EGR COOLER LH POSITION<KCC> 		8-98285-269-0 01 1 1505- ●

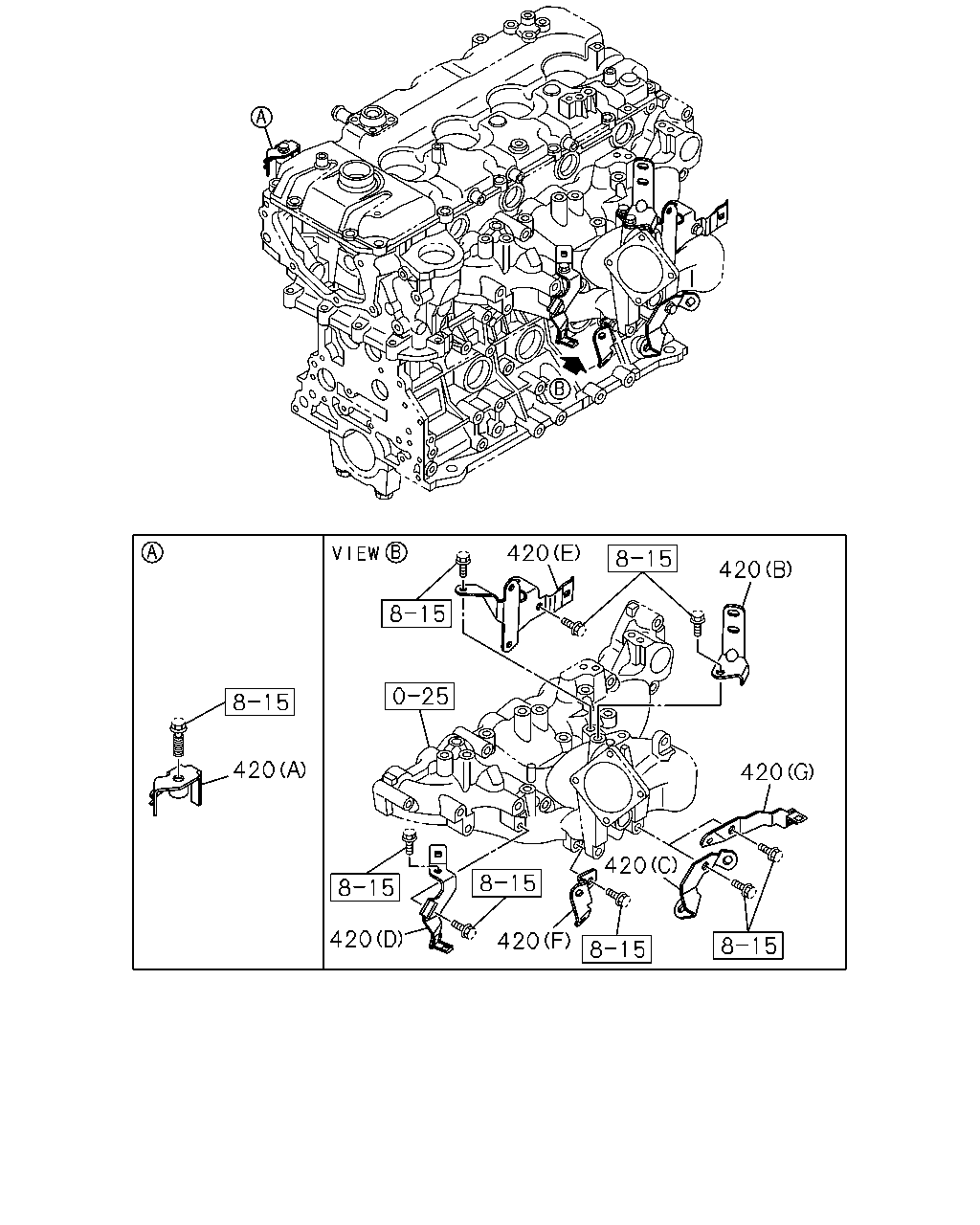

çizim 475272
420 420 420 420 420 420 420
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS
(A) 		8-98140-298-3 01 1 1505- ● ●
420 02.183 BRACKET; HARNESS
(B) 		8-98209-804-1 01 1 1505- ● ●
420 02.183 BRACKET; HARNESS
(C) 		8-98209-803-1 01 1 1505- ●
420 02.183 BRACKET; HARNESS
(D) 		8-98115-415-1 01 1 1505- ●
420 02.183 BRACKET; HARNESS
02.483 (E) 		8-98195-122-0 01 1 1505- ●
420 02.183 BRACKET; HARNESS
(F) 		8-98203-403-0 01 1 1505- ●
420 02.183 BRACKET; HARNESS
(G) 		8-98209-805-1 01 1 1505- ●

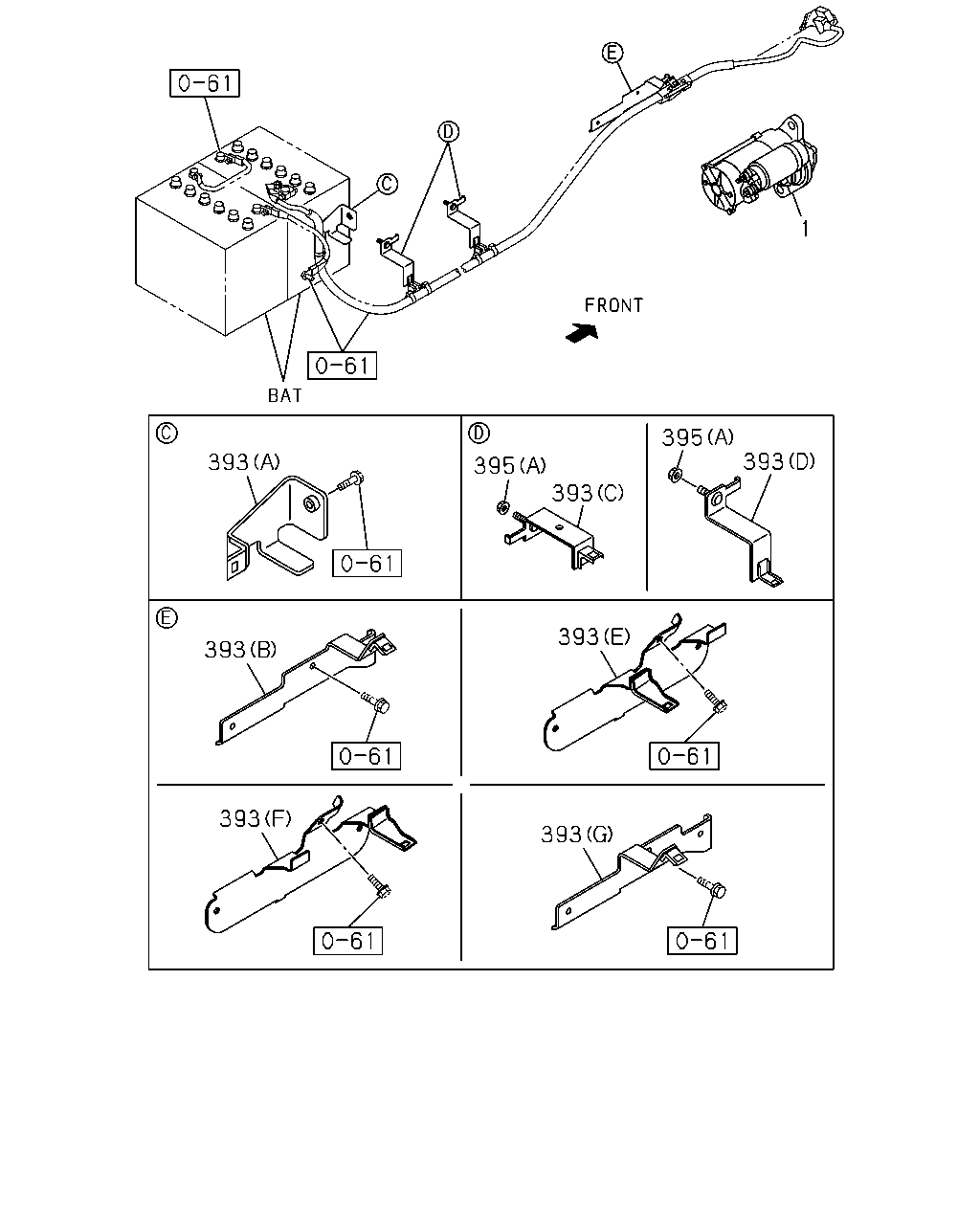

çizim 475275
395 393 393 395 393 393 393 393 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (I) 		8-98260-938-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (H) 		8-98260-939-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) (D) 		8-98245-494-0 02 1 1508-1508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 02 1 1508-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) (D) 		8-98245-494-0 02 1 1508- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (A) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (A) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) 02.483 (C) 		8-98018-251-1 02 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) 		8-98222-736-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1505- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) 00.787 (B) M10 		0-91111-510-0 02 1 1505- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 63 LITTER<6EF> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1508- ●

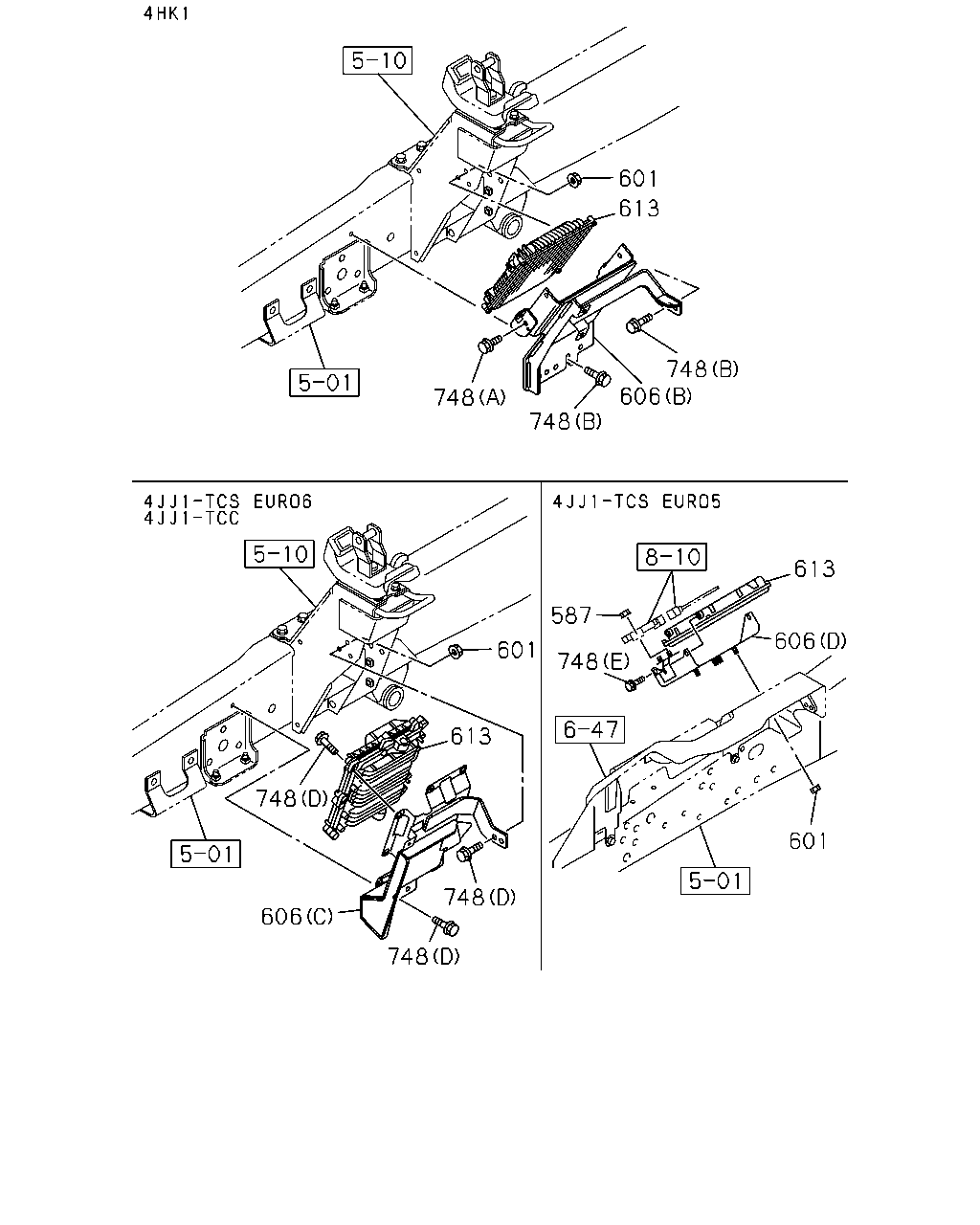

çizim 475276
748 748 606 748 613 601 748 606 748 748 601 748 587 613 606 613 601
BalonParca AdiParca NoAdetTipApplied Date A B C
587 03.671 NUT; RESISTOR & RELAY
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1508- ●
601 03.670 NUT; UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1508- ● ●
601 03.670 NUT; UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) 04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1508- ●
601 03.670 NUT; UNIT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
601 03.670 NUT; UNIT
NNR(NP***E) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ●
601 03.670 NUT; UNIT
NPR(NP***N) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ●
601 03.670 NUT; UNIT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ●
606 03.680 BRACKET; CONT UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98114-583-2 01 1 1508- ●
606 03.680 BRACKET; CONT UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98278-066-0 01 1 1508- ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-085-1 01 1 1505- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98207-086-2 01 1 1505-1507 ●
606 03.680 BRACKET; CONT UNIT
NNR(NP***E) EURO6 SPECIFICATION(NT6) (C) 		8-98207-086-2 01 1 1508- ●
606 03.680 BRACKET; CONT UNIT
NPR(NP***N) (C) 		8-98207-086-2 01 1 1508- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98206-334-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-855-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
SMOOTHER-EX(TYPE2)(8NS) 		8-98303-856-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-421-1 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SMOOTHER-EX(TYPE2)(8NS) 		8-98286-791-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98303-860-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-858-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98303-859-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-857-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98303-862-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-861-1 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98289-122-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98289-118-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-467-1 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SMOOTHER-EX(TYPE2)(8NS) 		8-98286-792-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98289-124-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98289-120-0 01 1 1505- ●
748 02.500 BOLT; CONT UNIT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (E) M6X12 FLANGE 		0-28050-612-0 03 1 1508- ●
748 02.500 BOLT; CONT UNIT
NNR(NP***E) EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 (E) M6X12 FLANGE 		0-28050-612-0 04 1 1508- ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1505- ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1505-1507 ● ● ●
748 02.500 BOLT; CONT UNIT
NNR(NP***E) EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
748 02.500 BOLT; CONT UNIT
NPR(NP***N) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1508- ●
748 02.500 BOLT; CONT UNIT
03.680 (C) M6X30 FLANGE 		0-28650-630-0 08 1 1505-1507 ●
748 02.500 BOLT; CONT UNIT
NNR(NP***E) EURO6 SPECIFICATION(NT6) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 08 1 1508- ●
748 02.500 BOLT; CONT UNIT
NPR(NP***N) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 08 1 1508- ●
748 02.500 BOLT; CONT UNIT
03.403 (D) M8X30 FLANGE 		0-28650-830-0 04 1 1505- ●
çizim 476579
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1505- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1505- ● ● ●

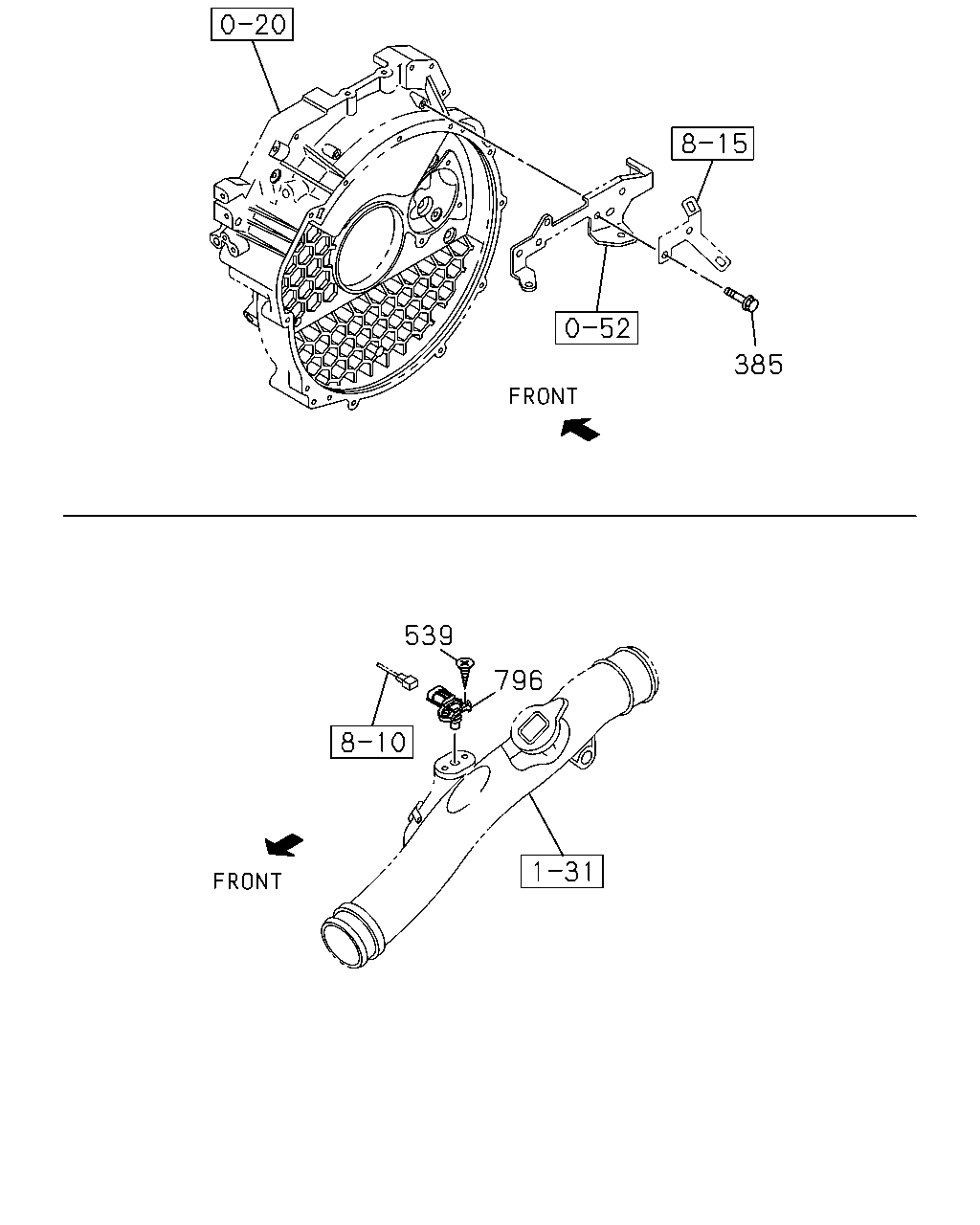

çizim 476633
385 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
385 02.183 BOLT; BRKT,IGN COIL
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1505- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505-1507 ●
539 02.510 SCREW; SENSOR
EURO5B+ SPECIFICATION(NT5) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1508- ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1505- ●

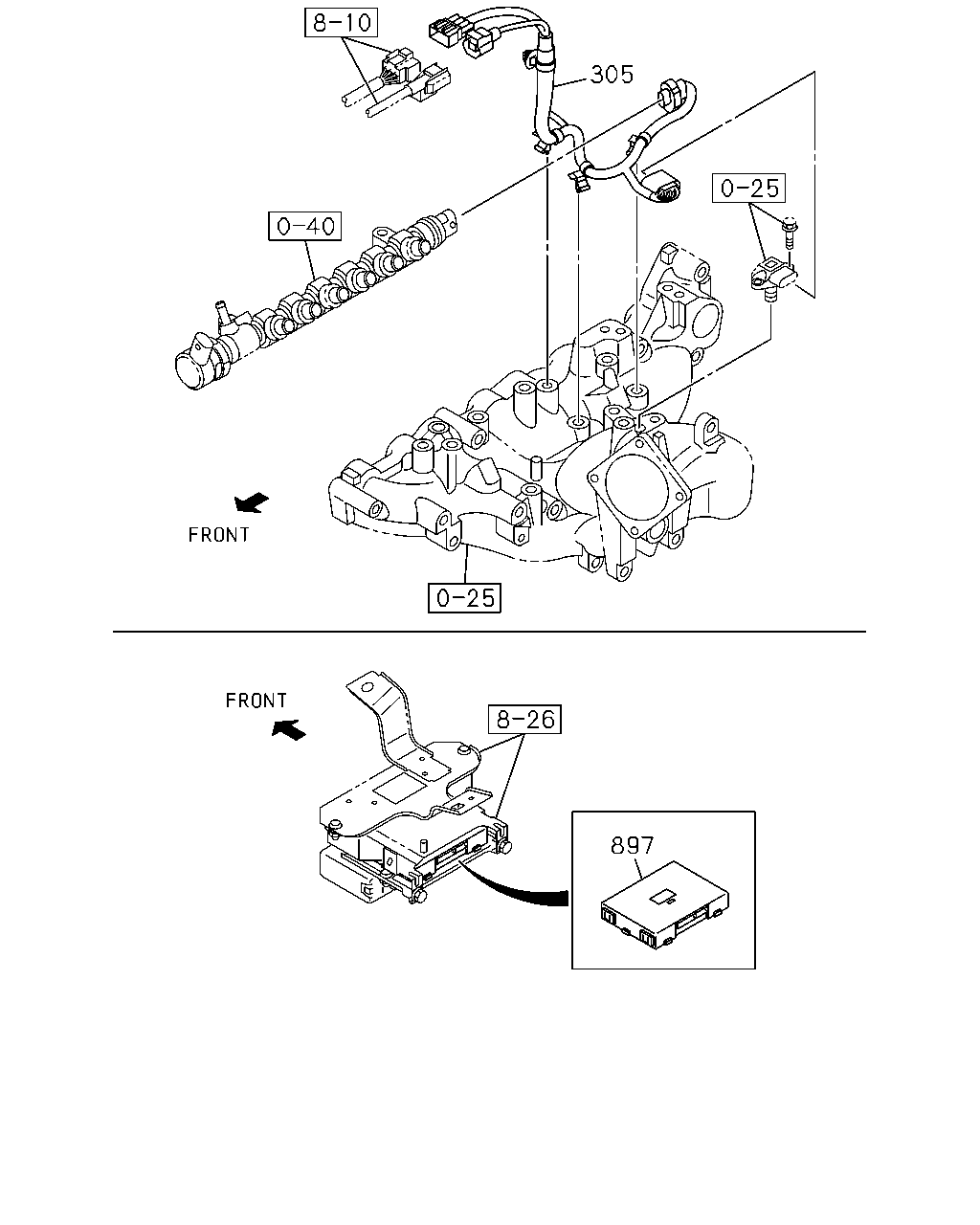

çizim 476702
305 897
BalonParca AdiParca NoAdetTipApplied Date A B C
305 02.480 HARNESS; EXT,GLOW PLUG 8-98209-543-1 01 1 1505- ●
897 02.510 DRM 8-98290-407-0 01 1 1505- ● ● ●

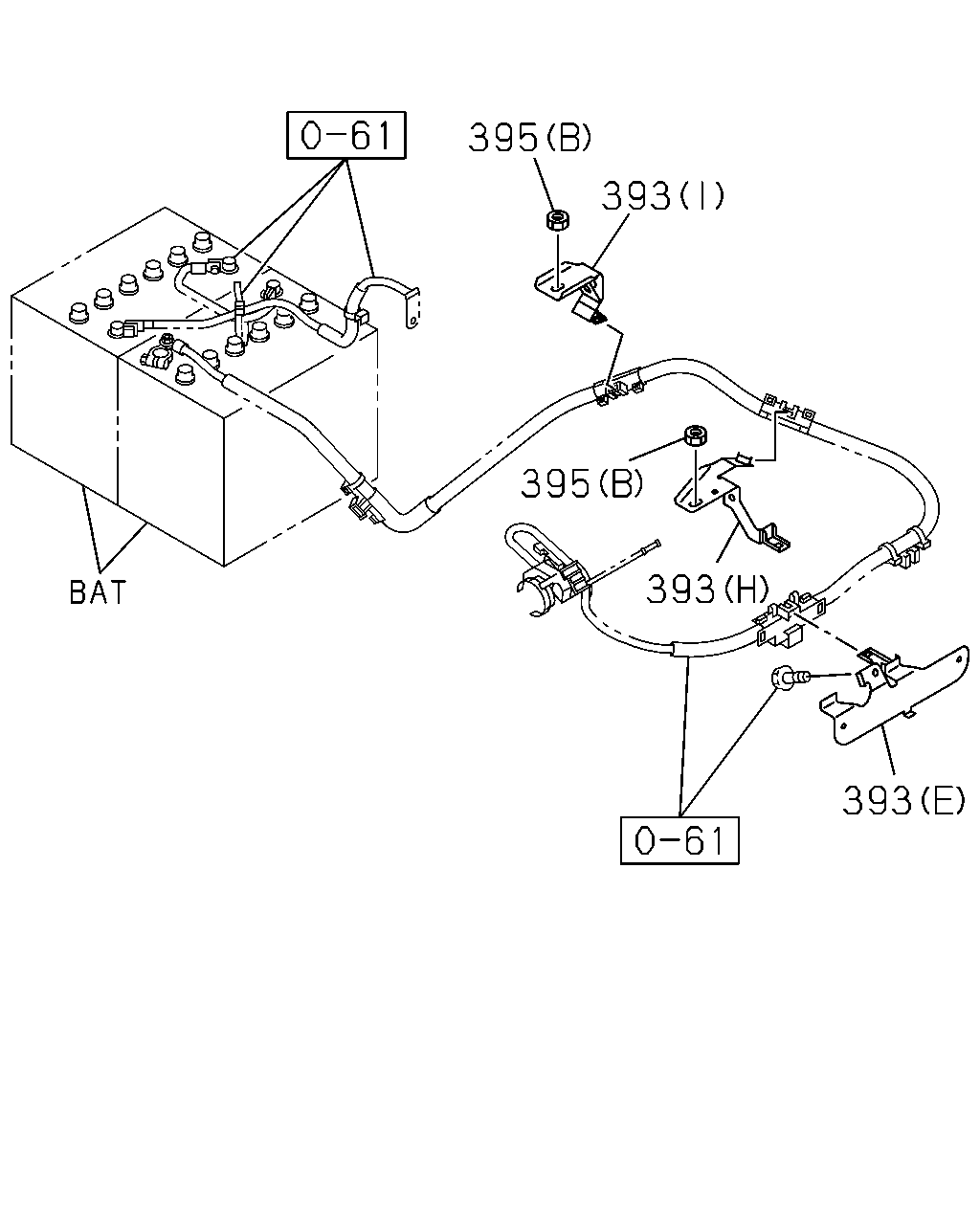

çizim 476711
393 393 395 393 395
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (I) 		8-98260-938-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (H) 		8-98260-939-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) (D) 		8-98245-494-0 02 1 1508-1508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 02 1 1508-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508-1508 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) (D) 		8-98245-494-0 02 1 1508- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (A) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (A) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) 02.483 (C) 		8-98018-251-1 02 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) 		8-98222-736-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1505- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) 00.787 (B) M10 		0-91111-510-0 02 1 1505- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FUEL TANK 63 LITTER<6EF> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
