8-60 — HEATER UNIT; FRONT (#16120) — 178 parça

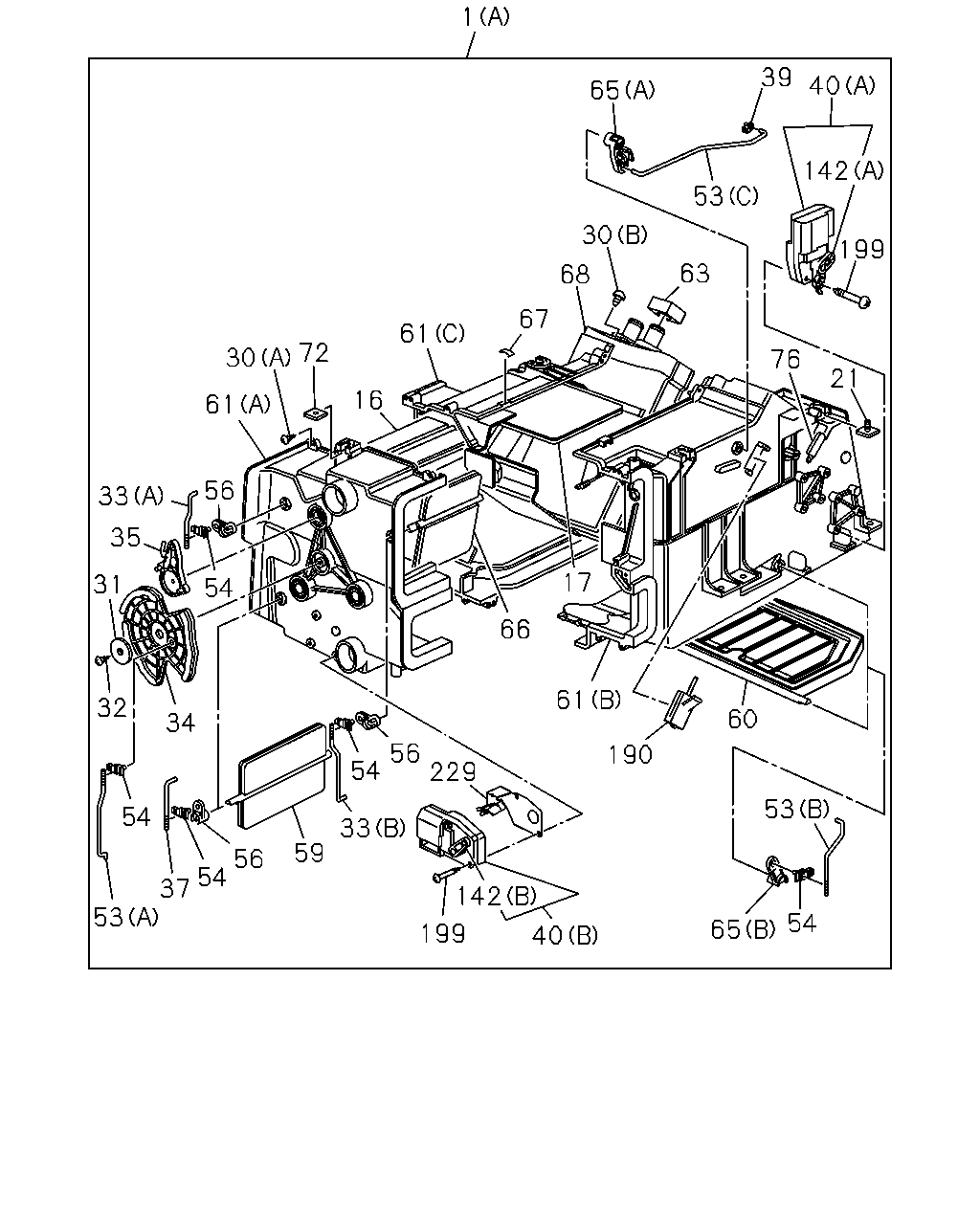

1 65 39 40 142 199 21 76 60 53 54 65 190 61 17 63 53 30 68 67 61 16 66 229 142 40 199 56 54 33 59 56 54 37 53 54 34 32 31 54 56 35 33 61 30 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83511-182-1	01	1	1006-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	8-98238-480-0	01	1	1410-
1	HEATER UNIT (A)	1-83511-184-1	01	1	0904-1005
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83511-184-1	01	1	1006-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98238-482-0	01	1	1410-
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	0904-1005
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	1006-
17	SHUTTER; HTR UNIT,CENTER	1-83579-628-1	01	1	0904-1005
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	1006-
21	BOLT; CASE,HTR UNIT	1-83579-657-2	02	1	0904-1005
21	BOLT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	1006-
30	SCREW; HTR UNIT (A) M4X16	8-94324-850-0	12	1	0904-1005
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	12	1	1006-
30	SCREW; HTR UNIT (B) M5X20	9-09829-324-1	01	1	0904-1005
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X20	9-09829-324-1	01	1	1006-1409
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X16	8-94248-820-0	01	1	1410-
31	WASHER; HTR UNIT	8-94129-950-0	01	1	0904-1005
31	WASHER; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	1006-
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	0904-1005
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	1006-1409
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16	8-94248-820-0	01	1	1410-
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	0904-1005
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	1006-
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	0904-1005
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	1006-
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	0904-1005
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	1006-
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	0904-1005
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	1006-
37	ROD; LEVER	1-83579-620-1	01	1	0904-1005
37	ROD; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	1006-
39	CLIP; HTR UNIT	1-83574-136-0	01	1	0904-1005
39	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	1006-
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	1006-
40	ACTUATOR; HTR UNIT (B)	1-83579-649-2	01	1	0904-1005
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	1006-
40	ACTUATOR; HTR UNIT (A)	1-83579-650-1	01	1	0904-1005
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	1006-
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	0904-1005
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	1006-
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	0904-1005
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	1006-
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	0904-1005
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	1006-
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	0904-1005
54	CLIP; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	1006-
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	0904-1005
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	1006-
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-2	01	1	0904-1005
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	1006-
60	DOOR; MIX,HTR UNIT	1-83578-084-0	01	1	0904-1005
60	DOOR; MIX,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	1006-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	1006-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	1006-
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	0904-1005
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	1006-
61	CASE; HTR UNIT (B)	1-83564-401-0	01	1	0904-1005
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	1006-
61	CASE; HTR UNIT (A)	1-83564-402-0	01	1	0904-1005
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	1006-
63	LINING; HTR UNIT	1-83579-557-0	02	1	0904-1005
63	LINING; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	1006-
65	LEVER; MIX,DOOR (A)	1-83564-327-0	01	1	0904-1005
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	1006-
65	LEVER; MIX,DOOR (B)	1-83564-328-1	01	1	0904-1005
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	1006-
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-680-0	01	1	0904-1005
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	1006-
67	CLIP; HTR UNIT	1-83574-148-0	01	1	0904-1005
67	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	1006-
68	CORE; HTR UNIT	1-83562-078-1	01	1	0904-1005
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	1006-1409
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-475-0	01	1	1410-
72	NUT; CASE,HTR UNIT	1-83579-659-4	02	1	0904-1005
72	NUT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	1006-
76	BRACKET; HTR UNIT	1-83571-874-0	01	1	0904-1005
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-874-0	01	1	1006-
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	1006-
142	LEVER; ACTUATOR (B)	1-83564-345-1	01	1	0904-1005
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	1006-
142	LEVER; ACTUATOR (A)	1-83564-414-0	01	1	0904-1005
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	1006-
190	SENSOR; HEATER UNIT	1-83579-658-1	01	1	0904-1005
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-658-1	01	1	1006-
199	SCREW; ACTUATOR	8-94348-809-0	04	1	0904-1005
199	SCREW; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	1006-
229	SWITCH ASM; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-688-2	01	1	1006-1409

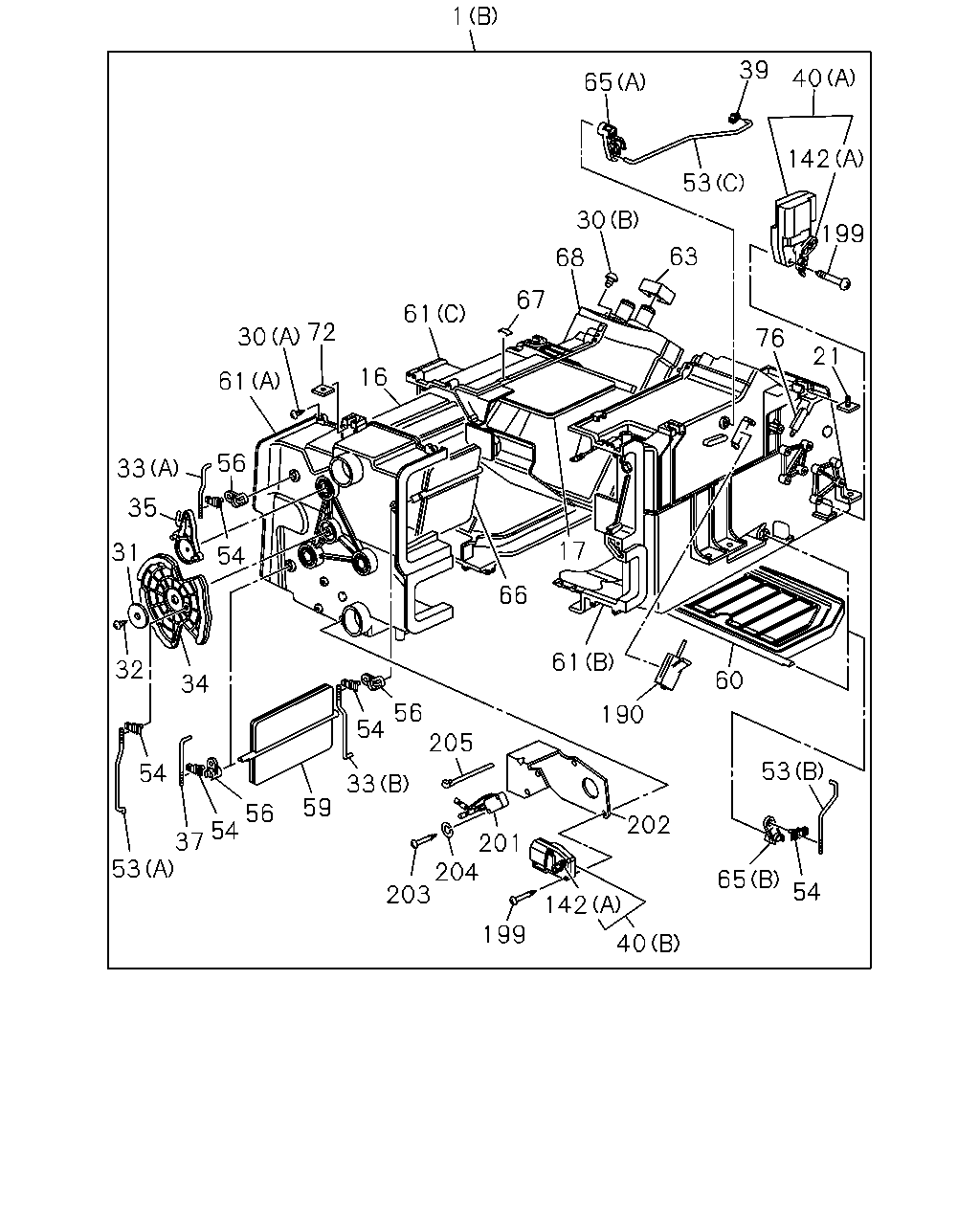

1 65 39 40 142 199 53 30 63 68 67 61 16 72 30 61 56 33 35 31 54 32 34 54 53 37 54 56 59 33 54 56 205 66 17 61 190 60 76 21 53 54 65 40 202 142 199 201 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83511-182-1	01	1	1006-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	8-98238-480-0	01	1	1410-
1	HEATER UNIT (A)	1-83511-184-1	01	1	0904-1005
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83511-184-1	01	1	1006-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98238-482-0	01	1	1410-
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	0904-1005
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	1006-
17	SHUTTER; HTR UNIT,CENTER	1-83579-628-1	01	1	0904-1005
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	1006-
21	BOLT; CASE,HTR UNIT	1-83579-657-2	02	1	0904-1005
21	BOLT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	1006-
30	SCREW; HTR UNIT (A) M4X16	8-94324-850-0	12	1	0904-1005
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	12	1	1006-
30	SCREW; HTR UNIT (B) M5X20	9-09829-324-1	01	1	0904-1005
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X20	9-09829-324-1	01	1	1006-1409
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X16	8-94248-820-0	01	1	1410-
31	WASHER; HTR UNIT	8-94129-950-0	01	1	0904-1005
31	WASHER; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	1006-
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	0904-1005
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	1006-1409
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16	8-94248-820-0	01	1	1410-
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	0904-1005
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	1006-
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	0904-1005
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	1006-
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	0904-1005
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	1006-
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	0904-1005
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	1006-
37	ROD; LEVER	1-83579-620-1	01	1	0904-1005
37	ROD; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	1006-
39	CLIP; HTR UNIT	1-83574-136-0	01	1	0904-1005
39	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	1006-
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	1006-
40	ACTUATOR; HTR UNIT (B)	1-83579-649-2	01	1	0904-1005
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	1006-
40	ACTUATOR; HTR UNIT (A)	1-83579-650-1	01	1	0904-1005
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	1006-
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	0904-1005
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	1006-
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	0904-1005
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	1006-
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	0904-1005
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	1006-
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	0904-1005
54	CLIP; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	1006-
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	0904-1005
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	1006-
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-2	01	1	0904-1005
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	1006-
60	DOOR; MIX,HTR UNIT	1-83578-084-0	01	1	0904-1005
60	DOOR; MIX,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	1006-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	1006-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	1006-
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	0904-1005
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	1006-
61	CASE; HTR UNIT (B)	1-83564-401-0	01	1	0904-1005
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	1006-
61	CASE; HTR UNIT (A)	1-83564-402-0	01	1	0904-1005
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	1006-
63	LINING; HTR UNIT	1-83579-557-0	02	1	0904-1005
63	LINING; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	1006-
65	LEVER; MIX,DOOR (A)	1-83564-327-0	01	1	0904-1005
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	1006-
65	LEVER; MIX,DOOR (B)	1-83564-328-1	01	1	0904-1005
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	1006-
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-680-0	01	1	0904-1005
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	1006-
67	CLIP; HTR UNIT	1-83574-148-0	01	1	0904-1005
67	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	1006-
68	CORE; HTR UNIT	1-83562-078-1	01	1	0904-1005
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	1006-1409
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-475-0	01	1	1410-
72	NUT; CASE,HTR UNIT	1-83579-659-4	02	1	0904-1005
72	NUT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	1006-
76	BRACKET; HTR UNIT	1-83571-874-0	01	1	0904-1005
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-874-0	01	1	1006-
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	1006-
142	LEVER; ACTUATOR (B)	1-83564-345-1	01	1	0904-1005
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	1006-
142	LEVER; ACTUATOR (A)	1-83564-414-0	01	1	0904-1005
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	1006-
190	SENSOR; HEATER UNIT	1-83579-658-1	01	1	0904-1005
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-658-1	01	1	1006-
199	SCREW; ACTUATOR	8-94348-809-0	04	1	0904-1005
199	SCREW; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	1006-
201	SWITCH; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-679-1	01	1	1410-
202	BRACKET; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-907-1	01	1	1410-
203	SCREW; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	5-83569-141-0	02	1	1410-
204	WASHER; LK,MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1	9-09150-503-0	02	1	1410-
205	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92	1-83574-159-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
