3-70 — BRAKE PIPING; AIR,AIR MASTER (#1612) — 250 parça

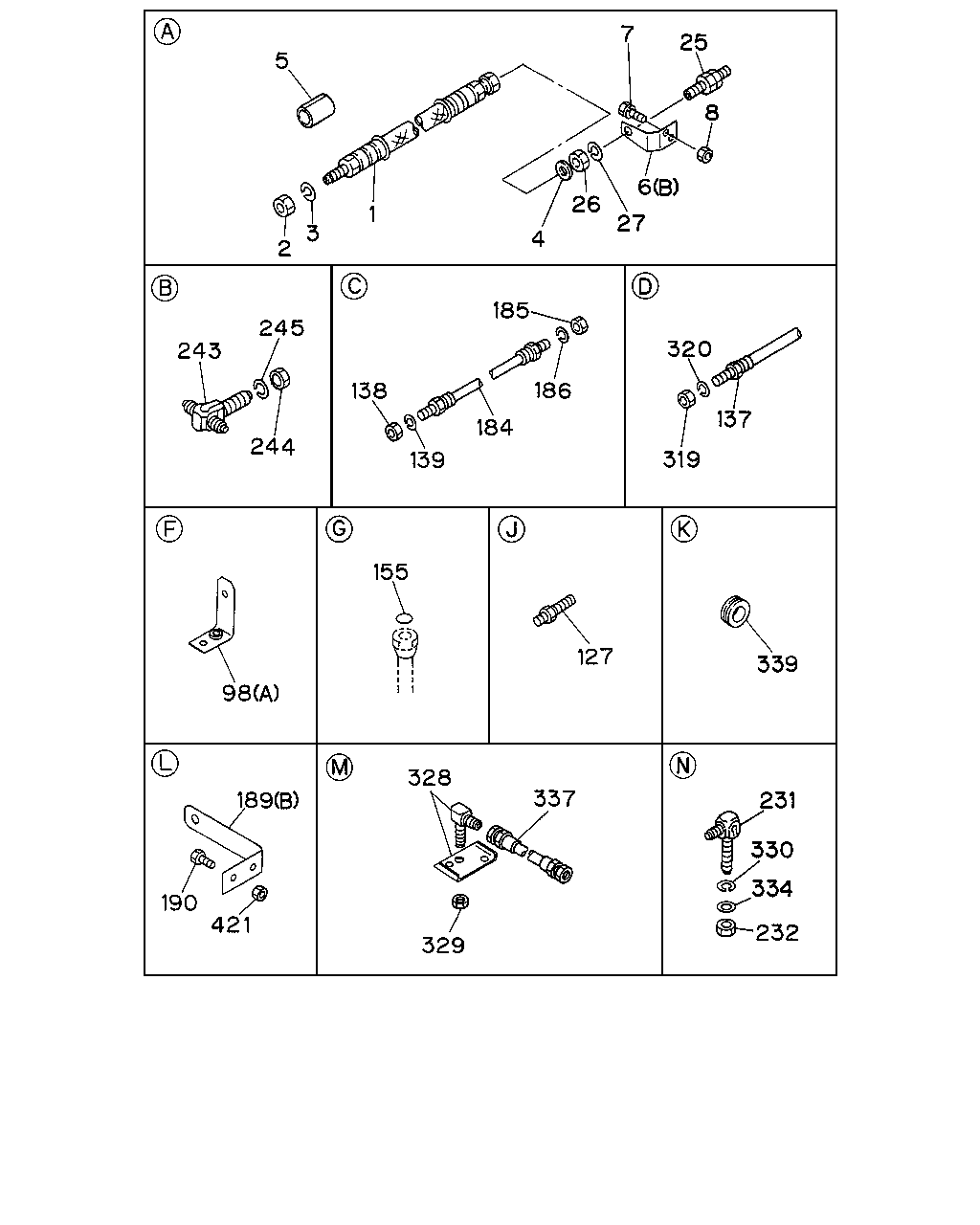

çizim 28896
5 2 3 1 7 25 8 6 27 26 4 243 245 244 138 185 139 184 186 320 319 137 339 127 155 98 189 190 421 329 328 337 231 330 334 232
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,AIR TANK
L=360 		0-07836-360-1 01 1 9207- ● ●
1 HOSE; FLEX,AIR TANK
MBG5B M/T(X4K) L=390 		0-07836-390-1 01 1 9207- ● ● ●
1 HOSE; FLEX,AIR TANK
MLD6D M/T(X5Q) L=1030 		0-17816-103-1 01 1 9207- ● ●
2 NUT; FLEX HOSE,AIR TANK
MLD6D M/T(X5Q) M22 		9-09111-422-0 01 1 9207- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
MLD6D M/T(X5Q) ID=22.5 		9-09150-522-0 01 1 9207-9312 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9207- ● ● ● ● ●
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9207- ● ● ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47475-347-1 01 1 9207- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
MBG5B M/T(X4K) (B) 		1-47475-861-0 01 1 9207- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
MLD6D M/T(X5Q) (A) 		1-48495-062-0 01 1 9207- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9207- ● ● ● ● ●
25 VALVE; CHECK 1-48410-138-1 01 1 9207- ● ● ● ● ●
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 9207- ● ● ● ● ●
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 9207- ● ● ● ● ●
98 BRACKET; AIR PIPE
(B) 		1-47475-299-2 01 1 9207- ● ● ●
98 BRACKET; AIR PIPE
(A) 		1-47475-746-2 01 1 9207- ● ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9207- ● ● ● ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9207- ● ● ● ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9207- ● ● ● ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9207- ● ● ● ● ●
184 HOSE; FLEX,AIR GOV
L=450 		0-07030-450-0 01 1 9207- ● ●
184 HOSE; FLEX,AIR GOV
MBG5B M/T(X4K) L=410 		0-07030-410-0 01 1 9207- ● ● ●
184 HOSE; FLEX,AIR GOV
MLD6D M/T(X5Q) L=680 		0-07030-680-0 01 1 9207- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9207- ● ● ●
185 NUT; FLEX HOSE,AIR GOV
MBG5B M/T(X4K) M12 		9-09840-280-0 01 1 9207- ● ●
185 NUT; FLEX HOSE,AIR GOV
MLD6D M/T(X5Q) M12 		9-09840-280-0 02 1 9207- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
MBG5B M/T(X4K) ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
MLD6D M/T(X5Q) ID=12.2 		9-09150-512-0 02 1 9207-9312 ● ●
189 BRACKET; FLEX HOSE
MBG5B M/T(X4K) (B) 		1-47475-531-0 01 1 9207- ● ● ●
189 BRACKET; FLEX HOSE
MLD6D M/T(X5Q) (A) 		1-47476-063-0 01 1 9207- ● ●
190 BOLT; FLEX HOSE
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-09654-180-3 01 1 9207- ● ● ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 9207- ● ● ● ●
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING(B3A) 		1-09654-293-1 01 1 9207- ● ●
243 UNION; AIR PIPE
REAR WHEEL PARKING(B3A) 		1-09656-539-1 01 1 9207- ●
243 UNION; AIR PIPE
REAR WHEEL PARKING(B3A) 		1-09656-488-1 01 1 9207- ● ● ●
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING(B3A) 		1-09656-116-1 01 1 9207- ● ● ●
244 NUT; UNION,AIR PIPE
M16 		9-99111-416-0 01 1 9207- ● ●
244 NUT; UNION,AIR PIPE
M14 		9-99111-414-0 01 1 9207- ● ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=16.2 		9-09150-516-0 01 1 9207-9312 ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=14.2 		9-09150-514-0 01 1 9207-9312 ● ● ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9207- ● ● ● ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9207- ● ● ● ● ●
328 UNION; AIR PIPE
M10 ELBOW 		1-09654-186-2 01 1 9207- ● ● ● ● ●
329 NUT; UNION,AIR PIPE
M10 		9-09110-410-0 01 1 9207- ● ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9207- ● ● ● ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9207- ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9207- ● ● ● ● ●
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ● ● ● ●
339 GROMMET; AIR PIPE
MBG5B M/T(X4K) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ● ●
421 NUT; BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ●
çizim 93759
1 4 26 27 8 6 7 185 186 25 184 139 138 137 320 319 127 187 339 243 245 244 231 330 334 232 329 337 328 155 240 241 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,AIR TANK
L=360 		0-07836-360-1 01 1 9207- ● ●
1 HOSE; FLEX,AIR TANK
MBG5B M/T(X4K) L=390 		0-07836-390-1 01 1 9207- ● ● ●
1 HOSE; FLEX,AIR TANK
MLD6D M/T(X5Q) L=1030 		0-17816-103-1 01 1 9207- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9207- ● ● ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47475-347-1 01 1 9207- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
MBG5B M/T(X4K) (B) 		1-47475-861-0 01 1 9207- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
MLD6D M/T(X5Q) (A) 		1-48495-062-0 01 1 9207- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9207- ● ● ● ● ●
25 VALVE; CHECK 1-48410-138-1 01 1 9207- ● ● ● ● ●
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 9207- ● ● ● ● ●
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 9207- ● ● ● ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9207- ● ● ● ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9207- ● ● ● ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9207- ● ● ● ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9207- ● ● ● ● ●
184 HOSE; FLEX,AIR GOV
L=450 		0-07030-450-0 01 1 9207- ● ●
184 HOSE; FLEX,AIR GOV
MBG5B M/T(X4K) L=410 		0-07030-410-0 01 1 9207- ● ● ●
184 HOSE; FLEX,AIR GOV
MLD6D M/T(X5Q) L=680 		0-07030-680-0 01 1 9207- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9207- ● ● ●
185 NUT; FLEX HOSE,AIR GOV
MBG5B M/T(X4K) M12 		9-09840-280-0 01 1 9207- ● ●
185 NUT; FLEX HOSE,AIR GOV
MLD6D M/T(X5Q) M12 		9-09840-280-0 02 1 9207- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
MBG5B M/T(X4K) ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
MLD6D M/T(X5Q) ID=12.2 		9-09150-512-0 02 1 9207-9312 ● ●
187 GROMMET; FLEX HOSE,AIR GOV
ID=24 OD=30 T=17 		9-09956-092-1 01 1 9207- ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-09654-180-3 01 1 9207- ● ● ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 9207- ● ● ● ●
239 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 9207- ● ●
240 NUT; UNION,AIR PIPE
EXC. PTO CONTROL<SV6> M12 		9-99111-412-0 01 1 9207- ● ●
241 WASHER; LK,UNION,AIR PIPE
EXC. PTO CONTROL<SV6> ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING(B3A) 		1-09654-293-1 01 1 9207- ● ●
243 UNION; AIR PIPE
REAR WHEEL PARKING(B3A) 		1-09656-539-1 01 1 9207- ●
243 UNION; AIR PIPE
REAR WHEEL PARKING(B3A) 		1-09656-488-1 01 1 9207- ● ● ●
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING(B3A) 		1-09656-116-1 01 1 9207- ● ● ●
244 NUT; UNION,AIR PIPE
M16 		9-99111-416-0 01 1 9207- ● ●
244 NUT; UNION,AIR PIPE
M14 		9-99111-414-0 01 1 9207- ● ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=16.2 		9-09150-516-0 01 1 9207-9312 ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=14.2 		9-09150-514-0 01 1 9207-9312 ● ● ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9207- ● ● ● ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9207- ● ● ● ● ●
328 UNION; AIR PIPE
M10 ELBOW 		1-09654-186-2 01 1 9207- ● ● ● ● ●
329 NUT; UNION,AIR PIPE
M10 		9-09110-410-0 01 1 9207- ● ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9207- ● ● ● ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9207- ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9207- ● ● ● ● ●
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ● ● ● ●
339 GROMMET; AIR PIPE
MBG5B M/T(X4K) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ● ●
çizim 94028
332 307 98 124 268 267 266 9 8 6 7 178 180 179 190 189 421 32 366
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 BRACKET; FLEX HOSE,AIR TANK 1-47475-347-1 01 1 9207- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
MBG5B M/T(X4K) (B) 		1-47475-861-0 01 1 9207- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
MLD6D M/T(X5Q) (A) 		1-48495-062-0 01 1 9207- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9207- ● ● ● ● ●
9 CAP; BOLT,FLEX HOSE
MLD6D M/T(X5Q) 		1-21489-059-0 01 1 9207- ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9207- ● ● ● ● ●
98 BRACKET; AIR PIPE
(B) 		1-47475-299-2 01 1 9207- ● ● ●
98 BRACKET; AIR PIPE
(A) 		1-47475-746-2 01 1 9207- ● ● ●
124 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ●
178 UNION; AIR PIPE
MLD6D M/T(X5Q) M12 2WAY 		1-09654-059-2 01 1 9207- ● ●
179 NUT; UNION
MLD6D M/T(X5Q) M12 		9-99111-412-0 01 1 9207- ● ●
180 WASHER; LK,UNION
MLD6D M/T(X5Q) ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
189 BRACKET; FLEX HOSE
MBG5B M/T(X4K) (B) 		1-47475-531-0 01 1 9207- ● ● ●
189 BRACKET; FLEX HOSE
MLD6D M/T(X5Q) (A) 		1-47476-063-0 01 1 9207- ● ●
190 BOLT; FLEX HOSE
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ●
266 UNION; AIR PIPE
MLD6D M/T(X5Q) M12 L=69 		9-09225-106-1 01 1 9207- ● ●
267 NUT; UNION
MLD6D M/T(X5Q) M12 		9-09840-280-0 01 1 9207- ● ●
268 WASHER; LK,UNION
MLD6D M/T(X5Q) ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47446-700-0 01 1 9207-9212 ● ● ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9301- ● ● ● ● ●
332 SEAL; PIPE UNION
DUAL AIR GAUGE<UG2> 25X25 		8-94272-533-0 01 1 9207- ● ● ● ●
366 SEAL; AIR GAUGE HOLE
EXC. DUAL AIR GAUGE<UG2> OD=36 WHITE 		1-76778-007-0 01 1 9207- ● ● ● ● ●
421 NUT; BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ●

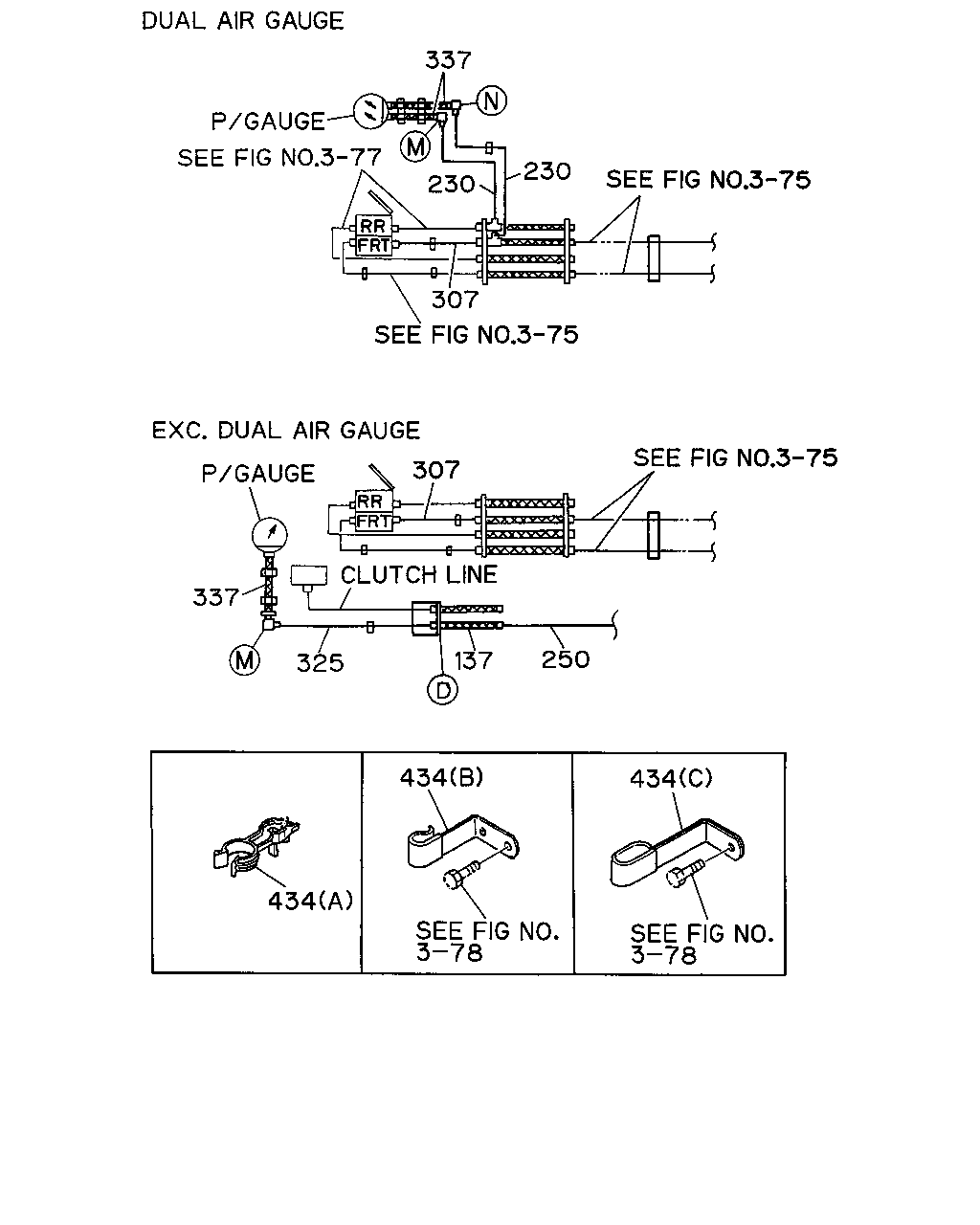

çizim 94063
230 230 337 307 307 337 325 137 250 434 434 434
BalonParca AdiParca NoAdetTipApplied Date A B C D E
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9207- ● ● ● ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9207- ● ● ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9207- ● ● ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1473 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1382 SERVICED BY L=1500 		1-47434-391-0 01 1 9207- ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47446-700-0 01 1 9207-9212 ● ● ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9301- ● ● ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=958 SERVICED BY L=970 		5-47411-862-0 01 1 9207- ● ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9207- ● ● ● ● ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9207- ● ● ● ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) ID=14 		8-94157-443-0 01 1 9207- ● ● ● ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (C) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9207- ● ● ● ●

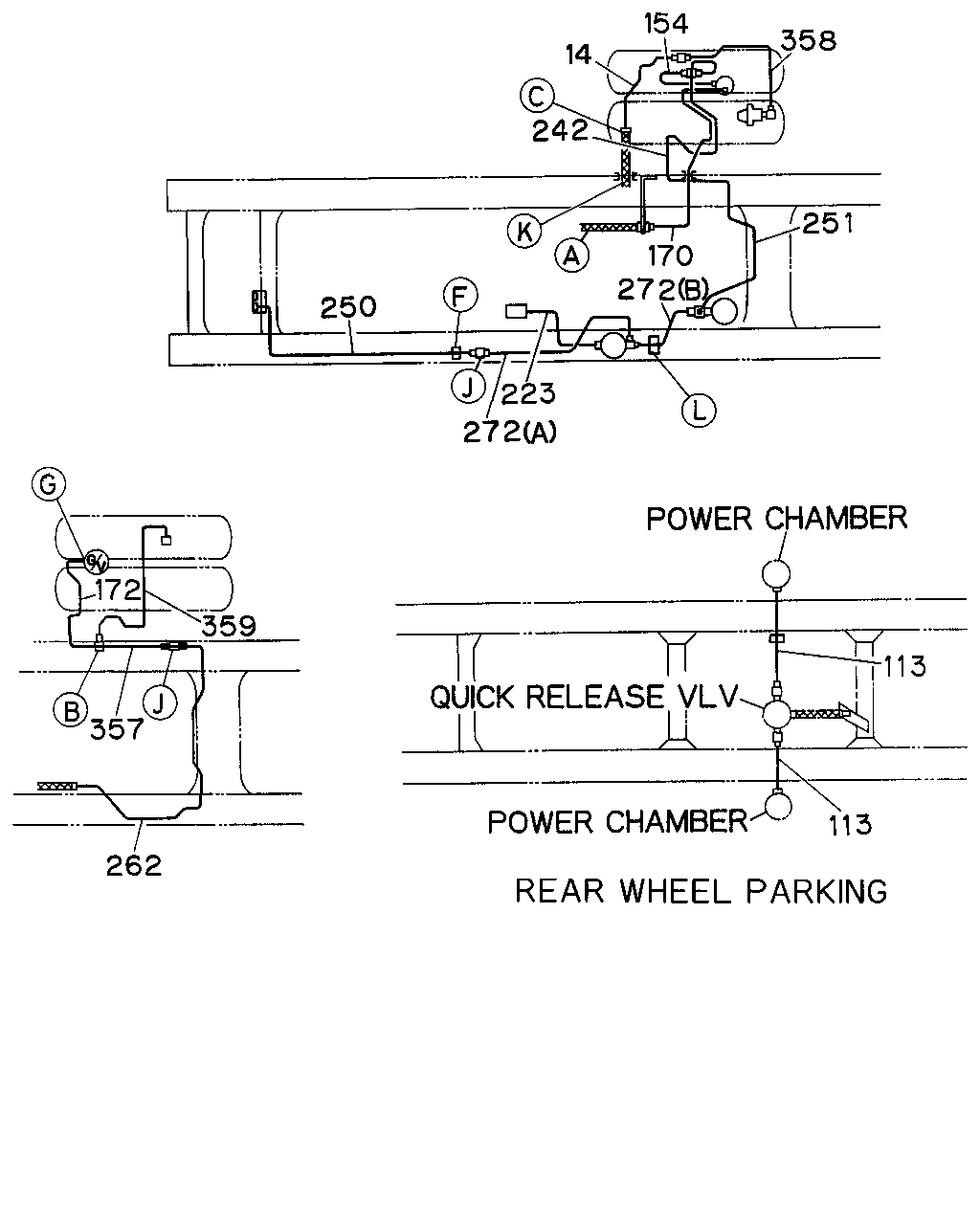

çizim 94669
14 242 154 358 251 170 272 223 272 250 172 359 357 262 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=476 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
MBG5B M/T(X4K) L=528 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
MLD6D M/T(X5Q) L=650 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=409 SERVICED BY L=450 		9-47415-379-0 01 1 9207-9212 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9301- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9207-9212 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=409 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=501 SERVICED BY L=550 		1-47437-953-0 01 1 9207-9212 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9301- ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=692 SERVICED BY L=730 		1-47437-955-0 01 1 9207-9212 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-990-0 01 1 9207- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-409-0 01 1 9207- ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-47486-989-0 01 1 9207- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
MBG5B M/T(X4K) 		1-47494-057-0 01 1 9207- ● ● ●
172 PIPE; AIR,GOV TO UNION
MLD6D M/T(X5Q) L=748 		1-47486-414-0 01 1 9207- ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=474 SERVICED BY L=500 		9-47415-350-0 01 1 9207- ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=633 SERVICED BY L=650 		9-47415-353-0 01 1 9207- ● ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=582 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=582 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=1033 SERVICED BY L=1400 		1-47434-411-0 01 1 9207-9212 ● ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=1245 SERVICED BY L=1400 		1-47426-389-0 01 1 9301- ● ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1473 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1382 SERVICED BY L=1500 		1-47434-391-0 01 1 9207- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1083 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
DUAL AIR GAUGE<UG2> EXC. PTO CONTROL<SV6> L=1579 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1108 SERVICED BY L=1200 		1-47434-388-0 01 1 9207- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. REAR WHEEL PARKING(B3A),PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> L=1559 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ● ●
262 PIPE; AIR,UNION TO FLEX
MLD6D M/T(X5Q) L=1246 SERVICED BY L=1250 		1-47434-389-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
L=764 		1-47483-264-0 01 1 9207- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. DUAL AIR GAUGE<UG2> L=764 		1-47483-264-0 01 1 9207- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> L=332 		1-47494-951-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> (B) L=380 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. REAR WHEEL PARKING(B3A),DUAL AIR GAUGE<UG2> (B) L=360 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. REAR WHEEL PARKING(B3A),DUAL AIR GAUGE<UG2> (A) L=1016 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ● ●
357 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q) 		1-47494-061-0 01 1 9207- ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		9-47415-382-0 01 1 9207-9212 ● ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		9-47415-382-0 01 1 9207-9212 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ● ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47437-961-0 01 1 9207-9212 ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47437-961-0 01 1 9207-9212 ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47426-403-0 01 1 9301- ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47426-403-0 01 1 9301- ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=1012 SERVICED BY L=1100 		1-47434-409-0 01 1 9207-9212 ● ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=1012 SERVICED BY L=1100 		1-47434-409-0 01 1 9207-9212 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=1013 SERVICED BY L=1100 		1-47426-387-0 01 1 9301- ● ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=1013 SERVICED BY L=1100 		1-47426-387-0 01 1 9301- ● ●
çizim 96428
3 113 113 126 272 25 223 238 14 251 242 75 359 358 154 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 WASHER; LK,FLEX HOSE,AIR TANK
MLD6D M/T(X5Q) ID=22.5 		9-09150-522-0 01 1 9207-9312 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=476 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
MBG5B M/T(X4K) L=528 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
MLD6D M/T(X5Q) L=650 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
25 VALVE; CHECK 1-48410-138-1 01 1 9207- ● ● ● ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
REAR WHEEL PARKING(B3A) L=952 SERVICED BY L=1100 		1-47437-967-0 01 1 9207-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
REAR WHEEL PARKING(B3A) L=952 SERVICED BY L=1100 		1-47426-415-0 01 1 9301- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=409 SERVICED BY L=450 		9-47415-379-0 01 1 9207-9212 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9301- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9207-9212 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=409 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=501 SERVICED BY L=550 		1-47437-953-0 01 1 9207-9212 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9301- ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=692 SERVICED BY L=730 		1-47437-955-0 01 1 9207-9212 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ● ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=285 		1-47494-952-0 01 1 9207- ● ●
126 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> L=303 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-990-0 01 1 9207- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-409-0 01 1 9207- ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-47486-989-0 01 1 9207- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
MBG5B M/T(X4K) 		1-47494-057-0 01 1 9207- ● ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=474 SERVICED BY L=500 		9-47415-350-0 01 1 9207- ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=633 SERVICED BY L=650 		9-47415-353-0 01 1 9207- ● ● ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1258 SERVICED BY L=1370 		1-47434-390-0 01 1 9207-9211 ● ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1236 SERVICED BY L=1250 		1-47426-353-0 01 1 9212- ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=582 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=582 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=1033 SERVICED BY L=1400 		1-47434-411-0 01 1 9207-9212 ● ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING(B3A),AUSTRALIA EQUIPMENT(RR3) L=1245 SERVICED BY L=1400 		1-47426-389-0 01 1 9301- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1083 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
DUAL AIR GAUGE<UG2> EXC. PTO CONTROL<SV6> L=1579 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1108 SERVICED BY L=1200 		1-47434-388-0 01 1 9207- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. REAR WHEEL PARKING(B3A),PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> L=1559 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ● ●
272 PIPE; AIR,MAG VLV TO UNION
L=764 		1-47483-264-0 01 1 9207- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. DUAL AIR GAUGE<UG2> L=764 		1-47483-264-0 01 1 9207- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> L=332 		1-47494-951-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> (B) L=380 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. REAR WHEEL PARKING(B3A),DUAL AIR GAUGE<UG2> (B) L=360 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. REAR WHEEL PARKING(B3A),DUAL AIR GAUGE<UG2> (A) L=1016 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=597 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		9-47415-382-0 01 1 9207-9212 ● ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		9-47415-382-0 01 1 9207-9212 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ● ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=579 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47437-961-0 01 1 9207-9212 ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47437-961-0 01 1 9207-9212 ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47426-403-0 01 1 9301- ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=263 SERVICED BY L=350 		1-47426-403-0 01 1 9301- ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=1012 SERVICED BY L=1100 		1-47434-409-0 01 1 9207-9212 ● ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=1012 SERVICED BY L=1100 		1-47434-409-0 01 1 9207-9212 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING(B3A) L=1013 SERVICED BY L=1100 		1-47426-387-0 01 1 9301- ● ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING(B3A) L=1013 SERVICED BY L=1100 		1-47426-387-0 01 1 9301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
