◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#16119) — 133 parça

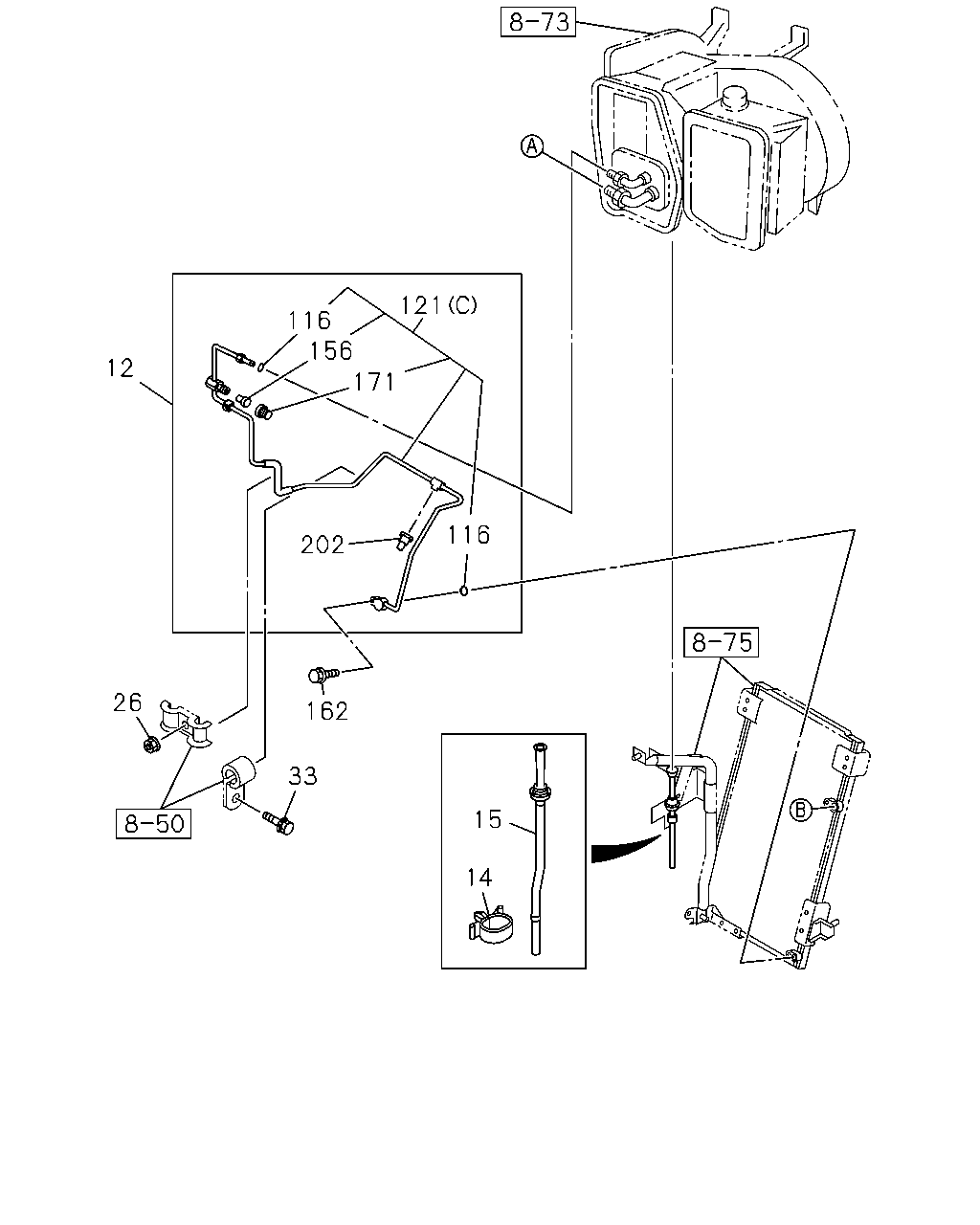

çizim 61968
121 116 156 12 171 116 202 26 162 33 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK 1-83567-877-1 01 1 0904-1005
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83567-877-1 01 1 1006-
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0904-1005
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 		8-94410-200-0 01 1 1006-
15 HOSE; DRAIN 1-83572-635-0 01 1 0904-1005
15 HOSE; DRAIN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-635-0 01 1 1006-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0904-1005
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 02 1 1006-
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0904-0904
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1005
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1006-
116 GASKET; PIPE
ID=7.4 		8-97095-906-0 02 1 0904-1005
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=7.4 		8-97095-906-0 02 1 1006-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 1006-
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 1006-
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 1006-
121 HOSE; COOLER
(D) 		1-83577-129-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-129-0 01 1 1006-
121 HOSE; COOLER
(E) 		1-83577-130-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-130-0 01 1 1006-
156 VALVE; PIPE 8-97095-909-0 01 1 0904-1005
156 VALVE; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97095-909-0 01 1 1006-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0904-1005
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 1006-
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0904-1005
171 CAP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK H 		8-97095-911-0 01 1 1006-
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0904-1005
202 SWITCH; PRESSURE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83564-392-1 01 1 1006-

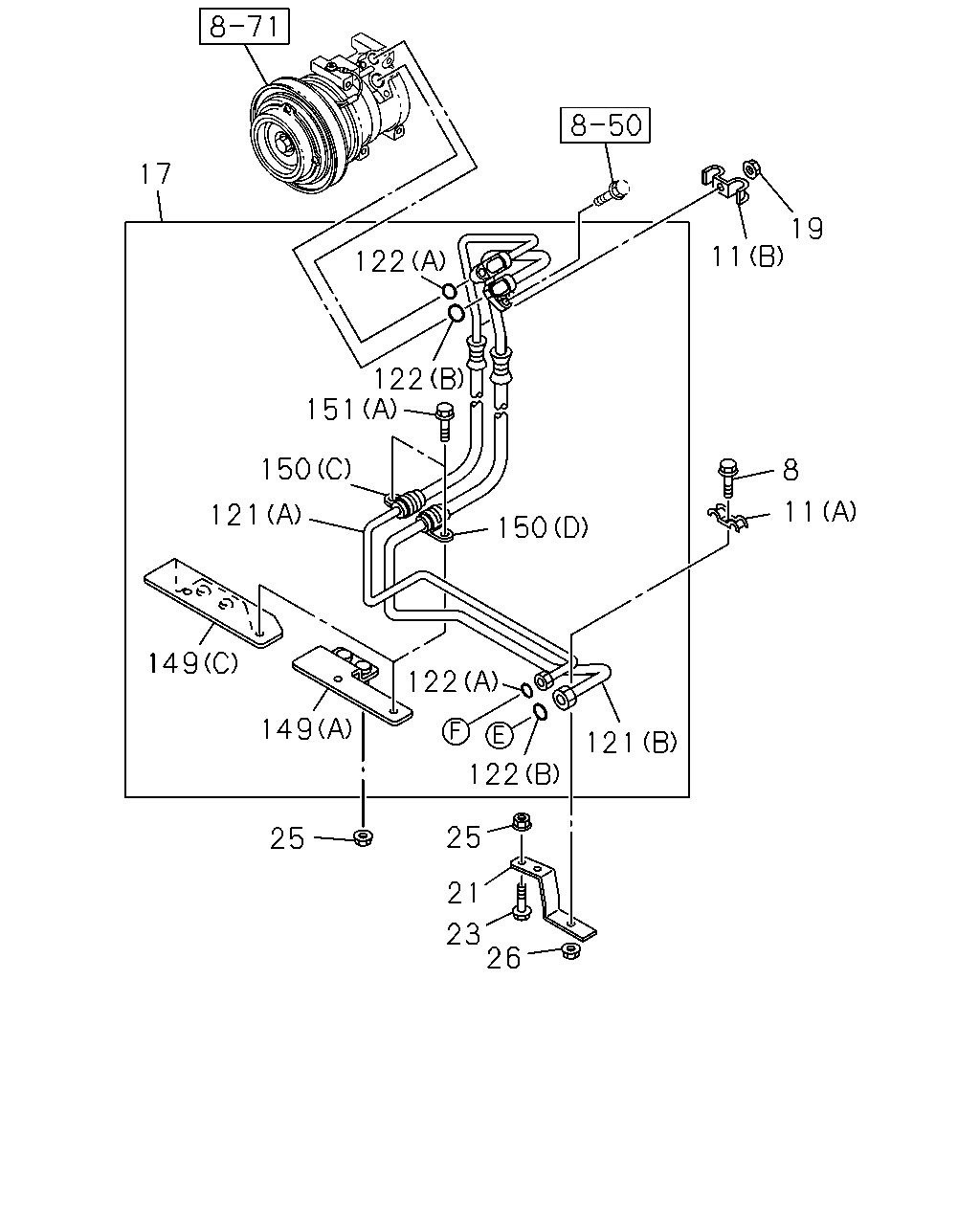

çizim 61999
17 19 11 122 122 151 150 8 11 121 150 149 122 149 121 122 25 25 21 23 26
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0904-1005
8 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28650-820-0 01 1 1006-
11 CLIP; COOLER PIPE
(A) ID=20 & 20 		1-83574-195-1 01 1 0904-1005
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=20 & 20 		1-83574-195-1 01 1 1006-
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0904-1005
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=12 & 14.5 		1-83574-257-0 01 1 1006-
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98098-670-0 01 1 1008-
17 HOSE; FLEX,CMPR TO PIPE 1-83577-062-1 01 1 0904-1007
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-062-1 01 1 1008-
19 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0904-1005
19 NUT; CLIP FIX
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 1006-
21 BRACKET; COOLER HOSE 1-83573-297-0 01 1 0904-1005
21 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83573-297-0 01 1 1006-
23 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0904-1005
23 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 1006-
23 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0904-1005
23 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X25 FLANGE 		0-28650-825-0 02 1 1006-
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0904-1005
25 NUT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 1006-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0904-1005
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 02 1 1006-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 1006-
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 1006-
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 1006-
121 HOSE; COOLER
(D) 		1-83577-129-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-129-0 01 1 1006-
121 HOSE; COOLER
(E) 		1-83577-130-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-130-0 01 1 1006-
122 GASKET
(C) ID=11.7 		1-83539-317-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=11.7 		1-83539-317-0 02 1 1006-
122 GASKET
(D) ID=14.5 		1-83539-324-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) ID=14.5 		1-83539-324-0 02 1 1006-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 1006-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 1006-
149 BRACKET; COOLER HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-322-0 01 1 1008-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0904-1007
149 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 1008-
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0904-1005
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-265-0 01 1 1006-
150 CLIP; HOSE
(C) 		1-83574-249-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83574-249-0 01 1 1006-
150 CLIP; HOSE
(A) 		1-83574-262-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-262-0 01 1 1006-
150 CLIP; HOSE
(B) 		1-83574-263-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-263-0 01 1 1006-
150 CLIP; HOSE
(D) 		1-83574-264-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83574-264-0 01 1 1006-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0904-1005
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83539-336-0 02 1 1006-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0904-1005
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 1006-

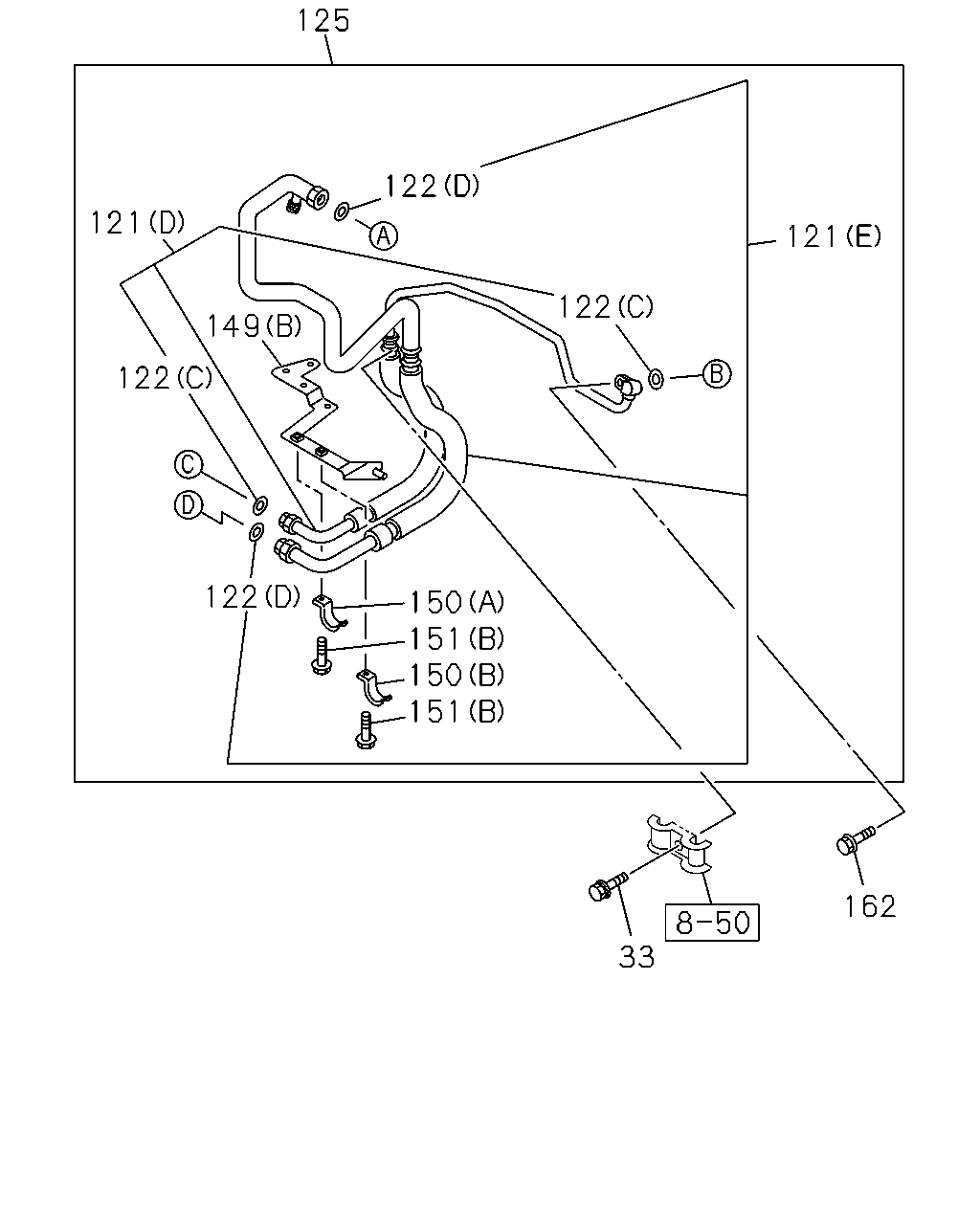

çizim 62000
125 122 121 121 122 149 122 122 150 151 150 151 162 33
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0904-0904
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1005
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1006-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 1006-
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 1006-
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 1006-
121 HOSE; COOLER
(D) 		1-83577-129-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-129-0 01 1 1006-
121 HOSE; COOLER
(E) 		1-83577-130-0 01 1 0904-1005
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-130-0 01 1 1006-
122 GASKET
(C) ID=11.7 		1-83539-317-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=11.7 		1-83539-317-0 02 1 1006-
122 GASKET
(D) ID=14.5 		1-83539-324-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) ID=14.5 		1-83539-324-0 02 1 1006-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 1006-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0904-1005
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 1006-
125 HOSE; FLEX,UNIT TO CMPR 8-98028-191-0 01 1 0904-1005
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98028-191-0 01 1 1006-
149 BRACKET; COOLER HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-322-0 01 1 1008-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0904-1007
149 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 1008-
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0904-1005
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-265-0 01 1 1006-
150 CLIP; HOSE
(C) 		1-83574-249-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83574-249-0 01 1 1006-
150 CLIP; HOSE
(A) 		1-83574-262-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-262-0 01 1 1006-
150 CLIP; HOSE
(B) 		1-83574-263-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-263-0 01 1 1006-
150 CLIP; HOSE
(D) 		1-83574-264-0 01 1 0904-1005
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83574-264-0 01 1 1006-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0904-1005
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83539-336-0 02 1 1006-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0904-1005
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 1006-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0904-1005
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 1006-
çizim 101929
9 9
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83567-899-0 01 1 0904-1005
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83567-899-0 01 1 1006-
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83567-900-0 01 1 0904-1005
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-900-0 01 1 1006-
