8-50 — AIR CONDITIONING SYSTEM; FRONT (#161174) — 12 parça
çizim 476440
378 70 262 70 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98146-843-0 01 1 1505- ● ● ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1505- ● ● ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98174-735-0 01 1 1505- ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98001-241-2 01 1 1505- ● ● ●

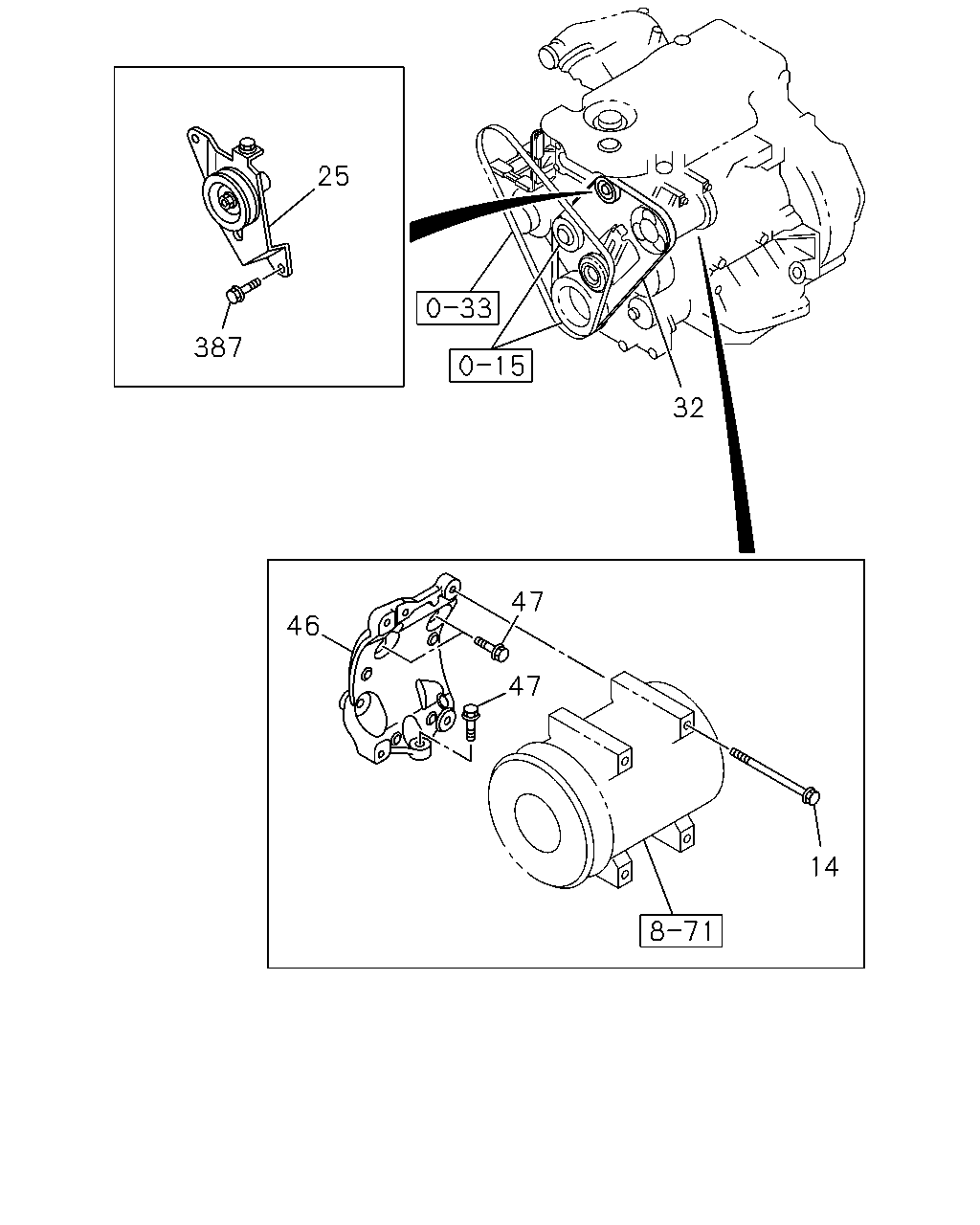

çizim 476673
387 46 47 47 14 32 25
BalonParca AdiParca NoAdetTipApplied Date A B C
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1505- ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1505- ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1505- ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1505- ● ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-98211-424-1 01 1 1505- ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1505- ● ● ●
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
