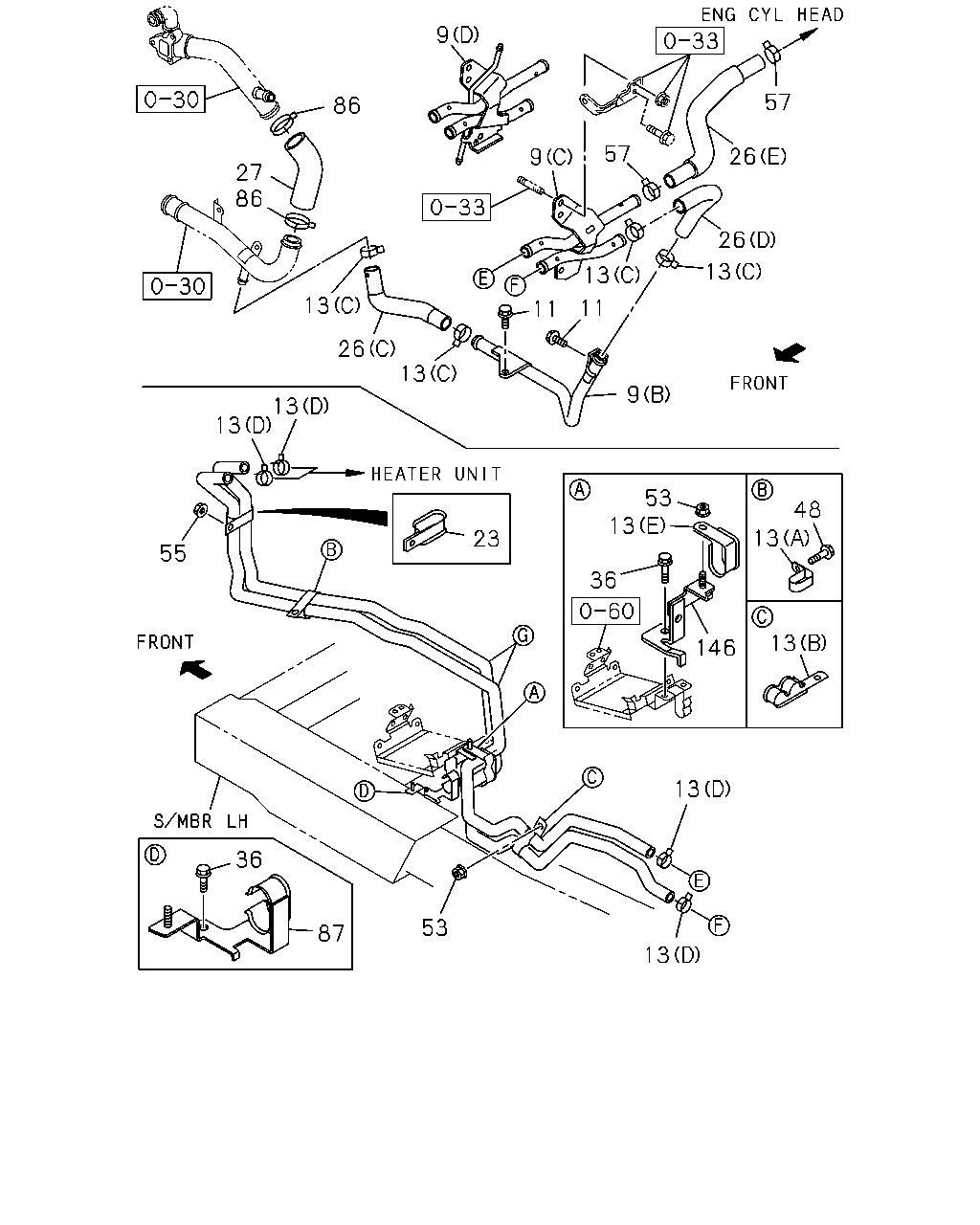

8-45 — HEATER PIPING (#161173) — 67 parça

86 27 13 13 9 11 9 13 13 11 57 26 26 9 57 26 13 13 55 36 87 53 13 13 146 36 13 13 13 53 48 86 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR (A)	8-98180-418-2	01	1	1505-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98180-418-2	01	1	1505-			●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98088-944-1	01	1	1505-	●		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98088-944-1	01	1	1505-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98074-590-2	01	1	1505-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98074-590-2	01	1	1505-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98074-590-2	01	1	1505-		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98200-092-0	01	1	1505-			●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1505-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 03.278 (D) ID=22	8-97359-141-0	04	1	1505-			●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE (B)	8-98040-023-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1505-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR B=18	8-98166-023-0	01	1	1505-	●	●	●
26	08.846 HOSE; HTR (A)	8-98085-567-2	01	1	1505-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98085-567-2	01	1	1505-			●
26	08.846 HOSE; HTR (B)	8-98085-568-2	01	1	1505-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98085-568-2	01	1	1505-			●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1505-	●	●	●
26	08.846 HOSE; HTR (D)	8-98114-718-0	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98209-510-1	01	1	1505-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98209-510-1	01	1	1505-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98209-510-1	01	1	1505-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-98106-016-0	01	1	1505-	●	●	●
36	08.846 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
53	08.845 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 01.166 ID=20.8	8-94125-862-1	02	1	1505-	●		●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.166 ID=20.8	8-94125-862-1	02	1	1505-	●		●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.166 ID=20.8	8-94125-862-1	02	1	1505-		●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1505-	●	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98129-978-1	01	1	1505-	●	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98111-669-1	01	1	1505-	●	●	●
146	08.846 BRACKET; HTR HOSE HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	1505-	●	●	●

9 26 13 13 103 26 9 13 103 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR (A)	8-98180-418-2	01	1	1505-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98180-418-2	01	1	1505-			●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98088-944-1	01	1	1505-	●		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98088-944-1	01	1	1505-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98074-590-2	01	1	1505-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98074-590-2	01	1	1505-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98074-590-2	01	1	1505-		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98200-092-0	01	1	1505-			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1505-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 03.278 (D) ID=22	8-97359-141-0	04	1	1505-			●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE (B)	8-98040-023-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1505-	●	●	●
26	08.846 HOSE; HTR (A)	8-98085-567-2	01	1	1505-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98085-567-2	01	1	1505-			●
26	08.846 HOSE; HTR (B)	8-98085-568-2	01	1	1505-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98085-568-2	01	1	1505-			●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1505-	●	●	●
26	08.846 HOSE; HTR (D)	8-98114-718-0	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98209-510-1	01	1	1505-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98209-510-1	01	1	1505-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98209-510-1	01	1	1505-		●
103	08.866 CONNECTOR; HOSE	9-09703-048-0	02	1	1505-	●	●
103	08.866 CONNECTOR; HOSE 4JJ1-TCC ENG(RDU)	9-09703-048-0	02	1	1505-			●
