Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#161166) — 214 parça

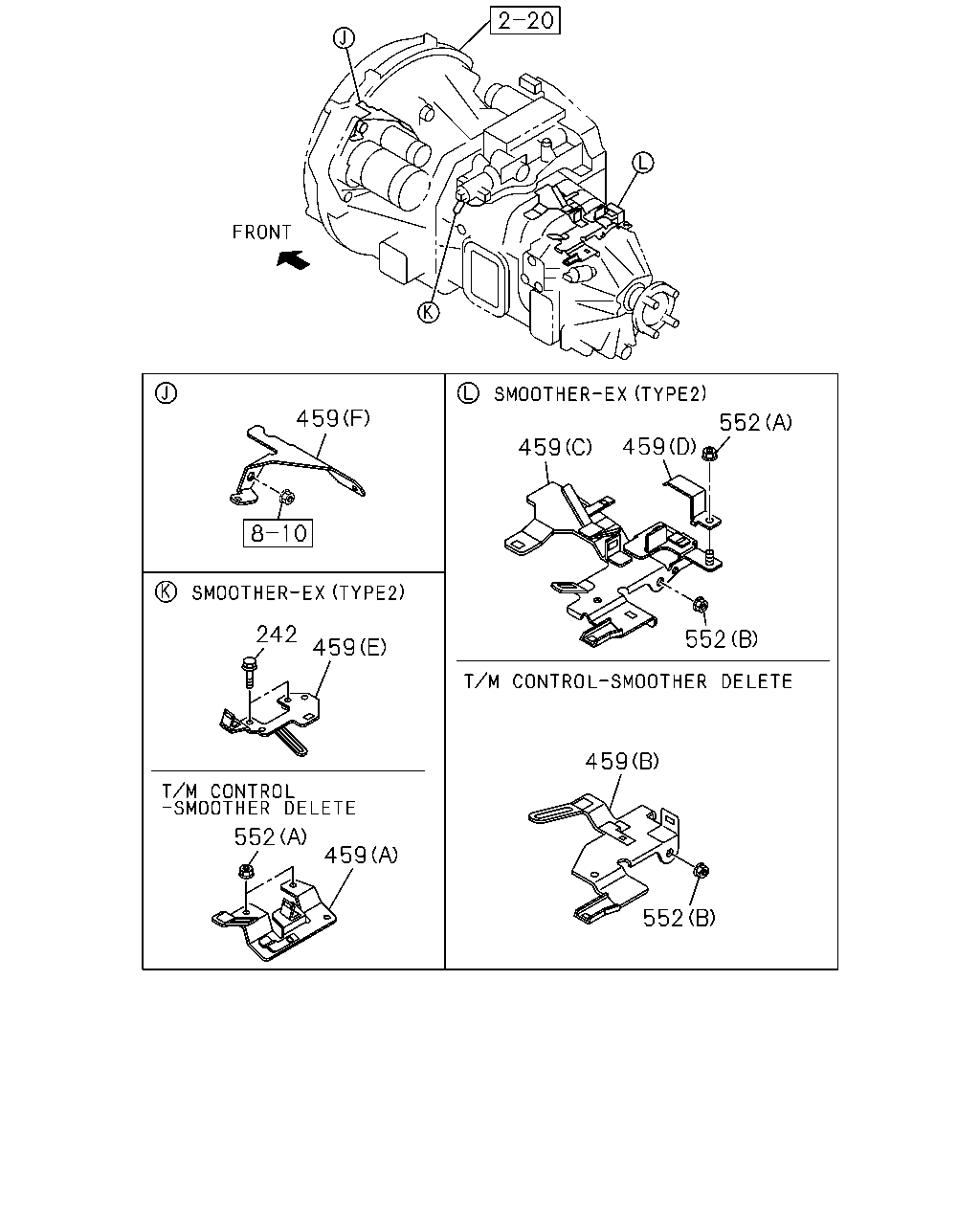

459 242 459 552 459 552 459 552 552 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507	●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507	●	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507			●
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98020-227-3	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98020-227-3	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98020-227-3	01	1	1505-1507			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98020-227-3	01	1	1508-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-974-0	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-974-0	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-974-0	01	1	1505-1507			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-974-0	01	1	1508-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98018-899-1	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98018-899-1	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98018-899-1	01	1	1505-1507			●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (E)	8-98018-899-1	01	1	1508-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (F)	8-98030-988-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (F)	8-98030-988-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (F)	8-98030-988-2	01	1	1505-1507			●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (F)	8-98030-988-2	01	1	1508-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1505-1507			●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1508-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98044-758-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98044-758-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98044-758-2	01	1	1505-1507			●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (D)	8-98044-758-2	01	1	1508-	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●

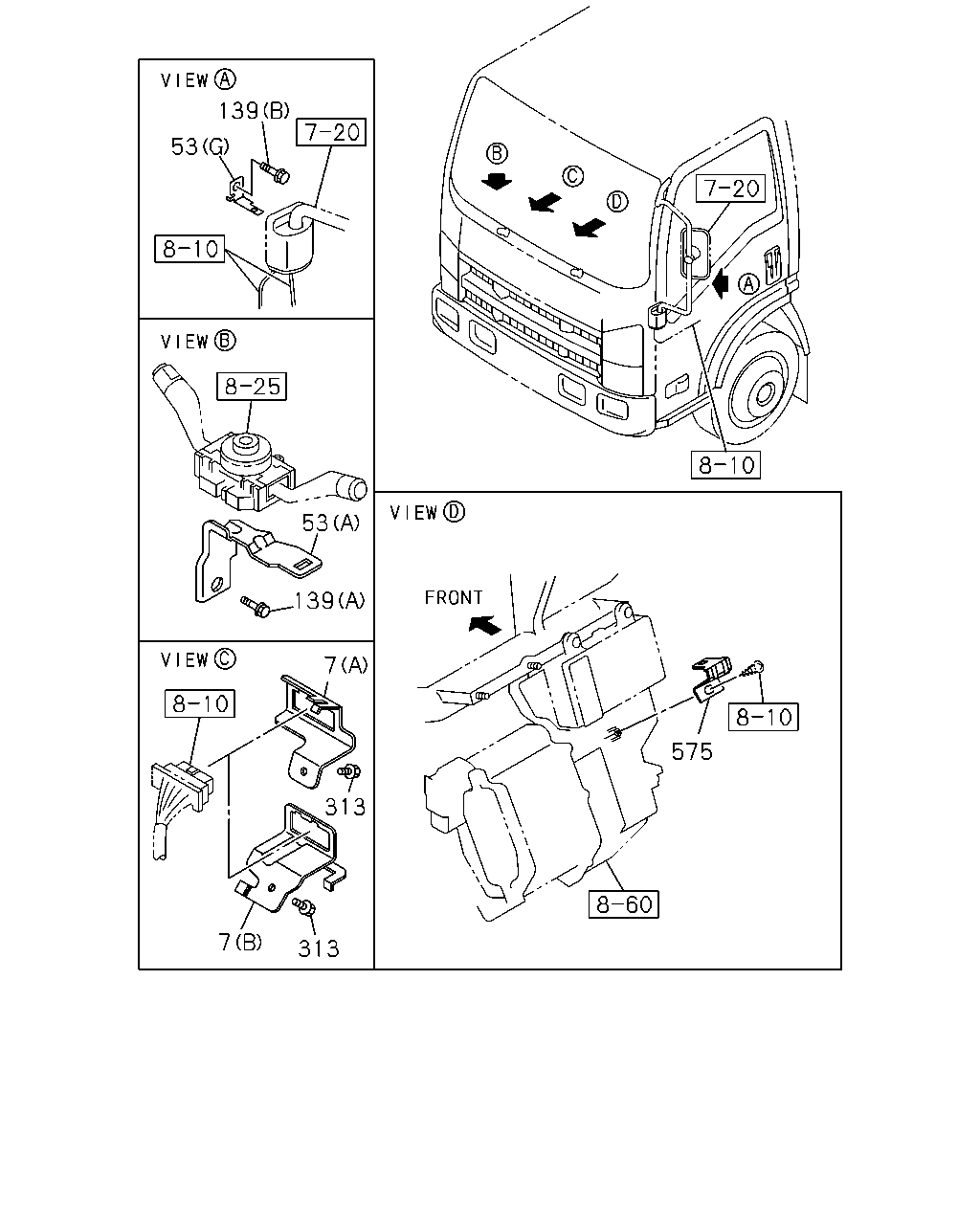

139 53 53 139 313 313 7 575 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1505-	●	●	●
7	02.559 BRACKET; CONNECTOR SMOOTHER-EX(TYPE2)(8NS) (B)	8-98114-514-0	01	1	1505-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98227-632-0	01	1	1505-1505	●	●	●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98227-632-0	01	1	1505-1505	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98018-900-2	01	1	1505-1505	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98018-900-2	01	1	1505-1505	●		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1506-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98039-984-2	01	1	1505-1505	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98039-984-2	01	1	1505-1505	●		●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1506-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H)	8-98244-750-0	01	1	1505-	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (H)	8-98244-750-0	01	1	1505-	●		●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> (G)	8-98039-277-2	02	1	1505-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1505-1506		●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1507-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1505-1506		●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1507-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1505-	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1505-	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1505-	●	●	●

377 386 377 386 577 515 24 219 294 515 524 552 519 552 529 242 38 480 460 480 38 139 480 38 313 480 481 139 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	02.559 NUT; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1505-1507	●	●
24	02.559 NUT; HARNESS 4JJ1-TCC ENG(RDU) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1505-1507	●	●
24	02.559 NUT; HARNESS WHEEL BASE 3300MM(33W) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1505-1507			●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	1505-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-	●		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-	●		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-	●		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●	●
219	02.559 NUT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●	●	●
219	02.559 NUT FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●		●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507	●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507	●	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507			●
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-	●	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1505-	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1505-	●	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1505-	●	●	●
386	02.559 BOLT; GRAND HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1505-1505	●	●	●
386	02.559 BOLT; GRAND HARNESS FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1505-1505	●		●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1506-	●	●	●
386	02.559 BOLT; GRAND HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1505-	●	●	●
386	02.559 BOLT; GRAND HARNESS FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1505-	●		●
460	02.559 BOLT; HARNESS PROTECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
460	02.559 BOLT; HARNESS PROTECTOR FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1505-1505	●	●	●
480	02.483 BOLT; BRKT HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1505-1505	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1507-	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-1506		●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1507-	●	●	●
481	13.090 BOLT; CABLE HARNESS REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1505-1507	●	●	●
481	13.090 BOLT; CABLE HARNESS SINGLE RR TIRE(6TD) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1505-1507	●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1508-	●	●	●
515	02.559 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1505-1505	●	●	●
515	02.559 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1505-1505	●		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●
515	02.559 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE	8-98040-024-0	01	1	1505-1505	●	●	●
515	02.559 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE	8-98040-024-0	01	1	1505-1505	●		●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1506-	●	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●	●
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
524	02.559 NUT; HARNESS REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
524	02.559 NUT; HARNESS SINGLE RR TIRE(6TD) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
529	02.559 BOLT; RELAY BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1505-1506	●		●
529	02.559 BOLT; RELAY BOX FRT INDEPENDENT SUSPENSION(FF0) 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1505-1506	●		●
529	02.559 BOLT; RELAY BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1505-1506		●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1507-	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●

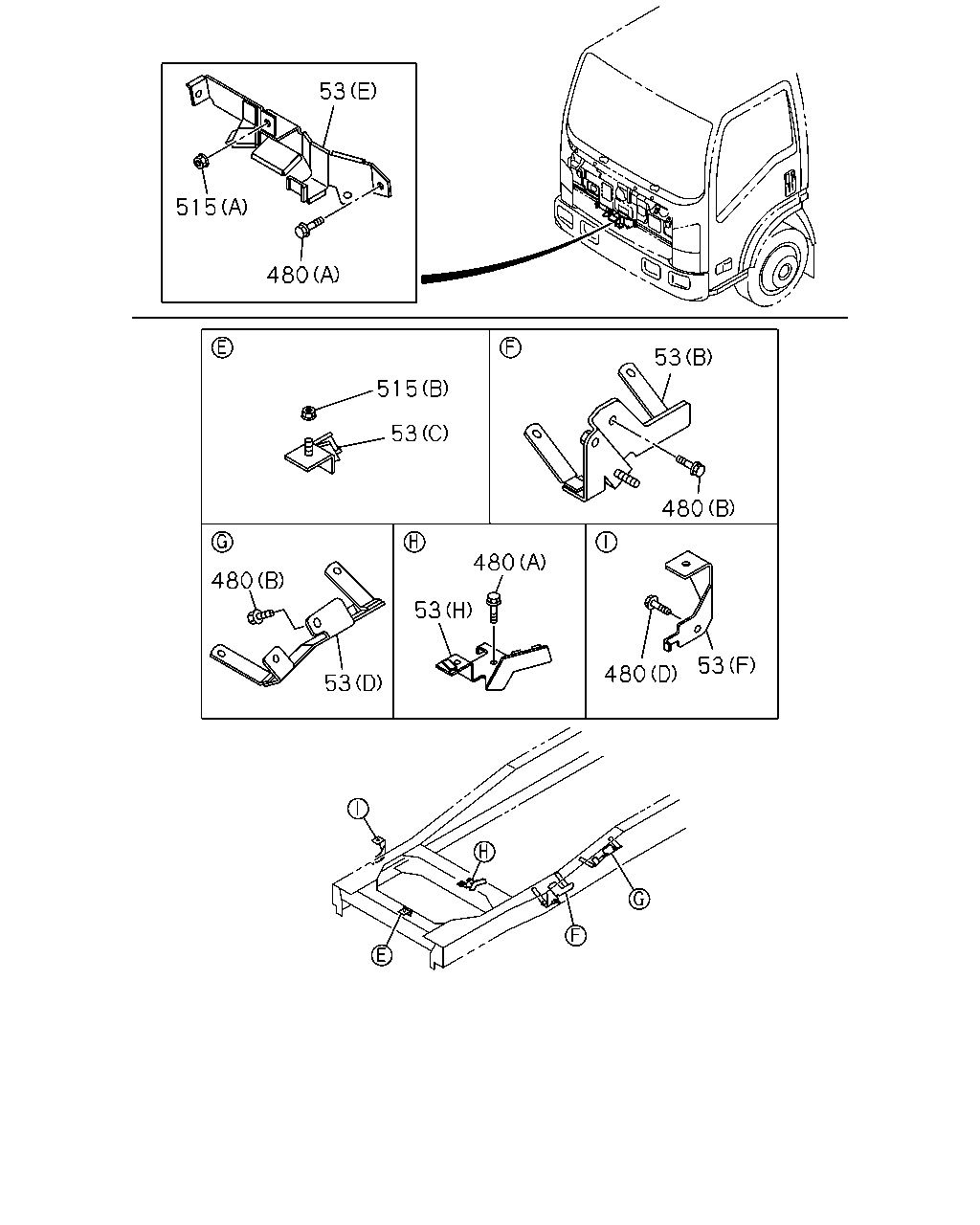

53 515 480 515 53 480 53 53 480 480 53 480 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98227-632-0	01	1	1505-1505	●	●	●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98227-632-0	01	1	1505-1505	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98018-900-2	01	1	1505-1505	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98018-900-2	01	1	1505-1505	●		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1506-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98039-984-2	01	1	1505-1505	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98039-984-2	01	1	1505-1505	●		●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1506-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H)	8-98244-750-0	01	1	1505-	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (H)	8-98244-750-0	01	1	1505-	●		●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> (G)	8-98039-277-2	02	1	1505-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1505-1506		●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1507-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	1505-1506	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1505-1506		●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1507-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1505-	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1505-1505	●	●	●
480	02.483 BOLT; BRKT HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1505-1505	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1507-	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-1506	●		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-1506		●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1507-	●	●	●
515	02.559 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1505-1505	●	●	●
515	02.559 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1505-1505	●		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●
515	02.559 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE	8-98040-024-0	01	1	1505-1505	●	●	●
515	02.559 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE	8-98040-024-0	01	1	1505-1505	●		●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1506-	●	●	●

16 22 22 16 48 22 48 16 16 16 16 16 16 16 48 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS EURO5B+ SPECIFICATION(NT5) (E) ID=20	8-94241-972-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (E) ID=20	8-94241-972-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 3300MM(33W) (E) ID=20	8-94241-972-0	01	1	1505-			●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (F) L=250	5-09707-030-1	14	1	1505-	●	●	●
16	02.559 CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1505-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1505-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1505-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1505-	●	●	●
16	02.559 CLIP; HARNESS (G) L=40.6	8-97229-357-0	01	1	1505-	●	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	01	1	1505-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	1505-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	1505-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=40.6	8-97229-357-0	02	1	1505-			●
22	02.559 CLIP; ENG HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (A) ID=6.8	8-97134-154-0	01	1	1505-	●	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (B) L=119.5	1-09707-197-0	01	1	1505-	●	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	1505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.890 (A) ID=4.8	1-09701-218-0	03	1	1505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.890 (A) ID=4.8	1-09701-218-0	01	1	1505-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	06	1	1505-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1505-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1505-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1505-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (C) ID=20	8-94241-972-0	01	1	1505-1507			●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) (C) ID=20	8-94241-972-0	01	1	1508-			●
530	02.559 SEAL; HARNESS 09.772	1-15739-008-0	01	1	1505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
