◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#161165) — 265 parça

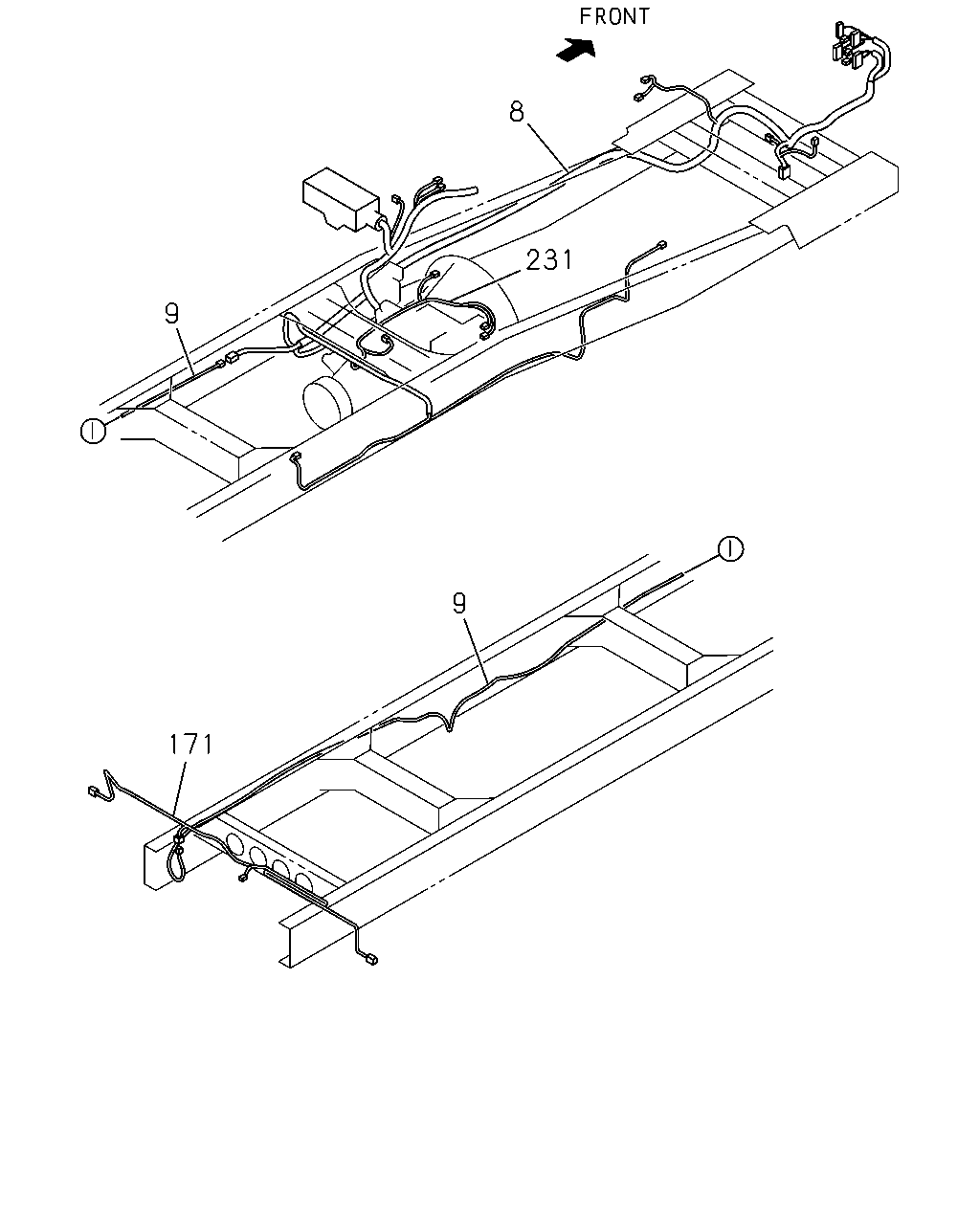

çizim 476066
231 8 9 171 9
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-897-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-897-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-897-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-898-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-898-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-898-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-899-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-899-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-899-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-900-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-900-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-900-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-506-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-506-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-506-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98284-375-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-375-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-375-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-905-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-905-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-906-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-906-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-507-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-507-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98284-376-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-376-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) 		8-98080-439-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 		8-98048-414-2 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) 		8-98048-414-2 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 		8-98048-419-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) 		8-98048-419-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 		8-98227-425-2 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) 		8-98227-425-2 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 		8-98048-424-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 		8-98048-424-1 01 1 1505- ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 		8-98227-426-2 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98227-426-2 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98227-427-0 01 1 1505- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
ROAD SWEEPER TRUCK(Y23) 		8-98156-025-0 01 1 1505- ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98156-026-0 01 1 1505- ● ● ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1505-1507 ● ●
231 02.480 HARNESS; TRANS
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1505-1507 ● ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1505-1507 ●
231 02.480 HARNESS; TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ● ● ●

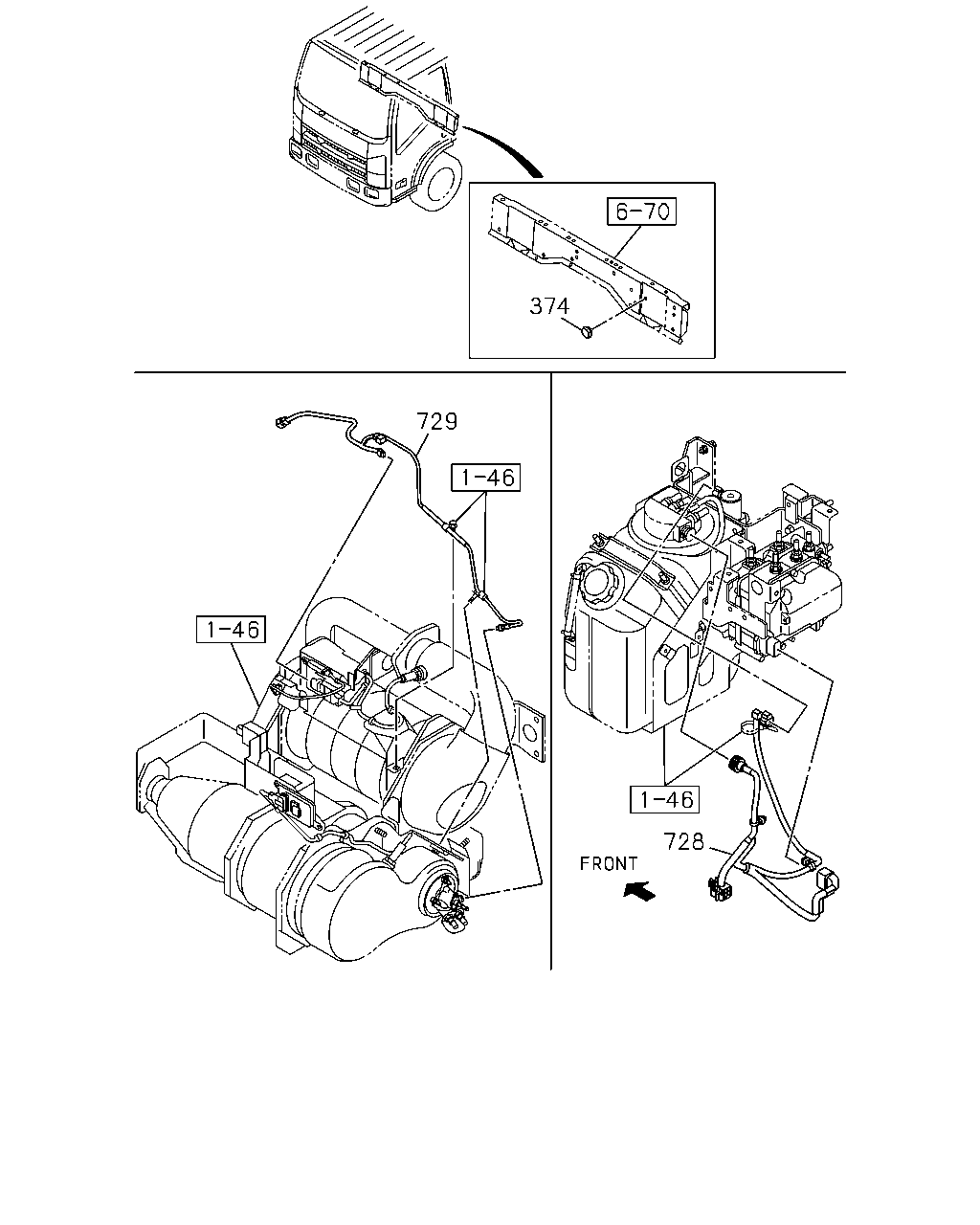

çizim 476425
729 728 374
BalonParca AdiParca NoAdetTipApplied Date A B C
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF) 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1505- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
EURO6 SPECIFICATION(NT6) 		8-98296-412-0 01 1 1505- ● ● ●
729 02.480 HARNESS; DEF DCM
EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1505- ● ● ●

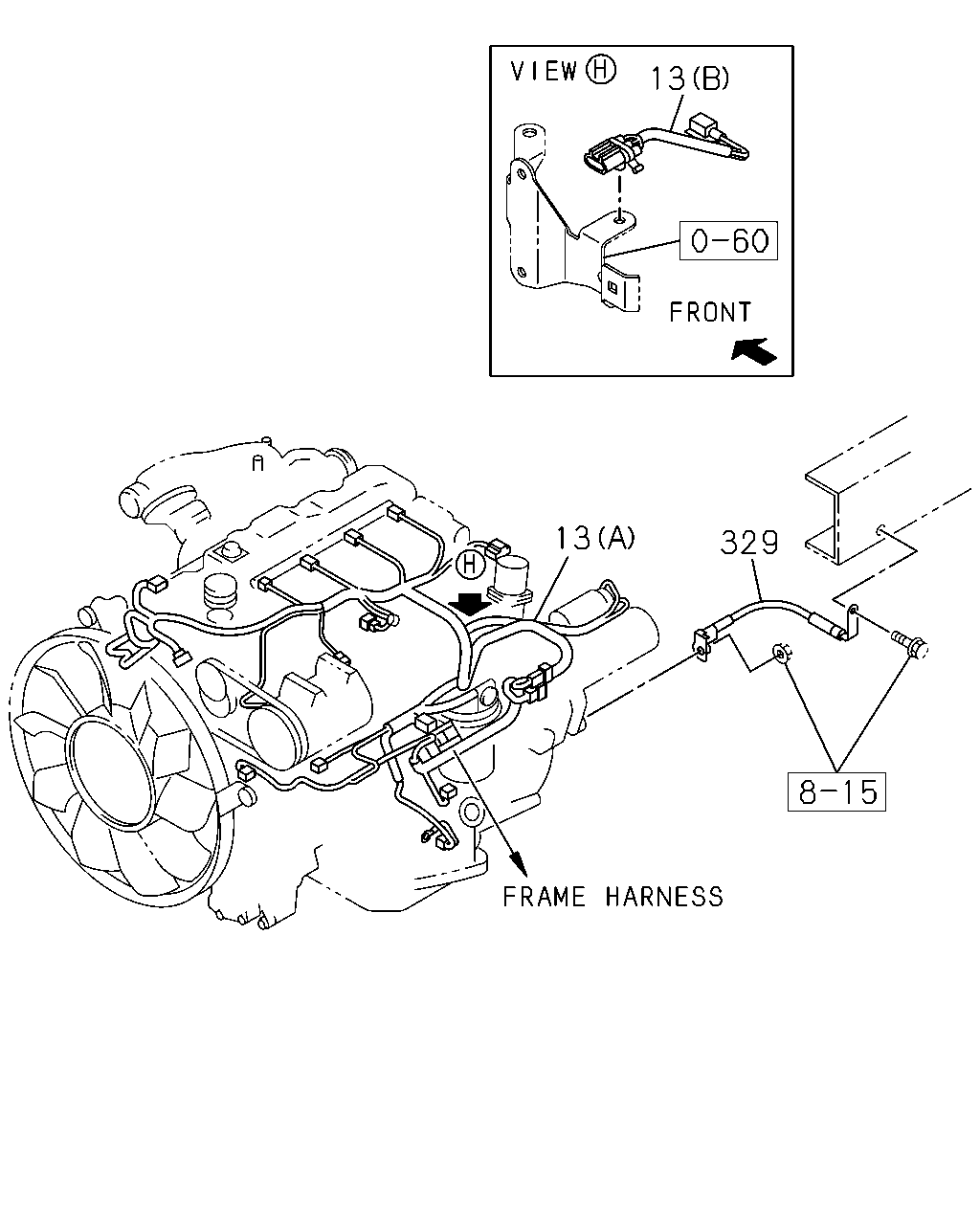

çizim 476679
13 329 13
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98209-538-2 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98209-538-2 01 1 1505- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98249-767-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98249-767-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98249-767-0 01 1 1505- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98249-769-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98249-769-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98249-769-0 01 1 1505- ●
329 02.480 CABLE; ENG TO FRAME 8-98227-630-1 01 1 1505- ● ● ●

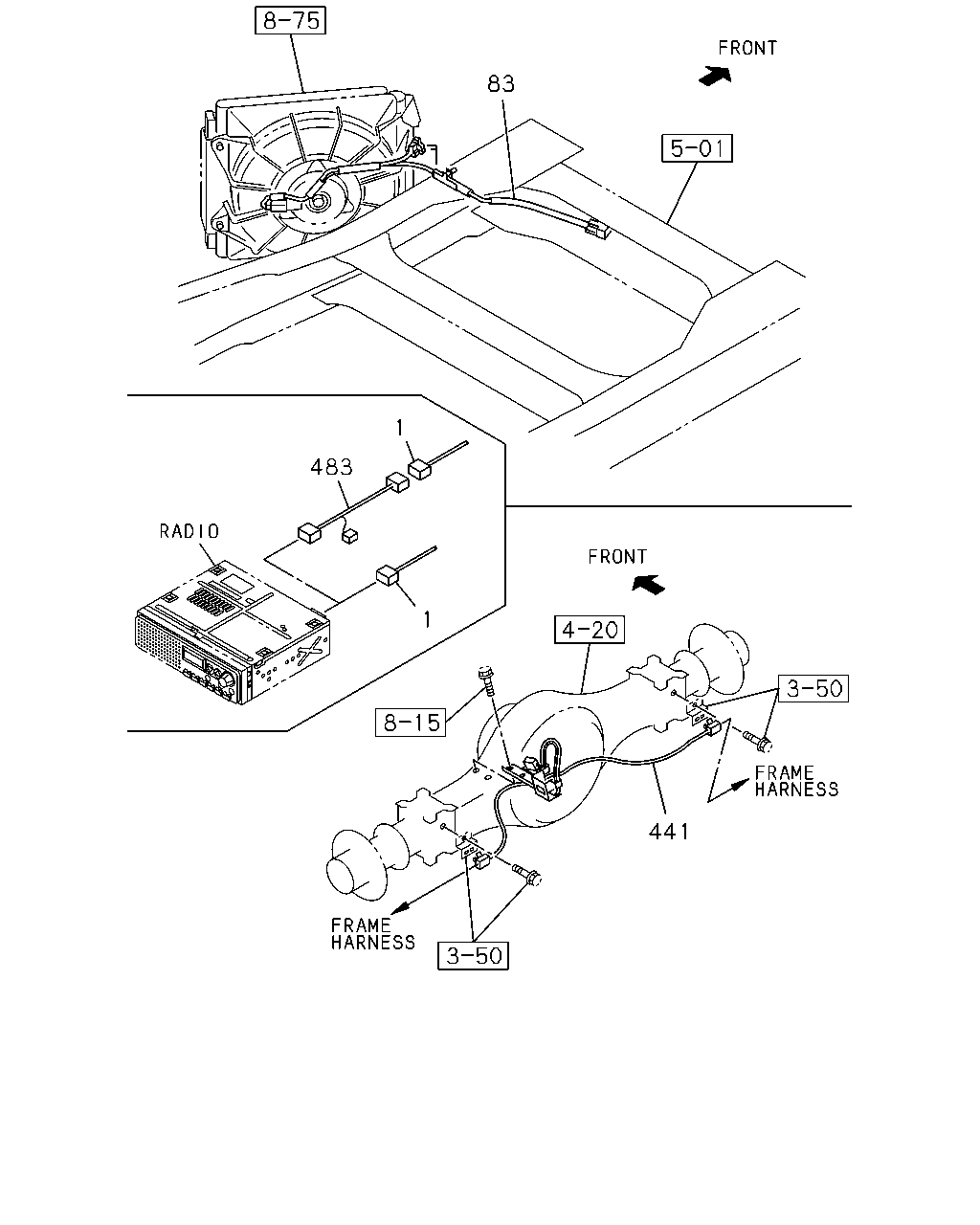

çizim 476754
441 483 1 83 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-062-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-062-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-067-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-067-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-065-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-065-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-070-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-070-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-064-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-069-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-066-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-071-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-063-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-068-1 01 1 1505- ●
83 02.480 HARNESS; AIR CONDITIONER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98140-333-2 01 1 1505- ● ●
83 02.480 HARNESS; AIR CONDITIONER
AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98140-333-2 01 1 1505- ●
83 02.480 HARNESS; AIR CONDITIONER
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98140-333-2 01 1 1505- ●
83 02.480 HARNESS; AIR CONDITIONER
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98140-333-2 01 1 1505- ●
83 02.480 HARNESS; AIR CONDITIONER
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98204-197-0 01 1 1505- ●
83 02.480 HARNESS; AIR CONDITIONER
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 		8-98204-197-0 01 1 1505- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98080-696-1 01 1 1505- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 		8-98080-696-1 01 1 1505- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98080-696-1 01 1 1505- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-97308-212-3 01 1 1505- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 		8-97308-220-4 01 1 1505- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98236-734-0 01 1 1505-1507 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) 		8-98236-734-0 01 1 1505-1507 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98236-734-0 01 1 1508- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) 		8-98236-734-0 01 1 1508- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98246-125-0 01 1 1505- ●
483 02.480 HARNESS; EXT,RADIO
IDENTIFICATION LABEL FOR KD<6UT> 		8-98116-875-0 01 1 1505- ● ● ●

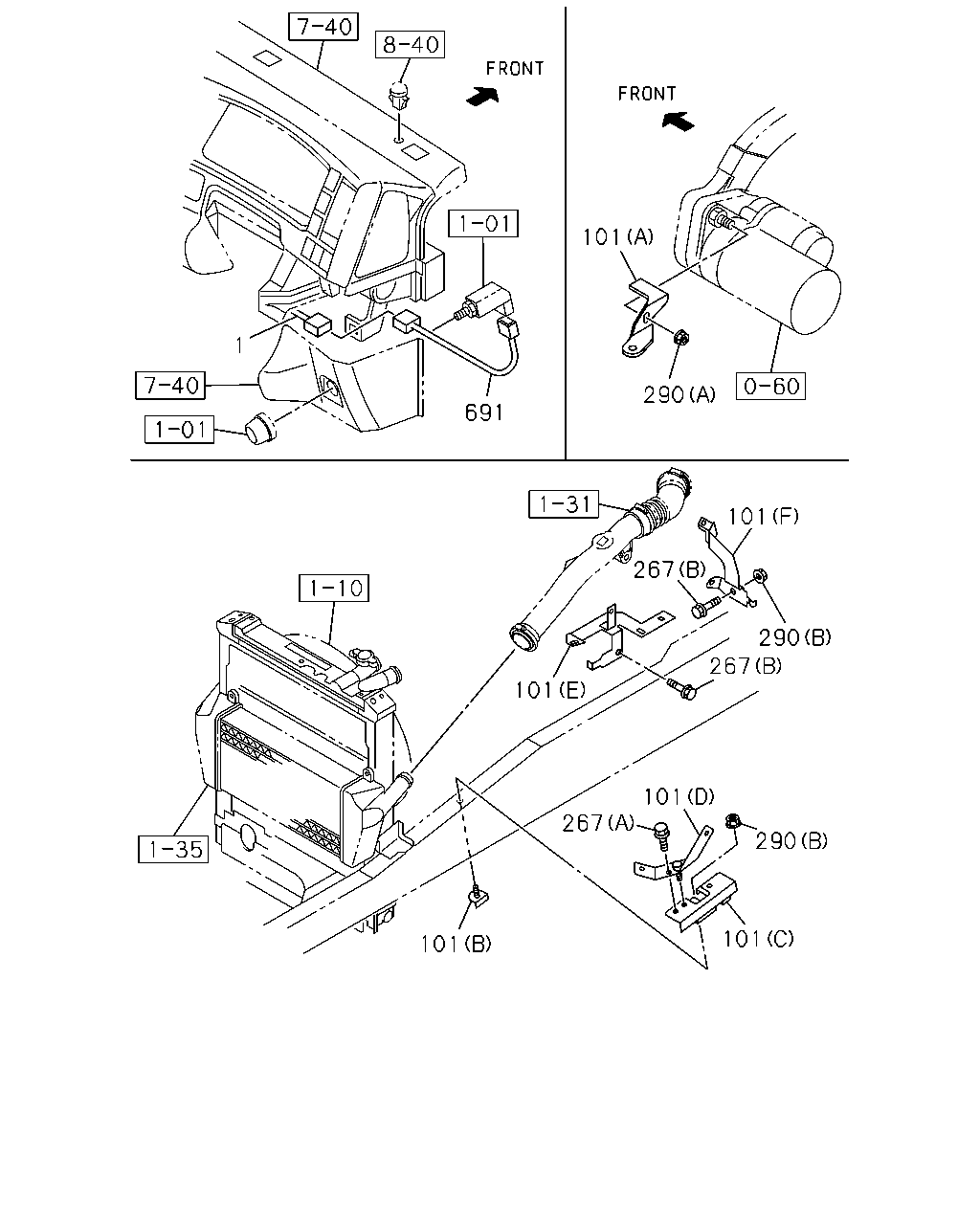

çizim 476797
1 691 101 290 101 267 101 101 267 267 290 101 290 101
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-062-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-062-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-067-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-067-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-065-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-065-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-070-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-070-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-064-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-069-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-066-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-071-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-063-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-068-1 01 1 1505- ●
101 02.483 BRACKET; HARNESS CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98078-070-1 01 1 1505-1506 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98078-070-1 01 1 1505-1506 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98078-070-1 01 1 1505-1506 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-070-1 01 1 1507- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98078-071-1 01 1 1505-1506 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98078-071-1 01 1 1505-1506 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98078-071-1 01 1 1505-1506 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98078-071-1 01 1 1507- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98093-465-1 01 1 1505-1506 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98093-465-1 01 1 1505-1506 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98093-465-1 01 1 1505-1506 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98093-465-1 01 1 1507- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98227-633-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98227-633-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98227-633-1 01 1 1505- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98227-634-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98227-634-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F) 		8-98227-634-0 01 1 1505- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (A) 		8-98030-725-1 01 1 1505- ● ● ●
267 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1506 ● ●
267 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1506 ● ●
267 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1506 ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1507- ● ● ●
267 02.483 BOLT; BRKT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ●
267 02.483 BOLT; BRKT
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ●
267 02.483 BOLT; BRKT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
290 02.483 NUT; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ● ●
290 02.483 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1505-1506 ● ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1505-1506 ● ● ●
290 02.483 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1505-1506 ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1505-1506 ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1507- ● ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1507- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1507- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1507- ●
691 02.480 HARNESS; IDLE CONT
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98049-014-2 01 1 1505- ● ● ●

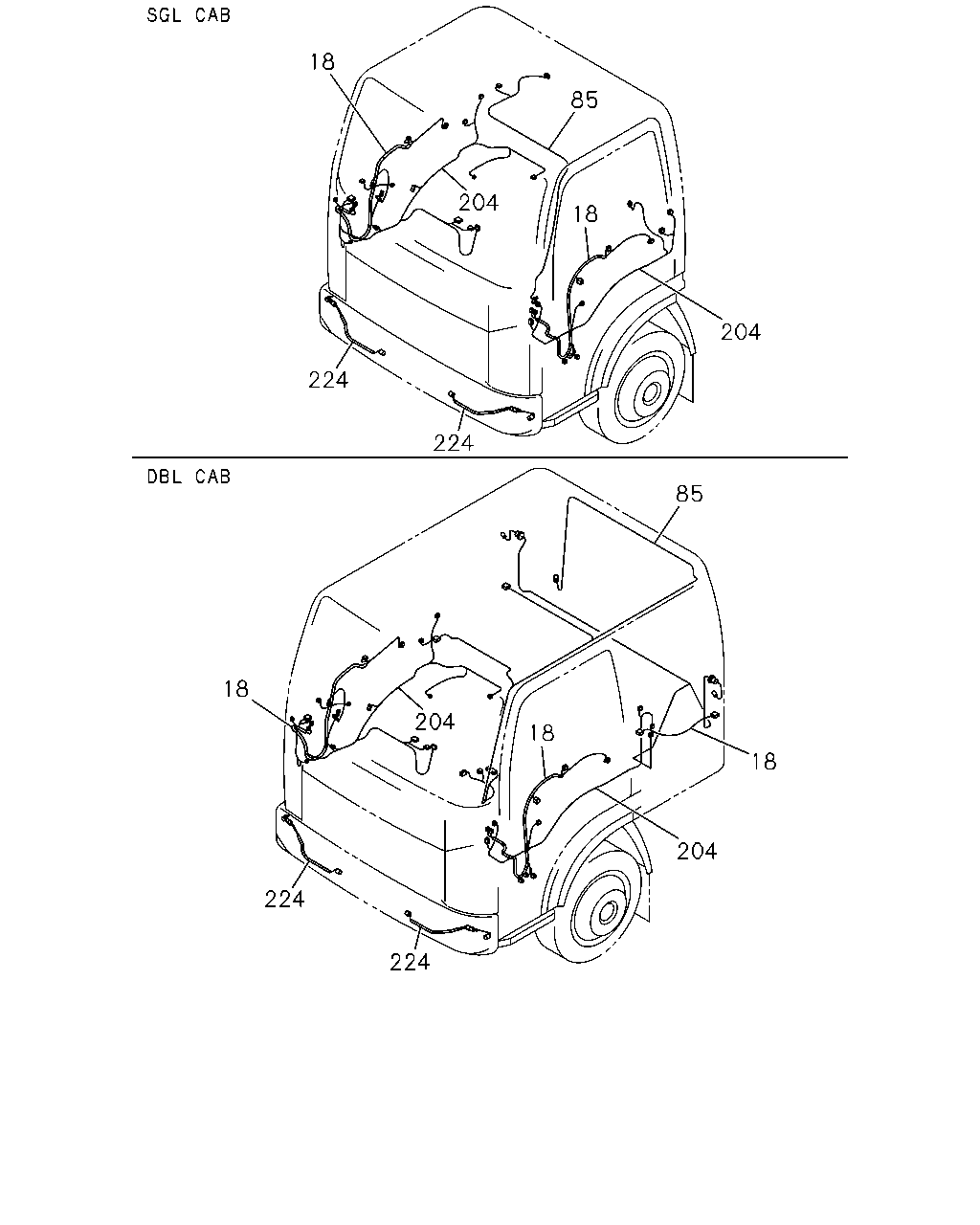

çizim 476845
18 224 204 85 18 204 224 85 18 204 18 204 18 224 224
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-078-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-078-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-568-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-568-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-076-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-076-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-565-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-565-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-077-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-077-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98286-567-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98286-567-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-075-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-075-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-564-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-564-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-560-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-569-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-559-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98286-566-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98049-963-3 01 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98298-960-1 01 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98033-823-4 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-505-1 01 1 1505- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-507-1 01 1 1505- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-850-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-850-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-849-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-510-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-512-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98257-329-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-810-3 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-809-3 01 1 1505- ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1505- ● ● ●

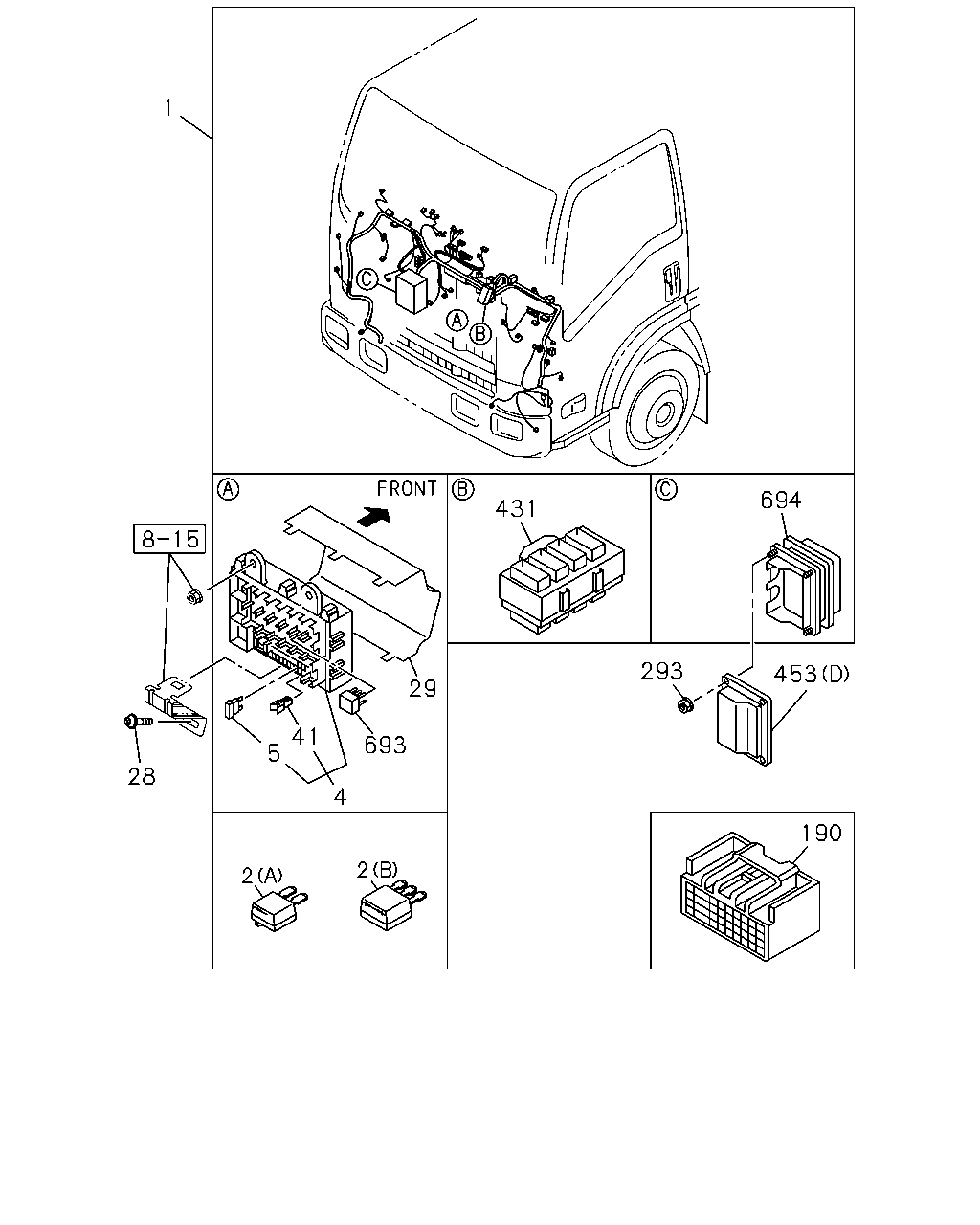

çizim 476884
1 431 28 5 41 4 693 29 2 2 293 453 694 190
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-062-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-062-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-067-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-067-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-065-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-065-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-070-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-070-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-064-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-069-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-066-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-071-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-063-1 01 1 1505- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-068-1 01 1 1505- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1505- ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1505- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98067-619-1 01 1 1505- ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1505- ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1505- ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1505- ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505- ● ● ●
29 02.483 COVER; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98056-968-0 01 1 1505- ● ● ●
41 08.821 PULLER; FUSE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98054-260-0 01 1 1505- ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 8-98302-775-0 01 1 1505- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1505- ● ● ●
431 02.530 CONNECTOR; JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98046-205-0 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 03 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 03 1 1505- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98114-566-1 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 02 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 02 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94452-553-0 01 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-94452-553-0 01 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-94452-553-0 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1505- ● ● ●
693 02.694 RELAY; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ● ● ●
694 02.483 BOX ASM; CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98057-772-0 01 1 1505- ● ● ●

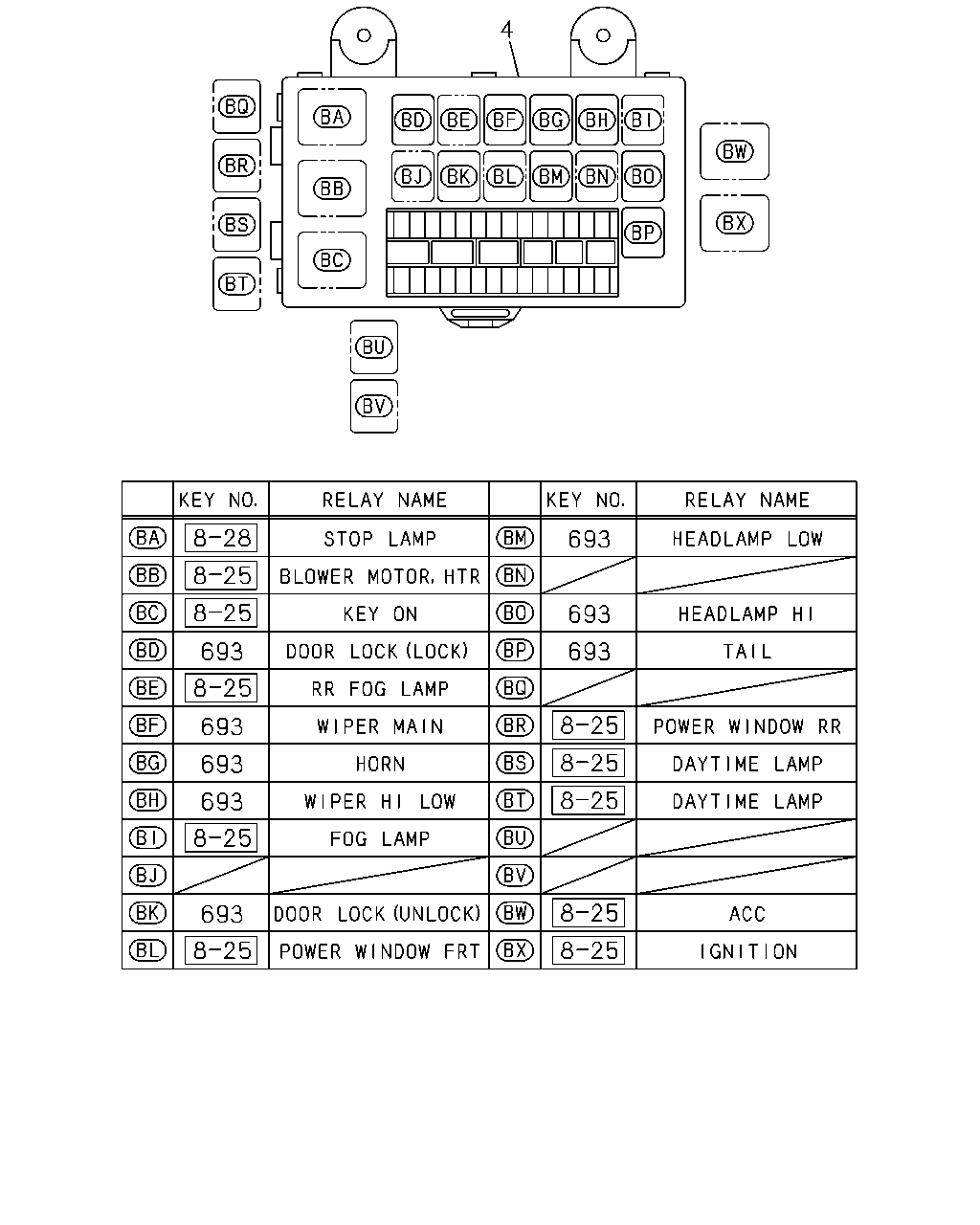

çizim 476903
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C
4 02.483 BOX ASM; FUSE,HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98067-619-1 01 1 1505- ● ● ●
693 02.694 RELAY; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ● ● ●

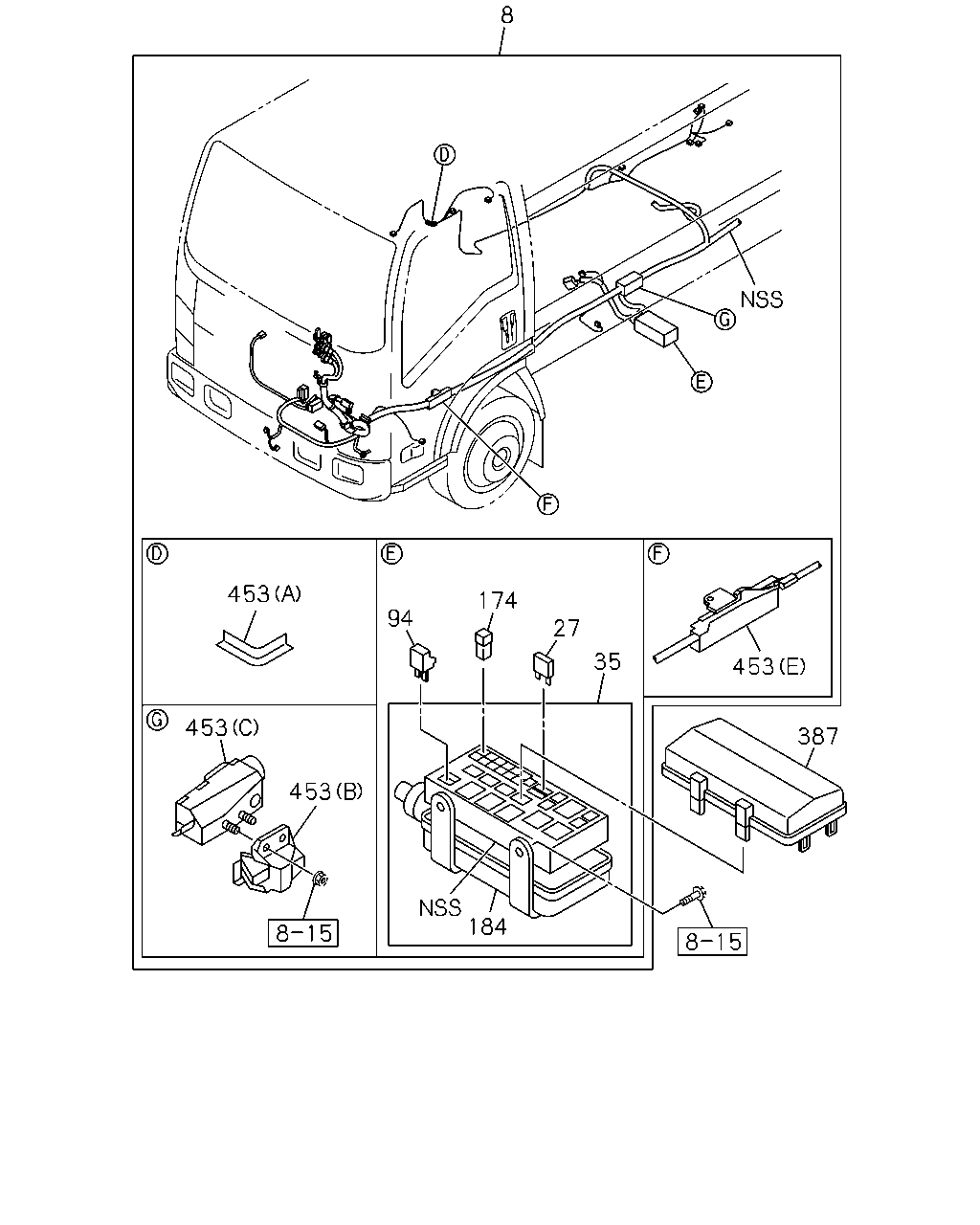

çizim 476938
8 453 94 174 27 35 453 387 184 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-897-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-897-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-897-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-898-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-898-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-898-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-899-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-899-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-899-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-900-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-900-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-900-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-506-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-506-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-506-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98284-375-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-375-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-375-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-905-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-905-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98297-906-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-906-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-507-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-507-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98284-376-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-376-0 01 1 1505- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1505- ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1505- ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1505- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1505- ● ● ●
387 02.483 COVER; RELAY BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98081-367-0 01 1 1505-1506 ● ●
387 02.483 COVER; RELAY BOX
FRT INDEPENDENT SUSPENSION(FF0) 		8-98081-367-0 01 1 1505-1506 ● ●
387 02.483 COVER; RELAY BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98081-367-0 01 1 1505-1506 ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1507- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 03 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 03 1 1505- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98114-566-1 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 02 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94417-716-0 02 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94452-553-0 01 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-94452-553-0 01 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-94452-553-0 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
