◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#161153) — 52 parça
çizim 476498
1 9 48 2 96 96
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.017 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-983-0 01 1 1505-1507 ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97305-983-0 01 1 1508- ● ● ●
2 03.680 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1505- ● ● ●
2 03.680 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1505- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-206-0 01 1 1505-1505 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-206-0 01 1 1506- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SMOOTHER-EX(TYPE2)(8NS) 		8-98301-207-0 01 1 1505-1505 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98301-207-0 01 1 1506- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-204-0 01 1 1505-1505 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-204-0 01 1 1506- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SMOOTHER-EX(TYPE2)(8NS) 		8-98301-205-0 01 1 1505-1505 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98301-205-0 01 1 1506- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCC ENG(RDU) FINAL GEAR RATIO 41/10(GT5) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-208-0 01 1 1505-1505 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCC ENG(RDU) FINAL GEAR RATIO 41/10(GT5) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-208-0 01 1 1506- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCC ENG(RDU) FINAL GEAR RATIO 41/10(GT5) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SMOOTHER-EX(TYPE2)(8NS) 		8-98301-209-0 01 1 1505-1505 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCC ENG(RDU) FINAL GEAR RATIO 41/10(GT5) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98301-209-0 01 1 1506- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1505-1506 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1507- ● ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1505-1506 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1507- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1505-1506 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1507- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1505-1506 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1507- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1505- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1505- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1505- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1505- ● ● ●

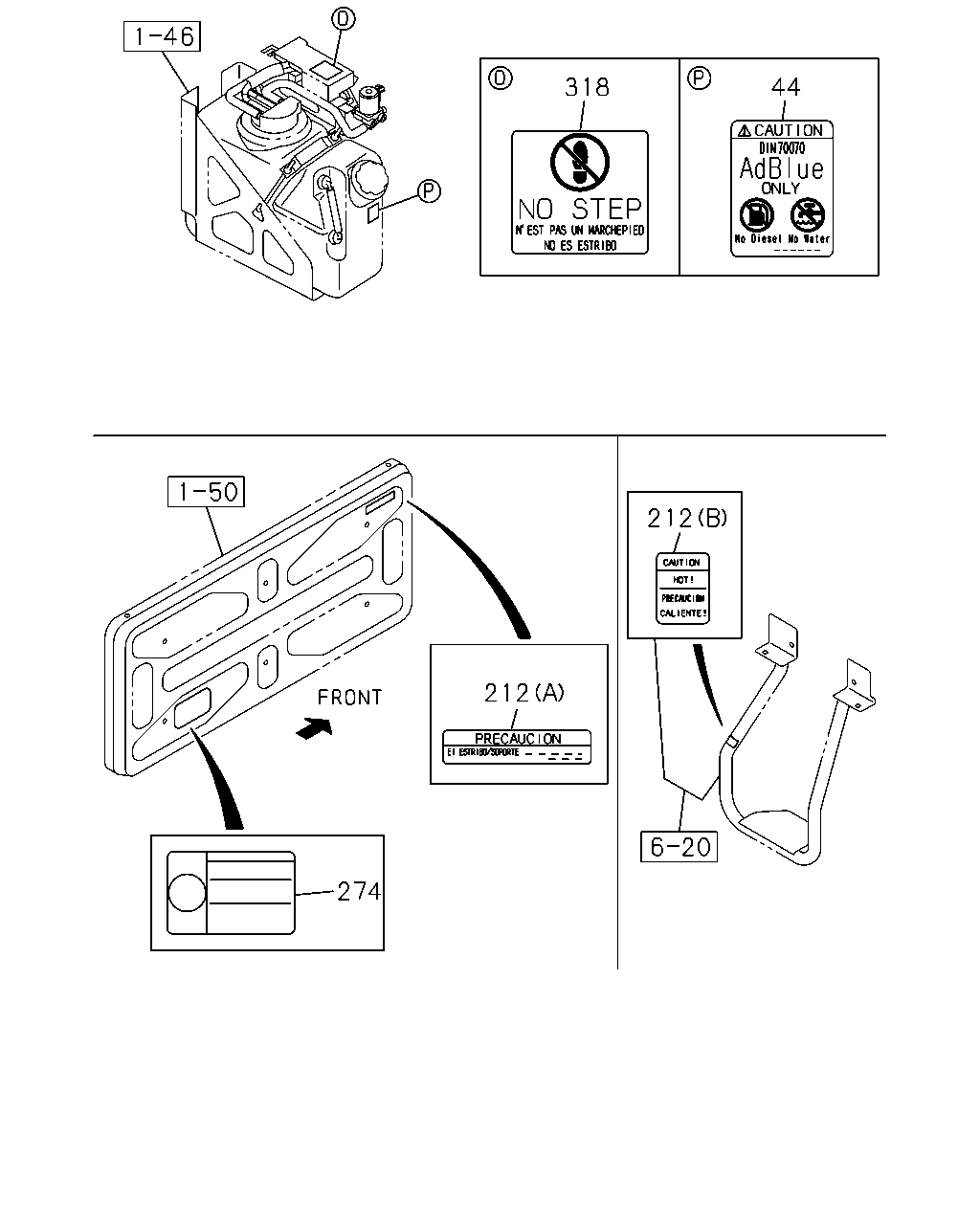

çizim 476691
318 44 212 212 274
BalonParca AdiParca NoAdetTipApplied Date A B C
44 08.155 PANEL; CAUTION PLATE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 		8-98231-935-0 01 1 1505- ● ● ●
212 08.808 LABEL; SAFETY
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98302-926-0 01 1 1505- ●
212 08.808 LABEL; SAFETY
CATALYSIS CONTROL WITH DPD & SCR(JCQ) CAUTION SPANISH<YN1> (A) 		8-98297-573-0 01 1 1505- ●
212 08.808 LABEL; SAFETY
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98297-572-0 01 1 1505- ●
274 08.808 PLATE; CAUTION,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.706 		8-98145-388-0 01 1 1505- ● ● ●
318 08.155 PLATE; CAUTION,DEF
EURO6 SPECIFICATION(NT6) 03.609 		8-98158-131-0 01 1 1505-1507 ● ● ●
318 08.155 PLATE; CAUTION,DEF
EXC. EURO5B+ SPECIFICATION(NT5) 03.609 		8-98158-131-0 01 1 1508- ● ● ●

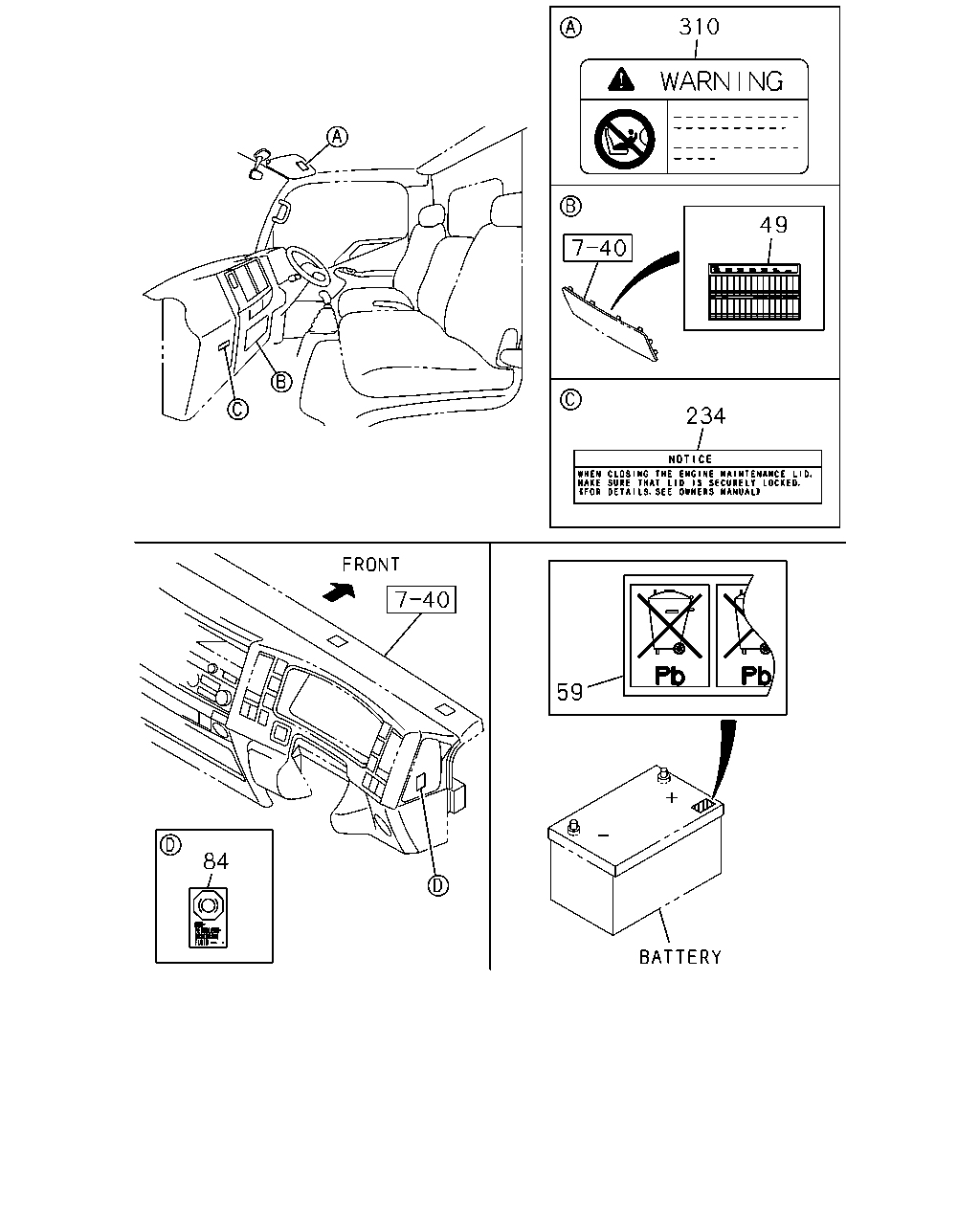

çizim 476794
234 49 310 59 84
BalonParca AdiParca NoAdetTipApplied Date A B C
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1505- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 1505- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1505- ● ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1505- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1505- ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1505- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1505- ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 1505- ● ● ●
çizim 476809
5 4 35 4 306
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1505-1508 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98323-067-0 01 1 1509- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1505-1508 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98303-905-0 01 1 1509- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) CAUTION SPANISH<YN1> 		8-97188-833-0 01 1 1505- ●
5 05.880 LABEL; TIRE AIR PRESSURE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) EXC. CAUTION SPANISH<YN1> 		8-97188-832-0 01 1 1505- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1505- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1505- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1505- ● ● ●
