8-28 — CHASSIS ELECTRICAL (#16115) — 157 parça

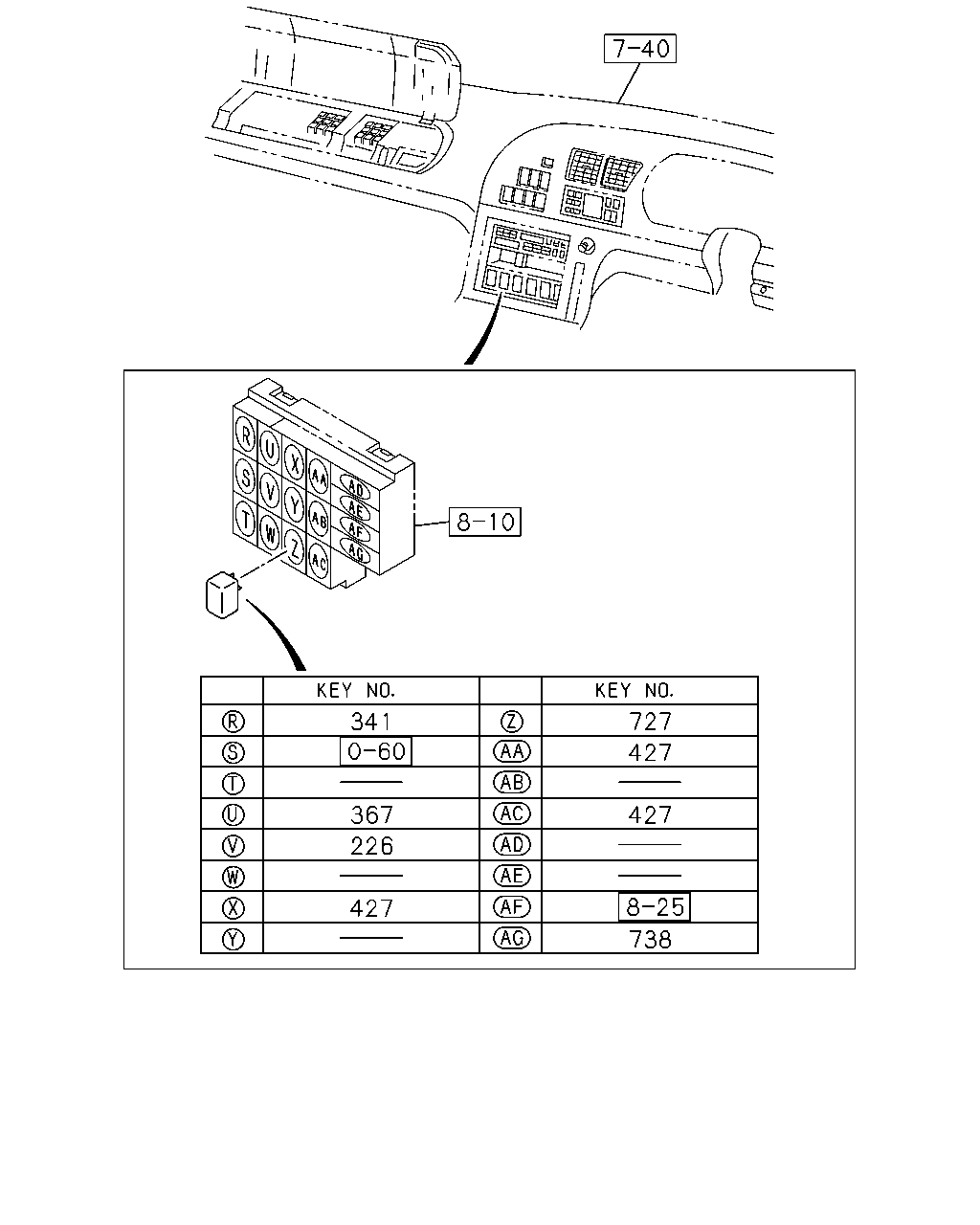

çizim 61876
341 727 427 367 427 226 427 738
BalonParca AdiParca NoAdetTipApplied Date
226 RELAY; EXH BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
427 RELAY; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC 		8-97173-035-1 02 1 0904-
727 RELAY; START CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-1306
727 RELAY; START CUT
24V 10A PANASONIC 		8-98167-173-0 01 1 1307-
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-

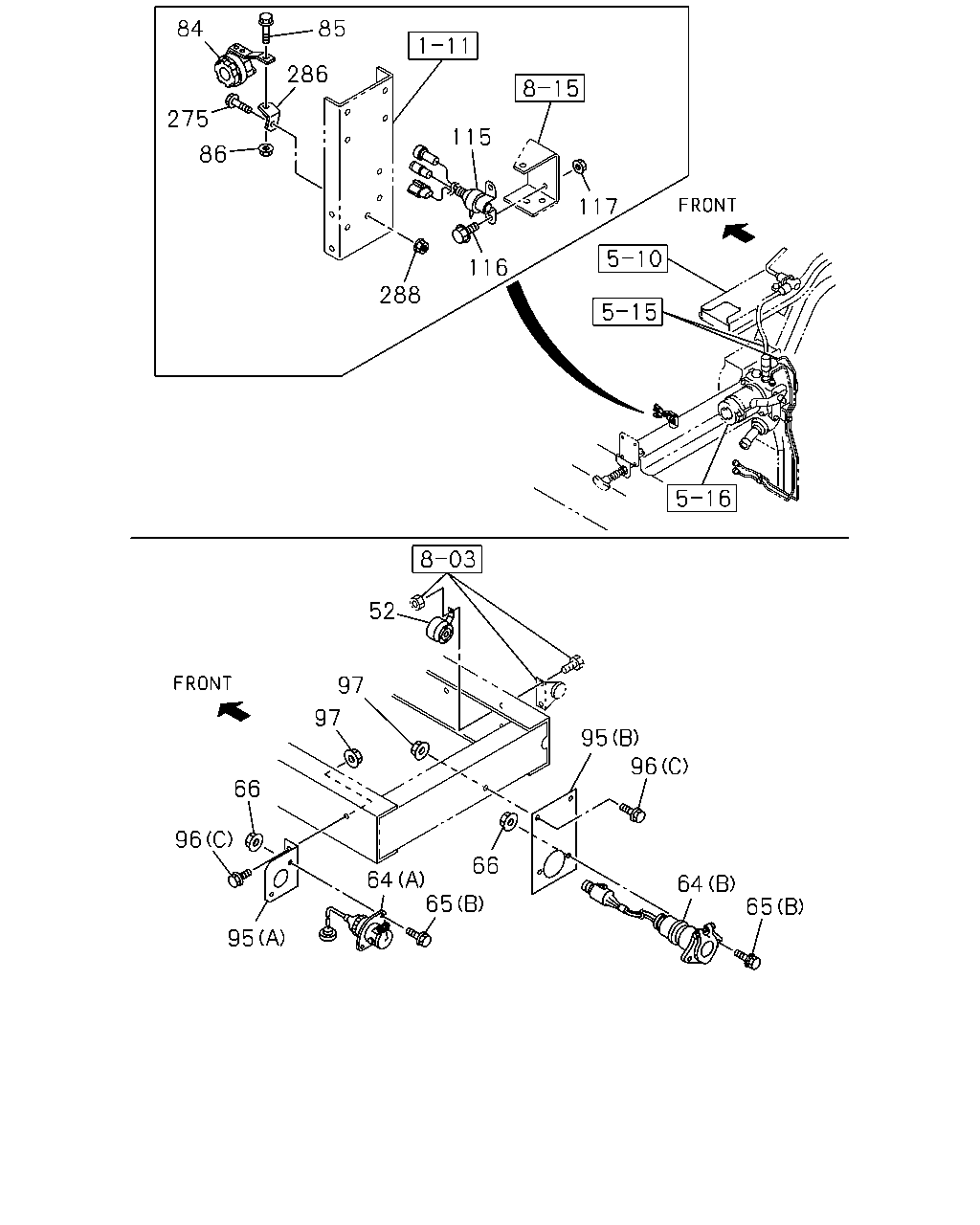

çizim 61898
84 85 286 275 115 86 117 116 288 52 97 97 95 96 66 96 66 64 65 64 65 95
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
METRO DENSO 		8-98069-861-0 01 1 0904-
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 0904-
64 SOCKET; TRAILER
(A) L=860 		1-82699-449-2 01 1 0904-1008
64 SOCKET; TRAILER
(A) L=860 		8-98172-008-0 01 1 1009-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0904-
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0904-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 04 1 0904-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0904-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0904-
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0904-
95 BRACKET; SOCKET,TRAILER
(B) 		1-82699-387-0 01 1 0904-
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-979-0 01 1 0904-1008
95 BRACKET; SOCKET,TRAILER
(A) 		8-97985-137-0 01 1 1009-
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0904-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0904-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0904-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0904-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0904-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0904-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0904-
275 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
275 BOLT; BRKT
M8X14 FLANGE 		0-28080-814-0 01 1 0904-
286 BRACKET 1-82699-199-0 01 1 0904-
288 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0904-

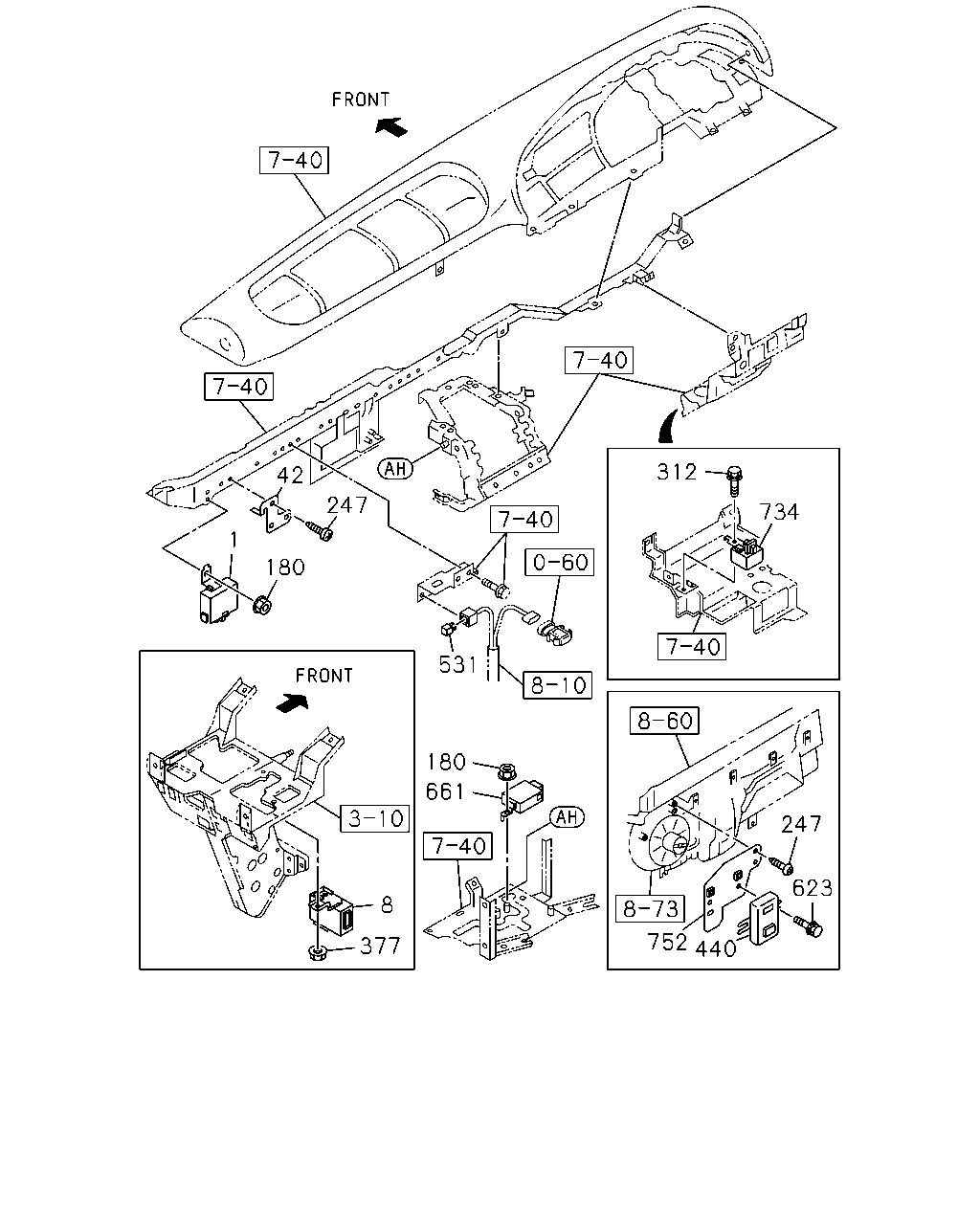

çizim 61902
42 312 247 734 1 180 531 180 661 247 623 8 752 440 377
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-97613-970-1 01 1 0904-
8 RELAY; WIPER 1-83316-002-4 01 1 0904-
42 BRACKET; RELAY 1-82698-128-2 01 1 0904-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0904-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0904-
247 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 0904-
247 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0904-
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0904-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0904-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0904-
531 RELAY; MAIN
24V 		1-82550-308-1 01 1 0904-1005
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1006-
623 BOLT; MODULE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0904-
734 ALARM; MULTI 1-83460-106-0 01 1 0904-
752 BRACKET; MODULE 8-97611-710-0 01 1 0904-

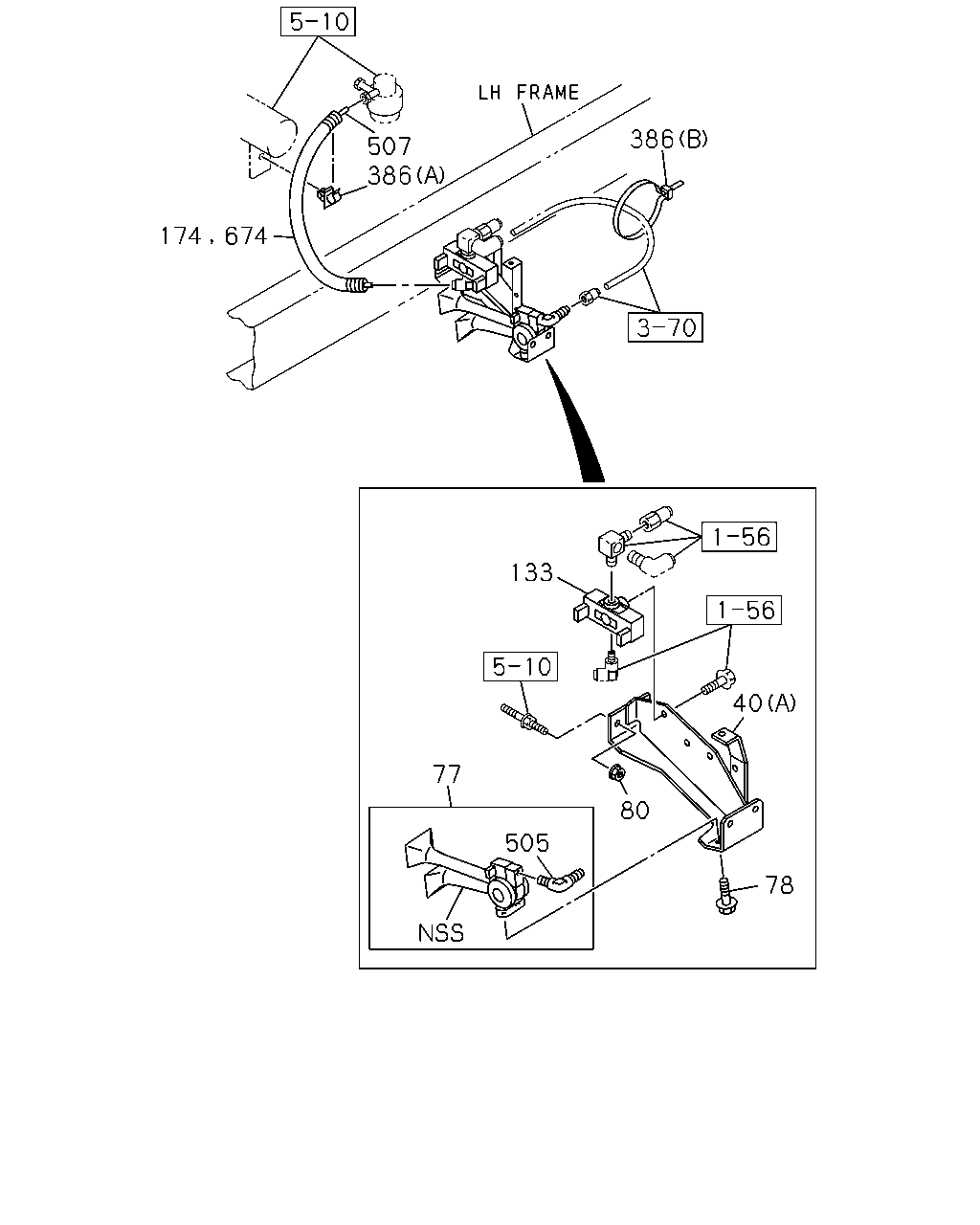

çizim 62001
386 507 386 174 674 133 40 77 80 505 78
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0904-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0904-
77 HORN ASM 1-83430-041-2 01 1 0904-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0904-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0904-
174 COVER
L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
386 CLIP; HARNESS
(B) L=350 		1-09707-183-0 02 1 0904-
386 CLIP; HARNESS
(A) ID=9.5 		5-09709-020-0 01 1 0904-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0904-
507 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0904-
674 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0904-

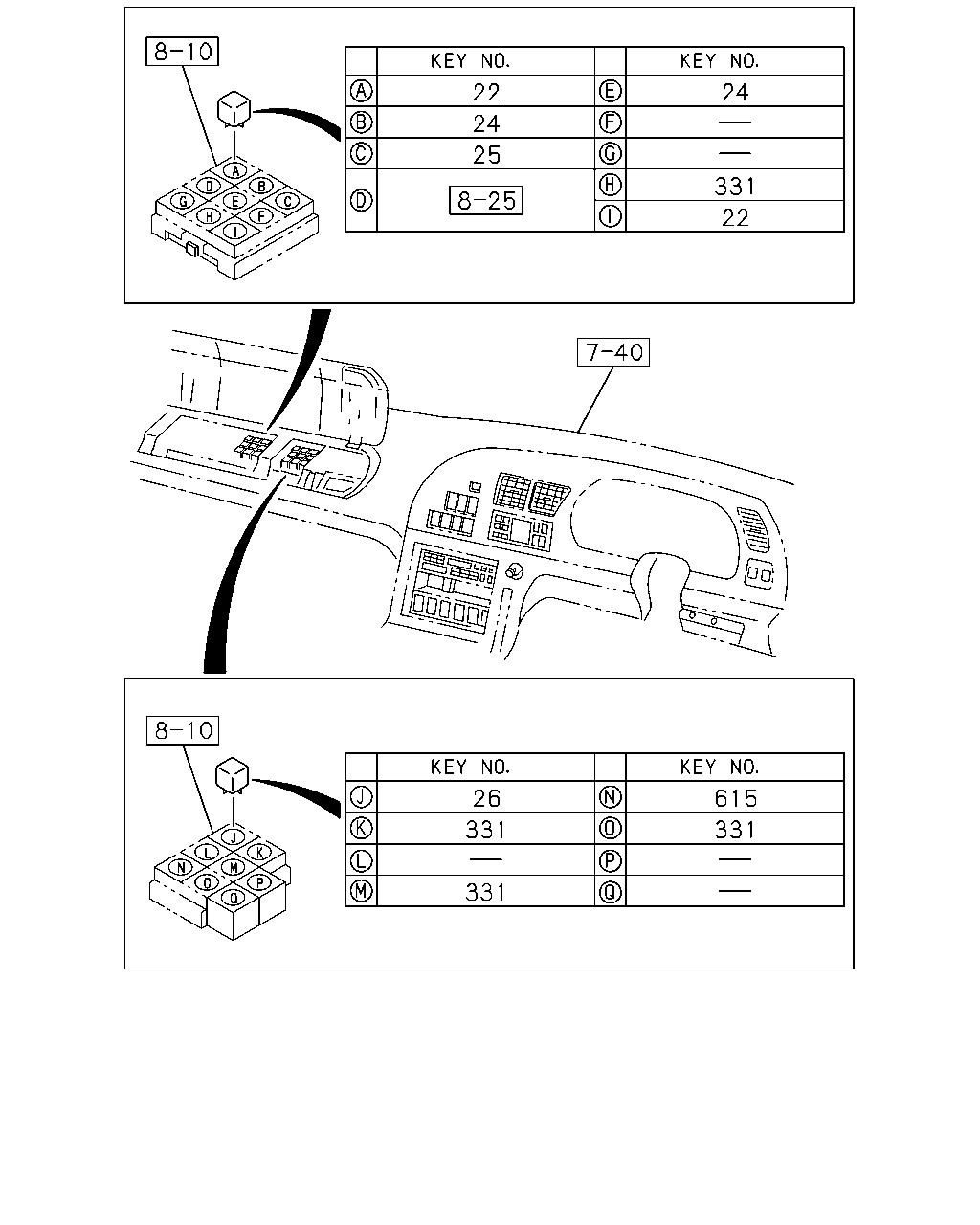

çizim 62043
22 24 24 25 331 22 26 615 331 331 331
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0904-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0904-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0904-1005
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0904-1005
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1006-
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1006-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-

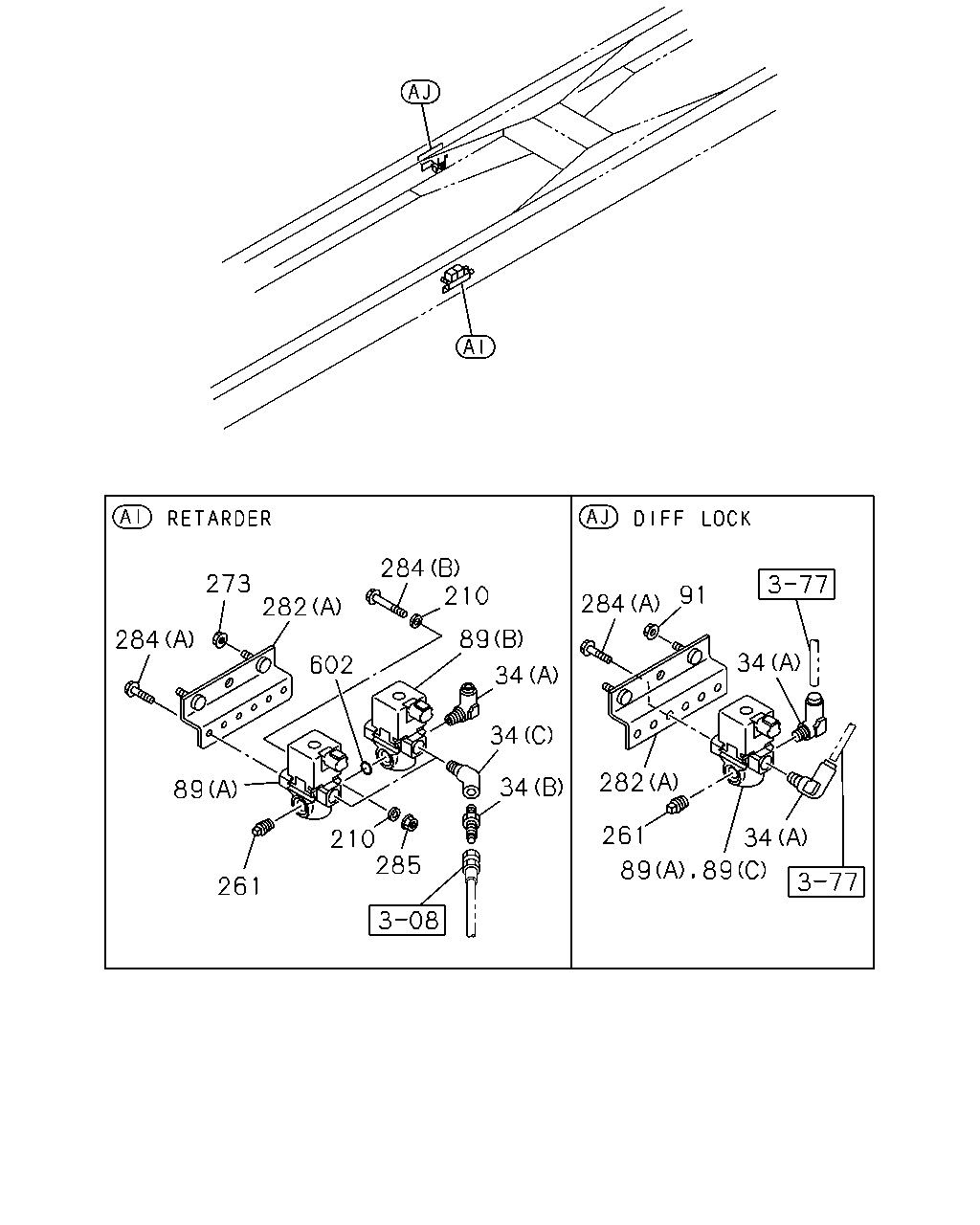

çizim 62044
91 34 284 89 284 210 34 34 34 282 261 89 89 34 285 210 261 89 284 273 282 602
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4 		1-09664-211-0 02 1 0904-
89 VALVE; MAG,DIFF LOCK
(C) 		8-97641-594-0 01 1 1206-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0904-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0904-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 1206-
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0904-
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0904-
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82569-266-0 08 1 1006-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0904-1005
210 WASHER; PL,BRKT
6WG1 TC-R(75L) 		1-82569-266-0 06 1 1006-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0904-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0904-
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 02 1 0904-
282 BRACKET; MAG VLV
(B) 		1-82569-298-0 01 1 0904-
282 BRACKET; MAG VLV
(A) 		1-82569-358-0 01 1 0904-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82569-358-0 01 1 0904-
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 04 1 1006-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0904-1005
284 BOLT; MAG VLV
6WG1 TC-R(75L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 1006-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0904-
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 04 1 1006-
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 03 1 0904-1005
285 NUT; MAG VLV
6WG1 TC-R(75L) M6 FLANGE 		0-91180-106-0 03 1 1006-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91180-106-0 01 1 0904-
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 04 1 1006-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0904-1005
602 GASKET; MAG VLV
6WG1 TC-R(75L) ID=16.8 		9-09565-117-0 03 1 1006-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0904-

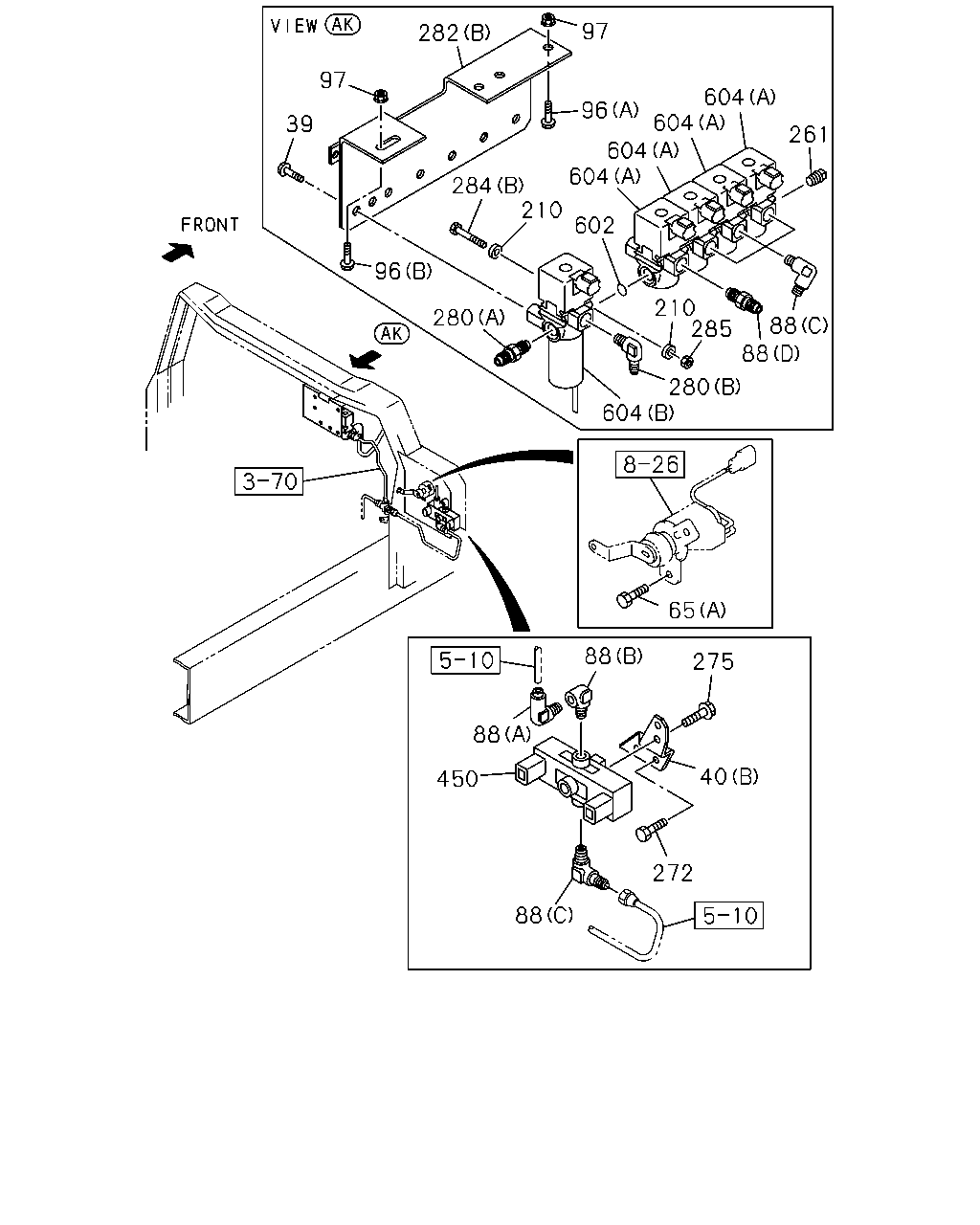

çizim 62080
97 282 97 604 604 604 604 96 39 261 284 210 602 96 210 285 280 88 88 280 604 65 88 275 88 40 450 272 88
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 05 1 1006-
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 04 1 0904-1005
39 BOLT; BRKT,MAG VLV
6WG1 TC-R(75L) M8X20 FLANGE 		0-28650-820-0 04 1 1006-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0904-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0904-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0904-
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0904-
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1006-
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1006-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0904-1005
88 CONNECTOR; MAG VLV
6WG1 TC-R(75L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 1006-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0904-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0904-
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0904-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0904-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0904-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0904-
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82569-266-0 08 1 1006-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0904-1005
210 WASHER; PL,BRKT
6WG1 TC-R(75L) 		1-82569-266-0 06 1 1006-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0904-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0904-
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28651-020-0 02 1 0904-1208
272 BOLT; MAG VLV
M10X25 FLANGE 		0-28651-025-0 02 1 1209-
275 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
275 BOLT; BRKT
M8X14 FLANGE 		0-28080-814-0 01 1 0904-
280 CONNECTOR; IN,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1006-
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0904-
282 BRACKET; MAG VLV
(B) 		1-82569-298-0 01 1 0904-
282 BRACKET; MAG VLV
(A) 		1-82569-358-0 01 1 0904-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82569-358-0 01 1 0904-
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 04 1 1006-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0904-1005
284 BOLT; MAG VLV
6WG1 TC-R(75L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 1006-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0904-
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 04 1 1006-
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 03 1 0904-1005
285 NUT; MAG VLV
6WG1 TC-R(75L) M6 FLANGE 		0-91180-106-0 03 1 1006-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91180-106-0 01 1 0904-
450 VALVE; MAG 1-53458-378-2 01 1 0904-
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 04 1 1006-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0904-1005
602 GASKET; MAG VLV
6WG1 TC-R(75L) ID=16.8 		9-09565-117-0 03 1 1006-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0904-
604 VALVE; MAG,ENG CONT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97633-075-0 01 1 1006-
604 VALVE; MAG,ENG CONT
(A) 		1-82563-871-2 04 1 0904-

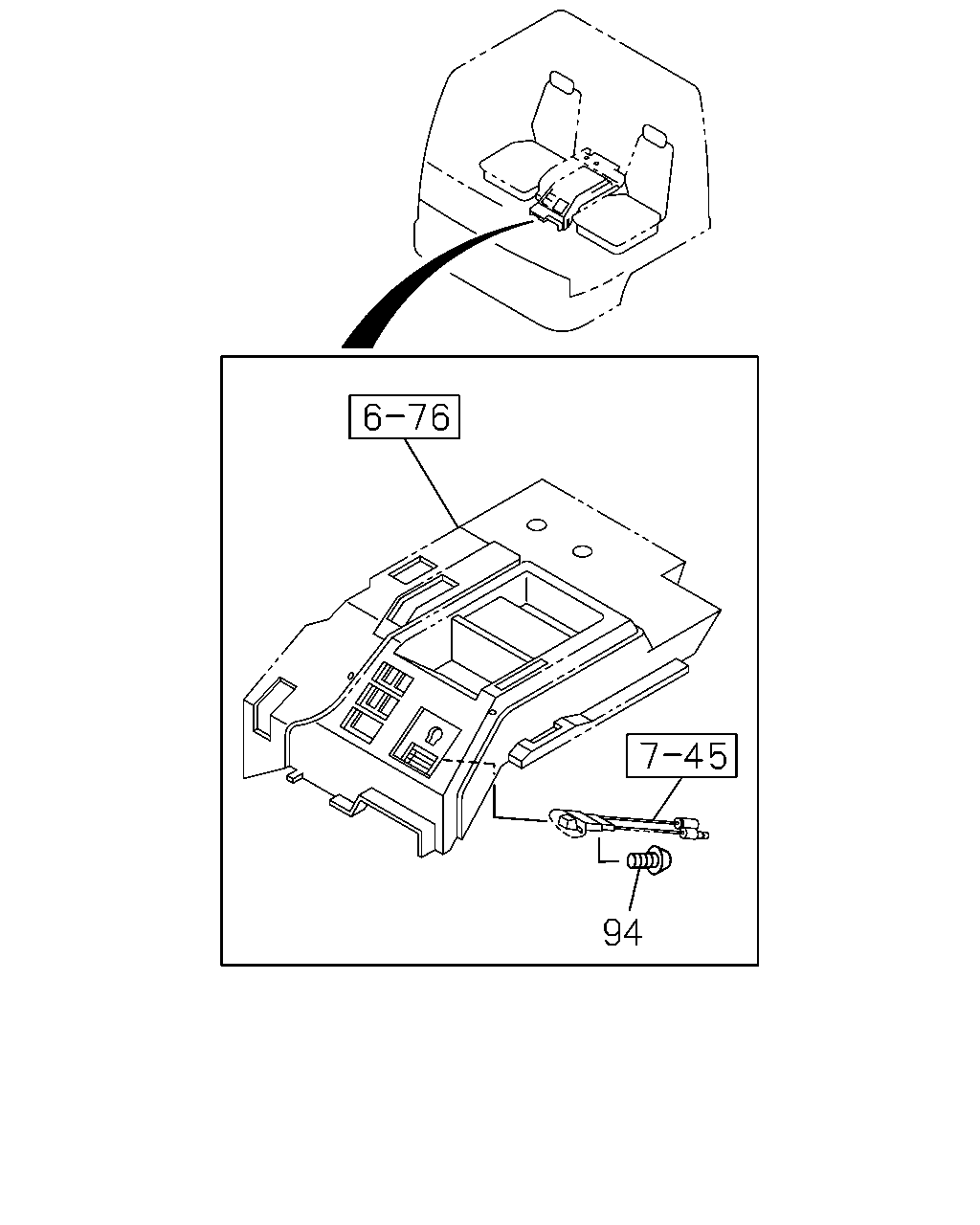

çizim 102279
94
BalonParca AdiParca NoAdetTipApplied Date
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
