Isuzu WW
▶
TRUCKS
▶
NLR
▶
51614 - NLR/NMR RHD EUROPE EURO5B+,6
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#161145) — 20 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WE
◀

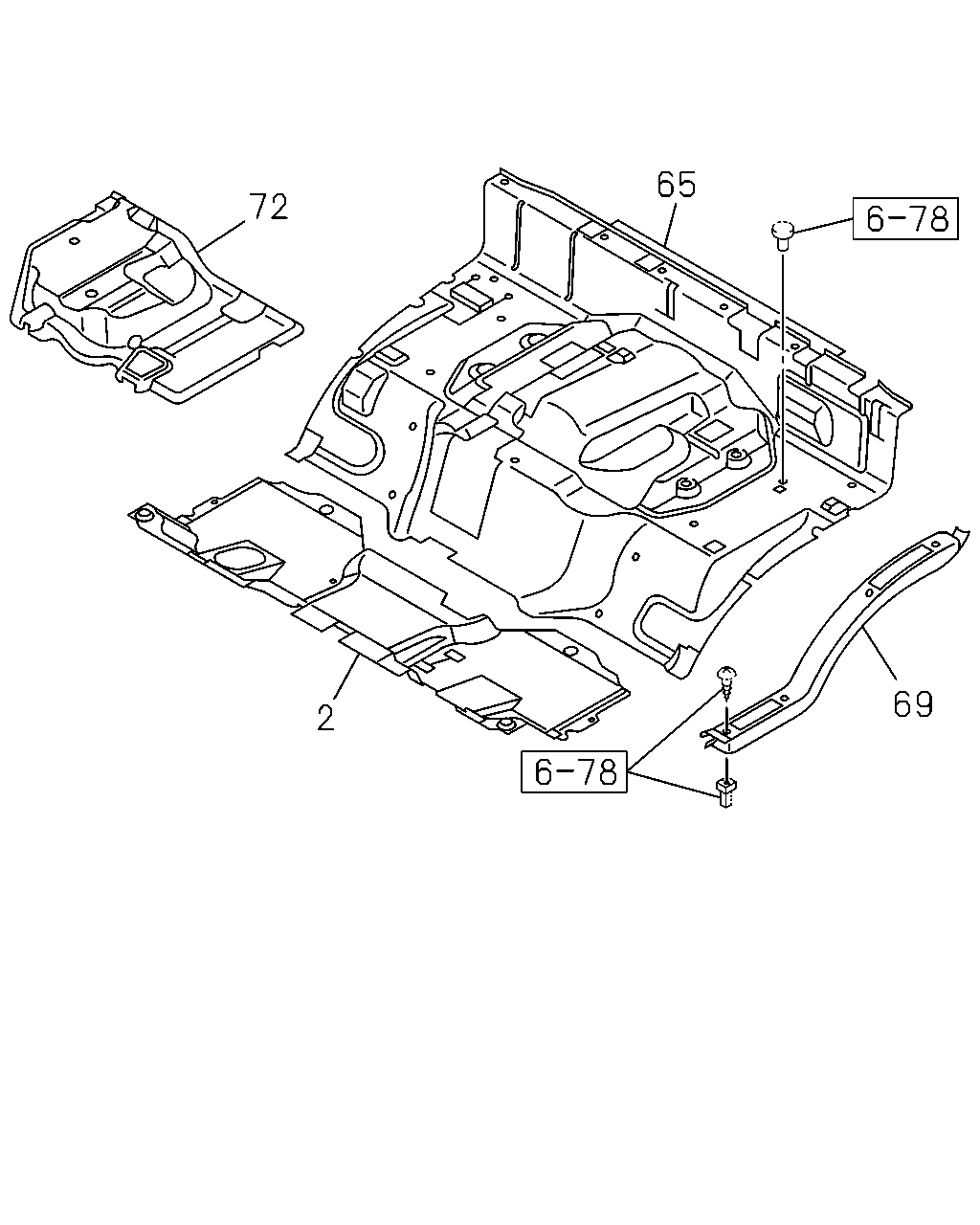

[675A] SGL CAB (8 parça)

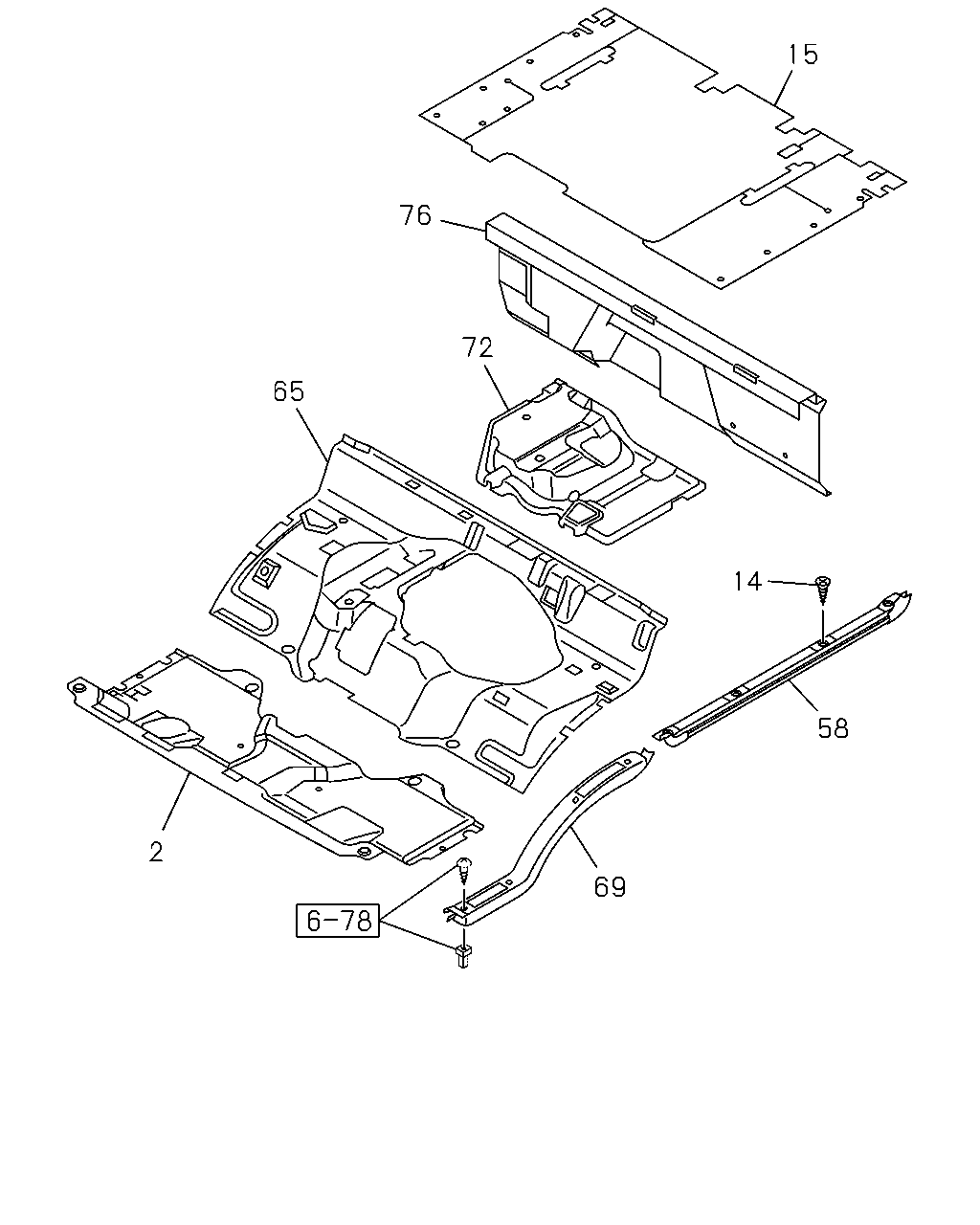

[675A] DBL CAB (12 parça)
▶
65
72
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY
8-97406-154-6
01
1
1505-
●
●
●
2
16.800 MAT; FLOOR
SMOOTHER-EX(TYPE2)(8NS) GRAY
8-97406-155-6
01
1
1505-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> GRAY
8-97423-533-1
01
1
1505-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY
8-97423-535-1
01
1
1505-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1505-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1505-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
1505-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97406-252-3
01
1
1505-
●
58
14
72
76
65
2
69
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY
8-97406-154-6
01
1
1505-
●
●
●
2
16.800 MAT; FLOOR
SMOOTHER-EX(TYPE2)(8NS) GRAY
8-97406-155-6
01
1
1505-
●
●
●
14
16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1505-
●
15
16.800 MAT; FLOOR REAR
GRAY
8-97423-532-0
01
1
1505-
●
58
08.153 PLATE; GUARD,RR FLOOR MAT
GRAY
8-97405-981-1
02
1
1505-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> GRAY
8-97423-533-1
01
1
1505-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY
8-97423-535-1
01
1
1505-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1505-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1505-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
1505-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97406-252-3
01
1
1505-
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY
8-97423-538-0
01
1
1505-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
