◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#161144) — 114 parça

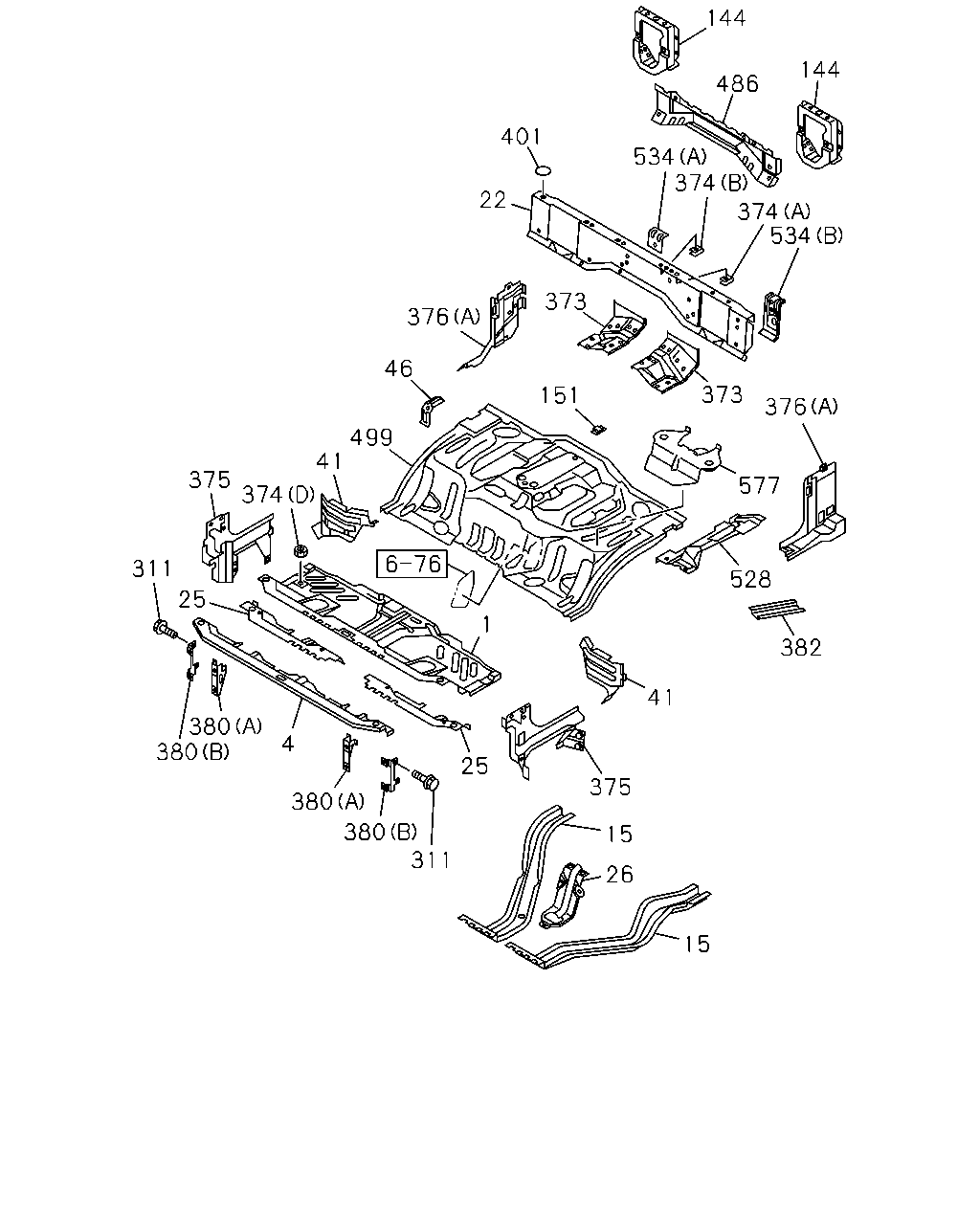

çizim 476381
151 46 376 499 41 374 375 311 25 380 4 380 380 380 311 25 41 1 375 15 26 15 382 528 577 376 373 373 22 401 534 486 144 144 374 534 374
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97583-910-5 01 1 1505- ● ● ●
4 16.545 FRAME; FLOOR,FRT 8-98059-496-0 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 1505- ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97583-925-3 01 1 1505- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-306-4 01 1 1505- ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 1505- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 1505- ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 1505- ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1505- ● ● ●
144 16.545 BRACKET; MTG,RR 8-97589-544-3 02 1 1505- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1505- ●
151 16.670 BRACKET; SEAT CUSHION STOPPER 8-97583-833-0 01 1 1505- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-521-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-522-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
16.714 		8-98015-215-2 01 1 1505- ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 1505- ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-97583-882-3 01 1 1505- ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-97583-883-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98080-727-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98080-728-1 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 1505- ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1505- ● ● ●
382 16.545 STIFFENER; RR FLOOR 8-98041-232-0 01 1 1505- ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 1505- ● ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-610-2 01 1 1505- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-611-2 01 1 1505- ●
499 16.545 PANEL; FLOOR,RR 8-97583-912-4 01 1 1505- ● ●
499 16.545 PANEL; FLOOR,RR 8-97584-630-1 01 1 1505- ●
528 16.545 REINFORCEMENT; PARKING BRAKE 8-97583-829-4 01 1 1505- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 01 1 1505- ● ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1505- ● ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98206-512-0 01 1 1505- ● ● ●

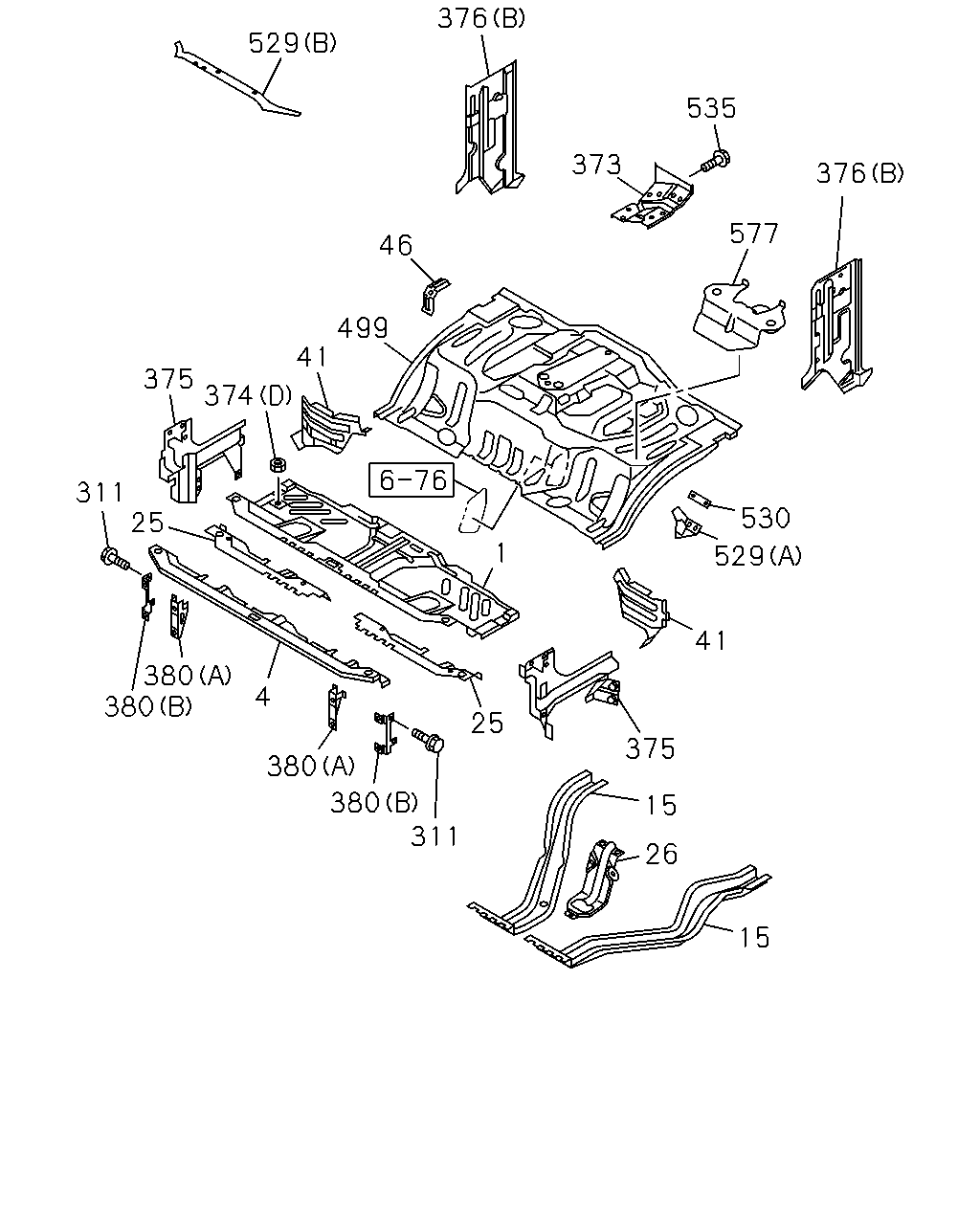

çizim 476791
530 529 1 41 25 375 15 26 15 311 380 380 380 4 380 311 375 374 41 499 46 529 376 373 535 577 376 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97583-910-5 01 1 1505- ● ● ●
4 16.545 FRAME; FLOOR,FRT 8-98059-496-0 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 1505- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 1505- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 1505- ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 1505- ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1505- ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-521-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-522-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
16.714 		8-98015-215-2 01 1 1505- ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 1505- ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-97583-882-3 01 1 1505- ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-97583-883-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98080-727-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98080-728-1 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 1505- ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1505- ● ● ●
499 16.545 PANEL; FLOOR,RR 8-97583-912-4 01 1 1505- ● ●
499 16.545 PANEL; FLOOR,RR 8-97584-630-1 01 1 1505- ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-307-1 01 1 1505- ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 1505- ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1505- ●
535 16.549 BOLT; REINFORCEMENT
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1505- ●
577 16.545 BRACKET; SENSOR,YAW 8-98206-512-0 01 1 1505- ● ● ●

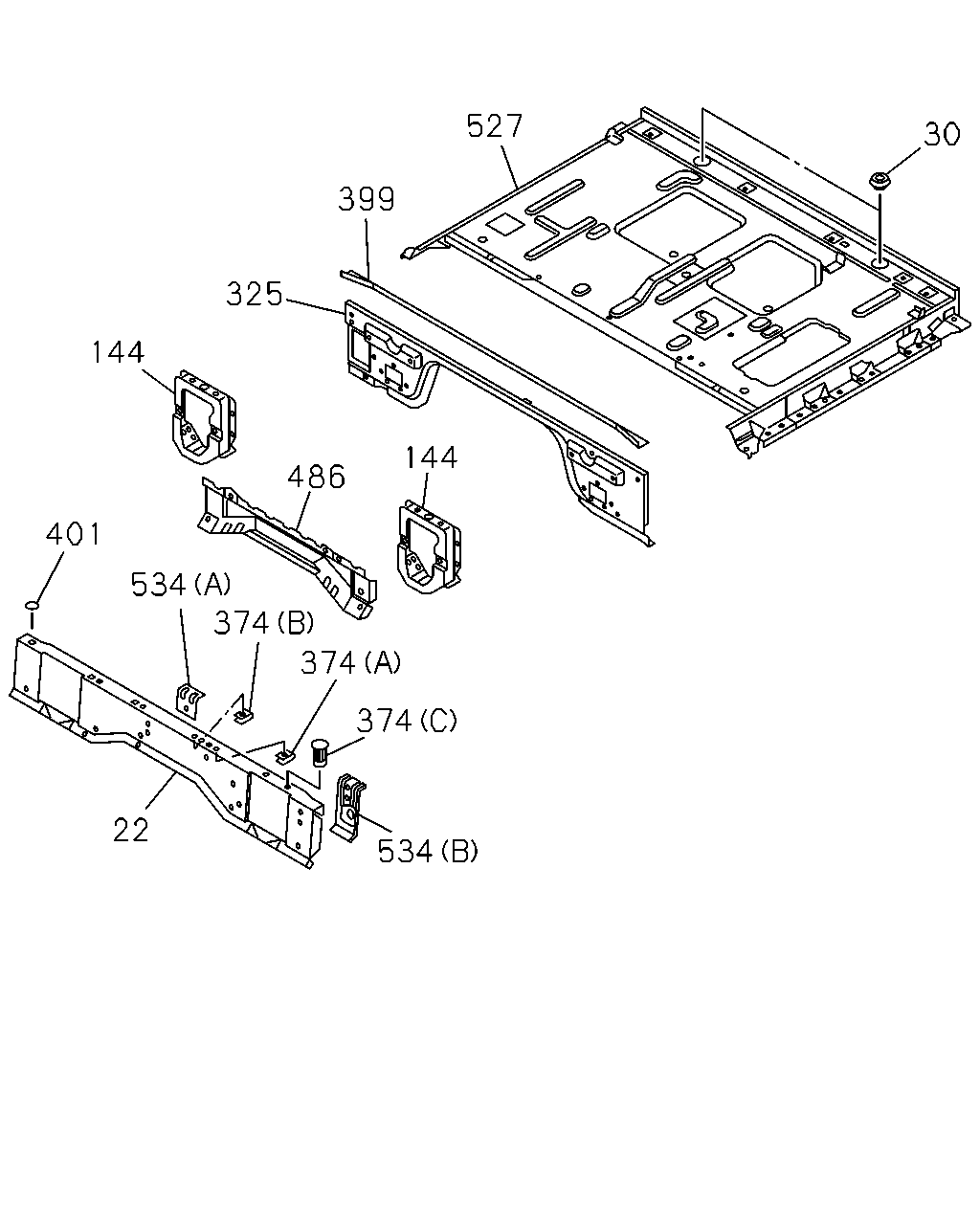

çizim 476832
144 486 534 144 22 401 374 374 374 534 325 399 527 30
BalonParca AdiParca NoAdetTipApplied Date A B C
22 16.545 FRAME; FLOOR REAR 8-97583-925-3 01 1 1505- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-306-4 01 1 1505- ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 1505- ●
144 16.545 BRACKET; MTG,RR 8-97589-544-3 02 1 1505- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1505- ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-98206-042-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 1505- ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97588-952-1 01 1 1505- ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 1505- ● ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-610-2 01 1 1505- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-611-2 01 1 1505- ●
527 16.545 FLOOR; RR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-038-1 01 1 1505- ●
527 16.545 FLOOR; RR
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-406-0 01 1 1505- ●
527 16.545 FLOOR; RR
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-335-0 01 1 1505- ●
527 16.545 FLOOR; RR
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-336-0 01 1 1505- ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 01 1 1505- ● ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1505- ● ● ●

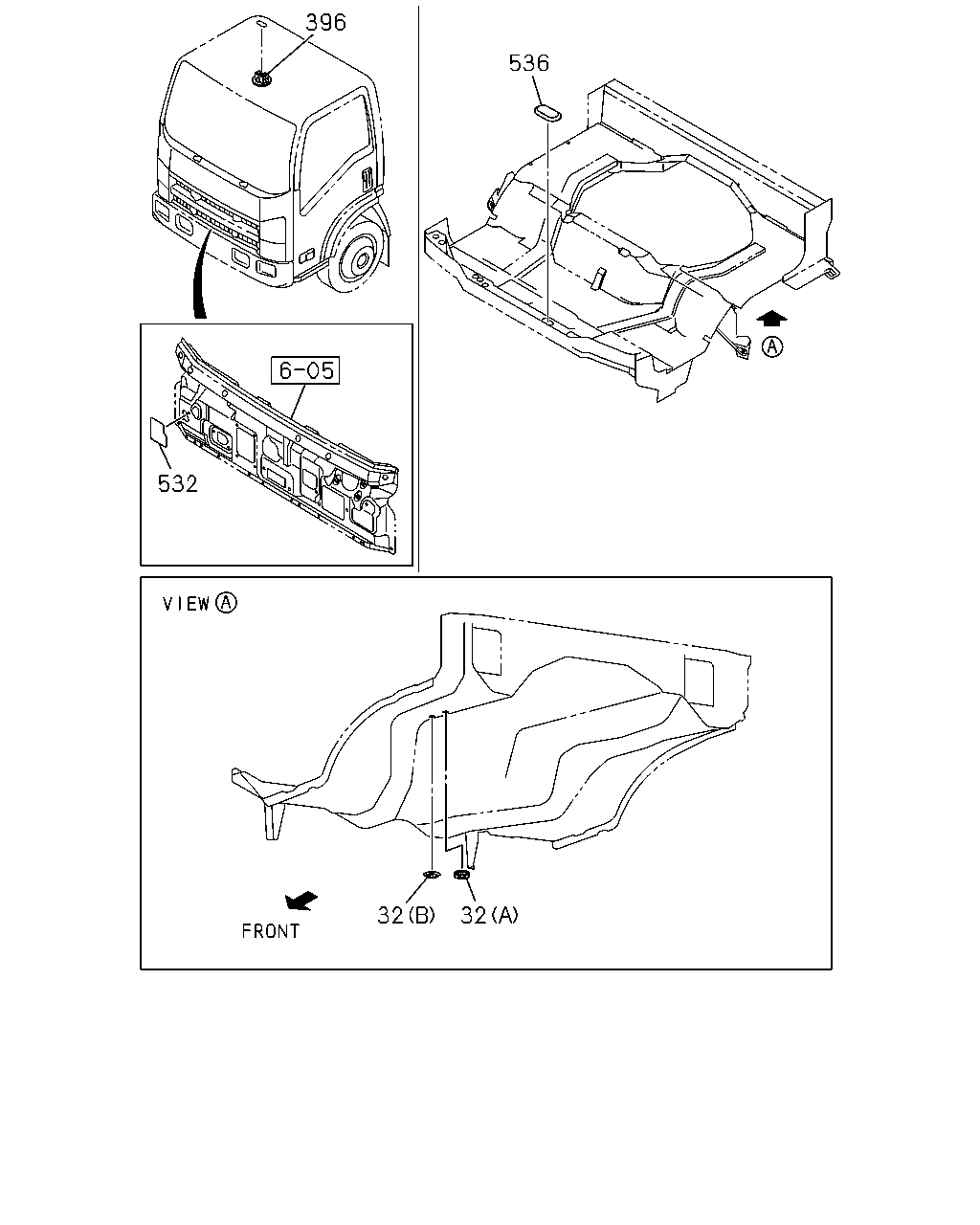

çizim 476834
536 396 532 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1505- ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1505- ● ● ●
396 16.547 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1505- ● ●
532 16.520 SEAL; CABLE
EXC. PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 1505- ● ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1505- ● ● ●
