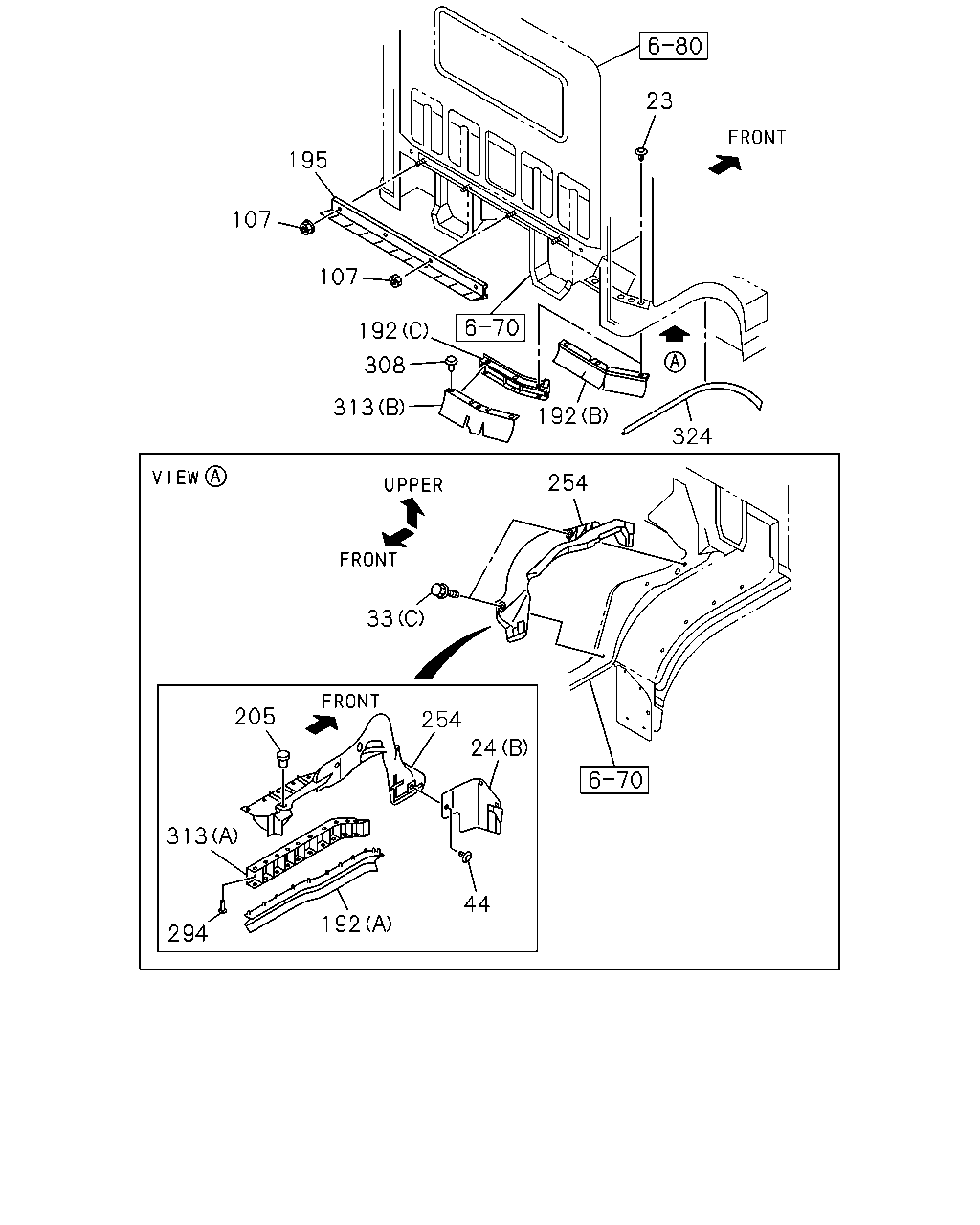

6-47 — MUD GUARD AND INSULATOR (#161137) — 88 parça

195 107 107 192 308 313 192 254 324 23 33 205 254 24 192 44 294 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1505-1505	●	●
23	08.154 FASTENER; MUD COVER 4JJ1-TCS ENG(LFB) 16.320 OD=8.3	8-97997-832-0	06	1	1505-1505			●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1506-	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1505-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1505-1505	●	●
33	08.155 BOLT; MUD COVER 4JJ1-TCS ENG(LFB) (C) M6X16 FLANGE	8-98061-108-0	04	1	1505-1505			●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1506-	●	●	●
33	08.155 BOLT; MUD COVER (A) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (B) M6X16 FLANGE	8-98227-381-0	08	1	1505-	●	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1505-	●	●	●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	04	1	1505-	●	●
192	08.153 SEAL; MUD COVER (B)	8-98192-388-0	02	1	1505-1505	●	●
192	08.153 SEAL; MUD COVER (B)	8-98192-388-0	02	1	1506-	●	●
192	08.153 SEAL; MUD COVER 4JJ1-TCC ENG(RDU) (B)	8-98192-388-0	02	1	1506-			●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1505-1505	●	●
192	08.153 SEAL; MUD COVER 4JJ1-TCS ENG(LFB) (A)	8-98022-755-1	01	1	1505-1505			●
192	08.153 SEAL; MUD COVER 4JJ1-TCS ENG(LFB) (A)	8-98022-755-1	01	1	1505-1505			●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1506-	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1505-1505	●	●
192	08.153 SEAL; MUD COVER 4JJ1-TCS ENG(LFB) (A)	8-98022-756-1	01	1	1505-1505			●
192	08.153 SEAL; MUD COVER 4JJ1-TCS ENG(LFB) (A)	8-98022-756-1	01	1	1505-1505			●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1506-	●	●	●
192	08.153 SEAL; MUD COVER 4JJ1-TCS ENG(LFB) (C)	8-98106-052-0	01	1	1505-			●
192	08.153 SEAL; MUD COVER 4JJ1-TCS ENG(LFB) (C)	8-98106-053-0	01	1	1505-			●
195	03.602 PROTECTOR; HEAT	8-98075-080-0	01	1	1505-	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1505-1505	●	●
205	08.155 FASTENER; MUD COVER 4JJ1-TCS ENG(LFB) 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1505-1505			●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1506-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98115-263-0	01	1	1505-1505	●	●
254	08.153 COVER; MUD,VALANCE 4JJ1-TCS ENG(LFB)	8-98115-263-0	01	1	1505-1505			●
254	08.153 COVER; MUD,VALANCE 4JJ1-TCS ENG(LFB)	8-98115-263-0	01	1	1505-1505			●
254	08.153 COVER; MUD,VALANCE	8-98115-263-0	01	1	1506-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98115-264-0	01	1	1505-1505	●	●
254	08.153 COVER; MUD,VALANCE 4JJ1-TCS ENG(LFB)	8-98115-264-0	01	1	1505-1505			●
254	08.153 COVER; MUD,VALANCE 4JJ1-TCS ENG(LFB)	8-98115-264-0	01	1	1505-1505			●
254	08.153 COVER; MUD,VALANCE	8-98115-264-0	01	1	1506-	●	●	●
294	08.154 CLIP; MUD COVER 4JJ1-TCS ENG(LFB) 16.069 OD=12 L=14.8	8-94279-921-0	22	1	1505-			●
308	08.155 FASTENER; MUD GUARD 4JJ1-TCS ENG(LFB) 16.320 OD=8.3	8-97997-832-0	06	1	1505-			●
313	08.513 EXTENSION; M/GUARD RR 4JJ1-TCS ENG(LFB) (A)	8-98106-049-0	01	1	1505-			●
313	08.513 EXTENSION; M/GUARD RR 4JJ1-TCS ENG(LFB) (A)	8-98106-050-0	01	1	1505-			●
313	08.513 EXTENSION; M/GUARD RR 4JJ1-TCS ENG(LFB) 08.153 (B)	8-98192-388-0	02	1	1505-			●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1505-1505	●	●
324	08.155 PROTECTOR; FRT FENDER 4JJ1-TCS ENG(LFB)	8-98022-786-2	02	1	1505-1505			●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1506-	●	●	●

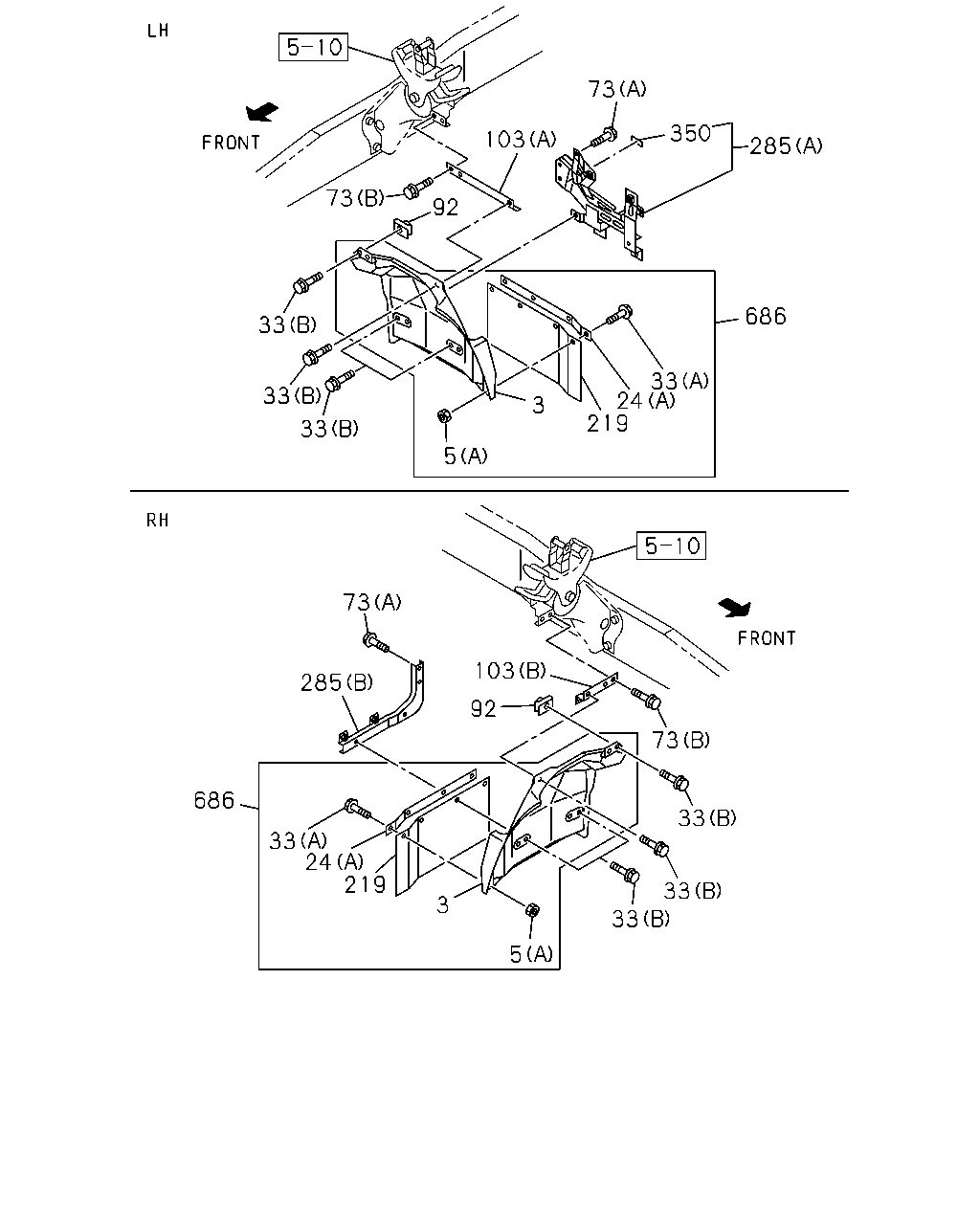

103 73 350 285 686 33 24 219 3 5 33 33 33 73 92 73 285 686 33 24 219 3 5 33 33 33 73 92 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1505-	●	●	●
3	08.153 GUARD; MUD,RR	8-98055-620-2	01	1	1505-	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1505-	●	●	●
5	08.155 NUT; FLAP RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1505-1507			●
5	08.155 NUT; FLAP RUBBER WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1508-			●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1505-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1505-1505	●	●
33	08.155 BOLT; MUD COVER 4JJ1-TCS ENG(LFB) (C) M6X16 FLANGE	8-98061-108-0	04	1	1505-1505			●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1506-	●	●	●
33	08.155 BOLT; MUD COVER (A) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (B) M6X16 FLANGE	8-98227-381-0	08	1	1505-	●	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1505-	●	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1505-	●	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1505-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155 (B)	8-98059-689-0	01	1	1505-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155 (A)	8-98038-865-1	01	1	1505-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155 (B)	8-98001-313-2	01	1	1505-			●
219	08.155 FLAP; MUD GUARD	8-98010-741-1	02	1	1505-	●	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98131-079-0	01	1	1505-	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98082-272-0	01	1	1505-	●	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1505-			●
350	08.155 PROTECTOR; EDGE,MUD COVER 03.008 L=80	5-22439-006-0	01	1	1505-	●	●	●
686	08.155 FLAP ASM; MUD	8-98001-302-6	01	1	1505-	●	●	●
686	08.155 FLAP ASM; MUD	8-98055-455-4	01	1	1505-	●	●	●

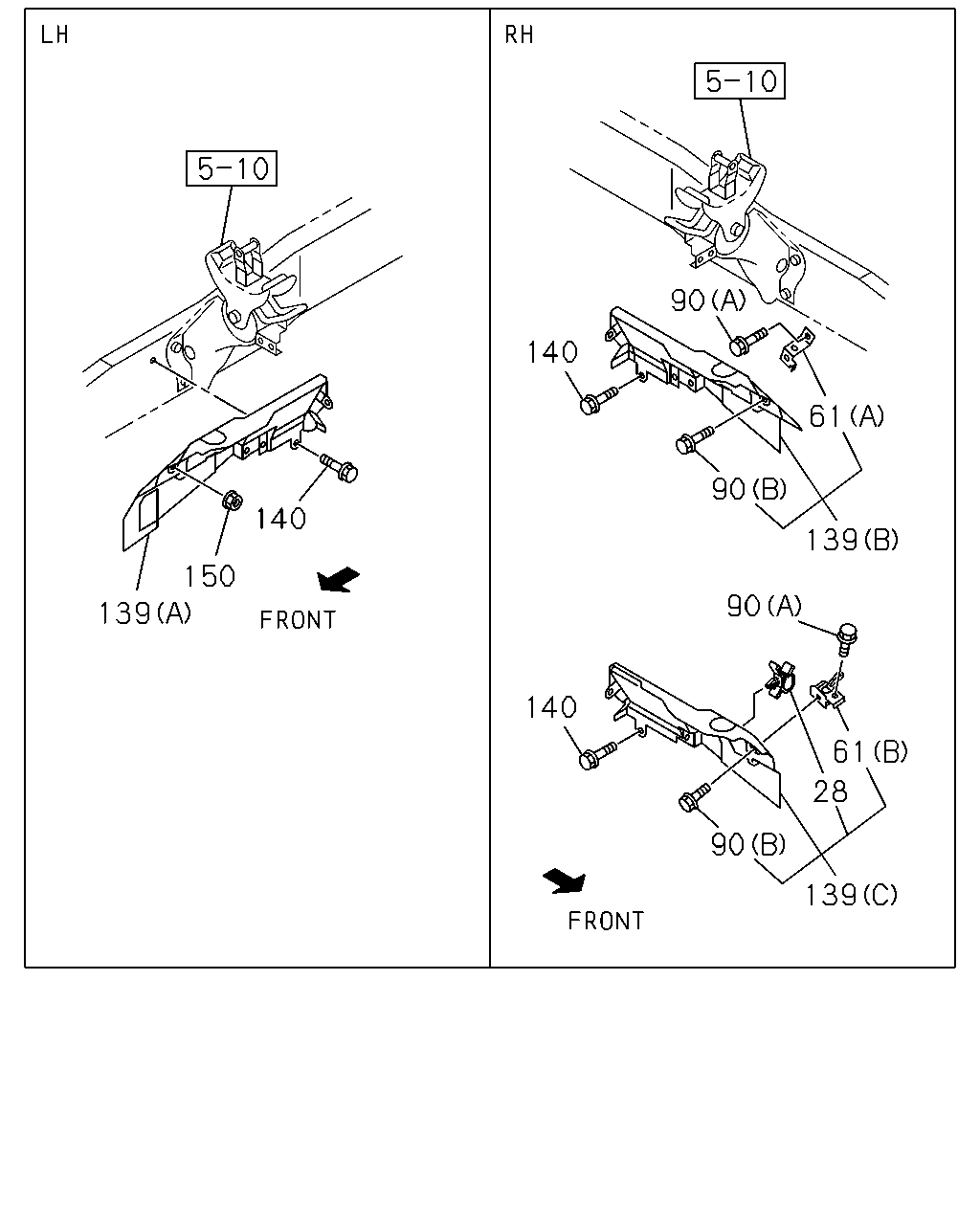

139 140 150 90 140 90 90 139 61 61 28 90 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
28	08.154 CLIP EURO5B+ SPECIFICATION(NT5)	8-98244-588-0	01	1	1505-	●	●	●
61	08.155 BRACKET; COVER EURO5B+ SPECIFICATION(NT5) (B)	8-98195-451-1	01	1	1505-	●	●	●
61	08.155 BRACKET; COVER EURO6 SPECIFICATION(NT6) (A)	8-98033-140-0	01	1	1505-	●	●	●
90	08.153 BOLT; COVER 08.155 (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1505-	●	●	●
90	08.153 BOLT; COVER 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●
139	08.153 PANEL; SIDE EURO5B+ SPECIFICATION(NT5) (C)	8-98196-490-3	01	1	1505-	●	●	●
139	08.153 PANEL; SIDE (A)	8-97385-590-3	01	1	1505-	●	●
139	08.153 PANEL; SIDE EURO6 SPECIFICATION(NT6) (B)	8-98053-670-1	01	1	1505-	●	●	●
139	08.153 PANEL; SIDE (A)	8-98039-734-2	01	1	1505-			●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	1505-	●	●	●
150	08.155 NUT; SIDE PANEL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1505-	●	●	●

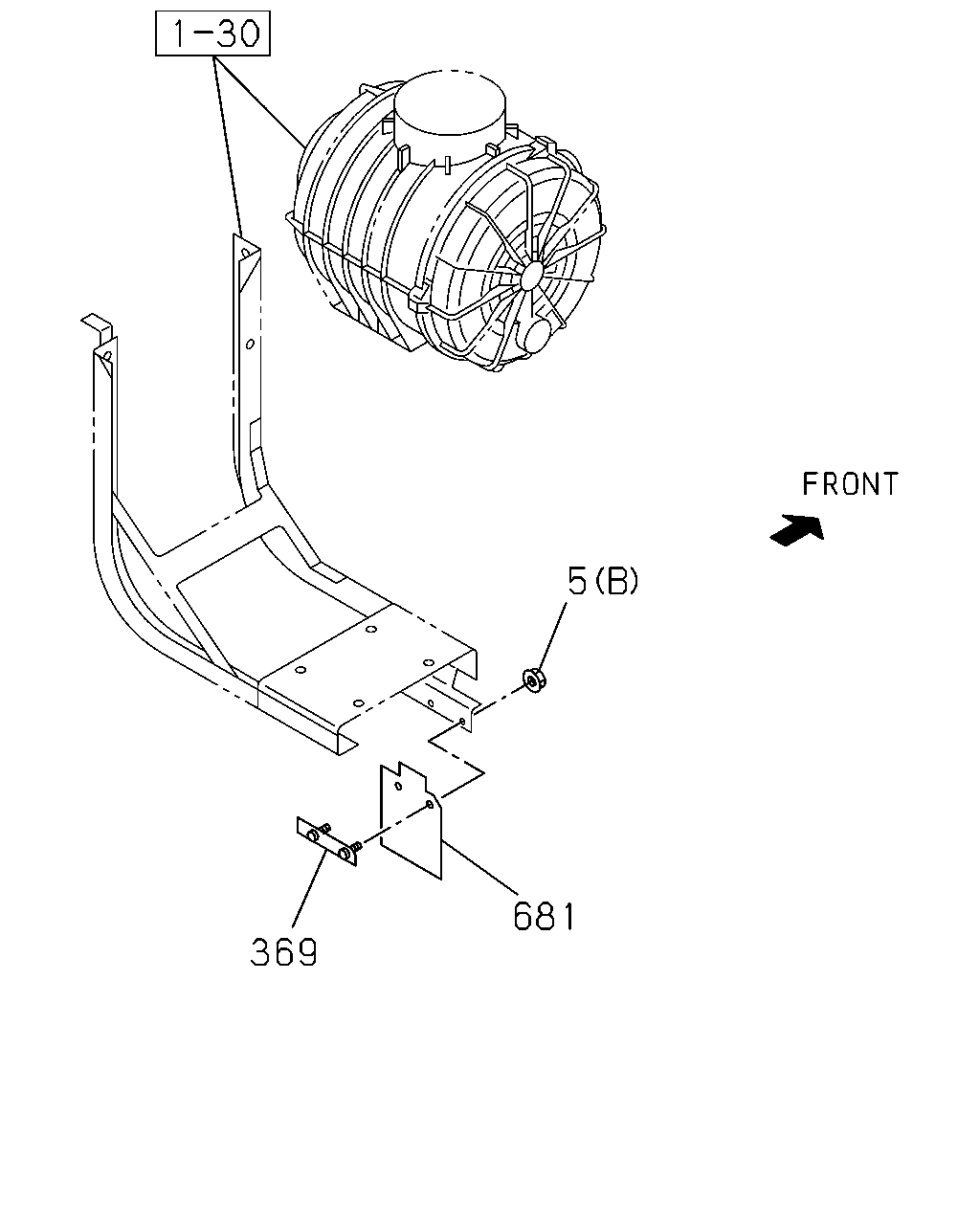

369 681 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1505-	●	●	●
5	08.155 NUT; FLAP RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1505-1507			●
5	08.155 NUT; FLAP RUBBER WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1508-			●
369	08.155 PLATE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98061-674-0	01	1	1505-1507			●
369	08.155 PLATE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98061-674-0	01	1	1508-			●
681	03.402 FLAP; AIR CLEANER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98061-671-0	01	1	1505-1507			●
681	03.402 FLAP; AIR CLEANER WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98061-671-0	01	1	1508-			●
