◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#161124) — 61 parça

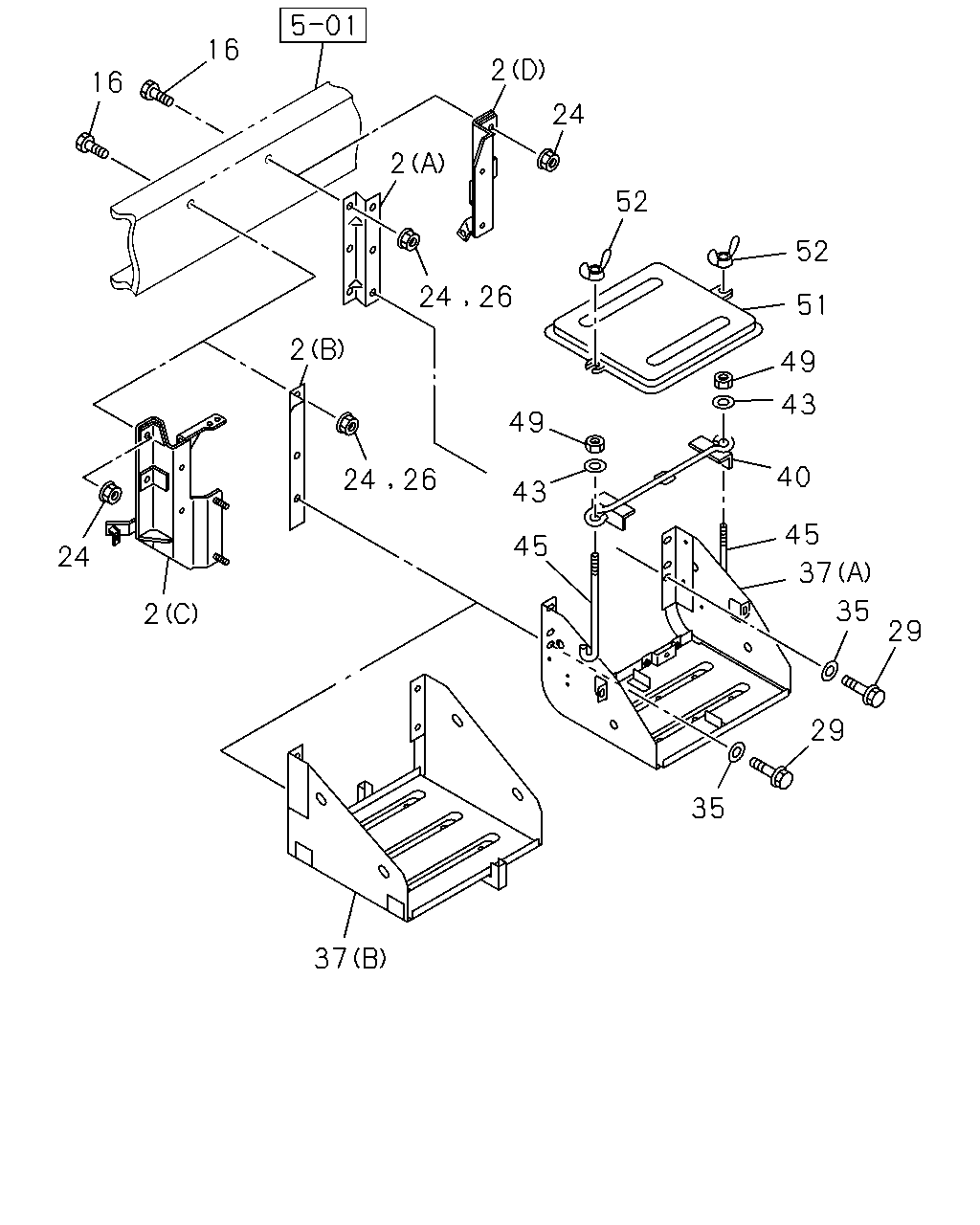

çizim 475660
16 16 2 2 52 52 51 49 43 40 45 37 35 29 29 35 45 43 49 26 24 24 2 24 2 37 24 26
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (C) 		8-98261-672-0 01 1 1505- ● ●
2 02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (D) 		8-98261-673-0 01 1 1505- ● ●
2 02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) 		8-97384-069-1 01 1 1505-1507 ● ●
2 02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) 		8-97384-069-1 01 1 1505-1507 ● ●
2 02.333 BRACKET; BATTERY
WHEEL BASE 3300MM(33W) (A) 		8-97384-069-1 01 1 1505-1507 ●
2 02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) 		8-97384-069-1 01 1 1508- ● ● ●
2 02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) 		8-97384-069-1 01 1 1508- ● ●
2 02.333 BRACKET; BATTERY
EXC. EURO6 SPECIFICATION(NT6) (A) 		8-97384-069-1 01 1 1508- ●
2 02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) 		8-98233-466-0 01 1 1505- ● ● ●
2 02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (B) 		8-97384-070-1 01 1 1505- ● ●
2 02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-97384-070-1 01 1 1505- ●
16 02.334 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
16 02.334 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
16 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ●
16 02.334 BOLT; BRKT TO FRAME
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
16 02.334 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
16 02.334 BOLT; BRKT TO FRAME
02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
24 02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
24 02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
24 02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ●
24 02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
24 02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ● ●
24 02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
24 02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ● ●
24 02.334 NUT; BRKT TO FRAME
EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
26 02.334 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1505- ● ●
26 02.334 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 03 1 1505- ● ●
29 02.334 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1505- ● ●
29 02.334 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1505- ● ●
29 02.334 BOLT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1505- ●
29 02.334 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1505- ●
35 02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU) 04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1505- ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1505- ●
37 02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (B) 		8-98269-801-0 01 1 1504- ● ●
37 02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98222-824-4 01 1 1504- ● ● ●
37 02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1> (A) 		8-97384-067-2 01 1 1504- ● ● ●
37 02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU) BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) 		8-97384-068-2 01 1 1504- ● ● ●
40 02.335 CLAMP; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 		5-53615-004-1 01 1 1505- ● ●
40 02.335 CLAMP; BATTERY
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 		5-53615-004-1 01 1 1505- ● ●
40 02.335 CLAMP; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 		5-53615-004-1 01 1 1505- ●
40 02.335 CLAMP; BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 		5-53615-004-1 01 1 1505- ●
43 02.334 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1505- ● ●
43 02.334 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1505- ● ●
43 02.334 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1505- ●
43 02.334 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1505- ●
45 02.334 ROD; TENSION,BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=250 		8-98239-958-0 02 1 1505- ● ●
45 02.334 ROD; TENSION,BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) L=250 		8-98239-958-0 02 1 1505- ●
45 02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU) L=120 		9-53616-615-0 02 1 1505- ● ●
45 02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) L=120 		9-53616-615-0 02 1 1505- ●
49 02.334 NUT; ROD,BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
49 02.334 NUT; ROD,BATTERY
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
49 02.334 NUT; ROD,BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
49 02.334 NUT; ROD,BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
51 02.335 COVER; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-97201-920-0 01 1 1505- ● ●
51 02.335 COVER; BATTERY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97201-920-0 01 1 1505- ●
51 02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU) 		8-97120-747-0 01 1 1505- ● ●
51 02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-97120-747-0 01 1 1505- ●
52 02.335 NUT; WING,COVER FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT 		0-91118-408-0 02 1 1505- ● ●
52 02.335 NUT; WING,COVER FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT 		0-91118-408-0 02 1 1505- ● ●
52 02.335 NUT; WING,COVER FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT 		0-91118-408-0 02 1 1505- ●
52 02.335 NUT; WING,COVER FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT 		0-91118-408-0 02 1 1505- ●
