5-01 — FRAME AND OTHER PARTS (#161121) — 187 parça

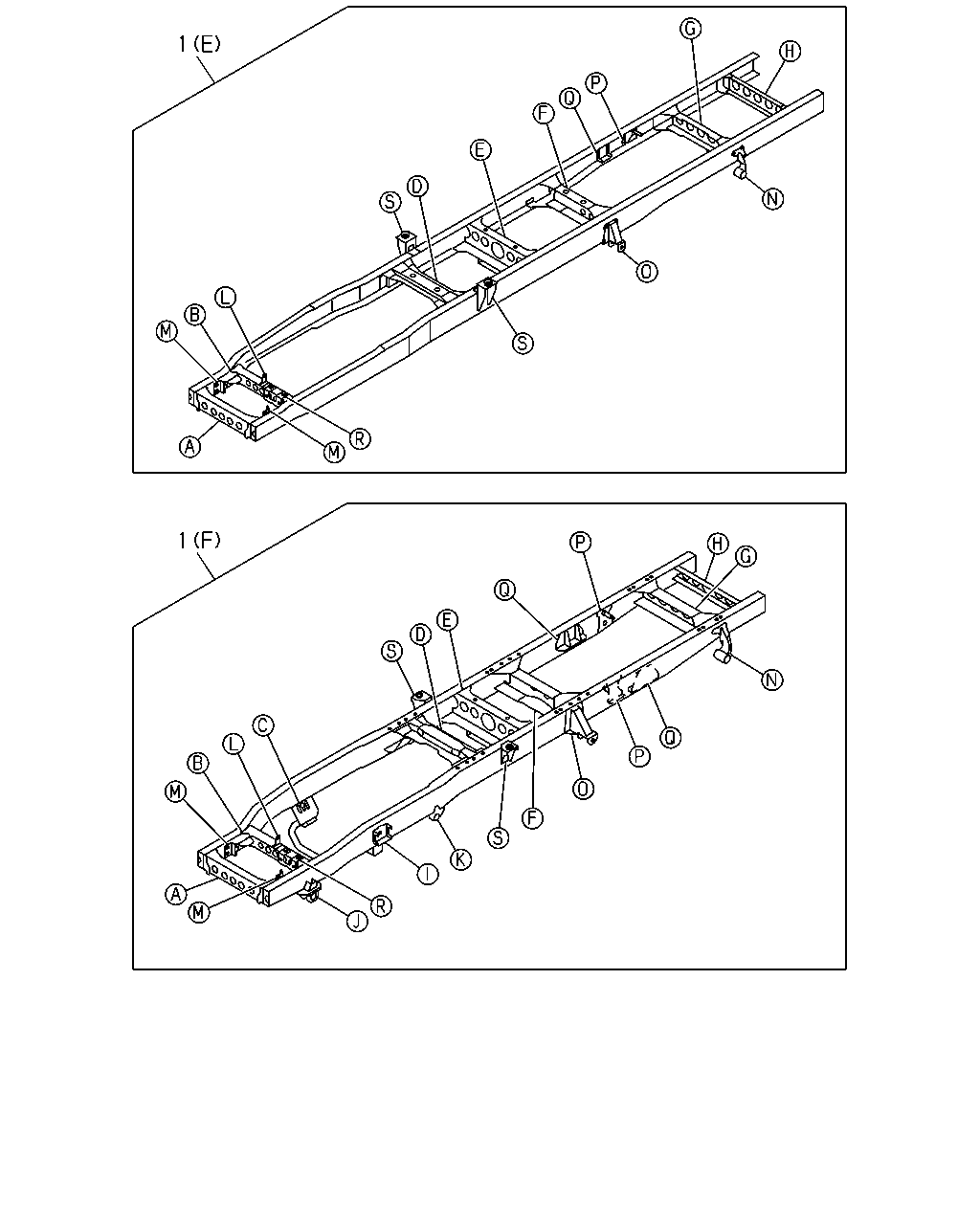

çizim 475828
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98204-436-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98271-850-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) 		8-98204-435-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) 		8-98271-848-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (A) 		8-98204-445-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (A) 		8-98271-849-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A) 		8-98231-665-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A) 		8-98231-666-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98273-538-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98273-801-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98231-629-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98231-630-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98204-438-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98271-846-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98231-625-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98231-626-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98204-446-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C) 		8-98271-845-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98231-663-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C) 		8-98231-664-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) 		8-98231-651-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) 		8-98271-855-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98231-654-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-655-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98231-656-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98271-854-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98231-652-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98231-653-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-633-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-634-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98231-667-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98231-668-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-636-2 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98271-867-0 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98231-669-2 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98271-866-0 01 1 1505- ●
çizim 475829
534 534 2 20 34 42 344 188
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.010 MEMBER; CROSS,1ST 8-97384-741-5 01 1 1505- ● ● ●
20 07.012 MEMBER; CROSS,2ND 8-98038-419-2 01 1 1505- ● ● ●
34 07.012 MEMBER; CROSS,3RD 8-97384-743-1 01 1 1505- ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-224-1 01 1 1505- ● ●
42 07.011 MEMBER; CROSS,ENG MTG 8-98006-224-1 01 1 1505- ●
188 07.039 BRACKET; SUPPORT,CTR BRG
WHEEL BASE 3300MM(33W) 		8-97083-157-1 01 1 1505- ● ● ●
344 07.012 MEMBER; CROSS,4TH
WHEEL BASE 3300MM(33W) 		8-98005-959-1 01 1 1505- ● ● ●
534 07.869 BRACKET; BACK BAR 8-98061-413-0 01 1 1505- ● ● ●
534 07.869 BRACKET; BACK BAR 8-98061-414-0 01 1 1505- ● ● ●

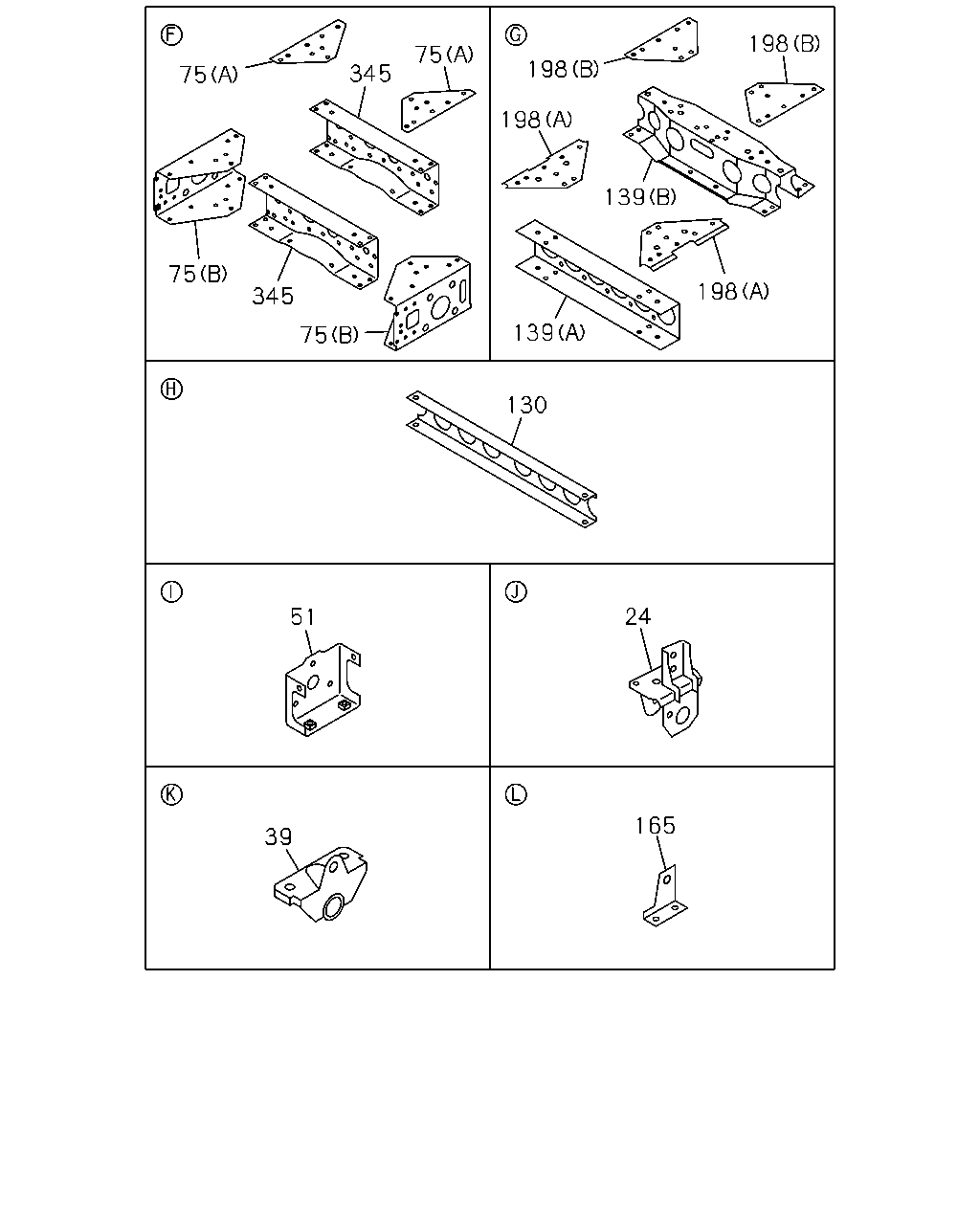

çizim 476007
75 75 75 345 345 75 198 198 139 198 198 139 130 24 165 39 51
BalonParca AdiParca NoAdetTipApplied Date A B C
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98029-126-0 01 1 1505- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98029-126-0 01 1 1505- ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98029-127-0 01 1 1505- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98029-127-0 01 1 1505- ●
39 07.112 BRACKET; FRT SPR,RR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94258-091-0 02 1 1505- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 1505- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98038-962-3 02 1 1505- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98038-962-3 02 1 1505- ●
75 07.039 GUSSET; 5TH C/MBR
SINGLE RR TIRE(6TD) (B) 		8-98006-124-1 01 1 1505- ●
75 07.039 GUSSET; 5TH C/MBR
SINGLE RR TIRE(6TD) (B) 		8-98011-312-1 01 1 1505- ●
75 07.039 GUSSET; 5TH C/MBR
EXC. SINGLE RR TIRE(6TD) (A) 		8-98011-863-0 04 1 1505- ●
75 07.039 GUSSET; 5TH C/MBR
(A) 		8-98011-863-0 04 1 1505- ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W) 		8-98041-239-1 01 1 1505- ● ● ●
139 07.012 MEMBER; CROSS,6TH
SINGLE RR TIRE(6TD) (B) 		8-98006-168-1 01 1 1505- ●
139 07.012 MEMBER; CROSS,6TH
EXC. SINGLE RR TIRE(6TD) (A) 		8-97384-745-0 01 1 1505- ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97384-745-0 01 1 1505- ● ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1505- ● ● ●
198 07.039 GUSSET; 6TH C/MBR
SINGLE RR TIRE(6TD) (B) 		8-98011-865-0 02 1 1505- ●
198 07.039 GUSSET; 6TH C/MBR
EXC. SINGLE RR TIRE(6TD) (A) RH-LOWER,LH-UPPER 		8-94258-068-1 02 1 1505- ●
198 07.039 GUSSET; 6TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-94258-068-1 02 1 1505- ● ●
198 07.039 GUSSET; 6TH C/MBR
EXC. SINGLE RR TIRE(6TD) (A) RH-UPPER,LH-LOWER 		8-94258-069-1 02 1 1505- ●
198 07.039 GUSSET; 6TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-94258-069-1 02 1 1505- ● ●
345 07.012 MEMBER; CROSS,5TH 8-98011-861-2 01 1 1505- ● ● ●

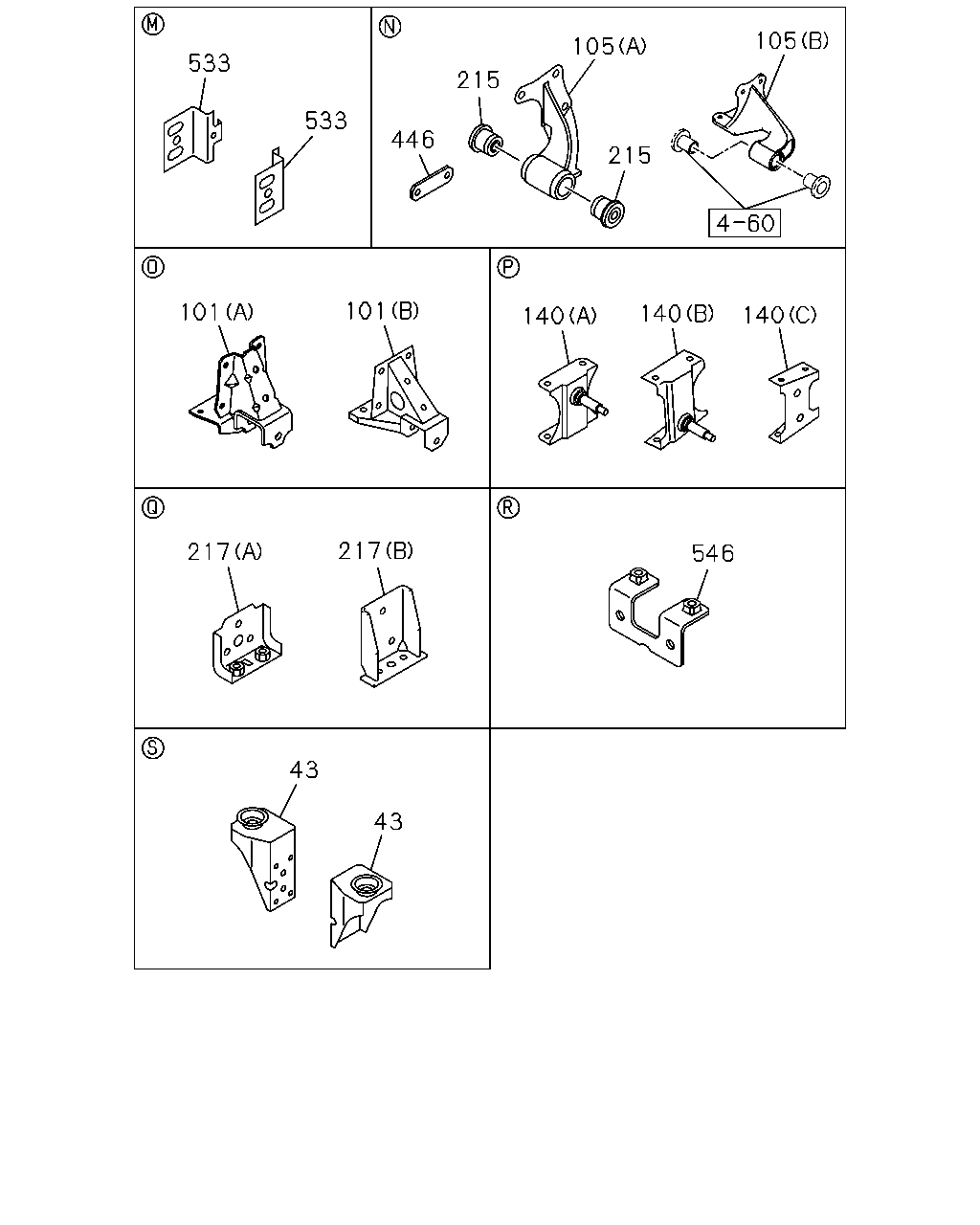

çizim 476013
533 533 446 215 105 215 105 101 101 140 140 140 217 217 546 43 43
BalonParca AdiParca NoAdetTipApplied Date A B C
43 09.003 BRACKET; CAB MTG,RR
4JJ1-TCS ENG(LFB) 		8-98288-560-1 01 1 1505- ●
43 09.003 BRACKET; CAB MTG,RR
4JJ1-TCS ENG(LFB) 		8-98288-561-1 01 1 1505- ●
43 09.003 BRACKET; CAB MTG,RR
4JJ1-TCC ENG(RDU) 		8-98035-851-1 01 1 1505- ●
43 09.003 BRACKET; CAB MTG,RR
4JJ1-TCC ENG(RDU) 		8-98035-852-1 01 1 1505- ●
101 07.112 BRACKET; RR SPR,FRT
SINGLE RR TIRE(6TD) (B) 		8-98034-042-0 02 1 1505- ●
101 07.112 BRACKET; RR SPR,FRT
EXC. SINGLE RR TIRE(6TD) (A) 		8-98243-604-0 02 1 1505- ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-98243-604-0 02 1 1505- ● ●
105 07.112 BRACKET; RR SPR,RR
SINGLE RR TIRE(6TD) (B) 		8-98031-058-0 01 1 1505- ●
105 07.112 BRACKET; RR SPR,RR
SINGLE RR TIRE(6TD) (B) 		8-98031-059-0 01 1 1505- ●
105 07.112 BRACKET; RR SPR,RR
EXC. SINGLE RR TIRE(6TD) (A) 		8-98032-488-0 01 1 1505- ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-98032-488-0 01 1 1505- ● ●
105 07.112 BRACKET; RR SPR,RR
EXC. SINGLE RR TIRE(6TD) (A) 		8-98032-489-0 01 1 1505- ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-98032-489-0 01 1 1505- ● ●
140 07.112 BRACKET; S/ABS,RR
SINGLE RR TIRE(6TD) (C) 		8-98006-174-0 02 1 1505- ●
140 07.112 BRACKET; S/ABS,RR
EXC. SINGLE RR TIRE(6TD) (B) 		8-98006-176-0 01 1 1505- ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-98006-176-0 01 1 1505- ● ●
140 07.112 BRACKET; S/ABS,RR
EXC. SINGLE RR TIRE(6TD) (A) 		8-98006-180-0 01 1 1505- ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-98006-180-0 01 1 1505- ● ●
215 07.524 BUSHING; BRKT,RR SPRING
EXC. SINGLE RR TIRE(6TD) 		8-97184-699-1 04 1 1505- ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1505- ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
SINGLE RR TIRE(6TD) (B) 		8-97163-899-1 02 1 1505- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
EXC. SINGLE RR TIRE(6TD) (A) 		8-97202-417-0 02 1 1505- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
(A) 		8-97202-417-0 02 1 1505- ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98060-184-1 03 1 1505- ● ●
533 07.010 STIFFENER; REINFORCEMENT 8-98006-680-1 02 1 1505- ● ● ●
546 03.671 BRACKET; ECM 8-98119-084-0 01 1 1505- ● ● ●
çizim 476015
376 376 376 376 376 376 376 376 376 376 376 40 60 106 176 62 67 127
BalonParca AdiParca NoAdetTipApplied Date A B C
40 08.155 BOLT; BRKT TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1505- ● ●
40 08.155 BOLT; BRKT TO FRAME
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1505- ●
60 05.601 BOLT; MBR
07.039 M10X30 		0-20851-030-0 04 1 1505- ● ● ●
62 05.601 NUT; MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 1505- ● ● ●
67 07.011 NUT; C/MBR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1505- ● ●
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 1505- ●
106 07.529 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.890 M10X30 FLANGE 		0-28051-030-0 02 1 1505- ●
127 07.529 NUT; BRKT
4JJ1-TCS ENG(LFB) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1505- ●
176 04.085 BOLT; C/MBR,ENG MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1505- ● ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1505- ●
376 07.039 RIVET; FRAME
07.011 (A) D8X22 TAPER END 		9-06750-822-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(B) D10X22 TAPER END 		9-06751-022-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(C) D10X24 TAPER END 		9-06751-024-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(D) D10X26 TAPER END 		9-06751-026-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(E) D10X28 TAPER END 		9-06751-028-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(F) D10X30 TAPER END 		9-06751-030-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(G) D10X32 TAPER END 		9-06751-032-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(H) M10X34 TAPER END 		9-06751-034-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END 		9-06751-230-0 AR 1 1504- ● ● ●
376 07.039 RIVET; FRAME
07.428 (K) D12X36 TAPER END 		9-06751-236-0 AR 1 1504- ● ● ●

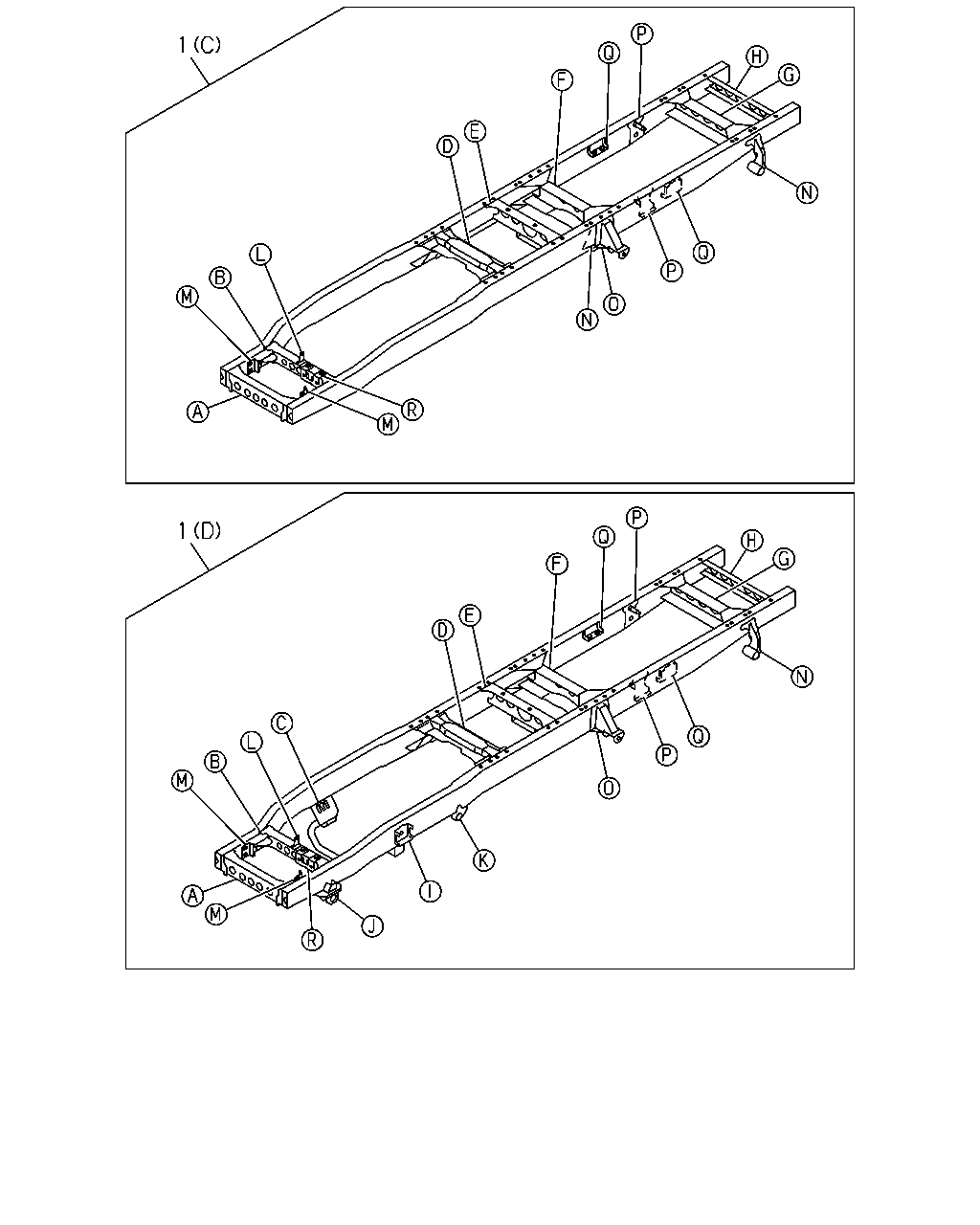

çizim 476241
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98204-436-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98271-850-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) 		8-98204-435-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) 		8-98271-848-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (A) 		8-98204-445-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (A) 		8-98271-849-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A) 		8-98231-665-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A) 		8-98231-666-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98273-538-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98273-801-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98231-629-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98231-630-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98204-438-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98271-846-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98231-625-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98231-626-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98204-446-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C) 		8-98271-845-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98231-663-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C) 		8-98231-664-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) 		8-98231-651-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) 		8-98271-855-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98231-654-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-655-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98231-656-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98271-854-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98231-652-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98231-653-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-633-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-634-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98231-667-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98231-668-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-636-2 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98271-867-0 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98231-669-2 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98271-866-0 01 1 1505- ●

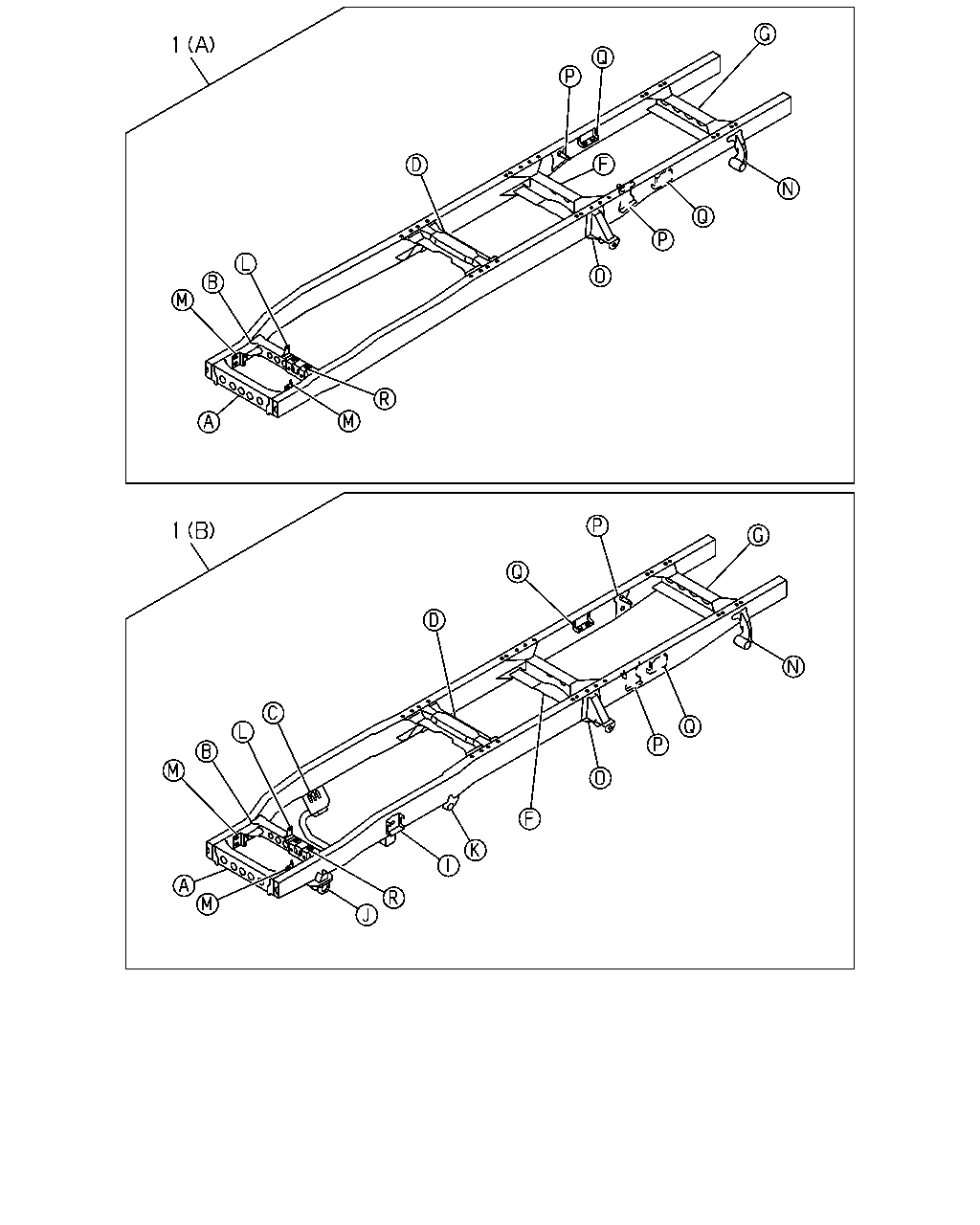

çizim 476643
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98204-436-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98271-850-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) 		8-98204-435-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (A) 		8-98271-848-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (A) 		8-98204-445-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (A) 		8-98271-849-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A) 		8-98231-665-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A) 		8-98231-666-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98273-538-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98273-801-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98231-629-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B) 		8-98231-630-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98204-438-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98271-846-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98231-625-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D) 		8-98231-626-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98204-446-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C) 		8-98271-845-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C) 		8-98231-663-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C) 		8-98231-664-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) 		8-98231-651-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) 		8-98271-855-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98231-654-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-655-2 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98231-656-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98271-854-0 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98231-652-1 01 1 1505- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98231-653-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-633-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-634-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98231-667-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98231-668-1 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98231-636-2 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98271-867-0 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98231-669-2 01 1 1505- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98271-866-0 01 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
