Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#161100) — 445 parça

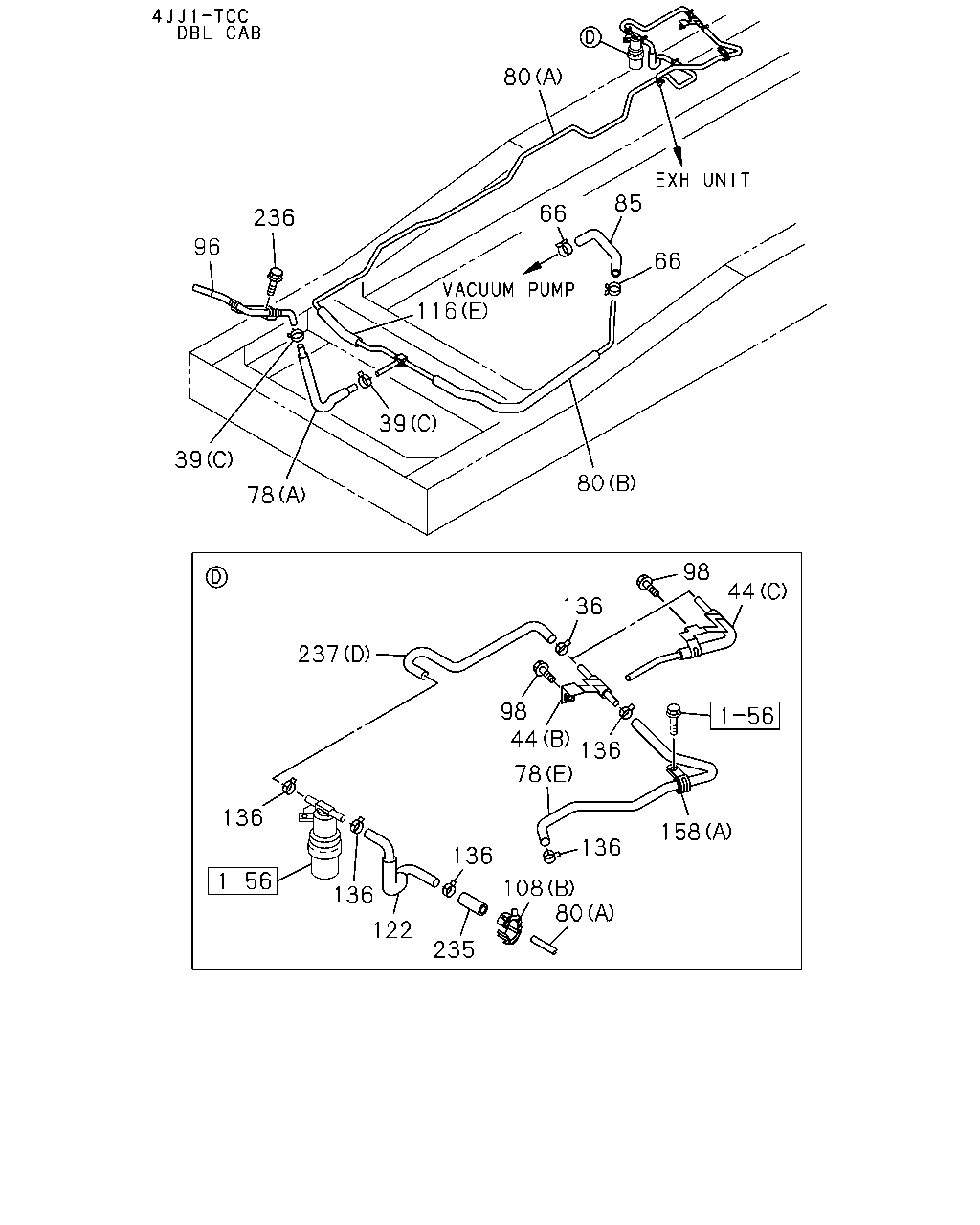

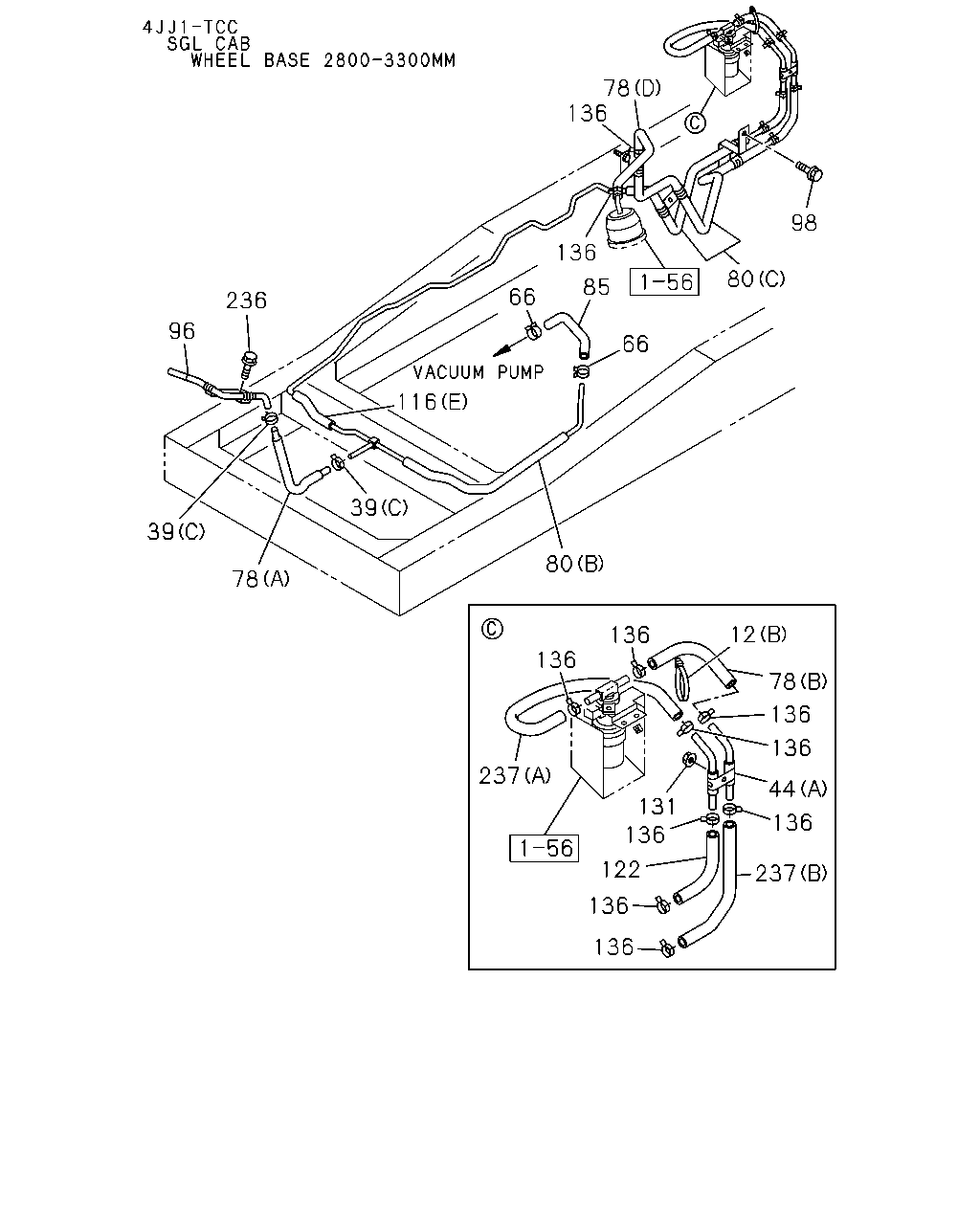

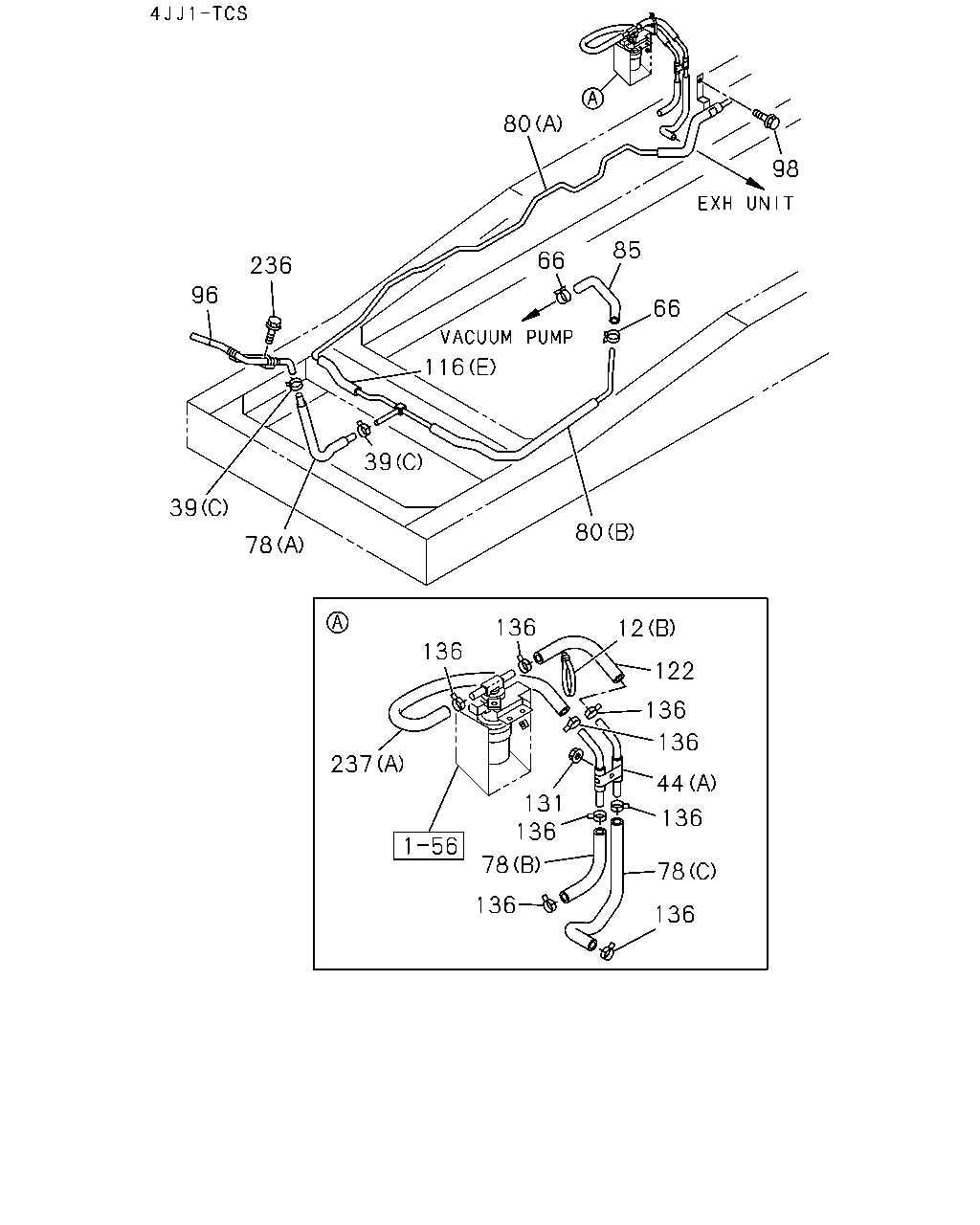

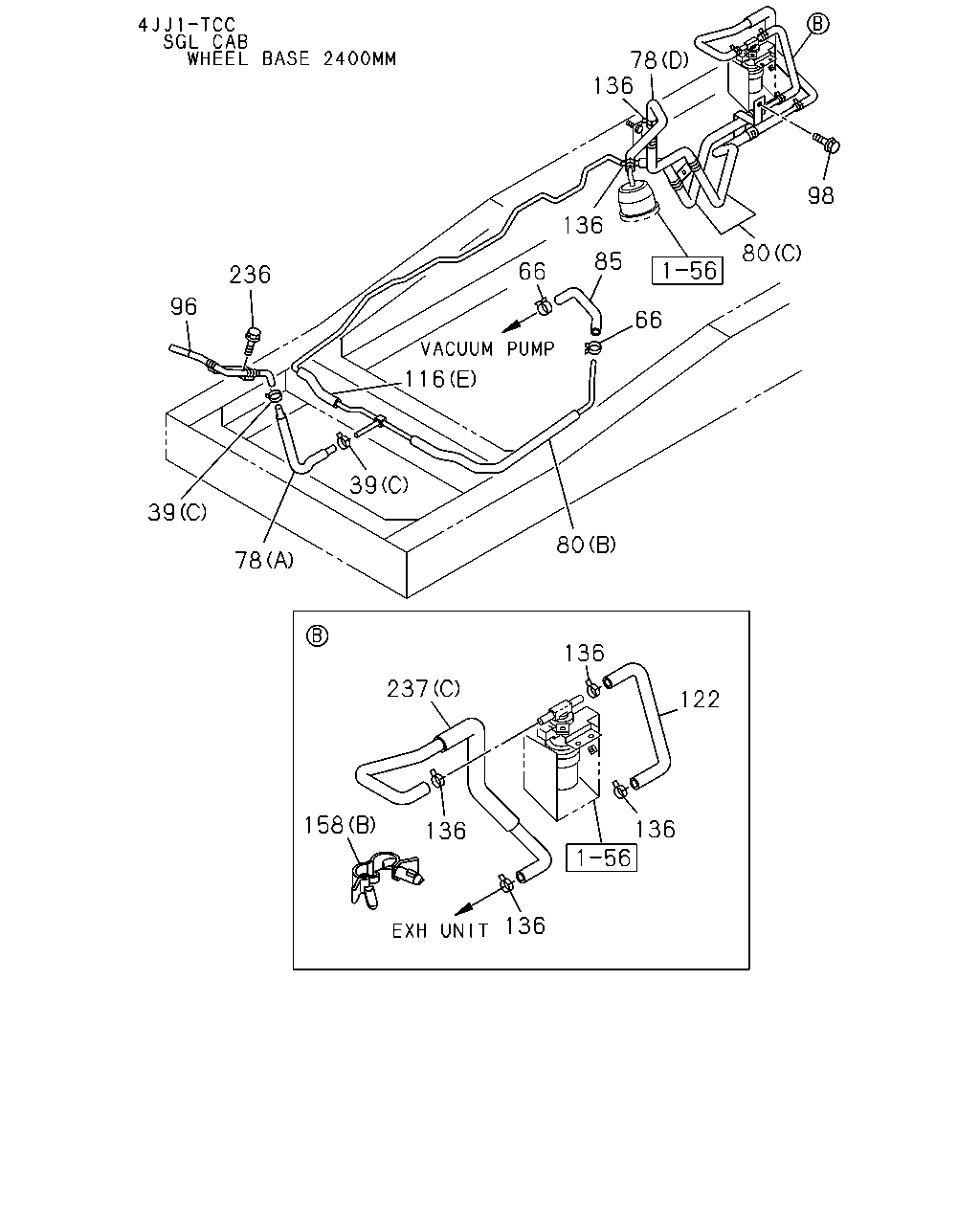

80 66 85 66 116 236 96 39 78 39 80 136 98 44 237 98 44 136 78 136 158 108 80 136 136 122 235 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1505-1507	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98042-654-0	01	1	1508-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98227-597-0	01	1	1505-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98271-263-0	01	1	1505-1507			●
44	04.930 PIPE; VAC,MAG VLV EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C)	8-98271-263-0	01	1	1508-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (C)	8-98260-455-2	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98116-895-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98116-895-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98231-606-0	01	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (D)	8-98227-654-1	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98281-197-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCS ENG(LFB)	8-98255-441-1	01	1	1505-			●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1505-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCC ENG(RDU)	8-98039-736-1	01	1	1505-			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1505-	●	●	●
108	04.931 GROMMET; PIPE 4JJ1-TCC ENG(RDU) 02.343 (B) ID=17	8-94128-319-2	01	1	1505-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5)	8-98076-068-1	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W)	8-98260-453-0	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1505-	●	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (A) ID=24 L=32	1-09700-766-1	01	1	1505-			●
235	04.931 RUBBER; SUPPORT,PIPE 4JJ1-TCC ENG(RDU) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1505-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A)	8-98260-454-0	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

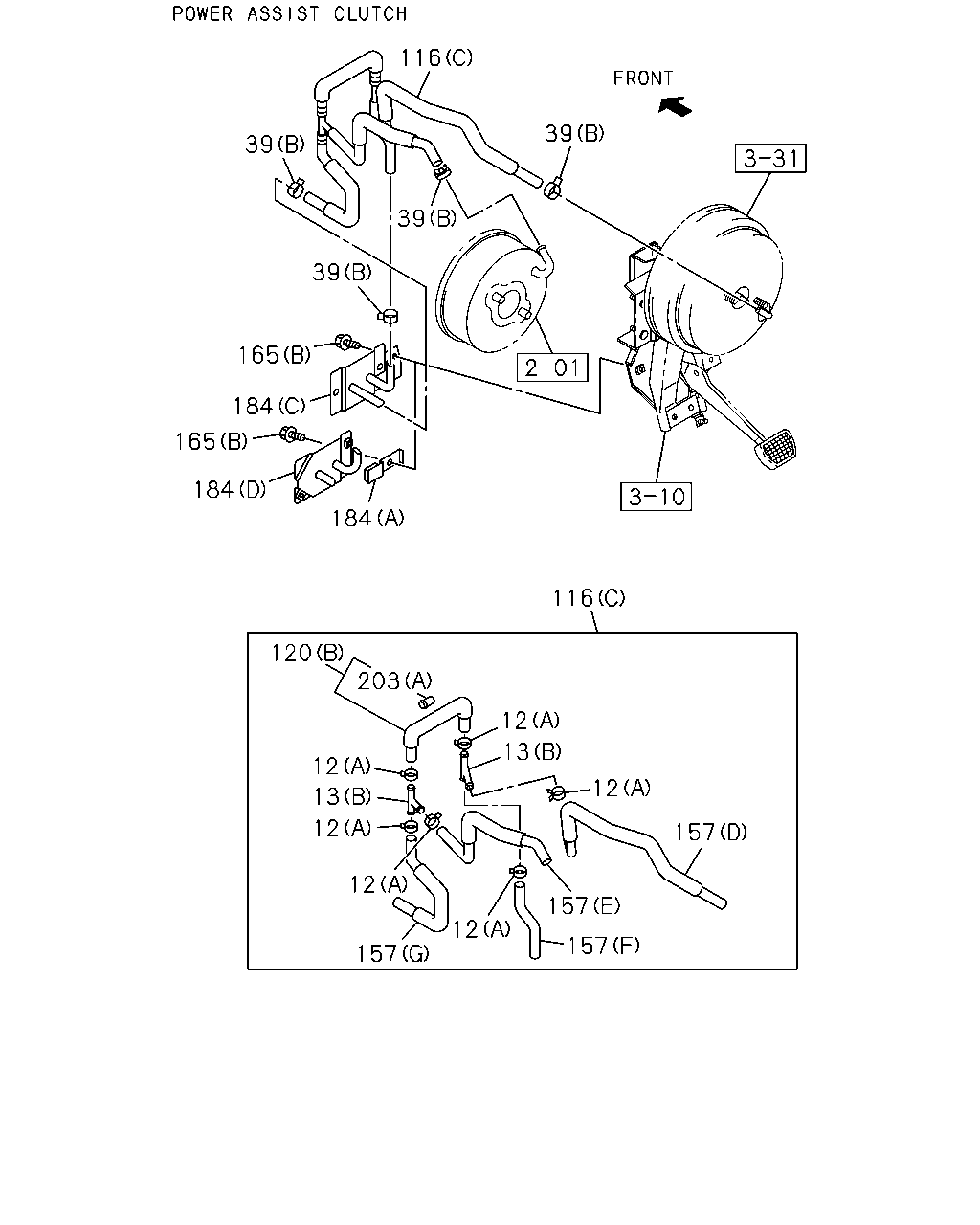

157 13 12 12 116 157 184 184 165 184 165 39 116 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1505-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC (B)	8-98035-106-0	02	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (H)	8-98017-168-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-868-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (E)	8-98027-351-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98027-353-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (G)	8-98027-354-2	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-671-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98125-849-1	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1505-	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-548-0	01	1	1505-	●	●	●

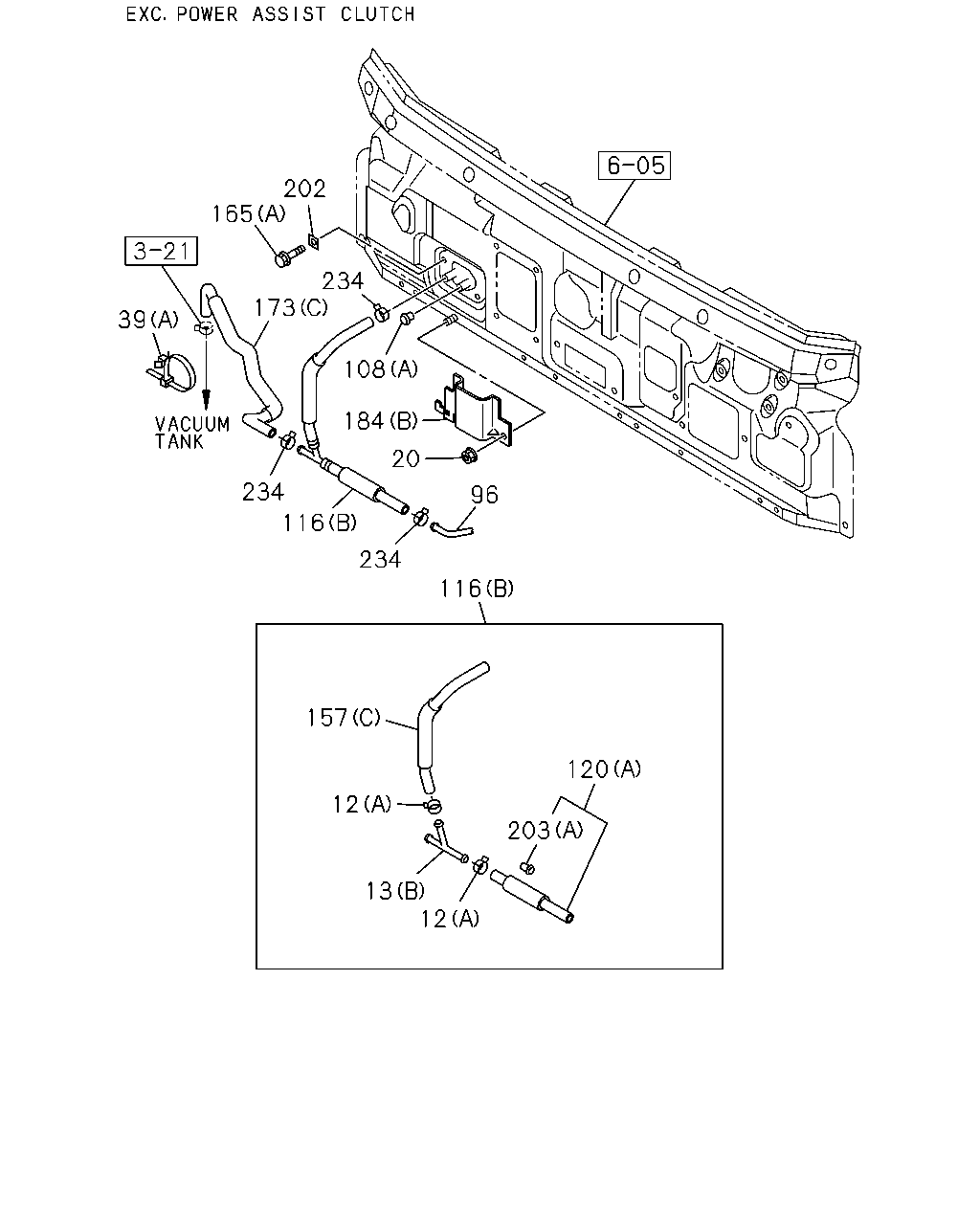

157 157 157 12 13 12 203 120 12 13 12 12 157 12 116 39 39 116 39 39 165 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1505-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC (B)	8-98035-106-0	02	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (H)	8-98017-168-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-868-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (E)	8-98027-351-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98027-353-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (G)	8-98027-354-2	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-671-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98125-849-1	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1505-	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-548-0	01	1	1505-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1505-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1505-	●	●	●

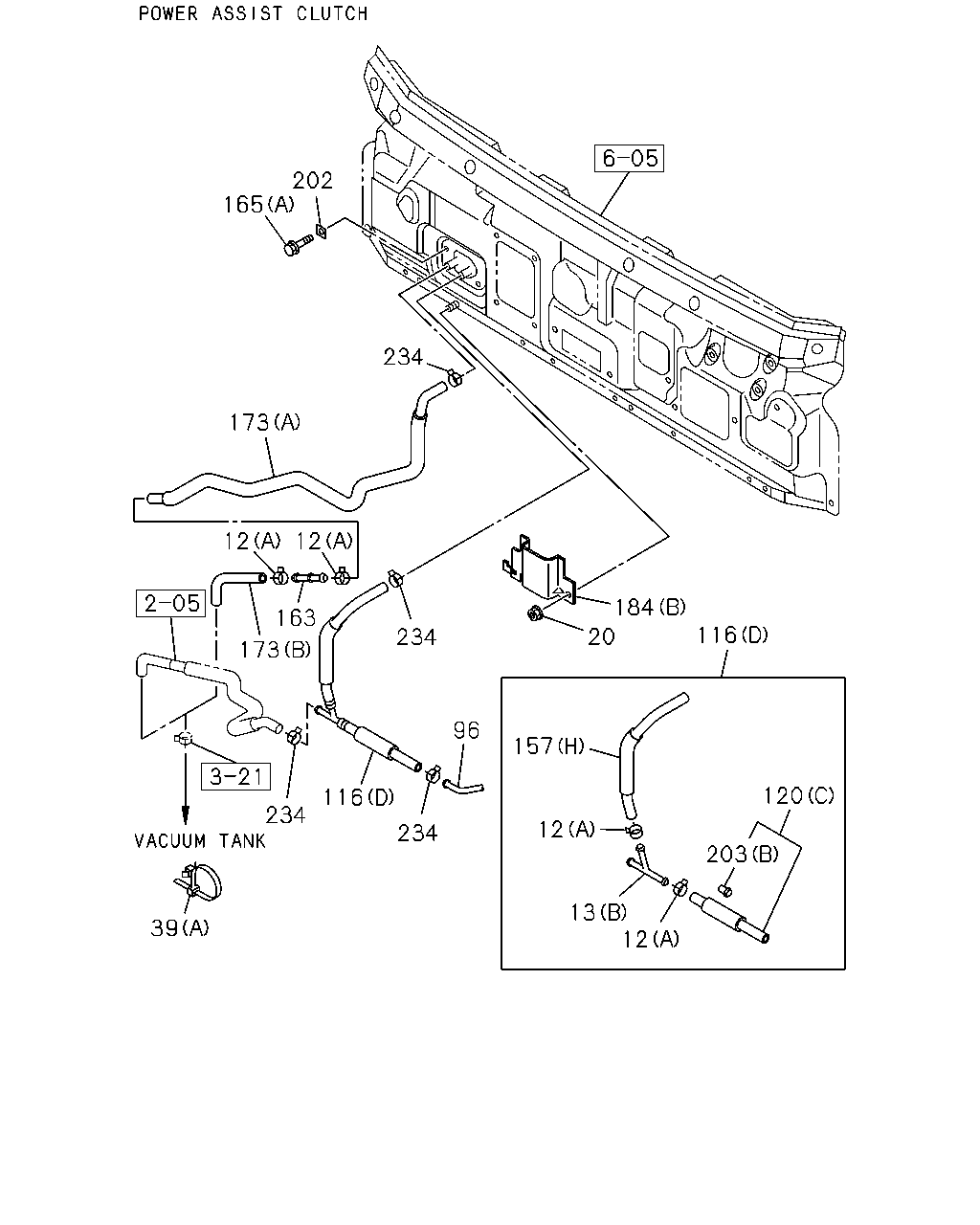

12 13 12 157 120 203 116 234 96 116 234 184 20 108 173 234 202 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1505-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC (B)	8-98035-106-0	02	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1505-	●	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCS ENG(LFB)	8-98255-441-1	01	1	1505-			●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1505-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCC ENG(RDU)	8-98039-736-1	01	1	1505-			●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1505-	●	●	●
108	04.931 GROMMET; PIPE 4JJ1-TCC ENG(RDU) 02.343 (B) ID=17	8-94128-319-2	01	1	1505-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (H)	8-98017-168-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-868-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (E)	8-98027-351-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98027-353-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (G)	8-98027-354-2	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-671-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98125-849-1	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1505-	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-548-0	01	1	1505-	●	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1505-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1505-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1505-	●	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1505-	●	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1505-	●	●	●

12 13 12 157 120 203 116 184 20 234 96 234 116 234 39 173 163 12 12 173 234 202 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1505-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC (B)	8-98035-106-0	02	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	04	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1505-	●	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCS ENG(LFB)	8-98255-441-1	01	1	1505-			●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1505-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCC ENG(RDU)	8-98039-736-1	01	1	1505-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (H)	8-98017-168-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-868-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (E)	8-98027-351-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98027-353-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (G)	8-98027-354-2	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-671-3	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98125-849-1	01	1	1505-	●	●	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1505-	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-548-0	01	1	1505-	●	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1505-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1505-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1505-	●	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1505-	●	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1505-	●	●	●

136 78 136 44 136 136 122 12 136 136 237 131 136 78 136 78 39 96 236 39 80 66 85 66 116 80 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1505-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1505-1507	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98042-654-0	01	1	1508-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98227-597-0	01	1	1505-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98271-263-0	01	1	1505-1507			●
44	04.930 PIPE; VAC,MAG VLV EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C)	8-98271-263-0	01	1	1508-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (C)	8-98260-455-2	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98116-895-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98116-895-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98231-606-0	01	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (D)	8-98227-654-1	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98281-197-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCS ENG(LFB)	8-98255-441-1	01	1	1505-			●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1505-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCC ENG(RDU)	8-98039-736-1	01	1	1505-			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5)	8-98076-068-1	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W)	8-98260-453-0	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1505-	●	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A)	8-98260-454-0	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

136 136 158 237 136 122 136 80 39 78 39 96 236 116 66 66 85 136 80 98 78 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (C)	8-98260-455-2	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98116-895-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98116-895-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98231-606-0	01	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (D)	8-98227-654-1	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98281-197-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCS ENG(LFB)	8-98255-441-1	01	1	1505-			●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1505-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCC ENG(RDU)	8-98039-736-1	01	1	1505-			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5)	8-98076-068-1	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W)	8-98260-453-0	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1505-	●	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (A) ID=24 L=32	1-09700-766-1	01	1	1505-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A)	8-98260-454-0	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

236 96 39 78 39 116 66 136 136 78 98 80 66 85 80 136 136 237 12 78 136 136 44 136 237 131 136 122 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1505-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1505-1507	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98042-654-0	01	1	1508-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98227-597-0	01	1	1505-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98271-263-0	01	1	1505-1507			●
44	04.930 PIPE; VAC,MAG VLV EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C)	8-98271-263-0	01	1	1508-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (C)	8-98260-455-2	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98116-895-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98116-895-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98231-606-0	01	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (D)	8-98227-654-1	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) (A)	8-98281-197-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCS ENG(LFB)	8-98255-441-1	01	1	1505-			●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1505-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCC ENG(RDU)	8-98039-736-1	01	1	1505-			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5)	8-98076-068-1	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W)	8-98260-453-0	01	1	1505-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1505-	●	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A)	8-98260-454-0	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (C)	8-98227-652-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98227-653-1	01	1	1505-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
