3-52 — BRAKE PIPING; OIL,FRONT (#161097) — 51 parça

51 51 51 51 51

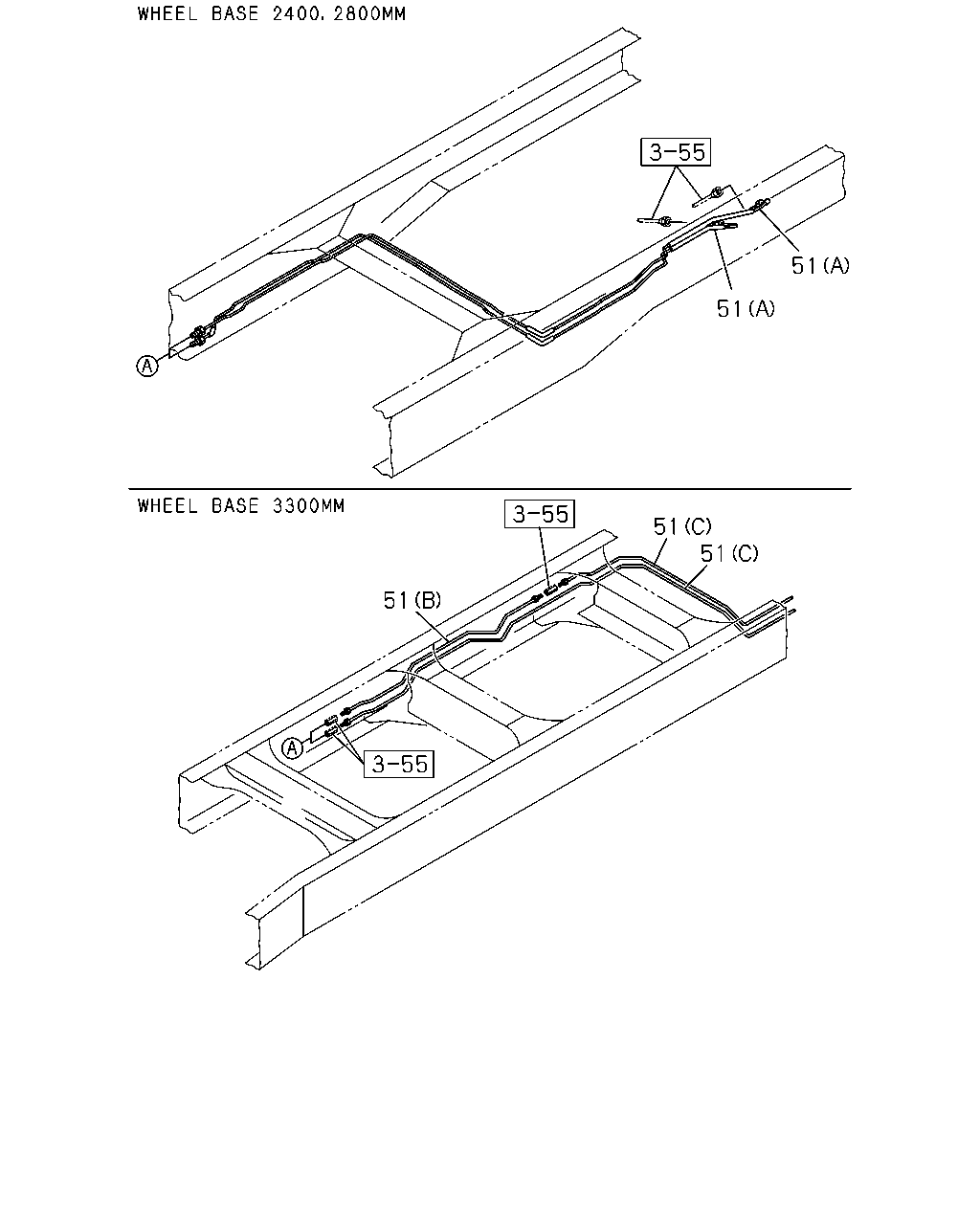

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR	8-98209-961-1	01	1	1505-	●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR	8-98209-962-0	01	1	1505-	●	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR	8-98061-505-0	01	1	1505-	●	●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 2WAY TO 2WAY	8-98217-108-0	01	1	1505-	●	●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR	8-98217-109-0	01	1	1505-	●	●	●
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR	8-98010-306-1	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR	8-98010-307-1	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98012-844-1	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98012-844-1	01	1	1505-		●
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98012-845-1	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98012-845-1	01	1	1505-		●
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-516-1	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-516-1	01	1	1505-		●
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-529-1	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-529-1	01	1	1505-		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR	8-98061-506-0	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR	8-98061-506-0	01	1	1505-		●	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY	8-98061-507-0	01	1	1505-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 2WAY TO 2WAY	8-98061-507-0	01	1	1505-		●	●

2 5 8 8 1 9 5 1 8 5 8 2 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

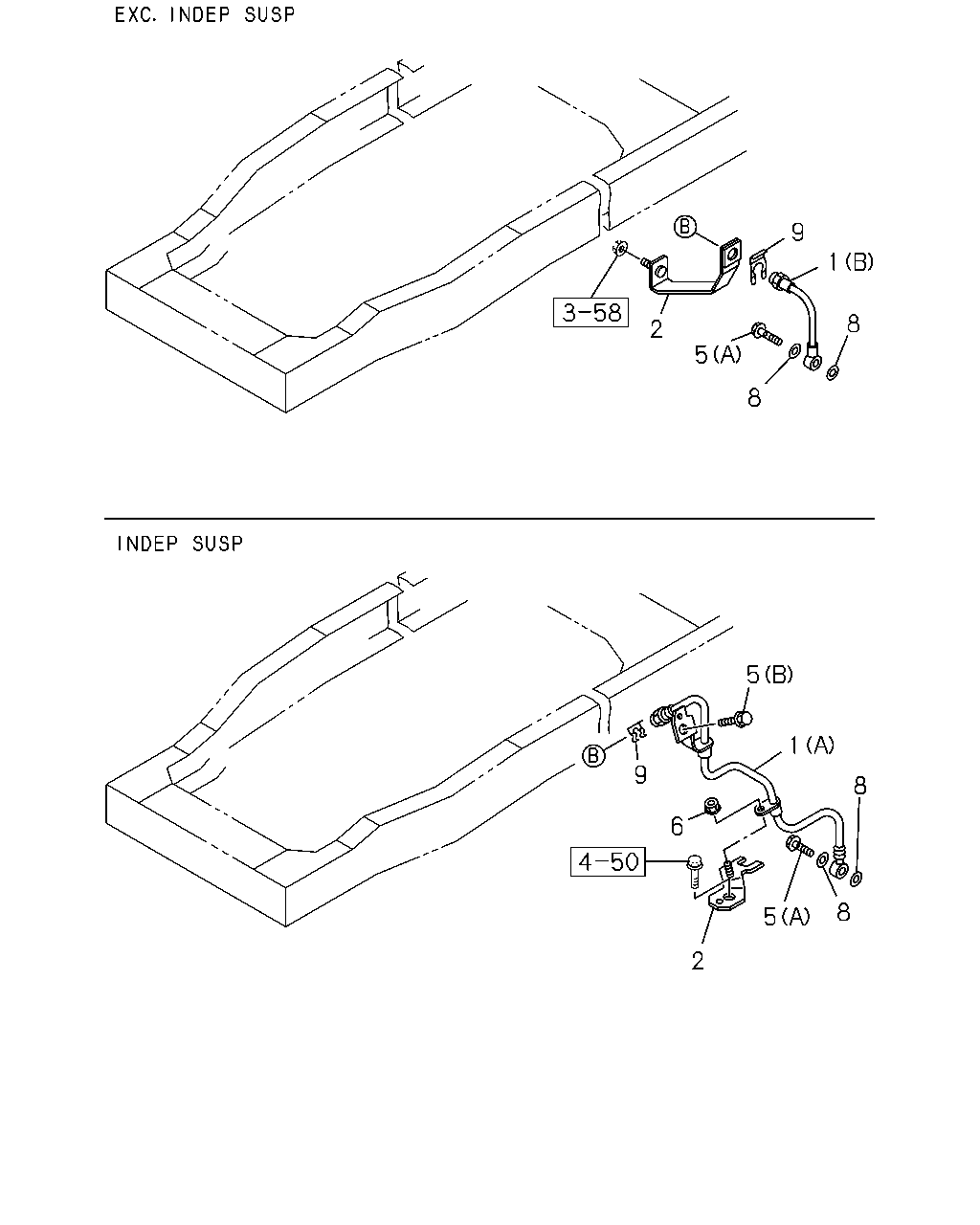

1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97366-925-1	02	1	1505-	●		●
1	04.680 HOSE; FLEX,FRT BRK (B)	8-97366-925-1	02	1	1505-		●
1	04.680 HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97358-770-3	01	1	1505-	●		●
1	04.680 HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97358-771-3	01	1	1505-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 04.686	8-97369-635-1	01	1	1505-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 04.686	8-97369-636-1	01	1	1505-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-691-1	01	1	1505-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97389-691-1	01	1	1505-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-692-1	01	1	1505-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97389-692-1	01	1	1505-		●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK (A) M10X22	8-98014-005-0	02	1	1505-	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1505-	●		●
6	04.686 NUT; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●		●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1505-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1505-	●	●	●

131 52 52 131 52 131 52 52 115 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

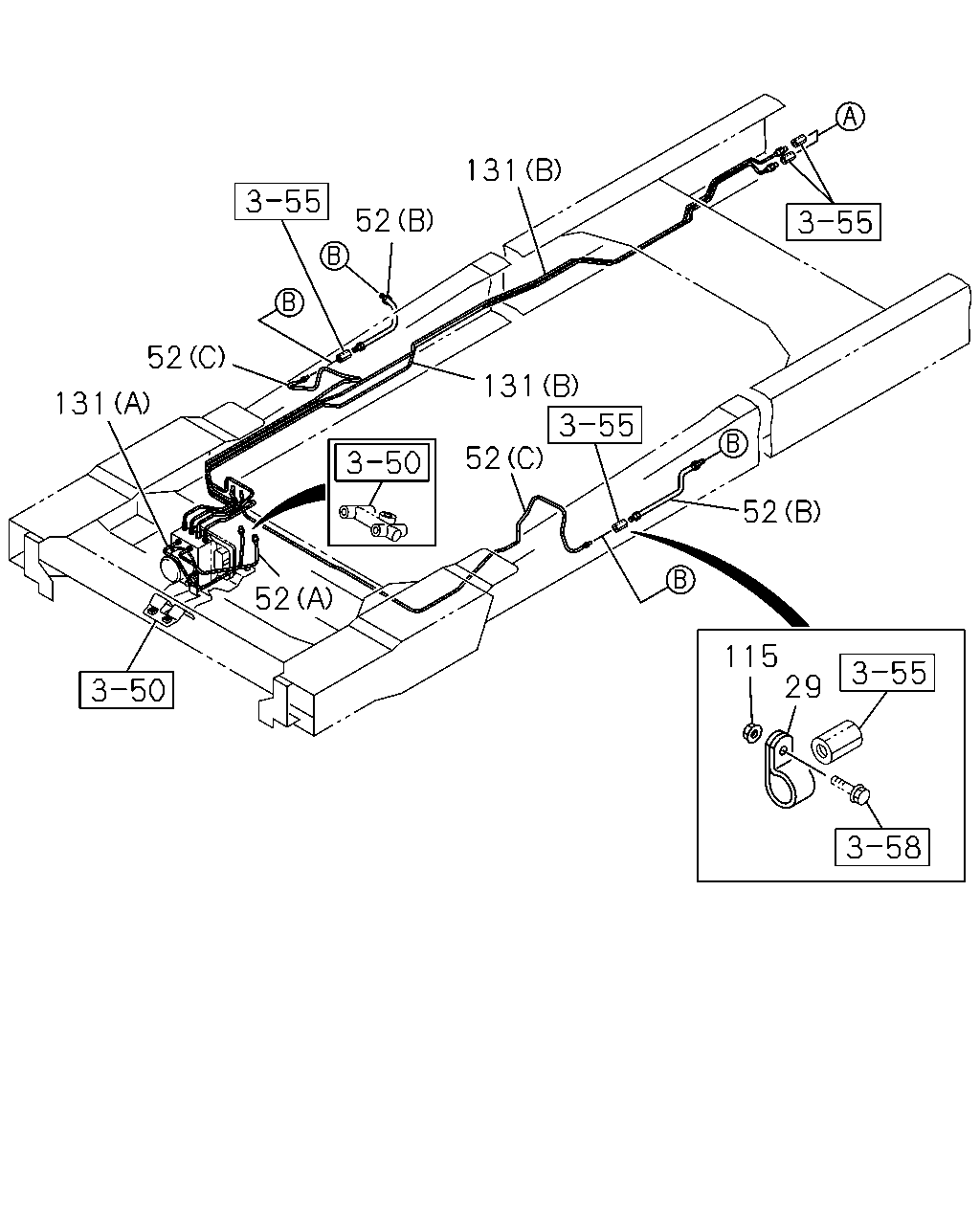

29	04.686 CLIP; UNION FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20	0-95235-532-0	02	1	1505-	●		●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-98206-900-3	01	1	1505-	●	●	●
52	04.685 PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE	8-98026-082-1	01	1	1505-	●		●
52	04.685 PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE	8-98026-083-0	01	1	1505-	●		●
52	04.685 PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98206-254-0	01	1	1505-	●		●
52	04.685 PIPE; BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98206-255-0	01	1	1505-	●		●
52	04.685 PIPE; BRK (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98206-255-0	01	1	1505-		●
52	04.685 PIPE; BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98206-256-0	01	1	1505-	●		●
52	04.685 PIPE; BRK (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98206-256-0	01	1	1505-		●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98206-253-0	01	1	1505-	●		●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98206-253-0	01	1	1505-	●		●
115	04.680 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-98206-901-2	01	1	1505-	●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EURO5B+ SPECIFICATION(NT5) (B) BRAKE SYSTEM,RR LH	8-98206-257-0	01	1	1505-	●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EURO5B+ SPECIFICATION(NT5) (B) BRAKE SYSTEM,RR RH	8-98206-258-0	01	1	1505-	●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EURO6 SPECIFICATION(NT6) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98206-259-0	01	1	1505-	●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EURO6 SPECIFICATION(NT6) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98206-261-0	01	1	1505-	●	●	●
