◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#161096) — 51 parça

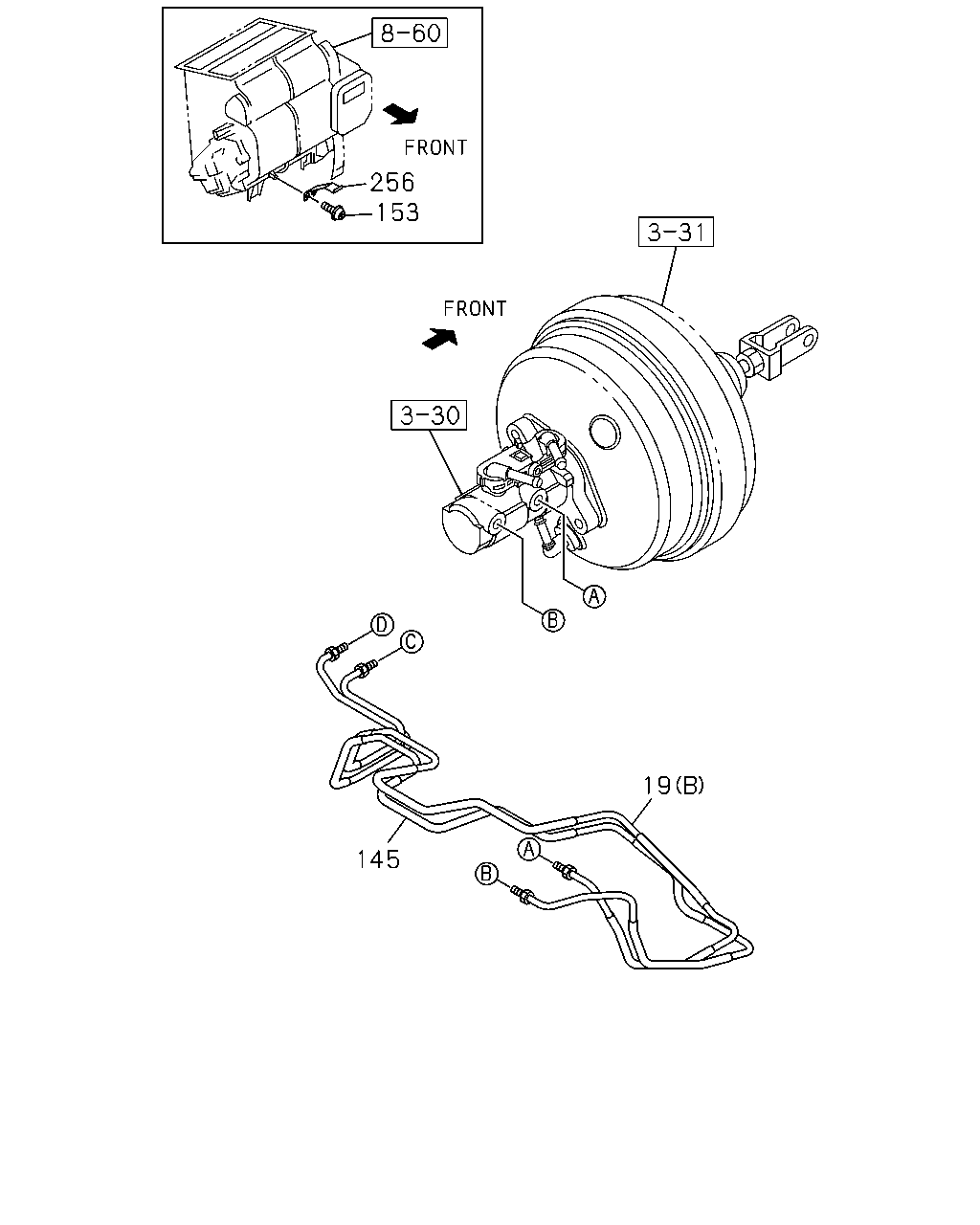

çizim 475610
19 145 153 256
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-894-0 02 1 1505- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1505- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98220-477-1 01 1 1505- ● ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1505- ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1505- ● ● ●
çizim 475621
89 103 72 72 184 94 179 197
BalonParca AdiParca NoAdetTipApplied Date A B C
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1505- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> EXC. SINGLE RR TIRE(6TD) 		8-98305-787-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-787-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-776-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-776-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> EXC. SINGLE RR TIRE(6TD) 		8-98305-786-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-786-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-775-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-775-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> EXC. SINGLE RR TIRE(6TD) 		8-98305-783-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-783-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) 		8-98305-778-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-772-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-772-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-771-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-771-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> EXC. SINGLE RR TIRE(6TD) 		8-98305-782-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-782-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-770-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98305-770-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) 		8-98305-795-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98305-794-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 		8-98305-791-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98305-790-0 01 1 1505- ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-871-2 01 1 1505- ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1505- ● ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1505- ● ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1505- ● ● ●
çizim 476255
130 131 130 131
BalonParca AdiParca NoAdetTipApplied Date A B C
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98035-633-0 01 1 1505- ● ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98035-634-0 01 1 1505- ● ●
130 04.686 BRACKET; SPEED SENSOR
(B) 		8-97080-060-2 02 1 1505- ● ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1505- ● ● ●

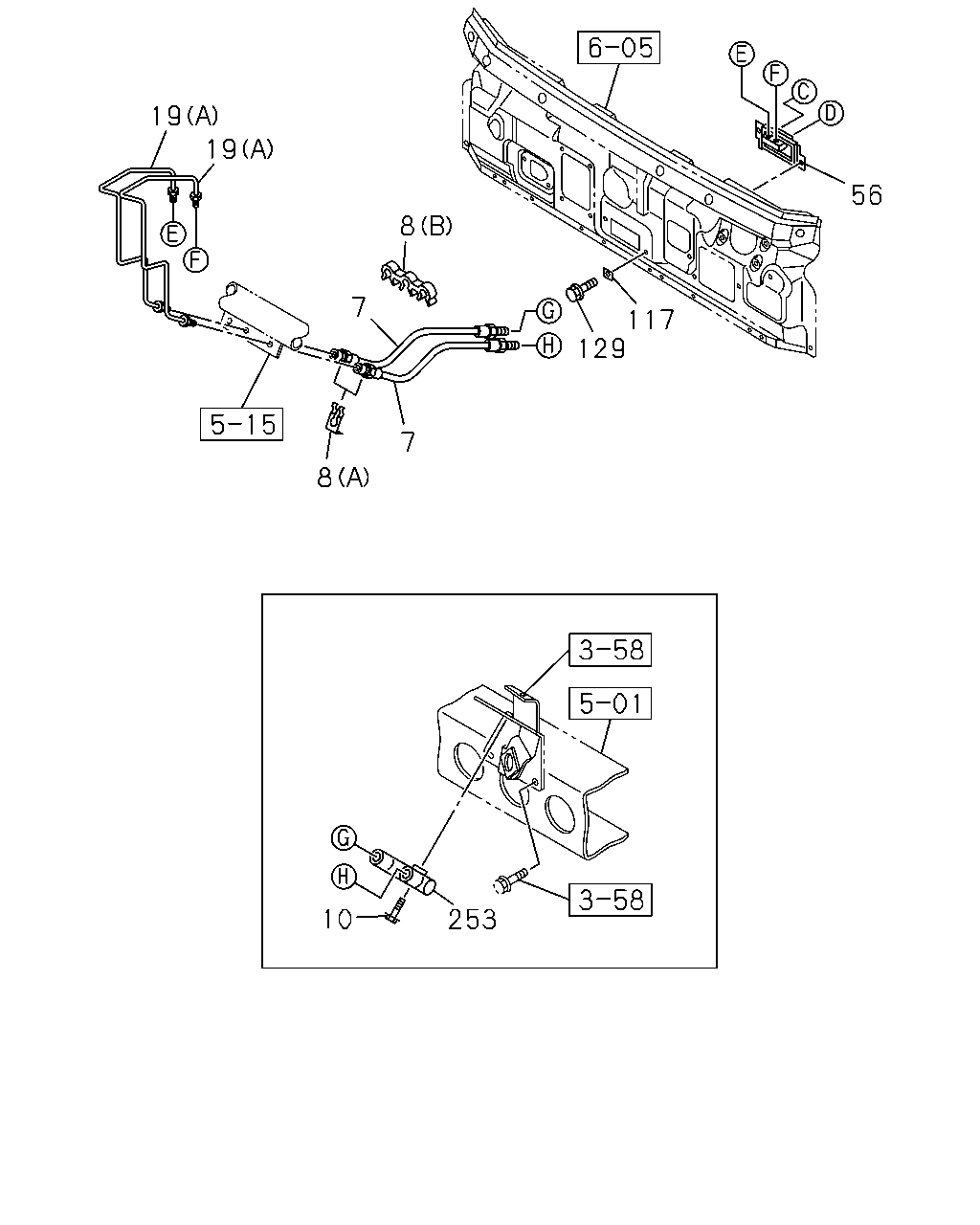

çizim 476412
253 10 8 7 7 8 19 19 129 117 56
BalonParca AdiParca NoAdetTipApplied Date A B C
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98206-868-0 02 1 1505- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1505- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1505- ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1505- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-894-0 02 1 1505- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1505- ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-244-0 01 1 1505- ● ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) 		8-98207-245-0 01 1 1505- ● ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1505- ● ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1505- ● ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1505- ● ● ●

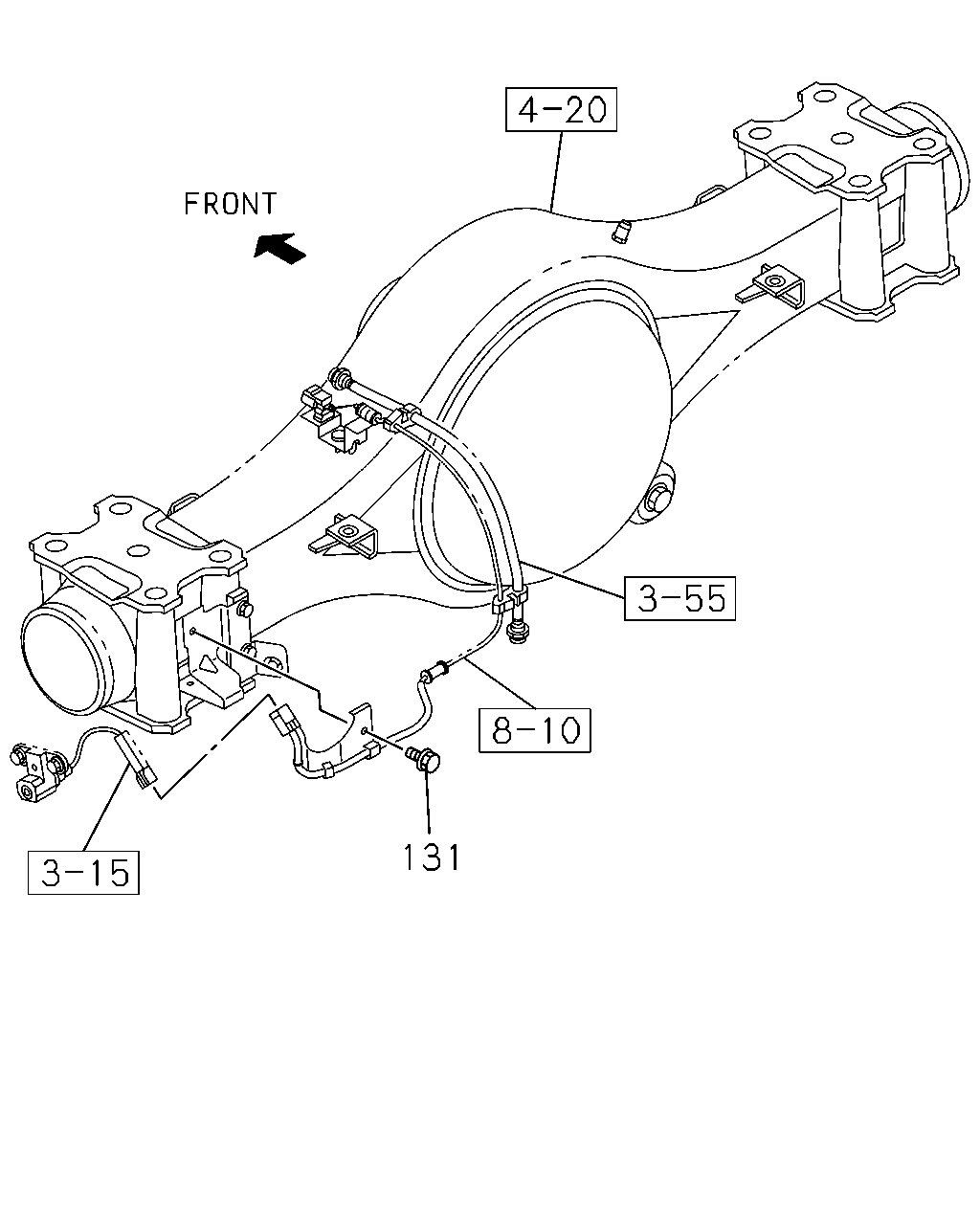

çizim 476626
131
BalonParca AdiParca NoAdetTipApplied Date A B C
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1505- ● ● ●
