3-11 — PARKING BRAKE CONTROL (#161091) — 117 parça

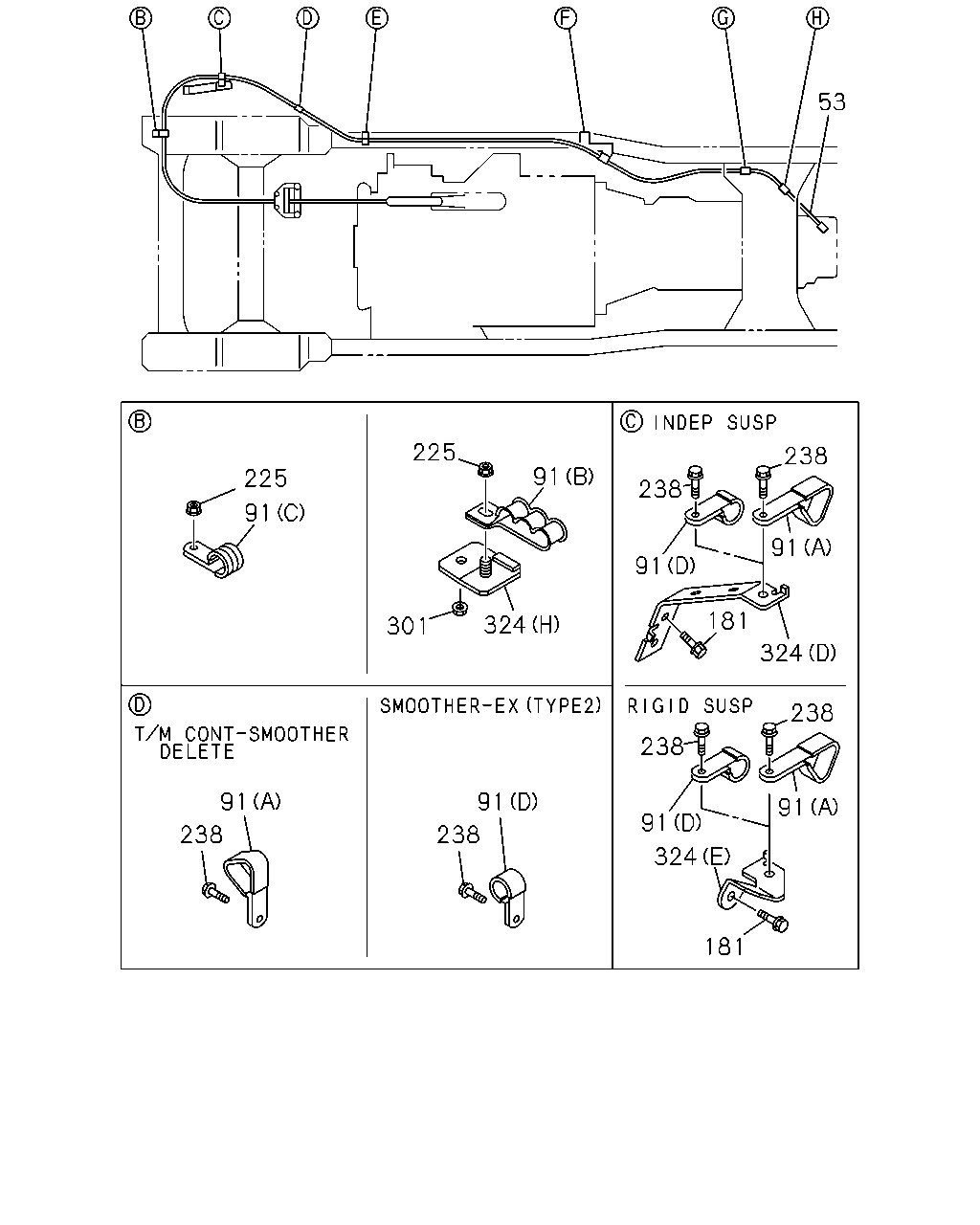

53 91 225 225 91 301 324 91 238 91 238 324 181 91 238 238 91 181 324 91 238 238 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98211-634-2	01	1	1505-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR SMOOTHER-EX(TYPE2)(8NS)	8-98211-636-1	01	1	1505-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A)	8-97036-333-1	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A)	8-97036-333-1	01	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A)	8-97036-333-1	02	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A)	8-97036-333-1	02	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-622-0	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. SMOOTHER-EX(TYPE2)(8NS) (B)	8-98023-622-0	01	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28	0-95235-255-0	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28	0-95235-255-0	01	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28	0-95235-255-0	02	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28	0-95235-255-0	02	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE SMOOTHER-EX(TYPE2)(8NS) 04.128 (C) ID=19 L=32	1-09701-235-0	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.128 (C) ID=19 L=32	1-09701-235-0	01	1	1508-	●	●	●
181	04.785 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1505-	●		●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1505-		●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
181	04.785 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
225	04.785 NUT; CABLE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 4JJ1-TCS ENG(LFB) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
301	04.785 NUT; BRKT,BRK & CLU PEDAL EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
324	04.785 BRACKET FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98185-361-2	01	1	1505-	●		●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98026-099-2	01	1	1505-1507	●	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (C)	8-98026-099-2	01	1	1508-	●	●	●
324	04.785 BRACKET (B)	8-98207-273-1	01	1	1505-	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98207-273-1	01	1	1505-			●
324	04.785 BRACKET (A)	8-98242-138-0	01	1	1505-	●	●	●
324	04.785 BRACKET EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98034-115-0	01	1	1505-	●		●
324	04.785 BRACKET (E)	8-98034-115-0	01	1	1505-		●
324	04.785 BRACKET SMOOTHER-EX(TYPE2)(8NS) (F)	8-98038-563-0	01	1	1505-1507	●	●	●
324	04.785 BRACKET EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (F)	8-98038-563-0	01	1	1508-	●	●	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98240-296-0	01	1	1505-	●	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H)	8-98296-447-0	01	1	1505-1507			●
324	04.785 BRACKET EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (H)	8-98296-447-0	01	1	1508-			●

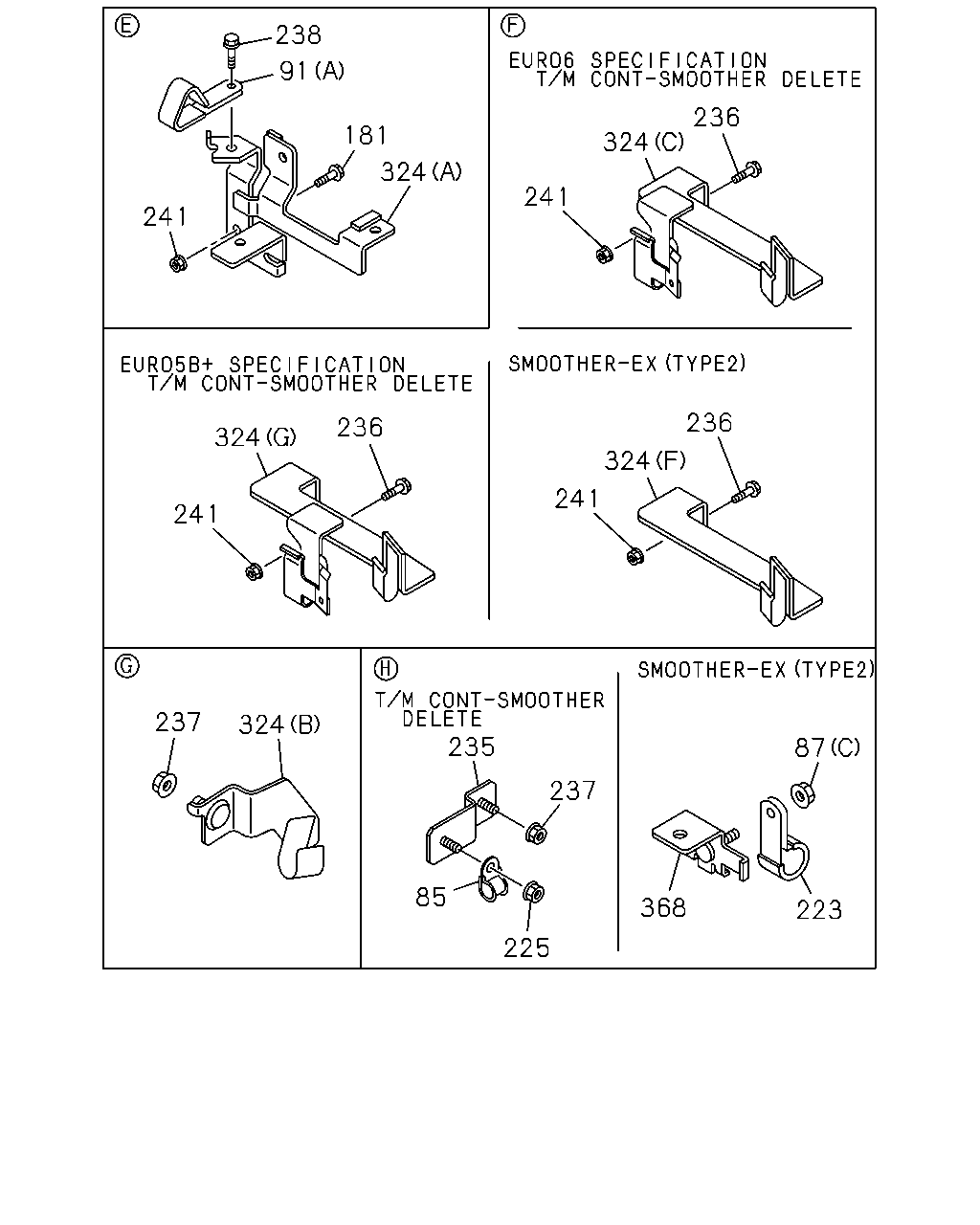

236 324 241 235 237 225 85 368 223 87 324 237 241 324 236 181 324 91 238 241 241 324 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	04.785 CLIP; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=14.5 L=20	1-09701-012-0	01	1	1505-1507	●	●	●
85	04.785 CLIP; BRKT EXC. SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20	1-09701-012-0	01	1	1508-	●	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1505-	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	1505-	●	●	●
87	04.785 NUT SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●	●
87	04.785 NUT EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A)	8-97036-333-1	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A)	8-97036-333-1	01	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A)	8-97036-333-1	02	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A)	8-97036-333-1	02	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-622-0	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. SMOOTHER-EX(TYPE2)(8NS) (B)	8-98023-622-0	01	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28	0-95235-255-0	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28	0-95235-255-0	01	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28	0-95235-255-0	02	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28	0-95235-255-0	02	1	1508-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE SMOOTHER-EX(TYPE2)(8NS) 04.128 (C) ID=19 L=32	1-09701-235-0	01	1	1505-1507	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.128 (C) ID=19 L=32	1-09701-235-0	01	1	1508-	●	●	●
181	04.785 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1505-	●		●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1505-		●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
181	04.785 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●
223	04.785 CLIP; PARKING BRK CABLE SMOOTHER-EX(TYPE2)(8NS) 00.799 ID=13 L=20	1-09701-138-1	01	1	1505-1507	●	●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.799 ID=13 L=20	1-09701-138-1	01	1	1508-	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
225	04.785 NUT; CABLE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98034-352-0	01	1	1505-1507	●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. SMOOTHER-EX(TYPE2)(8NS)	8-98034-352-0	01	1	1508-	●	●	●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
237	04.785 NUT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
237	04.785 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
237	04.785 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
237	04.785 NUT; BRKT TO FRAME EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
237	04.785 NUT; BRKT TO FRAME EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
237	04.785 NUT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
241	04.785 NUT; BRKT SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
241	04.785 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
324	04.785 BRACKET FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98185-361-2	01	1	1505-	●		●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98026-099-2	01	1	1505-1507	●	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (C)	8-98026-099-2	01	1	1508-	●	●	●
324	04.785 BRACKET (B)	8-98207-273-1	01	1	1505-	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98207-273-1	01	1	1505-			●
324	04.785 BRACKET (A)	8-98242-138-0	01	1	1505-	●	●	●
324	04.785 BRACKET EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98034-115-0	01	1	1505-	●		●
324	04.785 BRACKET (E)	8-98034-115-0	01	1	1505-		●
324	04.785 BRACKET SMOOTHER-EX(TYPE2)(8NS) (F)	8-98038-563-0	01	1	1505-1507	●	●	●
324	04.785 BRACKET EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (F)	8-98038-563-0	01	1	1508-	●	●	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98240-296-0	01	1	1505-	●	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H)	8-98296-447-0	01	1	1505-1507			●
324	04.785 BRACKET EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (H)	8-98296-447-0	01	1	1508-			●
368	04.785 BRACKET; T/M SIDE SMOOTHER-EX(TYPE2)(8NS)	8-97372-863-1	01	1	1505-1507	●	●	●
368	04.785 BRACKET; T/M SIDE EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ)	8-97372-863-1	01	1	1508-	●	●	●

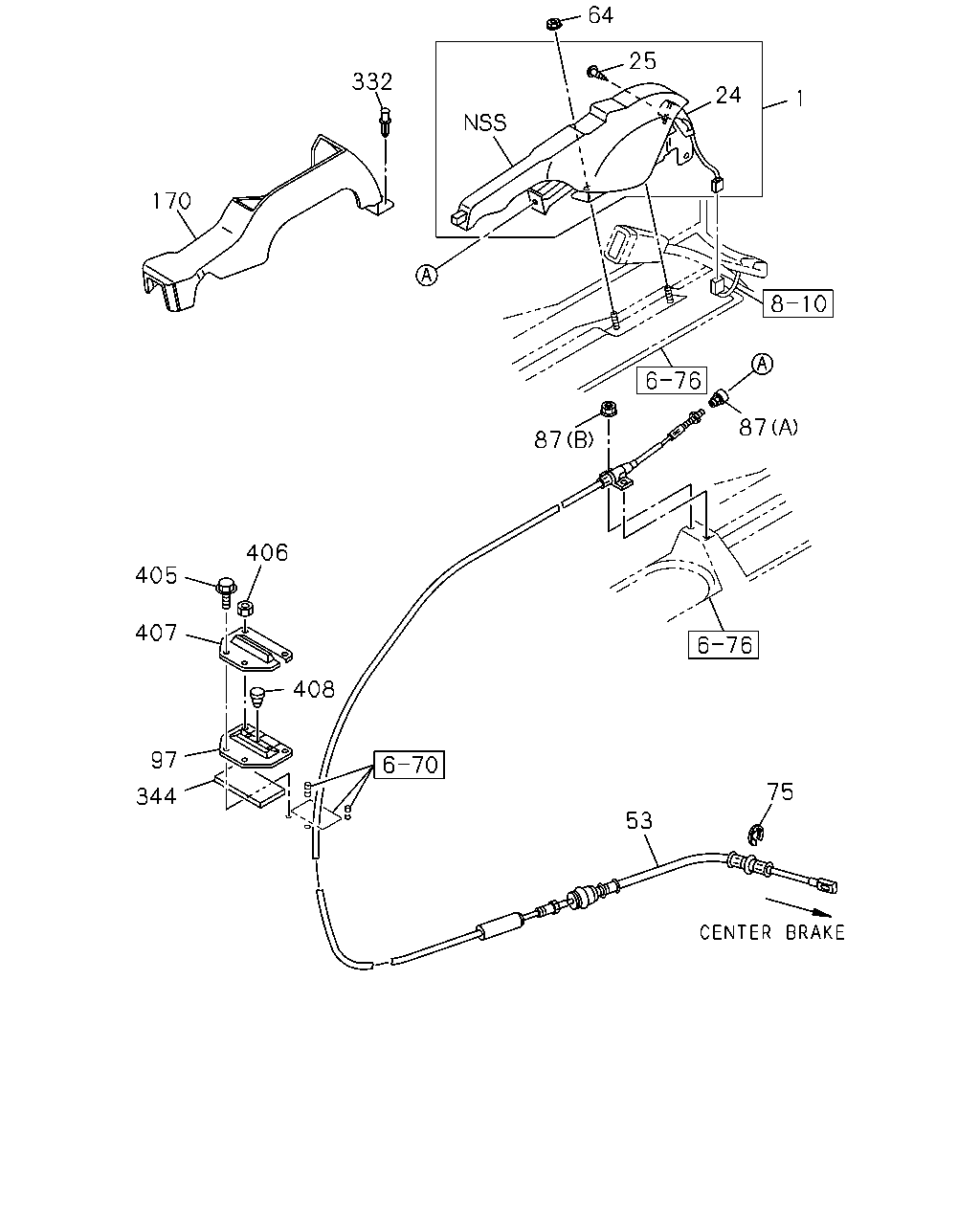

1 24 64 25 332 170 87 87 406 405 407 97 408 344 53 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1505-	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1505-	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1505-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98211-634-2	01	1	1505-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR SMOOTHER-EX(TYPE2)(8NS)	8-98211-636-1	01	1	1505-	●	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1505-	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1505-	●	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1505-	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	1505-	●	●	●
87	04.785 NUT SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●	●
87	04.785 NUT EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	1505-	●	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97406-170-1	01	1	1505-	●	●	●
332	04.785 CLIP; COVER GRAY	8-97406-171-0	01	1	1505-	●	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	1505-	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1505-	●	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	1505-	●	●	●
408	04.785 CAP; GROMMET SMOOTHER-EX(TYPE2)(8NS) 04.010	8-97371-108-0	02	1	1505-1507	●	●	●
408	04.785 CAP; GROMMET EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.010	8-97371-108-0	02	1	1508-	●	●	●
