Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#16109) — 403 parça

211 312 211 312 312 312 312 312 335 334 312 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

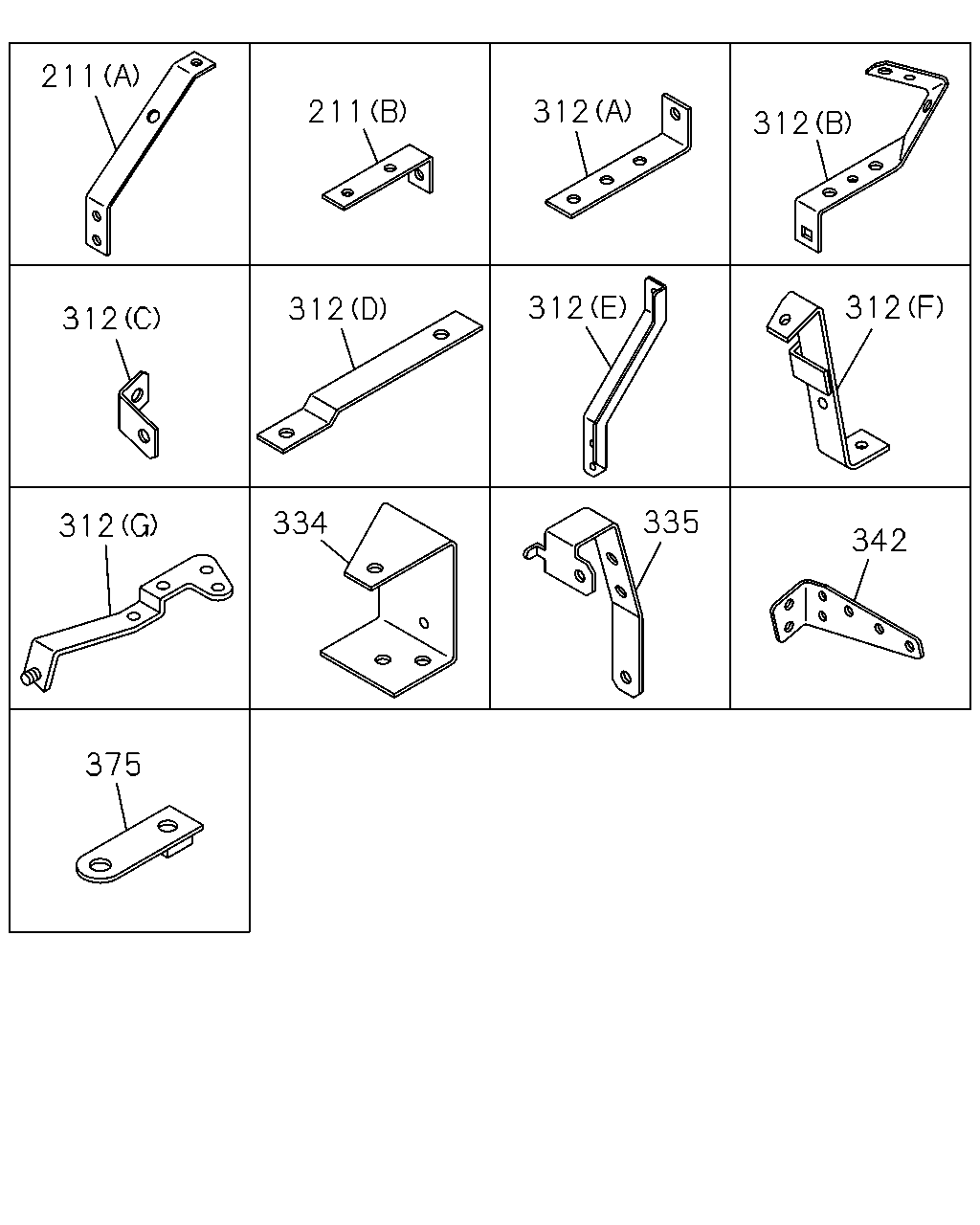

211	BRACKET; AXLE HARNESS (A)	1-47479-430-0	02	1	0904-
211	BRACKET; AXLE HARNESS (B)	1-82698-588-0	01	1	0904-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (G)	1-82698-443-0	01	1	1006-
312	BRACKET; CLIP HARNESS (A) L=120 H=35	1-82698-088-0	01	1	0904-
312	BRACKET; CLIP HARNESS (B)	1-82698-556-0	01	1	0904-
312	BRACKET; CLIP HARNESS (C)	1-82699-199-0	01	1	0904-
312	BRACKET; CLIP HARNESS (D)	8-98035-927-1	01	1	0904-
312	BRACKET; CLIP HARNESS (E)	8-98052-591-0	01	1	0904-
312	BRACKET; CLIP HARNESS (F) L=195.5	1-82698-502-0	01	1	0904-
334	BRACKET	1-53457-153-2	01	1	0904-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0904-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0904-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0904-

530 1 1 1 224 1 530 292 178 178 178 596 178 292 503 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (C) ID=23 OD=27 L=40	1-09337-015-0	02	1	0904-
1	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0904-
1	SLEEVE; RUBBER (B) ID=38.1 L=50	5-09360-835-0	01	1	0904-1005
1	SLEEVE; RUBBER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=38.1 L=50	5-09360-835-0	01	1	1006-
1	SLEEVE; RUBBER (D) ID=18 OD=22 L=25	8-94412-773-0	01	1	0904-
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	02	1	0904-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	0904-
178	GROMMET; HARNESS (B) W0/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0904-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0904-
178	GROMMET; HARNESS (E)	1-82698-551-0	01	1	0904-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=17	9-09956-256-2	02	1	0904-
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	0904-
292	CAP; RUBBER (A)	1-82690-667-0	01	1	0904-
292	CAP; RUBBER (B)	1-82691-239-0	02	1	0904-1005
292	CAP; RUBBER 6WG1 TC-R(75L) (B)	1-82691-239-0	02	1	1006-
503	CONNECTOR	1-82690-666-0	01	1	0904-
503	CONNECTOR	1-82690-666-0	01	1	0904-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	0904-
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	02	1	0904-
530	SEAL; HARNESS (B) OD=25 BLACK	1-76798-019-0	01	1	0904-
530	SEAL; HARNESS LOW ROOF<6XQ> (A) 100X40	1-72498-022-1	01	1	0904-
596	GROMMET CATALYSIS CONTROL WITH DPD<8JM> ID=28 OD=35 T=17	9-09956-256-2	01	1	1006-

524 219 294 515 552 515 119 340 423 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

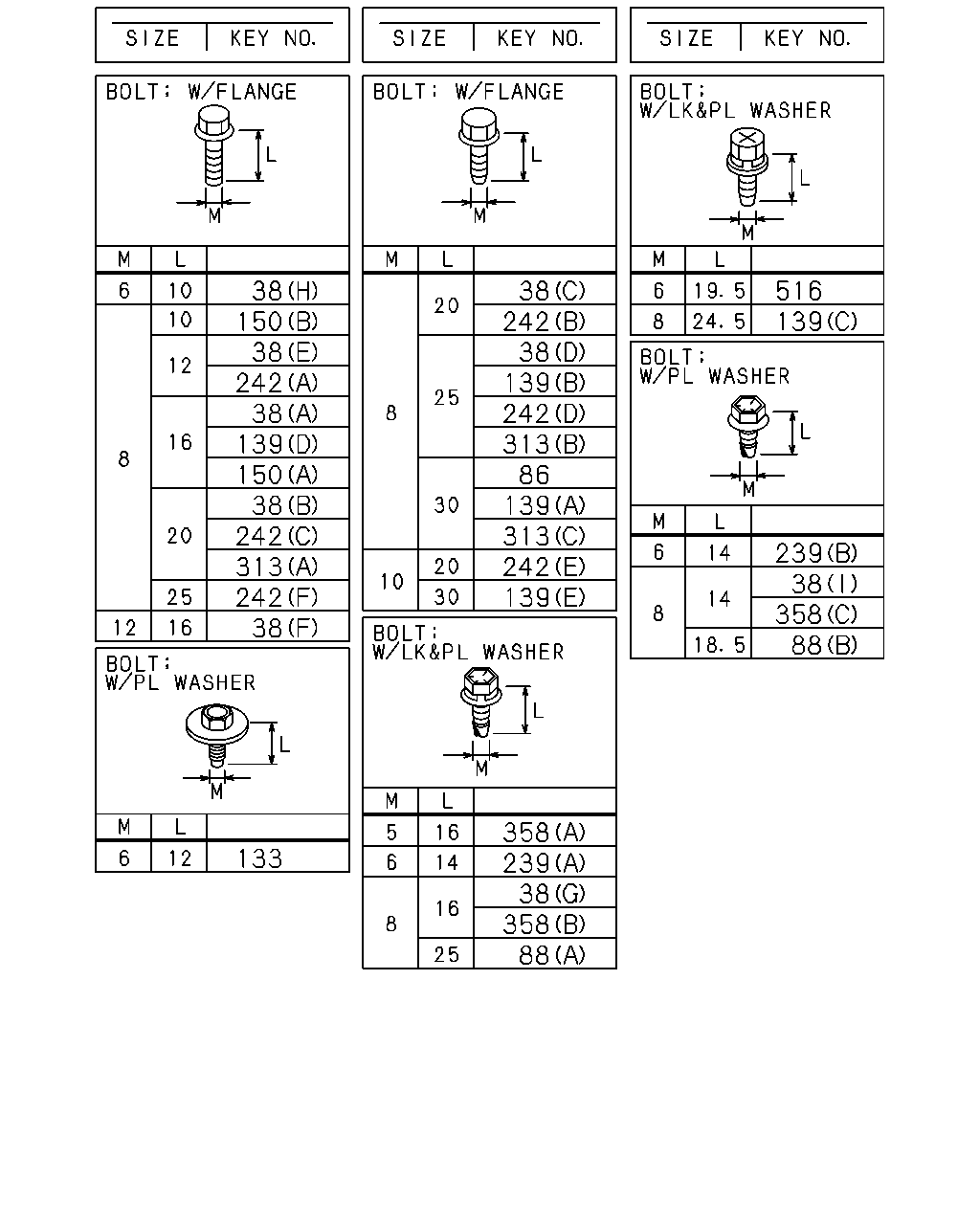

82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	0904-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0904-
219	NUT M8 FLANGE	0-91180-108-0	13	1	0904-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0904-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0904-
294	NUT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	01	1	1006-
294	NUT M8 FLANGE	0-91180-108-0	08	1	0904-1001
294	NUT M8 FLANGE	0-91180-108-0	07	1	1002-
294	NUT M8 FLANGE	0-91180-108-0	07	1	1002-
294	NUT M8 FLANGE	0-91180-108-0	07	1	0904-1001
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0904-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0904-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	0904-
515	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	03	1	0904-
515	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0904-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0904-
552	NUT; BRKT,HARNESS EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE	0-91180-108-0	04	1	1006-

16 162 166 470 16 223 425 612 16 425 612 16 104 16 612 16 16 148 16 168 16 16 16 16 16 116 421 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

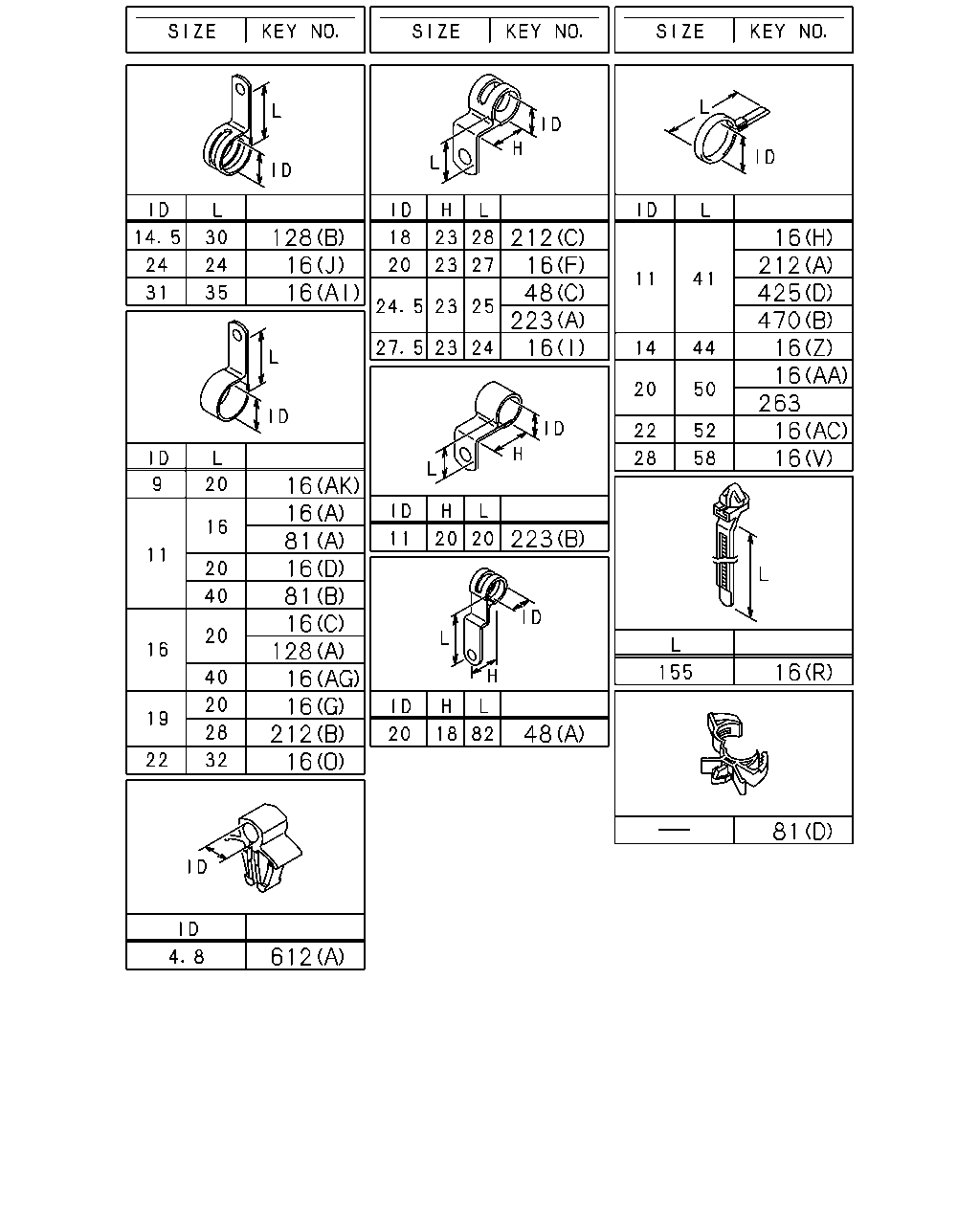

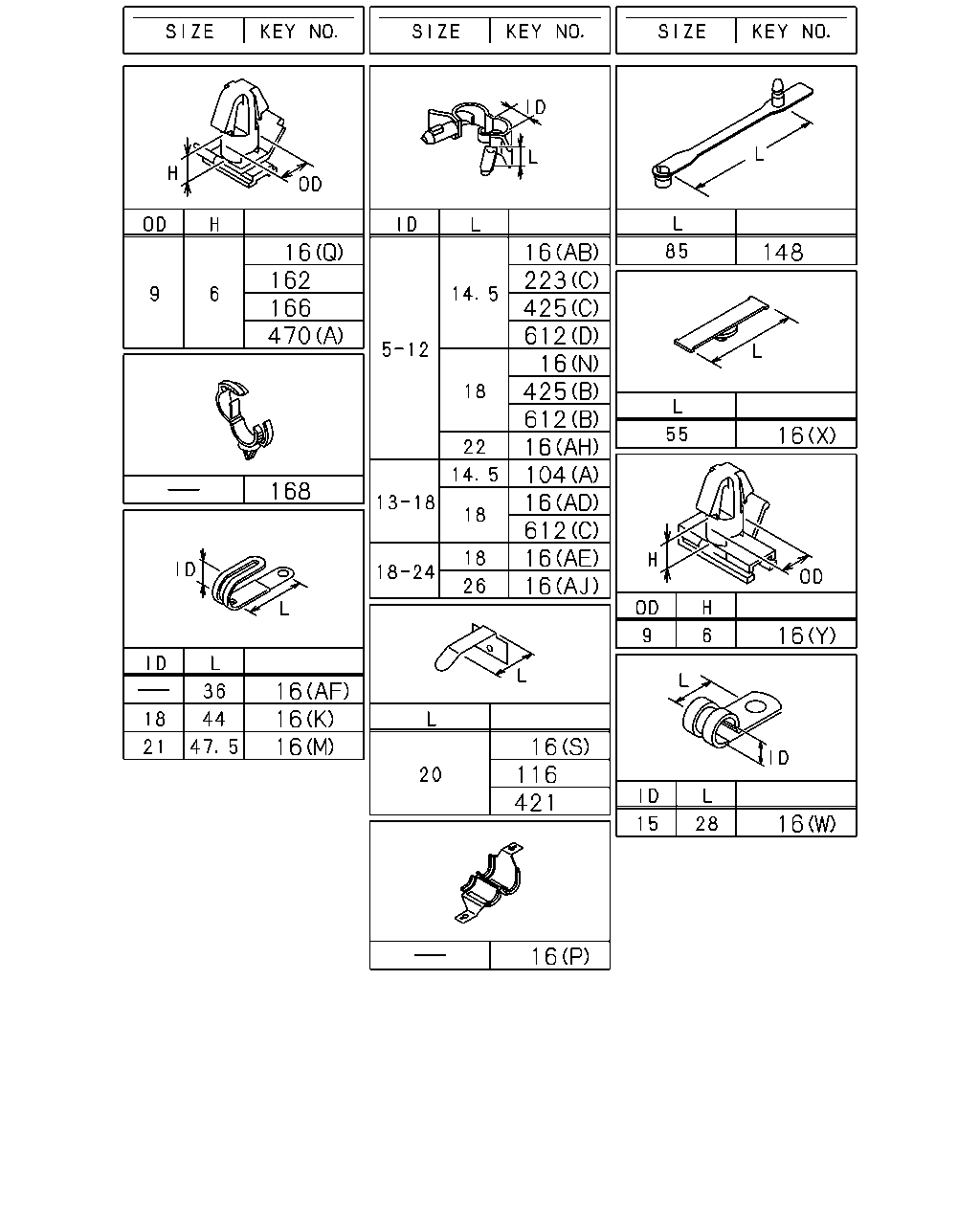

16	CLIP; HARNESS (AK) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (AE) ID=18-24 L=18	1-09709-294-0	05	1	1006-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1006-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (M) ID=21 L=47.5	8-94178-108-0	05	1	1006-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	10	1	0904-1005
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1006-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0904-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0904-
16	CLIP; HARNESS (O) ID=22 L=32	1-09700-126-1	01	1	0904-
16	CLIP; HARNESS (V) ID=28 L=58	1-09700-400-0	05	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	14	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	0904-
16	CLIP; HARNESS (AD) ID=13-18 L=18	1-09709-291-0	01	1	0904-
16	CLIP; HARNESS (AE) ID=18-24 L=18	1-09709-294-0	09	1	0904-1005
16	CLIP; HARNESS 6WG1 TC-R(75L) (AE) ID=18-24 L=18	1-09709-294-0	09	1	1006-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	09	1	0904-
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	07	1	0904-1409
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0904-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (C) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (AG) ID=16 L=40	0-95235-576-0	01	1	0904-
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (AI) ID=31 L=35	1-09700-329-1	01	1	0904-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0904-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (J) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (AD) ID=13-18 L=18	1-09709-291-0	03	1	1003-
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	02	1	0904-
16	CLIP; HARNESS (B) L=180	1-09707-162-1	01	1	0904-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0904-
16	CLIP; HARNESS (AH) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (U) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0904-1005
16	CLIP; HARNESS (U) L=250	5-09707-030-1	10	1	1006-
16	CLIP; HARNESS (M) ID=21 L=47.5	8-94178-108-0	03	1	0904-1005
16	CLIP; HARNESS 6WG1 TC-R(75L) (M) ID=21 L=47.5	8-94178-108-0	03	1	1006-
16	CLIP; HARNESS (AF) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (K) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (Y) OD=9 H=6	8-97368-793-0	03	1	0904-
16	CLIP; HARNESS (L) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	1003-
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0904-
16	CLIP; HARNESS (R) L=155	8-97173-307-0	03	1	0904-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (S) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0904-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0904-
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0904-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	08	1	1410-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	0904-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	0904-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0904-
166	CLIP; HARNESS CLU SW OD=9 H=6	1-09709-178-0	01	1	0904-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	06	1	0904-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0904-
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	0904-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0904-
425	CLIP; MODULATOR (D) ID=11 L=41	1-09700-403-0	01	1	0904-0907
425	CLIP; MODULATOR (A) L=350	1-09707-183-0	02	1	0904-
425	CLIP; MODULATOR (B) ID=5-12 L=18	1-09709-287-0	01	1	0904-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-0907
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0908-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0904-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0904-
612	CLIP; HARNESS DPD EMISSION REGULATION NEW LONG TERM<JBG> (A) ID=4.8	1-09701-218-0	04	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) ID=5-12 L=18	1-09709-287-0	01	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (C) ID=13-18 L=18	1-09709-291-0	02	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) L=250	5-09707-030-1	01	1	1006-

53 53 53 53 53 53 53 53 53 53 53 53 59 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

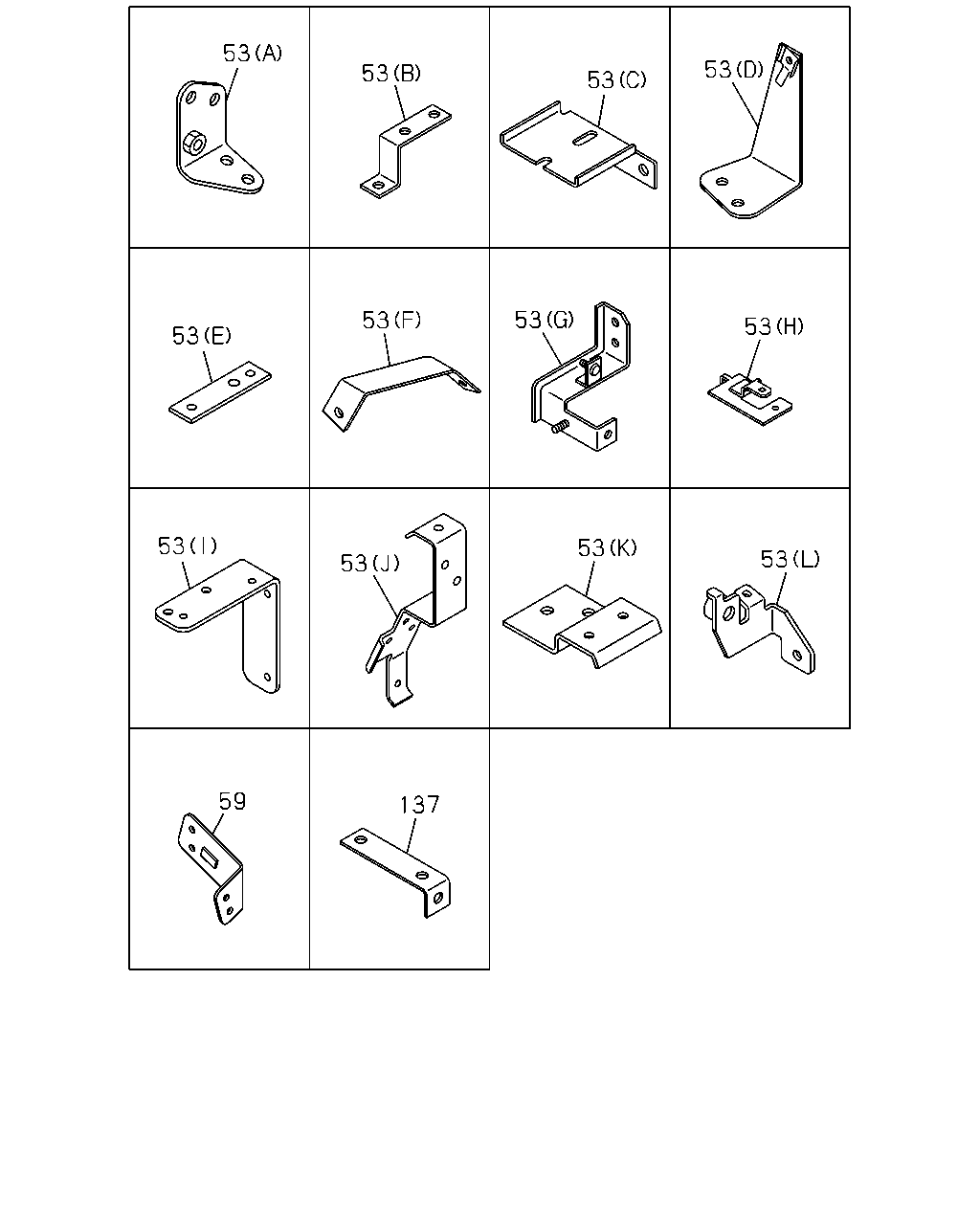

53	BRACKET; HARNESS (L)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS EMISSION REGULATION NEW LONG TERM<JBG> (J)	8-97616-550-0	01	1	1006-
53	BRACKET; HARNESS EMISSION REGULATION NEW LONG TERM<JBG> (K)	8-97621-939-0	01	1	1006-
53	BRACKET; HARNESS (E) L=130	1-47478-959-0	02	1	0904-
53	BRACKET; HARNESS (F)	1-47479-537-0	09	1	0904-
53	BRACKET; HARNESS (H)	1-82698-495-2	01	1	0904-
53	BRACKET; HARNESS (A)	8-97610-339-1	01	1	0904-
53	BRACKET; HARNESS (I)	8-97610-340-1	01	1	0904-
53	BRACKET; HARNESS (C)	8-98032-696-0	01	1	0904-
53	BRACKET; HARNESS (G)	8-98050-989-0	01	1	0904-
53	BRACKET; HARNESS (D)	8-98052-592-0	01	1	0904-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	0904-
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0904-
137	BRACKET; HARNESS CLAMP L=175 H=30	1-47479-386-1	01	1	0904-

14 51 81 104 111 206 212 305 369 14 16 81 102 121 142 171 194 369 612 14 194 16 48 171 194 425 16 16 51 142 194 369 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250	1-09707-126-0	01	1	1002-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0904-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0904-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250	5-09707-030-1	02	1	0904-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140	5-09707-031-1	01	1	0904-
16	CLIP; HARNESS (AK) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (AE) ID=18-24 L=18	1-09709-294-0	05	1	1006-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1006-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (M) ID=21 L=47.5	8-94178-108-0	05	1	1006-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	10	1	0904-1005
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1006-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0904-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0904-
16	CLIP; HARNESS (O) ID=22 L=32	1-09700-126-1	01	1	0904-
16	CLIP; HARNESS (V) ID=28 L=58	1-09700-400-0	05	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	14	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	0904-
16	CLIP; HARNESS (AD) ID=13-18 L=18	1-09709-291-0	01	1	0904-
16	CLIP; HARNESS (AE) ID=18-24 L=18	1-09709-294-0	09	1	0904-1005
16	CLIP; HARNESS 6WG1 TC-R(75L) (AE) ID=18-24 L=18	1-09709-294-0	09	1	1006-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	09	1	0904-
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	07	1	0904-1409
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0904-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (C) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (AG) ID=16 L=40	0-95235-576-0	01	1	0904-
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (AI) ID=31 L=35	1-09700-329-1	01	1	0904-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0904-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (J) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (AD) ID=13-18 L=18	1-09709-291-0	03	1	1003-
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	02	1	0904-
16	CLIP; HARNESS (B) L=180	1-09707-162-1	01	1	0904-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0904-
16	CLIP; HARNESS (AH) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (U) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0904-1005
16	CLIP; HARNESS (U) L=250	5-09707-030-1	10	1	1006-
16	CLIP; HARNESS (M) ID=21 L=47.5	8-94178-108-0	03	1	0904-1005
16	CLIP; HARNESS 6WG1 TC-R(75L) (M) ID=21 L=47.5	8-94178-108-0	03	1	1006-
16	CLIP; HARNESS (AF) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (K) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (Y) OD=9 H=6	8-97368-793-0	03	1	0904-
16	CLIP; HARNESS (L) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	1003-
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0904-
16	CLIP; HARNESS (R) L=155	8-97173-307-0	03	1	0904-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (S) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
48	CLIP; FRAME HARNESS (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0904-
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0904-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	11	1	0904-
51	CLIP; COOLER CMPR (A) L=140	5-09707-031-1	01	1	0904-
51	CLIP; COOLER CMPR (B) L=180	1-09707-162-1	01	1	0904-1005
51	CLIP; COOLER CMPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) L=180	1-09707-162-1	01	1	1006-
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (E) L=250	5-09707-030-1	02	1	1008-
81	CLIP; HARNESS (C) L=140	5-09707-031-1	06	1	0904-1007
81	CLIP; HARNESS FRONT SPOILER<VP1> (C) L=140	5-09707-031-1	04	1	1008-
81	CLIP; HARNESS (D) ID=7-10	8-94472-578-0	02	1	0904-1007
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (C) L=140	5-09707-031-1	08	1	1008-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0904-1001
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	02	1	1002-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=40	0-95235-075-0	01	1	0904-1001
102	CLIP; BAND L=250	5-09707-030-1	01	1	1003-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0904-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0904-
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0904-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	0904-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0904-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0904-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS (B) L=350	1-09707-183-0	02	1	0904-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	04	1	0904-
194	CLIP; BAND (B) L=350	1-09707-183-0	04	1	0904-1002
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1003-1202
194	CLIP; BAND (B) L=350	1-09707-183-0	07	1	1203-
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	0904-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0904-
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0904-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0904-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0904-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0904-
212	CLIP; HORN HARNESS (C) ID=18 H=23 L=28	1-09700-860-0	03	1	0904-
212	CLIP; HORN HARNESS (D) L=140	5-09707-031-1	01	1	0904-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0904-
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	01	1	1002-1002
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	01	1	1003-
369	CLIP; BAND EDS HARNESS 6WG1 TC-R(75L) (A) L=250	5-09707-030-1	01	1	1003-
369	CLIP; BAND EDS HARNESS (C) L=180	1-09707-162-1	01	1	0907-
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	06	1	0904-1001
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	05	1	1002-1002
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	04	1	1003-
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	0904-
425	CLIP; MODULATOR (D) ID=11 L=41	1-09700-403-0	01	1	0904-0907
425	CLIP; MODULATOR (A) L=350	1-09707-183-0	02	1	0904-
425	CLIP; MODULATOR (B) ID=5-12 L=18	1-09709-287-0	01	1	0904-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-0907
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0908-
612	CLIP; HARNESS DPD EMISSION REGULATION NEW LONG TERM<JBG> (A) ID=4.8	1-09701-218-0	04	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) ID=5-12 L=18	1-09709-287-0	01	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (C) ID=13-18 L=18	1-09709-291-0	02	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) L=250	5-09707-030-1	01	1	1006-

128 16 16 212 16 48 223 16 16 212 425 470 16 16 263 16 16 16 16 81 16 81 16 128 16 16 212 16 223 16 48 81 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AK) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (AE) ID=18-24 L=18	1-09709-294-0	05	1	1006-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1006-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (M) ID=21 L=47.5	8-94178-108-0	05	1	1006-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	10	1	0904-1005
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1006-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0904-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0904-
16	CLIP; HARNESS (O) ID=22 L=32	1-09700-126-1	01	1	0904-
16	CLIP; HARNESS (V) ID=28 L=58	1-09700-400-0	05	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	14	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	0904-
16	CLIP; HARNESS (AD) ID=13-18 L=18	1-09709-291-0	01	1	0904-
16	CLIP; HARNESS (AE) ID=18-24 L=18	1-09709-294-0	09	1	0904-1005
16	CLIP; HARNESS 6WG1 TC-R(75L) (AE) ID=18-24 L=18	1-09709-294-0	09	1	1006-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	09	1	0904-
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	07	1	0904-1409
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0904-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (C) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (AG) ID=16 L=40	0-95235-576-0	01	1	0904-
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (AI) ID=31 L=35	1-09700-329-1	01	1	0904-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0904-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (J) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (AD) ID=13-18 L=18	1-09709-291-0	03	1	1003-
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	02	1	0904-
16	CLIP; HARNESS (B) L=180	1-09707-162-1	01	1	0904-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0904-
16	CLIP; HARNESS (AH) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (U) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0904-1005
16	CLIP; HARNESS (U) L=250	5-09707-030-1	10	1	1006-
16	CLIP; HARNESS (M) ID=21 L=47.5	8-94178-108-0	03	1	0904-1005
16	CLIP; HARNESS 6WG1 TC-R(75L) (M) ID=21 L=47.5	8-94178-108-0	03	1	1006-
16	CLIP; HARNESS (AF) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (K) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (Y) OD=9 H=6	8-97368-793-0	03	1	0904-
16	CLIP; HARNESS (L) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	1003-
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0904-
16	CLIP; HARNESS (R) L=155	8-97173-307-0	03	1	0904-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (S) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
48	CLIP; FRAME HARNESS (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0904-
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0904-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	11	1	0904-
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (E) L=250	5-09707-030-1	02	1	1008-
81	CLIP; HARNESS (C) L=140	5-09707-031-1	06	1	0904-1007
81	CLIP; HARNESS FRONT SPOILER<VP1> (C) L=140	5-09707-031-1	04	1	1008-
81	CLIP; HARNESS (D) ID=7-10	8-94472-578-0	02	1	0904-1007
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (C) L=140	5-09707-031-1	08	1	1008-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0904-1001
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	02	1	1002-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=40	0-95235-075-0	01	1	0904-1001
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0904-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0904-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0904-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0904-
212	CLIP; HORN HARNESS (C) ID=18 H=23 L=28	1-09700-860-0	03	1	0904-
212	CLIP; HORN HARNESS (D) L=140	5-09707-031-1	01	1	0904-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0904-
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	0904-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0904-
425	CLIP; MODULATOR (D) ID=11 L=41	1-09700-403-0	01	1	0904-0907
425	CLIP; MODULATOR (A) L=350	1-09707-183-0	02	1	0904-
425	CLIP; MODULATOR (B) ID=5-12 L=18	1-09709-287-0	01	1	0904-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-0907
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0908-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0904-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0904-
612	CLIP; HARNESS DPD EMISSION REGULATION NEW LONG TERM<JBG> (A) ID=4.8	1-09701-218-0	04	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) ID=5-12 L=18	1-09709-287-0	01	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (C) ID=13-18 L=18	1-09709-291-0	02	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) L=250	5-09707-030-1	01	1	1006-

38 150 38 242 38 139 150 38 242 313 242 38 38 242 38 139 242 313 86 139 313 242 139 516 139 239 38 358 88 358 239 38 358 88 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (G) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0904-1201
38	BOLT; CLIP,HARNESS (I) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28050-812-0	01	1	0904-0906
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28050-820-0	05	1	0904-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	03	1	0904-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	07	1	0904-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	0904-
38	BOLT; CLIP,HARNESS (H) M6X10 FLANGE	0-28050-610-0	01	1	0904-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	0904-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0904-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE	0-28050-816-0	02	1	0904-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0904-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0904-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0904-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	06	1	0904-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	0904-
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	0904-
139	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0904-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0904-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	13	1	0904-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE	0-28050-810-0	01	1	0904-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0904-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS EMISSION REGULATION NEW LONG TERM<JBG> (F) M8X25 FLANGE	0-28050-825-0	04	1	1006-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	0904-
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	0904-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0904-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28050-820-0	04	1	0904-
242	BOLT; BRKT,HARNESS (E) M10X20 FLANGE	0-28651-020-0	02	1	0904-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0904-1001
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1002-1005
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1006-
313	BOLT; BRKT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X25 FLANGE	0-28650-825-0	01	1	1006-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	03	1	0904-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	06	1	0904-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0904-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0904-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
