2-26 — MANUAL TRANSMISSION GEAR (#161076) — 82 parça

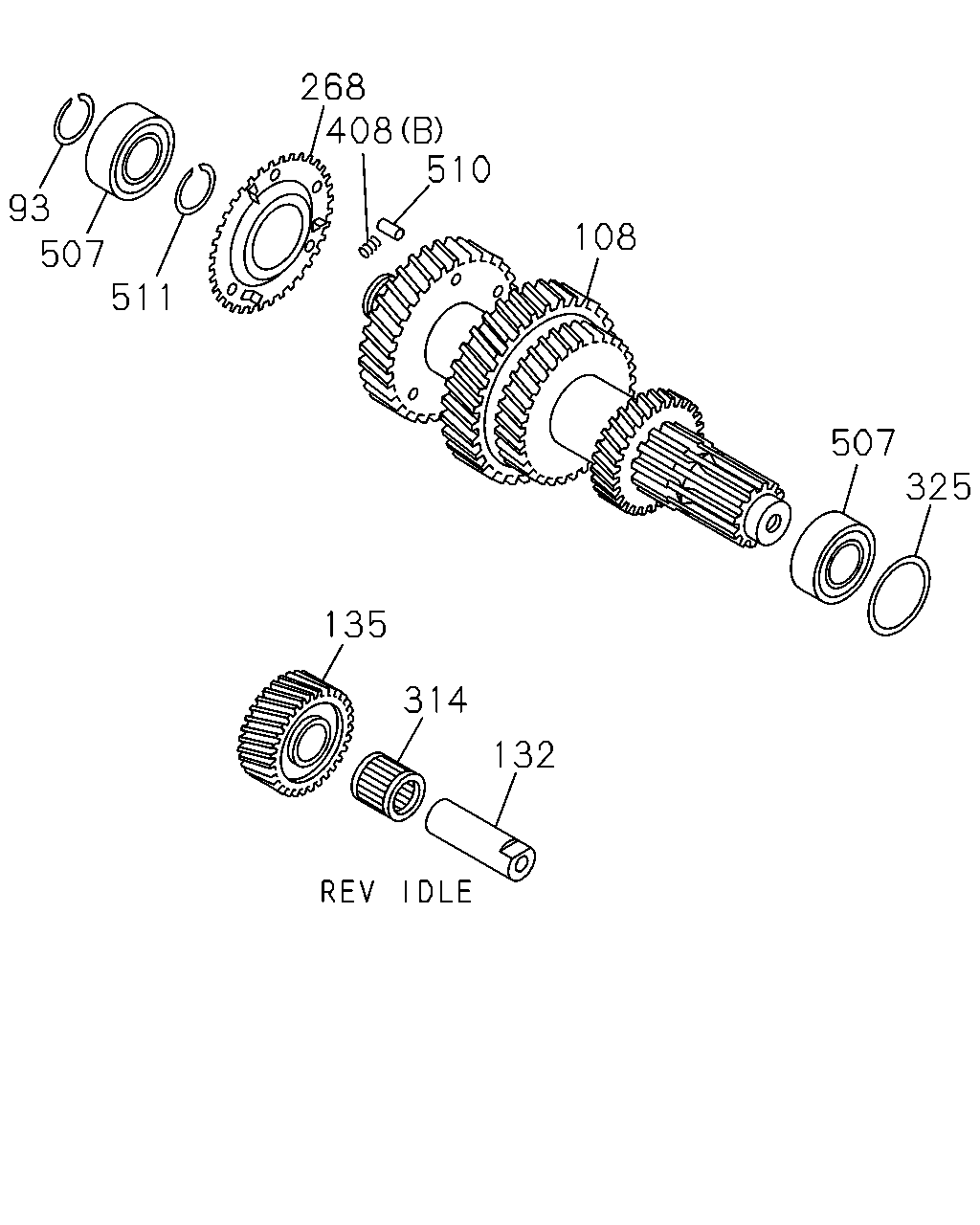

çizim 475472
132 314 135 108 510 408 268 507 93 507 325 511
BalonParca AdiParca NoAdetTipApplied Date A B
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1505- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1505- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1505- ● ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-21 		8-97380-629-1 01 1 1505- ●
108 04.428 SHAFT; COUNTER
SMOOTHER-EX(TYPE2)(8NS) Z=45-49-33-21 		8-97252-641-1 01 1 1505- ●
108 04.428 SHAFT; COUNTER
SMOOTHER-EX(TYPE2)(8NS) Z=45-49-33-20 		8-97326-590-1 01 1 1505- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20 		8-97380-630-1 01 1 1505- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1505- ● ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1505- ● ●
268 04.537 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97257-300-1 01 1 1505- ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1505- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1505- ● ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 1505- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1505- ● ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1505- ● ●
510 04.540 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862 		9-08160-825-0 03 1 1505- ● ●
511 04.416 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 1505- ● ●

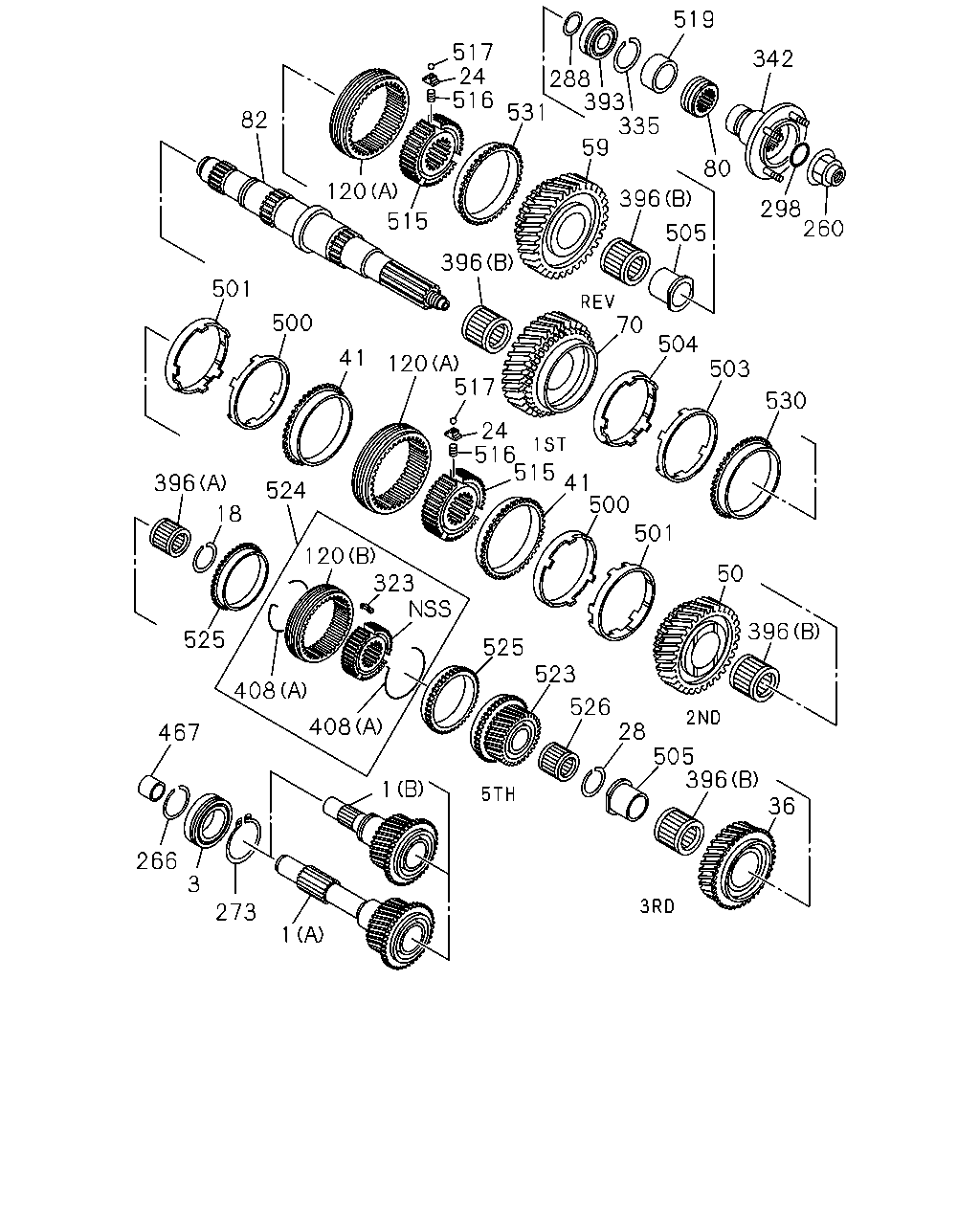

çizim 476629
517 24 516 531 288 519 342 80 335 393 59 396 298 260 505 120 82 515 396 70 504 503 530 50 396 501 500 41 515 516 24 517 120 41 500 501 396 524 120 323 18 525 408 408 525 523 526 28 505 396 36 1 467 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28 		8-98031-848-0 01 1 1505- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
SMOOTHER-EX(TYPE2)(8NS) (B) Z=28 		8-98031-849-0 01 1 1505- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1505- ● ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1505- ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1505- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 1505- ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1505- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=32 		8-97241-235-0 01 1 1505- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1505- ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1505- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-239-1 01 1 1505- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1505- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1505- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 1505- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
SMOOTHER-EX(TYPE2)(8NS) Z=43 		8-97352-815-0 01 1 1505- ● ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1505- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 1505- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1505- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1505- ● ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1505- ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1505- ● ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1505- ● ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1505- ● ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1505- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1505- ● ●
323 04.384 INSERT 8-94448-202-2 03 1 1505- ● ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1505- ● ●
342 05.545 FLANGE; OUTPUT 8-98031-640-0 01 1 1505- ● ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1505- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1505- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1505- ● ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 1505- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1505- ● ●
467 04.317 COLLAR; SHAFT
SMOOTHER-EX(TYPE2)(8NS) 		8-97255-183-1 01 1 1505- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1505- ● ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1505- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1505- ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1505- ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1505- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1505- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1505- ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1505- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 1505- ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1505- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 1505- ● ●
519 04.419 COLLAR; MAINSHAFT END,5TH
04.415 		8-97252-940-0 01 1 1505- ● ●
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 1505- ● ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1505- ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1505- ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1505- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 1505- ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1505- ● ●
