Sayfa 1-46 - Isuzu EPC

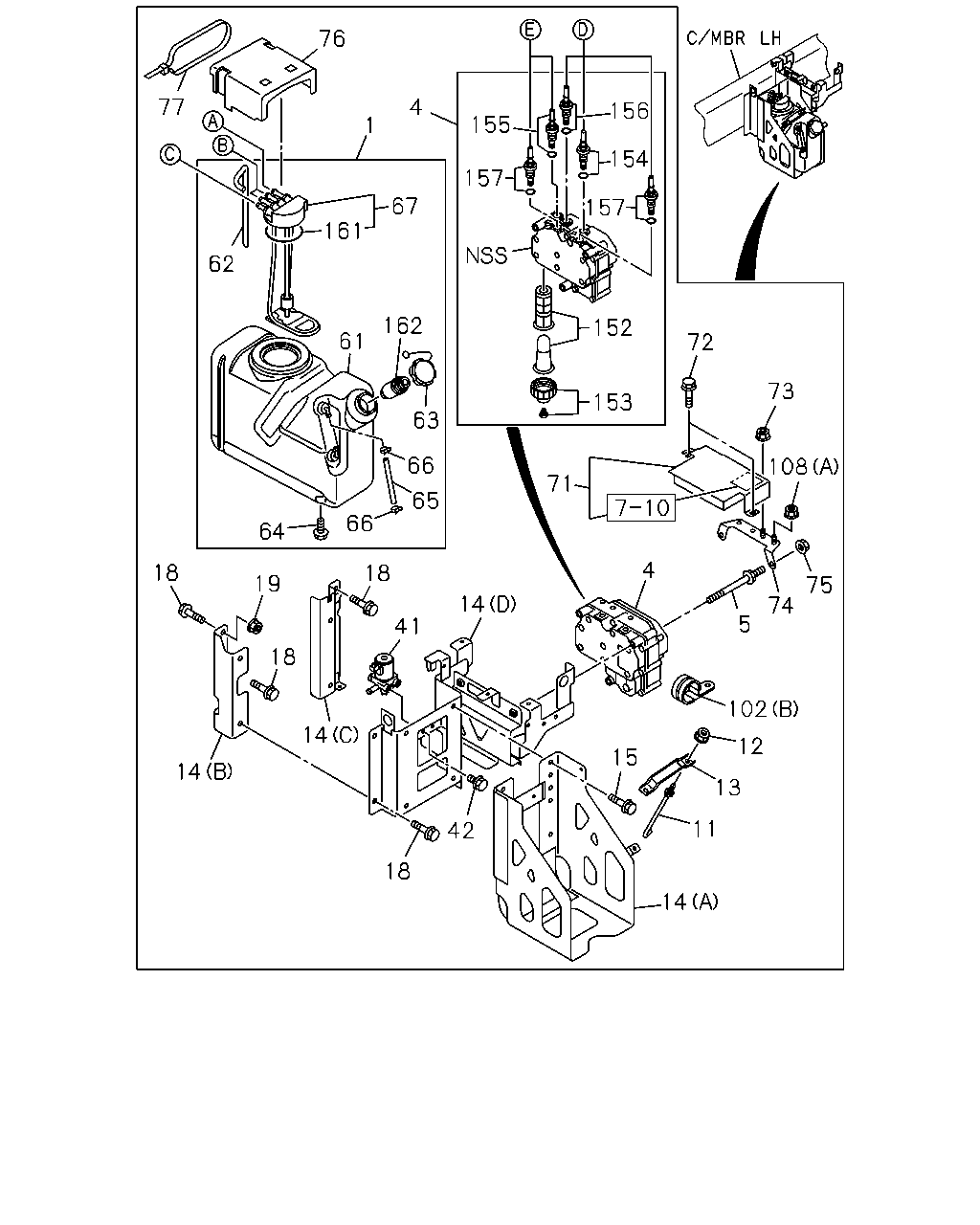

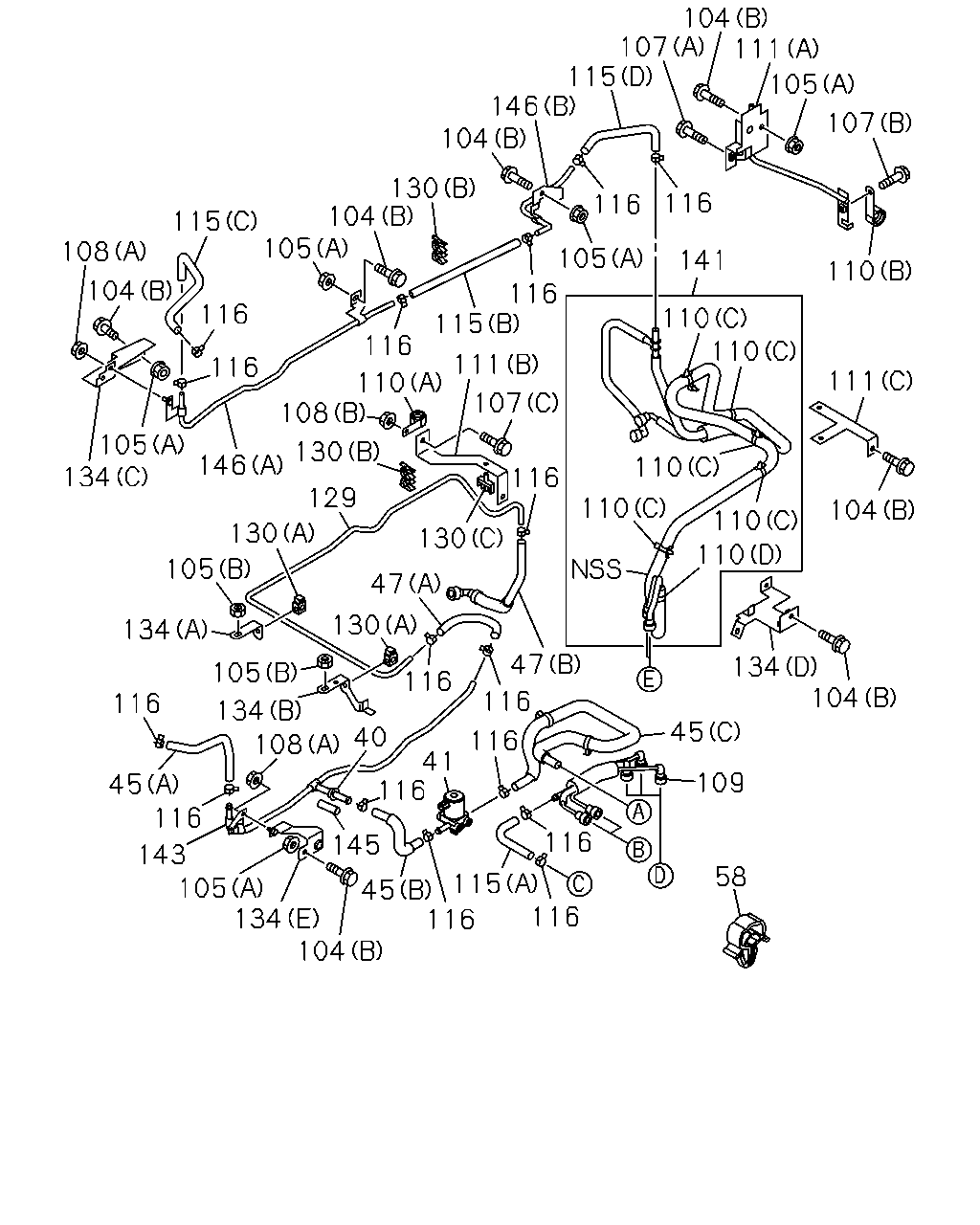

1-46 — DEF TANK AND PIPING (#161063) — 302 parça

104 111 105 107 107 115 146 104 130 104 115 105 108 104 116 105 134 116 116 116 116 141 110 111 104 104 105 110 110 110 110 110 110 134 116 115 111 107 116 130 110 108 130 146 129 130 105 134 116 45 116 143 105 134 104 47 130 105 134 108 40 116 47 116 116 41 116 145 45 115 116 116 116 45 109 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	00.010 GROMMET EURO6 SPECIFICATION(NT6) 02.343 ID=17	8-94128-319-2	01	1	1505-1507	●	●	●
40	00.010 GROMMET EXC. EURO5B+ SPECIFICATION(NT5) 02.343 ID=17	8-94128-319-2	01	1	1508-	●	●
40	00.010 GROMMET AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.343 ID=17	8-94128-319-2	01	1	1508-			●
40	00.010 GROMMET FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.343 ID=17	8-94128-319-2	01	1	1508-			●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1505-	●	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EURO6 SPECIFICATION(NT6) (B)	8-98210-111-1	01	1	1505-1507	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98210-111-1	01	1	1508-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EURO6 SPECIFICATION(NT6) (A)	8-98210-110-1	01	1	1505-1507	●	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98210-110-1	01	1	1508-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98210-110-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98210-110-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EURO6 SPECIFICATION(NT6) (C)	8-98233-936-1	01	1	1505-1507	●	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98233-936-1	01	1	1508-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (C)	8-98233-936-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98233-936-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EURO6 SPECIFICATION(NT6) (B)	8-98281-101-0	01	1	1505-1507			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98281-101-0	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98281-101-0	01	1	1508-			●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-			●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-			●
47	03.630 HOSE; DEF DCM COOL DLVY EURO6 SPECIFICATION(NT6) (B)	8-98209-322-0	01	1	1505-1507	●	●	●
47	03.630 HOSE; DEF DCM COOL DLVY EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-322-0	01	1	1508-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98209-322-0	01	1	1508-			●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-322-0	01	1	1508-			●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507	●	●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507	●	●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507			●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507			●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1508-	●		●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1508-	●		●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1508-		●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE EURO6 SPECIFICATION(NT6) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1505-1507	●	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE EXC. EURO5B+ SPECIFICATION(NT5) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1508-	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1508-			●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1508-			●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507	●	●	●
104	00.010 BOLT; BRKT EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-	●	●
104	00.010 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
105	00.010 NUT; BRKT EURO6 SPECIFICATION(NT6) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1505-1507	●	●	●
105	00.010 NUT; BRKT EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1508-	●	●
105	00.010 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1508-			●
105	00.010 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1508-			●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 00.787 (B) M10	0-91111-510-0	02	1	1505-1507	●	●	●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.787 (B) M10	0-91111-510-0	02	1	1508-	●		●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.787 (B) M10	0-91111-510-0	02	1	1508-	●		●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 00.787 (B) M10	0-91111-510-0	02	1	1508-		●
107	00.010 BOLT; CLIP EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●	●
107	00.010 BOLT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
107	00.010 BOLT; CLIP EURO6 SPECIFICATION(NT6) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507	●	●	●
107	00.010 BOLT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1508-	●	●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1508-			●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1508-			●
107	00.010 BOLT; CLIP EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-1507	●	●	●
107	00.010 BOLT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-	●	●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-			●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-			●
108	00.010 NUT; CLIP EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●	●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●	●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
109	03.682 TUBE ASM; DEF & WATER EURO6 SPECIFICATION(NT6)	8-98233-512-1	01	1	1505-1507	●	●	●
109	03.682 TUBE ASM; DEF & WATER EXC. EURO5B+ SPECIFICATION(NT5)	8-98233-512-1	01	1	1508-	●	●
109	03.682 TUBE ASM; DEF & WATER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98233-512-1	01	1	1508-			●
109	03.682 TUBE ASM; DEF & WATER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98233-512-1	01	1	1508-			●
110	03.682 CLIP; TUBE ASM EURO6 SPECIFICATION(NT6) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1505-1507	●	●	●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1508-			●
110	03.682 CLIP; TUBE ASM EURO6 SPECIFICATION(NT6) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1505-1507	●	●	●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1508-			●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507			●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507			●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (C) L=170.3	1-09987-182-0	06	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.559 (C) L=170.3	1-09987-182-0	06	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (C) L=170.3	1-09987-182-0	06	1	1508-			●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (D) L=213.5	8-98000-506-1	01	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.128 (D) L=213.5	8-98000-506-1	01	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (D) L=213.5	8-98000-506-1	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM EURO6 SPECIFICATION(NT6) (B)	8-98209-977-0	01	1	1505-1507	●	●	●
111	03.634 BRACKET; CLIP,TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-977-0	01	1	1508-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98209-977-0	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-977-0	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM EURO6 SPECIFICATION(NT6) (C)	8-98217-162-1	01	1	1505-1507	●	●	●
111	03.634 BRACKET; CLIP,TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98217-162-1	01	1	1508-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (C)	8-98217-162-1	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98217-162-1	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM EURO6 SPECIFICATION(NT6) (A)	8-98284-539-0	01	1	1505-1507	●	●	●
111	03.634 BRACKET; CLIP,TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98284-539-0	01	1	1508-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98284-539-0	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98284-539-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN EURO6 SPECIFICATION(NT6) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507	●	●	●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN EURO6 SPECIFICATION(NT6) (A)	8-98122-725-1	01	1	1505-1507	●	●	●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98122-725-1	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98122-725-1	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98122-725-1	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN EURO6 SPECIFICATION(NT6) (C)	8-98209-315-0	01	1	1505-1507	●	●	●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98209-315-0	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (C)	8-98209-315-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98209-315-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN EURO6 SPECIFICATION(NT6) (D)	8-98209-316-1	01	1	1505-1507	●	●	●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98209-316-1	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (D)	8-98209-316-1	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98209-316-1	01	1	1508-			●
116	00.010 CLAMP; HOSE EURO6 SPECIFICATION(NT6) 01.097 ID=16	8-97329-628-0	17	1	1505-1507	●	●	●
116	00.010 CLAMP; HOSE EXC. EURO5B+ SPECIFICATION(NT5) 01.097 ID=16	8-97329-628-0	17	1	1508-	●	●
116	00.010 CLAMP; HOSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.097 ID=16	8-97329-628-0	17	1	1508-			●
116	00.010 CLAMP; HOSE FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.097 ID=16	8-97329-628-0	17	1	1508-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-288-1	01	1	1505-	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-288-1	01	1	1505-	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-288-1	01	1	1505-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-288-1	01	1	1505-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-975-0	01	1	1505-1507	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98209-975-0	01	1	1505-1507	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-975-0	01	1	1505-1507			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98209-975-0	01	1	1505-1507			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-975-0	01	1	1508-	●		●
129	03.609 PIPE ASM; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ)	8-98209-975-0	01	1	1508-	●		●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ)	8-98209-975-0	01	1	1508-		●
130	03.682 CLIP; PIPE ASM EURO6 SPECIFICATION(NT6) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1505-1507	●	●	●
130	03.682 CLIP; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-	●	●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-			●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-			●
130	03.682 CLIP; PIPE ASM EURO6 SPECIFICATION(NT6) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1505-1507	●	●	●
130	03.682 CLIP; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1508-	●	●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1508-			●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1508-			●
130	03.682 CLIP; PIPE ASM EURO6 SPECIFICATION(NT6) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-1507	●	●	●
130	03.682 CLIP; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1508-	●	●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1508-			●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM EURO6 SPECIFICATION(NT6) (D)	8-98210-089-1	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98210-089-1	01	1	1508-	●	●
134	03.634 BRACKET; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (D)	8-98210-089-1	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98210-089-1	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM EURO6 SPECIFICATION(NT6) (E)	8-98234-523-0	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) (E)	8-98234-523-0	01	1	1508-	●	●
134	03.634 BRACKET; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (E)	8-98234-523-0	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (E)	8-98234-523-0	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 03.162 (A)	8-98006-480-1	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A)	8-98006-480-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (A)	8-98006-480-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 03.162 (A)	8-98006-480-1	01	1	1508-		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-98039-929-1	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B)	8-98039-929-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-98039-929-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 03.162 (B)	8-98039-929-1	01	1	1508-		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (C)	8-98209-974-1	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98209-974-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98209-974-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) (C)	8-98209-974-1	01	1	1508-		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98272-089-0	01	1	1505-1507	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98272-089-0	01	1	1505-1507	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98272-089-0	01	1	1508-	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98272-089-0	01	1	1508-	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) (C)	8-98272-089-0	01	1	1508-		●
141	03.682 TUBE ASM; DEF DCM EURO6 SPECIFICATION(NT6)	8-98284-537-0	01	1	1505-1507	●	●
141	03.682 TUBE ASM; DEF DCM EXC. EURO5B+ SPECIFICATION(NT5)	8-98284-537-0	01	1	1508-	●	●
141	03.682 TUBE ASM; DEF DCM EURO6 SPECIFICATION(NT6)	8-98285-551-0	01	1	1505-1507			●
141	03.682 TUBE ASM; DEF DCM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98285-551-0	01	1	1508-			●
141	03.682 TUBE ASM; DEF DCM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98285-551-0	01	1	1508-			●
143	03.609 PIPE ASM; DEF TANK HTR EURO6 SPECIFICATION(NT6)	8-98209-976-2	01	1	1505-1507	●	●	●
143	03.609 PIPE ASM; DEF TANK HTR EXC. EURO5B+ SPECIFICATION(NT5)	8-98209-976-2	01	1	1508-	●	●
143	03.609 PIPE ASM; DEF TANK HTR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98209-976-2	01	1	1508-			●
143	03.609 PIPE ASM; DEF TANK HTR FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98209-976-2	01	1	1508-			●
145	03.265 RUBBER EURO6 SPECIFICATION(NT6) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1505-1507	●	●	●
145	03.265 RUBBER EXC. EURO5B+ SPECIFICATION(NT5) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-	●	●
145	03.265 RUBBER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-			●
145	03.265 RUBBER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN EURO6 SPECIFICATION(NT6) (A)	8-98209-284-1	01	1	1505-1507	●	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98209-284-1	01	1	1508-	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98209-284-1	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98209-284-1	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN EURO6 SPECIFICATION(NT6) (B)	8-98209-287-1	01	1	1505-1507	●	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-287-1	01	1	1508-	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98209-287-1	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-287-1	01	1	1508-			●

76 77 1 4 62 161 67 155 157 156 154 157 152 153 72 73 108 75 74 5 4 71 102 12 13 11 14 15 42 18 14 18 19 18 41 14 18 14 61 162 63 66 65 66 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.708 TANK ASM; DEF 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98210-142-4	01	1	1505-	●	●	●
4	03.650 PUMP ASM; DEF,DCM SPLY 4JJ1-TCS ENG(LFB)	8-98268-812-0	01	1	1505-	●	●	●
5	00.010 BOLT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 03.670 M8X20,M8X90 L=118	8-98140-158-0	03	1	1505-	●	●	●
11	03.613 BOLT; DEF TANK 4JJ1-TCS ENG(LFB)	8-98157-936-0	02	1	1505-	●	●
11	03.613 BOLT; DEF TANK 4JJ1-TCS ENG(LFB)	8-98243-779-0	02	1	1505-			●
12	00.010 NUT; DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-	●	●	●
13	03.632 RETAINER; DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98156-747-0	01	1	1505-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (A)	8-98236-403-0	01	1	1505-	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (D)	8-98236-406-2	01	1	1505-	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B)	8-98236-404-1	01	1	1505-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98236-405-2	01	1	1505-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (D)	8-98279-890-0	01	1	1505-			●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (A)	8-98287-956-0	01	1	1505-			●
15	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-	●	●	●
18	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	1505-	●	●	●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-			●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-			●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1505-	●	●	●
42	00.010 BOLT; DEF RSVR HTR DLVY VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1505-	●	●	●
61	03.630 BODY ASM; DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98220-878-1	01	1	1505-	●	●	●
62	03.630 HOSE; VENT,DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98120-261-0	01	1	1505-	●	●	●
63	03.708 CAP ASM; FILLER,DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98147-581-1	01	1	1505-	●	●	●
64	03.708 PLUG; DRAIN,DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98120-263-0	01	1	1505-	●	●	●
65	03.630 HOSE; WATER LEVEL 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98120-264-1	01	1	1505-	●	●	●
66	03.708 CLAMP; WATER LEVEL HOSE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98120-265-1	02	1	1505-	●	●	●
67	03.708 SENSOR ASM; DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98213-926-1	01	1	1505-	●	●	●
71	03.634 COVER; DEF DCM SPLY EURO6 SPECIFICATION(NT6)	8-98234-553-0	01	1	1505-1507	●	●	●
71	03.634 COVER; DEF DCM SPLY EXC. EURO5B+ SPECIFICATION(NT5)	8-98234-553-0	01	1	1508-	●	●
71	03.634 COVER; DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98234-553-0	01	1	1508-			●
71	03.634 COVER; DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98234-553-0	01	1	1508-			●
72	00.010 BOLT; COVER,DEF DCM SPLY EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507	●	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-			●
72	00.010 BOLT; COVER,DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-			●
73	00.010 NUT; COVER,DEF DCM SPLY EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
73	00.010 NUT; COVER,DEF DCM SPLY EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
73	00.010 NUT; COVER,DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
73	00.010 NUT; COVER,DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
74	03.634 BRACKET; DEF DCM SPLY COVER EURO6 SPECIFICATION(NT6)	8-97642-595-0	01	1	1505-1507	●	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER EXC. EURO5B+ SPECIFICATION(NT5)	8-97642-595-0	01	1	1508-	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-97642-595-0	01	1	1508-			●
74	03.634 BRACKET; DEF DCM SPLY COVER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-97642-595-0	01	1	1508-			●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-			●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-			●
76	03.634 COVER; DEF TANK CAP 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98156-298-1	01	1	1505-	●	●	●
77	03.682 CLIP; DEF TANK CAP CVR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) L=350	1-09707-183-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	03	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1505-	●	●	●
108	00.010 NUT; CLIP EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●	●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●	●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
152	03.890 FILTER KIT; PUMP ASM,DEF DCM SPL 4JJ1-TCS ENG(LFB)	8-98169-403-0	01	1	1505-	●	●	●
153	03.890 COVER KIT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB)	8-98169-408-0	01	1	1505-	●	●	●
154	03.890 CONNECTOR KIT; INLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-409-0	01	1	1505-	●	●	●
155	03.890 CONNECTOR KIT; OUTLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-411-0	01	1	1505-	●	●	●
156	03.890 CONNECTOR KIT; RETURN PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98268-813-0	01	1	1505-	●	●	●
157	03.890 CONNECTOR KIT; COOLANT PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-414-1	02	1	1505-	●	●	●
161	03.890 GASKET; SENSOR ASM,DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98170-383-0	01	1	1505-	●	●	●
162	03.890 ADAPTER; DEF TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98131-158-0	01	1	1505-	●	●	●

24 160 98 98 22 98 23 25 22 98 23 98 24 98 98 95 96 104 102 104 102 98 132 94 93 20 21 20 159 158 159 108 98 98 98 102 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	03.680 INJECTOR ASM; DEF DCM 4JJ1-TCS ENG(LFB)	8-98231-898-2	01	1	1505-	●	●	●
21	00.010 NUT; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	03	1	1505-	●	●	●
22	01.150 SENSOR; DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98302-394-0	02	1	1505-	●	●	●
23	03.613 BOLT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98155-181-0	04	1	1505-	●	●	●
24	00.010 NUT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	04	1	1505-	●	●	●
25	01.150 SENSOR; DEF DCM EXH TEMP 4JJ1-TCS ENG(LFB)	8-98086-329-0	01	1	1505-	●	●	●
93	03.609 PROTECTOR; DEF DCM 4JJ1-TCS ENG(LFB)	8-98255-578-0	01	1	1505-	●	●	●
94	00.010 BOLT; PROTECTOR,DEF DCM 4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1505-	●	●	●
95	03.634 BRACKET; HARN,DEF DCM EXH NOX SE 4JJ1-TCS ENG(LFB)	8-98204-433-1	01	1	1505-	●	●	●
96	00.010 NUT; BRACKET,DEF DCM EXH NOX SEN 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (B) ID=20	8-94241-972-0	01	1	1505-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (C) ID=10	8-94450-392-0	06	1	1505-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 03.682 (A) ID=7	8-98002-767-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	03	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1505-	●	●	●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507	●	●	●
104	00.010 BOLT; BRKT EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-	●	●
104	00.010 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
108	00.010 NUT; CLIP EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●	●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●	●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
132	00.010 NUT; PROTECTOR 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
151	03.162 CLIP; COVER EURO6 SPECIFICATION(NT6) L=140	5-09707-031-1	01	1	1505-	●	●	●
158	03.890 GASKET; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB)	8-98086-333-0	01	1	1505-	●	●	●
159	03.890 CONNECTOR KIT; COOLANT,INJECTOR 4JJ1-TCS ENG(LFB)	8-98169-416-1	02	1	1505-	●	●	●
160	03.890 CLIP; HARNESS,SENSOR DEF DCM EXH 4JJ1-TCS ENG(LFB)	8-98170-331-0	01	1	1505-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
