Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#161059) — 373 parça

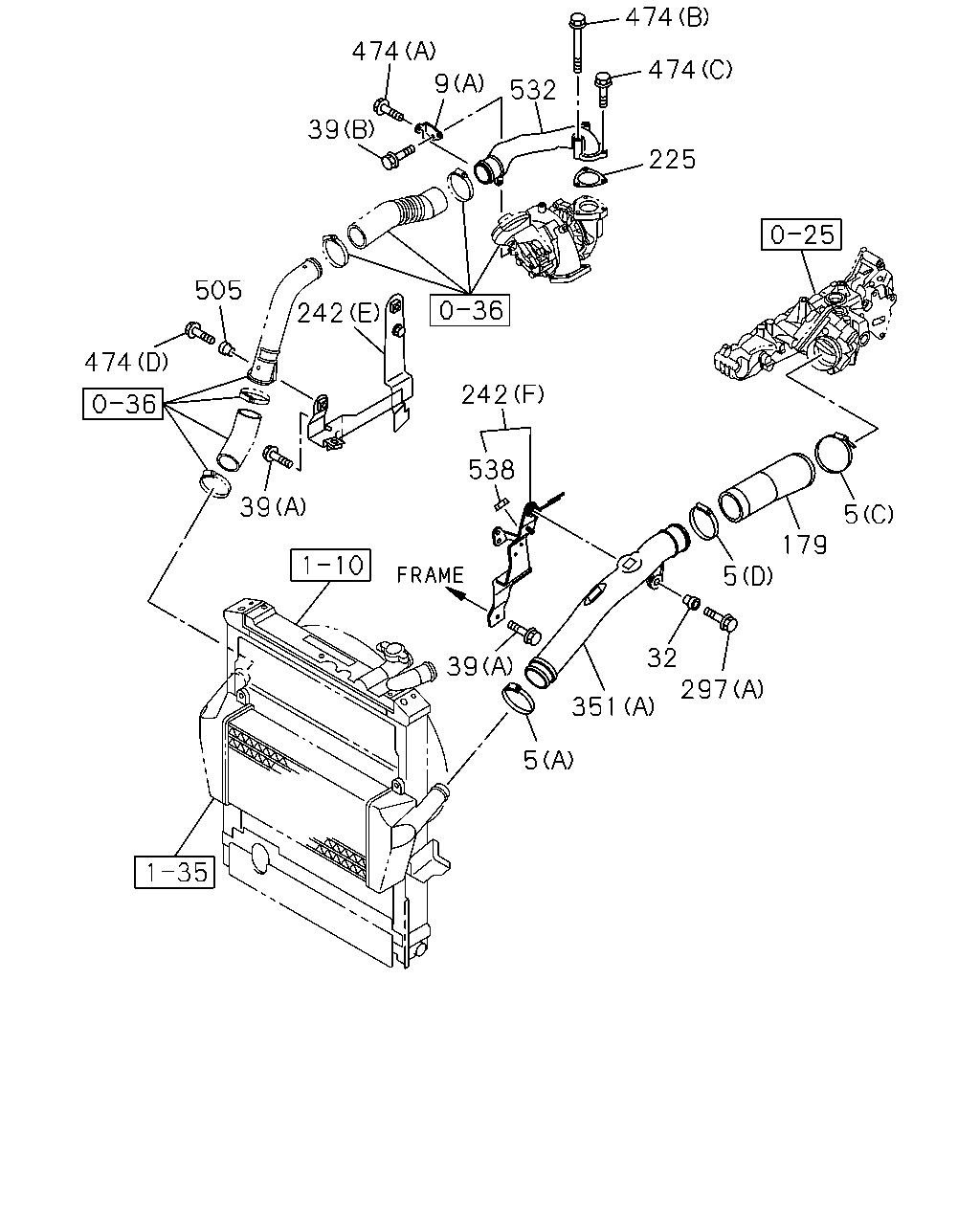

5 32 297 351 39 5 179 242 538 39 242 505 474 39 474 532 9 474 474 225 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98009-086-0	01	1	1505-	●	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (B)	8-98206-338-1	01	1	1505-			●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-	●	●	●
179	03.417 HOSE; AIR INT	8-98111-374-1	01	1	1505-	●	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.270 ID=47	8-97202-328-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-97384-140-3	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (G)	8-98194-754-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
474	03.417 BOLT; PIPE 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) M6X70 FLANGE	0-28050-670-0	02	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1505-	●	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98237-771-1	01	1	1505-	●	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●

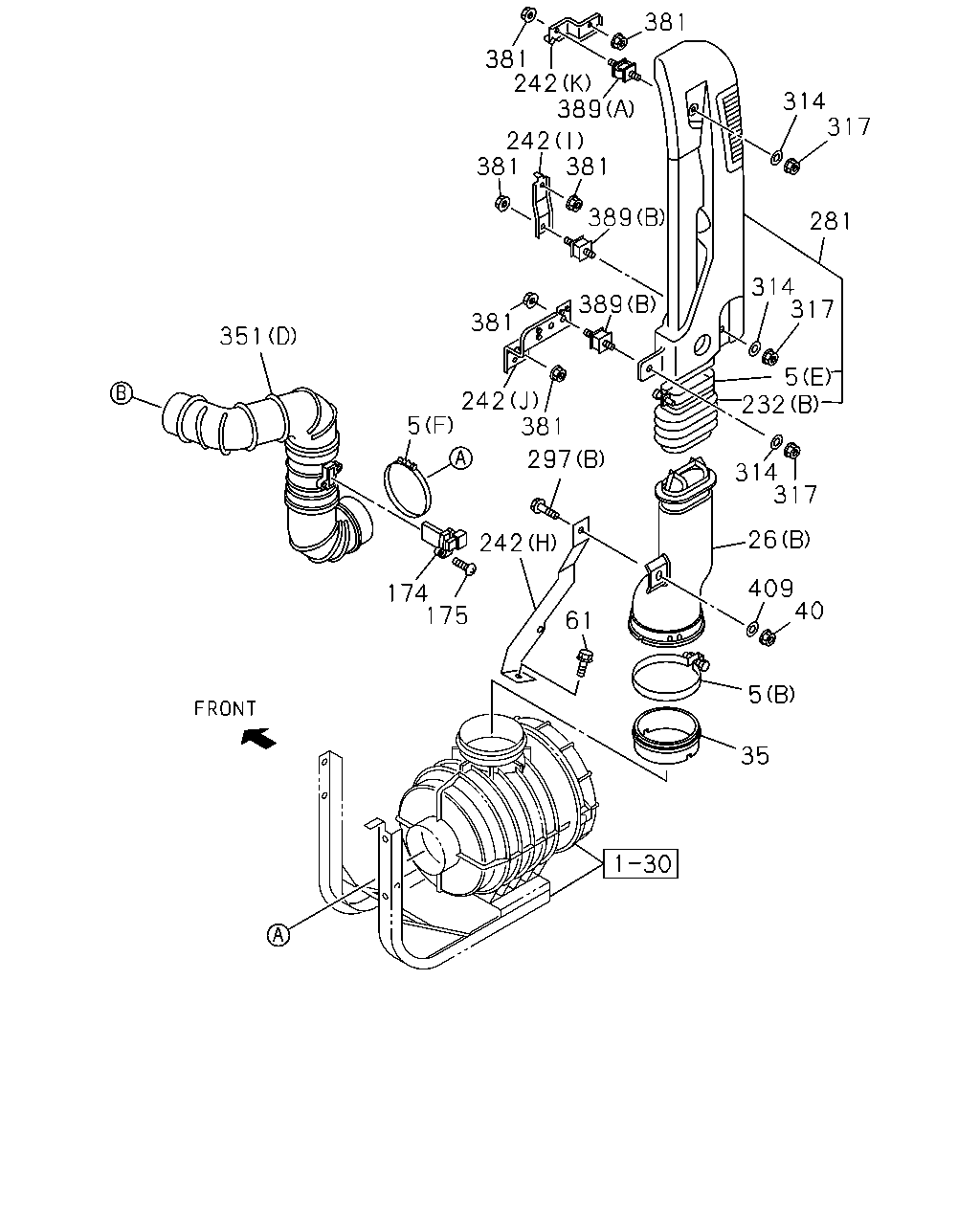

317 314 381 389 242 381 381 242 381 389 389 381 381 242 5 351 297 242 175 174 61 409 40 5 35 26 317 314 232 5 317 314 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1505-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (C)	8-98206-339-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (D)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-97384-140-3	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (G)	8-98194-754-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●

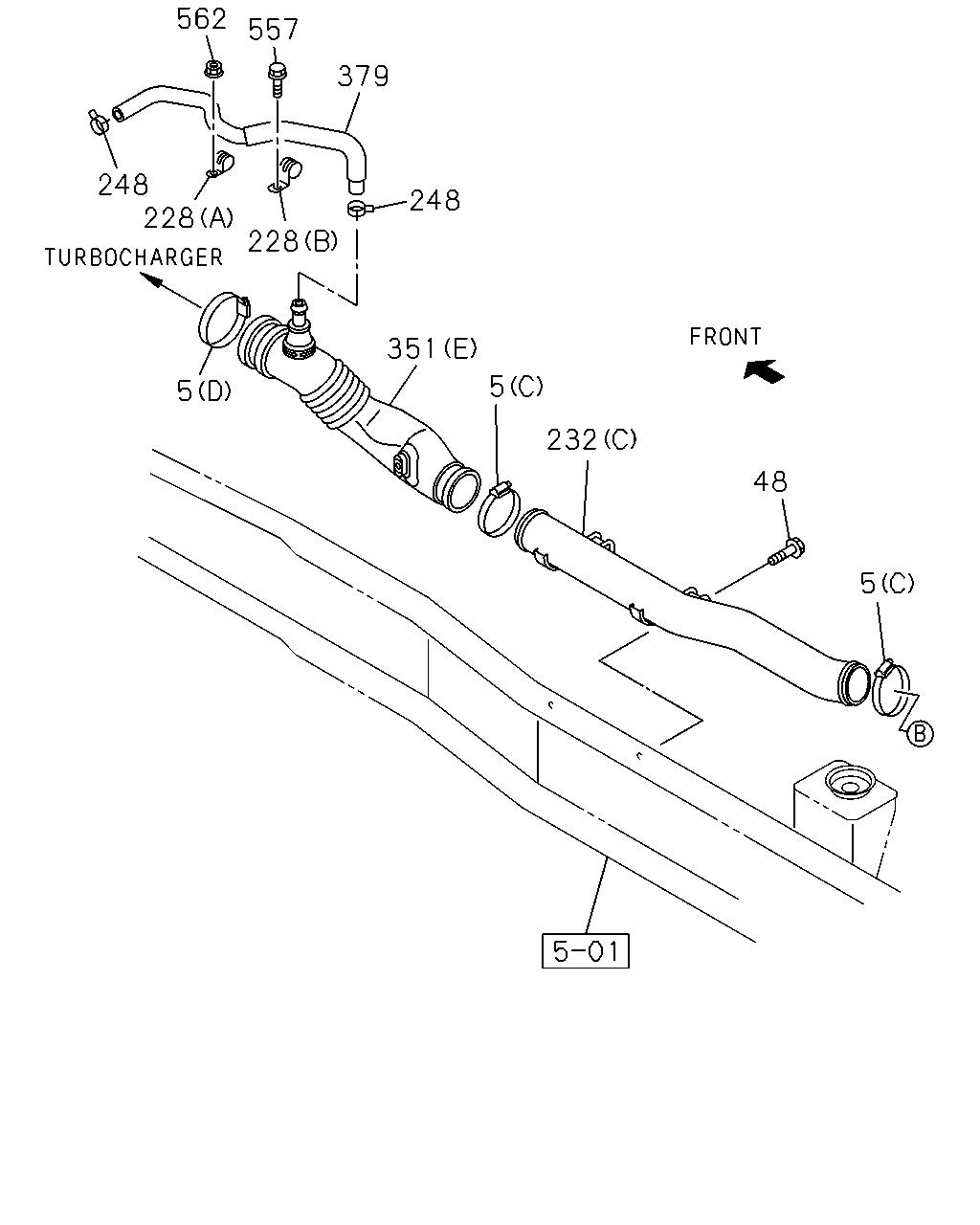

562 379 557 248 228 228 248 351 232 5 5 48 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
48	03.417 BOLT; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-			●
228	03.278 CLIP; PCV HOSE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=22 L=22	8-98120-916-0	01	1	1505-1505	●	●	●
228	03.278 CLIP; PCV HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE EURO6 SPECIFICATION(NT6) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
379	03.675 HOSE; RUBBER EURO6 SPECIFICATION(NT6)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5)	8-98205-932-2	01	1	1505-	●	●	●
557	03.403 BOLT; HOSE CLIP CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1505	●	●	●
562	03.403 NUT; HOSE CLIP EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●

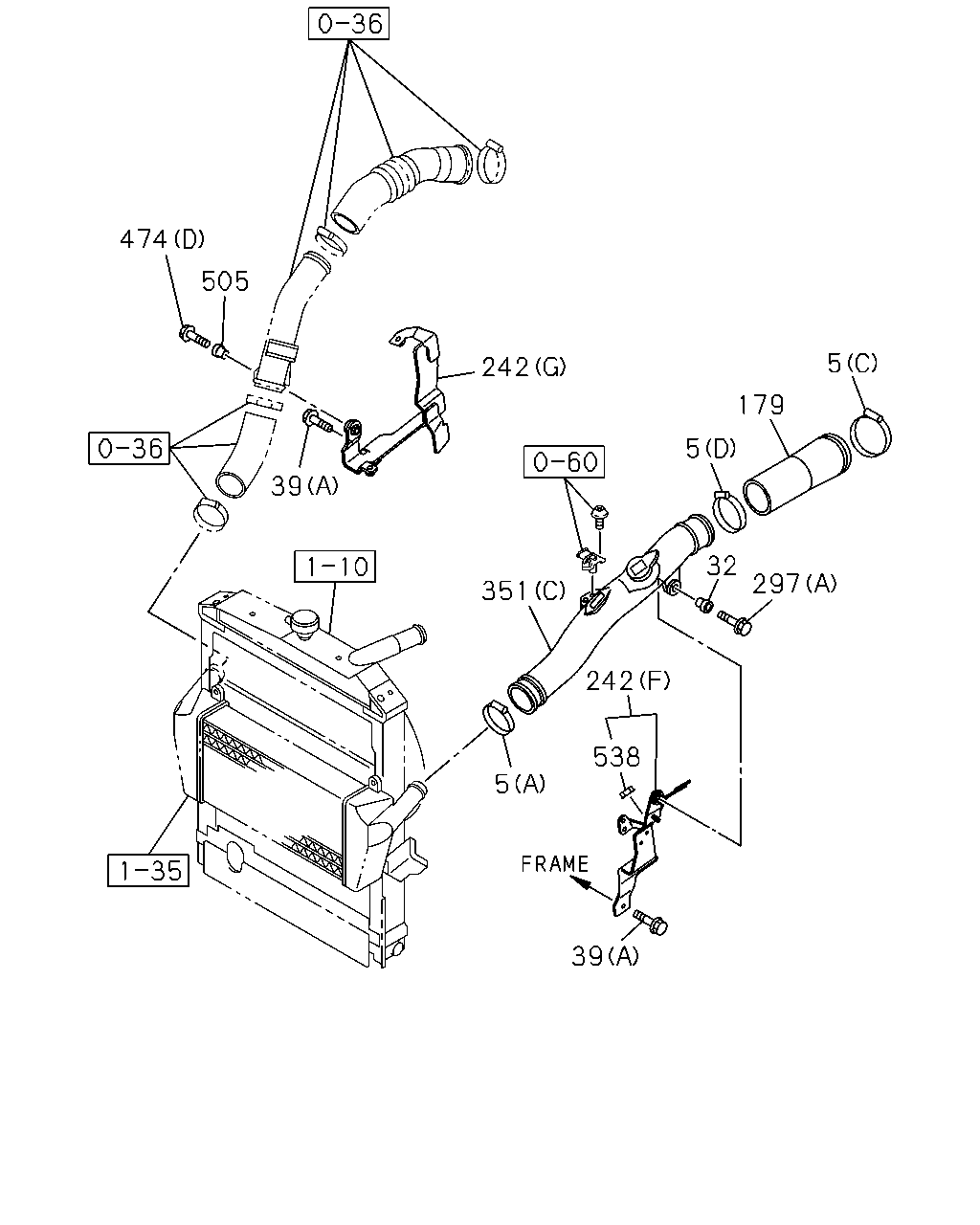

5 179 297 32 5 242 538 39 351 242 39 505 474 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-	●	●	●
179	03.417 HOSE; AIR INT	8-98111-374-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-97384-140-3	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (G)	8-98194-754-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
474	03.417 BOLT; PIPE 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) M6X70 FLANGE	0-28050-670-0	02	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1505-	●	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●

314 281 314 317 317 409 40 287 232 287 228 248 562 554 379 248 174 175 242 6 5 35 228 61 426 351 389 242 381 389 381 242 381 242 381 317 389 381 314 64

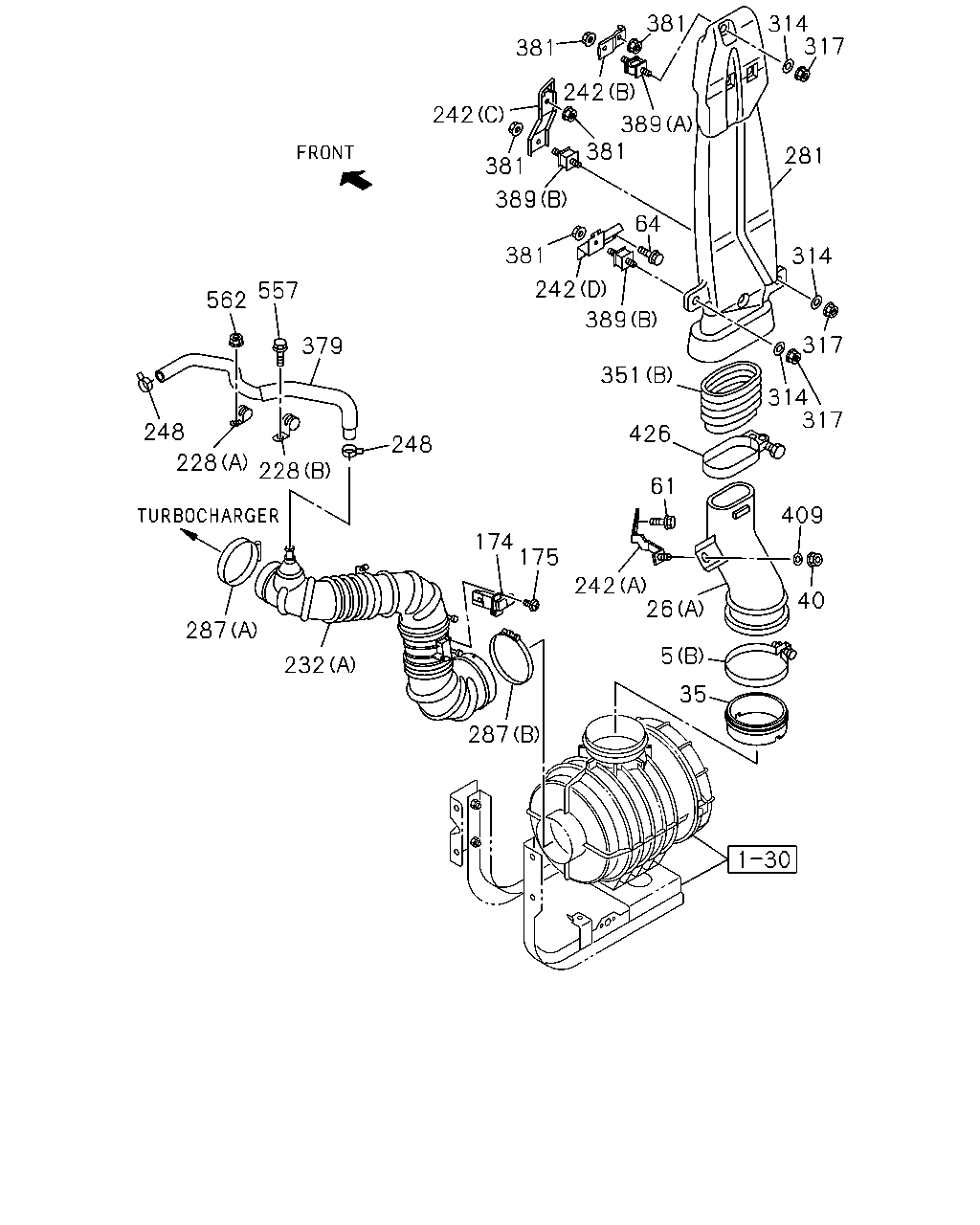

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1505-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
228	03.278 CLIP; PCV HOSE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=22 L=22	8-98120-916-0	01	1	1505-1505	●	●	●
228	03.278 CLIP; PCV HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE EURO6 SPECIFICATION(NT6) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-97384-140-3	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (G)	8-98194-754-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (B) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	1505-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
379	03.675 HOSE; RUBBER EURO6 SPECIFICATION(NT6)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5)	8-98205-932-2	01	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1505-	●	●
426	03.417 CLIP; DUCT 4JJ1-TCS ENG(LFB) 03.407 ID=127	1-14239-263-0	02	1	1505-			●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1505	●	●	●
562	03.403 NUT; HOSE CLIP EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●

381 381 242 389 242 381 381 381 242 26 9 562 426 10 381 389 389 314 317 281 314 317 5 232 314 317 5 35 409 40 287 232 287 228 248 248 384 297 557 379 297 553 26 426 351 242 175 174 228

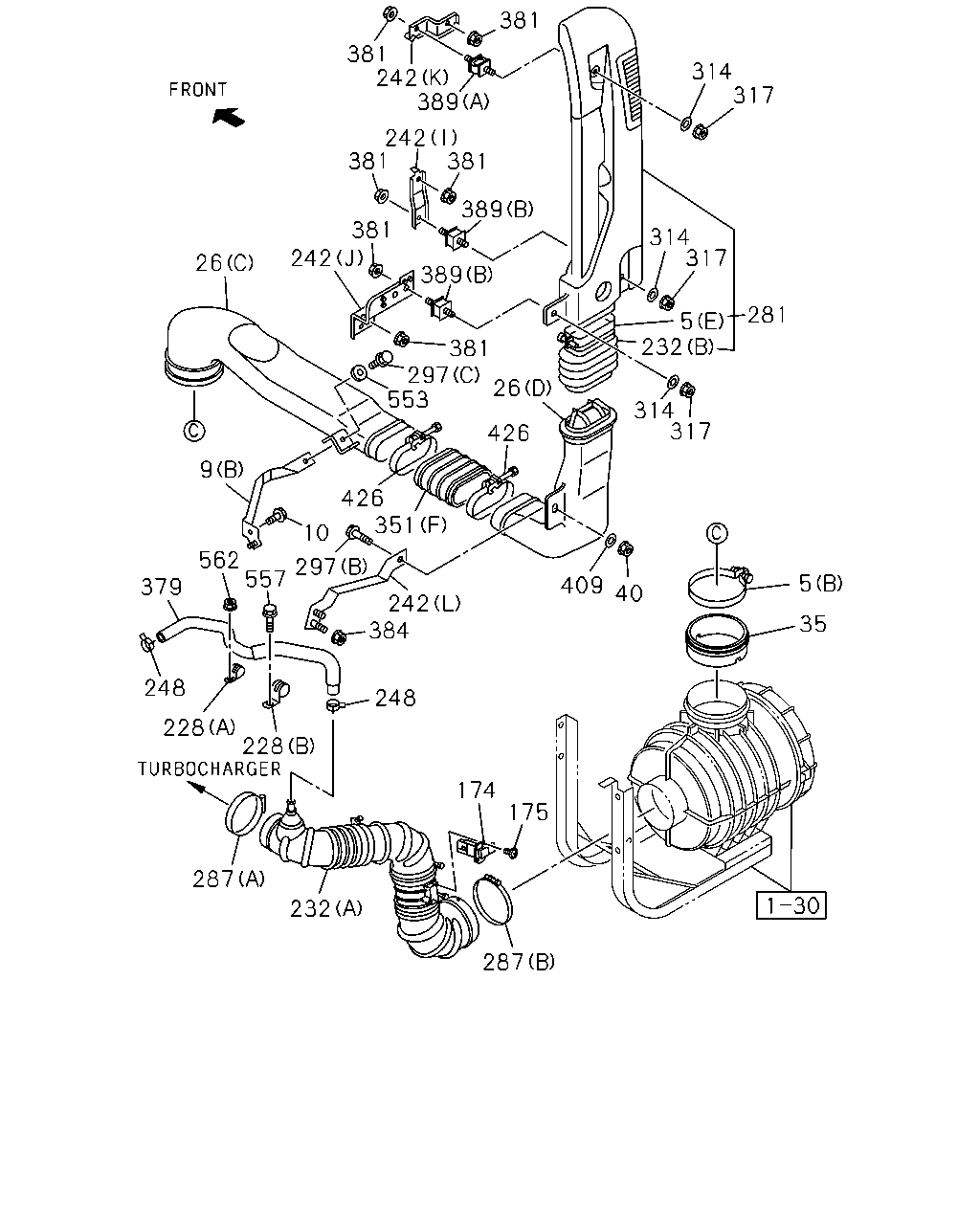

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98009-086-0	01	1	1505-	●	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (B)	8-98206-338-1	01	1	1505-			●
10	03.417 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1505-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (C)	8-98206-339-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (D)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
228	03.278 CLIP; PCV HOSE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=22 L=22	8-98120-916-0	01	1	1505-1505	●	●	●
228	03.278 CLIP; PCV HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE EURO6 SPECIFICATION(NT6) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-97384-140-3	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (G)	8-98194-754-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (B) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	1505-	●	●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
379	03.675 HOSE; RUBBER EURO6 SPECIFICATION(NT6)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5)	8-98205-932-2	01	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1505-	●	●
426	03.417 CLIP; DUCT 4JJ1-TCS ENG(LFB) 03.407 ID=127	1-14239-263-0	02	1	1505-			●
553	03.417 WASHER; AIR DUCT 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-			●
557	03.403 BOLT; HOSE CLIP CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1505	●	●	●
562	03.403 NUT; HOSE CLIP EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
