Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

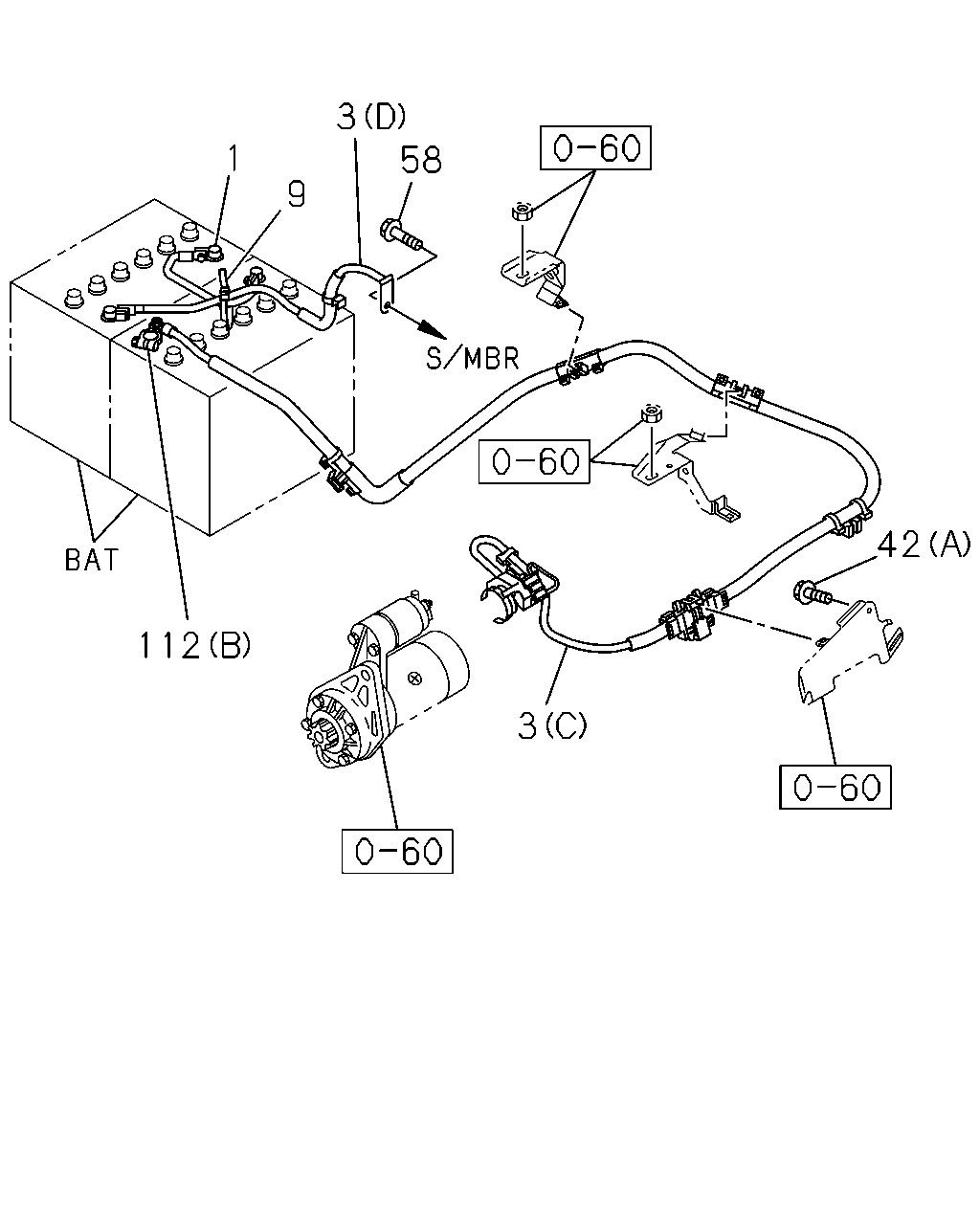

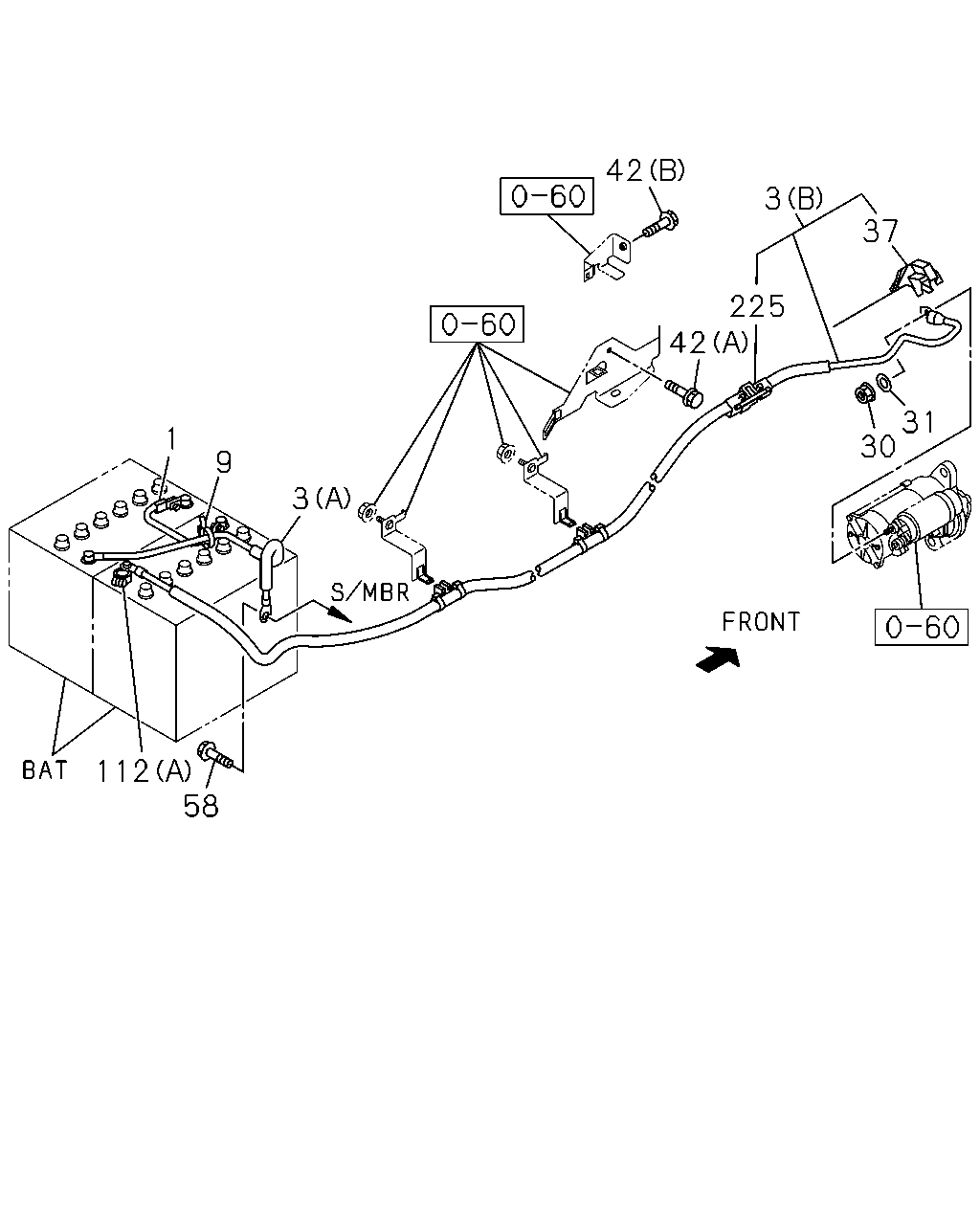

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#161052) — 86 parça

30 31 42 225 3 42 3 9 1 112 58 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) L=280	8-98025-412-3	01	1	1505-1507	●	●
1	02.341 CABLE; BATTERY SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280	8-98025-412-3	01	1	1505-1507	●
1	02.341 CABLE; BATTERY SGL CAB(NM*S) L=280	8-98025-412-3	01	1	1505-1507		●
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1508-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98294-712-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W) (D)	8-98259-982-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98294-713-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 3300MM(33W) (A)	8-98294-707-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) (B)	8-98227-629-1	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (A) L=230	8-98220-520-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (A) L=230	8-98220-520-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (A) L=230	8-98220-520-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) (A) L=230	8-98220-520-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (B)	8-98293-886-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (B)	8-98293-886-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (B)	8-98293-886-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) (B)	8-98293-886-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=200	8-98056-337-1	01	1	1505-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98294-685-0	01	1	1505-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (B)	8-98294-709-0	01	1	1505-1507	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) (B)	8-98294-709-0	01	1	1508-	●
9	02.343 CLIP; BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 L=140	5-09707-031-1	01	1	1505-1507	●
9	02.343 CLIP; BATTERY CABLE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) 03.162 L=140	5-09707-031-1	01	1	1505-1507	●
9	02.343 CLIP; BATTERY CABLE 03.162 L=140	5-09707-031-1	01	1	1508-	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1505-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1505-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1505-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1505-1507	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1505-1507	●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1505-1507		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1508-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1505-1507		●
42	02.343 BOLT; BRKT,BATTERY CABLE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1505-1507		●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1508-	●
58	02.343 BOLT; CABLE,BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER	8-98141-256-1	01	1	1505-1507	●	●
58	02.343 BOLT; CABLE,BATTERY SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER	8-98141-256-1	01	1	1505-1507	●
58	02.343 BOLT; CABLE,BATTERY SGL CAB(NM*S) M8X24 W/PL WASHER	8-98141-256-1	01	1	1505-1507		●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1508-	●	●
112	02.343 TERMINAL; BATTERY SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97365-770-0	01	1	1505-1507	●
112	02.343 TERMINAL; BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (B)	8-97365-770-0	01	1	1505-1507	●
112	02.343 TERMINAL; BATTERY (B)	8-97365-770-0	01	1	1508-	●
112	02.343 TERMINAL; BATTERY SGL CAB(NM*S) (A) <+>	8-97365-771-0	01	1	1505-1507		●
112	02.343 TERMINAL; BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (A) <+>	8-97365-771-0	01	1	1505-1507		●
112	02.343 TERMINAL; BATTERY (A) <+>	8-97365-771-0	01	1	1508-		●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1505-	●	●

3 112 9 1 3 42 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) L=280	8-98025-412-3	01	1	1505-1507	●	●
1	02.341 CABLE; BATTERY SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280	8-98025-412-3	01	1	1505-1507	●
1	02.341 CABLE; BATTERY SGL CAB(NM*S) L=280	8-98025-412-3	01	1	1505-1507		●
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1508-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98294-712-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W) (D)	8-98259-982-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98294-713-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 3300MM(33W) (A)	8-98294-707-0	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) (B)	8-98227-629-1	01	1	1505-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (A) L=230	8-98220-520-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (A) L=230	8-98220-520-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (A) L=230	8-98220-520-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) (A) L=230	8-98220-520-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (B)	8-98293-886-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (B)	8-98293-886-0	01	1	1505-1507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (B)	8-98293-886-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) (B)	8-98293-886-0	01	1	1508-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=200	8-98056-337-1	01	1	1505-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98294-685-0	01	1	1505-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (B)	8-98294-709-0	01	1	1505-1507	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DBL CAB(NM*W) (B)	8-98294-709-0	01	1	1508-	●
9	02.343 CLIP; BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 L=140	5-09707-031-1	01	1	1505-1507	●
9	02.343 CLIP; BATTERY CABLE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) 03.162 L=140	5-09707-031-1	01	1	1505-1507	●
9	02.343 CLIP; BATTERY CABLE 03.162 L=140	5-09707-031-1	01	1	1508-	●
42	02.343 BOLT; BRKT,BATTERY CABLE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1505-1507	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1505-1507	●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1505-1507		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1508-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1505-1507		●
42	02.343 BOLT; BRKT,BATTERY CABLE DBL CAB(NM*W) WHEEL BASE 3300MM(33W) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1505-1507		●
42	02.343 BOLT; BRKT,BATTERY CABLE SGL CAB(NM*S) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1508-	●
58	02.343 BOLT; CABLE,BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER	8-98141-256-1	01	1	1505-1507	●	●
58	02.343 BOLT; CABLE,BATTERY SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER	8-98141-256-1	01	1	1505-1507	●
58	02.343 BOLT; CABLE,BATTERY SGL CAB(NM*S) M8X24 W/PL WASHER	8-98141-256-1	01	1	1505-1507		●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1508-	●	●
112	02.343 TERMINAL; BATTERY SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97365-770-0	01	1	1505-1507	●
112	02.343 TERMINAL; BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (B)	8-97365-770-0	01	1	1505-1507	●
112	02.343 TERMINAL; BATTERY (B)	8-97365-770-0	01	1	1508-	●
112	02.343 TERMINAL; BATTERY SGL CAB(NM*S) (A) <+>	8-97365-771-0	01	1	1505-1507		●
112	02.343 TERMINAL; BATTERY DBL CAB(NM*W) WHEEL BASE 3300MM(33W) (A) <+>	8-97365-771-0	01	1	1505-1507		●
112	02.343 TERMINAL; BATTERY (A) <+>	8-97365-771-0	01	1	1508-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
