0-52 — OIL AND VACUUM PIPING; ENGINE (#161049) — 110 parça

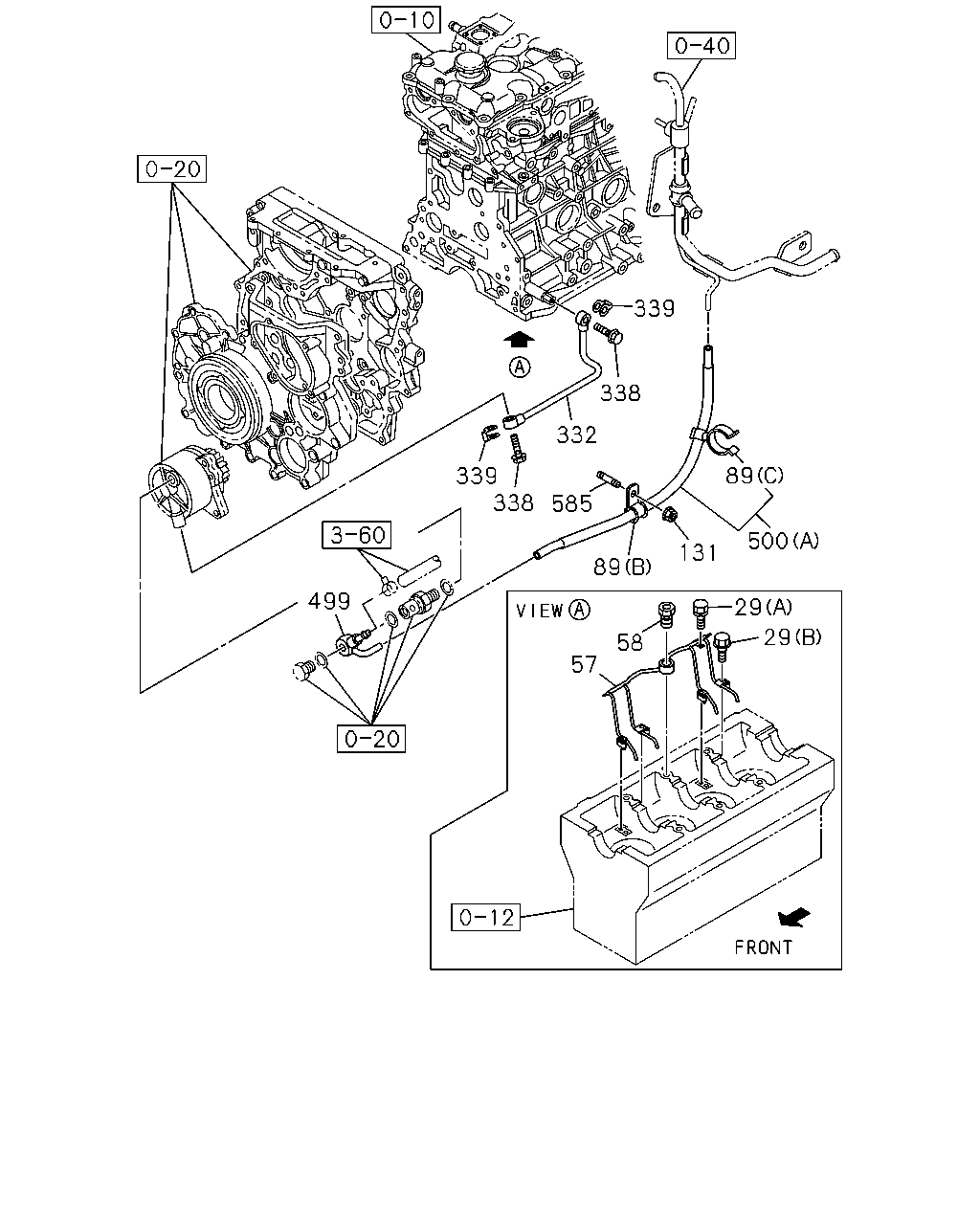

339 338 332 339 338 585 89 131 89 500 29 29 58 57 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1505-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1505-	●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1505-	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1505-	●	●
89	04.681 CLIP; VAC HOSE 03.680 (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1505-	●	●
89	04.681 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	1505-	●	●
89	04.681 CLIP; VAC HOSE 04.342 (A) ID=7	5-09707-053-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 03.680 (E) ID=7.5 & 7.5	8-97019-084-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 03.162 (C) ID=6.8 & 22.5	8-97081-816-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE (B)	9-09520-835-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 00.855 (G) ID=8.3 & 16.5	8-94169-027-0	01	1	1505-		●
89	04.681 CLIP; VAC HOSE (H)	8-97013-161-0	01	1	1505-		●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	1505-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98201-785-0	01	1	1505-	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1505-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 ID=8.3 OD=15.0	8-98065-992-0	02	1	1505-	●	●
499	04.681 PIPE; VACUUM	8-97381-661-3	01	1	1505-	●	●
500	04.681 HOSE; VACUUM (A)	8-98117-663-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (B)	8-98209-304-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (D)	8-98135-007-0	02	1	1505-		●
500	04.681 HOSE; VACUUM (C)	8-98209-305-1	01	1	1505-		●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	1505-	●	●

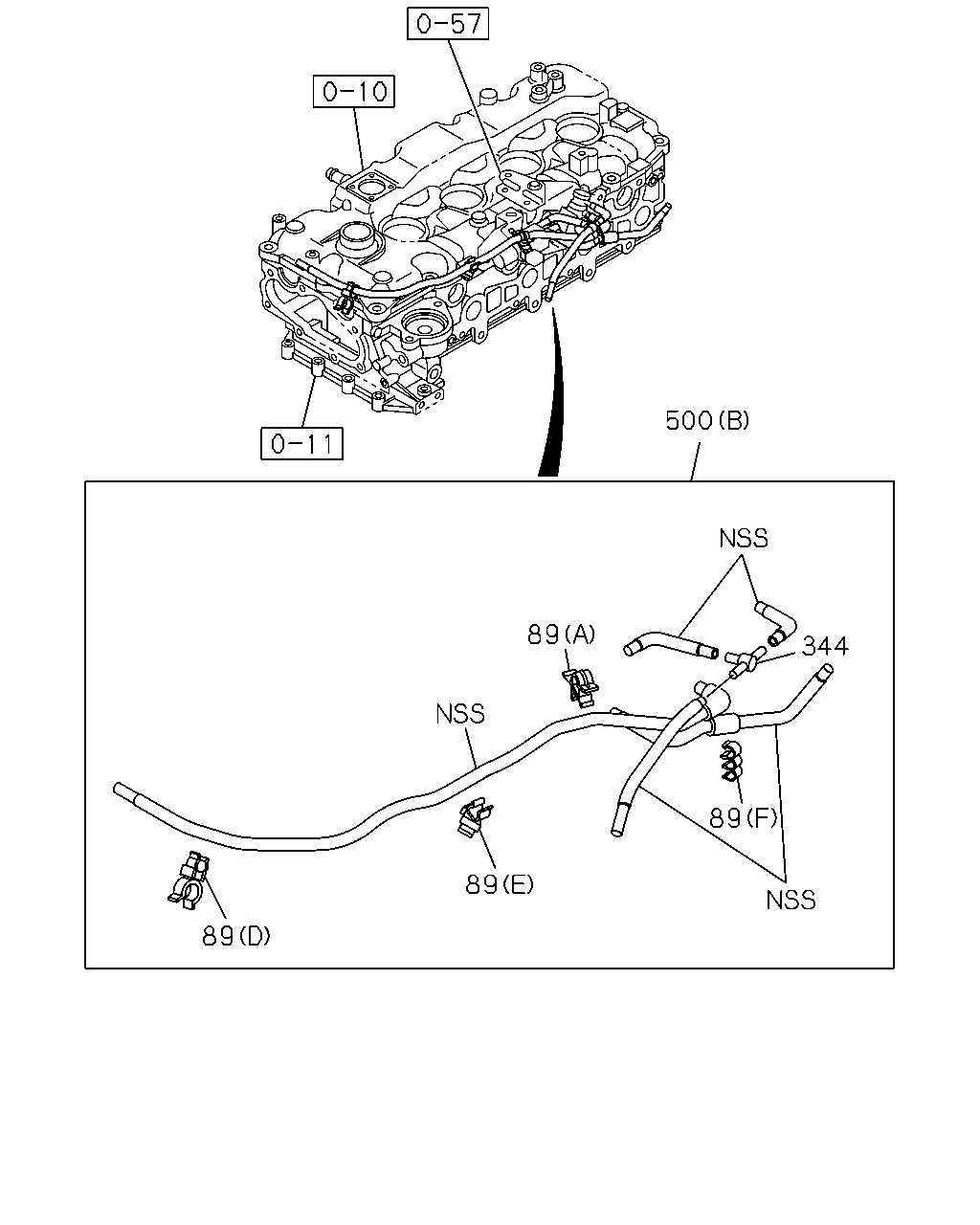

500 344 89 89 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	04.681 CLIP; VAC HOSE 03.680 (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1505-	●	●
89	04.681 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	1505-	●	●
89	04.681 CLIP; VAC HOSE 04.342 (A) ID=7	5-09707-053-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 03.680 (E) ID=7.5 & 7.5	8-97019-084-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 03.162 (C) ID=6.8 & 22.5	8-97081-816-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE (B)	9-09520-835-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 00.855 (G) ID=8.3 & 16.5	8-94169-027-0	01	1	1505-		●
89	04.681 CLIP; VAC HOSE (H)	8-97013-161-0	01	1	1505-		●
344	01.531 JOINT; RUBBER HOSE 03.680 3WAY	8-98045-385-0	01	1	1505-	●	●
500	04.681 HOSE; VACUUM (A)	8-98117-663-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (B)	8-98209-304-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (D)	8-98135-007-0	02	1	1505-		●
500	04.681 HOSE; VACUUM (C)	8-98209-305-1	01	1	1505-		●

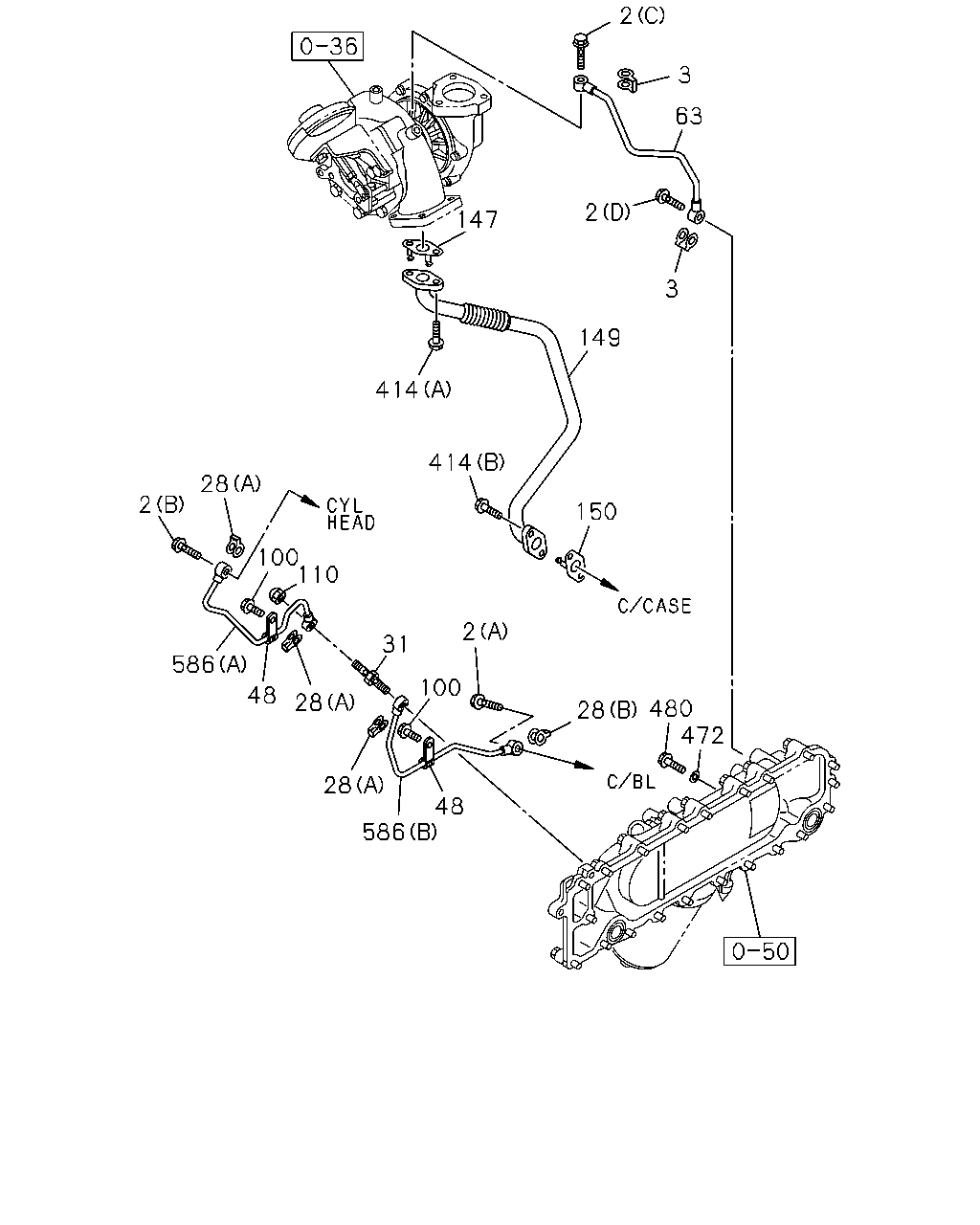

414 414 147 2 3 2 63 3 149 150 2 31 110 100 28 2 586 28 48 28 586 100 28 480 472 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1505-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1505-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X23 FLANGE	8-98108-689-0	01	1	1505-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1505-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1505-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	03	1	1505-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1505-	●	●
31	01.540 NIPPLE; OIL PIPE	8-98130-410-1	01	1	1505-	●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	02	1	1505-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	1505-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98173-150-0	01	1	1505-		●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1505-	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1505-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	1505-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98201-786-3	01	1	1505-1509	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98320-802-0	01	1	1510-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98209-359-0	01	1	1505-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98201-788-1	01	1	1505-	●	●
414	01.531 BOLT; OIL PIPE 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1505-	●	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1505-	●	●
472	01.519 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1505-	●	●
480	01.519 PLUG; OIL FILTER M10X10	1-09604-074-0	01	1	1505-	●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98074-743-1	01	1	1505-	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98130-165-0	01	1	1505-	●	●

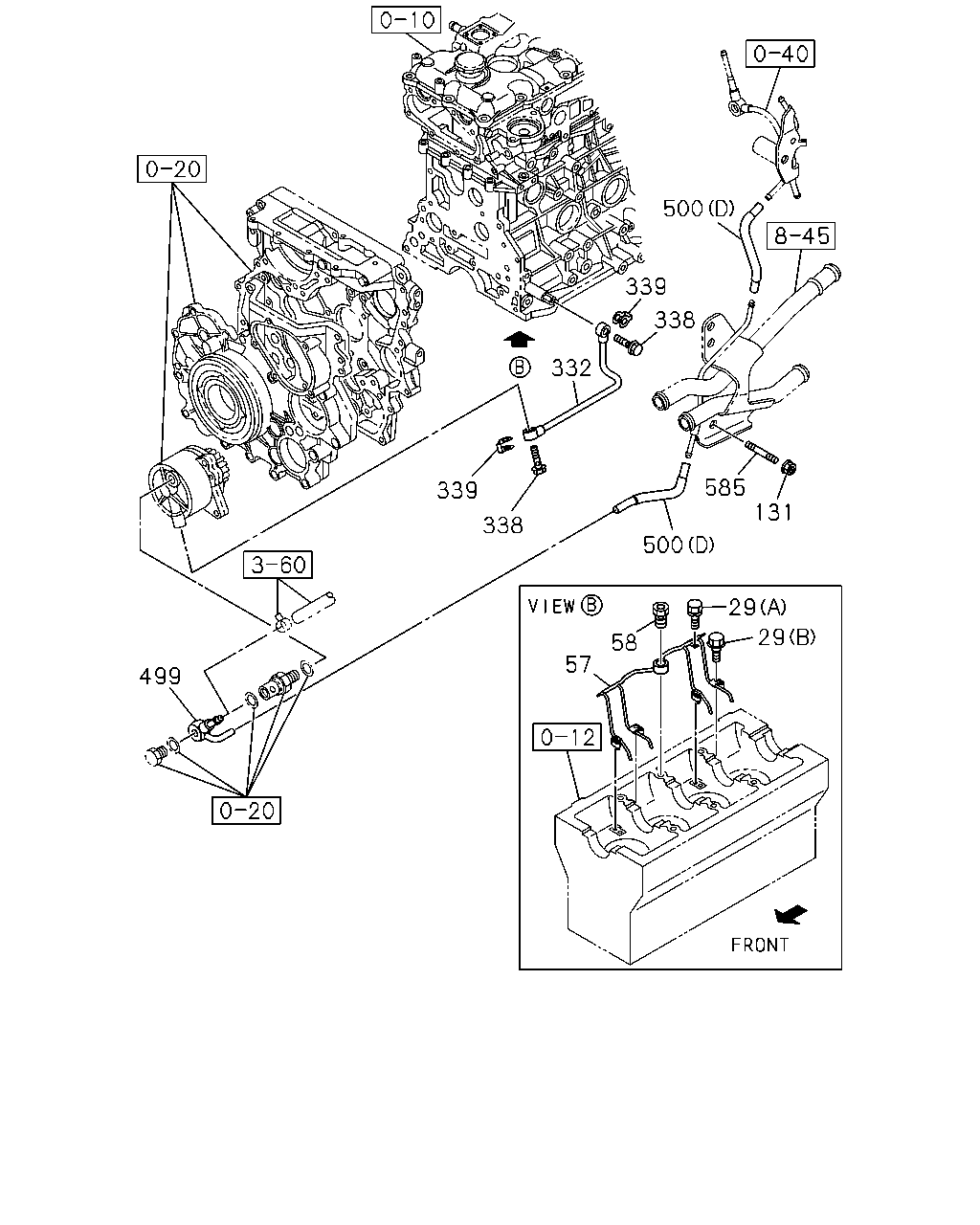

339 338 500 332 339 338 500 585 131 29 29 57 58 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1505-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1505-	●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1505-	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1505-	●	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	1505-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98201-785-0	01	1	1505-	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1505-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 ID=8.3 OD=15.0	8-98065-992-0	02	1	1505-	●	●
499	04.681 PIPE; VACUUM	8-97381-661-3	01	1	1505-	●	●
500	04.681 HOSE; VACUUM (A)	8-98117-663-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (B)	8-98209-304-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (D)	8-98135-007-0	02	1	1505-		●
500	04.681 HOSE; VACUUM (C)	8-98209-305-1	01	1	1505-		●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	1505-	●	●

147 414 149 2 3 2 63 3 150 414 2 31 100 28 28 586 48 586 100 110 28 2 28 480 472 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1505-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1505-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X23 FLANGE	8-98108-689-0	01	1	1505-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1505-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1505-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	03	1	1505-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1505-	●	●
31	01.540 NIPPLE; OIL PIPE	8-98130-410-1	01	1	1505-	●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	02	1	1505-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	1505-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98173-150-0	01	1	1505-		●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1505-	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1505-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	1505-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98201-786-3	01	1	1505-1509	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98320-802-0	01	1	1510-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98209-359-0	01	1	1505-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98201-788-1	01	1	1505-	●	●
414	01.531 BOLT; OIL PIPE 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1505-	●	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1505-	●	●
472	01.519 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1505-	●	●
480	01.519 PLUG; OIL FILTER M10X10	1-09604-074-0	01	1	1505-	●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98074-743-1	01	1	1505-	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98130-165-0	01	1	1505-	●	●

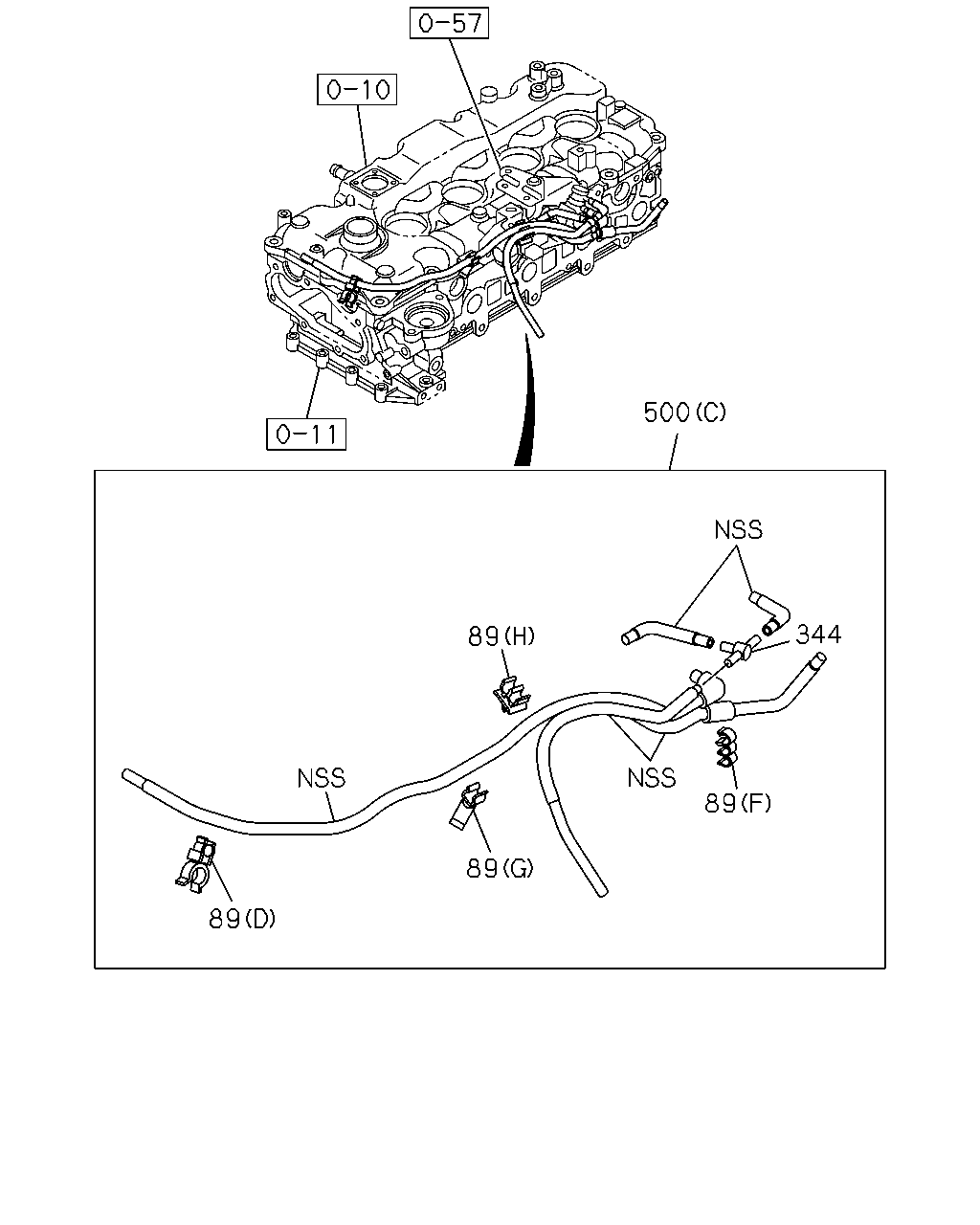

500 344 89 89 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	04.681 CLIP; VAC HOSE 03.680 (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1505-	●	●
89	04.681 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	1505-	●	●
89	04.681 CLIP; VAC HOSE 04.342 (A) ID=7	5-09707-053-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 03.680 (E) ID=7.5 & 7.5	8-97019-084-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 03.162 (C) ID=6.8 & 22.5	8-97081-816-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE (B)	9-09520-835-0	01	1	1505-	●
89	04.681 CLIP; VAC HOSE 00.855 (G) ID=8.3 & 16.5	8-94169-027-0	01	1	1505-		●
89	04.681 CLIP; VAC HOSE (H)	8-97013-161-0	01	1	1505-		●
344	01.531 JOINT; RUBBER HOSE 03.680 3WAY	8-98045-385-0	01	1	1505-	●	●
500	04.681 HOSE; VACUUM (A)	8-98117-663-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (B)	8-98209-304-0	01	1	1505-	●
500	04.681 HOSE; VACUUM (D)	8-98135-007-0	02	1	1505-		●
500	04.681 HOSE; VACUUM (C)	8-98209-305-1	01	1	1505-		●
