Sayfa 0-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

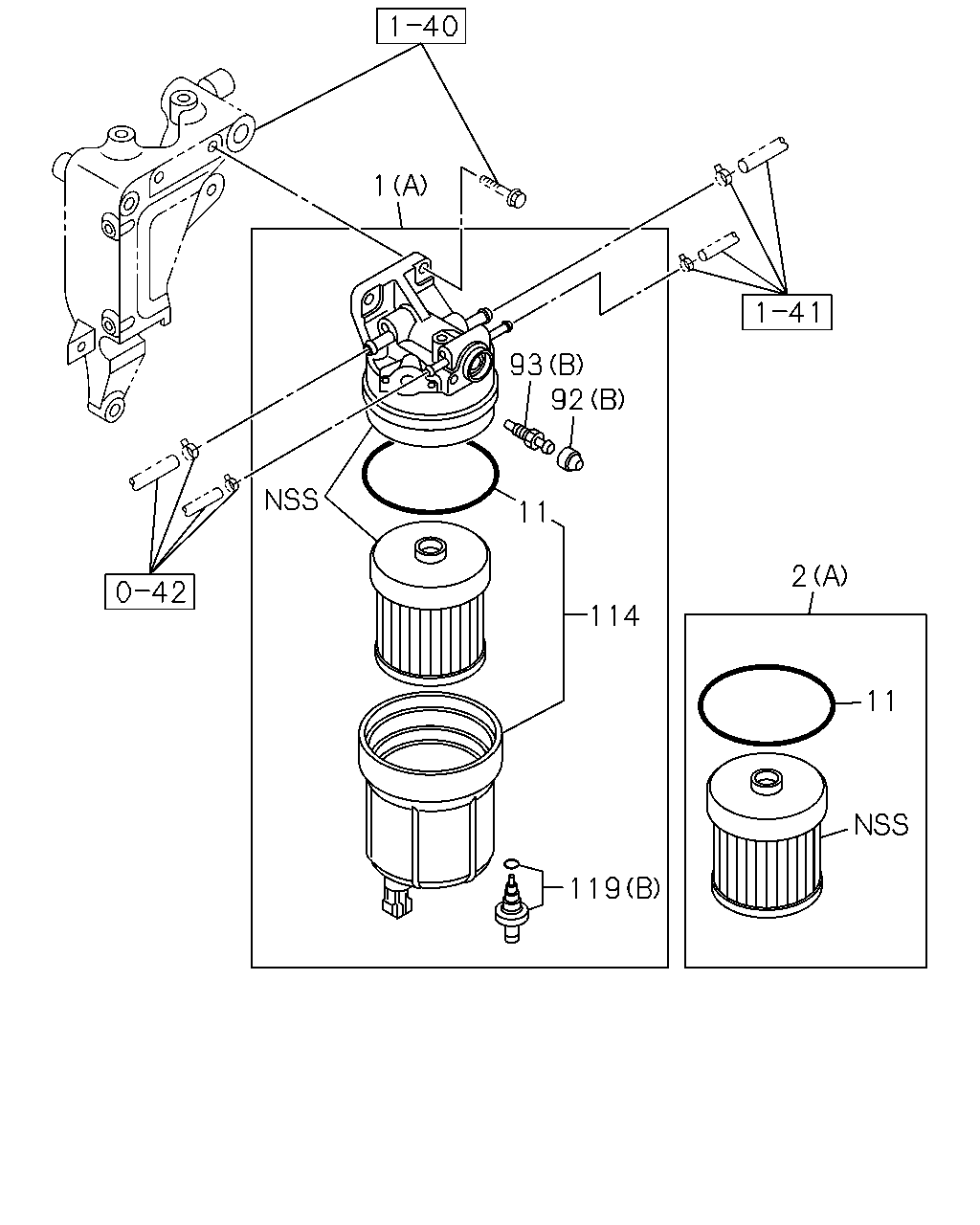

0-41 — FUEL FILTER AND BRACKET (#161045) — 64 parça

1 5 1 93 92 112 7 119 66 112 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (A)	8-98124-107-4	01	1	1505-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98169-738-0	01	1	1505-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-980-1	01	1	1505-		●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1505-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1505-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98037-481-0	01	1	1505-	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-983-0	01	1	1505-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1505-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B) BEST VALUE PARTS	5-87610-157-0	01	1	1505-	●
5	03.890 BOLT; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-1507	●
5	03.890 BOLT; FUEL FILTER DBL CAB(NM*W) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-1507	●
5	03.890 BOLT; FUEL FILTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1508-	●
7	03.890 PLUG; SENSOR,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-97123-549-0	01	1	1505-	●
66	03.890 GASKET; PLUG,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-94447-156-0	01	1	1505-	●
92	03.417 CAP; FUEL FILTER (B)	8-98034-314-0	01	1	1505-	●	●
92	03.417 CAP; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (A)	8-97172-548-0	01	1	1505-	●
93	03.890 CONNECTOR; FUEL FILTER (B) M8X10	8-98034-312-0	01	1	1505-	●	●
93	03.890 CONNECTOR; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (A)	8-97172-546-1	01	1	1505-	●
112	06.605 GASKET; SENSOR TO CASE POOR QUALITY DIESEL FUEL(KF0) 03.417	1-09623-649-0	01	1	1505-	●
119	03.890 PLUG; DRAIN,FUEL FILTER (B)	8-98037-095-0	01	1	1505-	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (A)	8-97603-456-0	01	1	1505-	●

1 93 92 11 114 119 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (A)	8-98124-107-4	01	1	1505-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98169-738-0	01	1	1505-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-980-1	01	1	1505-		●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1505-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1505-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98037-481-0	01	1	1505-	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-983-0	01	1	1505-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1505-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B) BEST VALUE PARTS	5-87610-157-0	01	1	1505-	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1505-	●	●
92	03.417 CAP; FUEL FILTER (B)	8-98034-314-0	01	1	1505-	●	●
92	03.417 CAP; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (A)	8-97172-548-0	01	1	1505-	●
93	03.890 CONNECTOR; FUEL FILTER (B) M8X10	8-98034-312-0	01	1	1505-	●	●
93	03.890 CONNECTOR; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (A)	8-97172-546-1	01	1	1505-	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1505-	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (B)	8-98037-095-0	01	1	1505-	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (A)	8-97603-456-0	01	1	1505-	●

131 131 2 1 136 1 40 88 1 40 88 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (A)	8-98124-107-4	01	1	1505-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98169-738-0	01	1	1505-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-980-1	01	1	1505-		●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1505-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1505-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98037-481-0	01	1	1505-	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-983-0	01	1	1505-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1505-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B) BEST VALUE PARTS	5-87610-157-0	01	1	1505-	●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98230-549-0	01	1	1505-		●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98107-354-3	01	1	1505-		●
40	03.890 BRACKET; FUEL FILTER DBL CAB(NM*W) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98107-354-3	01	1	1505-		●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98147-247-0	01	1	1505-		●
40	03.890 BRACKET; FUEL FILTER DBL CAB(NM*W) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98147-247-0	01	1	1505-		●
62	03.895 NUT; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-		●
62	03.895 NUT; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-1507		●
62	03.895 NUT; FUEL FILTER DBL CAB(NM*W) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-1507		●
62	03.895 NUT; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-		●
62	03.895 NUT; FUEL FILTER DBL CAB(NM*W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-		●
88	03.895 BOLT; BRKT,FUEL FILTER SGL CAB(NM*S) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-1507		●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1508-		●
88	03.895 BOLT; BRKT,FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1508-		●
88	03.895 BOLT; BRKT,FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) IDENTIFICATION LABEL FOR KD<6UT> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1505-		●
88	03.895 BOLT; BRKT,FUEL FILTER DBL CAB(NM*W) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) IDENTIFICATION LABEL FOR KD<6UT> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1505-		●
131	03.890 PIPE; FILTER SGL CAB(NM*S) POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1505-		●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98279-324-0	01	1	1505-		●
