0-40 — FUEL INJECTION SYSTEM (#161044) — 117 parça

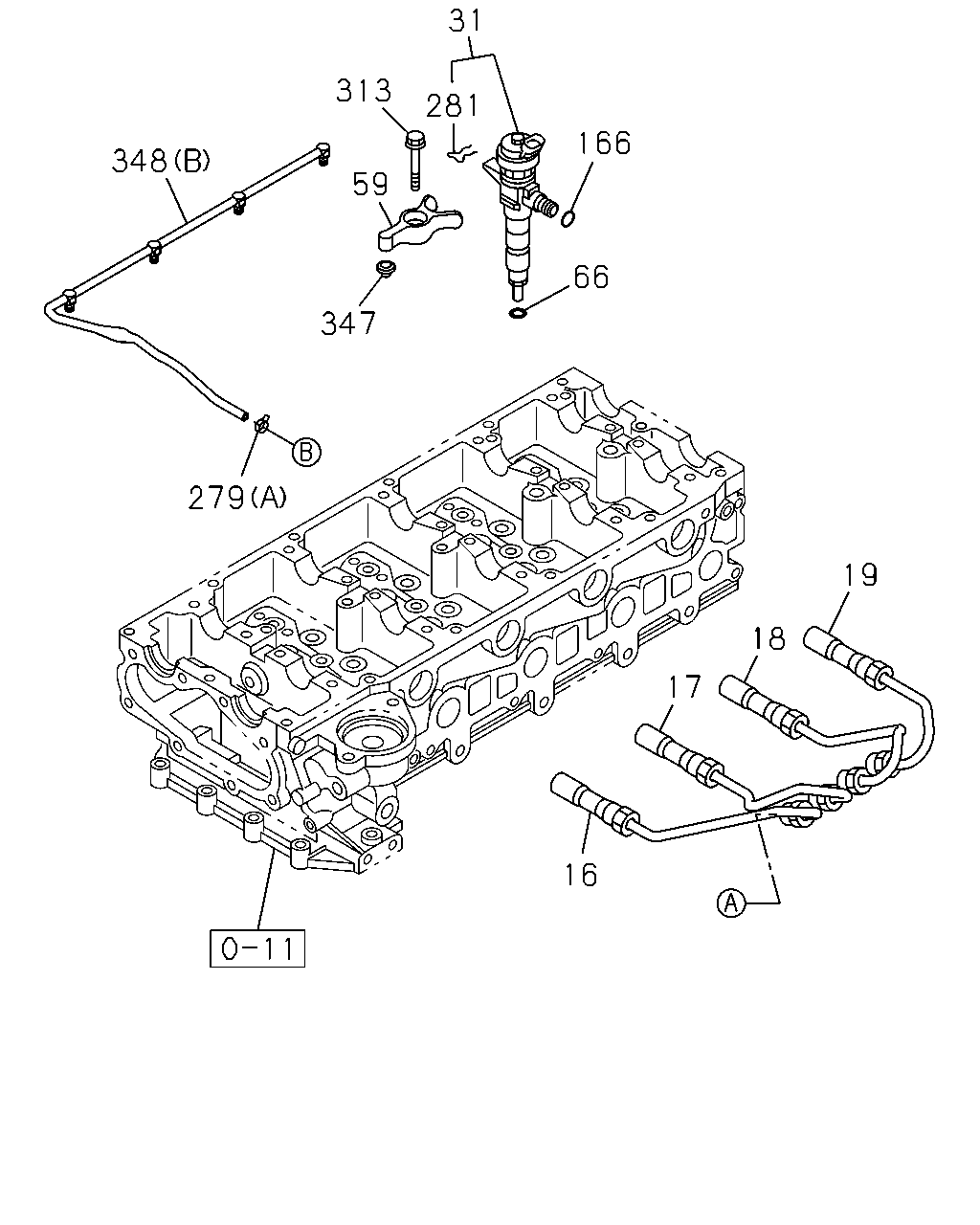

31 313 281 166 59 348 347 66 19 18 17 16 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	03.330 PIPE; INJ NO.1	8-98127-062-3	01	1	1505-	●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1505-		●
17	03.330 PIPE; INJ NO.2	8-98127-063-3	01	1	1505-	●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1505-		●
18	03.330 PIPE; INJ NO.3	8-98127-064-3	01	1	1505-	●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1505-		●
19	03.330 PIPE; INJ NO.4	8-98127-065-3	01	1	1505-	●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1505-		●
31	03.332 NOZZLE ASM; INJ	8-98087-985-1	04	1	1505-	●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1505-		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1505-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1505-	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1505-	●	●
279	03.162 CLIP; FUEL HOSE 03.680 (A) ID=7	8-94208-596-0	01	1	1505-	●
279	03.162 CLIP; FUEL HOSE 01.240 (B) ID=16	8-94392-924-0	04	1	1505-	●
279	03.162 CLIP; FUEL HOSE 01.540 (C) ID=18.9	8-94478-875-0	02	1	1505-	●
279	03.162 CLIP; FUEL HOSE 16.065 (D) ID=16	8-97038-800-0	01	1	1505-	●
279	03.162 CLIP; FUEL HOSE 01.153 (E) ID=11.5	8-97375-638-0	02	1	1505-	●
281	03.162 CLIP	8-98171-622-0	04	1	1505-	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1505-	●	●
347	03.332 PIN	8-98165-035-0	04	1	1505-	●	●
348	03.163 HOSE; FUEL (B)	8-98089-285-0	01	1	1505-	●
348	03.163 HOSE; FUEL (C)	8-98097-671-0	01	1	1505-	●
348	03.163 HOSE; FUEL (D)	8-98097-672-2	01	1	1505-	●
348	03.163 HOSE; FUEL (A) L=100	8-98240-459-0	01	1	1505-	●

283 211 279 30 279 210 210 324 354 279 348 279 279 348 279 279 279 279 348 68 102 169 102 285 68 68 168 68 408 446 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98142-370-1	01	1	1505-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98162-319-0	01	1	1505-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98162-623-1	03	1	1505-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98166-894-0	01	1	1505-		●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1505-	●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1505-	●	●
68	03.162 CLIP; INJ PIPE (C) ID=7 L=11	8-98153-873-0	02	1	1505-	●
102	03.162 BOLT; INJ PIPE CLIP 01.531 M6X30 FLANGE	0-28050-630-0	02	1	1505-	●
168	03.890 BRACKET; FUEL PIPE	8-98153-479-2	01	1	1505-	●
169	03.890 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1505-	●
210	03.330 PIPE; INJ,C/R (A)	8-98089-019-2	01	1	1505-	●
210	03.330 PIPE; INJ,C/R (B)	8-98089-020-0	01	1	1505-	●
211	03.331 RAIL ASM; COMMON	8-98087-987-1	01	1	1505-	●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1505-		●
279	03.162 CLIP; FUEL HOSE 03.680 (A) ID=7	8-94208-596-0	01	1	1505-	●
279	03.162 CLIP; FUEL HOSE 01.240 (B) ID=16	8-94392-924-0	04	1	1505-	●
279	03.162 CLIP; FUEL HOSE 01.540 (C) ID=18.9	8-94478-875-0	02	1	1505-	●
279	03.162 CLIP; FUEL HOSE 16.065 (D) ID=16	8-97038-800-0	01	1	1505-	●
279	03.162 CLIP; FUEL HOSE 01.153 (E) ID=11.5	8-97375-638-0	02	1	1505-	●
283	03.330 BOLT; COMMON RAIL 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1505-	●
283	03.330 BOLT; COMMON RAIL 04.510 (B) M10X35 FLANGE	0-28051-035-0	01	1	1505-		●
285	03.162 STUD; BRKT 01.453 M8X16 L=28	0-41010-816-0	01	1	1505-	●
324	03.330 PIPE; FUEL RETURN	8-98089-221-1	01	1	1505-	●
324	03.330 PIPE; FUEL RETURN	8-98111-476-3	01	1	1505-		●
348	03.163 HOSE; FUEL (B)	8-98089-285-0	01	1	1505-	●
348	03.163 HOSE; FUEL (C)	8-98097-671-0	01	1	1505-	●
348	03.163 HOSE; FUEL (D)	8-98097-672-2	01	1	1505-	●
348	03.163 HOSE; FUEL (A) L=100	8-98240-459-0	01	1	1505-	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●
354	03.163 BOLT; FUEL PIPE 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1505-		●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98087-986-2	01	1	1505-	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1505-		●
446	03.331 GASKET; SUPPLY PUMP	8-98210-203-0	01	1	1505-	●

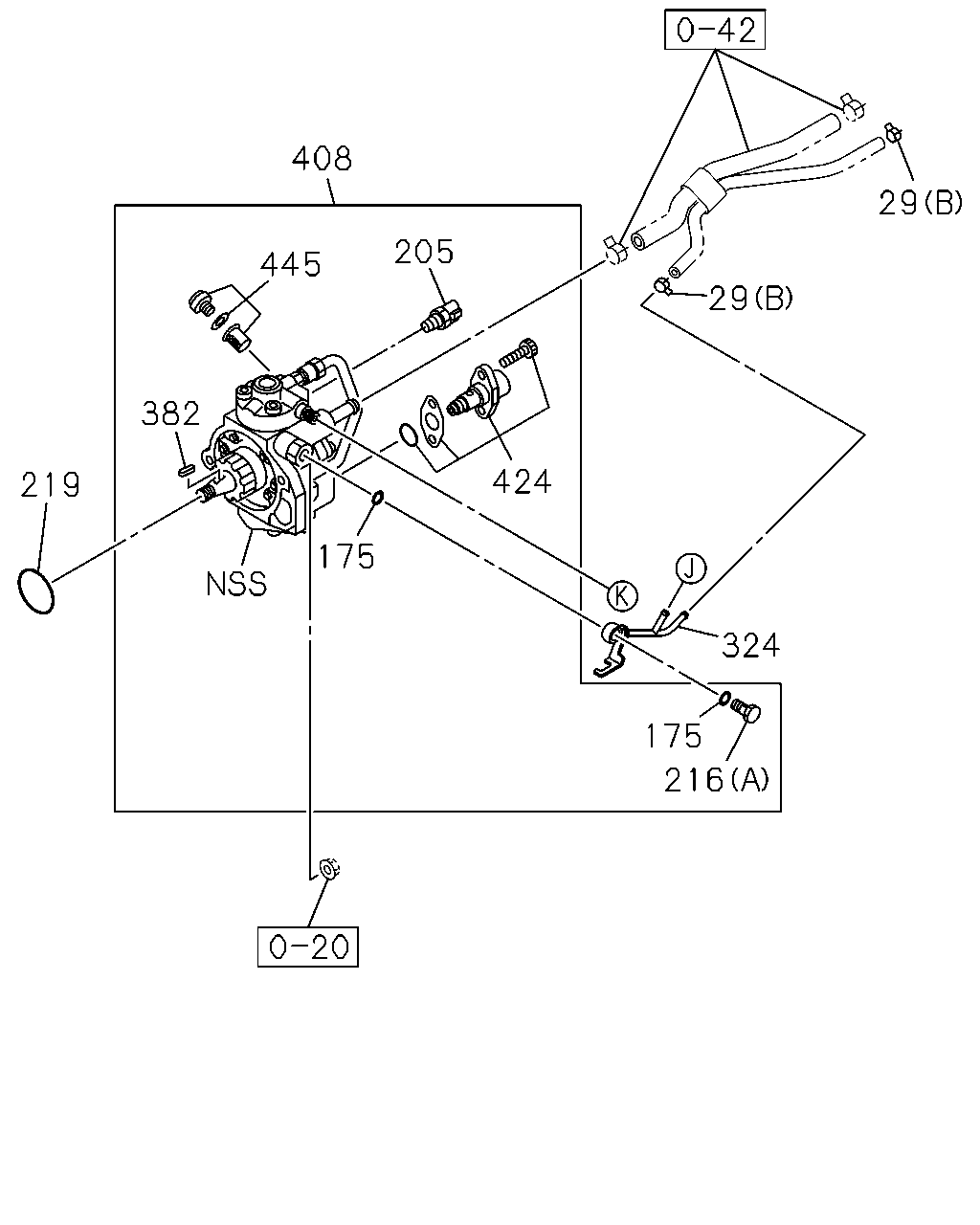

29 29 424 324 175 216 175 205 408 445 382 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1505-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1505-		●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1505-		●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1505-		●
216	03.162 BOLT; EYE (B)	8-98035-828-0	01	1	1505-		●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1505-		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1505-		●
324	03.330 PIPE; FUEL RETURN	8-98089-221-1	01	1	1505-	●
324	03.330 PIPE; FUEL RETURN	8-98111-476-3	01	1	1505-		●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1505-		●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98087-986-2	01	1	1505-	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1505-		●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1505-		●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1505-		●

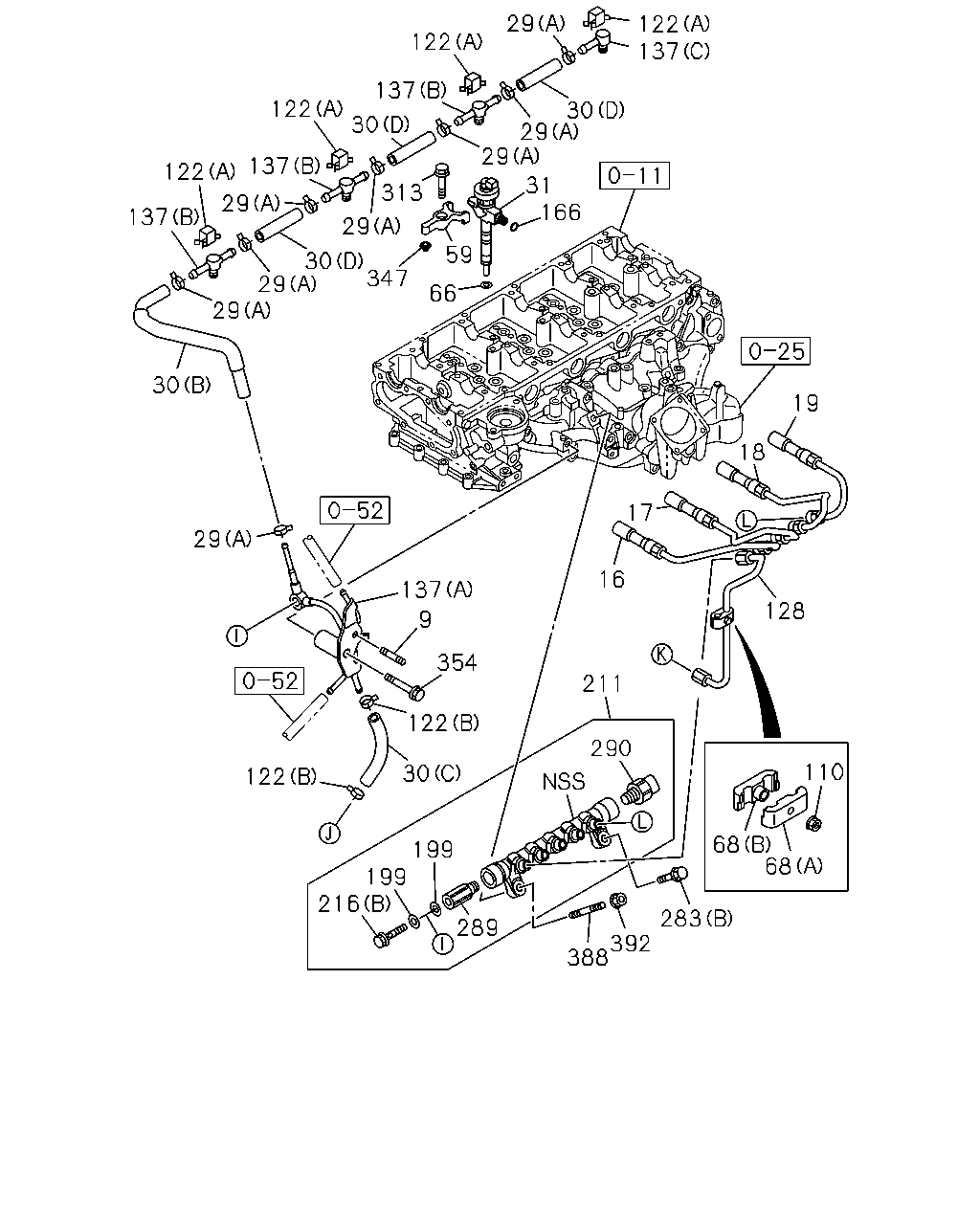

122 137 29 122 137 30 122 30 29 29 166 59 31 66 347 29 313 137 122 137 29 29 30 30 29 122 216 199 199 30 122 354 137 9 211 128 16 17 18 19 110 68 68 283 392 388 289 290 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1505-		●
16	03.330 PIPE; INJ NO.1	8-98127-062-3	01	1	1505-	●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1505-		●
17	03.330 PIPE; INJ NO.2	8-98127-063-3	01	1	1505-	●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1505-		●
18	03.330 PIPE; INJ NO.3	8-98127-064-3	01	1	1505-	●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1505-		●
19	03.330 PIPE; INJ NO.4	8-98127-065-3	01	1	1505-	●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1505-		●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1505-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1505-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98142-370-1	01	1	1505-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98162-319-0	01	1	1505-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98162-623-1	03	1	1505-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98166-894-0	01	1	1505-		●
31	03.332 NOZZLE ASM; INJ	8-98087-985-1	04	1	1505-	●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1505-		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1505-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1505-	●	●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1505-	●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1505-	●	●
68	03.162 CLIP; INJ PIPE (C) ID=7 L=11	8-98153-873-0	02	1	1505-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-		●
122	03.162 CLIP; LEAK OFF PIPE (A)	8-97315-286-0	04	1	1505-		●
122	03.162 CLIP; LEAK OFF PIPE 01.153 (B) ID=11	8-97375-639-0	02	1	1505-		●
128	03.162 PIPE ASM; INJ	8-98074-938-1	01	1	1505-		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98074-940-3	01	1	1505-		●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1505-		●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1505-		●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1505-	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-218-0	02	1	1505-		●
211	03.331 RAIL ASM; COMMON	8-98087-987-1	01	1	1505-	●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1505-		●
216	03.162 BOLT; EYE (B)	8-98035-828-0	01	1	1505-		●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1505-		●
283	03.330 BOLT; COMMON RAIL 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1505-	●
283	03.330 BOLT; COMMON RAIL 04.510 (B) M10X35 FLANGE	0-28051-035-0	01	1	1505-		●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1505-		●
290	03.331 SENSOR; PRESS	8-98138-736-0	01	1	1505-		●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1505-	●	●
347	03.332 PIN	8-98165-035-0	04	1	1505-	●	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●
354	03.163 BOLT; FUEL PIPE 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1505-		●
388	03.332 STUD; RAIL 04.510 M10X28,M10X15 L=50	5-09300-050-0	01	1	1505-		●
392	03.330 NUT; RAIL ASM 04.085 M10 FLANGE	0-91180-210-0	01	1	1505-		●
