Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#161043) — 229 parça

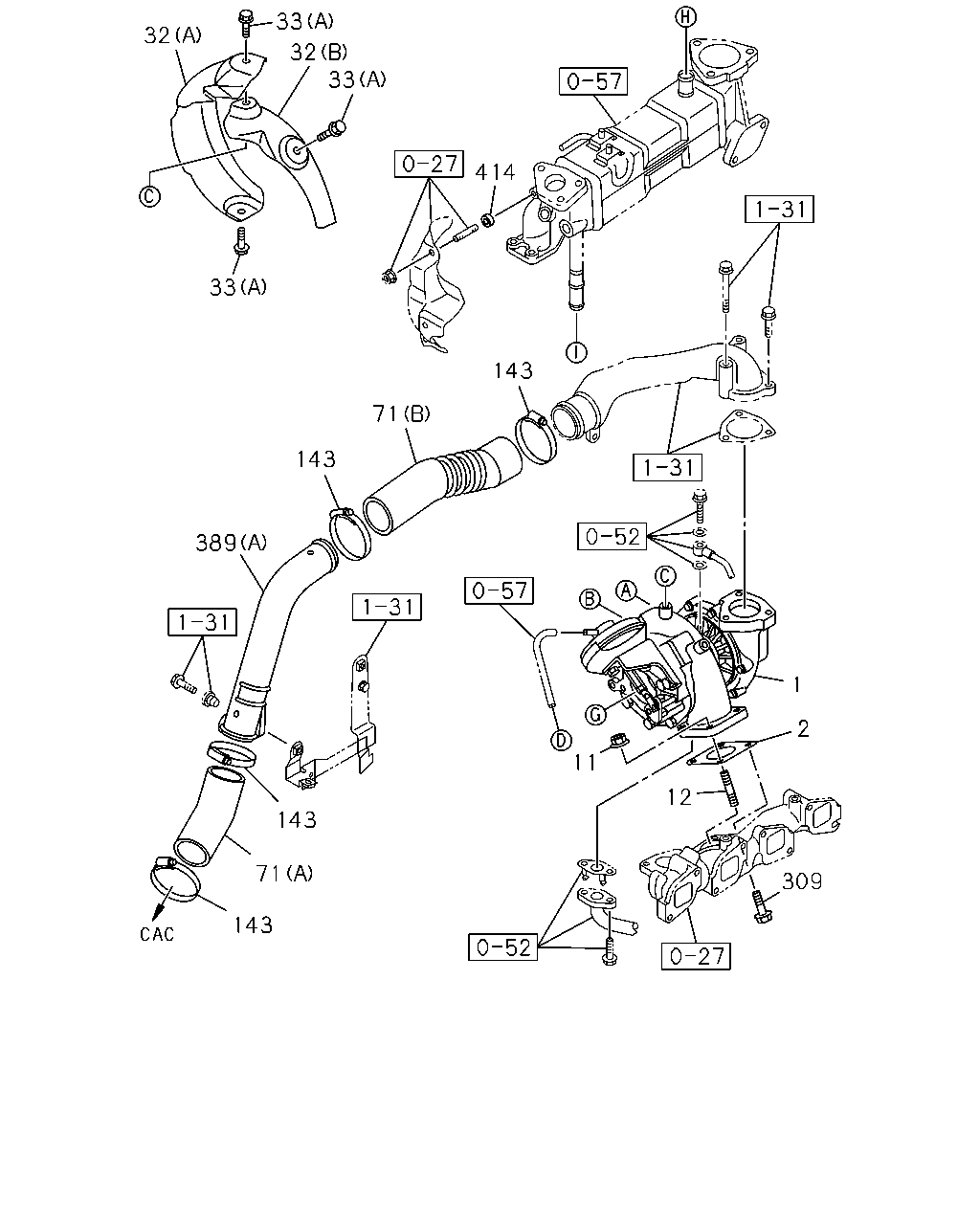

143 71 143 389 143 71 143 11 12 1 2 309 414 33 32 33 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1505-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1505-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1505-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98179-608-0	01	1	1505-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1505-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-1	01	1	1505-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98111-372-1	01	1	1505-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1505-	●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1505-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (A)	8-98038-996-1	01	1	1505-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (B)	8-98111-209-0	01	1	1505-		●
414	03.602 SPACER	8-98143-884-0	01	1	1505-	●	●

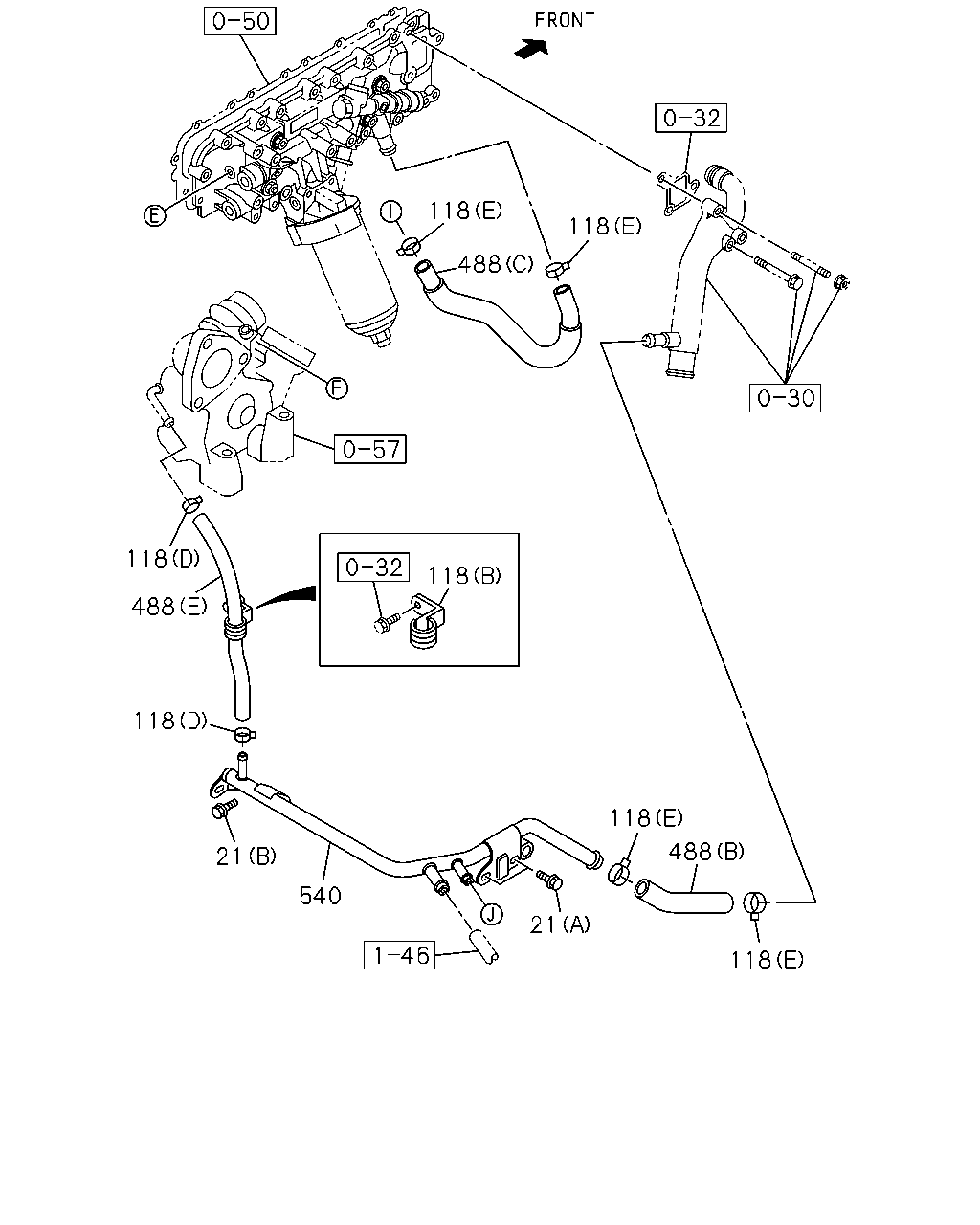

118 118 488 118 118 488 118 21 540 21 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
540	03.342 PIPE; WATER	8-98221-556-0	01	1	1505-	●

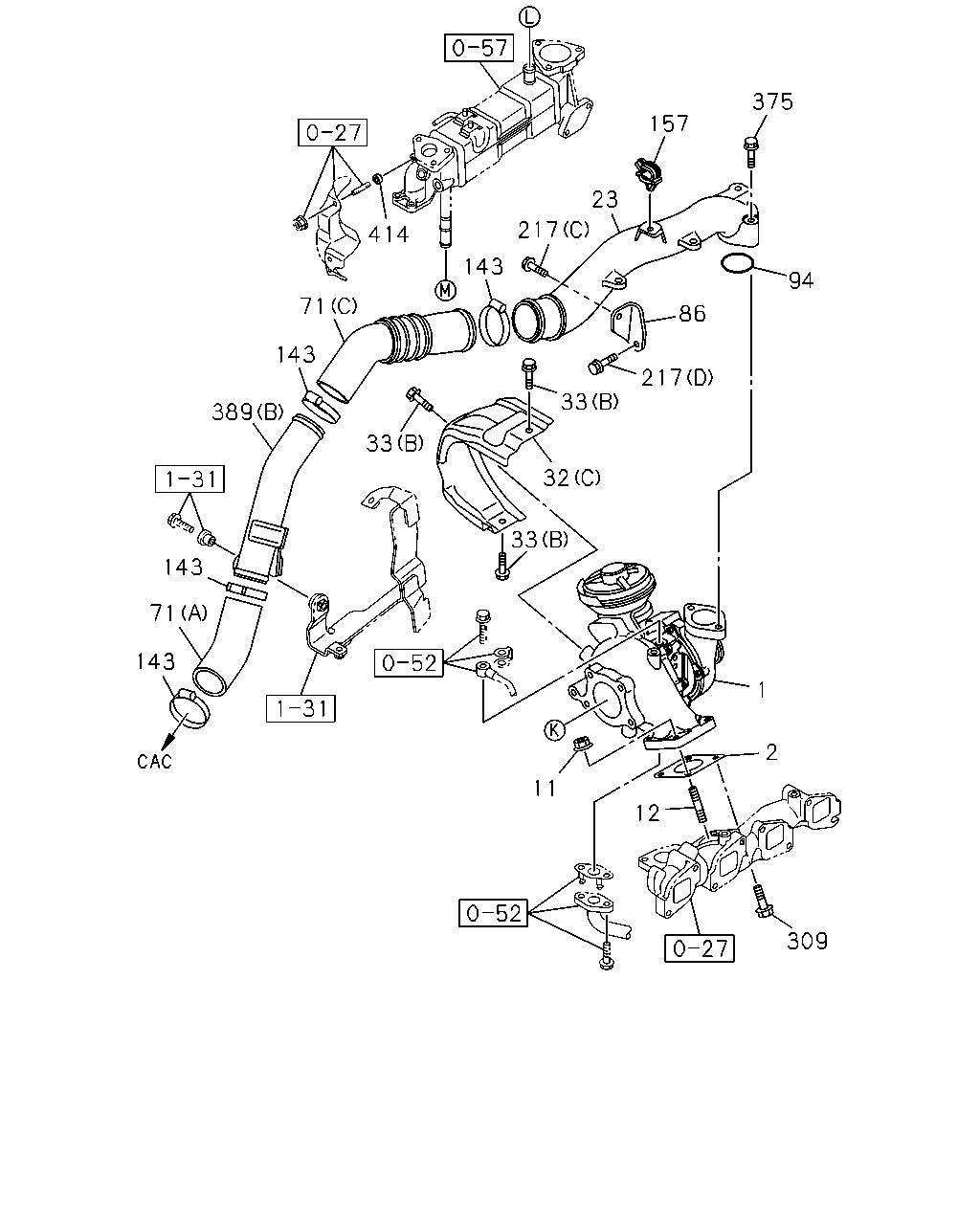

414 143 71 143 389 143 71 143 217 23 157 375 94 86 217 33 33 32 33 11 1 2 12 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1505-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1505-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1505-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98237-774-1	01	1	1505-1506		●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98308-040-0	01	1	1507-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98179-608-0	01	1	1505-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1505-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-1	01	1	1505-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98111-372-1	01	1	1505-		●
86	03.417 BRACKET; INL PIPE	8-98173-247-0	01	1	1505-		●
94	01.531 GASKET; INL PIPE ID=39.6	8-98243-868-0	01	1	1505-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1505-	●	●
157	03.417 CLIP; HOSE,INL ID=8	8-98136-175-0	01	1	1505-1506		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1505-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1505-		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1505-	●	●
375	03.342 BOLT; FLANGE 00.386 M8X50 FLANGE	0-28050-850-0	02	1	1505-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (A)	8-98038-996-1	01	1	1505-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (B)	8-98111-209-0	01	1	1505-		●
414	03.602 SPACER	8-98143-884-0	01	1	1505-	●	●

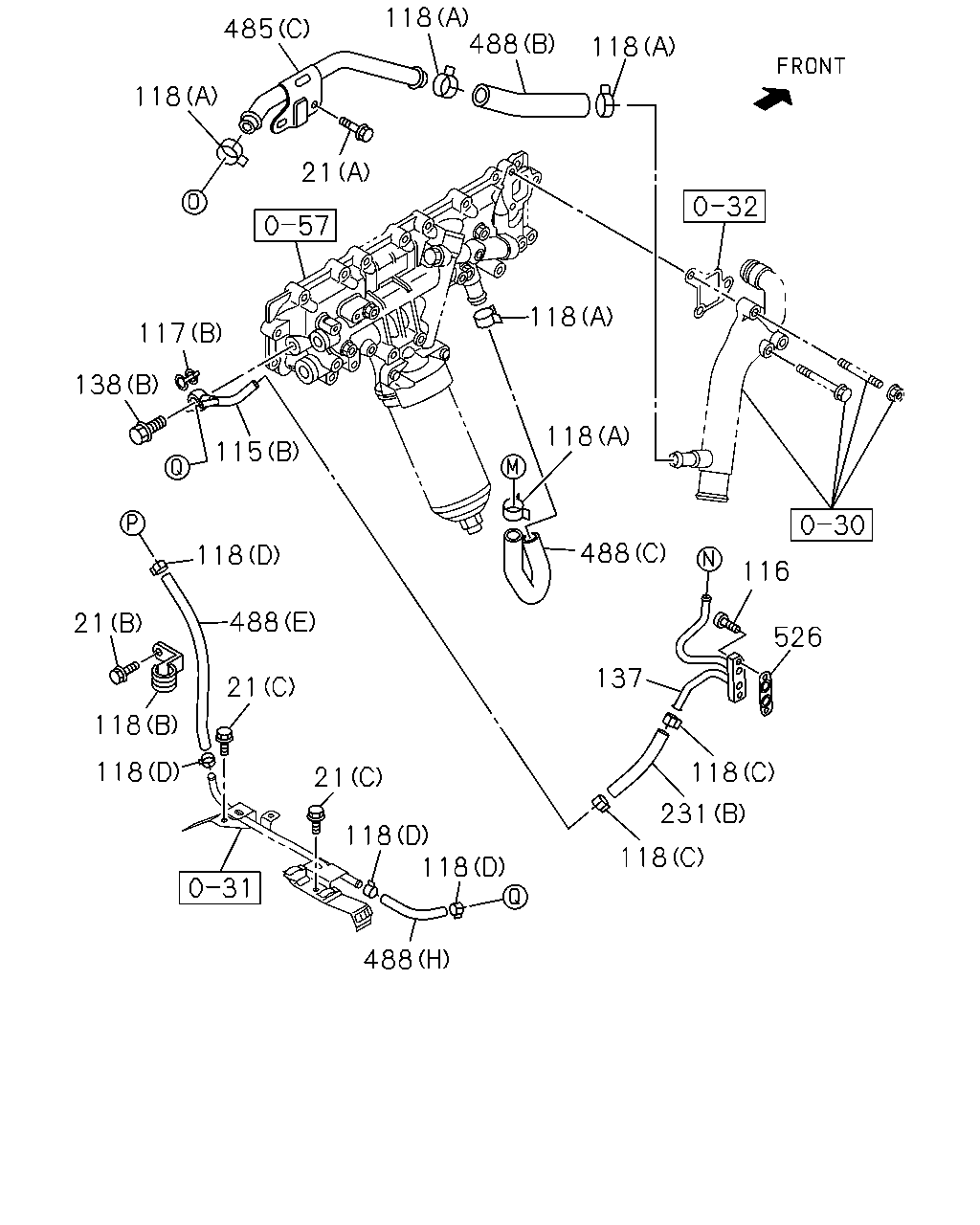

118 485 21 118 488 118 488 118 118 21 118 118 21 21 488 118 115 138 117 118 118 488 116 137 526 118 231 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98083-025-1	01	1	1505-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98223-106-0	01	1	1505-		●
116	03.342 BOLT; WATER PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1505-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1505-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6	8-97331-137-1	02	1	1505-	●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98116-985-0	01	1	1505-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1505-		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1505-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1505-		●
485	01.097 PIPE; WATER EGR (B)	8-98245-594-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (A)	8-98295-887-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (C)	8-98082-424-1	01	1	1505-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1505-		●

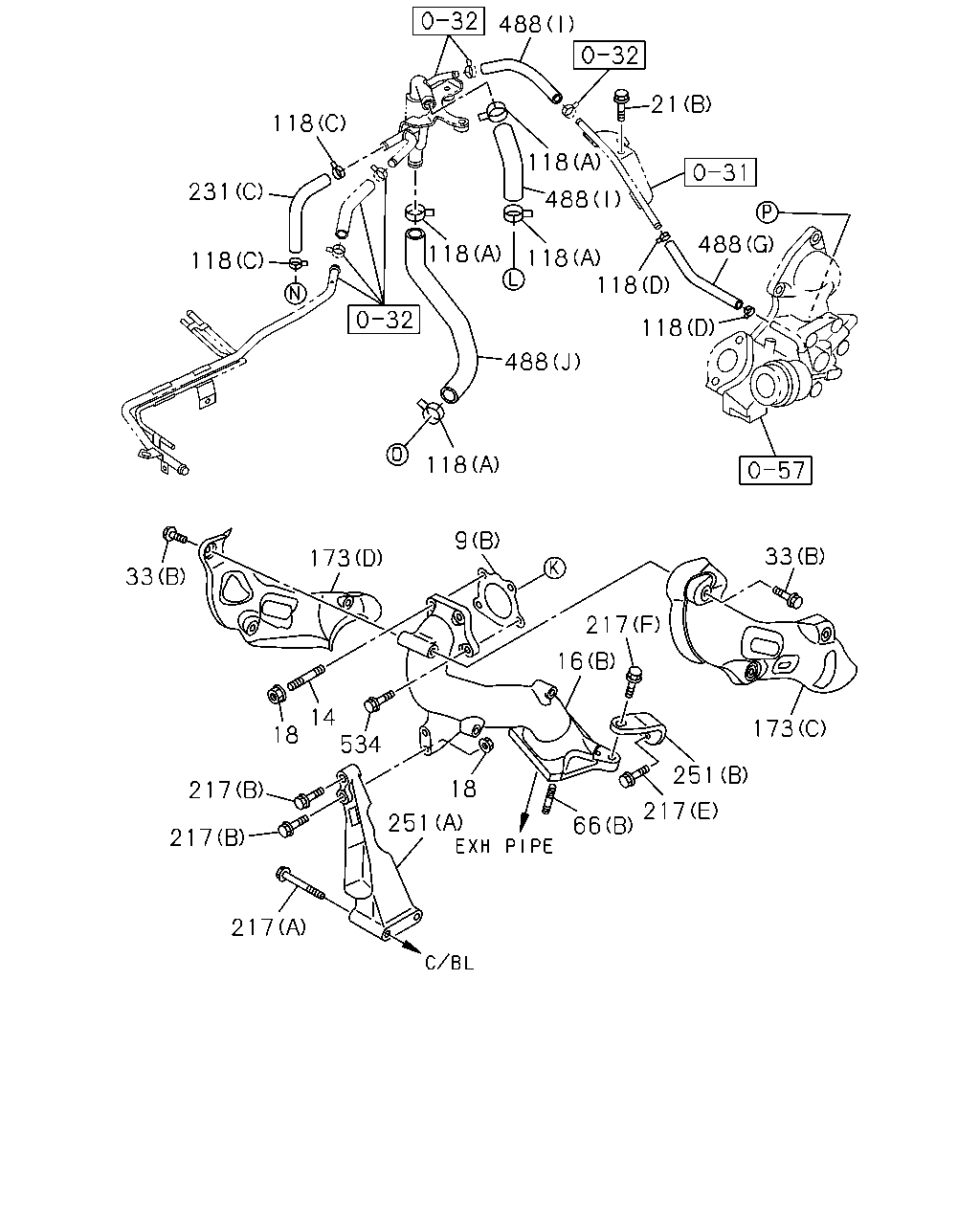

488 118 231 118 118 488 118 118 118 118 488 118 21 488 217 217 217 18 33 173 9 33 173 217 16 251 217 66 18 534 14 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	1505-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98241-385-0	01	1	1505-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
16	03.609 ADAPTER; EXH PIPE (B)	8-98224-792-1	01	1	1505-		●
16	03.609 ADAPTER; EXH PIPE (A)	8-98147-897-1	01	1	1505-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
66	03.342 STUD; EXH PIPE (A) M10X25 L=45	0-43211-025-0	03	1	1505-	●
66	03.342 STUD; EXH PIPE 05.387 (B) M10X31 L=43	8-98022-413-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1505-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1505-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1505-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1505-		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1505-	●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1505-	●	●

459 534 66 33 173 217 251 217 217 16 18 173 33 14 9 21 21 485 488 488 488 542 324 485 21 21 231 138 138 137 117 117 115 117 138 118 118 118 118 118 118 118 118 118 118 118 118

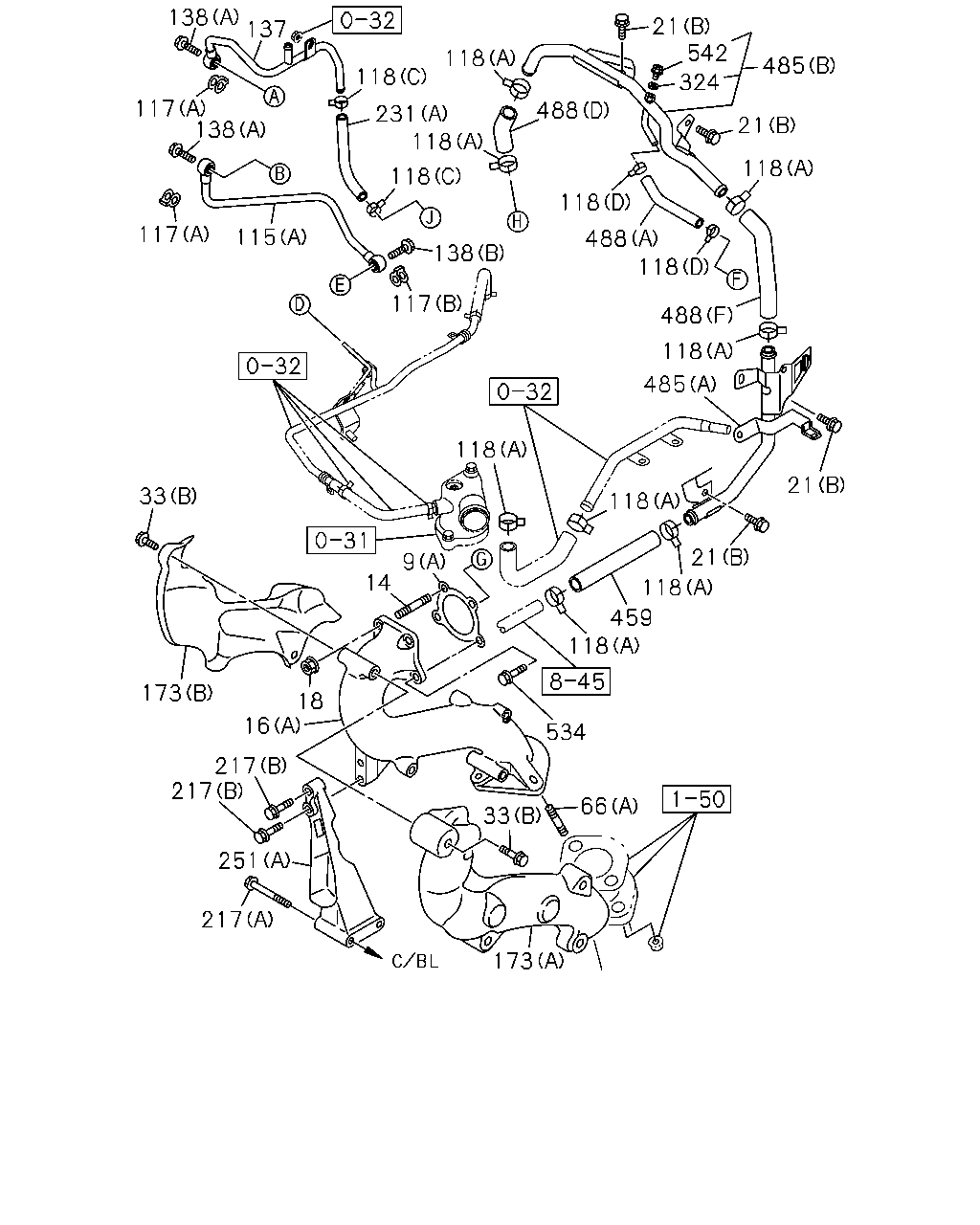

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	1505-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98241-385-0	01	1	1505-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
16	03.609 ADAPTER; EXH PIPE (B)	8-98224-792-1	01	1	1505-		●
16	03.609 ADAPTER; EXH PIPE (A)	8-98147-897-1	01	1	1505-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
66	03.342 STUD; EXH PIPE (A) M10X25 L=45	0-43211-025-0	03	1	1505-	●
66	03.342 STUD; EXH PIPE 05.387 (B) M10X31 L=43	8-98022-413-0	04	1	1505-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98083-025-1	01	1	1505-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98223-106-0	01	1	1505-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1505-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6	8-97331-137-1	02	1	1505-	●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1505-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98116-985-0	01	1	1505-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1505-		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1505-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1505-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1505-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1505-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1505-		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1505-	●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1505-		●
324	00.386 GASKET; PLUG	5-09503-132-1	01	1	1505-	●
459	03.341 HOSE; WATER 01.540 L=140 SERVICED BY L=3000	0-03566-300-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (B)	8-98245-594-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (A)	8-98295-887-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (C)	8-98082-424-1	01	1	1505-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1505-	●	●
542	01.252 PLUG; AIR BLEED 10.701 M6X8	8-94155-893-0	01	1	1505-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
