◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#161037) — 14 parça

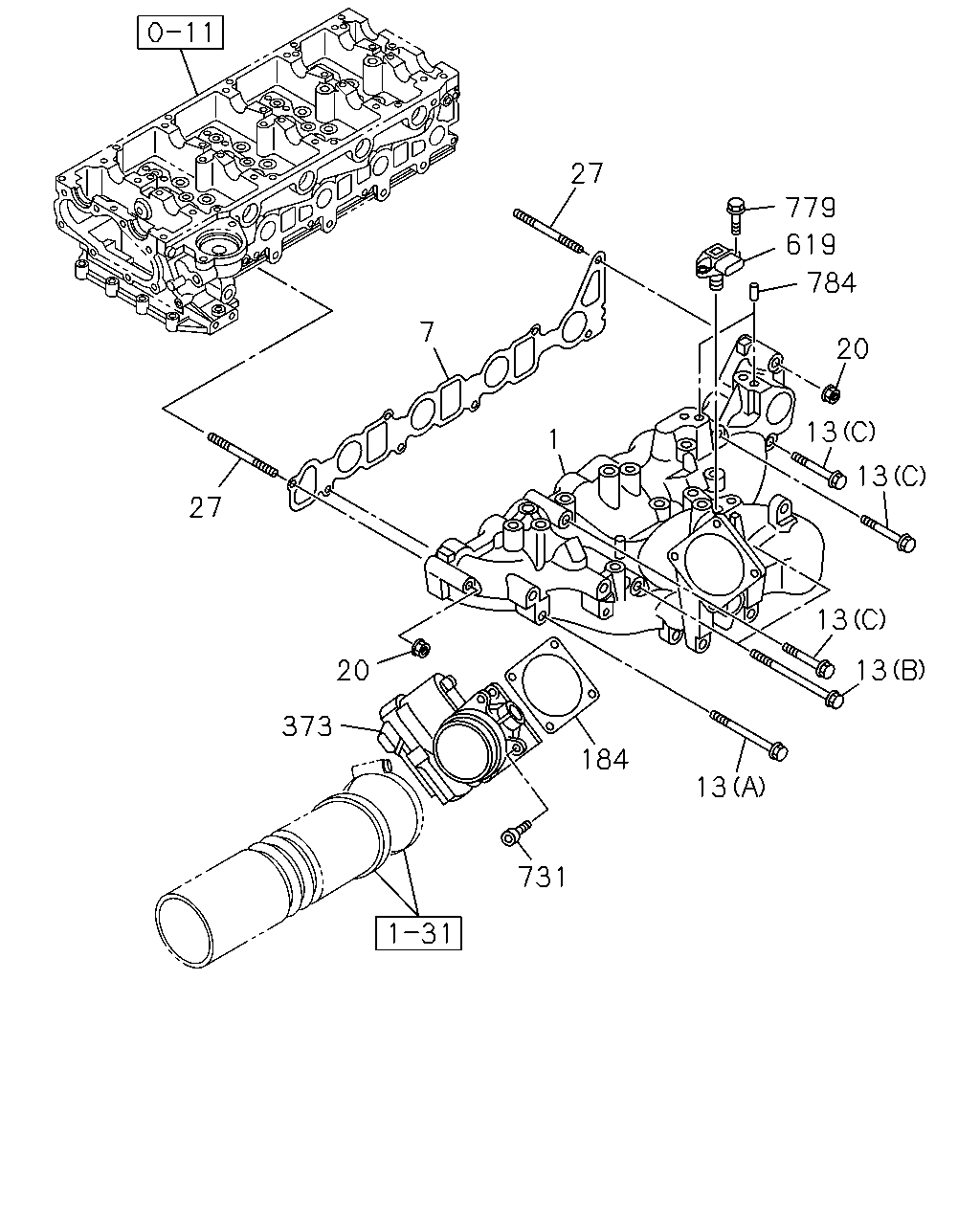

çizim 475085
27 7 1 27 779 619 784 20 13 13 13 13 13 184 731 373 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-98233-063-3 01 1 1505- ●
1 03.265 MANIFOLD; INL 8-98233-553-3 01 1 1505- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98284-081-0 01 1 1505- ● ●
13 03.275 BOLT; INL MANIF
01.780 (A) M8X120 FLANGE 		0-28055-812-0 01 1 1505- ● ●
13 03.275 BOLT; INL MANIF
03.278 (B) M8X150 FLANGE 		0-28055-815-0 02 1 1505- ● ●
13 03.275 BOLT; INL MANIF
03.162 (C) M8X66 FLANGE 		8-98081-507-0 03 1 1505- ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1505- ● ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-98017-063-0 02 1 1505- ● ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98096-968-0 01 1 1505- ● ●
373 03.265 THROTTLE ASM; INT 8-98100-891-4 01 1 1505- ● ●
619 01.150 SENSOR; MAP 8-98121-697-1 01 1 1505- ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 1505- ● ●
779 03.682 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1505- ●
784 03.265 PIN; KNOCK
04.399 OD=4 L=12 		1-09740-032-0 02 1 1505- ● ●
