◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51614 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#161028) — 18 parça

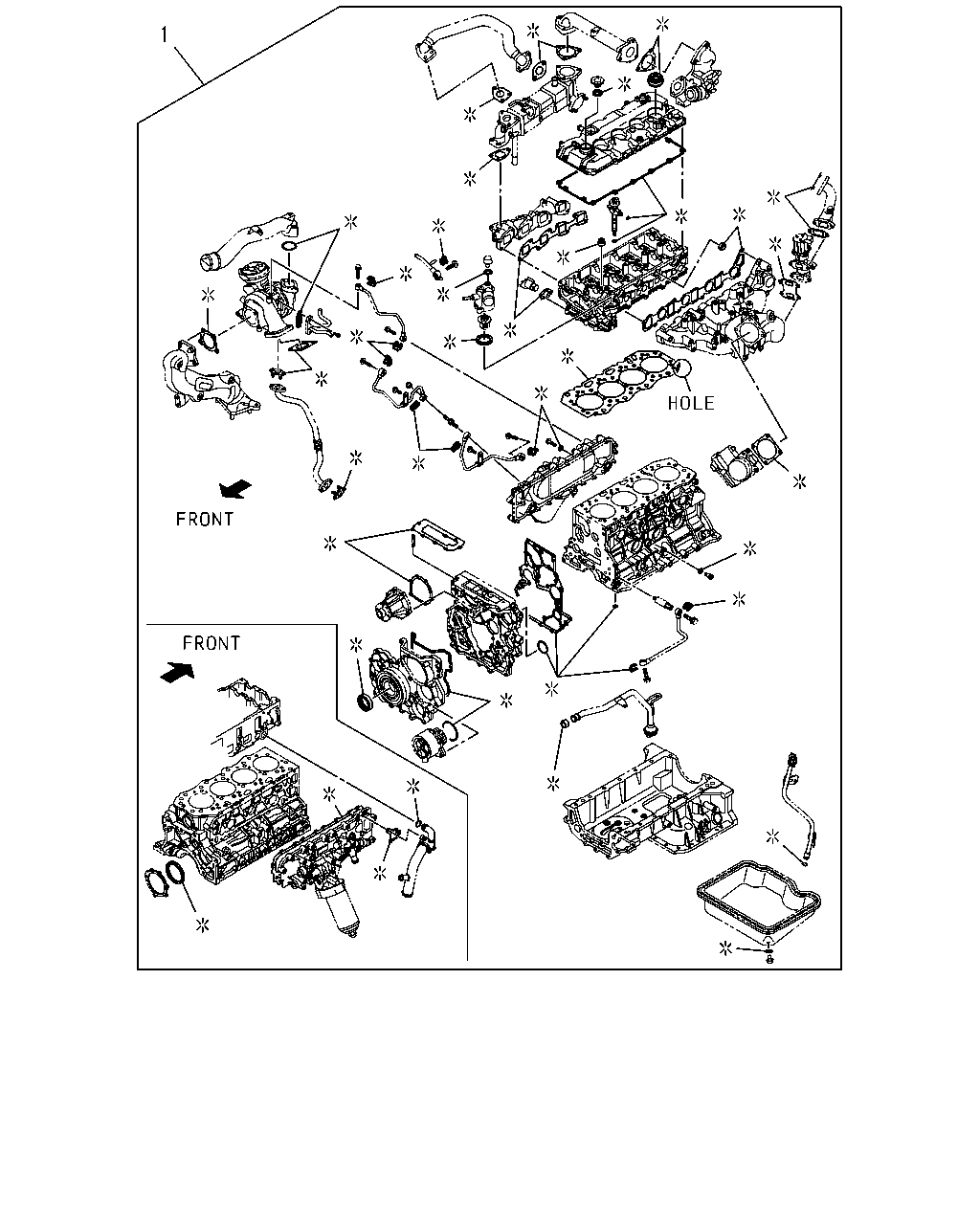

çizim 475004
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-502-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-503-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-504-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-496-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-497-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-498-0 01 1 1505- ●

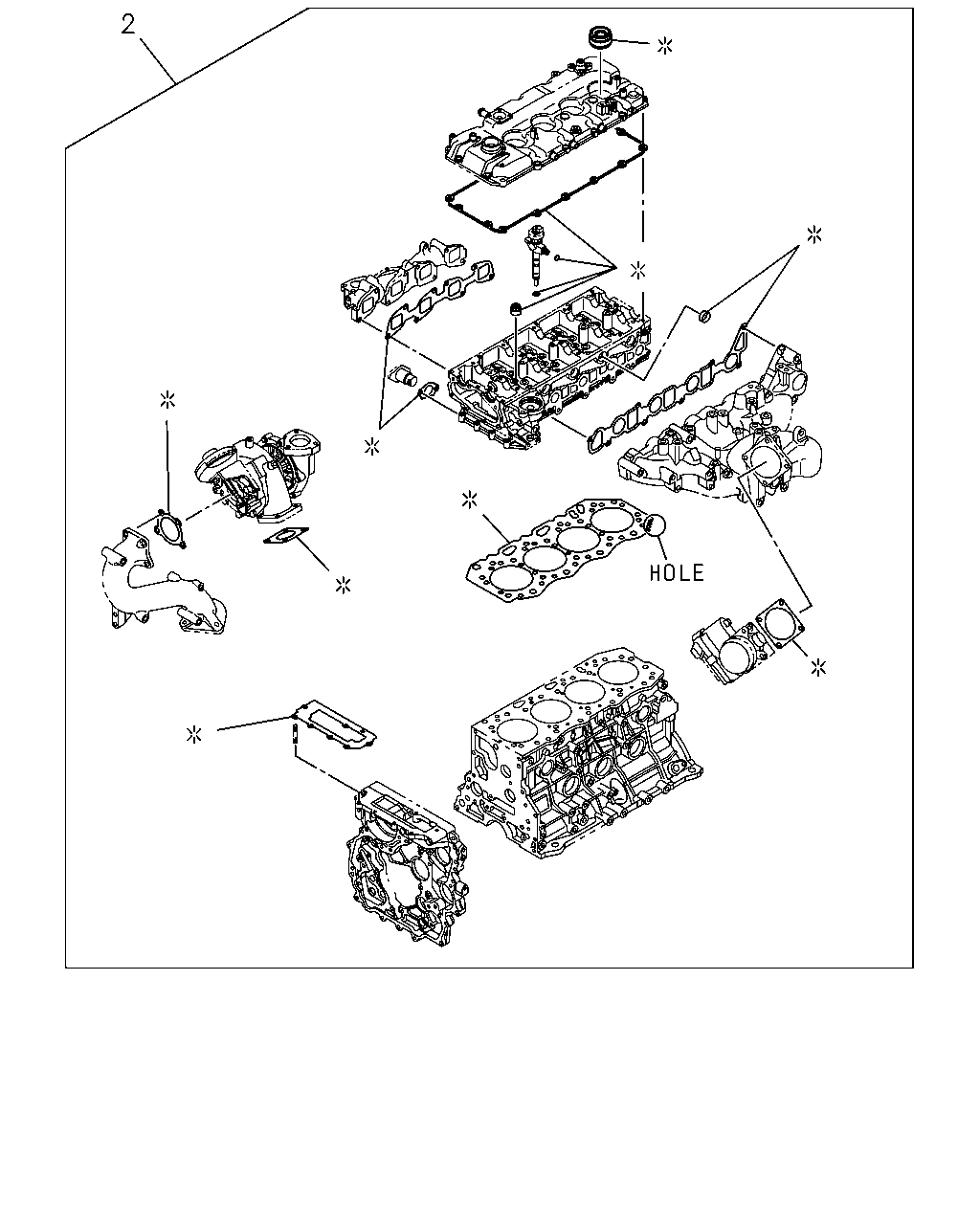

çizim 475006
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-505-0 01 1 1505- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-506-0 01 1 1505- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-507-0 01 1 1505- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-499-0 01 1 1505- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-500-0 01 1 1505- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-501-0 01 1 1505- ●

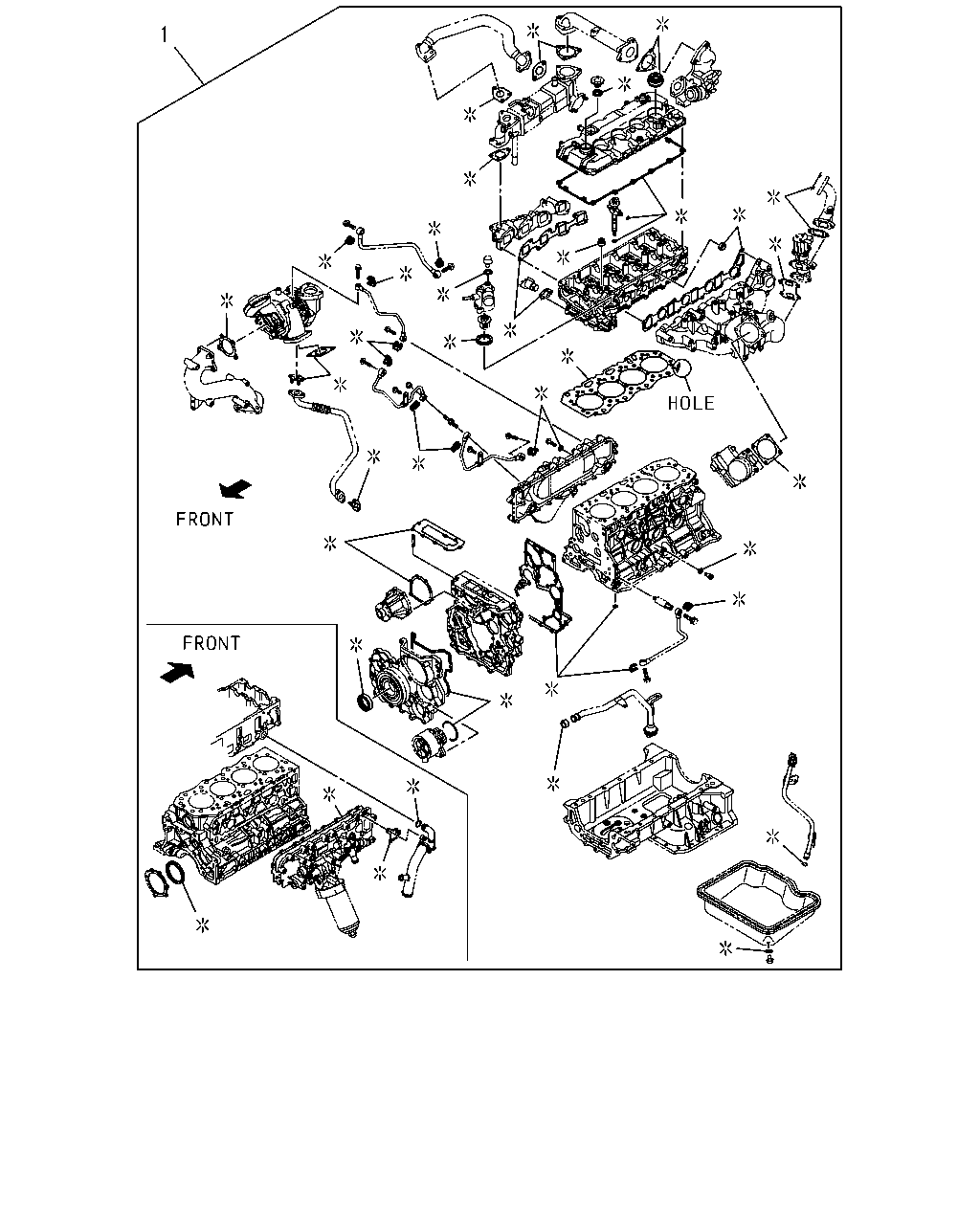

çizim 476571
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-502-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-503-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-504-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-496-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-497-0 01 1 1505- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-498-0 01 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
