◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#161026) — 58 parça

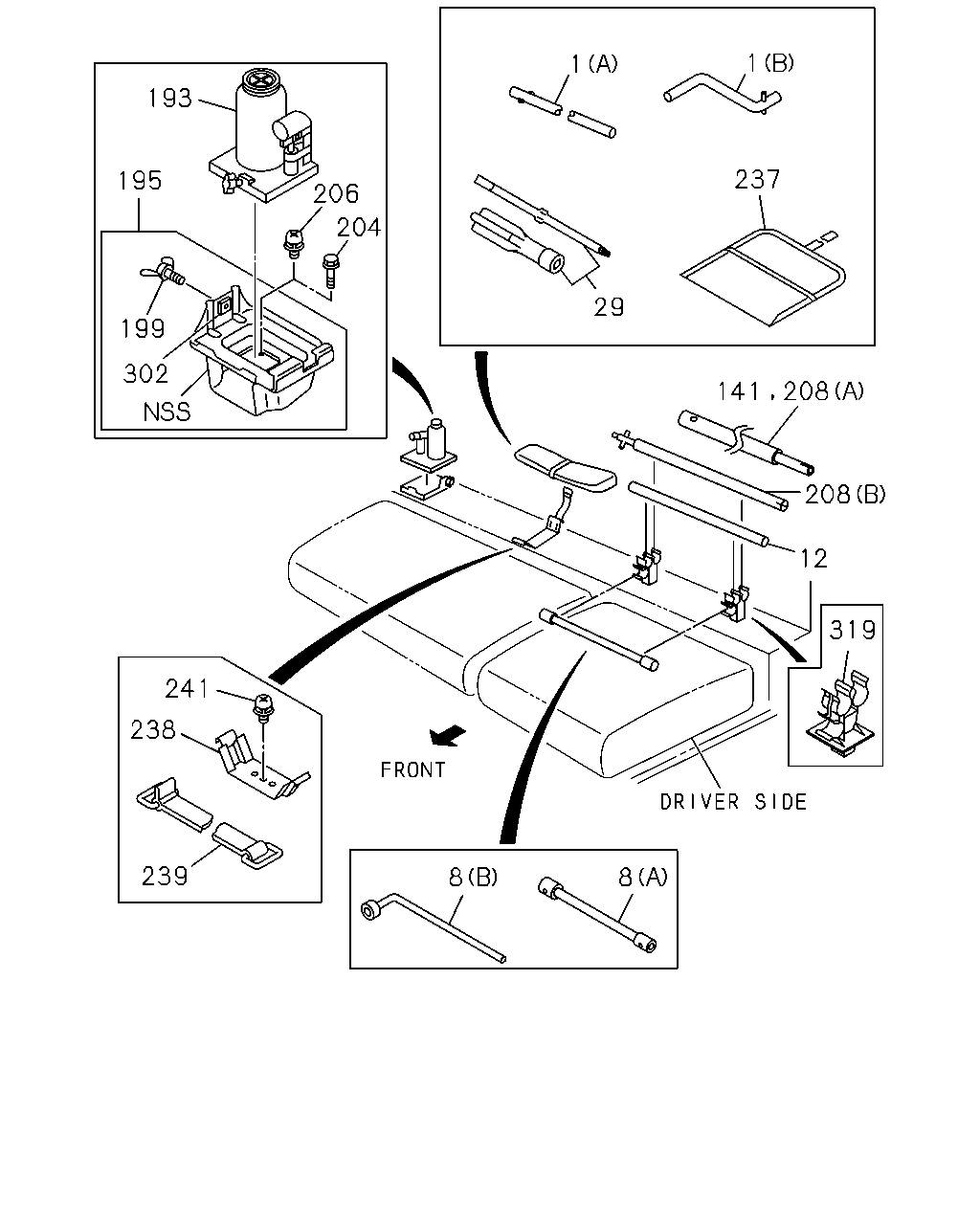

çizim 476983
193 195 206 199 29 1 1 237 141 208 208 319 12 8 8 239 238 302 241 204
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) 		8-97218-985-0 01 1 1505- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (B) 		8-97218-985-0 01 1 1505- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1505- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1505- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=280 		8-98181-251-0 01 1 1505- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1505- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1505- ●
8 08.821 WRENCH; WHEEL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) B=41X19 L=330 		8-94386-490-1 01 1 1505- ● ●
8 08.821 WRENCH; WHEEL
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) B=41X19 L=330 		8-94386-490-1 01 1 1505- ●
8 08.821 WRENCH; WHEEL
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (B) B=23 L=300 		9-85113-935-0 01 1 1505- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) OD=25 L=480 		8-98257-407-0 01 1 1505- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=480 		8-98257-407-0 01 1 1505- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1505- ● ● ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.820 L=580 		8-98181-249-0 01 1 1505- ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.820 L=580 		8-98181-249-0 01 1 1505- ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 4TON 		8-98239-828-0 01 1 1505- ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 4TON 		8-98239-828-0 01 1 1505- ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98239-828-0 01 1 1505- ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 1505- ●
193 08.820 JACK ASM
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 1505- ●
193 08.820 JACK ASM
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 4TON 		8-98012-285-0 01 1 1505- ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98012-285-0 01 1 1505- ●
195 08.820 BRACKET; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-2 01 1 1505- ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-2 01 1 1505- ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 		8-98033-737-2 01 1 1505- ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 1505- ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) 		8-94273-287-7 01 1 1505- ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94262-068-3 01 1 1505- ●
199 08.820 BOLT; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 1505- ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 1505- ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) M8X50 WING 		8-98005-537-0 01 1 1505- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1505- ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-94279-018-1 01 1 1505- ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING 		8-94279-136-0 01 1 1505- ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 1505- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=642 		8-98181-477-0 01 1 1505- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (B) L=642 		8-98181-477-0 01 1 1505- ●
208 08.820 HANDLE; JACK
EXC. SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1505- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1505- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=580 		8-98181-249-0 01 1 1505- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1505- ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1505- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1505- ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1505- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1505- ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1505- ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1505- ● ● ●

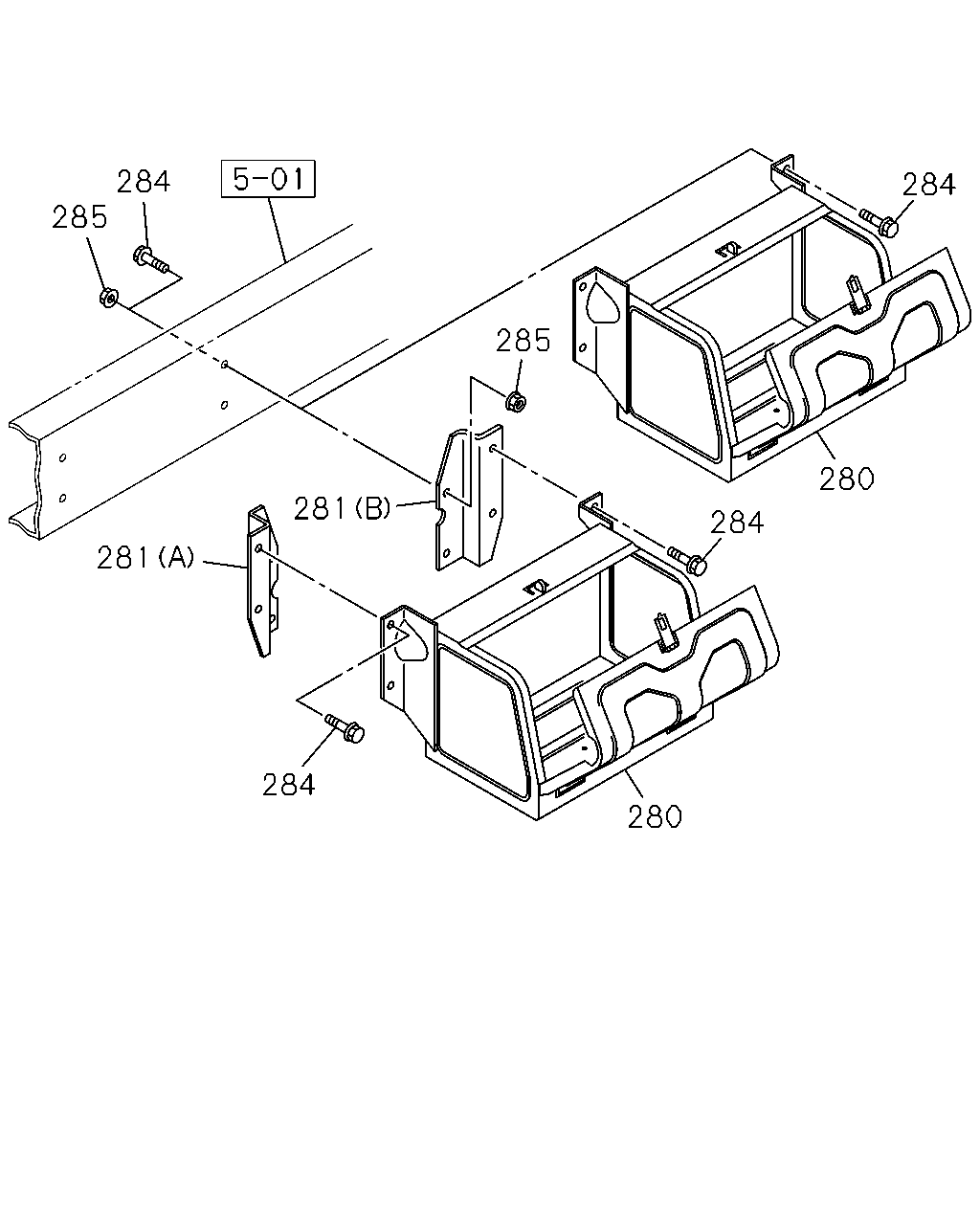

çizim 477027
284 285 281 281 285 284 284 280 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 		8-98054-885-0 01 1 1505- ● ● ●
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1505- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1505- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1505- ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1505- ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1505- ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
çizim 477062
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1505- ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1505- ●
