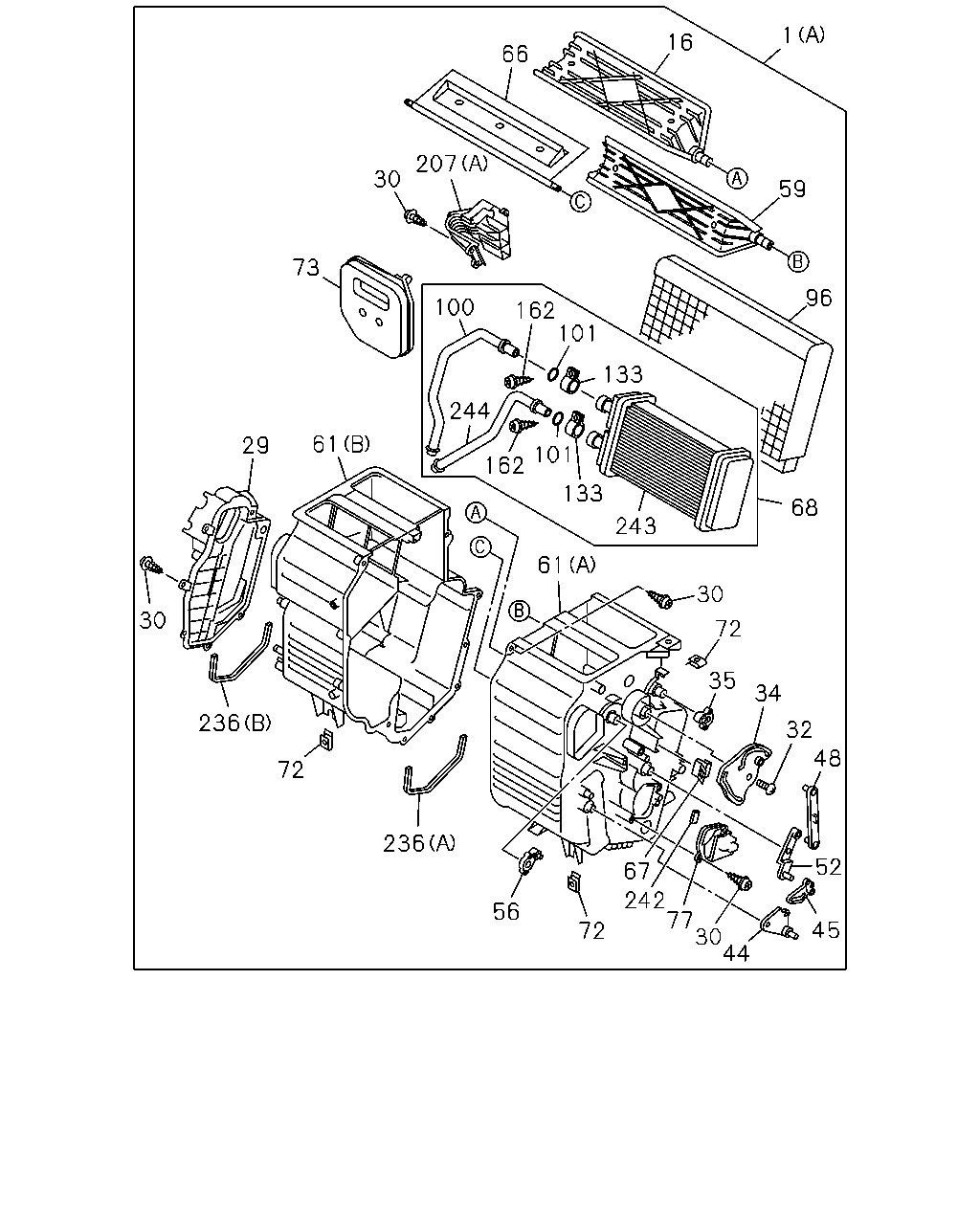

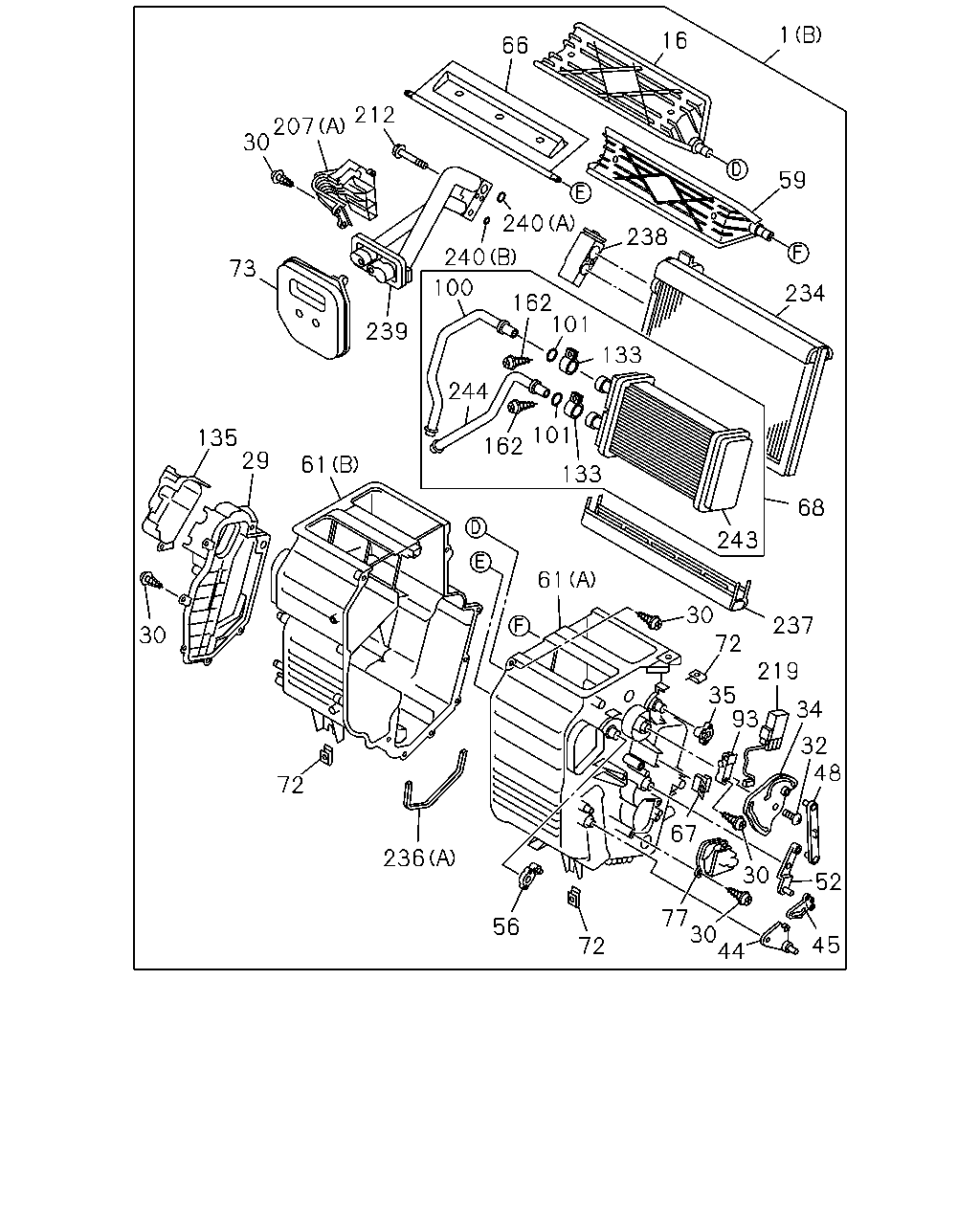

8-60 — HEATER UNIT; FRONT (#161019) — 88 parça

1 16 66 59 234 238 240 240 212 207 30 239 73 100 244 162 101 101 162 133 133 243 68 237 219 34 32 48 52 45 44 30 77 30 67 93 35 72 30 72 56 61 236 72 61 29 135 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1505-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1505-	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1505-	●	●	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1505-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1505-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1505-	●	●	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1505-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1505-	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1505-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1505-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1505-	●	●	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1505-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1505-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1505-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1505-	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1505-	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1505-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1505-	●	●	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1505-	●	●	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1505-	●	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1505-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1505-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1505-	●	●	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1505-	●	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1505-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1505-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1505-	●	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1505-	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	1505-	●	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1505-	●	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1505-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1505-	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1505-	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1505-	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1505-	●	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1505-	●	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1505-	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1505-	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1505-	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	1505-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1505-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1505-	●	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1505-	●	●	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1505-	●	●	●

1 16 66 207 30 73 100 162 59 96 68 133 101 101 162 244 133 243 30 72 35 34 32 48 52 45 44 30 77 242 67 72 56 236 72 236 30 29 61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1505-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1505-	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1505-	●	●	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1505-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1505-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1505-	●	●	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1505-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1505-	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1505-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1505-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1505-	●	●	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1505-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1505-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1505-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1505-	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1505-	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1505-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1505-	●	●	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1505-	●	●	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1505-	●	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1505-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1505-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1505-	●	●	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1505-	●	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1505-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1505-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1505-	●	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1505-	●	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1505-	●	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1505-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1505-	●	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1505-	●	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1505-	●	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1505-	●	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1505-	●	●	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1505-	●	●	●

234 207 41 236 235 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	1505-	●	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1505-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1505-	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1505-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1505-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1505-	●	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1505-	●	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1505-	●	●	●
