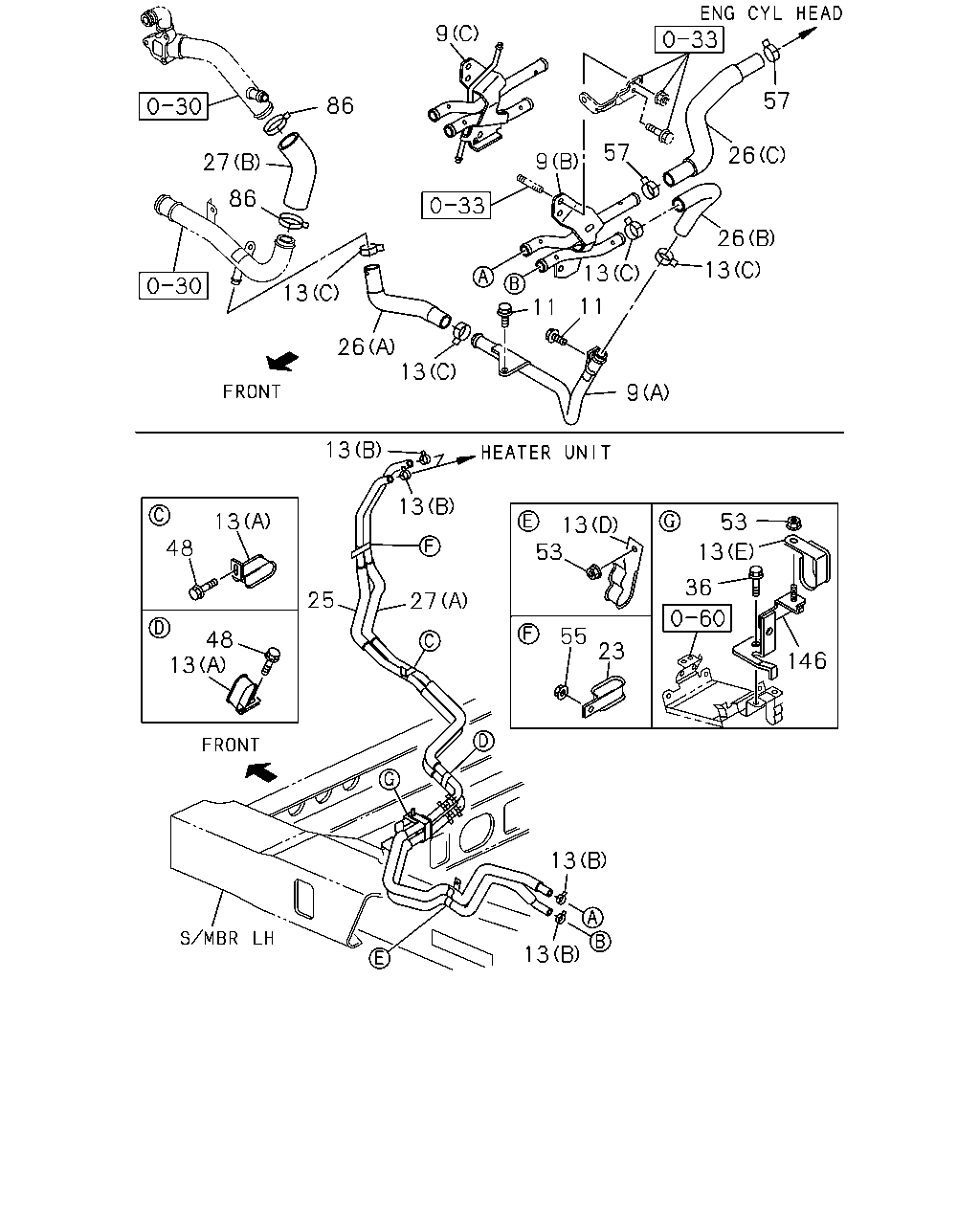

8-45 — HEATER PIPING (#161016) — 31 parça

86 9 26 26 57 57 11 11 13 9 13 13 26 13 13 48 48 13 25 27 13 13 53 55 23 36 53 13 146 13 13 86 27 9 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR (A)	8-98209-291-2	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98088-944-1	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98074-590-2	01	1	1505-	●	●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	02	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE (D)	8-98040-023-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98029-677-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) (E)	8-98029-677-0	01	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1505-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR B=18	8-98166-023-0	01	1	1505-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-98021-667-1	01	1	1505-	●	●	●
26	08.846 HOSE; HTR (A)	8-98000-101-2	01	1	1505-	●	●	●
26	08.846 HOSE; HTR (B)	8-98114-718-0	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98209-510-1	01	1	1505-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (A)	8-98021-668-3	01	1	1505-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98106-016-0	01	1	1505-	●	●	●
36	08.846 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
53	08.845 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	1505-	●	●	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1505-	●	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98111-419-1	01	1	1505-	●	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	1505-	●	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU)	8-98111-419-1	01	1	1505-	●	●	●
