Isuzu WW
▶
TRUCKS
▶
NLR
▶
51613 - NLR/NMR LHD EUROPE EURO5B+,6
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#161015) — 27 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
◀
[840A] OTHER PARTS (6 parça)
[840A] DUCT (21 parça)
▶

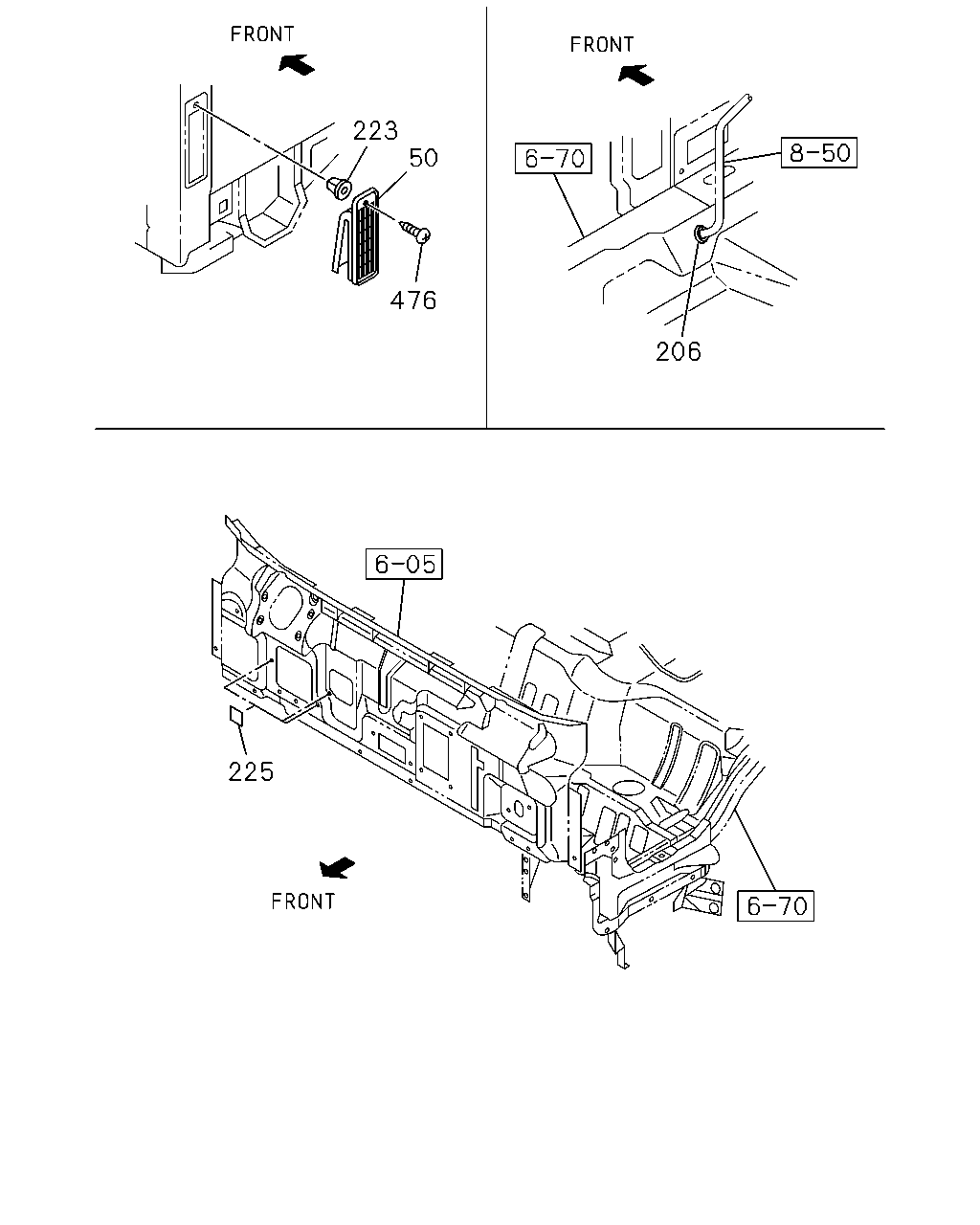

223
476
50
206
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
50
08.845 VALVE ASM; HTR
8-98080-998-1
01
1
1505-
●
●
50
08.845 VALVE ASM; HTR
8-98080-999-2
01
1
1505-
●
206
09.743 GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1505-
●
●
●
223
08.845 GROMMET; SCREW
02.679 D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1505-
●
●
●
225
08.845 SEAL; WATER
8-97856-616-0
03
1
1505-
●
●
●
476
09.222 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1505-
●
●
●

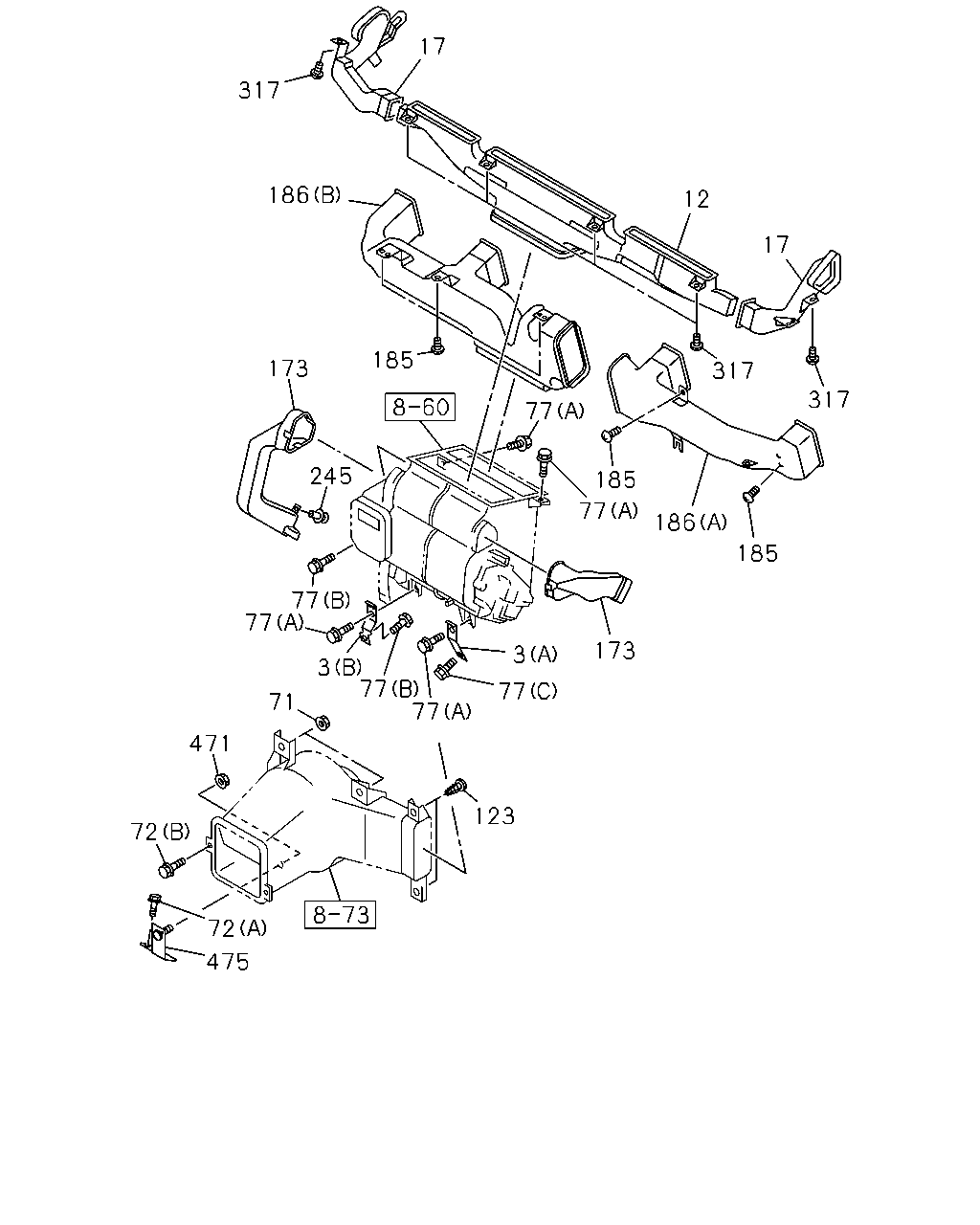

317
17
186
173
185
12
17
317
317
77
185
186
185
77
245
77
77
3
77
77
3
77
123
173
71
471
72
72
475
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
08.854 BRACKET; HTR UNIT
(A)
8-98082-473-1
01
1
1505-
●
●
●
3
08.854 BRACKET; HTR UNIT
(B)
8-98082-475-1
01
1
1505-
●
●
●
12
09.779 NOZZLE; DEFROSTER
8-97585-479-0
01
1
1505-
●
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
8-98040-497-1
01
1
1505-
●
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
8-98040-498-4
01
1
1505-
●
●
●
71
08.845 NUT; BLOWER UNIT TO DASH
01.062 M6 FLANGE
0-91180-106-0
02
1
1505-
●
●
●
72
08.857 BOLT; BLOWER UNIT
16.085 (A) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
1505-
●
●
●
72
08.857 BOLT; BLOWER UNIT
(B) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1505-
●
●
●
77
08.845 BOLT; HTR UNIT
02.343 (A) M6X16 FLANGE
0-28650-616-0
04
1
1505-
●
●
●
77
08.845 BOLT; HTR UNIT
08.857 (B) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1505-
●
●
●
77
08.845 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
01
1
1505-
●
●
●
123
09.786 SCREW; DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1505-
●
●
●
173
09.786 DUCT; FOOT,HTR
8-98163-183-0
01
1
1505-
●
●
●
173
09.786 DUCT; FOOT,HTR
8-98163-188-0
01
1
1505-
●
●
●
185
09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1505-
●
●
●
186
09.786 DUCT; VENTILATOR
(A)
8-98285-584-0
01
1
1505-
●
●
●
186
09.786 DUCT; VENTILATOR
(B)
8-98285-590-0
01
1
1505-
●
●
●
245
09.786 CLIP; FOOT DUCT
09.264
1-09987-144-0
02
1
1505-
●
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1505-
●
●
●
471
08.866 NUT; BLOWER
01.062 M6 FLANGE
0-91180-106-0
01
1
1505-
●
●
●
475
09.277 BRACKET; BLOWER
8-98021-703-1
01
1
1505-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
