◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#161009) — 289 parça

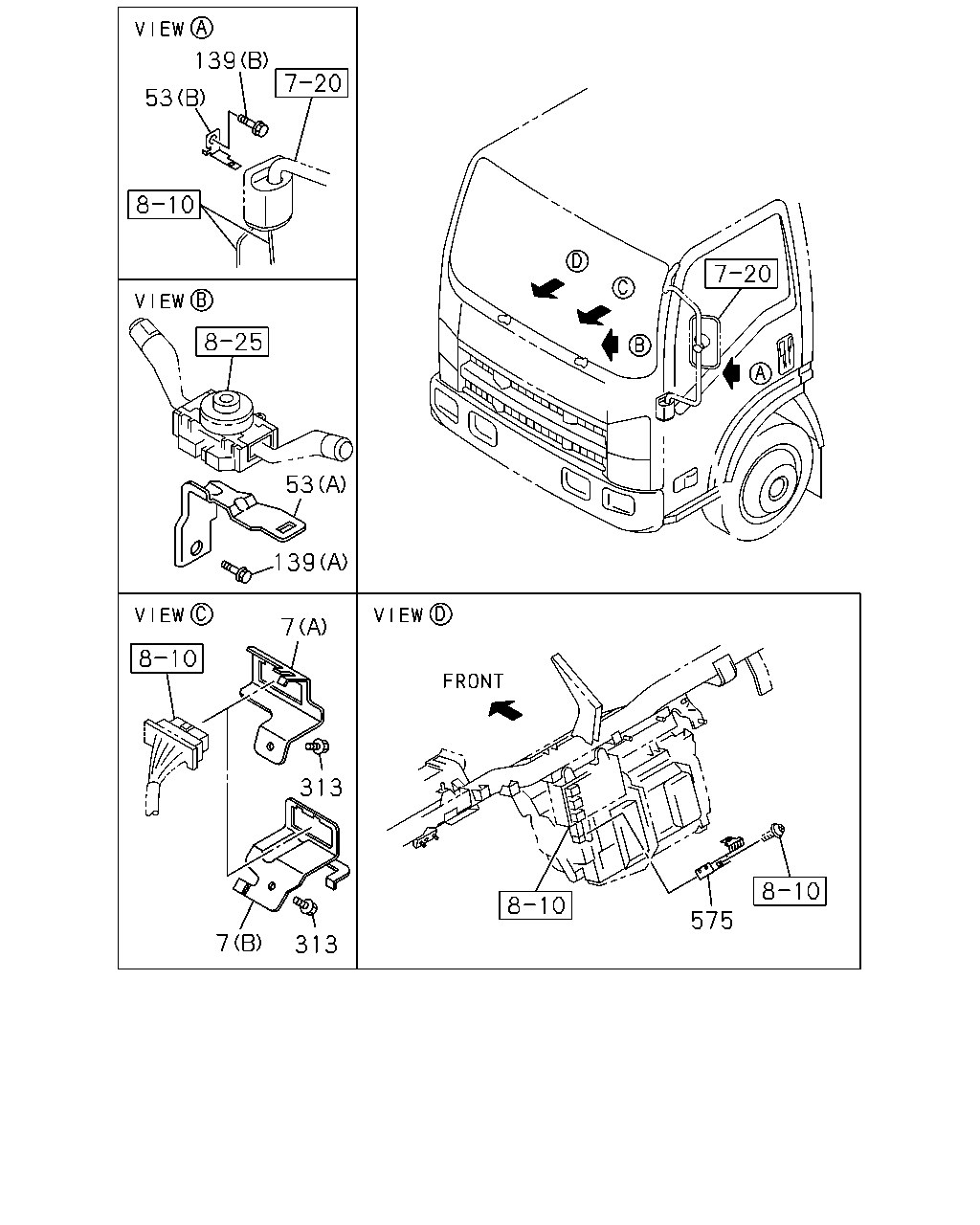

çizim 476221
53 139 53 139 7 313 313 7 575
BalonParca AdiParca NoAdetTipApplied Date A B C
7 02.559 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98043-070-1 01 1 1505- ● ● ●
7 02.559 BRACKET; CONNECTOR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98114-514-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98227-632-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98227-632-0 01 1 1505- ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98014-410-2 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98014-410-2 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98014-410-2 01 1 1505-1505 ●
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1506- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98032-016-1 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-016-1 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-016-1 01 1 1505-1505 ●
53 02.483 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 1506- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98244-750-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (H) 		8-98244-750-0 01 1 1505- ● ●
53 02.483 BRACKET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> (B) 		8-98039-277-2 02 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98033-918-2 01 1 1505-1506 ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98033-918-2 01 1 1505-1506 ● ●
53 02.483 BRACKET; HARNESS
(F) 		8-98033-918-2 01 1 1507- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1505-1506 ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1505-1506 ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1507- ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> 02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ● ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
03.604 (C) M6X12 FLANGE 		8-97108-669-0 01 1 1505- ● ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1505- ● ● ●
575 02.559 BRACKET; FUSE BOX 8-98054-320-2 01 1 1505- ● ● ●

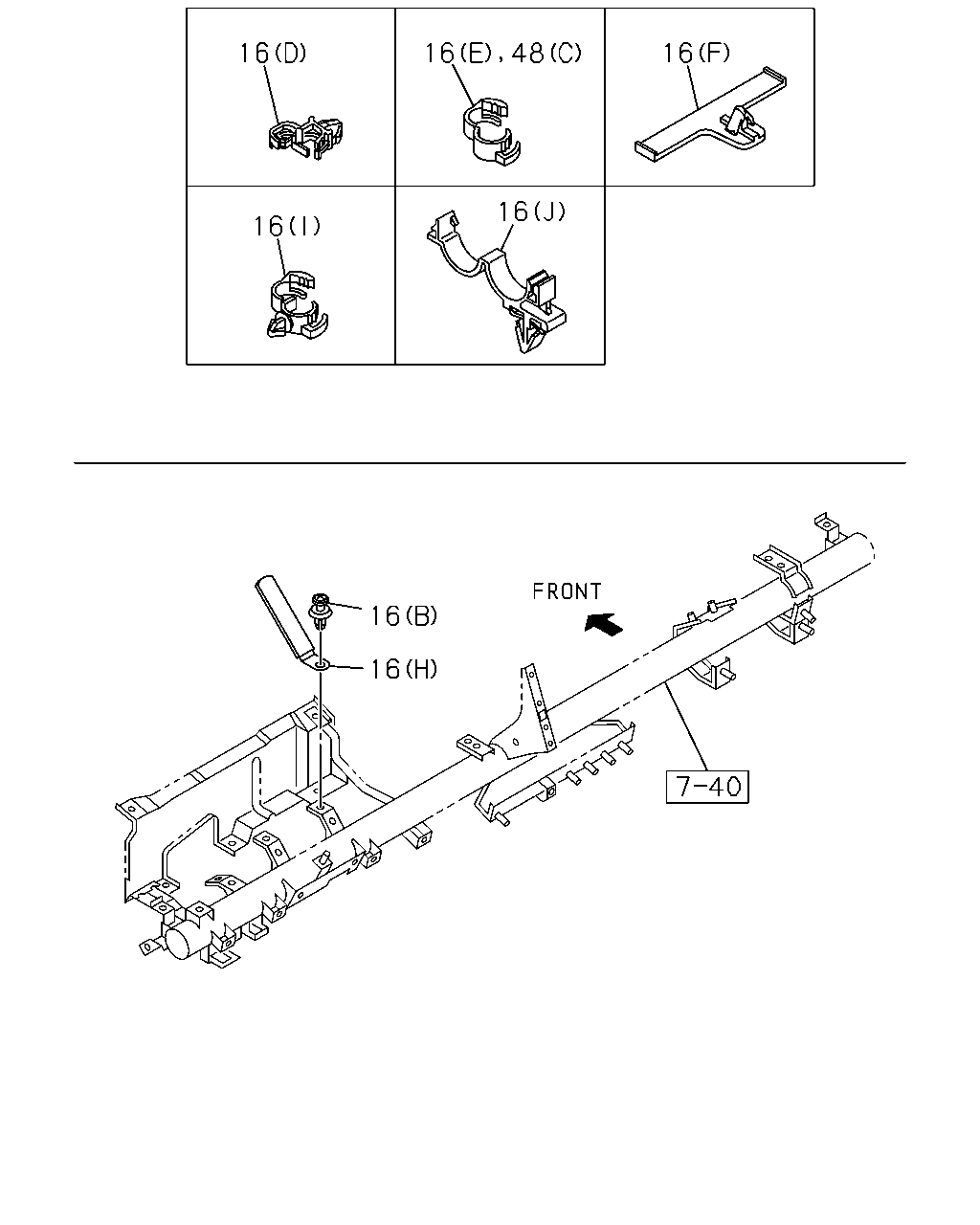

çizim 476404
16 16 48 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 02.559 CLIP; HARNESS
EURO5B+ SPECIFICATION(NT5) (E) ID=20 		8-94241-972-0 01 1 1505- ● ●
16 02.559 CLIP; HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (E) ID=20 		8-94241-972-0 01 1 1505- ● ●
16 02.559 CLIP; HARNESS
WHEEL BASE 3300MM(33W) (E) ID=20 		8-94241-972-0 01 1 1505- ●
16 02.559 CLIP; HARNESS
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (G) L=250 		5-09707-030-1 14 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28 		8-94362-106-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
SMOOTHER-EX(TYPE2)(8NS) 02.694 (I) ID=6 & 10-13 		8-97069-515-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(G) L=250 		5-09707-030-1 04 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
04.930 (H) L=91 ID=8.5 		8-94329-956-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 07 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
16.578 (B) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (K) L=60 		8-94449-165-0 02 1 1505- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (L) L=60 		8-97063-335-0 02 1 1505- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 1505- ●
48 02.559 CLIP; FRAME HARNESS
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.890 (A) ID=4.8 		1-09701-218-0 03 1 1505- ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.890 (A) ID=4.8 		1-09701-218-0 01 1 1505- ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47 		5-09700-319-0 06 1 1505- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47 		5-09700-319-0 07 1 1505- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2800MM(28W) 01.240 (B) ID=14 L=47 		5-09700-319-0 08 1 1505- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47 		5-09700-319-0 09 1 1505- ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (C) ID=20 		8-94241-972-0 01 1 1505-1507 ●
48 02.559 CLIP; FRAME HARNESS
EURO5B+ SPECIFICATION(NT5) (C) ID=20 		8-94241-972-0 01 1 1508- ●

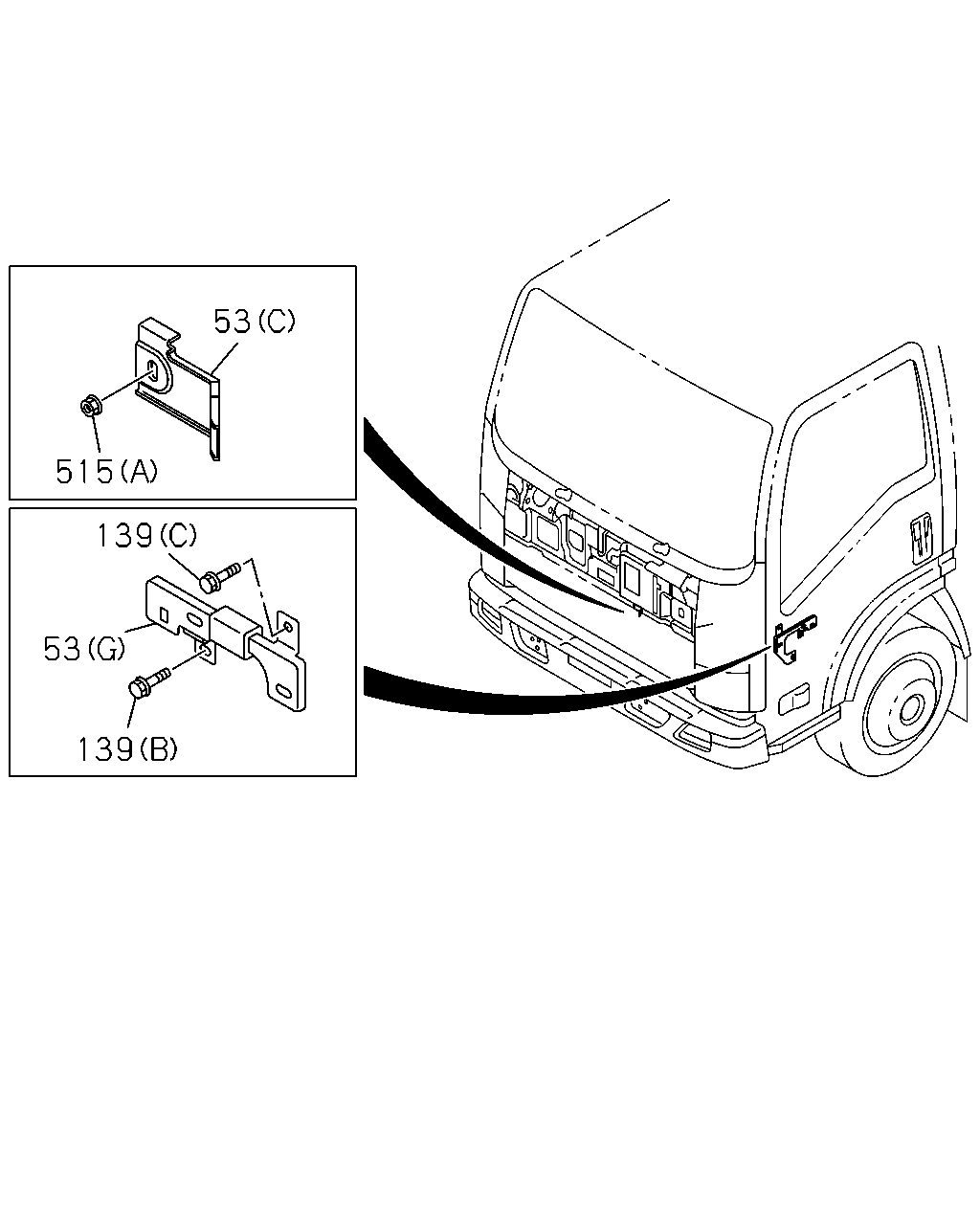

çizim 476472
53 515 139 53 139
BalonParca AdiParca NoAdetTipApplied Date A B C
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98227-632-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98227-632-0 01 1 1505- ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98014-410-2 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98014-410-2 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98014-410-2 01 1 1505-1505 ●
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1506- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98032-016-1 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-016-1 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-016-1 01 1 1505-1505 ●
53 02.483 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 1506- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98244-750-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (H) 		8-98244-750-0 01 1 1505- ● ●
53 02.483 BRACKET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> (B) 		8-98039-277-2 02 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98033-918-2 01 1 1505-1506 ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98033-918-2 01 1 1505-1506 ● ●
53 02.483 BRACKET; HARNESS
(F) 		8-98033-918-2 01 1 1507- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1505-1506 ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1505-1506 ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1507- ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> 02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ● ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
03.604 (C) M6X12 FLANGE 		8-97108-669-0 01 1 1505- ● ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1506- ● ● ●

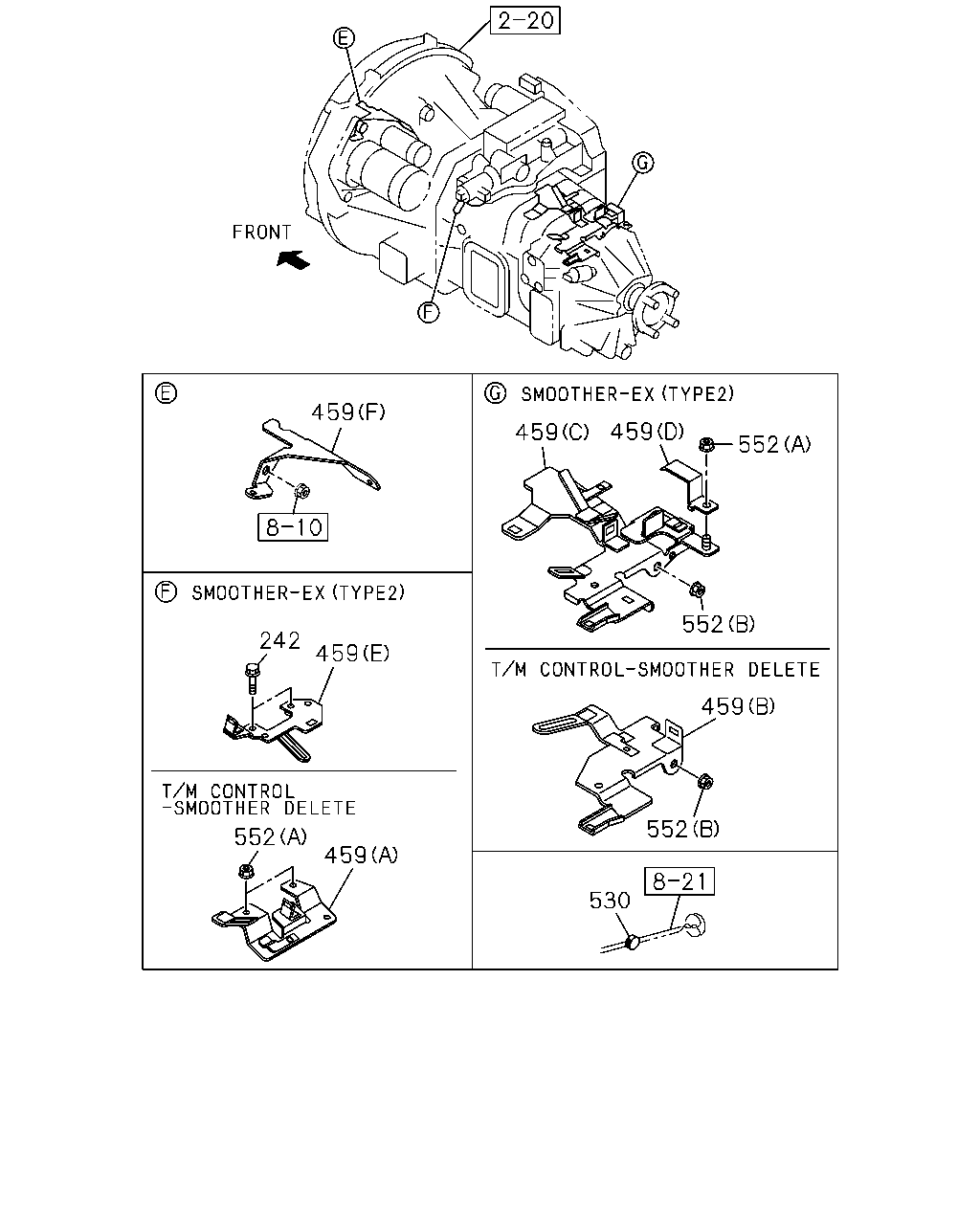

çizim 476770
459 459 242 552 459 530 552 459 552 552 459 459
BalonParca AdiParca NoAdetTipApplied Date A B C
242 02.483 BOLT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1505-1507 ● ●
242 02.483 BOLT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1505-1507 ● ●
242 02.483 BOLT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1505-1507 ●
242 02.483 BOLT; BRKT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1508- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98020-227-3 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98020-227-3 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98020-227-3 01 1 1505-1507 ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98020-227-3 01 1 1508- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98196-974-0 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98196-974-0 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98196-974-0 01 1 1505-1507 ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98196-974-0 01 1 1508- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98018-899-1 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98018-899-1 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98018-899-1 01 1 1505-1507 ●
459 02.483 BRACKET; SUPPORT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98018-899-1 01 1 1508- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98030-988-2 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98030-988-2 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98030-988-2 01 1 1505-1507 ●
459 02.483 BRACKET; SUPPORT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98030-988-2 01 1 1508- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98030-991-2 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98030-991-2 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98030-991-2 01 1 1505-1507 ●
459 02.483 BRACKET; SUPPORT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98030-991-2 01 1 1508- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98044-758-2 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98044-758-2 01 1 1505-1507 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98044-758-2 01 1 1505-1507 ●
459 02.483 BRACKET; SUPPORT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98044-758-2 01 1 1508- ● ● ●
530 02.559 SEAL; HARNESS
09.772 		1-15739-008-0 01 1 1505- ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●

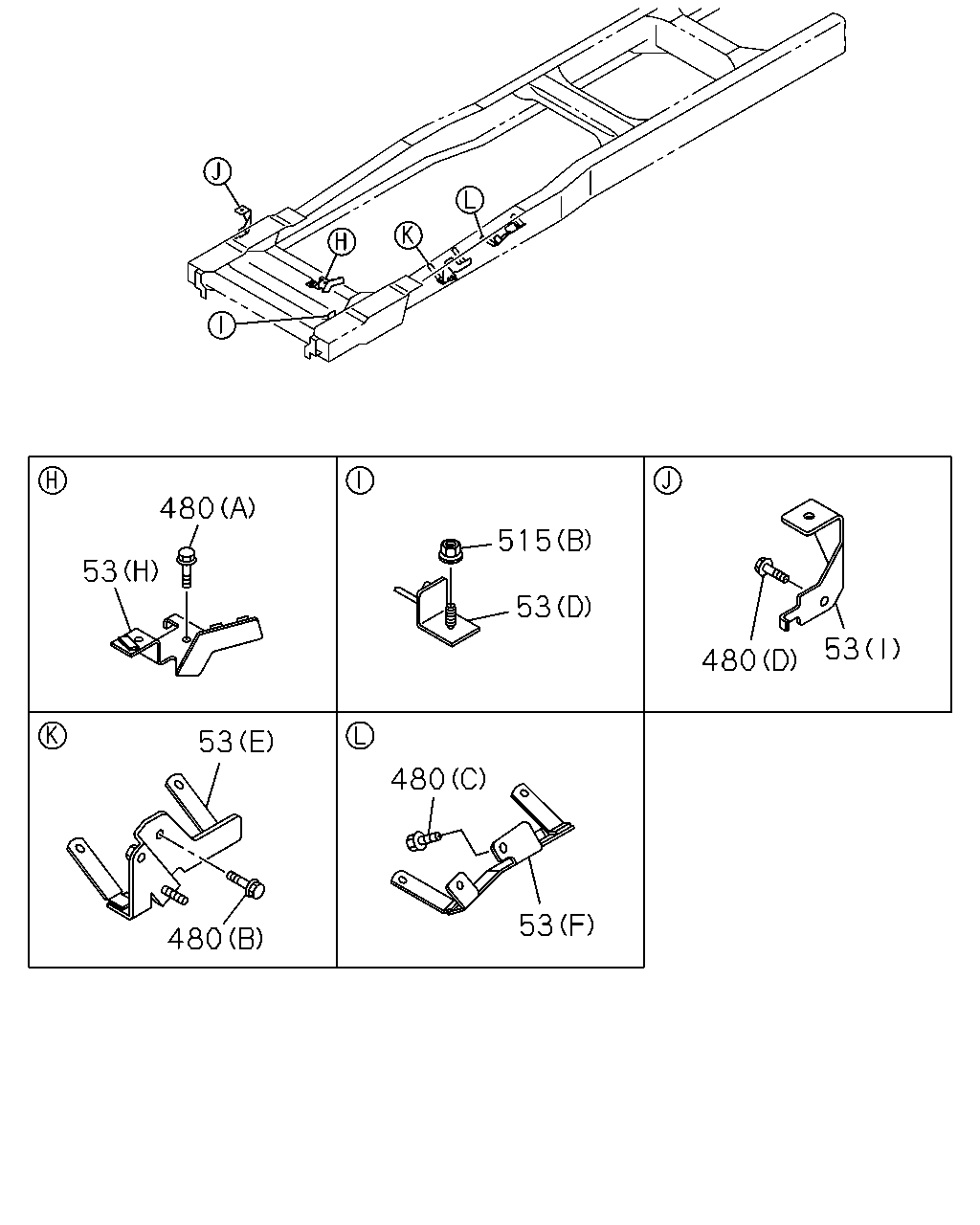

çizim 476831
480 53 53 515 53 480 53 480 480 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98227-632-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98227-632-0 01 1 1505- ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98014-410-2 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98014-410-2 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98014-410-2 01 1 1505-1505 ●
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1506- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98032-016-1 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-016-1 01 1 1505-1505 ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-016-1 01 1 1505-1505 ●
53 02.483 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 1506- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98244-750-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (H) 		8-98244-750-0 01 1 1505- ● ●
53 02.483 BRACKET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> (B) 		8-98039-277-2 02 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98033-918-2 01 1 1505-1506 ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98033-918-2 01 1 1505-1506 ● ●
53 02.483 BRACKET; HARNESS
(F) 		8-98033-918-2 01 1 1507- ● ● ●
53 02.483 BRACKET; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1505-1506 ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1505-1506 ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1507- ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1505- ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 1505- ● ● ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ● ●
480 02.483 BOLT; BRKT
HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1506 ● ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1506 ● ●
480 02.483 BOLT; BRKT
00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1507- ● ● ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1505-1506 ● ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1505-1506 ● ●
480 02.483 BOLT; BRKT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1507- ● ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1506- ● ● ●
çizim 476889
38 139 38 139 480 377 24 515 577 377 386 386 219 294 515 524 552 519 552 242 38 529 460 480 480 313 480 481 139 516
BalonParca AdiParca NoAdetTipApplied Date A B C
24 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1505-1507 ● ●
24 02.559 NUT; HARNESS
4JJ1-TCC ENG(RDU) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1505-1507 ● ●
24 02.559 NUT; HARNESS
WHEEL BASE 3300MM(33W) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1505-1507 ●
24 02.559 NUT; HARNESS
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1508- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.206 (A) M8X30 FLANGE 		0-28050-830-0 01 1 1505- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCC ENG(RDU) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 02 1 1505- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCC ENG(RDU) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1505- ● ● ●
139 02.559 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> 02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ● ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1505- ● ● ●
139 02.559 BOLT; BRKT
03.604 (C) M6X12 FLANGE 		8-97108-669-0 01 1 1505- ● ● ●
219 02.559 NUT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
219 02.559 NUT
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
219 02.559 NUT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
242 02.483 BOLT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1505-1507 ● ●
242 02.483 BOLT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1505-1507 ● ●
242 02.483 BOLT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1505-1507 ●
242 02.483 BOLT; BRKT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1508- ● ● ●
294 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ● ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1505- ● ● ●
377 02.559 BOLT; CAB EARTH
02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1505- ● ● ●
377 02.559 BOLT; CAB EARTH
(B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1505- ● ● ●
386 02.559 BOLT; GRAND HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1505-1505 ● ●
386 02.559 BOLT; GRAND HARNESS
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1505-1505 ● ●
386 02.559 BOLT; GRAND HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1505-1505 ●
386 02.559 BOLT; GRAND HARNESS
02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1506- ● ● ●
386 02.559 BOLT; GRAND HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1505- ● ●
386 02.559 BOLT; GRAND HARNESS
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1505- ● ●
386 02.559 BOLT; GRAND HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1505- ●
460 02.559 BOLT; HARNESS PROTECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
460 02.559 BOLT; HARNESS PROTECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ● ●
480 02.483 BOLT; BRKT
HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1506 ● ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1505-1506 ● ●
480 02.483 BOLT; BRKT
00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1507- ● ● ●
480 02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1505-1506 ● ● ●
480 02.483 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1505-1506 ● ●
480 02.483 BOLT; BRKT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1507- ● ● ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1505-1507 ●
481 13.090 BOLT; CABLE HARNESS
SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1505-1507 ●
481 13.090 BOLT; CABLE HARNESS
REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1505-1507 ●
481 13.090 BOLT; CABLE HARNESS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1505-1507 ●
481 13.090 BOLT; CABLE HARNESS
04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1505-1507 ●
481 13.090 BOLT; CABLE HARNESS
04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1508- ● ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ● ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		8-98040-024-0 01 1 1505-1505 ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1506- ● ● ●
516 02.559 BOLT; HARNESS
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1505- ● ● ●
519 02.559 NUT; EARTH CABLE
03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ● ●
524 02.559 NUT; HARNESS
4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
524 02.559 NUT; HARNESS
SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
524 02.559 NUT; HARNESS
REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
524 02.559 NUT; HARNESS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
524 02.559 NUT; HARNESS
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
524 02.559 NUT; HARNESS
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
529 02.559 BOLT; RELAY BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1505-1506 ● ● ●
529 02.559 BOLT; RELAY BOX
FRT INDEPENDENT SUSPENSION(FF0) 08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1505-1506 ● ●
529 02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1507- ● ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
552 02.483 NUT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ● ● ●
çizim 476953
16 16 22 22 22 48 48 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 02.559 CLIP; HARNESS
EURO5B+ SPECIFICATION(NT5) (E) ID=20 		8-94241-972-0 01 1 1505- ● ●
16 02.559 CLIP; HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (E) ID=20 		8-94241-972-0 01 1 1505- ● ●
16 02.559 CLIP; HARNESS
WHEEL BASE 3300MM(33W) (E) ID=20 		8-94241-972-0 01 1 1505- ●
16 02.559 CLIP; HARNESS
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (G) L=250 		5-09707-030-1 14 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28 		8-94362-106-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
SMOOTHER-EX(TYPE2)(8NS) 02.694 (I) ID=6 & 10-13 		8-97069-515-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(G) L=250 		5-09707-030-1 04 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
04.930 (H) L=91 ID=8.5 		8-94329-956-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 07 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
16.578 (B) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 01 1 1505- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (K) L=60 		8-94449-165-0 02 1 1505- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (L) L=60 		8-97063-335-0 02 1 1505- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 1505- ●
22 02.559 CLIP; ENG HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) ID=6.8 		8-97134-154-0 01 1 1505- ● ● ●
22 02.559 CLIP; ENG HARNESS
02.343 (A) L=119.5 		1-09707-197-0 01 1 1505- ● ● ●
22 02.559 CLIP; ENG HARNESS
04.104 (B) ID=12 & 6.8 		8-97125-842-0 01 1 1505- ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.890 (A) ID=4.8 		1-09701-218-0 03 1 1505- ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.890 (A) ID=4.8 		1-09701-218-0 01 1 1505- ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47 		5-09700-319-0 06 1 1505- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47 		5-09700-319-0 07 1 1505- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2800MM(28W) 01.240 (B) ID=14 L=47 		5-09700-319-0 08 1 1505- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47 		5-09700-319-0 09 1 1505- ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (C) ID=20 		8-94241-972-0 01 1 1505-1507 ●
48 02.559 CLIP; FRAME HARNESS
EURO5B+ SPECIFICATION(NT5) (C) ID=20 		8-94241-972-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
