Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#161008) — 223 parça

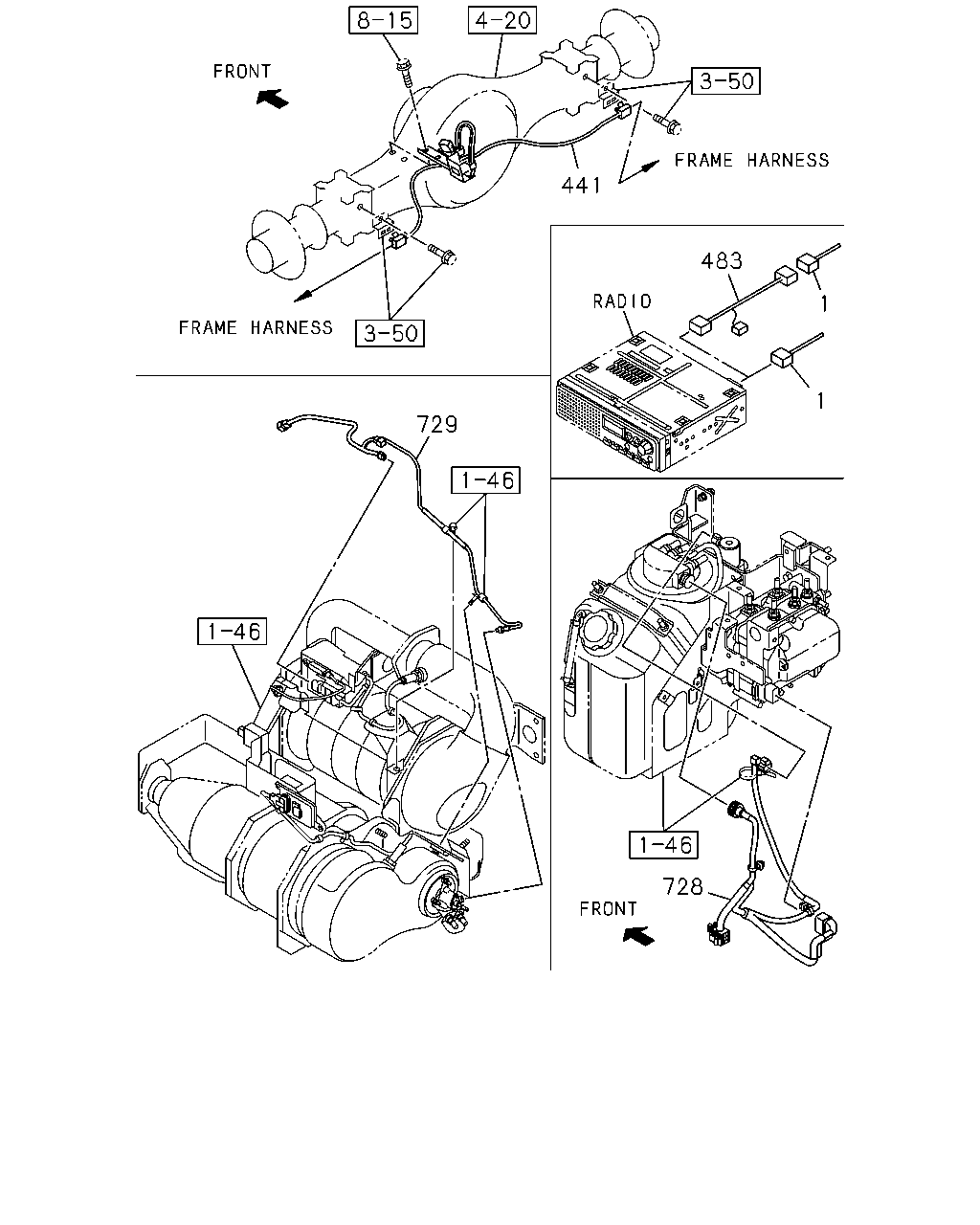

729 728 483 1 1 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98287-891-3	01	1	1505-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS)	8-98287-924-4	01	1	1505-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-895-3	01	1	1505-	●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-895-3	01	1	1505-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-927-4	01	1	1505-	●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-927-4	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98287-893-3	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS)	8-98287-926-4	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-896-3	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-928-4	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98287-892-3	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS)	8-98287-925-4	01	1	1505-			●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98080-696-1	01	1	1505-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-98080-696-1	01	1	1505-		●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73)	8-98080-696-1	01	1	1505-			●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97308-212-3	01	1	1505-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD)	8-97308-220-4	01	1	1505-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98236-734-0	01	1	1505-1507	●
441	02.480 HARNESS; CABLE,SPEED SENSOR AXLE REAR - LIGHT DUTY(8PB)	8-98236-734-0	01	1	1505-1507			●
441	02.480 HARNESS; CABLE,SPEED SENSOR AXLE REAR - LIGHT DUTY(8PB) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98236-734-0	01	1	1508-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR AXLE REAR - LIGHT DUTY(8PB)	8-98236-734-0	01	1	1508-			●
441	02.480 HARNESS; CABLE,SPEED SENSOR AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98246-125-0	01	1	1505-	●
483	02.480 HARNESS; EXT,RADIO IDENTIFICATION LABEL FOR KD<6UT>	8-98116-875-0	01	1	1505-	●	●	●
728	02.480 HARNESS; DEF DCM SPLY EURO6 SPECIFICATION(NT6)	8-98296-412-0	01	1	1505-	●	●	●
729	02.480 HARNESS; DEF DCM EURO6 SPECIFICATION(NT6)	8-98271-967-0	01	1	1505-	●	●	●

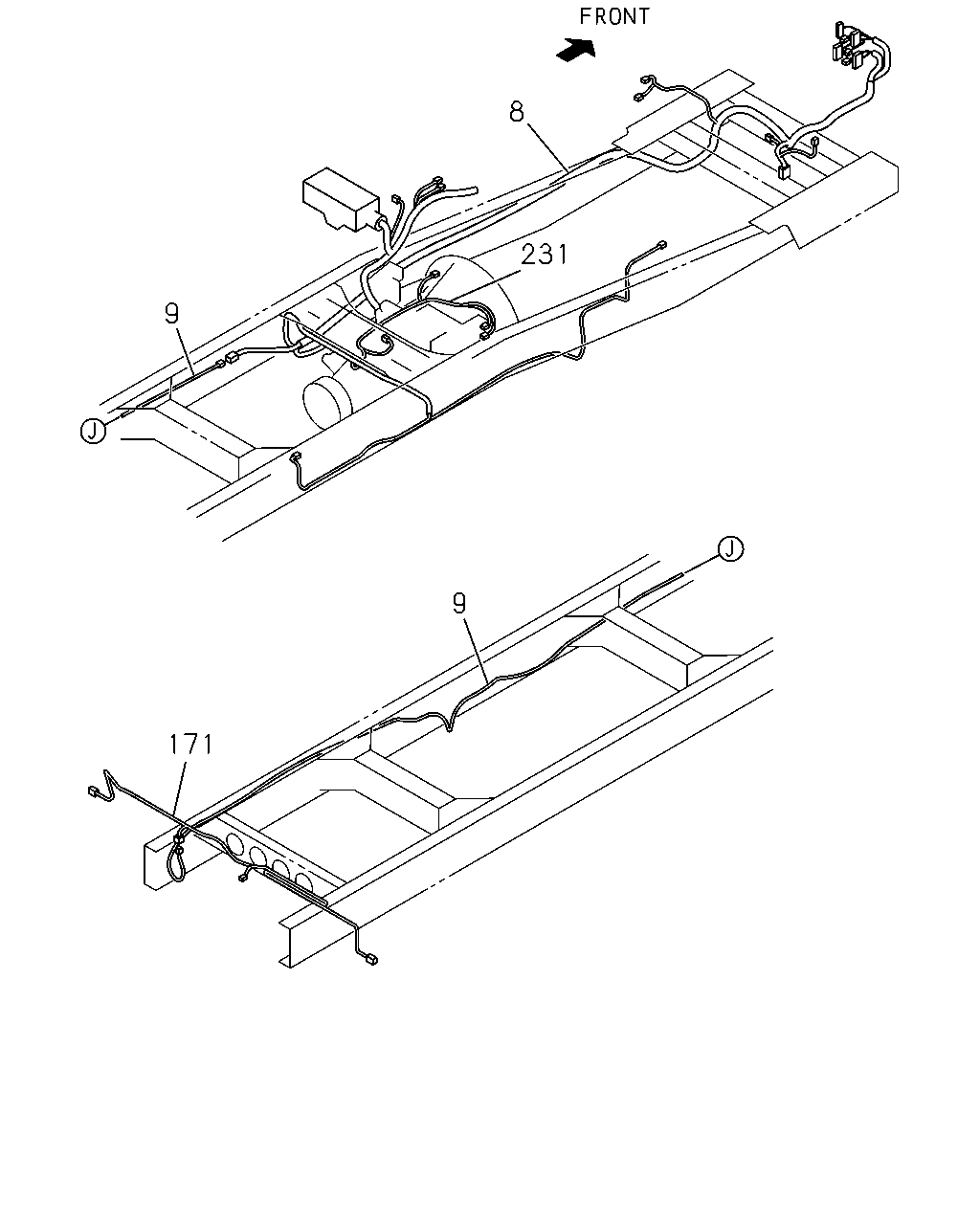

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-901-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-901-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-901-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-902-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-902-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-902-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-903-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-903-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-903-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-904-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-904-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-904-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-587-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-587-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-587-0	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-589-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98297-589-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98297-589-0	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-907-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-907-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-908-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-908-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-588-0	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-588-0	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-590-0	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98297-590-0	01	1	1505-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD)	8-98080-439-0	01	1	1505-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD)	8-98048-414-2	01	1	1505-	●	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5)	8-98048-419-1	01	1	1505-	●	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6)	8-98227-425-2	01	1	1505-	●	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5)	8-98048-424-1	01	1	1505-	●	●	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6)	8-98227-426-2	01	1	1505-	●	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6)	8-98227-427-0	01	1	1505-			●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1505-	●	●	●
231	02.480 HARNESS; TRANS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS)	8-98029-598-1	01	1	1505-1507	●	●
231	02.480 HARNESS; TRANS CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS)	8-98029-598-1	01	1	1505-1507	●	●
231	02.480 HARNESS; TRANS WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS)	8-98029-598-1	01	1	1505-1507			●
231	02.480 HARNESS; TRANS SMOOTHER-EX(TYPE2)(8NS)	8-98029-598-1	01	1	1508-	●	●	●

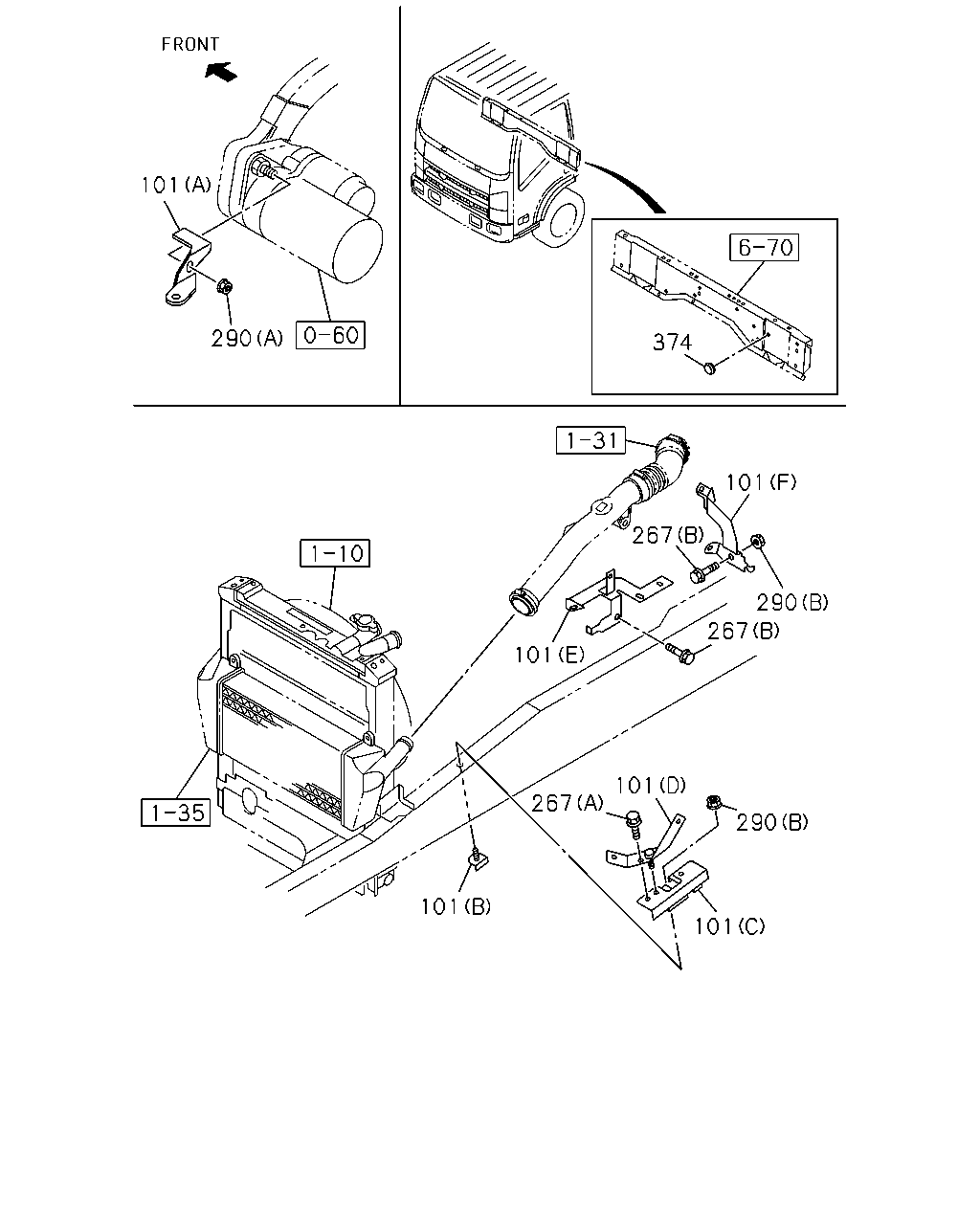

101 290 374 267 101 267 101 290 101 290 101 101 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	02.483 BRACKET; HARNESS CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98078-070-1	01	1	1505-1506	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98078-070-1	01	1	1505-1506	●		●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1507-	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98078-071-1	01	1	1505-1506	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98078-071-1	01	1	1505-1506	●		●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1507-	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98093-465-1	01	1	1505-1506	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98093-465-1	01	1	1505-1506	●		●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	1507-	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98227-633-1	01	1	1505-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98227-633-1	01	1	1505-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98227-633-1	01	1	1505-		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98227-634-0	01	1	1505-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98227-634-0	01	1	1505-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98227-634-0	01	1	1505-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (A)	8-98030-725-1	01	1	1505-	●	●	●
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506	●	●	●
267	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1505-1506	●		●
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1507-	●	●	●
267	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●		●
267	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●		●
267	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-		●
290	02.483 NUT; BRKT EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
290	02.483 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1505-1506	●		●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1505-1506	●		●
290	02.483 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1505-1506	●		●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1505-1506	●		●
290	02.483 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1505-1506		●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1505-1506		●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1507-	●	●	●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1507-	●		●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1507-	●		●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1507-		●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1505-	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	1505-			●

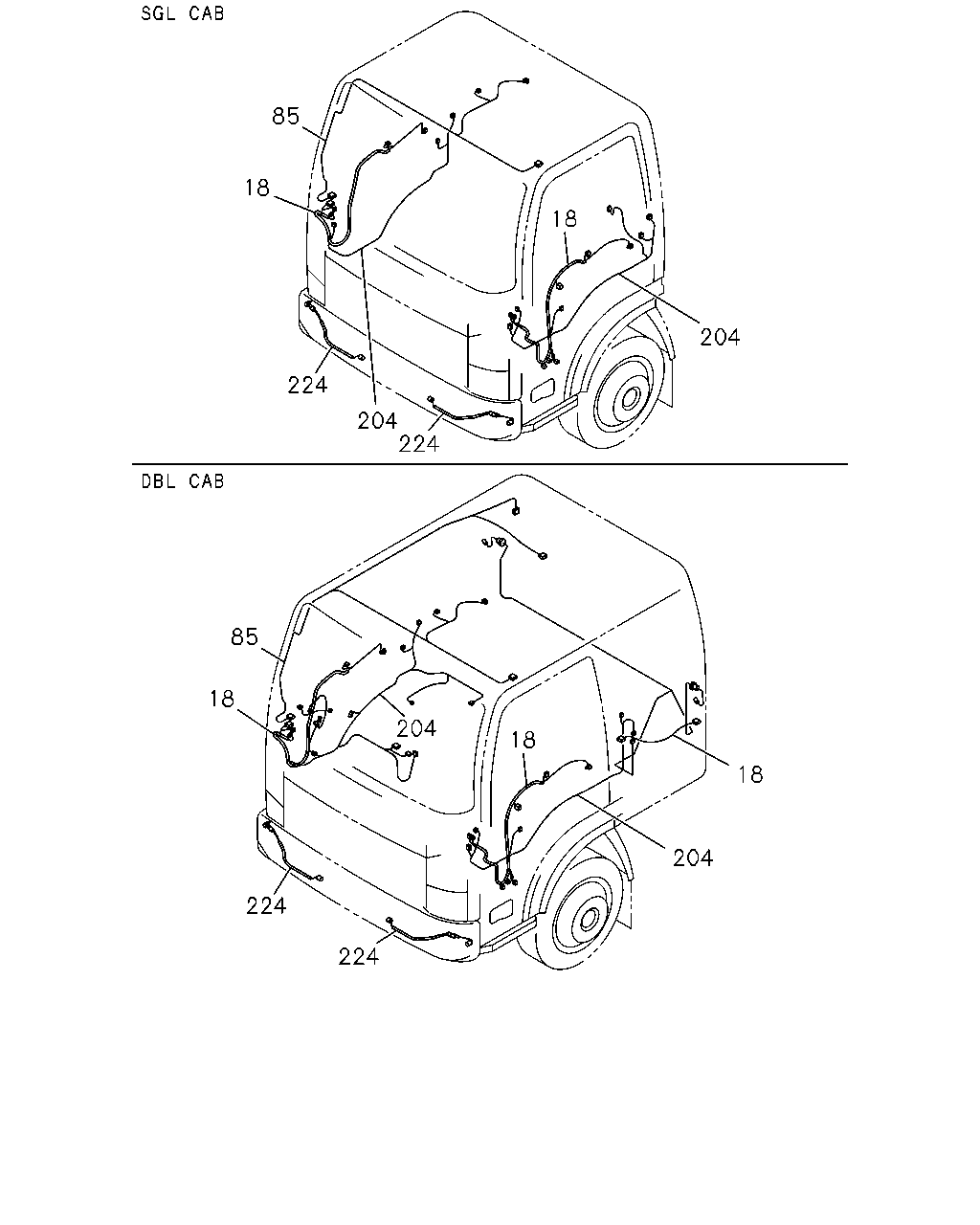

85 18 224 224 204 18 204 85 18 204 18 204 18 224 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT	8-98071-082-3	01	1	1505-	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT	8-98286-580-0	01	1	1505-	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT	8-98071-080-3	01	1	1505-	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT	8-98286-577-0	01	1	1505-	●		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32> FRONT	8-98071-081-3	01	1	1505-	●		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32> FRONT	8-98286-579-0	01	1	1505-	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HE ATED<7SV> FRONT	8-98071-079-2	01	1	1505-	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HE ATED<7SV> FRONT	8-98286-576-0	01	1	1505-	●		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT	8-98286-575-2	01	1	1505-		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT	8-98286-581-0	01	1	1505-		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT	8-98286-574-2	01	1	1505-		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT	8-98286-578-0	01	1	1505-		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98202-555-0	02	1	1505-			●
85	06.495 HARNESS; ROOM LAMP	8-98072-201-2	01	1	1505-	●
85	06.495 HARNESS; ROOM LAMP	8-98298-956-1	01	1	1505-		●
85	06.495 HARNESS; ROOM LAMP	8-98072-203-1	01	1	1505-			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98206-506-1	01	1	1505-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS)	8-98207-335-1	01	1	1505-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF)	8-98287-847-0	01	1	1505-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF)	8-98287-846-0	01	1	1505-	●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1505-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98206-505-1	01	1	1505-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-499-1	01	1	1505-			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS)	8-98207-501-1	01	1	1505-			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98287-848-0	01	1	1505-			●
204	02.559 HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-073-3	01	1	1505-			●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31>	8-98071-072-3	01	1	1505-			●
224	02.480 HARNESS; EXT,HEADLAMP	8-98225-330-2	02	1	1505-	●	●	●

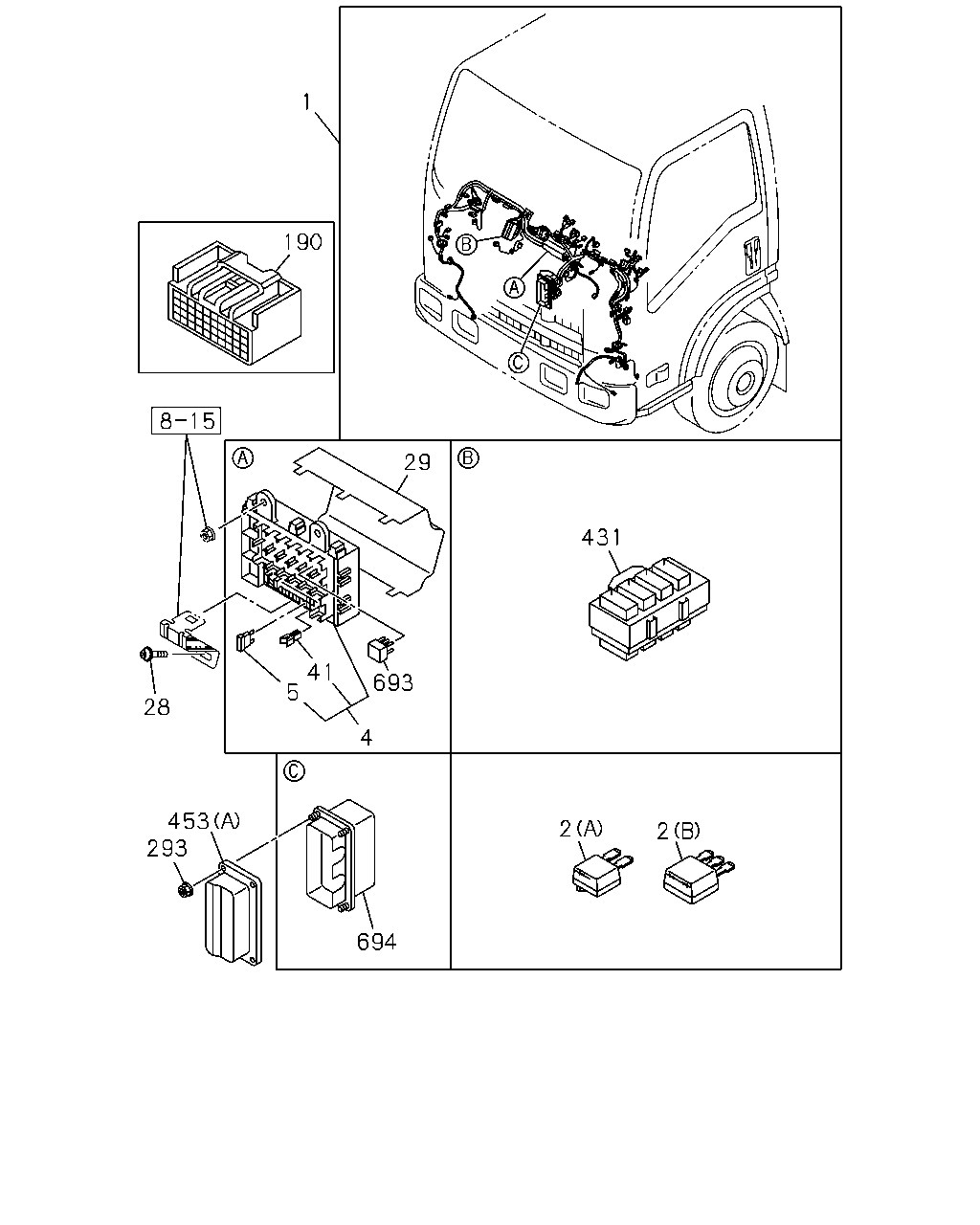

1 190 5 41 28 4 693 453 293 694 2 2 431 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98287-891-3	01	1	1505-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS)	8-98287-924-4	01	1	1505-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-895-3	01	1	1505-	●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-895-3	01	1	1505-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-927-4	01	1	1505-	●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-927-4	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98287-893-3	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS)	8-98287-926-4	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-896-3	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98287-928-4	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98287-892-3	01	1	1505-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS)	8-98287-925-4	01	1	1505-			●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1505-	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1505-	●	●	●

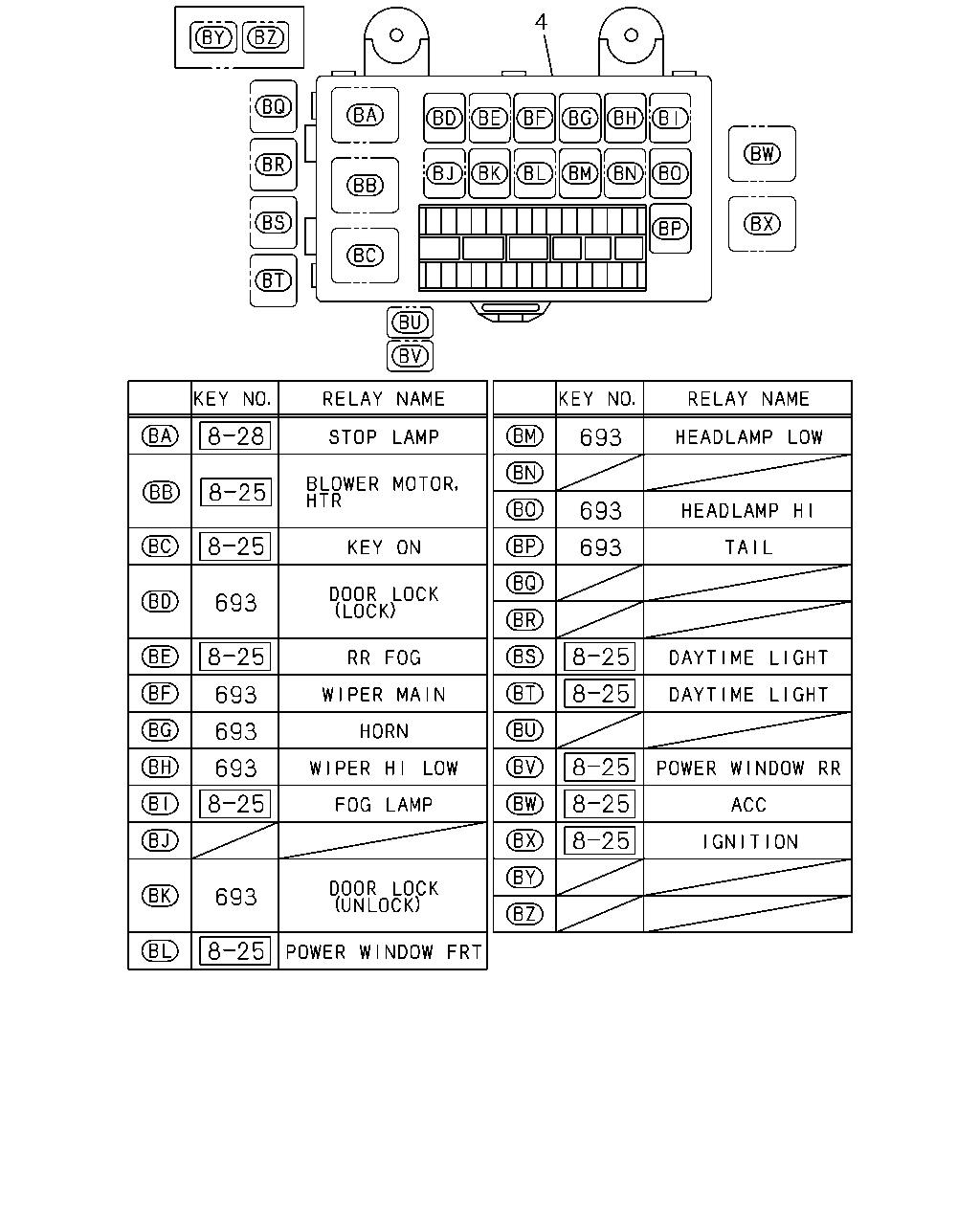

4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1505-	●	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1505-	●	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1505-	●	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1505-	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1505-	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1505-	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1505-	●	●	●
190	02.559 CONNECTOR; SHORT CIRCUIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98302-775-0	01	1	1505-	●
190	02.559 CONNECTOR; SHORT CIRCUIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98302-775-0	01	1	1505-	●
190	02.559 CONNECTOR; SHORT CIRCUIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98302-775-0	01	1	1505-			●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1505-	●	●	●
431	02.530 CONNECTOR; JOINT	8-98046-205-0	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	03	1	1505-	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	03	1	1505-	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-98114-566-1	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	02	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	02	1	1505-	●		●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	01	1	1505-	●		●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-94452-553-0	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (F)	8-94452-553-0	01	1	1505-	●		●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1505-	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1505-	●	●	●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98057-772-0	01	1	1505-	●	●	●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS)	8-98190-772-0	01	1	1505-	●	●	●

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1505-	●	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1505-	●	●	●

453 453 453 453 174 94 27 35 453 387 8 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-901-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-901-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-901-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-902-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-902-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-902-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-903-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-903-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-903-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-904-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-904-1	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-904-1	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-587-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-587-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-587-0	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-589-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98297-589-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98297-589-0	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-907-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-907-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-908-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98297-908-1	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-588-0	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-588-0	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98297-590-0	01	1	1505-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98297-590-0	01	1	1505-			●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1505-	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1505-	●	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1505-	●	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1505-	●	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1505-	●	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1505-	●	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1505-	●	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1505-	●	●	●
387	02.483 COVER; RELAY BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-367-0	01	1	1505-1506	●	●	●
387	02.483 COVER; RELAY BOX FRT INDEPENDENT SUSPENSION(FF0)	8-98081-367-0	01	1	1505-1506	●		●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1507-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	03	1	1505-	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	03	1	1505-	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-98114-566-1	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	02	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	02	1	1505-	●		●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-94417-716-0	01	1	1505-	●		●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-94452-553-0	01	1	1505-	●	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (F)	8-94452-553-0	01	1	1505-	●		●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1505-	●	●	●

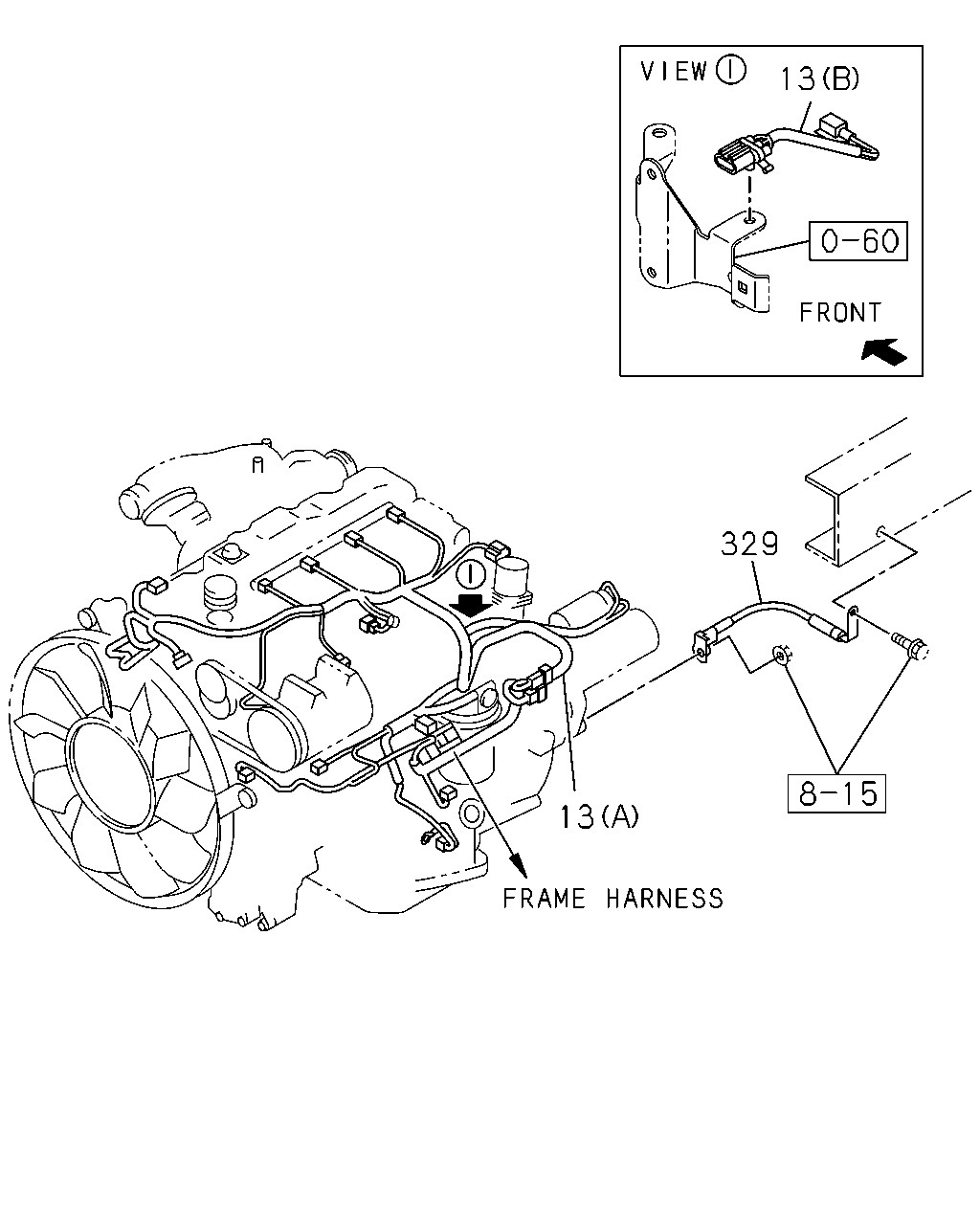

13 329 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98209-538-2	01	1	1505-	●	●	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (A)	8-98249-767-0	01	1	1505-	●	●	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (B)	8-98249-769-0	01	1	1505-	●	●	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98227-630-1	01	1	1505-	●	●	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5)	8-98227-630-1	01	1	1505-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
