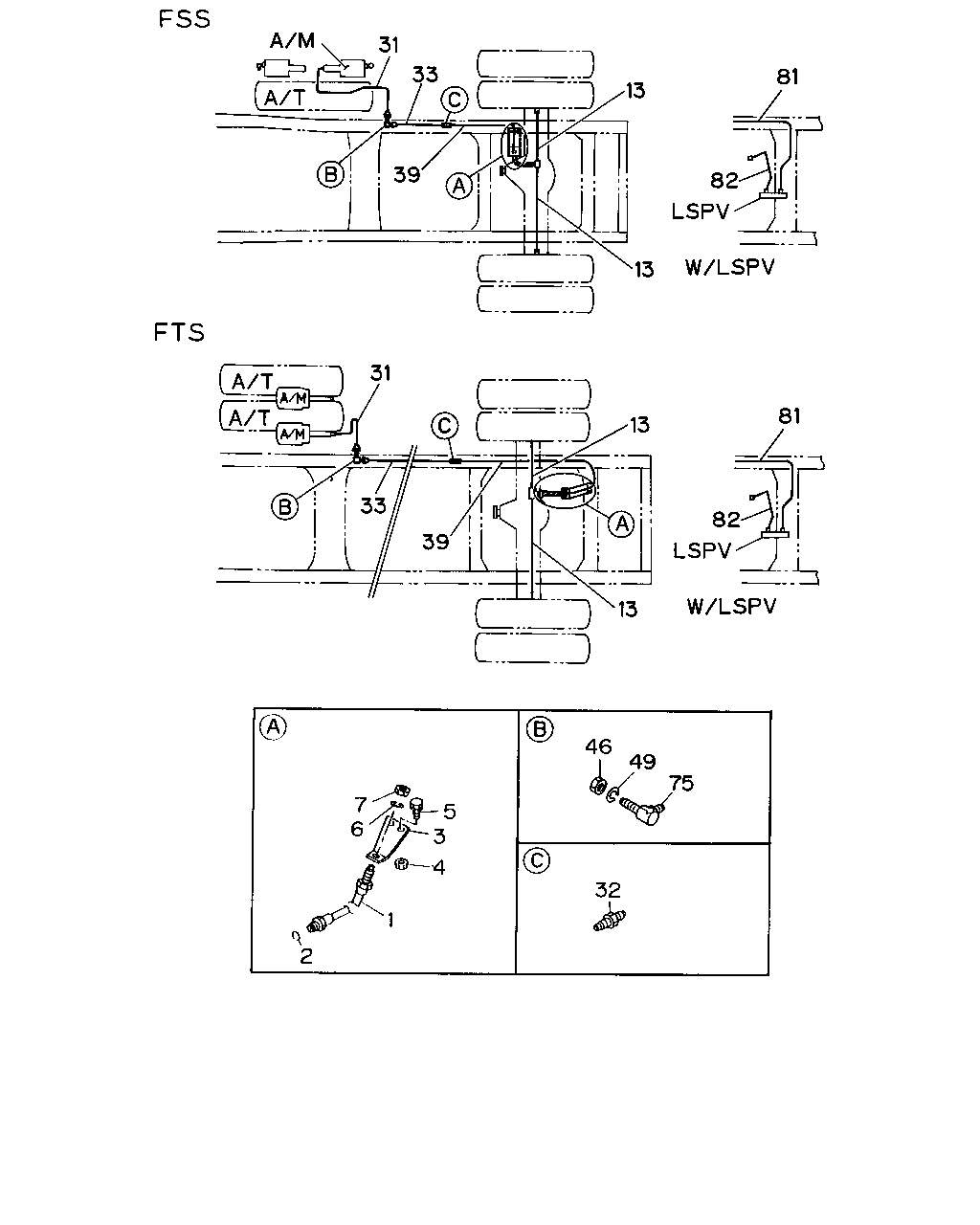

3-55 — BRAKE PIPING; OIL,REAR (#1610) — 54 parça

31 33 39 13 81 82 13 31 33 39 13 13 82 81 46 49 75 32 5 3 4 1 2 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HOSE; FLEX,RR BRK EXC. REAR WHEEL PARKING(B3A) L=625	1-09364-199-0	01	1	9207-	●	●
1	HOSE; FLEX,RR BRK REAR WHEEL PARKING(B3A) L=660	1-09364-482-0	01	1	9207-		●
1	HOSE; FLEX,RR BRK L=825	1-09364-603-0	01	1	9207-			●	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9207-	●		●	●	●
2	GASKET; FLEX HOSE,RR BRK EXC. REAR WHEEL PARKING(B3A) ID=9 OD=17	9-09920-472-0	01	1	9207-		●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	9207-	●	●	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9207-	●	●	●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28080-825-0	02	1	9207-9208	●	●	●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28080-820-0	02	1	9209-	●	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9207-9312	●	●	●	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9207-	●	●	●	●	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 14.5" HYPOID(WIH) BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47423-260-0	01	1	9207-	●	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 14.5" HYPOID(WIH) BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47423-259-0	01	1	9207-	●	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 14.5" HYPOID(WIH) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47417-779-0	01	1	9207-	●	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 14.5" HYPOID(WIH) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47417-778-0	01	1	9207-	●	●
13	PIPE; BRK,RR AXLE FINAL GEAR 41/8 14.5" HYPOID(W4F) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47418-572-0	01	1	9207-		●
13	PIPE; BRK,RR AXLE FINAL GEAR 41/8 14.5" HYPOID(W4F) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-47418-571-0	01	1	9207-		●
13	PIPE; BRK,RR AXLE FINAL GEAR 41/8 14.5" HYPOID(W4F) REAR WHEEL PARKING(B3A)	1-47423-327-0	01	1	9207-		●
13	PIPE; BRK,RR AXLE FINAL GEAR 41/8 14.5" HYPOID(W4F) REAR WHEEL PARKING(B3A)	1-47423-326-0	01	1	9207-		●
13	PIPE; BRK,RR AXLE EXC. REAR SHOCK ABSORBER<GL6>,REARWARD INNER SINGLE TIRE<YK3>	1-47421-310-0	01	1	9207-			●	●	●
13	PIPE; BRK,RR AXLE EXC. REAR SHOCK ABSORBER<GL6>,REARWARD INNER SINGLE TIRE<YK3>	1-47421-131-0	01	1	9207-			●	●	●
13	PIPE; BRK,RR AXLE REAR SHOCK ABSORBER<GL6> EXC. REAR WHEEL PARKING(B3A),REARWARD INNER SINGLE TIRE<YK3>	1-47421-639-0	01	1	9207-				●
13	PIPE; BRK,RR AXLE REAR SHOCK ABSORBER<GL6> EXC. REAR WHEEL PARKING(B3A),REARWARD INNER SINGLE TIRE<YK3>	1-47421-638-0	01	1	9207-				●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING(B3A) REAR SHOCK ABSORBER<GL6> REARWARD INNER SINGLE TIRE<YK3>	1-47421-493-0	01	1	9207-				●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING(B3A) REAR SHOCK ABSORBER<GL6> REARWARD INNER SINGLE TIRE<YK3>	1-47421-492-0	01	1	9207-				●
31	PIPE; OIL,AIR MASTER TO UNION L=1122 SERVICED BY L=1200	1-47434-388-0	01	1	9207-	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=613 SERVICED BY L=650	9-47415-353-0	01	1	9207-			●	●	●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	9207-	●		●	●	●
32	UNION; OIL PIPE WHEEL BASE 3800MM(38W) M12 L=40	9-09223-006-1	01	1	9207-		●
33	PIPE; OIL,UNION TO UNION L=492 SERVICED BY L=500	9-47415-350-0	01	1	9207-9310	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3800MM(38W) L=492 SERVICED BY L=500	9-47415-350-0	01	1	9207-9310		●
33	PIPE; OIL,UNION TO UNION L=497 SERVICED BY L=500	9-47415-350-0	01	1	9311-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3800MM(38W) L=497 SERVICED BY L=500	9-47415-350-0	01	1	9311-		●
33	PIPE; OIL,UNION TO UNION L=942 SERVICED BY L=1100	1-47434-387-0	01	1	9207-9303			●
33	PIPE; OIL,UNION TO UNION L=734 SERVICED BY L=800	1-47426-348-0	01	1	9304-			●
33	PIPE; OIL,UNION TO UNION L=1534 SERVICED BY L=1700	1-47434-393-0	01	1	9207-9303				●	●
33	PIPE; OIL,UNION TO UNION L=1343 SERVICED BY L=1370	1-47426-354-0	01	1	9304-				●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2100 SERVICED BY L=2200	1-47434-396-0	01	1	9207-9303	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2062 SERVICED BY L=2200	1-47426-360-0	01	1	9304-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W) EXC. LSPV(JR7) L=2790 SERVICED BY L=2900	1-47434-400-0	01	1	9207-9303		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W) EXC. LSPV(JR7) L=2796 SERVICED BY L=2900	1-47426-364-0	01	1	9304-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3800MM(38W) L=2550 SERVICED BY L=2650	1-47434-399-0	01	1	9207-9303		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3800MM(38W) L=2512 SERVICED BY L=2650	1-47426-363-0	01	1	9304-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LSPV(JR7) L=1981 SERVICED BY L=2200	1-47434-396-0	01	1	9207-9303			●	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LSPV(JR7) L=2125 SERVICED BY L=2200	1-47426-360-0	01	1	9304-			●	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9207-	●	●	●	●	●
49	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9207-9312	●	●	●	●	●
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	9207-	●	●	●	●	●
81	PIPE; OIL,UNION TO LSPV LSPV(JR7) WHEEL BASE 3600MM(36W) L=2870 SERVICED BY L=2900	1-47434-400-0	01	1	9207-9303		●
81	PIPE; OIL,UNION TO LSPV LSPV(JR7) WHEEL BASE 3600MM(36W) L=2875 SERVICED BY L=2900	1-47426-364-0	01	1	9304-		●
81	PIPE; OIL,UNION TO LSPV LSPV(JR7) L=2031 SERVICED BY L=2200	1-47434-396-0	01	1	9207-9303				●	●
81	PIPE; OIL,UNION TO LSPV LSPV(JR7) L=2173 SERVICED BY L=2200	1-47426-360-0	01	1	9304-				●	●
82	PIPE; OIL,LSPV TO FLEX HOSE LSPV(JR7) WHEEL BASE 3600MM(36W) L=269 SERVICED BY L=350	9-47415-348-0	01	1	9207-		●
82	PIPE; OIL,LSPV TO FLEX HOSE LSPV(JR7) L=316 SERVICED BY L=350	1-47426-341-0	01	1	9207-			●	●	●
