◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#16096) — 22 parça

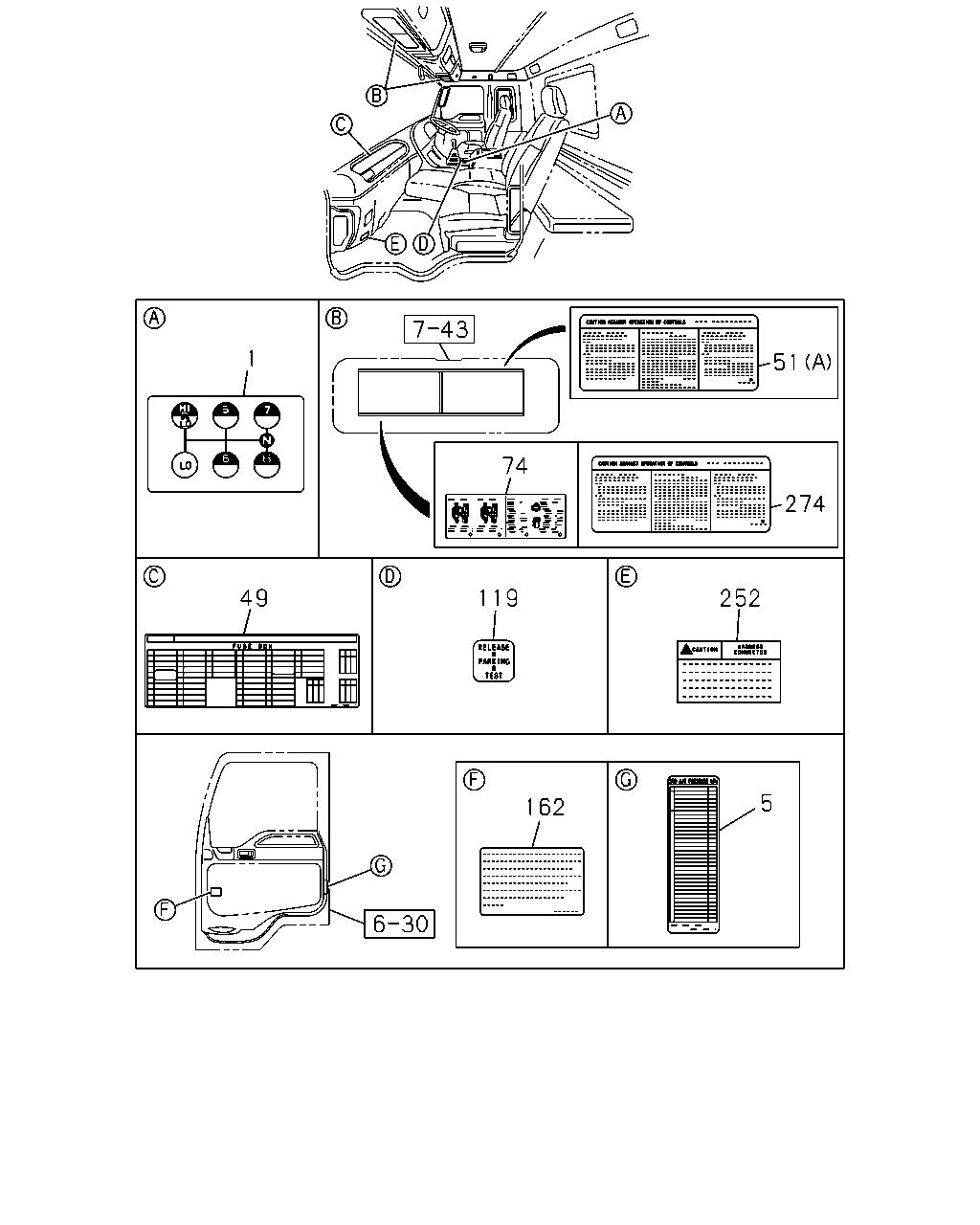

çizim 61984
1 51 74 274 49 119 252 5 162
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 0904-
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0904-
49 PLATE; CAUTION,FUSE BOX 8-97632-148-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0904-
74 PLATE; CAUTION,CHANGE LEV 1-85881-786-0 01 1 0904-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0904-
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 0910-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0904-
274 PLATE; CAUTION,DPD
CATALYSIS CONTROL WITH DPD<8JM> 		8-97616-473-0 01 1 1006-

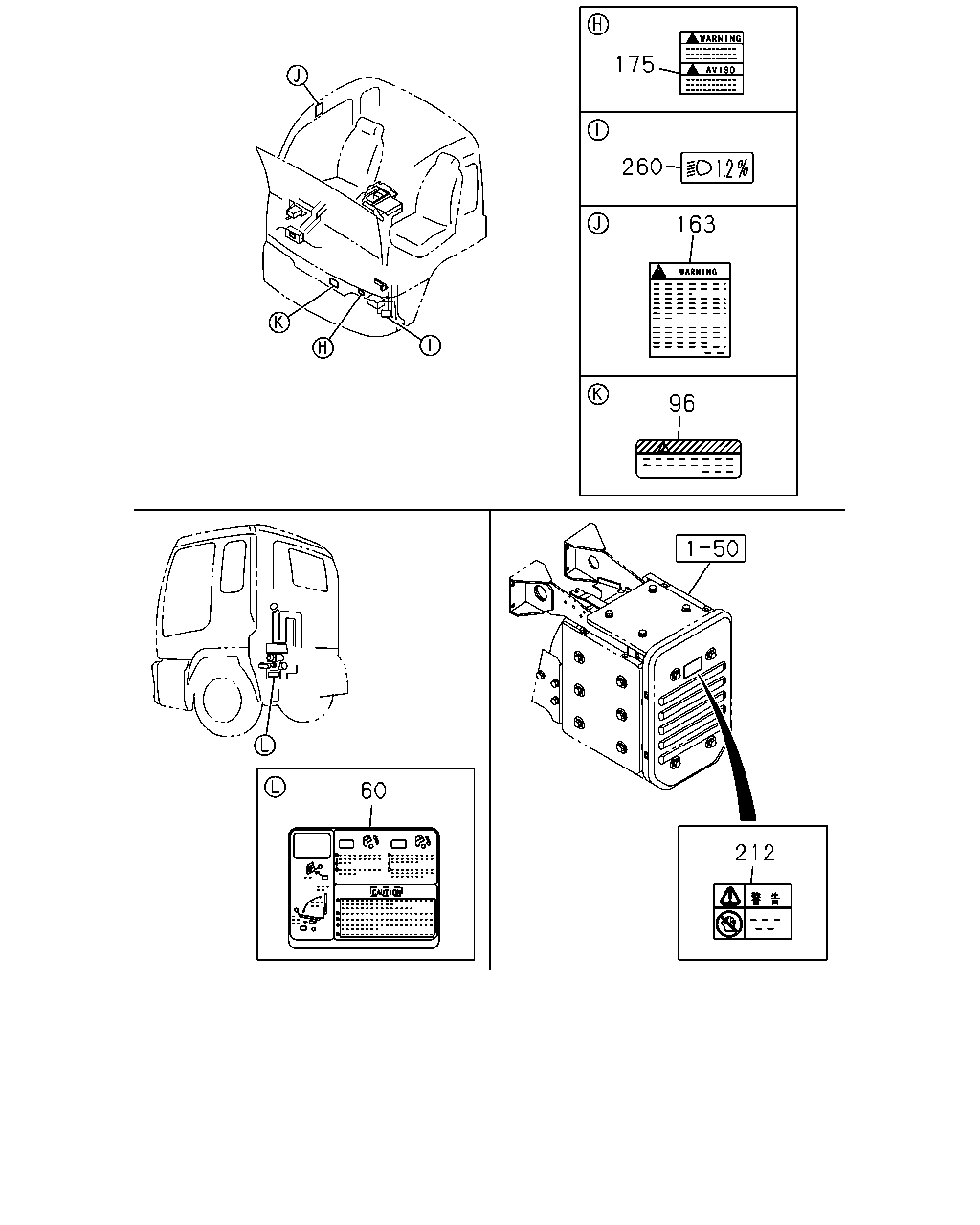

çizim 102247
175 260 163 96 60 212
BalonParca AdiParca NoAdetTipApplied Date
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0904-
96 PLATE; CAUTION,ENGINE OIL
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98036-732-0 01 1 1006-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0904-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0904-
212 LABEL; SAFETY
EMISSION REGULATION NEW LONG TERM<JBG> 		1-85878-571-0 01 1 1006-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0904-

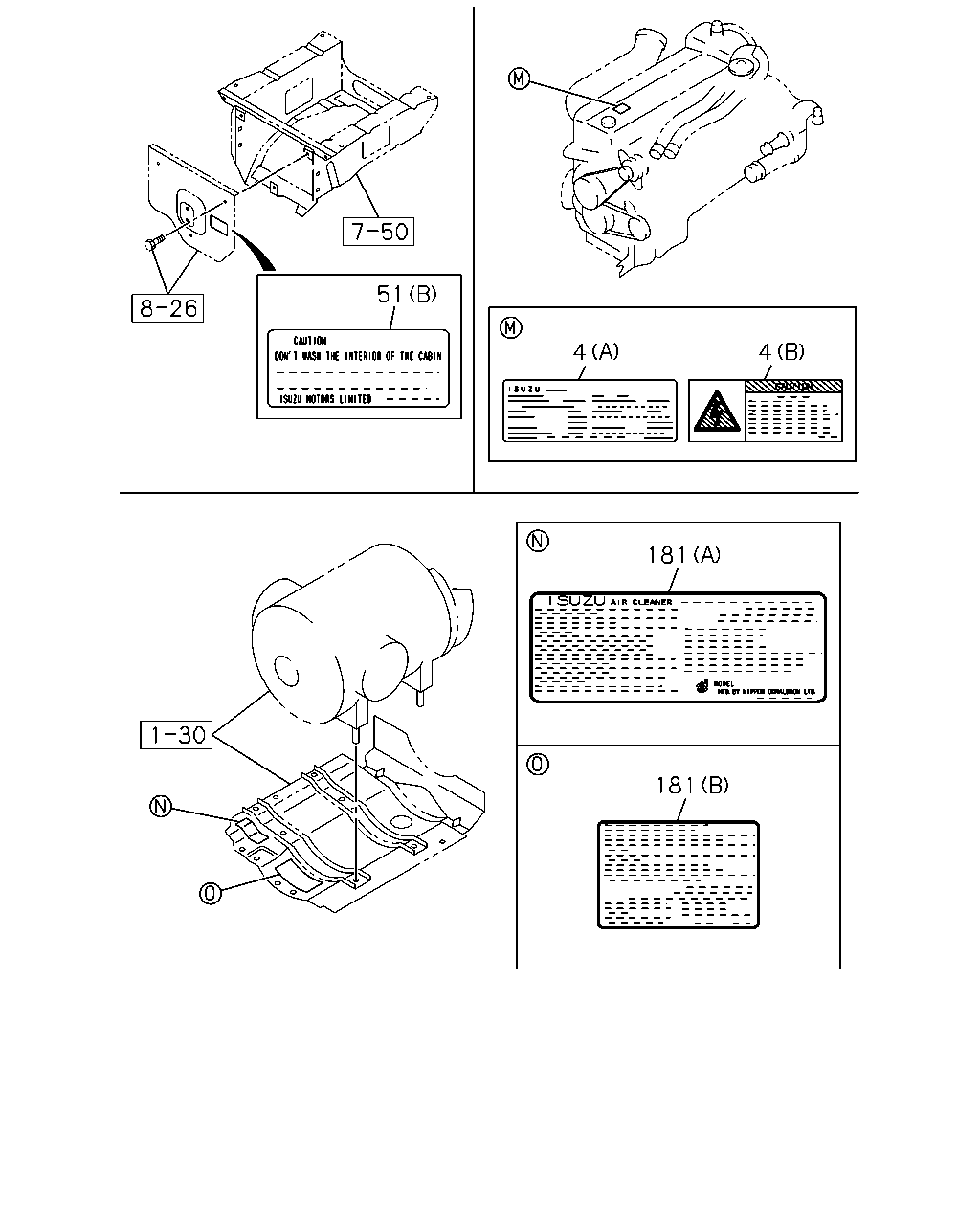

çizim 102248
51 4 4 181 181
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0904-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0904-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0904-
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0904-
